Model Whirlpool ACM072XJ0 AIR CONDITIONER – Common Parts & Diagrams

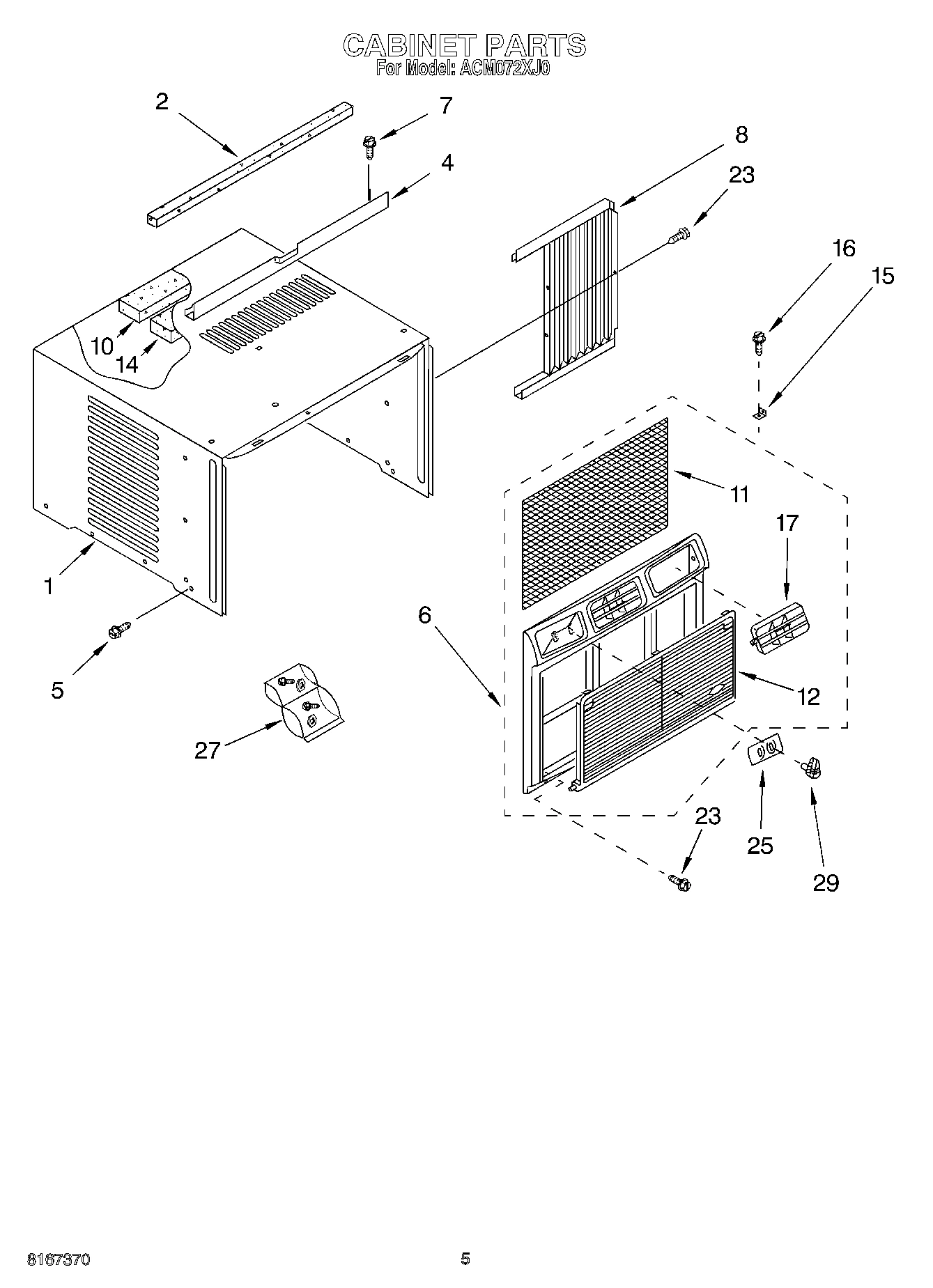

03 - CABINET

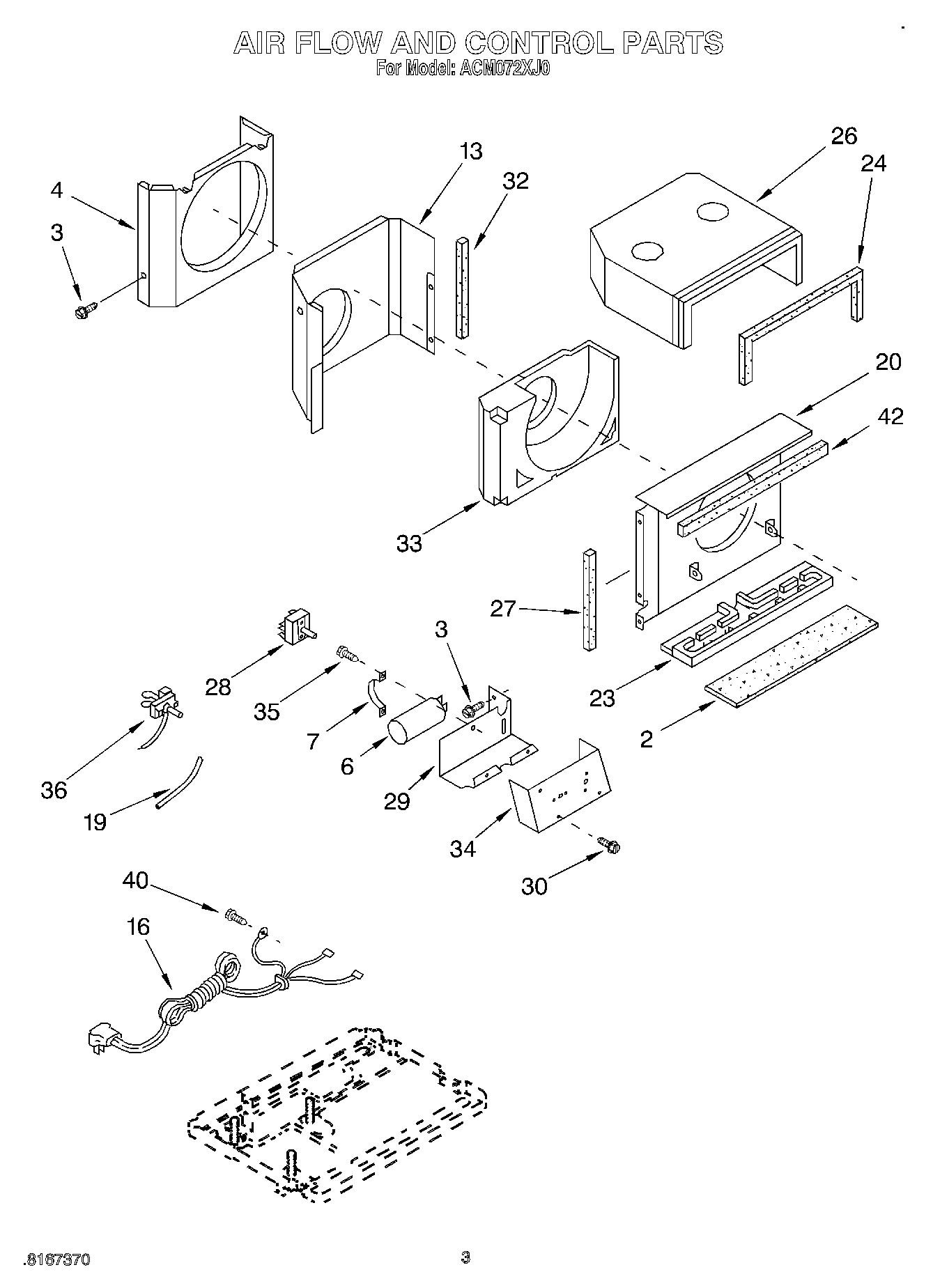

02 - AIRFLOW AND CONTROL

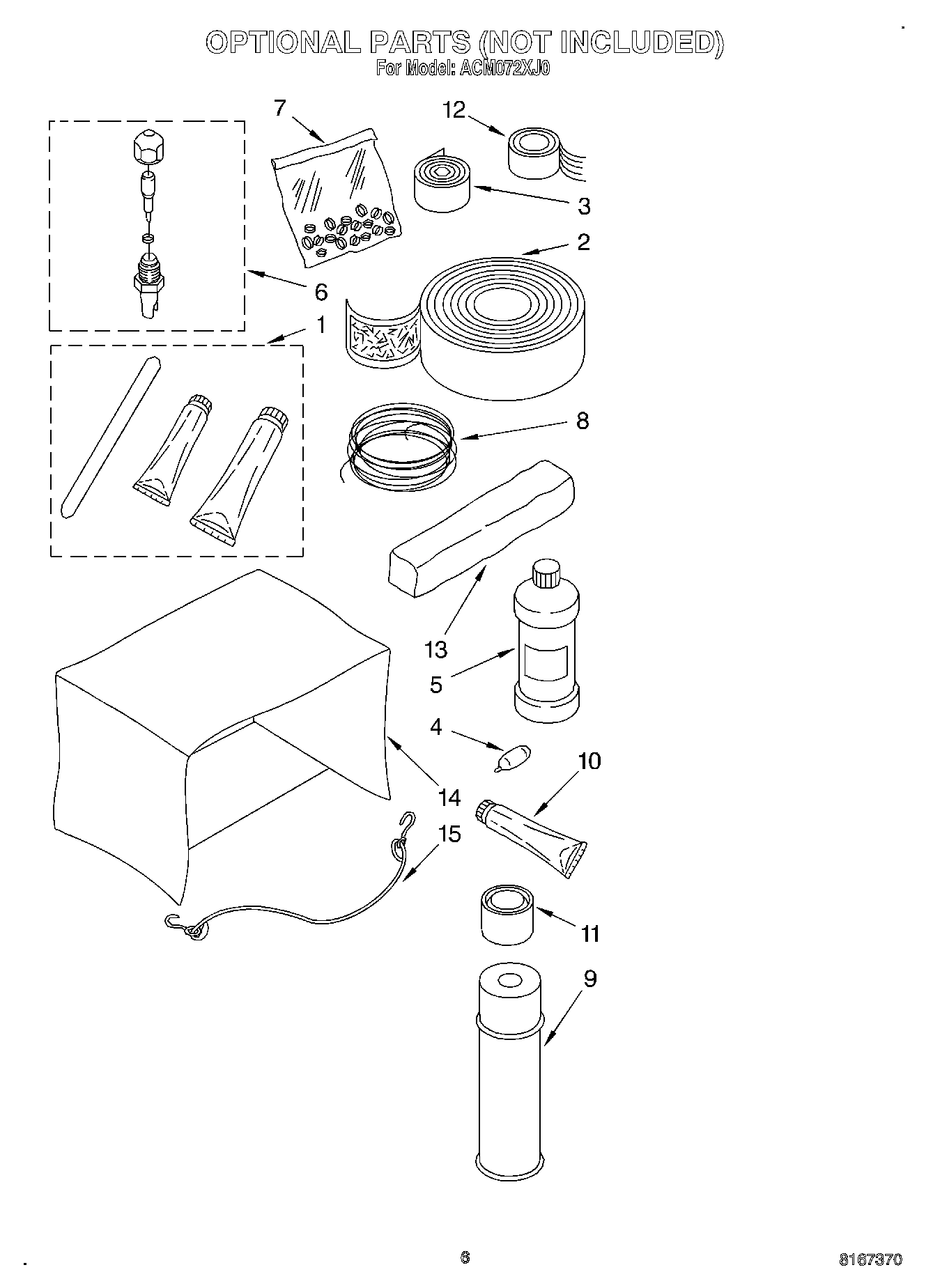

04 - OPTIONAL
01 - UNIT, LITERATURE
Common parts from model Whirlpool ACM072XJ0 AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT8011132 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT8031275 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
3
Bend, Return Evaporator (3) Condenser (6) WPL 8031222 Contact Us For Availability
4
Shroud, Condenser WPL 8011266 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet WPL 8011397 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Capacitor, Running WPL 1162595 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 8011258 Contact Us For Availability
7
Bracket, Capacitor WPL 1167611 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Motor, Fan WPL 8011334 Contact Us For Availability
11
Filter WPL 8011314 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Tube, Discharge WPL 8011445 Contact Us For Availability
13
Wall, Dividing WPL 8011422 Contact Us For Availability
13
Evaporator WPL 1182849 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Return Bend, Evaporator (1) Condenser (14) WPL 8031223 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
16
Cord, Appliance WPL 8011105 Contact Us For Availability
16
Anticipator WPL 996773 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Base WPL 8011187 Contact Us For Availability
19
Sleeve, Insulating WPL 8011238 Contact Us For Availability
20
Shroud, Evaporator WPL 8011265 Contact Us For Availability
20
Return Bend, Evaporator (1) WPL 8031224 Contact Us For Availability
21
Condenser WPL 8011243 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Pan, Evaporator WPL 8011133 Contact Us For Availability
23
Gasket, Nut WPL 950037 Contact Us For Availability
24
Seal Hood, Front WPL 1181735 Contact Us For Availability
24
Clip, Compressor WPL 8011446 Contact Us For Availability
26
Hood, Air Housing WPL 8011401 Contact Us For Availability
26
Return Bend, Three Way Evaporator (2) WPL 8031285 Contact Us For Availability
27
Seal, Left Side WPL 8011399 Contact Us For Availability
27
Tube, Suction WPL 8011429 Contact Us For Availability
28
Switch, Rotary WPL 8031150 Contact Us For Availability
29
Box, Control WPL 8011188 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 8011208 Contact Us For Availability
33
Housing, Air WPL 8011400 Contact Us For Availability
34
Panel, Control WPL 8031113 Contact Us For Availability
36
Control, Temp. WPL 8031115 Contact Us For Availability
39
Compressor Assembly WPL 1157026 Contact Us For Availability
40
Screw WPL 1159222 Contact Us For Availability
40
Wheel, Blower WPL 8011324 Contact Us For Availability
42
Seal WPL 1158515 Contact Us For Availability
× ![]()
