Model Whirlpool ACM062XE0 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET
05 - INSTALLATION

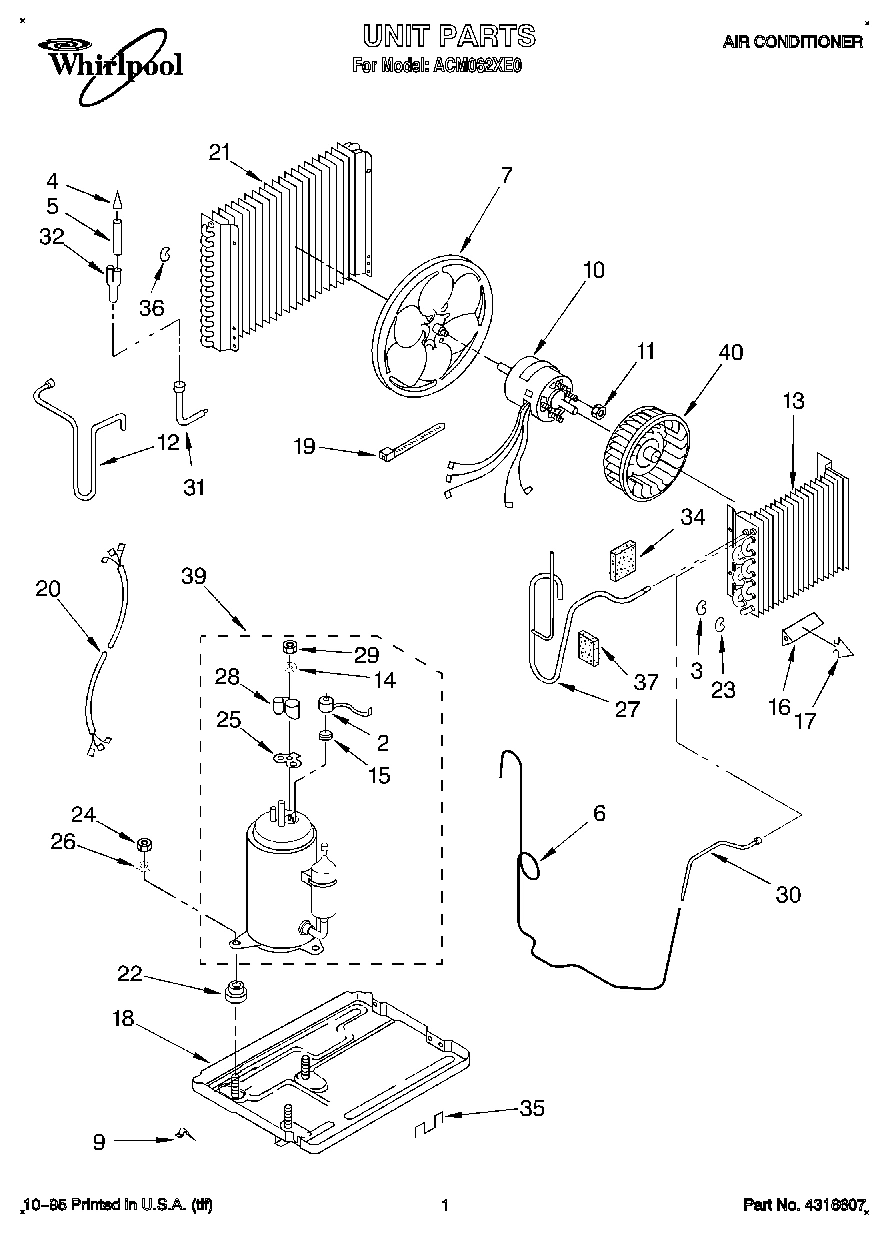

01 - UNIT, LITERATURE

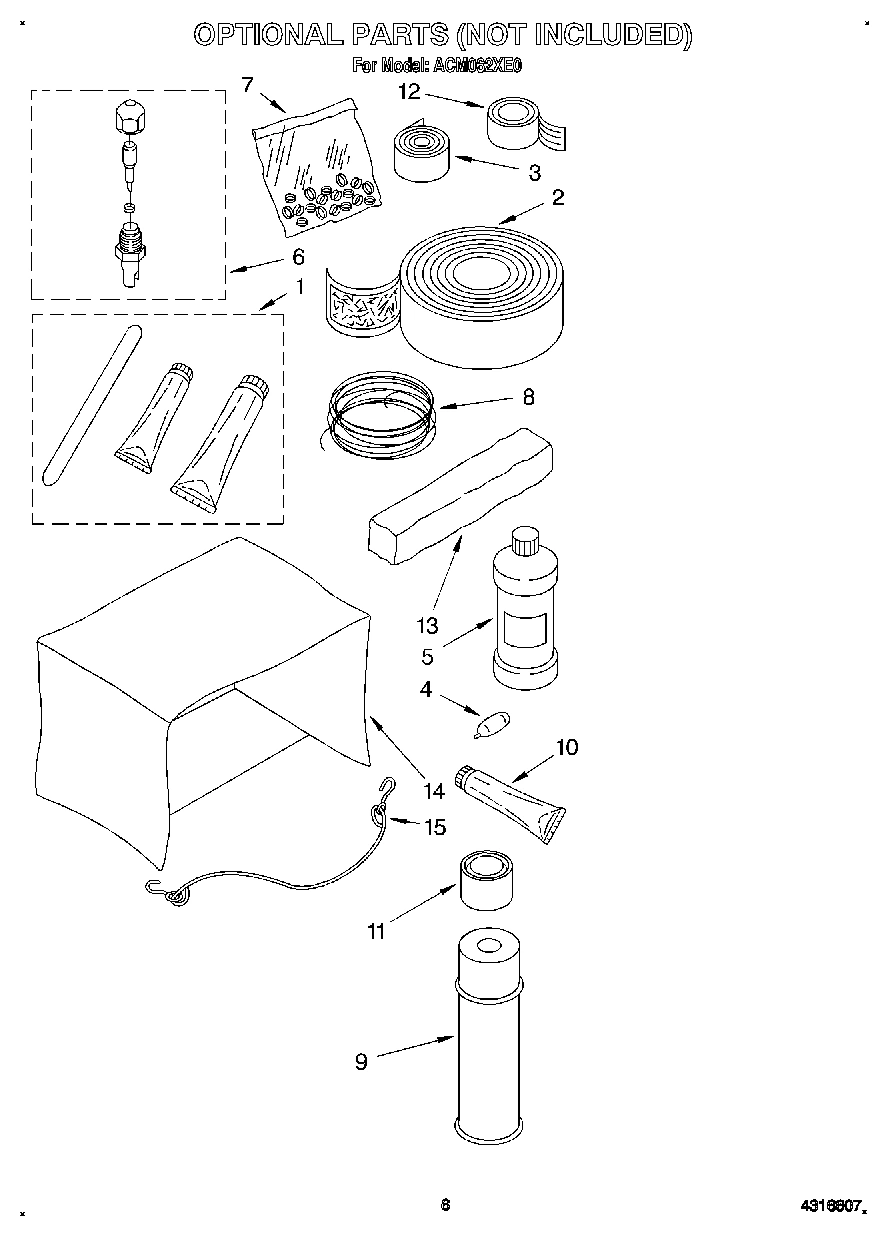

04 - OPTIONAL

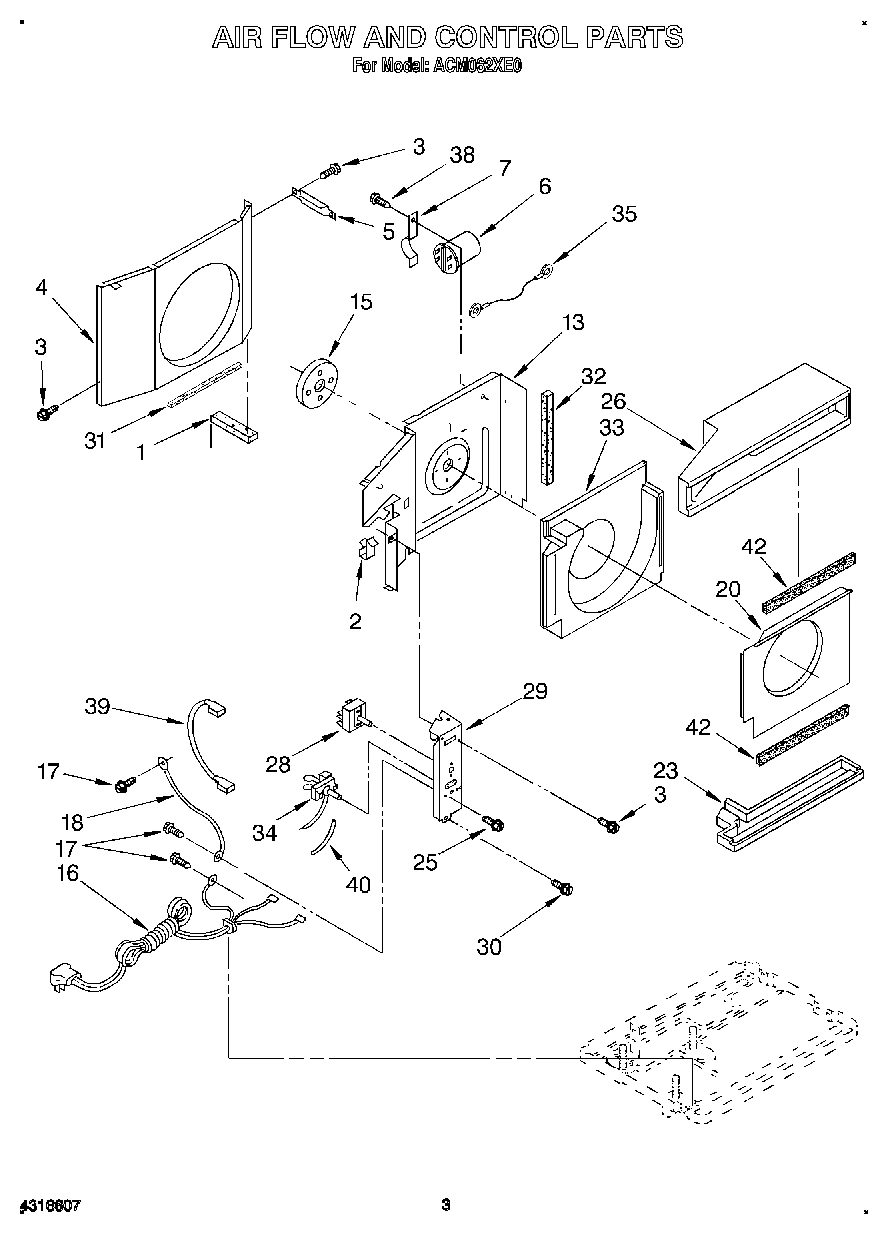

02 - AIR FLOW AND CONTROL
Common parts from model Whirlpool ACM062XE0 AIR CONDITIONER
Instructions, Installation (Standard Mounting WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
Instructions, Installation WPL LIT1158928 Contact Us For Availability
Wiring Diagram WPL LIT1165234 Contact Us For Availability
Tech Sheet WPL LIT1165238 Contact Us For Availability
Guide, Use And Care WPL LIT1167499 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Clamp, Wiring WPL 852451 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return (6) WPL 855199 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Shroud, Condenser WPL 1157908 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950855 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Tube, Restrictor WPL 1164667 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Capacitor, Running WPL 1162595 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 487541 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Bracket, Capacitor WPL 1167611 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Clamp, Tube WPL 855930 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Kit, Standard Window Installation WPL 994818 Contact Us For Availability
10
Motor, Fan WPL 1166119 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Screw, Wood WPL 47435 Contact Us For Availability
12
Tube, Discharge WPL 1158307 Contact Us For Availability
13
Evaporator WPL 1164540 Contact Us For Availability
13
Wall, Dividing WPL 1158451 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Gasket WPL 950037 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Angle, Side (2) WPL 646988 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Insulation, Motor WPL 1158469 Contact Us For Availability
16
Seal, Strip WPL 855265 Contact Us For Availability
16
Anticipator WPL 996773 Contact Us For Availability
16
Cord, Appliance WPL 1164674 Contact Us For Availability
17
Screw, ST 8-32 x 3/8 WPL 1159222 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Board, Filler WPL 876826 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
19
Seal, Meeting Rail WPL 855841 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Shroud, Evaporator WPL 1164655 Contact Us For Availability
21
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
21
Condenser WPL 1162800 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Pan, Evaporator WPL 1164671 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
25
Seal WPL 1159283 Contact Us For Availability
25
Screw No.6 x 32 WPL 488734 Contact Us For Availability
26
Hood, Air Housing WPL 1164670 Contact Us For Availability
27
Filter WPL 1162158 Contact Us For Availability
27
Tube, Suction WPL 1166117 Contact Us For Availability
28
Clip, Vertical Louver WPL 1158294 Contact Us For Availability
28
Switch, Rotary WPL 1165244 Contact Us For Availability
29
Panel, Control WPL 1159409 Contact Us For Availability
30
Screw, 3/8 (2) WPL 1161561 Contact Us For Availability
30
Bag, Accessory WPL 476180 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 1165066 Contact Us For Availability
31
Tube, Connect WPL 1163715 Contact Us For Availability
32
Screw, Wood WPL 488255 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Housing, Air WPL 1164648 Contact Us For Availability
34
Sealer, Tube WPL 1164551 Contact Us For Availability
34
Control, Temperature WPL 950403 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
35
Wire, Lead WPL 1160302 Contact Us For Availability
36
Bend, Return (11) WPL 708532 Contact Us For Availability
37
Sealer, Tube WPL 1159443 Contact Us For Availability
38
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
39
Compressor Assembly WPL 1156603 Contact Us For Availability
39
Wire, Jumper WPL 1166916 Contact Us For Availability
40
Wheel, Blower WPL 1164650 Contact Us For Availability
40
Sleeve, Insulator Temp. Control WPL 475841 Contact Us For Availability
42
Seal (2) WPL 1164680 Contact Us For Availability
× ![]()
