Model Whirlpool ACM062MM0 AIR CONDITIONER – Common Parts & Diagrams

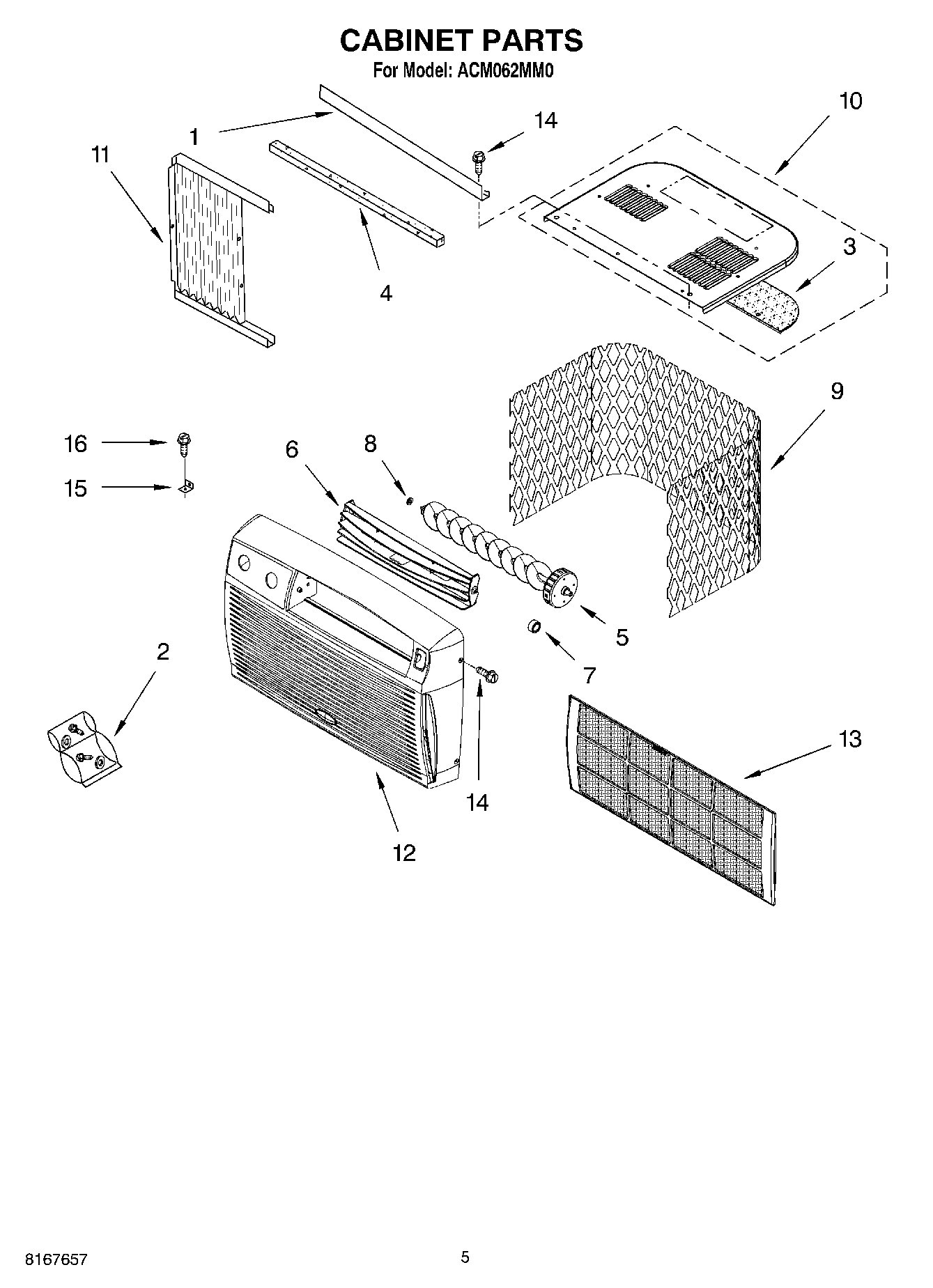

03 - CABINET PARTS

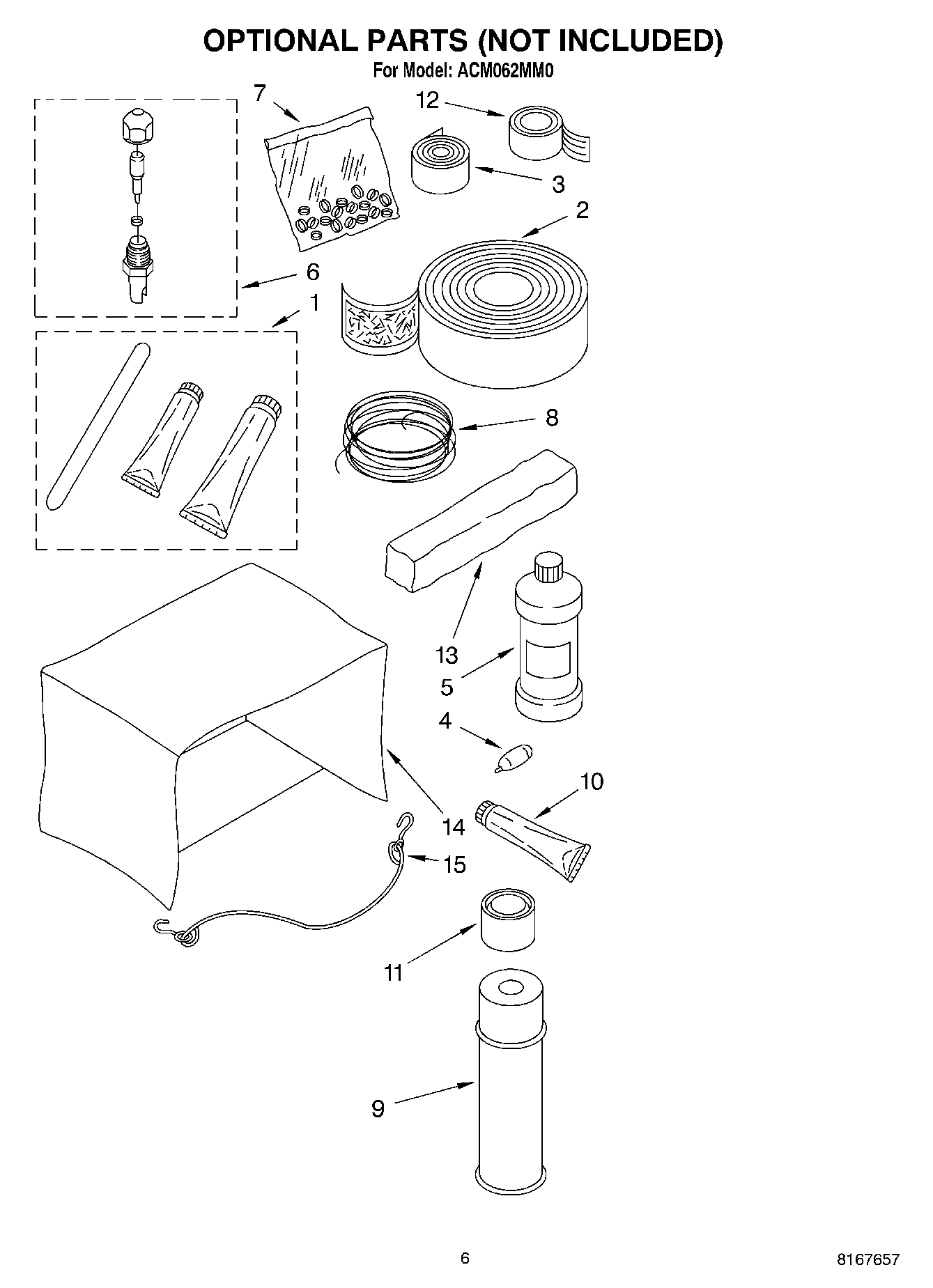

04 - OPTIONAL PARTS (NOT INCLUDED)

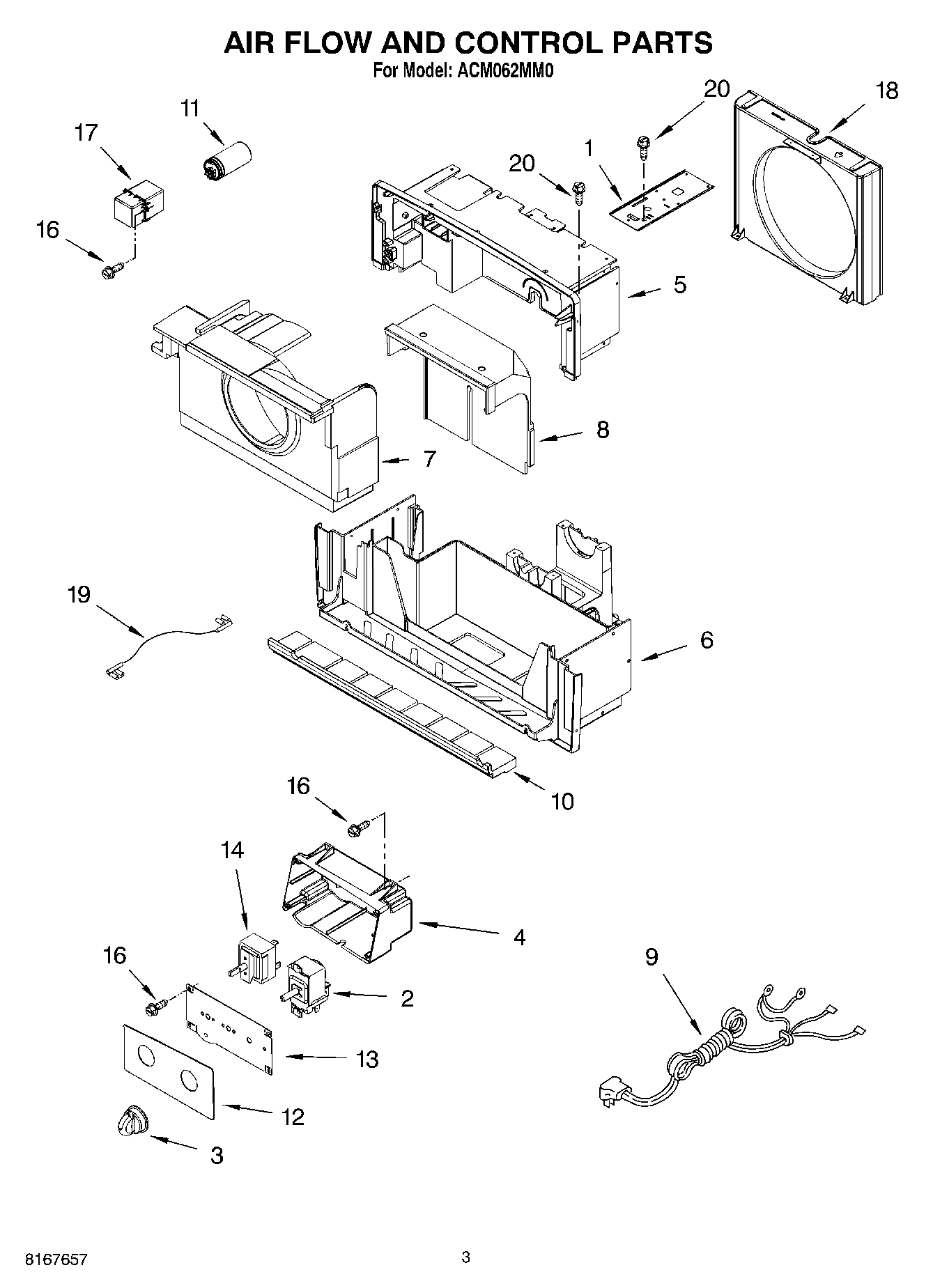

02 - AIR FLOW AND CONTROL PARTS

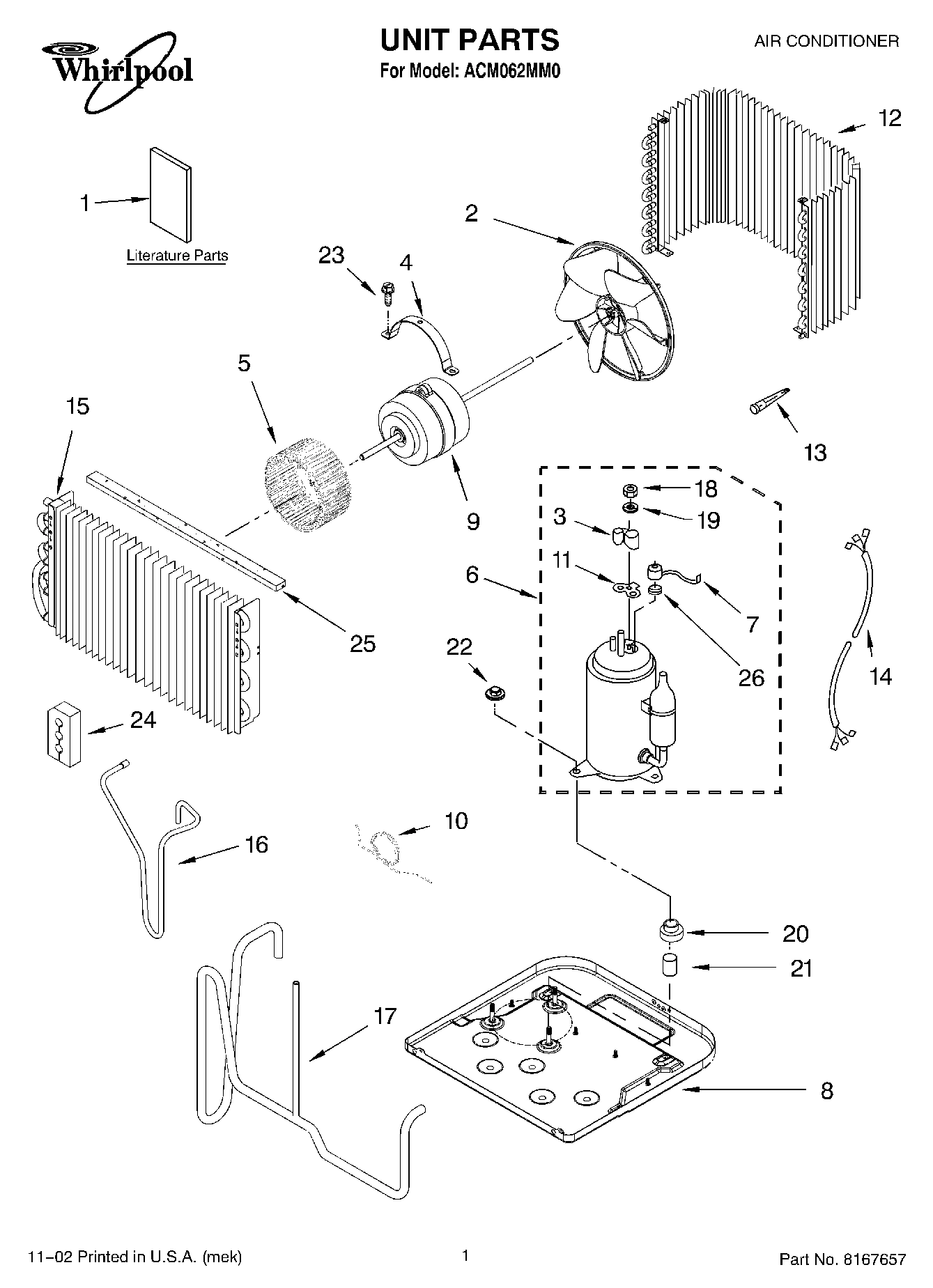

01 - UNIT PARTS
Common parts from model Whirlpool ACM062MM0 AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Support, Unit WPL 8040009 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram Label) WPL LIT4312636 Contact Us For Availability
1
LITERATURE PARTS (Guide, Energy) WPL LIT4312642 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT4312659 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Fan, Condenser WPL 8040030 Contact Us For Availability
2
THERMOSTAT WPL 4312595 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Knob, Rotary WPL 4312599 Contact Us For Availability
3
Cover, Terminal WPL 1185792 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Control Panel, Rear WPL 4312604 Contact Us For Availability
4
Clip, Fan Motor WPL 4312602 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Clamshell, Top WPL 4312610 Contact Us For Availability
5
Wheel, Blower WPL 4312606 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Clamshell, Bottom WPL 4312611 Contact Us For Availability
6
COMPRESSOR WPL 4312609 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Air Housing, Bottom WPL 4312613 Contact Us For Availability
7
OVERLOAD WPL 4312650 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Air Housing, Top WPL 4312614 Contact Us For Availability
8
Base WPL 4312618 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Cord, Power WPL 4312615 Contact Us For Availability
9
Motor, Fan WPL 4312638 Contact Us For Availability
10
Insulation, Drain Pan WPL 4312616 Contact Us For Availability
10
Tube, Capillary WPL 4312653 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Capacitor WPL 4312643 Contact Us For Availability
11
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
12
Overlay WPL 4312635 Contact Us For Availability
12
Condenser WPL 4312633 Contact Us For Availability
13
Panel, Control Front WPL 4312625 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Switch WPL 4312632 Contact Us For Availability
14
Harness, Wiring WPL 4312649 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
EVAPORATOR WPL 4312596 Contact Us For Availability
16
Screw WPL 488255 Contact Us For Availability
16
Condensate, Drain Kit WPL 8171429 Contact Us For Availability
16
Following Parts Not Illustrated and Optional WPL ARI144054A Contact Us For Availability
16
ACCESSORY PARTS WPL ARI144055A Contact Us For Availability
16
Screw WPL 1161561 Contact Us For Availability
16
Tube, Discharge WPL 4312654 Contact Us For Availability
17
Cap, Capacitor WPL 4312644 Contact Us For Availability
17
Tube, Suction WPL 4312655 Contact Us For Availability
18
Shroud, Condenser WPL 4312645 Contact Us For Availability
19
Wire, Jumper WPL 4312646 Contact Us For Availability
19
Washer WPL 1185794 Contact Us For Availability
20
Screw WPL 8040200 Contact Us For Availability
20
Grommet WPL 950212 Contact Us For Availability
21
Sleeve, Compressor Grommet WPL 8040384 Contact Us For Availability
22
Locknut WPL 8040096 Contact Us For Availability
23
Screw WPL 8040199 Contact Us For Availability
24
Insulator, Tube WPL 4312660 Contact Us For Availability
26
Spring, Overload WPL 1185795 Contact Us For Availability
26
REFRIGERANT CHARGE 13.25 oz. WPL ARI144053A Contact Us For Availability
× ![]()
