Model Whirlpool ACM052XW0 AIR CONDITIONER – Common Parts & Diagrams

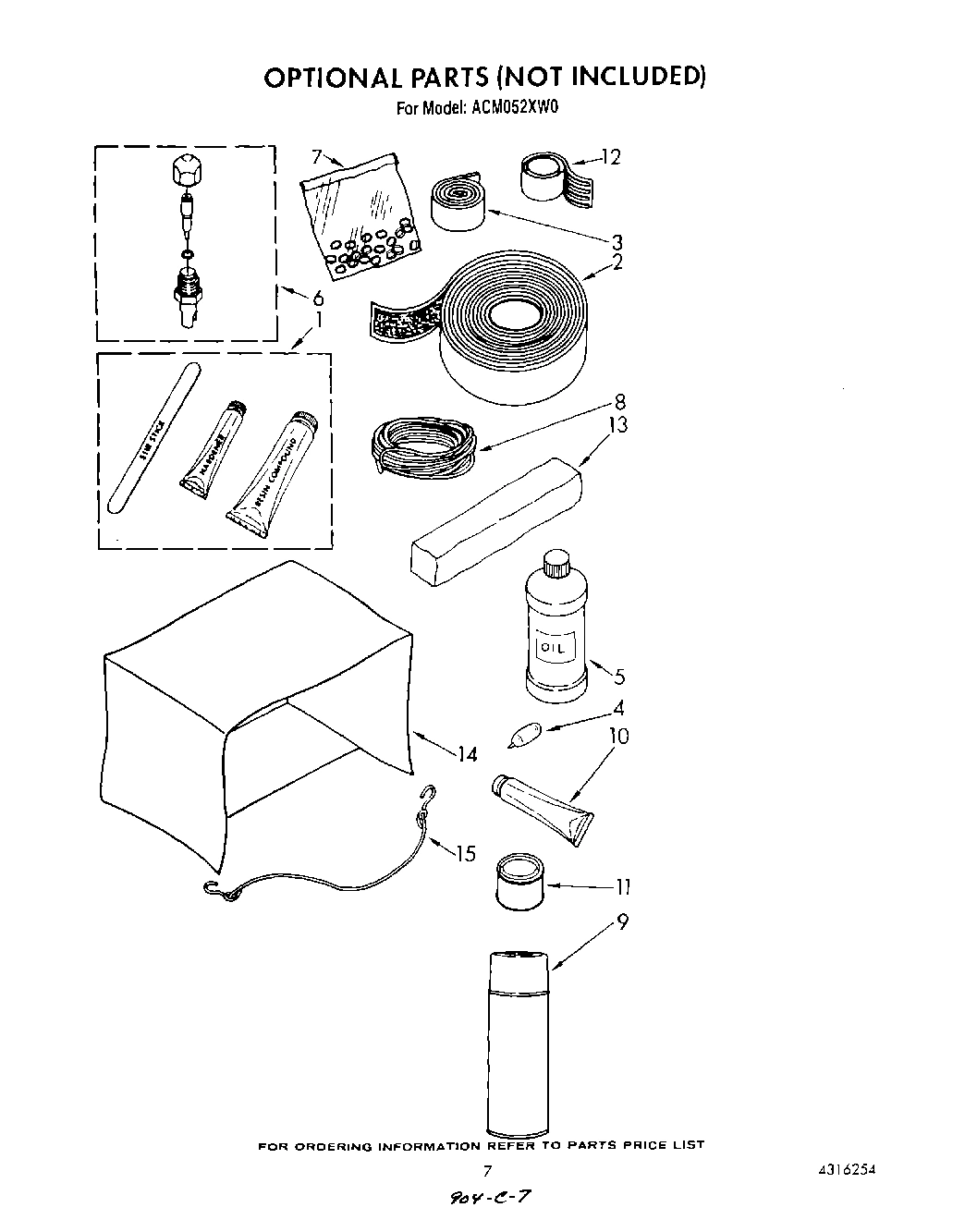

05 - LIT/OPTIONAL

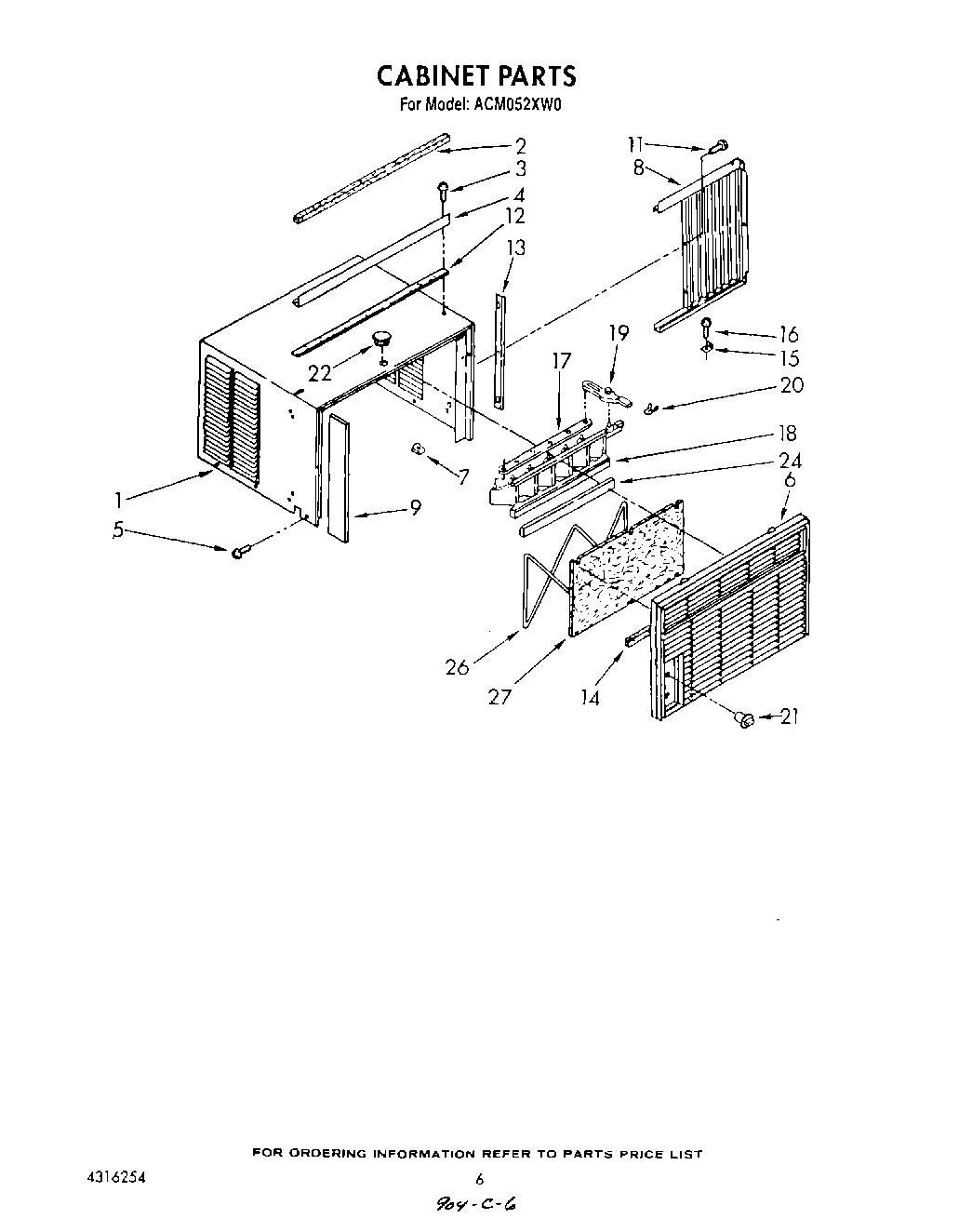

04 - CABINET

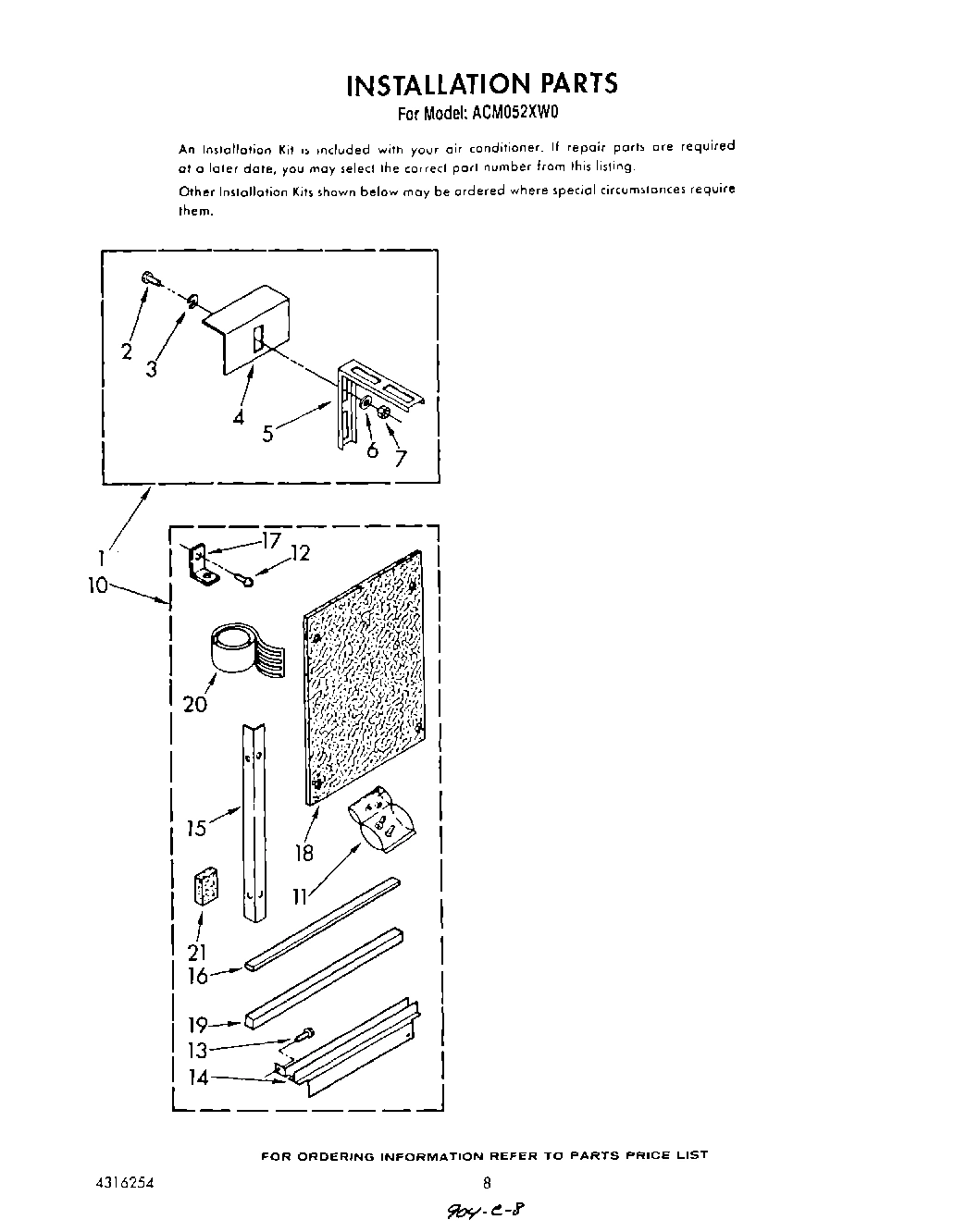

06 - INSTALLATION

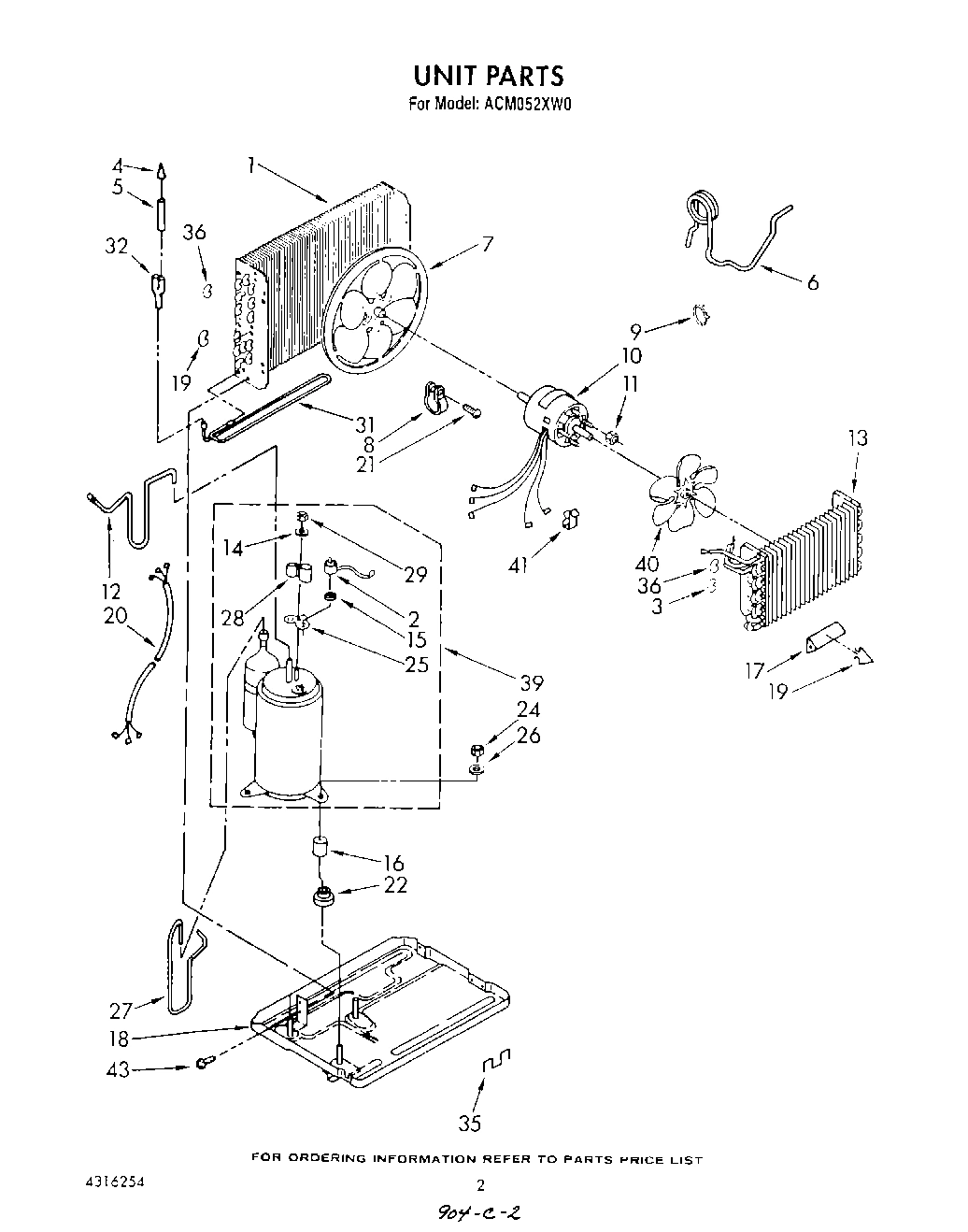

02 - UNIT

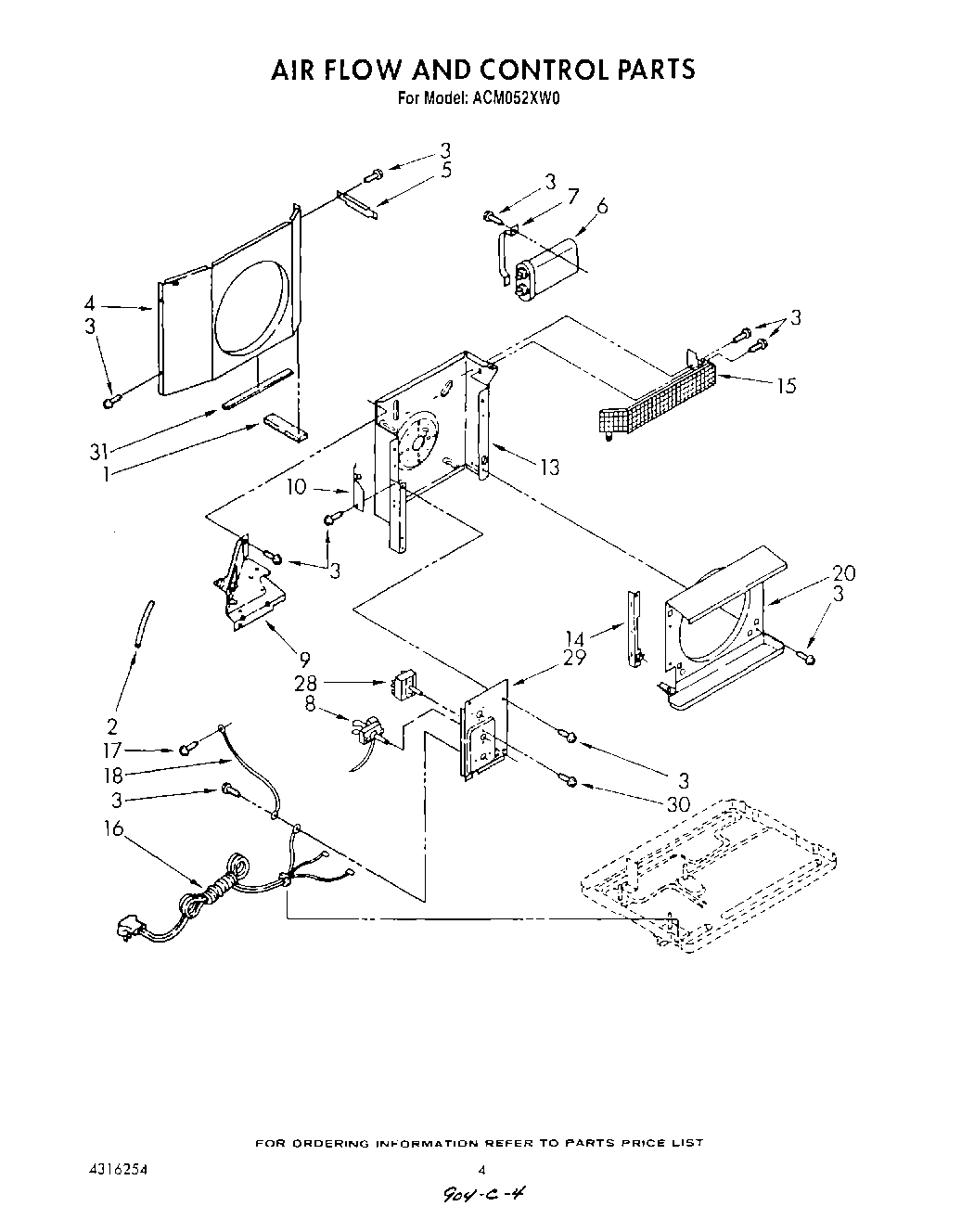

03 - AIR FLOW AND CONTROL
Common parts from model Whirlpool ACM052XW0 AIR CONDITIONER
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
Tech Sheet WPL LIT1158756 Contact Us For Availability
Instructions, Installation WPL LIT1158928 Contact Us For Availability
Guide, Use And Care WPL LIT1158929 Contact Us For Availability
List, Repair Parts WPL LIT4316254 Contact Us For Availability
1
Cabinet WPL 1157276 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Condenser WPL 1155940 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Evaporator (3) Condenser (13) WPL 708531 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Shroud, Condenser WPL 646297 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950825 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Front, Cabinet Assembly WPL 950408 Contact Us For Availability
6
Tube, Restrictor WPL 1157814 Contact Us For Availability
6
Capacitor, Running WPL 952078 Contact Us For Availability
7
Clip WPL 1158294 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
8
Curtain (R.S.) WPL 646154 Contact Us For Availability
8
Curtain (L.S.) WPL 646158 Contact Us For Availability
8
Clamp, Fan WPL 1158502 Contact Us For Availability
8
Control, Temperature WPL 950403 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
9
Clip, Tube WPL 1156028 Contact Us For Availability
9
Extension, Dividing Wall WPL 646773 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
10
Motor, Fan WPL 1158156 Contact Us For Availability
10
Plate, Dividing Wall WPL 859890 Contact Us For Availability
11
Screw No.8 x 7/16 (2) WPL 488730 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
12
Tube, Discharge WPL 1158307 Contact Us For Availability
13
Retainer, Curtain WPL 646160 Contact Us For Availability
13
Evaporator WPL 1157726 Contact Us For Availability
13
Wall, Dividing WPL 996770 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Bracket, Evaporator WPL 855502 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Angle, Side WPL 646988 Contact Us For Availability
15
Spring, Overload WPL 1155568 Contact Us For Availability
15
Insulation, Motor WPL 1158469 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
16
Sleeve (3) WPL 858148 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
17
Anticipator, Temperature WPL 996773 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Base WPL 950013 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
19
Clip, Anticipator WPL 475577 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Shroud, Evaporator WPL 996748 Contact Us For Availability
21
Knob, Control WPL 951156 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
22
Grommet (3) WPL 475041 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 1156715 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1155570 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Filter WPL 646962 Contact Us For Availability
27
Tube, Suction WPL 1158754 Contact Us For Availability
28
Cover, Terminal WPL 1155569 Contact Us For Availability
28
Switch, Rotary WPL 950524 Contact Us For Availability
29
Nut Hex 5 - 8 mm. WPL 950037 Contact Us For Availability
29
Panel, Control WPL 950400 Contact Us For Availability
30
Screw, 6-32 01.175 WPL 488734 Contact Us For Availability
31
Tube, Condenser Extension WPL 1155622 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
36
Bend, Return Evaporator (7) Condenser (4) WPL 708532 Contact Us For Availability
39
Compressor Assembly WPL 1156439 Contact Us For Availability
40
Fan, Evaporator WPL 1156594 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
× ![]()
