Model Whirlpool ACM052XA0 AIR CONDITIONER – Common Parts & Diagrams

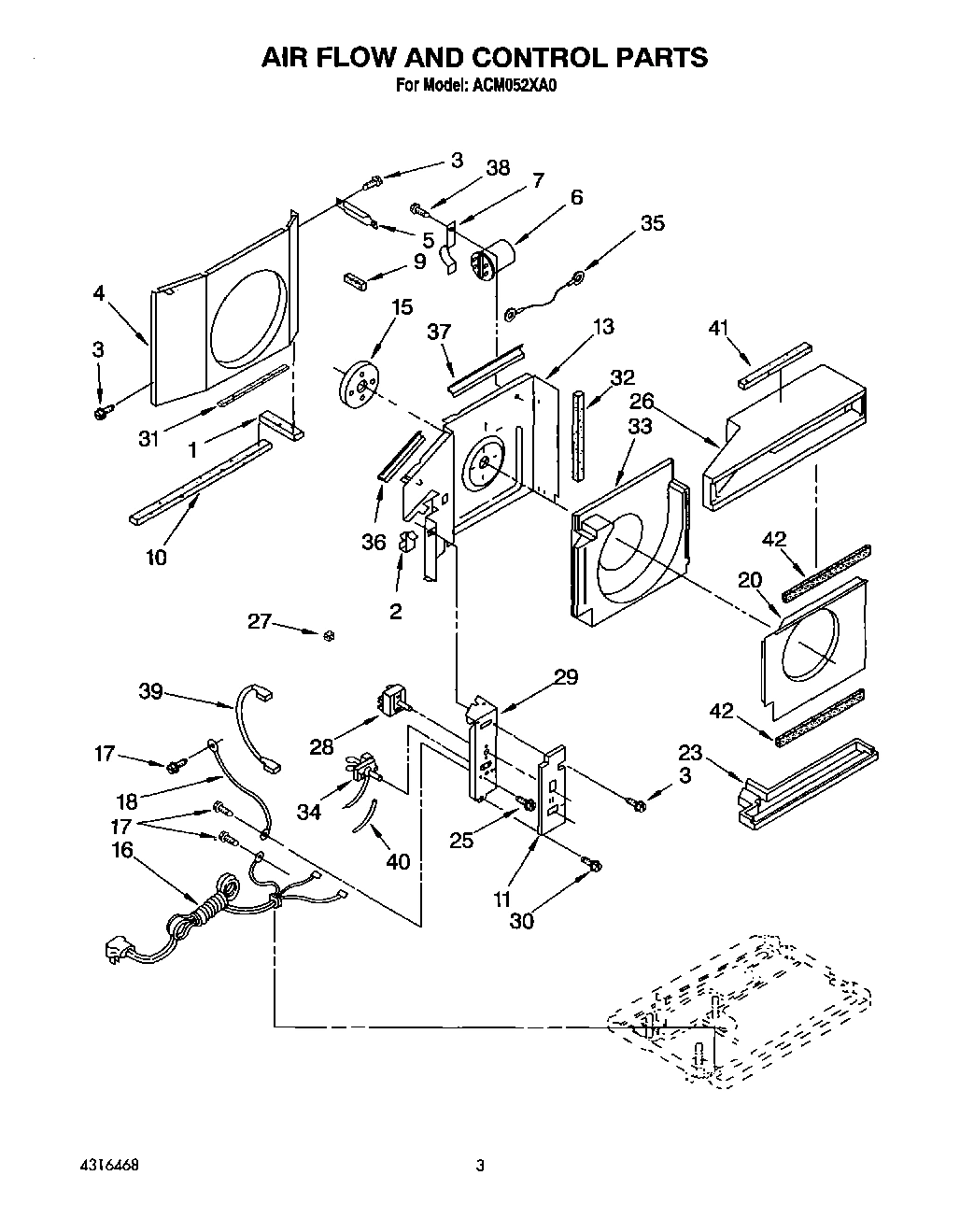

02 - AIR FLOW AND CONTROL

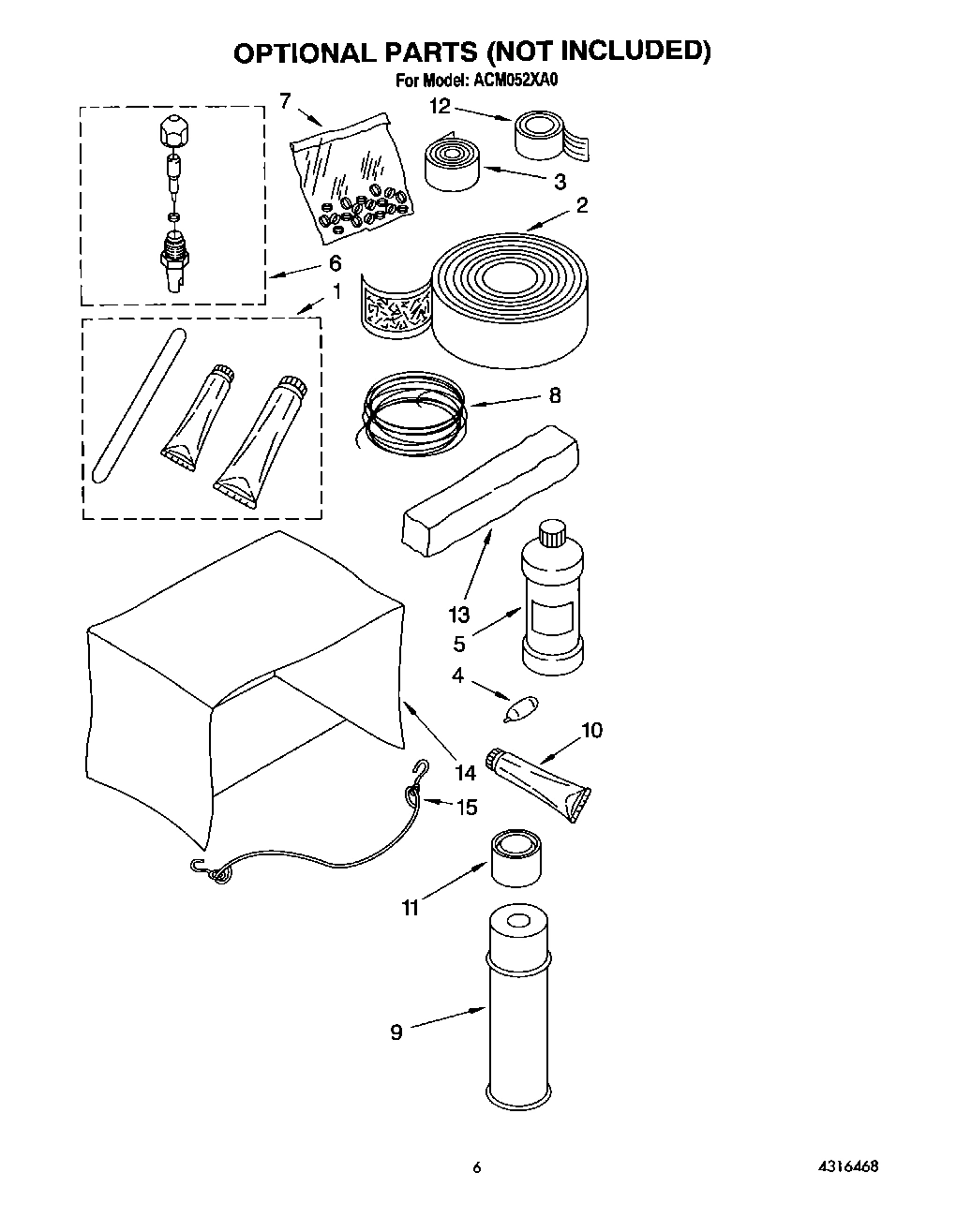

04 - OPTIONAL

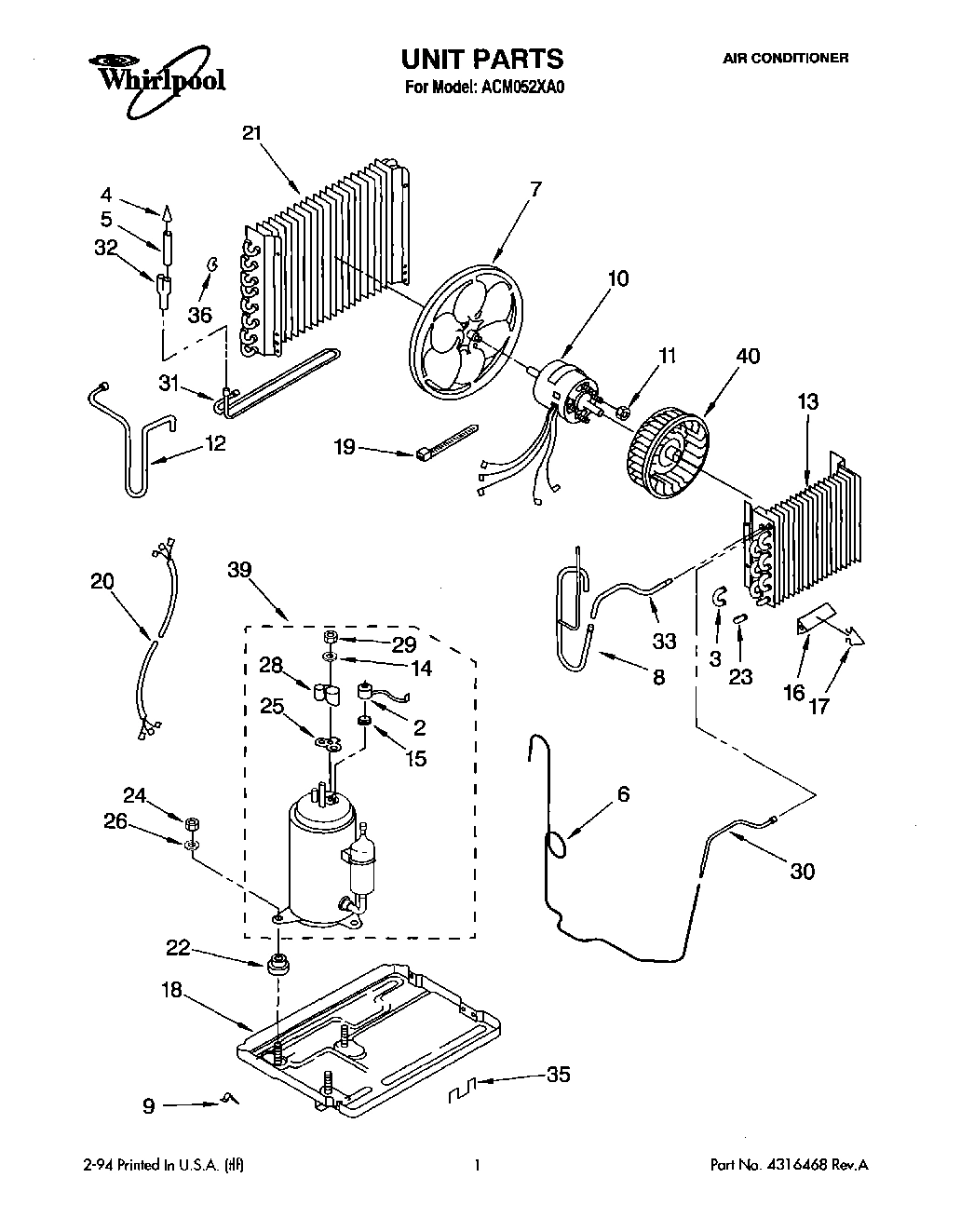

01 - UNIT, LITERATURE

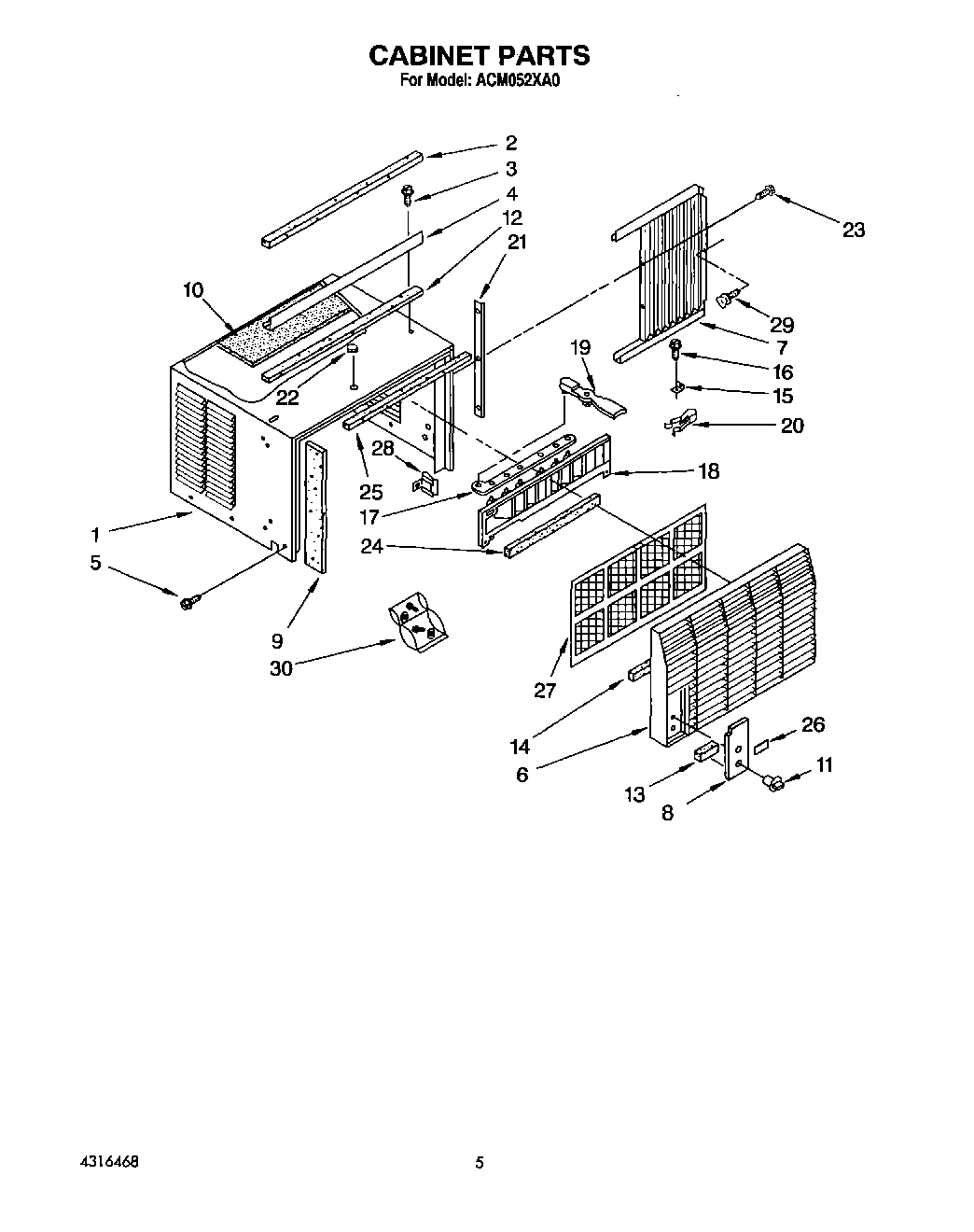

03 - CABINET
Common parts from model Whirlpool ACM052XA0 AIR CONDITIONER
Instructions, Installation WPL LIT1158928 Contact Us For Availability
Guide, Use And Care WPL LIT1162804 Contact Us For Availability
Wiring Diagram WPL LIT1165234 Contact Us For Availability
Tech Sheet WPL LIT1165238 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Overload WPL 1160970 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return (6) WPL 855199 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950855 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 1165064 Contact Us For Availability
6
Front, Cabinet Assembly WPL 1162161 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Curtain (R.S.) WPL 1162961 Contact Us For Availability
7
Curtain (L.S.) WPL 1162963 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Tube, Suction WPL 1164658 Contact Us For Availability
8
Escutcheon WPL 1162166 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Clamp, Tube WPL 855930 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
10
Motor, Fan WPL 1164645 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Knob, Control (2) WPL 1159423 Contact Us For Availability
12
Tube, Discharge WPL 1162781 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
13
Evaporator WPL 1164540 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket WPL 950037 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
16
Anticipator WPL 996773 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
19
Handle, Louver WPL 648626 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
21
Condenser WPL 1162776 Contact Us For Availability
21
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
23
Pan, Evaporator WPL 1164671 Contact Us For Availability
23
Screw 3/8 WPL 1161561 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
25
Screw No.6 x 32 WPL 488734 Contact Us For Availability
25
Seal WPL 1159283 Contact Us For Availability
26
Hood, Air Housing WPL 1164670 Contact Us For Availability
26
Nameplate WPL 1159297 Contact Us For Availability
27
Filter WPL 1162158 Contact Us For Availability
27
Seal, Foam WPL 1159443 Contact Us For Availability
28
Switch, Rotary WPL 1165244 Contact Us For Availability
28
Clip, Vertical Louver WPL 1158294 Contact Us For Availability
29
Panel, Control WPL 1159409 Contact Us For Availability
29
Thumbscrew WPL 475581 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 1165066 Contact Us For Availability
30
Bag, Accessory WPL 476180 Contact Us For Availability
31
Tube, Condenser Extension WPL 1163963 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Housing, Air WPL 1164648 Contact Us For Availability
33
Tube, Feeder WPL 1164547 Contact Us For Availability
34
Control, Temperature WPL 950403 Contact Us For Availability
35
Wire, Lead WPL 1160302 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
36
Guard, Edge Seal WPL 1161208 Contact Us For Availability
36
Bend, Return (5) WPL 708531 Contact Us For Availability
37
Guard, Edge Seal WPL 1161209 Contact Us For Availability
38
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
39
Wire, Jumper WPL 1158937 Contact Us For Availability
39
Compressor Assembly WPL 1160969 Contact Us For Availability
40
Sleeve, Insulator Temp. Control WPL 475841 Contact Us For Availability
40
Wheel, Blower WPL 1164650 Contact Us For Availability
41
Seal WPL 1158295 Contact Us For Availability
42
Seal (2) WPL 1164680 Contact Us For Availability
× ![]()
