Model Whirlpool ACM052PS3 AIR CONDITIONER – Common Parts & Diagrams

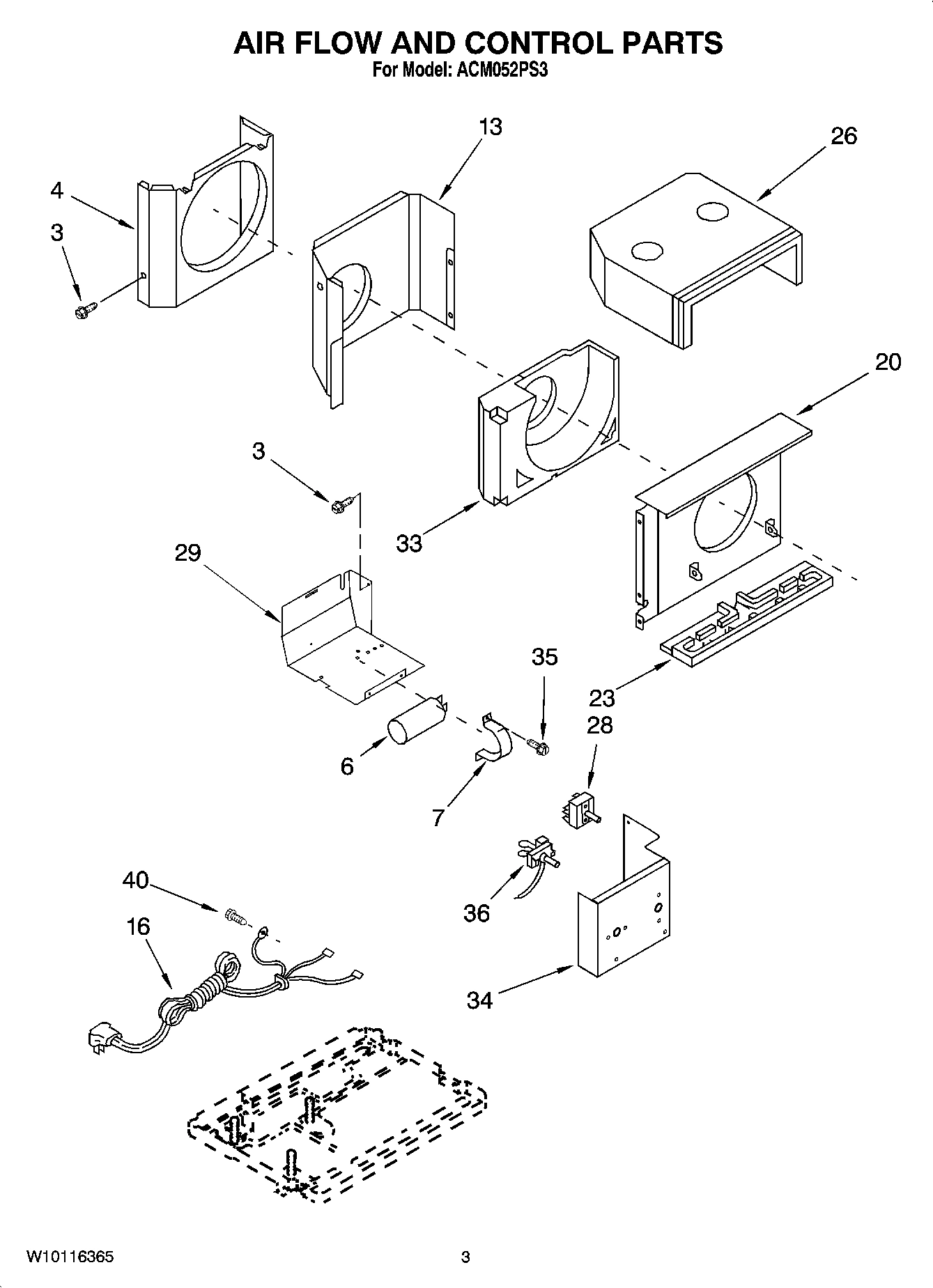

02 - AIR FLOW AND CONTROL PARTS

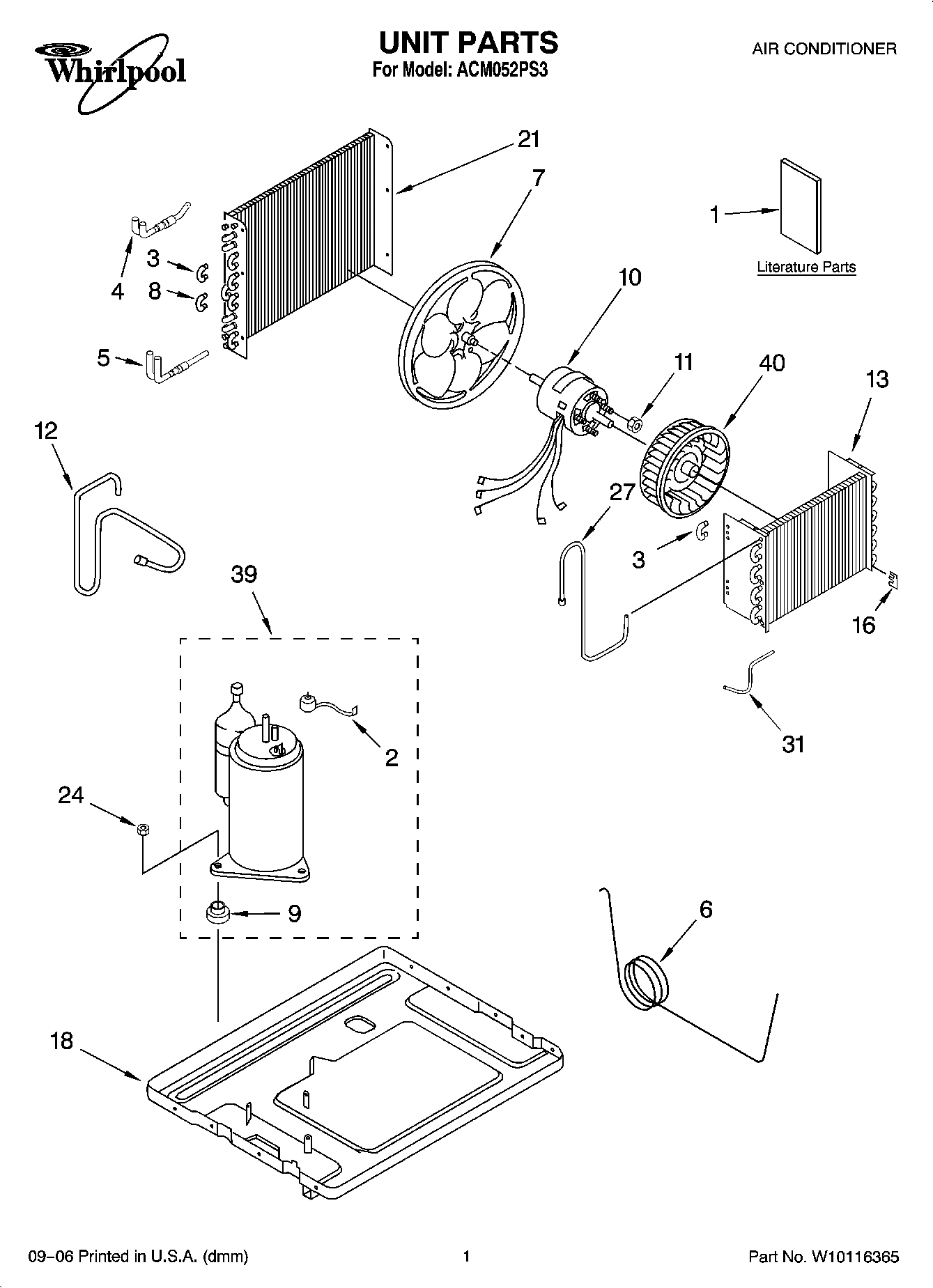

01 - UNIT PARTS
03 - CABINET PARTS
Common parts from model Whirlpool ACM052PS3 AIR CONDITIONER
1
Use & care Guide WPL 8209797 Contact Us For Availability
1
Energy Guide WPL 8209927 Contact Us For Availability
1
Wiring Diagram WPL 8209928 Contact Us For Availability
1
Cabinet WPL 8209778 Contact Us For Availability
2
Overload WPL 8209732 Contact Us For Availability
2
Nameplate, Rear WPL 8209738 Contact Us For Availability
3
Bend, Return WPL 8209653 Contact Us For Availability
3
Channel, Top WPL 8209897 Contact Us For Availability
4
Shroud, Condenser WPL 8209779 Contact Us For Availability
4
Tube, Inlet WPL 8209654 Contact Us For Availability
4
Curtain Assy (Includes 3) WPL 8209896 Contact Us For Availability
5
Tube, Outlet WPL 8209731 Contact Us For Availability
5
Screw (8) WPL 8209777 Contact Us For Availability
6
Capacitor, Running WPL 8209676 Contact Us For Availability
6
Tube, Restrictor WPL 8209785 Contact Us For Availability
6
Front, Cabinet WPL 8209705 Contact Us For Availability
7
Bracket, Capacitor WPL 8209832 Contact Us For Availability
7
Blade, Fan WPL 8209782 Contact Us For Availability
7
Nameplate WPL 8209798 Contact Us For Availability
8
Bend, Return WPL 8209658 Contact Us For Availability
8
Support, Louver WPL 8209770 Contact Us For Availability
9
Grommet (3) WPL 8209801 Contact Us For Availability
10
Motor, Fan WPL 8209659 Contact Us For Availability
11
Nut, Hex WPL 8209660 Contact Us For Availability
11
Filter WPL 8209704 Contact Us For Availability
12
Tube, Discharge WPL 8209804 Contact Us For Availability
13
Wall, Dividing WPL 8209783 Contact Us For Availability
13
Evaporator WPL 8209772 Contact Us For Availability
16
Cord, Appliance WPL 8209857 Contact Us For Availability
16
Support, Tube Sensor WPL 8209771 Contact Us For Availability
17
Louver, Assembly WPL 8209706 Contact Us For Availability
18
BASE WPL 8209926 Contact Us For Availability
20
Shroud, Evaporator WPL 8209784 Contact Us For Availability
21
Condenser WPL 8209780 Contact Us For Availability
23
Pan, Evaporator WPL 8209681 Contact Us For Availability
24
Nut, Hex WPL 8209668 Contact Us For Availability
25
Escutcheon WPL 8209707 Contact Us For Availability
26
Hood, Air Housing WPL 8209682 Contact Us For Availability
27
Tube, Suction WPL 8209805 Contact Us For Availability
28
Switch, Rotary WPL 8209744 Contact Us For Availability
29
Panel, Rear- Control Box WPL 8209830 Contact Us For Availability
29
Knob WPL 8209708 Contact Us For Availability
30
Louver, Vertical WPL 8209709 Contact Us For Availability
31
Tube, Inlet WPL 8209671 Contact Us For Availability
33
Housing, Air WPL 8209686 Contact Us For Availability
34
Panel, Front- Control Box WPL 8209833 Contact Us For Availability
36
Control, Temp. WPL 8209689 Contact Us For Availability
39
Compressor Assembly WPL 8209802 Contact Us For Availability
40
Wheel, Blower WPL 8209673 Contact Us For Availability
40
REFRIGERANT CHARGE 14.10 oz. WPL ARI19973A6 Contact Us For Availability
× ![]()
