Model Whirlpool ACH184XX0 AIR CONDITIONER – Common Parts & Diagrams
05 - INSTALLATION
02 - UNIT

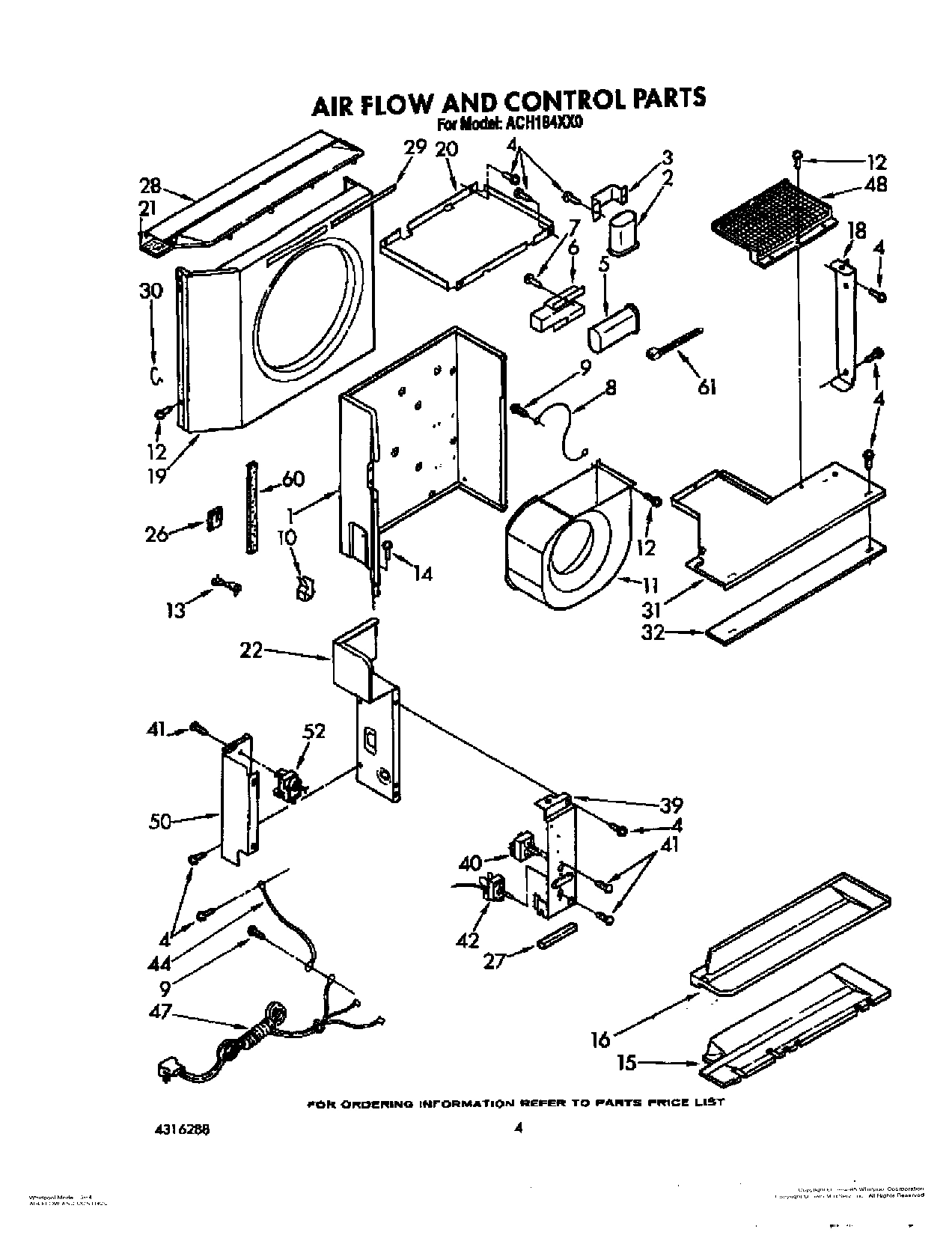

03 - AIR FLOW AND CONTROL

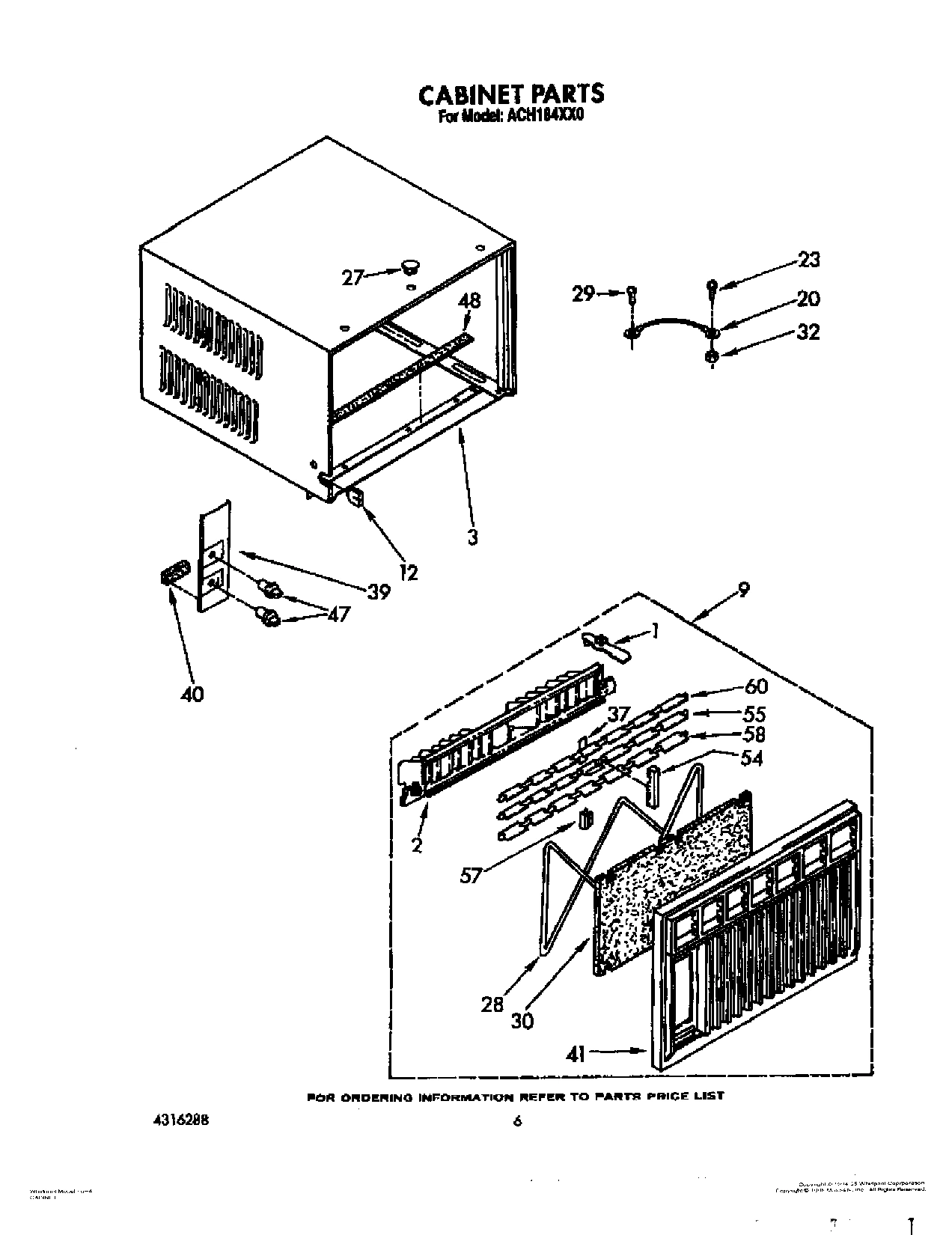

04 - CABINET

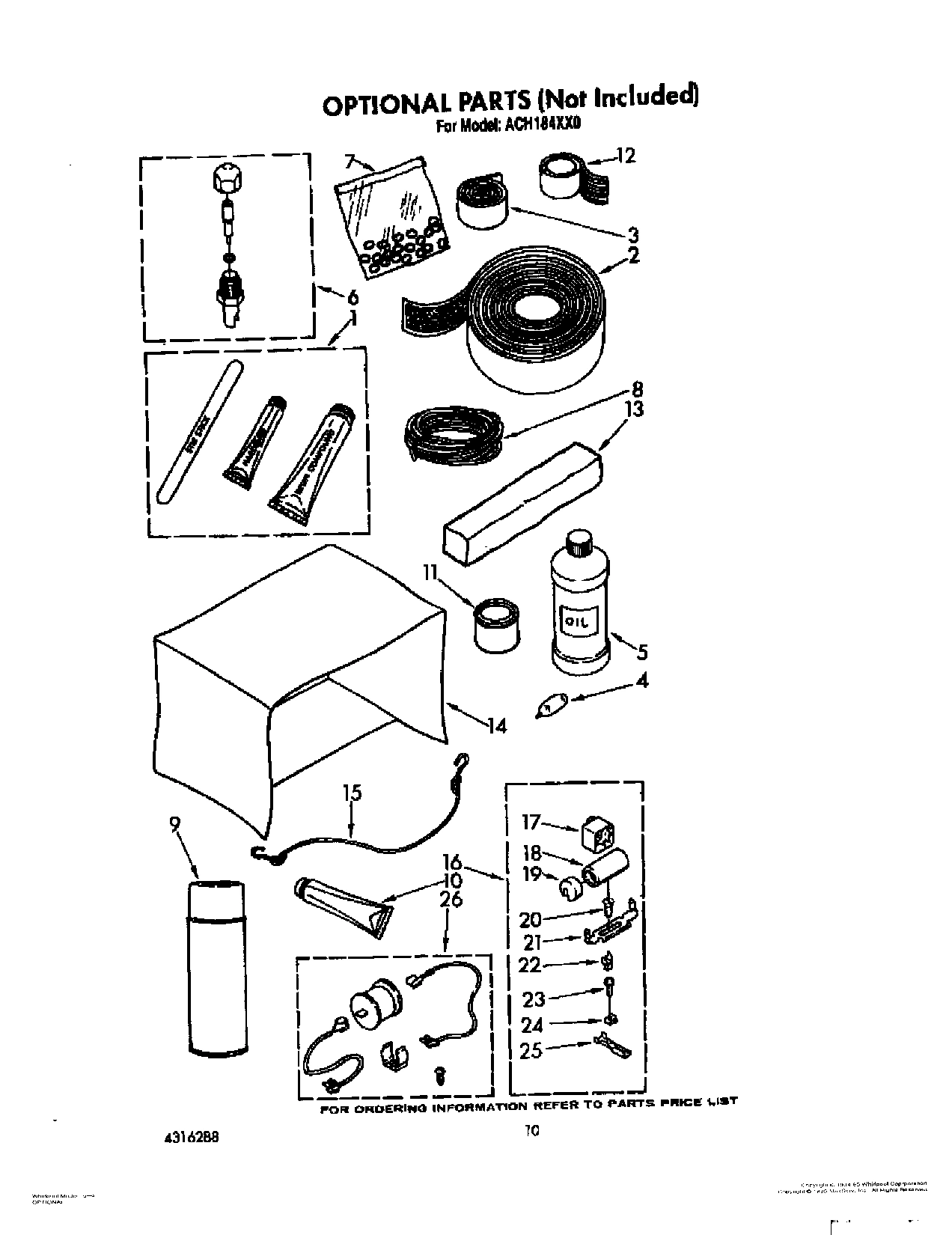

06 - OPTIONAL
Common parts from model Whirlpool ACH184XX0 AIR CONDITIONER
1
Instructions, Installation WPL LIT1157219 Contact Us For Availability
1
Buy Guide WPL LIT1159877 Contact Us For Availability
1
Literature Parts (List, Repair Parts) WPL LIT4316288 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT951057 Contact Us For Availability
1
Literature Parts (Sheet, Tech) WPL LIT951058 Contact Us For Availability
1
Wall, Dividing WPL 953031 Contact Us For Availability
1
Handle, Vertical WPL 852010 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Handle, Base WPL 647971 Contact Us For Availability
2
Capacitor, Run WPL 951516 Contact Us For Availability
2
Louver, Vertical WPL 649957 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Compressor WPL 484348 Contact Us For Availability
3
Bracket, Capacitor WPL 852992 Contact Us For Availability
3
Cabinet Also Order: WPL 1157805 Contact Us For Availability
4
Valve, Condensate WPL 998612 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Capacitor, Fan Motor WPL 999786 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Grommet (4) WPL 475041 Contact Us For Availability
6
Bracket, Sheild WPL 998009 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Sleeve (4) WPL 858116 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Nut, Lock (4) WPL 858121 Contact Us For Availability
8
Wire, Ground WPL 998177 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Plate, Fan Motor WPL 998024 Contact Us For Availability
9
Cabinet Front Assembly WPL 951143 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Motor, Fan WPL 1160362 Contact Us For Availability
10
Clamp, Cable WPL 648791 Contact Us For Availability
11
Housing, Blower Wheel WPL 997220 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
12
Grommet, Wiring WPL 647849 Contact Us For Availability
13
Wheel, Blower WPL 1158443 Contact Us For Availability
13
Clamp, Wiring WPL 947072 Contact Us For Availability
14
Cover, Winter (22``x15``x3 to 18``) WPL 484184 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Evaporator WPL 1156255 Contact Us For Availability
14
Screw, No.8 x 3/8 WPL 488624 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Tube, Restrictor (3) WPL 1159870 Contact Us For Availability
15
Insulation, Condensate Pan WPL 997237 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Blade, Fan WPL 997226 Contact Us For Availability
16
Pan, Condensate WPL 997238 Contact Us For Availability
16
Hard Start Kit (Use With 484395 Compressor) WPL 484274 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Condenser WPL 1159208 Contact Us For Availability
17
Relay, Start WPL 484275 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base, Unit WPL 997367 Contact Us For Availability
18
Adapter, Evaporator WPL 997397 Contact Us For Availability
18
Capacitor, Start WPL 467614 Contact Us For Availability
19
Bend, Return (3-Way) WPL 953168 Contact Us For Availability
19
Shroud, Condenser WPL 953028 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Support, Unit (2) WPL 1156536 Contact Us For Availability
20
Wire, Ground (Base To Cabinet) WPL 857022 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Bend, Return Evaporator (7) WPL 855199 Contact Us For Availability
21
Seal, Condenser WPL 948600 Contact Us For Availability
21
Bracket, Capacitor WPL 35564 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Bend, Return Evaporator (16) WPL 854624 Contact Us For Availability
22
Extension, Dividing WPL 1158151 Contact Us For Availability
22
Mult WPL 90654 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Screw, 8-32 x 32 WPL 488853 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
25
Nut, Hex 1/4-20 WPL 489005 Contact Us For Availability
25
WPL 45571 WPL 45571 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Bend, Return (2) (Evaporator) WPL 855457 Contact Us For Availability
26
Seal, Outlet Tube WPL 1155479 Contact Us For Availability
26
WPL 484220 WPL 484220 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Tube, Maniflod (Evaporator) WPL 1156258 Contact Us For Availability
27
Seal, Access Cover WPL 853170 Contact Us For Availability
27
Cover, Hole (2) WPL 1157126 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Bend, Return (1) WPL 855644 Contact Us For Availability
28
Cover, Condenser Shroud WPL 997264 Contact Us For Availability
28
Retainer, Filter WPL 476707 Contact Us For Availability
29
Seal, Strip Louver (2) WPL 997266 Contact Us For Availability
29
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
30
Tube, Flow Divider WPL 466527 Contact Us For Availability
30
Clip, Shroud (2) WPL 994686 Contact Us For Availability
30
Filter, Air WPL 649958 Contact Us For Availability
31
Clip, Mtg. (3) (Base To Front) WPL 852272 Contact Us For Availability
31
Cover, Evaporator WPL 997269 Contact Us For Availability
32
Anticipator, Temperature WPL 472046 Contact Us For Availability
32
Insulation, Cover WPL 948236 Contact Us For Availability
33
Clip, Anticipator WPL 472047 Contact Us For Availability
34
Cover, Terminal WPL 948515 Contact Us For Availability
35
Insulation WPL 1160644 Contact Us For Availability
36
Gasket, Terminal Cover WPL 947029 Contact Us For Availability
37
Retainer, Horizontal Louver WPL 855998 Contact Us For Availability
38
Insulation WPL 1160729 Contact Us For Availability
39
Panel, Control WPL 852219 Contact Us For Availability
39
Plate, Escutcheon WPL 952551 Contact Us For Availability
40
Insulation, Base WPL 997236 Contact Us For Availability
40
Switch, Rotary WPL 950526 Contact Us For Availability
40
Spacer, Escutcheon Plate (3) WPL 469175 Contact Us For Availability
41
Seal, Tube WPL 948519 Contact Us For Availability
41
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
41
Frame, Front WPL 950550 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
42
Control, Temperature WPL 1155809 Contact Us For Availability
43
Valve, Reversing WPL 465260 Contact Us For Availability
44
Coil, Solenoid WPL 947233 Contact Us For Availability
44
Wire, Ground WPL 952477 Contact Us For Availability
46
Washer, Flat (3) WPL 1156176 Contact Us For Availability
47
Bushing, Base WPL 948130 Contact Us For Availability
47
Cable, Appliance WPL 648411 Contact Us For Availability
47
Knob, Control (2) WPL 947264 Contact Us For Availability
48
Clamp, Restrictor Tube (2) WPL 642684 Contact Us For Availability
48
Guard, Impeller WPL 856506 Contact Us For Availability
48
Seal, Cabinet (Top) WPL 1157053 Contact Us For Availability
48
Seal, Cabinet (Right Side) WPL 1157054 Contact Us For Availability
48
Seal, Cabinet (Left Side) WPL 1157055 Contact Us For Availability
50
Cover, Control WPL 952208 Contact Us For Availability
52
Hard Start Kit WPL 484381 Contact Us For Availability
52
Thermostat, Deicer WPL 950635 Contact Us For Availability
53
Bracket, Capacitor WPL 41629 Contact Us For Availability
54
Rack, Horizontal WPL 853772 Contact Us For Availability
55
Adapter WPL 350914 Contact Us For Availability
55
Handle, Vertical Louver (2) WPL 947267 Contact Us For Availability
56
Cap, Capacitor WPL 484340 Contact Us For Availability
57
Relay WPL 484363 Contact Us For Availability
57
Clip, Retainer WPL 855999 Contact Us For Availability
58
Wire WPL 485609 Contact Us For Availability
58
Instruction Sheet WPL 485887 Contact Us For Availability
58
Louver, Horizontal (Notched) WPL 947268 Contact Us For Availability
59
Screw (2) WPL 487880 Contact Us For Availability
60
Seal, Strip WPL 997265 Contact Us For Availability
60
Louver, Horizontal WPL 947269 Contact Us For Availability
61
Capacitor WPL 587164 Contact Us For Availability
× ![]()
