Model Whirlpool ACH184XM0 AIR CONDITIONER – Common Parts & Diagrams

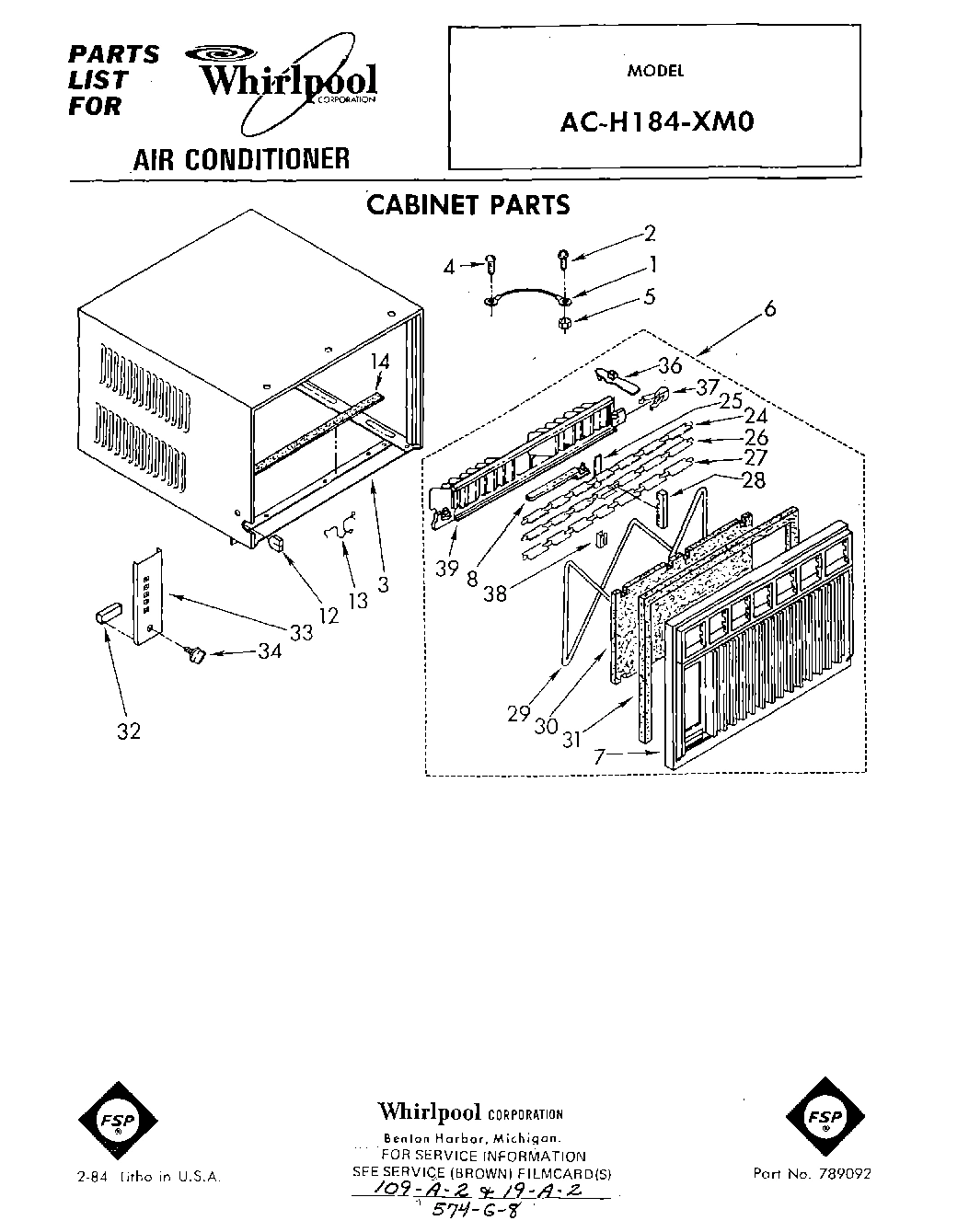

01 - CABINET PARTS

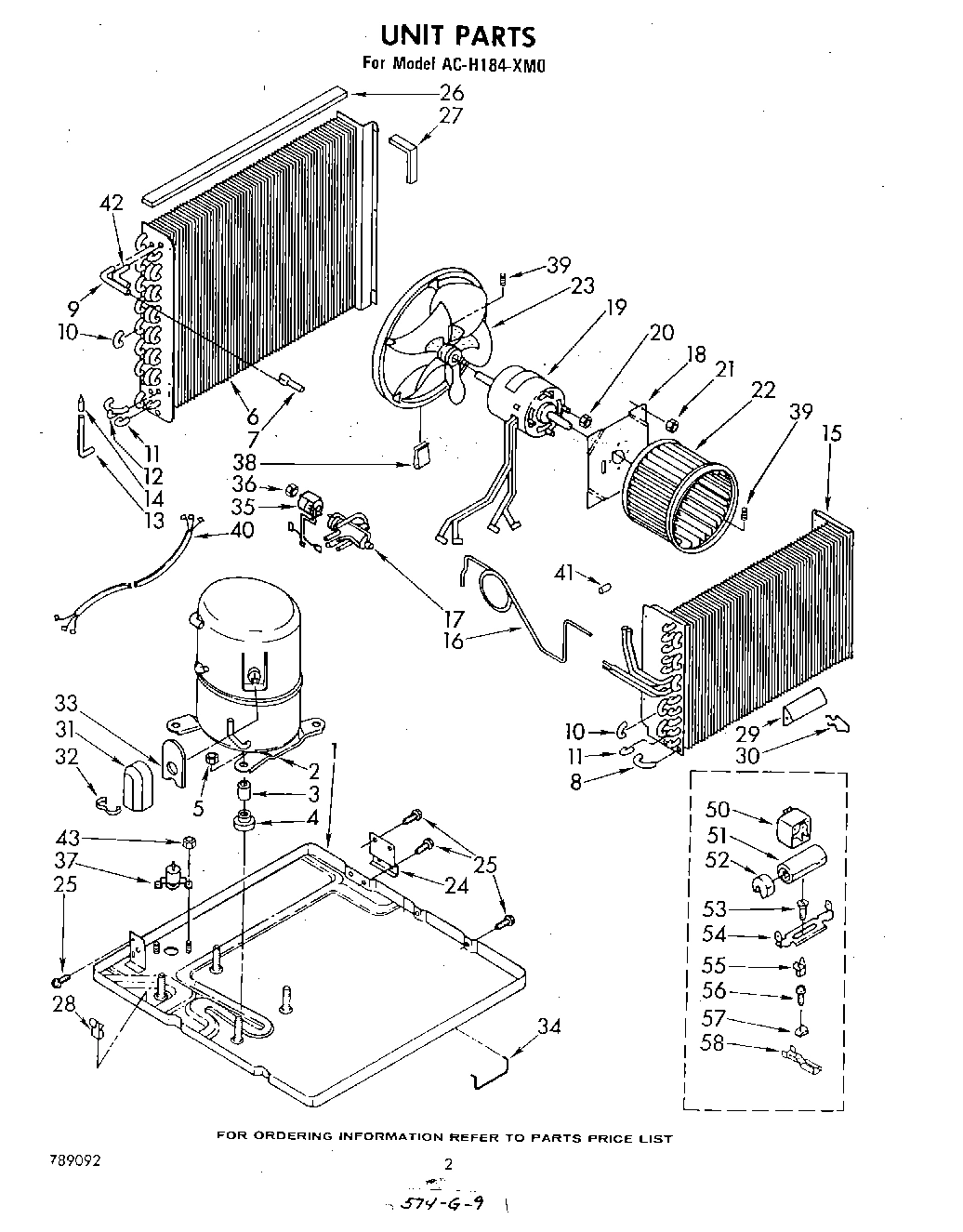

02 - UNIT PARTS
04 - ACCESSORY KIT PARTS
03 - AIRFLOW AND CONTROL PARTS
Common parts from model Whirlpool ACH184XM0 AIR CONDITIONER
1
Base WPL 997367 Contact Us For Availability
1
Kit Outside Sill WPL 485678 Contact Us For Availability
1
Cover, Condenser Shroud WPL 997264 Contact Us For Availability
2
Compressor WPL 484348 Contact Us For Availability
2
Kit, Outside Support WPL 485679 Contact Us For Availability
2
Shroud, Condenser WPL 997224 Contact Us For Availability
3
Sleeve (4) WPL 858116 Contact Us For Availability
3
Kit, Wide Window WPL 485676 Contact Us For Availability
3
Clip, Shroud (2) WPL 477442 Contact Us For Availability
4
Grommet (4) WPL 475041 Contact Us For Availability
4
Kit, Quick Mount WPL 485675 Contact Us For Availability
5
Locknut (4) WPL 858121 Contact Us For Availability
5
Kit, Standard Installation WPL 485674 Contact Us For Availability
5
Bracket, Capacitor WPL 852992 Contact Us For Availability
6
Condenser WPL 951048 Contact Us For Availability
6
Kit, Condensate Cup WPL 978929 Contact Us For Availability
6
Capacitor, Run WPL 947218 Contact Us For Availability
7
Tube, Flow Divider WPL 466527 Contact Us For Availability
7
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
7
Seal, Condenser Fin WPL 948600 Contact Us For Availability
8
Tube, Bend WPL 998682 Contact Us For Availability
8
Clamp, Cable WPL 648791 Contact Us For Availability
9
Tube, 90o Connect WPL 649808 Contact Us For Availability
9
Bracket, Sill (2) WPL 645515 Contact Us For Availability
9
Cable, Appliance WPL 648411 Contact Us For Availability
10
Bend, Return Condenser (8) Evaporator (5) WPL 855199 Contact Us For Availability
10
Bracket, Rail (2) WPL 485466 Contact Us For Availability
11
Lockwasher WPL 486009 Contact Us For Availability
11
Wire, Ground (2) WPL 998177 Contact Us For Availability
12
Bend, Tube (3-Way) WPL 948810 Contact Us For Availability
12
Nut, 1/4-20 WPL 486035 Contact Us For Availability
12
Support, Unit WPL 997262 Contact Us For Availability
13
Clip, Cabinet Front (3) WPL 852272 Contact Us For Availability
13
Tube, Strainer Assembly (Includes Illus. 14) WPL 484230 Contact Us For Availability
13
Bracket, Cabinet Support WPL 644281 Contact Us For Availability
13
Housing, Blower Wheel WPL 997220 Contact Us For Availability
14
Seal WPL 852220 Contact Us For Availability
14
Strainer WPL 49599 Contact Us For Availability
14
Support, Cabinet (2) WPL 644283 Contact Us For Availability
14
Guard, Evaporator Impeller WPL 856506 Contact Us For Availability
15
Evaporator WPL 951046 Contact Us For Availability
15
Extension, Support (2) WPL 644284 Contact Us For Availability
15
Bracket, Capacitor (Shield) WPL 475844 Contact Us For Availability
16
Tube, Restrictor (41.0 Length) (2) WPL 997379 Contact Us For Availability
16
Retainer, Support (2) WPL 644285 Contact Us For Availability
16
Adapter, Evaporator Header Plate WPL 997239 Contact Us For Availability
17
Valve, Reversing WPL 465260 Contact Us For Availability
17
Insulation, Evaporator Cover WPL 948236 Contact Us For Availability
18
Plate, Fan Motor WPL 998024 Contact Us For Availability
18
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
19
Motor, Fan WPL 947215 Contact Us For Availability
19
Board, Filler (2) WPL 647835 Contact Us For Availability
19
Seal, Side Condenser WPL 997266 Contact Us For Availability
20
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
20
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
20
Pan, Condensate WPL 997238 Contact Us For Availability
21
Locknut (4) WPL 858122 Contact Us For Availability
21
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
21
Insulation, Pan WPL 997237 Contact Us For Availability
22
Wheel, Blower WPL 647618 Contact Us For Availability
22
Strip, Seal WPL 477597 Contact Us For Availability
22
Switch, Rotary WPL 950526 Contact Us For Availability
23
Blade, Fan WPL 997226 Contact Us For Availability
23
Channel, Bottom Mounting WPL 644387 Contact Us For Availability
23
Control, Temperature WPL 853749 Contact Us For Availability
24
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
24
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
24
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
24
Capacitor, Fan Motor WPL 997996 Contact Us For Availability
25
Spring, Louver Retainer (4) WPL 855998 Contact Us For Availability
25
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
25
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
25
Cover, Control Access WPL 997278 Contact Us For Availability
26
Louver, Horizontal (Handle) WPL 947267 Contact Us For Availability
26
Seal WPL 649609 Contact Us For Availability
26
Thumbscrew (2) WPL 475581 Contact Us For Availability
26
Bracket, Fan Capacitor WPL 998009 Contact Us For Availability
27
Louver, Horizontal (Notched) WPL 947268 Contact Us For Availability
27
Seal WPL 649610 Contact Us For Availability
27
Seal, Meeting Rail WPL 469877 Contact Us For Availability
27
Cover, Evaporator WPL 997269 Contact Us For Availability
28
Rack, Louver (2) WPL 853772 Contact Us For Availability
28
Washer (2) WPL 488520 Contact Us For Availability
28
Panel, Control WPL 852219 Contact Us For Availability
29
Retainer, Filter WPL 476707 Contact Us For Availability
29
Anticipator, Temperature WPL 472046 Contact Us For Availability
29
Extension, Dividing Wall WPL 997342 Contact Us For Availability
30
Filter WPL 649958 Contact Us For Availability
30
Clip, Anticipator WPL 997677 Contact Us For Availability
30
Channel, Top Mounting WPL 644380 Contact Us For Availability
30
Seal, Tube WPL 948519 Contact Us For Availability
31
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
31
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
31
Cover, Terminal WPL 855948 Contact Us For Availability
31
Seal WPL 855265 Contact Us For Availability
31
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
32
Spacer, Escutcheon (3) WPL 469175 Contact Us For Availability
32
Retainer, Cover WPL 475062 Contact Us For Availability
32
Bracket, Window Lock WPL 644228 Contact Us For Availability
32
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
33
Escutcheon WPL 950552 Contact Us For Availability
33
Gasket, Cover WPL 949083 Contact Us For Availability
33
Block, Spacer (4) WPL 995274 Contact Us For Availability
33
Wire, Ground WPL 952477 Contact Us For Availability
34
Knob, Control (2) WPL 947264 Contact Us For Availability
34
Handle, Base WPL 647971 Contact Us For Availability
34
Wood Screw, No.8 x 3/4 (5) WPL 488255 Contact Us For Availability
34
Wall, Dividing (Requires Insulation No. 46993 WPL 997393 Contact Us For Availability
35
Coil, Solenoid WPL 947233 Contact Us For Availability
35
Bracket, R.S. WPL 645562 Contact Us For Availability
35
Bracket, L.S. WPL 645563 Contact Us For Availability
36
Handle, Louver (2) WPL 852010 Contact Us For Availability
36
Strip, Seal WPL 856979 Contact Us For Availability
36
Sleeve, Insulator WPL 476835 Contact Us For Availability
37
Spring (2) WPL 641484 Contact Us For Availability
37
Valve, Condensate WPL 998612 Contact Us For Availability
37
Angle, Side Mounting (2) WPL 645564 Contact Us For Availability
37
Thermostat, Deicer WPL 950635 Contact Us For Availability
38
Clip, Retainer, Louver (4) WPL 855999 Contact Us For Availability
38
Clamp, Tube (2) WPL 471088 Contact Us For Availability
38
Clip, Balancing WPL 485334 Contact Us For Availability
39
Cover, Winter WPL 484069 Contact Us For Availability
39
Louver, Vertical WPL 649957 Contact Us For Availability
39
Setscrew, 5/16 x 1/4 (2) WPL 595085 Contact Us For Availability
39
Cup, Condensate WPL 647850 Contact Us For Availability
39
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
39
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
39
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
39
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
39
List, Repair Parts WPL 789092 Contact Us For Availability
39
Ble WPL 799351 Contact Us For Availability
39
WPL 854937 WPL 854937 Contact Us For Availability
39
WPL 854938 WPL 854938 Contact Us For Availability
39
WPL 855438 WPL 855438 Contact Us For Availability
39
WPL 947072 WPL 947072 Contact Us For Availability
39
WPL 950357 WPL 950357 Contact Us For Availability
39
WPL 950809 WPL 950809 Contact Us For Availability
39
WPL 951058 WPL 951058 Contact Us For Availability
39
WPL 951060 WPL 951060 Contact Us For Availability
39
WPL 997236 WPL 997236 Contact Us For Availability
40
Harness, Wiring WPL 484136 Contact Us For Availability
40
Instructions, Installation (Kit, Quick Mount) WPL 485687 Contact Us For Availability
40
Instructions, Installation (Kit, Wide Window) WPL 485688 Contact Us For Availability
40
Instructions, Installation (Outside Sill Kit) WPL 485706 Contact Us For Availability
40
Instructions, Installation (Kit, Outside Supp WPL 485707 Contact Us For Availability
40
Instructions, Installation (K WPL 978930 Contact Us For Availability
40
WPL 993380 WPL 993380 Contact Us For Availability
40
WPL 995075 WPL 995075 Contact Us For Availability
41
Strainer, Evaporator WPL 474013 Contact Us For Availability
42
Tube, 90o Connect WPL 951051 Contact Us For Availability
43
Nut, Hex 1/4-20 (2) WPL 489005 Contact Us For Availability
50
Relay WPL 484177 Contact Us For Availability
51
xCapacitor WPL 47406 Contact Us For Availability
52
xCap, Capacitor WPL 791868 Contact Us For Availability
53
xScrew, 10 x 5/8 WPL 487880 Contact Us For Availability
54
xBracket, Capacitor WPL 41629 Contact Us For Availability
55
Multiplier, Terminal WPL 90654 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
58
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
58
xClip, terminal WPL 45571 Contact Us For Availability
58
Start Assist Kit WPL 484220 Contact Us For Availability
58
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
58
Kit, Compressor Start WPL 485883 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
