Model Whirlpool ACH122XD0 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET
04 - OPTIONAL

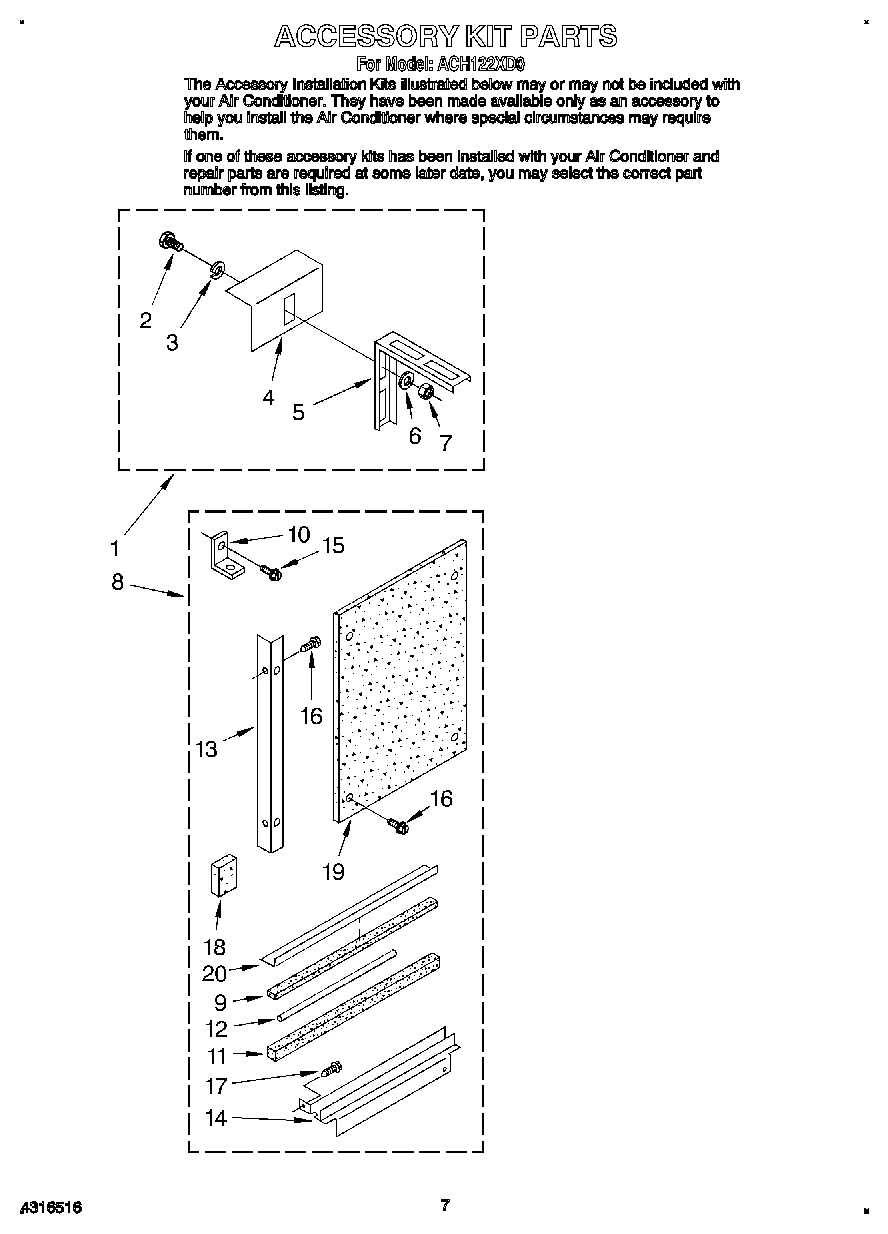

05 - ACCESSORY KIT

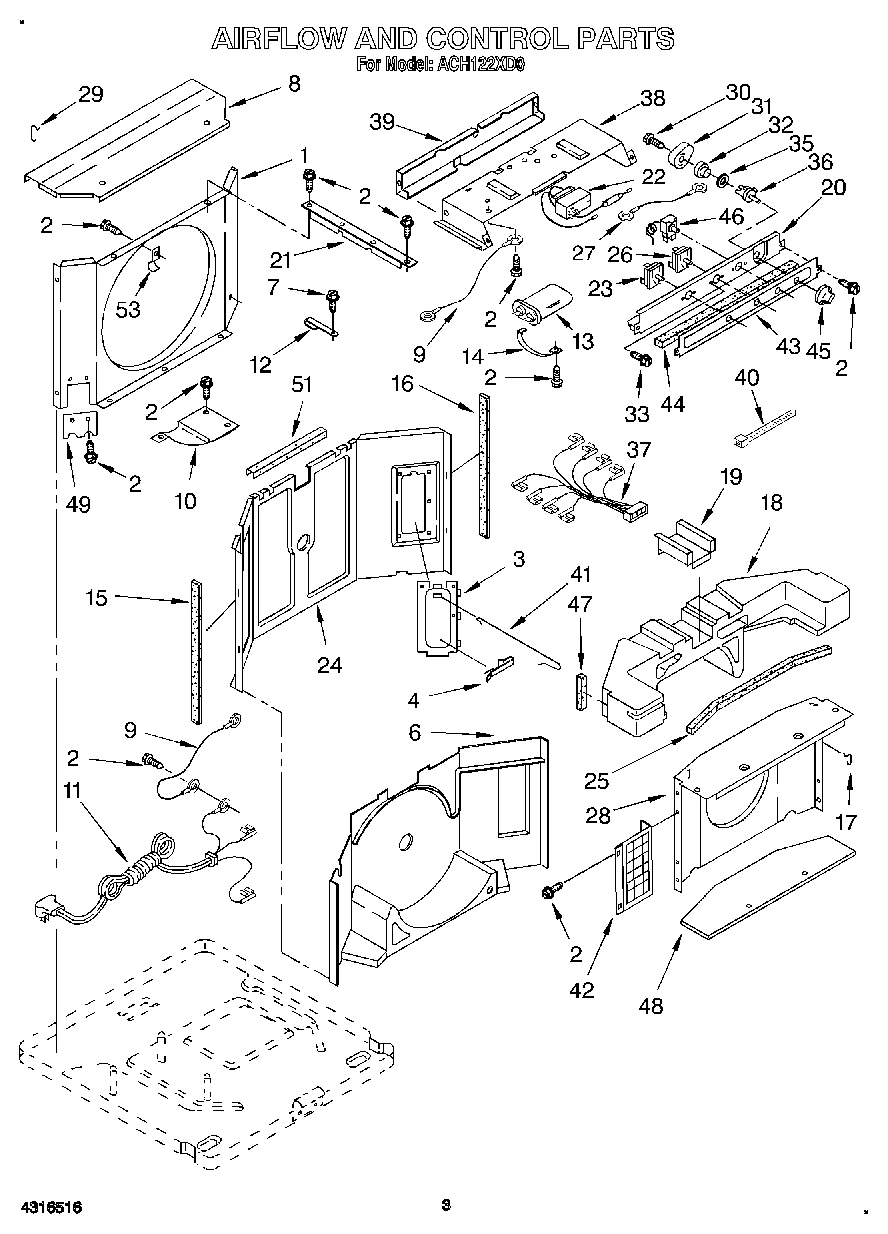

02 - AIRFLOW AND CONTROL

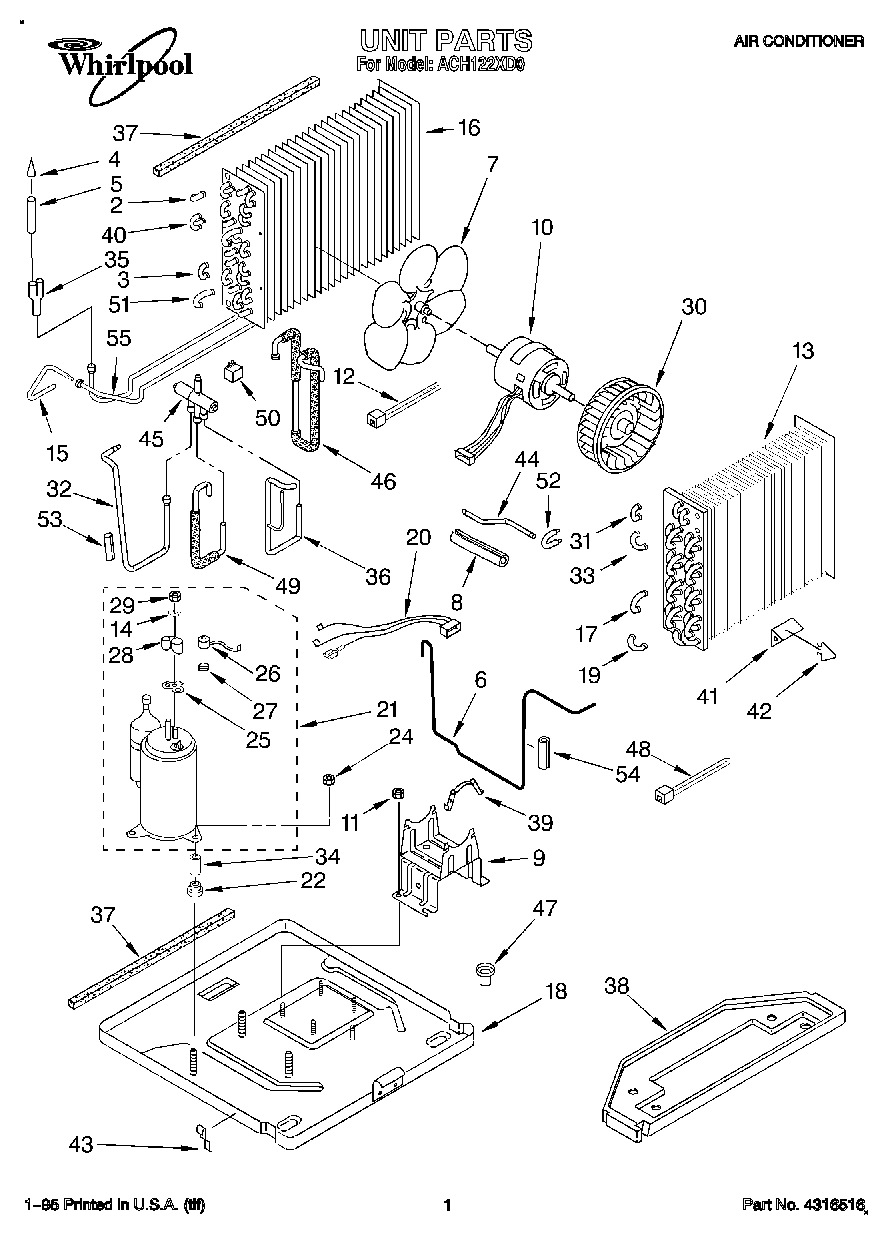

01 - UNIT, LITERATURE
Common parts from model Whirlpool ACH122XD0 AIR CONDITIONER
Instructions, Installation (Economy Kit) WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
Diagram, Wiring WPL LIT1159626 Contact Us For Availability
Instruction WPL LIT1163225 Contact Us For Availability
WPL LIT1166564 WPL LIT1166564 Contact Us For Availability
WPL LIT1166572 WPL LIT1166572 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Shroud, Condenser WPL 1165641 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Bend, Return Condenser (11) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Door, Exhaust WPL 1157193 Contact Us For Availability
3
Bend, Return Condenser (5) WPL 708531 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Spring, Door WPL 998178 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Tube, Outlet (Includes Item 4) WPL 950822 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Scroll (Lower) WPL 1158771 Contact Us For Availability
6
Tube, Restrictor (2) WPL 1165645 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 487541 Contact Us For Availability
7
Screw WPL 1161561 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1159605 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
8
Top, Condenser WPL 1156963 Contact Us For Availability
8
Seal, Suction Tube WPL 1165440 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Seal, Strip WPL 855265 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Bracket, Fan Motor WPL 1156961 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
10
Cup, Condensate WPL 1159580 Contact Us For Availability
10
Motor, Fan WPL 1157655 Contact Us For Availability
11
Seal, Meeting Rail WPL 855841 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Cord, Appliance WPL 1157194 Contact Us For Availability
12
Strap, Dividing Wall WPL 1159002 Contact Us For Availability
13
Angle, Side Mounting (2) WPL 646233 Contact Us For Availability
13
Capacitor, Running WPL 1161525 Contact Us For Availability
13
Evaporator WPL 1165346 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bracket, Top Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Top Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Bracket, Capacitor WPL 1156967 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Screw, Wood No.8 x 3/4 (6) WPL 488255 Contact Us For Availability
15
Seal, Left Side WPL 1158514 Contact Us For Availability
15
Tube, Wet Loop Connect WPL 1165644 Contact Us For Availability
16
Screw S.M. No.10 x 3/8 (6) WPL 488481 Contact Us For Availability
16
Seal, Right Side WPL 1158515 Contact Us For Availability
16
Condenser WPL 1165345 Contact Us For Availability
17
Clip, Shroud (2) WPL 994686 Contact Us For Availability
17
Return Bend (8) WPL 855644 Contact Us For Availability
18
Spacer, Filler Board (2) WPL 995274 Contact Us For Availability
18
Scroll, Upper WPL 1158772 Contact Us For Availability
18
Base WPL 1162621 Contact Us For Availability
19
Board, Filler (2) WPL 876826 Contact Us For Availability
19
Raceway, Wiring WPL 1156934 Contact Us For Availability
19
Return Bend (2) WPL 855457 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
20
Panel, Control WPL 1160037 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1159851 Contact Us For Availability
21
Support, Unit (2) WPL 1156939 Contact Us For Availability
21
Compressor WPL 1157102 Contact Us For Availability
22
Thermostat, De-Icer WPL 1164577 Contact Us For Availability
23
Horizontal Louver WPL 1159333 Contact Us For Availability
23
Switch, Rotary WPL 1161379 Contact Us For Availability
24
Wall, Dividing WPL 1156926 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Seal, Evaporator WPL 1160947 Contact Us For Availability
26
Switch Rotary WPL 1159612 Contact Us For Availability
26
OverLoad (Production) WPL 1155007 Contact Us For Availability
26
Overload (Service) WPL 1155700 Contact Us For Availability
27
Wire, Thermostat To Switch (Yellow) WPL 1156982 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Shroud, Evaporator WPL 1156929 Contact Us For Availability
29
Filter WPL 1166496 Contact Us For Availability
29
Clip, Shroud WPL 1164511 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
30
Blower, Wheel WPL 1161550 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
31
Return Bend (2) WPL 855199 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
32
Tube Assy., Valve To Condenser WPL 1163713 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Return Bend (8) WPL 854624 Contact Us For Availability
34
Sleeve (3) WPL 950020 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
35
Tube, Flow Divider WPL 1159832 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
36
Tube Assy., Valve to Evaporator WPL 1163927 Contact Us For Availability
37
Harness, Wiring Control Box WPL 1159947 Contact Us For Availability
37
Seal, Condenser Bottom WPL 1157622 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
38
Pan, Drain WPL 1158519 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Bend Return Three-Way (2) WPL 1158685 Contact Us For Availability
41
Wire, Exhaust Door WPL 1157181 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Impeller Guard (2) WPL 1158249 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
43
Escutcheon WPL 1166500 Contact Us For Availability
43
Clamp, Tube WPL 471088 Contact Us For Availability
44
Tube, Suction WPL 1159647 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
45
Valve, Reversing WPL 1159865 Contact Us For Availability
46
Control, Temperature WPL 1161021 Contact Us For Availability
46
Tube Assy., Valve to Discharge WPL 1161015 Contact Us For Availability
47
Seal, Housing WPL 1158516 Contact Us For Availability
47
Condensate, Drain WPL 997285 Contact Us For Availability
48
Insulation, Shroud WPL 1157173 Contact Us For Availability
49
Clip, Nylon WPL 1165655 Contact Us For Availability
49
Tube Assy., Valve to Accumulator WPL 1161016 Contact Us For Availability
50
Coil, Solenoid WPL 1159488 Contact Us For Availability
51
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
51
Bend, Return WPL 1156329 Contact Us For Availability
52
Bend Return Three-Way WPL 1159633 Contact Us For Availability
53
Clip, Wet Loop WPL 1161248 Contact Us For Availability
53
Dampener, Tube WPL 1164619 Contact Us For Availability
54
Dampener, Tube WPL 1162344 Contact Us For Availability
55
Tube, Wet Loop WPL 1165643 Contact Us For Availability
× ![]()
