Model Whirlpool ACH102XX0 AIR CONDITIONER – Common Parts & Diagrams

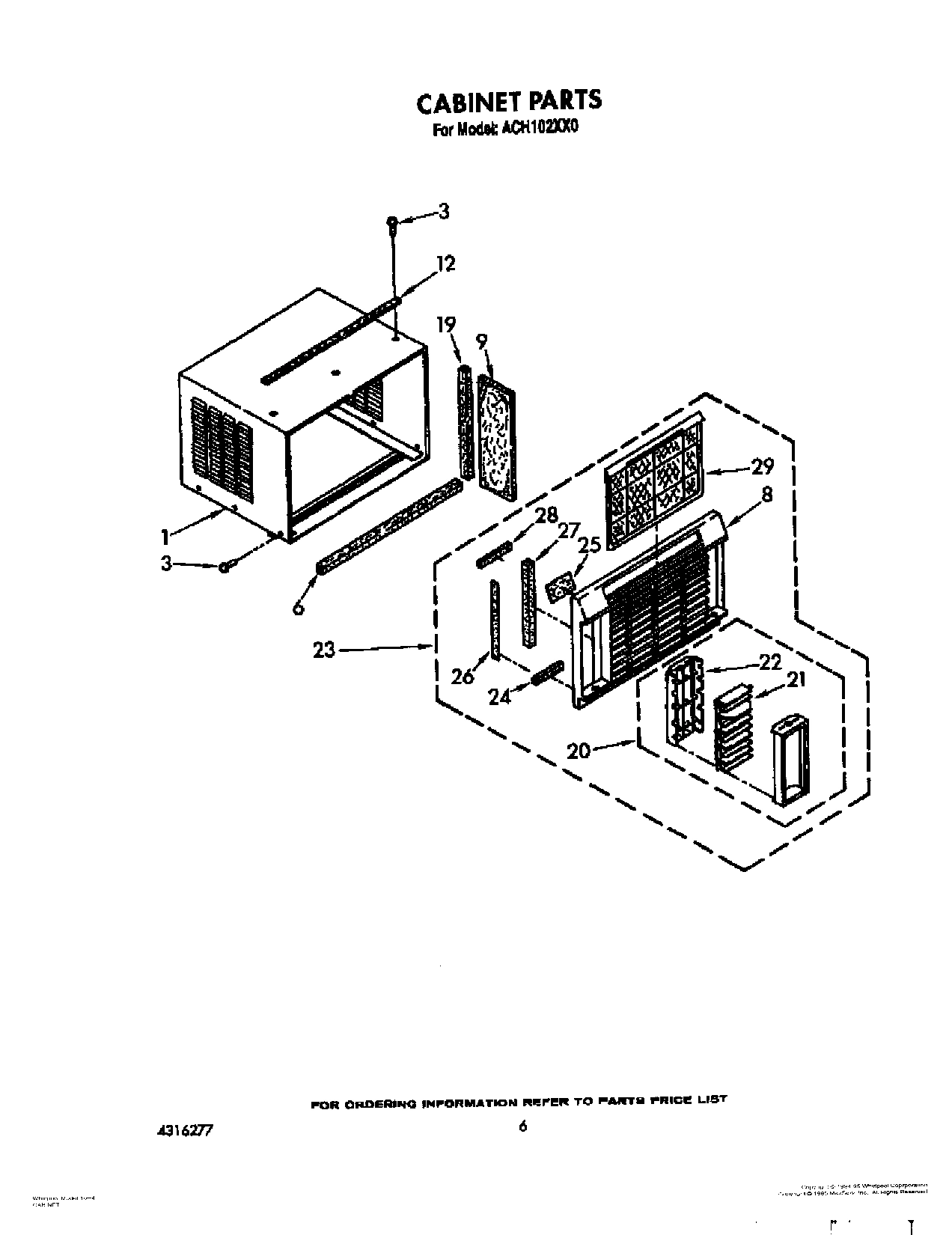

04 - CABINET

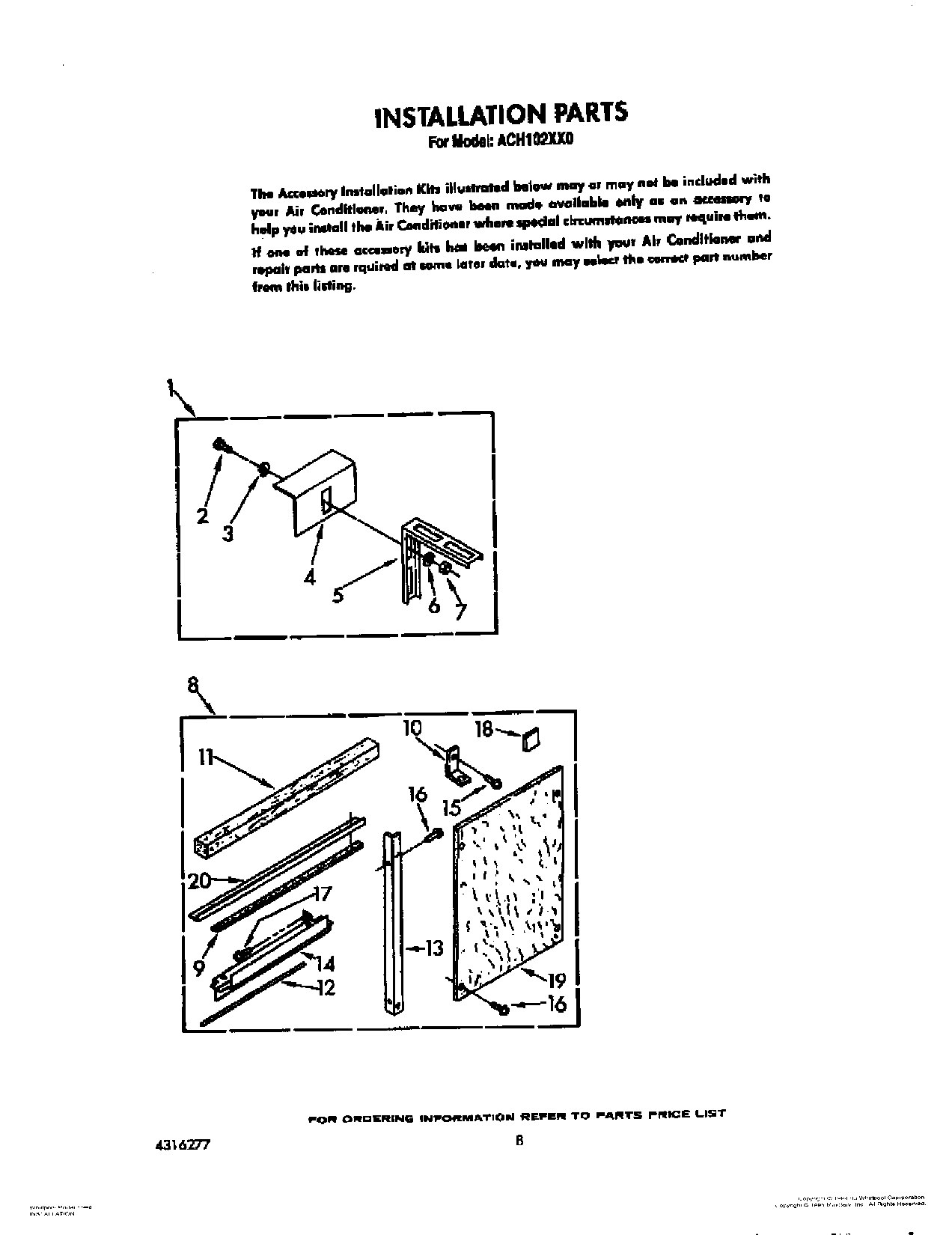

06 - INSTALLATION

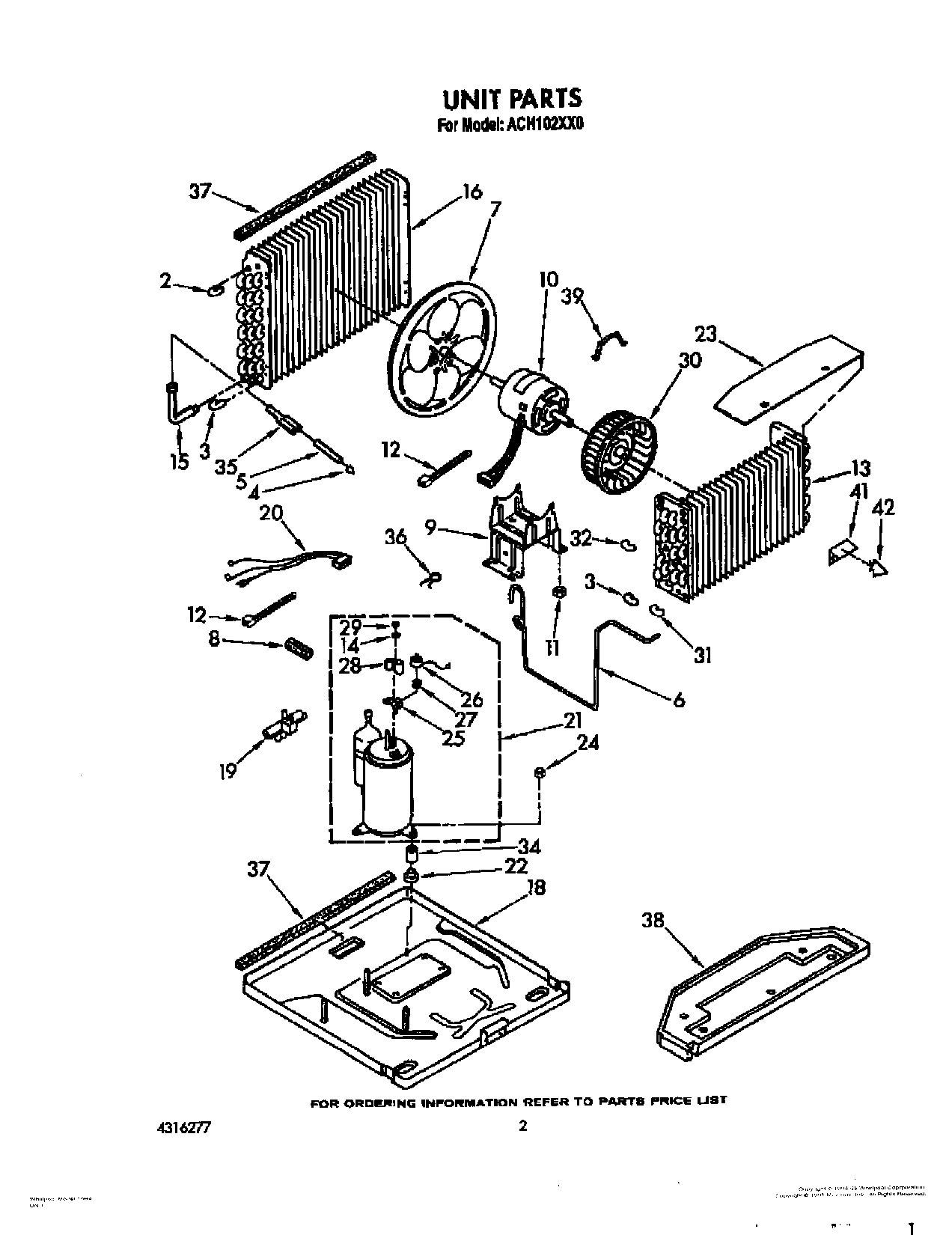

02 - UNIT

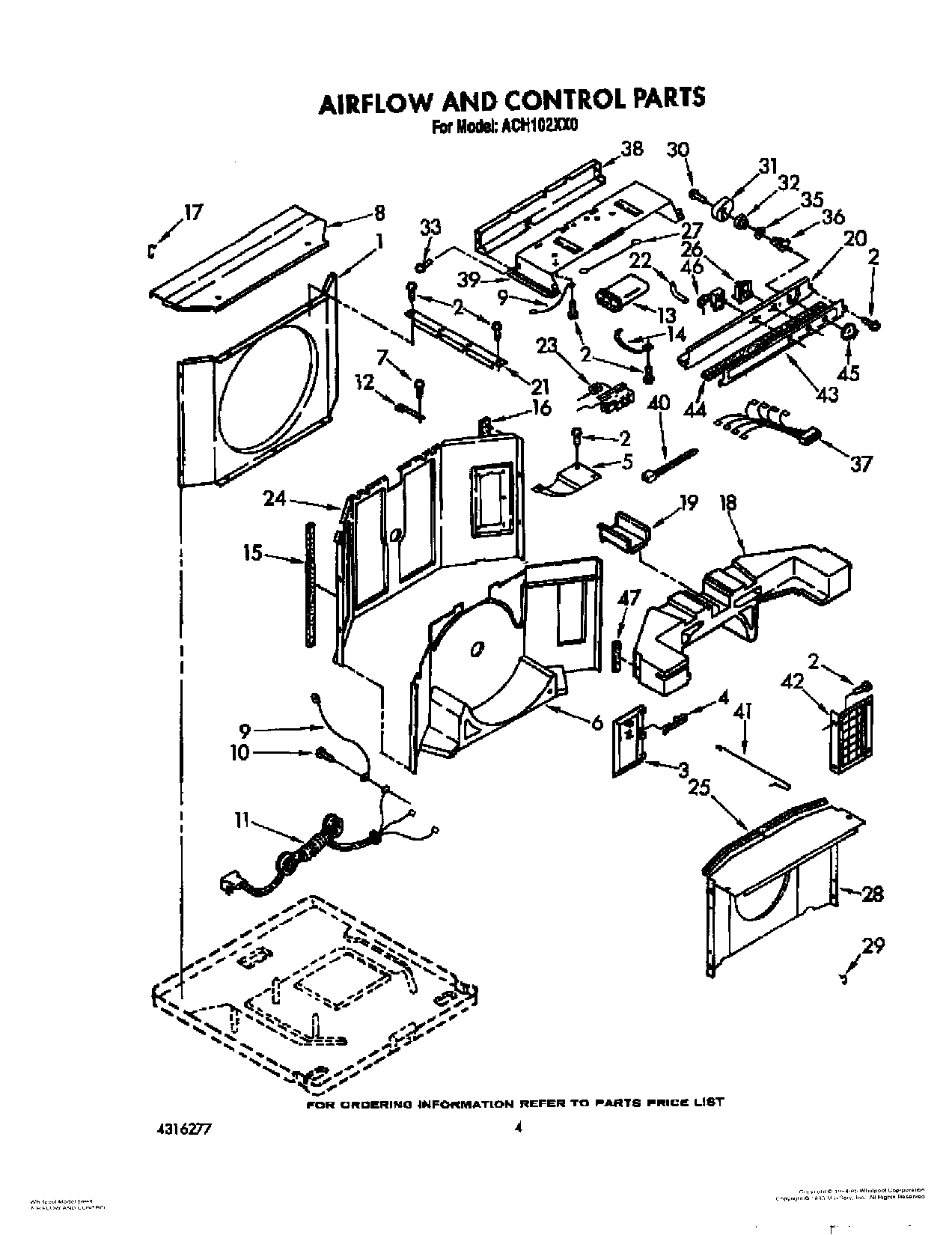

03 - AIR FLOW AND CONTROL

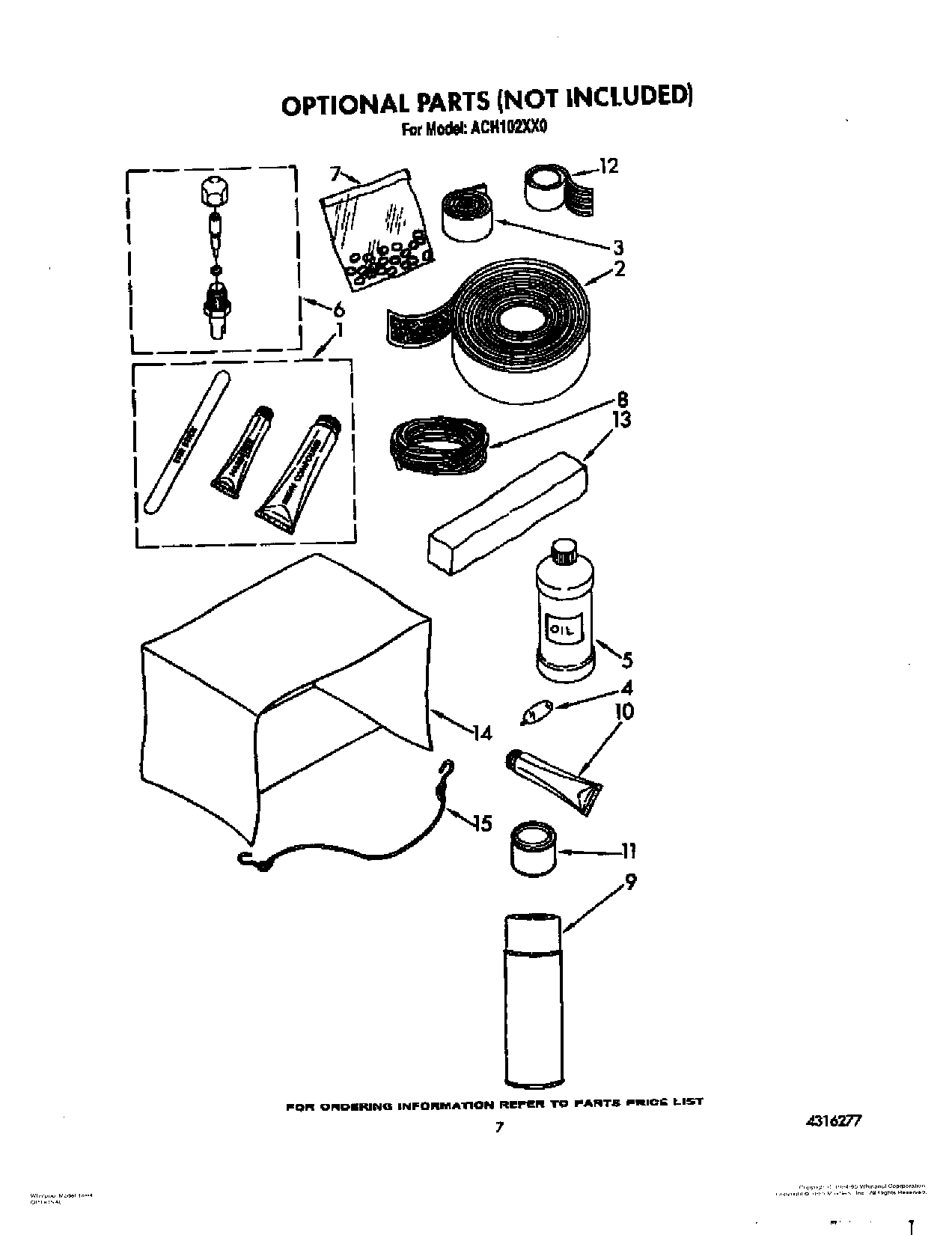

05 - OPTIONAL
Common parts from model Whirlpool ACH102XX0 AIR CONDITIONER
Instructions, Installation (Economy Kit) WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Shroud, Condenser WPL 1159604 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Bend, Return Condenser (4) Evaporator (2) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (16) Evaporator (14) WPL 708531 Contact Us For Availability
3
Door, Exhaust WPL 1157193 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Spring, Door WPL 998178 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 484230 Contact Us For Availability
5
Cup, Condensate WPL 1159580 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Tube, Restrictor (2) WPL 1160487 Contact Us For Availability
6
Scroll (Lower) WPL 1158771 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1159605 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
8
Seal, Suction Tube WPL 1159284 Contact Us For Availability
8
Top, Condenser WPL 1156963 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Strip, Seal WPL 855266 Contact Us For Availability
9
Bracket, Fan Motor WPL 1156961 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
10
Motor, Fan WPL 1157655 Contact Us For Availability
11
Seal, Meeting Rail WPL 469877 Contact Us For Availability
11
Cord, Appliance WPL 1158274 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Strap, Dividing Wall WPL 1159002 Contact Us For Availability
13
Angle, Side Mounting (2) WPL 646233 Contact Us For Availability
13
Evaporator WPL 1160548 Contact Us For Availability
13
Capacitor, Running WPL 1157632 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bracket, Top Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Top Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bracket, Capacitor WPL 1156967 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Screw, Wood No.8 x 3/4 (6) WPL 488255 Contact Us For Availability
15
Tube, 90~ Connect WPL 1155580 Contact Us For Availability
15
Seal, Left Side WPL 1158514 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Screw S.M. No.10 x 3/8 (6) WPL 488481 Contact Us For Availability
16
Condenser WPL 1160642 Contact Us For Availability
16
Seal, Right Side WPL 1158515 Contact Us For Availability
17
Clip, Shroud (2) WPL 994686 Contact Us For Availability
18
Spacer, Filler Board (2) WPL 995274 Contact Us For Availability
18
Base WPL 1157199 Contact Us For Availability
18
Scroll, Upper WPL 1158772 Contact Us For Availability
19
Board, Filler, (2) WPL 646237 Contact Us For Availability
19
Valve, Reversing WPL 1159634 Contact Us For Availability
19
Raceway, Wiring WPL 1156934 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1159851 Contact Us For Availability
20
Panel, Control WPL 1156933 Contact Us For Availability
21
Compressor WPL 819045 Contact Us For Availability
21
Support, Unit (2) WPL 1156939 Contact Us For Availability
22
Sleeve, Insulation WPL 475841 Contact Us For Availability
23
Insulation, Evaporator Shroud WPL 1157173 Contact Us For Availability
23
De-Icer, Thermostat WPL 1159783 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Wall, Dividing WPL 1156926 Contact Us For Availability
25
Seal, Evaporator WPL 1158271 Contact Us For Availability
26
Overload WPL 951865 Contact Us For Availability
26
Switch Rotary WPL 1159782 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Wire, Thermostat To Switch WPL 1156982 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1156929 Contact Us For Availability
29
Clip, Shroud WPL 1158257 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1156980 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Return Bend (2) WPL 1156533 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
32
Return Bend (2) WPL 1158407 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Sleeve (3) WPL 950020 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
36
Clamp, Tube (2) WPL 855930 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
37
Seal, Condenser Bottom WPL 1157622 Contact Us For Availability
37
Harness, Wiring Control Box WPL 1159785 Contact Us For Availability
38
Pan, Drain WPL 1158519 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
41
Anticipator WPL 996773 Contact Us For Availability
41
Wire, Exhaust Door WPL 1157181 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
42
Wiring Diagram WPL LIT1159625 Contact Us For Availability
42
Use And Care Guide WPL LIT1159922 Contact Us For Availability
42
Buy Guide WPL LIT1160267 Contact Us For Availability
42
Tech Sheet WPL LIT1160327 Contact Us For Availability
42
Instructions, Installation WPL LIT1160377 Contact Us For Availability
42
Literature Parts (List, Repair Parts) WPL LIT4316277 Contact Us For Availability
42
Impeller Guard (2) WPL 1158249 Contact Us For Availability
43
Escutcheon WPL 1159631 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
46
Control, Temperature WPL 1160883 Contact Us For Availability
47
Seal, Housing WPL 1158516 Contact Us For Availability
× ![]()
