Model Whirlpool ACH082XM0 AIR CONDITIONER – Common Parts & Diagrams

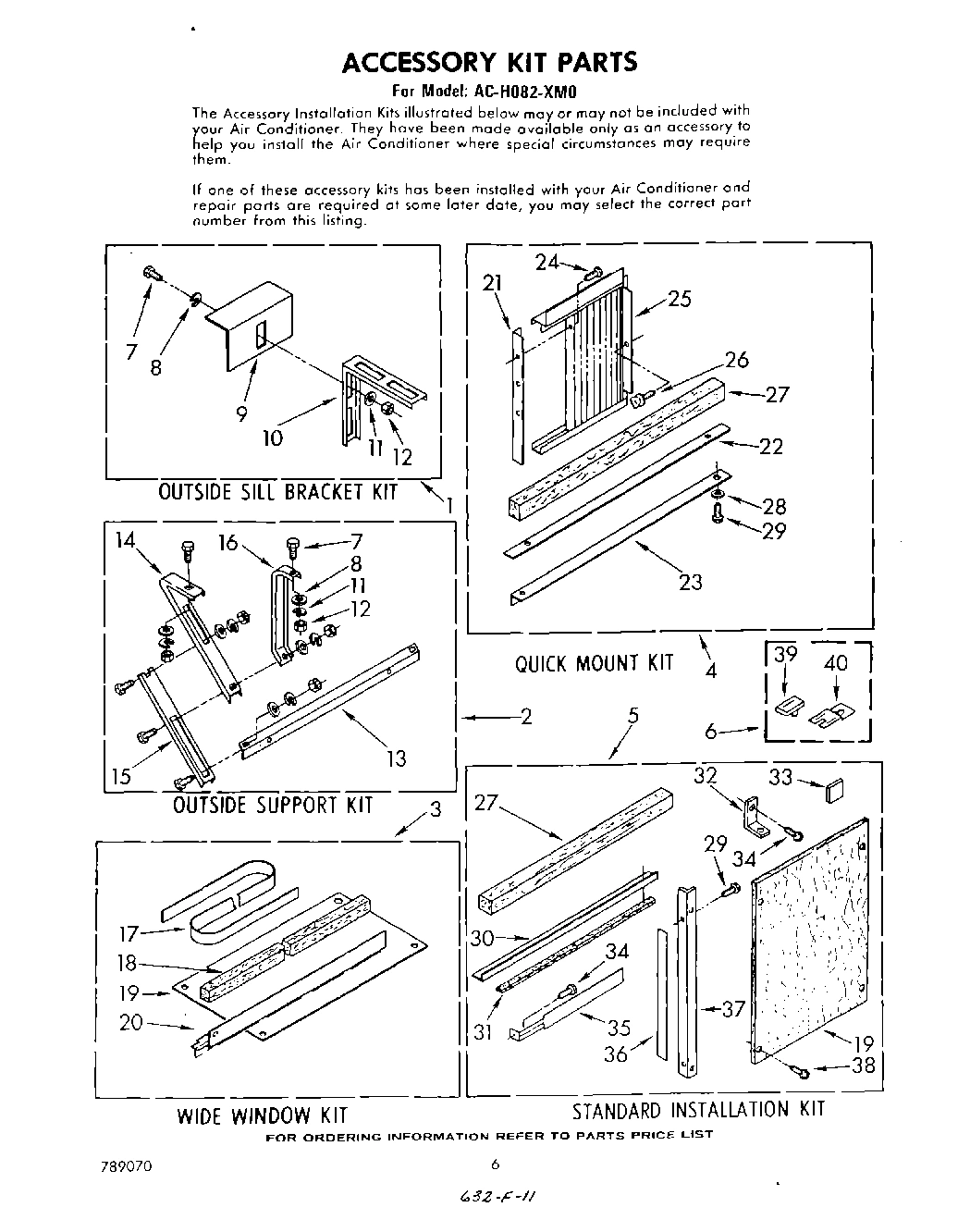

04 - ACCESSORY KIT PARTS

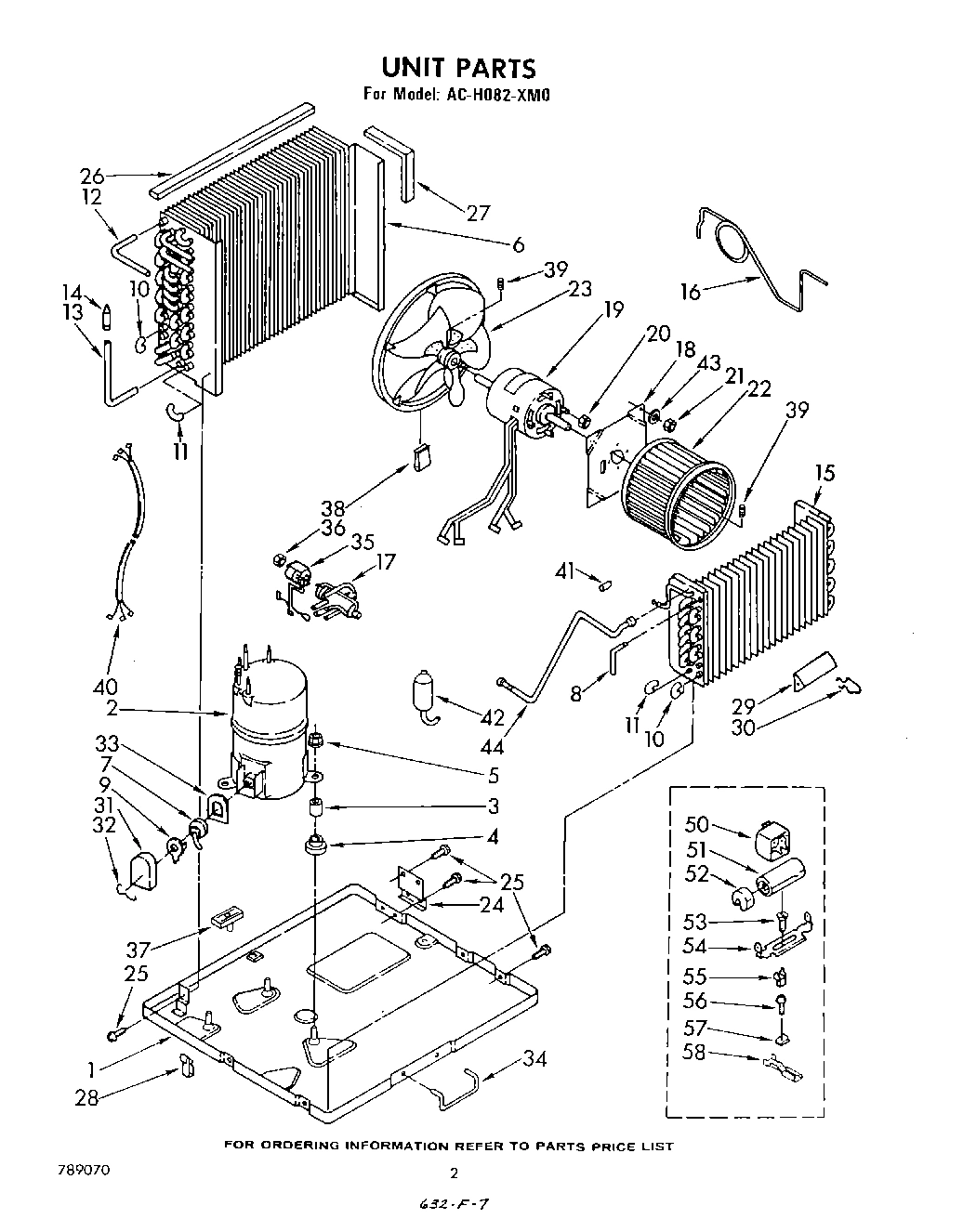

02 - UNIT PARTS
01 - CABINET AND FRONT PARTS
03 - AIR FLOW AND CONTROL PARTS
Common parts from model Whirlpool ACH082XM0 AIR CONDITIONER
1
Base WPL 858803 Contact Us For Availability
1
Cabinet WPL 858828 Contact Us For Availability
1
Wall, Dividing (Requires Insulation No. 46993 WPL 998003 Contact Us For Availability
2
Compressor WPL 484285 Contact Us For Availability
2
Grommet, Cable WPL 647849 Contact Us For Availability
2
Clamp, Capillary (2) WPL 465585 Contact Us For Availability
3
Sleeve (3) WPL 858148 Contact Us For Availability
3
Wire, Ground WPL 857017 Contact Us For Availability
3
Screw, Sm No.10 x 3/8 (Repair) WPL 488481 Contact Us For Availability
4
Grommet (3) WPL 469581 Contact Us For Availability
4
Screw, Machine 8-32 x 3/8 WPL 488853 Contact Us For Availability
4
Channel, Wiring WPL 852317 Contact Us For Availability
5
Locknut (3) WPL 858121 Contact Us For Availability
6
Condenser WPL 998353 Contact Us For Availability
6
Plate, Escutcheon WPL 950535 Contact Us For Availability
6
Clamp, Cable WPL 648791 Contact Us For Availability
7
Overload WPL 646781 Contact Us For Availability
7
Spacer, Plate (3) WPL 470036 Contact Us For Availability
7
Capacitor, Running WPL 998239 Contact Us For Availability
8
Tube, 90o Connect WPL 647949 Contact Us For Availability
8
Knob, Control WPL 947264 Contact Us For Availability
8
Bracket, Capacitor WPL 475844 Contact Us For Availability
9
Spring, Overload WPL 644362 Contact Us For Availability
9
Front Assembly, Cabinet (Complete) WPL 951140 Contact Us For Availability
9
Bracket, Capacitor WPL 852992 Contact Us For Availability
10
Bracket, Rail (2) WPL 485466 Contact Us For Availability
10
Bend, Return Condenser (18) Evaporator (5) WPL 855199 Contact Us For Availability
10
Front, Cabinet WPL 950538 Contact Us For Availability
10
Wire, Ground WPL 948285 Contact Us For Availability
11
Lockwasher WPL 486009 Contact Us For Availability
11
Bend, Return Condenser (4) Evaporator (10) WPL 854264 Contact Us For Availability
11
Filter WPL 648008 Contact Us For Availability
12
Nut, 1/4-20 WPL 486035 Contact Us For Availability
12
Tube, 90o Connect WPL 475635 Contact Us For Availability
12
Retainer, Filter WPL 476707 Contact Us For Availability
12
Shroud, Condenser WPL 647862 Contact Us For Availability
13
Bracket, Cabinet Support WPL 644281 Contact Us For Availability
13
Tube, Strainer Assembly (Includes Illus. 14) WPL 484230 Contact Us For Availability
13
Housing, Wheel WPL 852875 Contact Us For Availability
14
Support, Cabinet (2) WPL 644283 Contact Us For Availability
14
Strainer WPL 49599 Contact Us For Availability
14
Seal, Cabinet Front WPL 647914 Contact Us For Availability
14
Door, Exhaust WPL 649720 Contact Us For Availability
15
Extension, Support (2) WPL 644284 Contact Us For Availability
15
Evaporator WPL 998354 Contact Us For Availability
15
Seal WPL 649198 Contact Us For Availability
15
Fastener, snap (2) WPL 487808 Contact Us For Availability
16
Retainer, Support (2) WPL 644285 Contact Us For Availability
16
Tube, Restrictor (1) (Length 25.50``) WPL 997410 Contact Us For Availability
16
Louver, Vertical WPL 647798 Contact Us For Availability
16
Spring, Door WPL 859369 Contact Us For Availability
17
Valve, Reversing WPL 467396 Contact Us For Availability
17
Handle, Verg. Louver WPL 644165 Contact Us For Availability
17
Bushing, Shaft WPL 647879 Contact Us For Availability
18
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
18
Plate, Fan Motor WPL 998024 Contact Us For Availability
18
Link, Vertical Louver WPL 647799 Contact Us For Availability
18
Pan, Condensate Condenser WPL 852993 Contact Us For Availability
19
Board, Filler (2) WPL 647835 Contact Us For Availability
19
Motor, Fan WPL 998368 Contact Us For Availability
19
Spring, Detent WPL 641484 Contact Us For Availability
19
Pan, Condensate Evaporator WPL 853268 Contact Us For Availability
20
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
20
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
20
Screw, St 8-32 x 3/8 WPL 488854 Contact Us For Availability
20
Insulation, Pan WPL 853269 Contact Us For Availability
21
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
21
Locknut (4) WPL 858122 Contact Us For Availability
21
Clip, Cabinet Front (2) WPL 949634 Contact Us For Availability
21
Tube, Condensate WPL 49181 Contact Us For Availability
22
Strip, Seal WPL 477597 Contact Us For Availability
22
Wheel, Blower WPL 859495 Contact Us For Availability
22
Retainer, Shroud (3) WPL 647873 Contact Us For Availability
23
Channel, Bottom Mounting WPL 644387 Contact Us For Availability
23
Blade, Fan WPL 859496 Contact Us For Availability
23
Shaft, Control WPL 852023 Contact Us For Availability
24
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
24
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
24
Guard, Impeller WPL 997949 Contact Us For Availability
25
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
25
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
26
Thumbscrew (2) WPL 475581 Contact Us For Availability
26
Seal WPL 649609 Contact Us For Availability
26
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
27
Seal, Meeting Rail WPL 469877 Contact Us For Availability
27
Seal WPL 649610 Contact Us For Availability
27
Clip, Speed WPL 649620 Contact Us For Availability
28
Washer (2) WPL 488520 Contact Us For Availability
28
Clamp, Tube WPL 471088 Contact Us For Availability
28
Cover, Evaporator WPL 856957 Contact Us For Availability
29
Anticipator, Temperature WPL 475573 Contact Us For Availability
29
Insulation, Cover WPL 948410 Contact Us For Availability
30
Channel, Top Mounting WPL 644380 Contact Us For Availability
30
Clip, Anticipator WPL 475577 Contact Us For Availability
30
Box, Control WPL 951086 Contact Us For Availability
31
Seal WPL 855265 Contact Us For Availability
31
Cover, Terminal WPL 855762 Contact Us For Availability
31
Clamp, Wiring WPL 947072 Contact Us For Availability
32
Bracket, Window Lock WPL 644228 Contact Us For Availability
32
Retainer, Cover WPL 475062 Contact Us For Availability
32
Bracket, Fan Capacitor WPL 998009 Contact Us For Availability
33
Block, Spacer (4) WPL 995274 Contact Us For Availability
33
Gasket, Cover WPL 643296 Contact Us For Availability
33
Capacitor, Fan Motor WPL 997981 Contact Us For Availability
34
Wood Screw, No.8 x 3/4 (5) WPL 488255 Contact Us For Availability
34
Handle, Base WPL 647971 Contact Us For Availability
34
Thermostat, Deicer WPL 950634 Contact Us For Availability
35
Bracket, R.S. WPL 645562 Contact Us For Availability
35
Bracket, L.S. WPL 645563 Contact Us For Availability
35
Coil, Solenoid WPL 852978 Contact Us For Availability
35
Sleeve, Insulation (Temp. Control) WPL 475841 Contact Us For Availability
36
Strip, Seal WPL 856979 Contact Us For Availability
36
Control, Temperature WPL 853275 Contact Us For Availability
37
Angle, Side Mounting (2) WPL 645564 Contact Us For Availability
37
Cup, Condensate WPL 647850 Contact Us For Availability
37
Screw, Mach 6-32 x .175 WPL 488734 Contact Us For Availability
38
Clip, Balancing WPL 485334 Contact Us For Availability
38
Switch, Rotary WPL 950525 Contact Us For Availability
39
Setscrew, 5/16 x 1/4 (2) WPL 595085 Contact Us For Availability
39
Grommet, Wiring WPL 647865 Contact Us For Availability
40
Instructions, Installation (Kit, Quick Mount) WPL 485687 Contact Us For Availability
40
Instructions, Installation (Kit, Wide Window) WPL 485688 Contact Us For Availability
40
Instructions, Installation (Outside Sill Kit) WPL 485706 Contact Us For Availability
40
Instructions, Installation (Kit, Outside Supp WPL 485707 Contact Us For Availability
40
Instructions, Installation (K WPL 978930 Contact Us For Availability
40
WPL 993380 WPL 993380 Contact Us For Availability
40
WPL 995075 WPL 995075 Contact Us For Availability
40
Harness, Wiring WPL 484136 Contact Us For Availability
40
Cable, Appliance WPL 648535 Contact Us For Availability
41
Strainer WPL 474013 Contact Us For Availability
41
Wire, Ground WPL 857634 Contact Us For Availability
42
Accumulator Assembly WPL 949876 Contact Us For Availability
42
Support, Unit WPL 852318 Contact Us For Availability
43
Washer (Repair) WPL 470280 Contact Us For Availability
43
Washer, Spring WPL 647881 Contact Us For Availability
44
Muffler, Tube Assembly (Includes Item 41) WPL 998355 Contact Us For Availability
44
Cam, Shaft WPL 647882 Contact Us For Availability
45
Wire, Ground WPL 998010 Contact Us For Availability
47
Bracket, Tube Support WPL 947321 Contact Us For Availability
48
Clamp, Discharge Tube WPL 43996 Contact Us For Availability
49
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
50
Relay WPL 484177 Contact Us For Availability
50
Thermistor WPL 949177 Contact Us For Availability
51
Capacitor WPL 48616 Contact Us For Availability
52
WPL 484069 WPL 484069 Contact Us For Availability
52
xCap, Capacitor WPL 465280 Contact Us For Availability
52
Wire, Black (25 WPL 47261 Contact Us For Availability
52
WPL 47262 WPL 47262 Contact Us For Availability
52
WPL 47263 WPL 47263 Contact Us For Availability
52
WPL 485426 WPL 485426 Contact Us For Availability
52
WPL 647847 WPL 647847 Contact Us For Availability
52
WPL 647848 WPL 647848 Contact Us For Availability
52
WPL 647854 WPL 647854 Contact Us For Availability
52
WPL 789070 WPL 789070 Contact Us For Availability
52
WPL 799351 WPL 799351 Contact Us For Availability
52
WPL 949176 WPL 949176 Contact Us For Availability
52
WPL 950157 WPL 950157 Contact Us For Availability
52
WPL 950357 WPL 950357 Contact Us For Availability
52
WPL 950806 WPL 950806 Contact Us For Availability
52
WPL 951080 WPL 951080 Contact Us For Availability
52
WPL 951088 WPL 951088 Contact Us For Availability
53
xScrew, 10 x 5/8 WPL 487880 Contact Us For Availability
54
xBracket, capacitor WPL 35564 Contact Us For Availability
55
Multiplier, Terminal WPL 90654 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
No Drip Tape WPL 505168 Contact Us For Availability
58
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
58
xClip, terminal WPL 45571 Contact Us For Availability
58
Start Assist Kit WPL 484220 Contact Us For Availability
58
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
58
Kit, Compressor Start WPL 485608 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
