Model Whirlpool ACH082XD0 AIR CONDITIONER – Common Parts & Diagrams
02 - AIRFLOW AND CONTROL
03 - CABINET

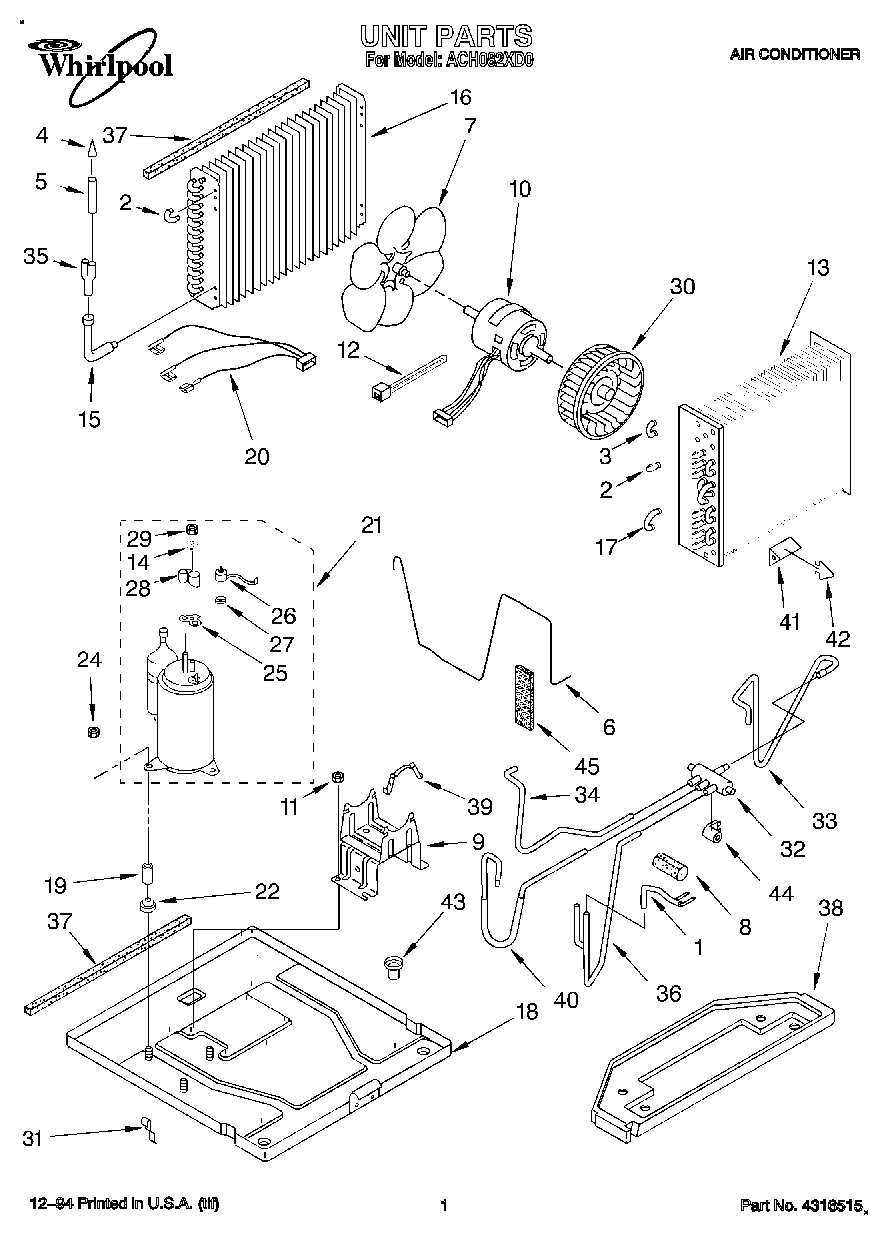

01 - UNIT, LITERATURE

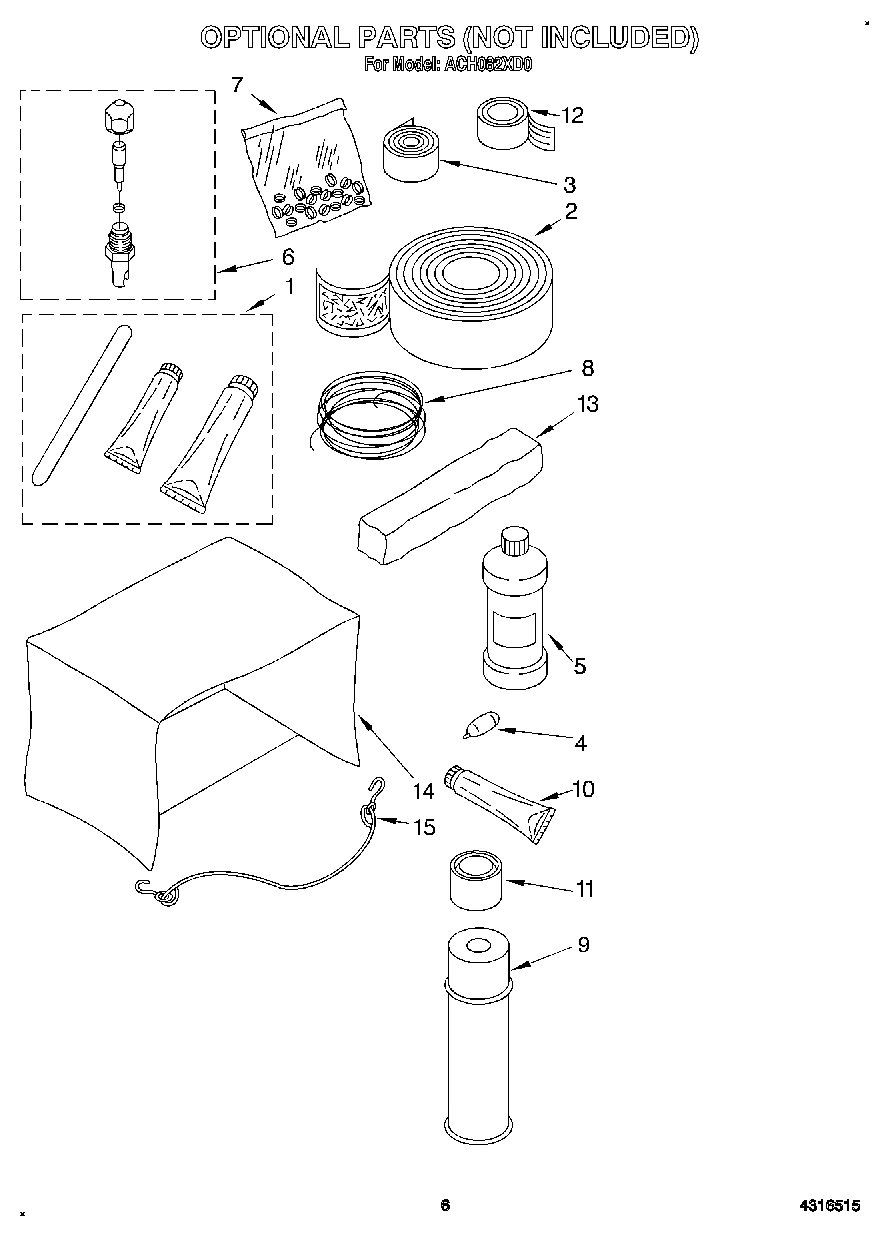

04 - OPTIONAL
Common parts from model Whirlpool ACH082XD0 AIR CONDITIONER
Diagram, Wiring WPL LIT1159626 Contact Us For Availability
Instructions, Installation WPL LIT1163225 Contact Us For Availability
Tech Sheet WPL LIT1166564 Contact Us For Availability
Use and Care Guide WPL LIT1166572 Contact Us For Availability
1
Cabinet WPL 1163055 Contact Us For Availability
1
Tube, Suction WPL 1159925 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Condenser (13) Evaporator (9) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Evaporator (3) WPL 708531 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 951437 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1159289 Contact Us For Availability
6
Tube, Restrictor WPL 1157191 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1159605 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Front, Cabinet WPL 1156971 Contact Us For Availability
8
Seal, Tube WPL 1165440 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Insulation (2) WPL 1161748 Contact Us For Availability
9
Bracket, Fan Motor WPL 1156961 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Screw 3/8 (6) WPL 1161561 Contact Us For Availability
10
Motor, Fan WPL 1157655 Contact Us For Availability
11
Insulation, Cabinet Side WPL 1161747 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Seal, Cabinet Top WPL 1158593 Contact Us For Availability
13
Screw, 8-32 x 3/8 WPL 488853 Contact Us For Availability
13
Evaporator WPL 1158998 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Screw, Wood (8) WPL 487371 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Tube, 90~ Connect WPL 1155580 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1157163 Contact Us For Availability
17
Bend, Return (1) WPL 1156329 Contact Us For Availability
18
Scroll, Top WPL 1158772 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Base WPL 1162623 Contact Us For Availability
19
Raceway, Wiring WPL 1156934 Contact Us For Availability
19
Seal, Strip (2) WPL 1159254 Contact Us For Availability
19
Sleeve, Mtg. WPL 858148 Contact Us For Availability
20
Panel, Control WPL 1160037 Contact Us For Availability
20
Cartridge, Complete WPL 1159334 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1160120 Contact Us For Availability
21
Louver, Horizontal WPL 1159333 Contact Us For Availability
21
Support, Unit (2) WPL 1156939 Contact Us For Availability
22
Ribs, Vertical WPL 1156975 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Thermostat, De-Icer WPL 1164577 Contact Us For Availability
23
Front, Complete WPL 1166519 Contact Us For Availability
24
Wall, Dividing WPL 1156926 Contact Us For Availability
24
Seal, (2) WPL 1161746 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Seal, Evaporator WPL 1160947 Contact Us For Availability
25
Seal WPL 1159081 Contact Us For Availability
26
Switch Rotary WPL 1159612 Contact Us For Availability
26
Seal (2) WPL 1159079 Contact Us For Availability
27
Seal (2) WPL 1161205 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1156929 Contact Us For Availability
29
Filter WPL 1166496 Contact Us For Availability
29
Clip, Shroud WPL 1164511 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1163571 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
31
Clamp, Tube WPL 471088 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
32
Reversing, Valve WPL 1165349 Contact Us For Availability
33
Tube, Valve /Disc. WPL 1159638 Contact Us For Availability
34
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
34
Tube, Valve/Cond. WPL 1159639 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
36
Tube, Valve/ Evap. WPL 1163930 Contact Us For Availability
37
Harness, Wiring Control Box WPL 1159947 Contact Us For Availability
37
Seal, Condenser Bottom WPL 1157622 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
38
Pan, Drain WPL 1158519 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Tube / Valve to Accum. WPL 1161018 Contact Us For Availability
41
Wire, Exhaust Door WPL 1157181 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Impeller Guard (2) WPL 1158249 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
43
Escutcheon WPL 1166500 Contact Us For Availability
43
Cup, Condensate Drain WPL 997285 Contact Us For Availability
44
Coil, Solenoid WPL 1159488 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
45
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
46
Control, Temperature WPL 1161021 Contact Us For Availability
47
Seal, Housing WPL 1158516 Contact Us For Availability
48
Insulation, Evaporator Shroud WPL 1157173 Contact Us For Availability
49
Switch, Rotary WPL 1161379 Contact Us For Availability
× ![]()
