Model Whirlpool ACG072XJ0 AIR CONDITIONER – Common Parts & Diagrams

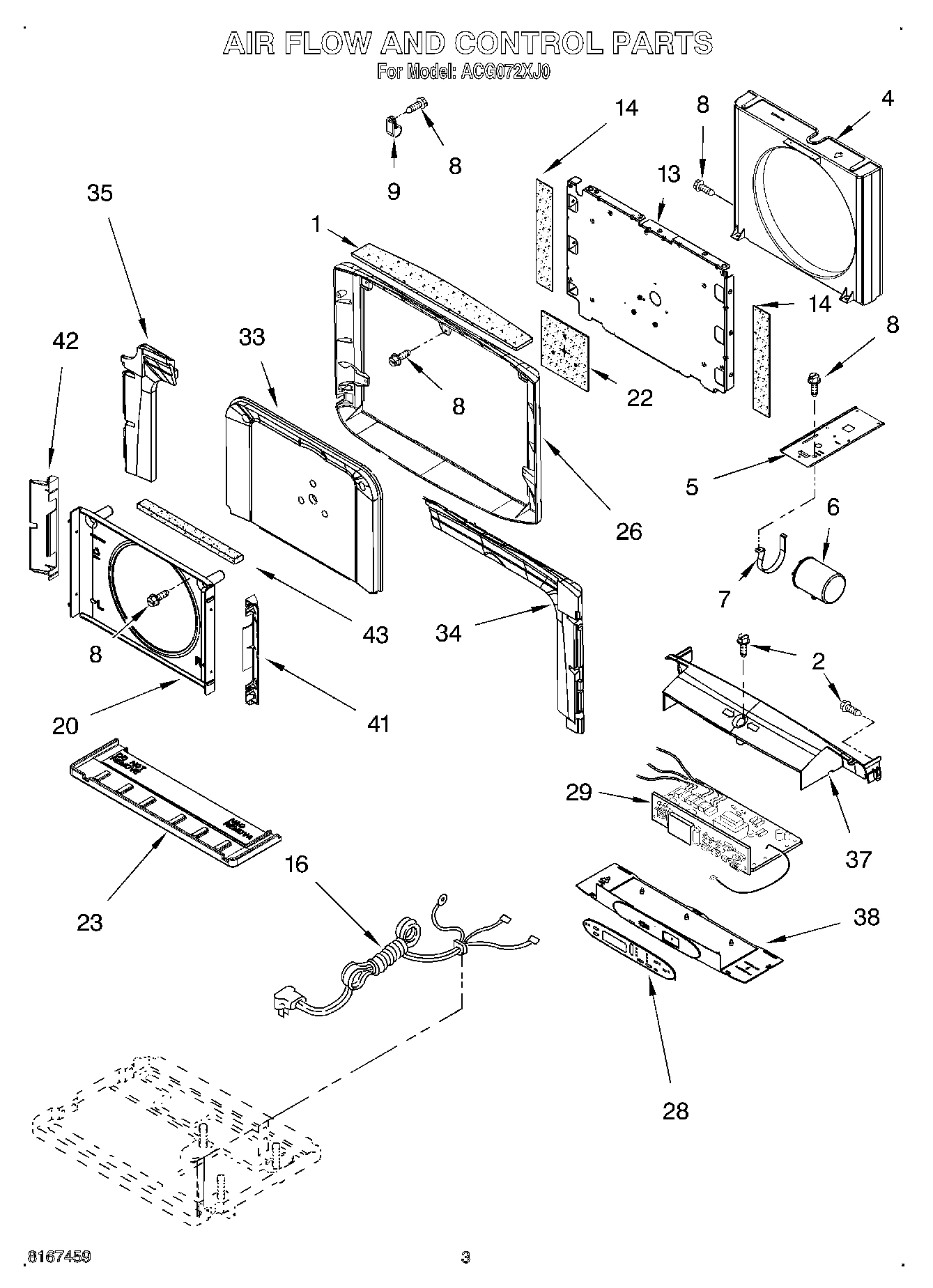

02 - AIRFLOW AND CONTROL

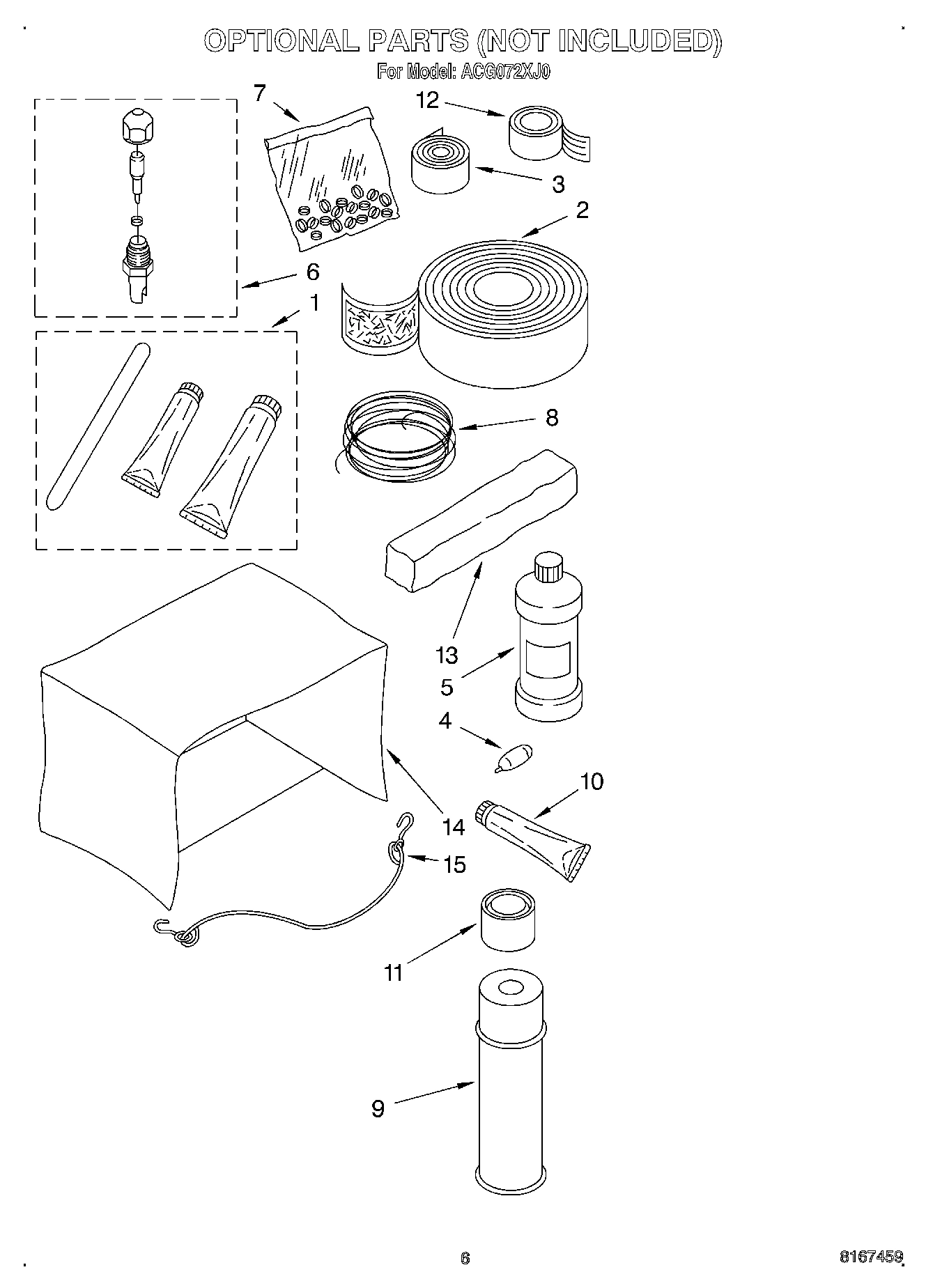

04 - OPTIONAL

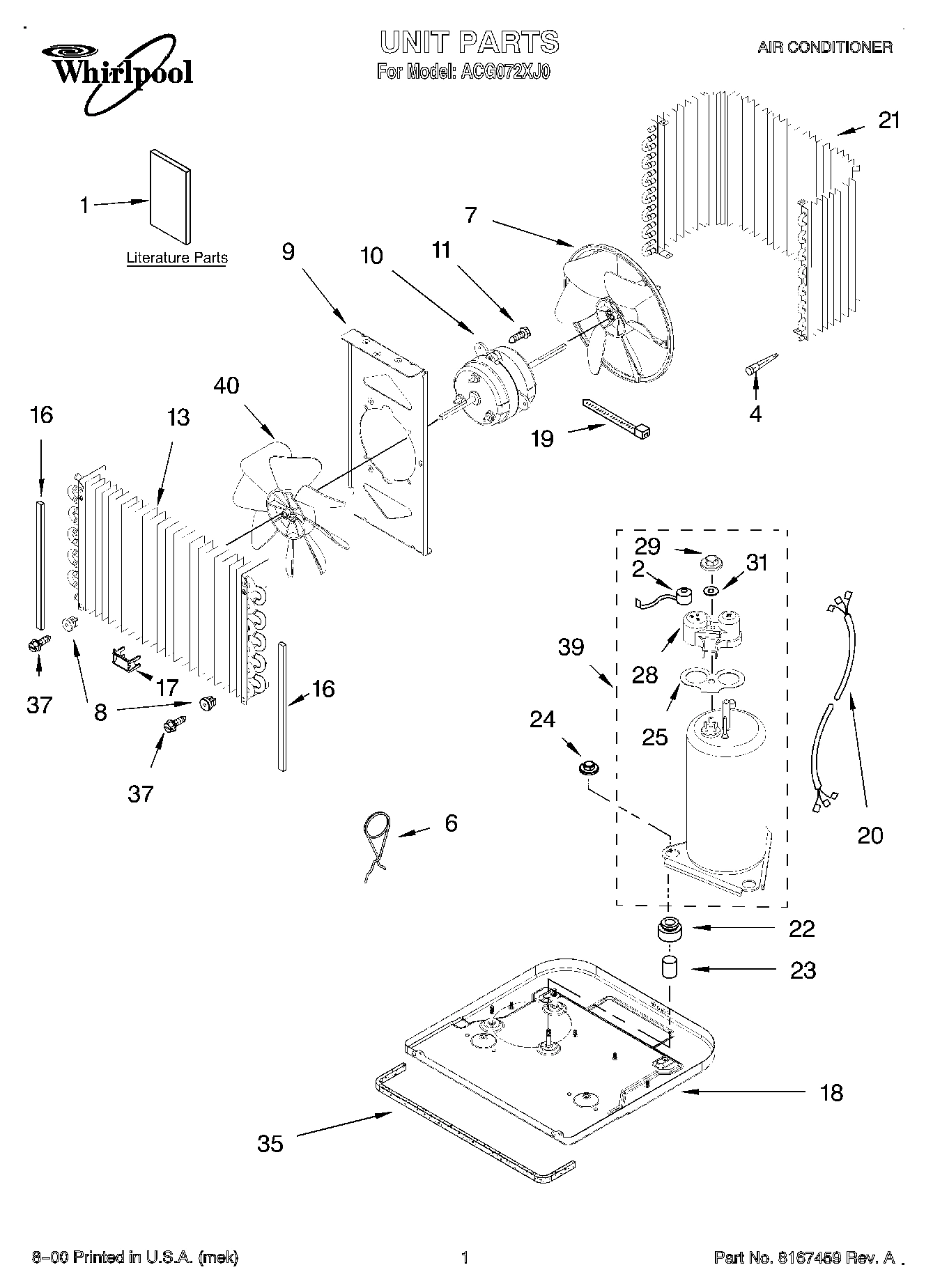

01 - UNIT, LITERATURE

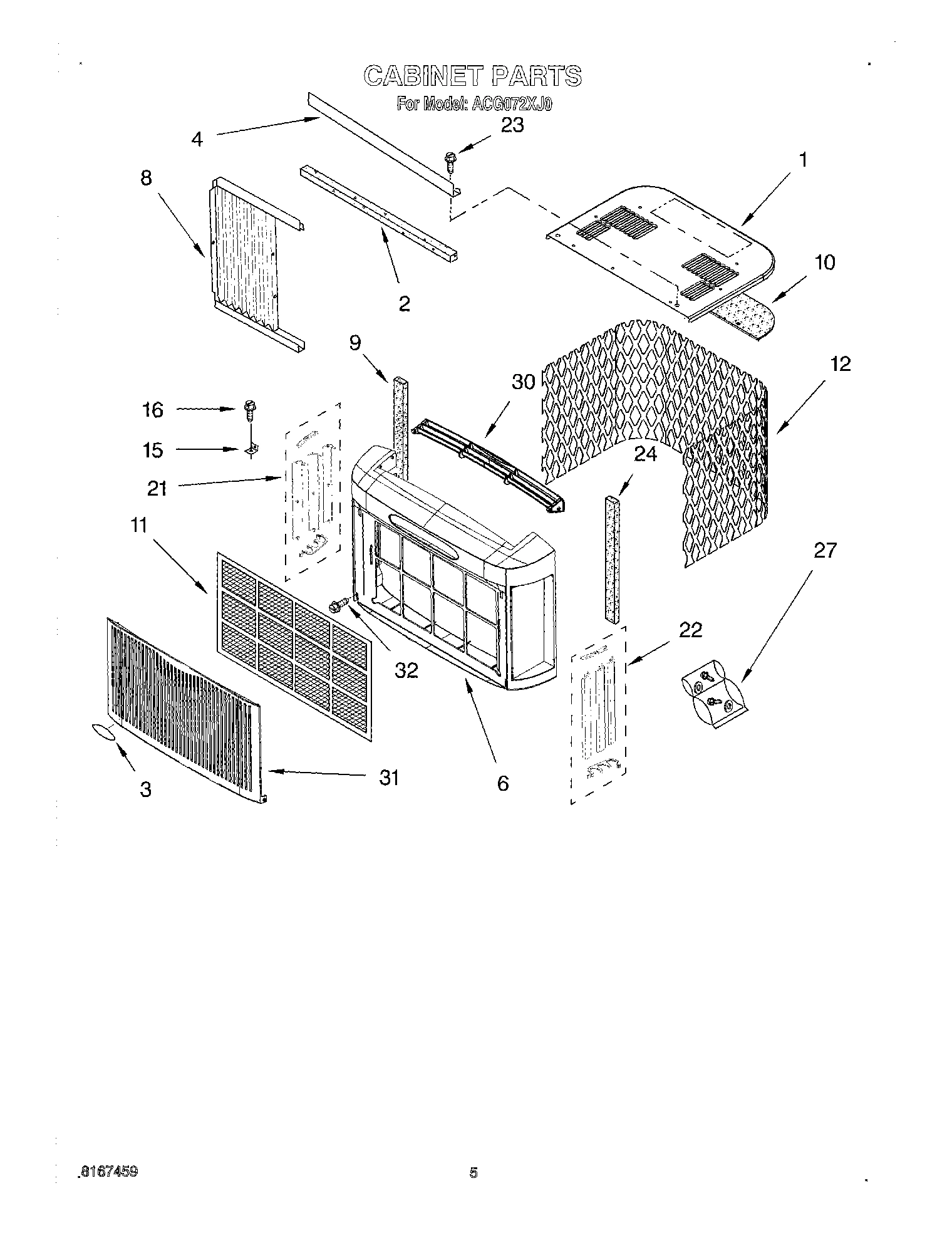

03 - CABINET
Common parts from model Whirlpool ACG072XJ0 AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram Label) WPL LIT8040115 Contact Us For Availability
1
LITERATURE PARTS (Energy Hangtag) WPL LIT8040138 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT8040149 Contact Us For Availability
1
Top Cover WPL 8040019 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Overload WPL 8040343 Contact Us For Availability
2
Gasket, Meeting Rail WPL 8040336 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Nameplate WPL 8040150 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Channel, Top WPL 8040095 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 8040035 Contact Us For Availability
6
Front, Cabinet WPL 8040075 Contact Us For Availability
7
Fan Blade, Condenser WPL 8040030 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Grommet WPL 8040125 Contact Us For Availability
8
Curtain (R.S.) WPL 1183836 Contact Us For Availability
8
Curtain (L.S.) WPL 1183837 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Motor WPL 8040083 Contact Us For Availability
9
Seal WPL 8040278 Contact Us For Availability
10
Motor, Fan WPL 8040173 Contact Us For Availability
10
Insulation, Top WPL 8040216 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Filter, Woven WPL 8040088 Contact Us For Availability
12
Rear Grille WPL 8040020 Contact Us For Availability
13
Evaporator WPL 8040031 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
16
Seal WPL 8040258 Contact Us For Availability
16
Screw WPL 488255 Contact Us For Availability
17
Clip, Thermistor WPL 8040169 Contact Us For Availability
18
Base WPL 8040163 Contact Us For Availability
20
Harness, Wiring WPL 8040106 Contact Us For Availability
21
Condenser WPL 8040244 Contact Us For Availability
21
Louver, Assembly Left WPL 4388703 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Louver, Assembly Right WPL 4388704 Contact Us For Availability
23
Sleeve, Compressor Grommet WPL 8040384 Contact Us For Availability
23
Screw WPL 1161561 Contact Us For Availability
24
Locknut (3) WPL 8040096 Contact Us For Availability
24
Seal, Header Plate WPL 8040259 Contact Us For Availability
26
Collar, Front Mounting WPL 8040171 Contact Us For Availability
27
Bag, Accessory WPL 8040339 Contact Us For Availability
28
Overlay WPL 8040103 Contact Us For Availability
29
Circuit Board Assembly WPL 8040112 Contact Us For Availability
30
Louver, Top WPL 8040194 Contact Us For Availability
31
Gasket, Nut WPL 950037 Contact Us For Availability
31
Front Grille WPL 8040190 Contact Us For Availability
32
Screw, Front WPL 8040199 Contact Us For Availability
32
Remote Control WPL 8171428 Contact Us For Availability
32
Condensate, Drain Kit WPL 8171429 Contact Us For Availability
33
Insulation, Center Dividing Wall WPL 8040010 Contact Us For Availability
34
Insulation, Right Side WPL 8040012 Contact Us For Availability
35
Insulation, Left Side WPL 8040337 Contact Us For Availability
35
Seal, Base WPL 8040269 Contact Us For Availability
37
Top Enclosure Assembly WPL 8040299 Contact Us For Availability
38
Bottom Enclosure Assembly WPL 8040298 Contact Us For Availability
39
Compressor Assembly WPL 8040126 Contact Us For Availability
40
Fan Blade, Evaporator WPL 8040029 Contact Us For Availability
41
Shroud Extension, Right Side WPL 8040166 Contact Us For Availability
42
Shroud Extension, Left Side WPL 8040167 Contact Us For Availability
43
Seal WPL 8040279 Contact Us For Availability
× ![]()
