Model Whirlpool ACF7225AC ELECTRIC RANGE – Common Parts & Diagrams
02 - CAVITY
04 - OVEN DOOR AND STORAGE DRAWER

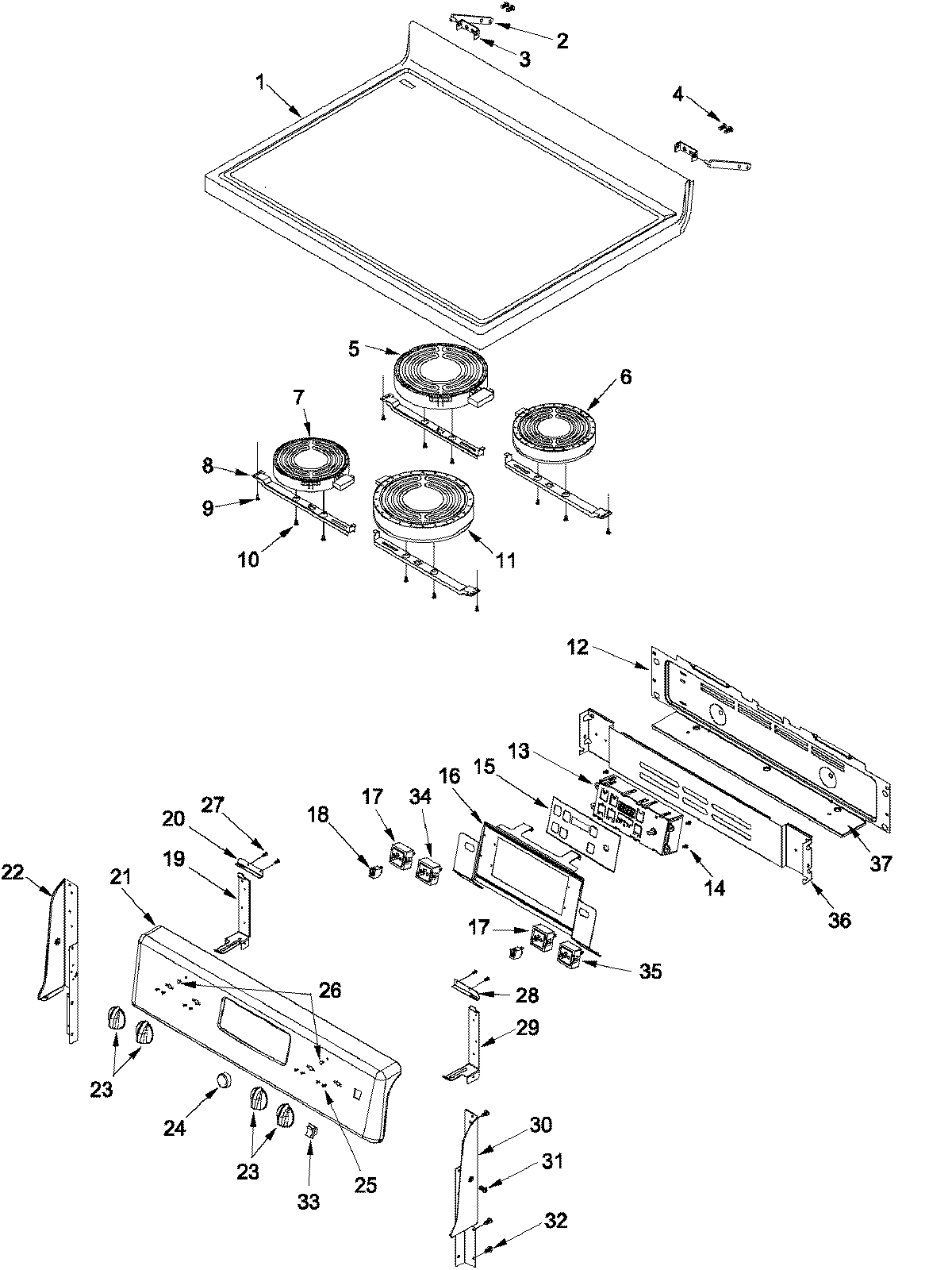

03 - MAIN TOP AND BACKGUARD

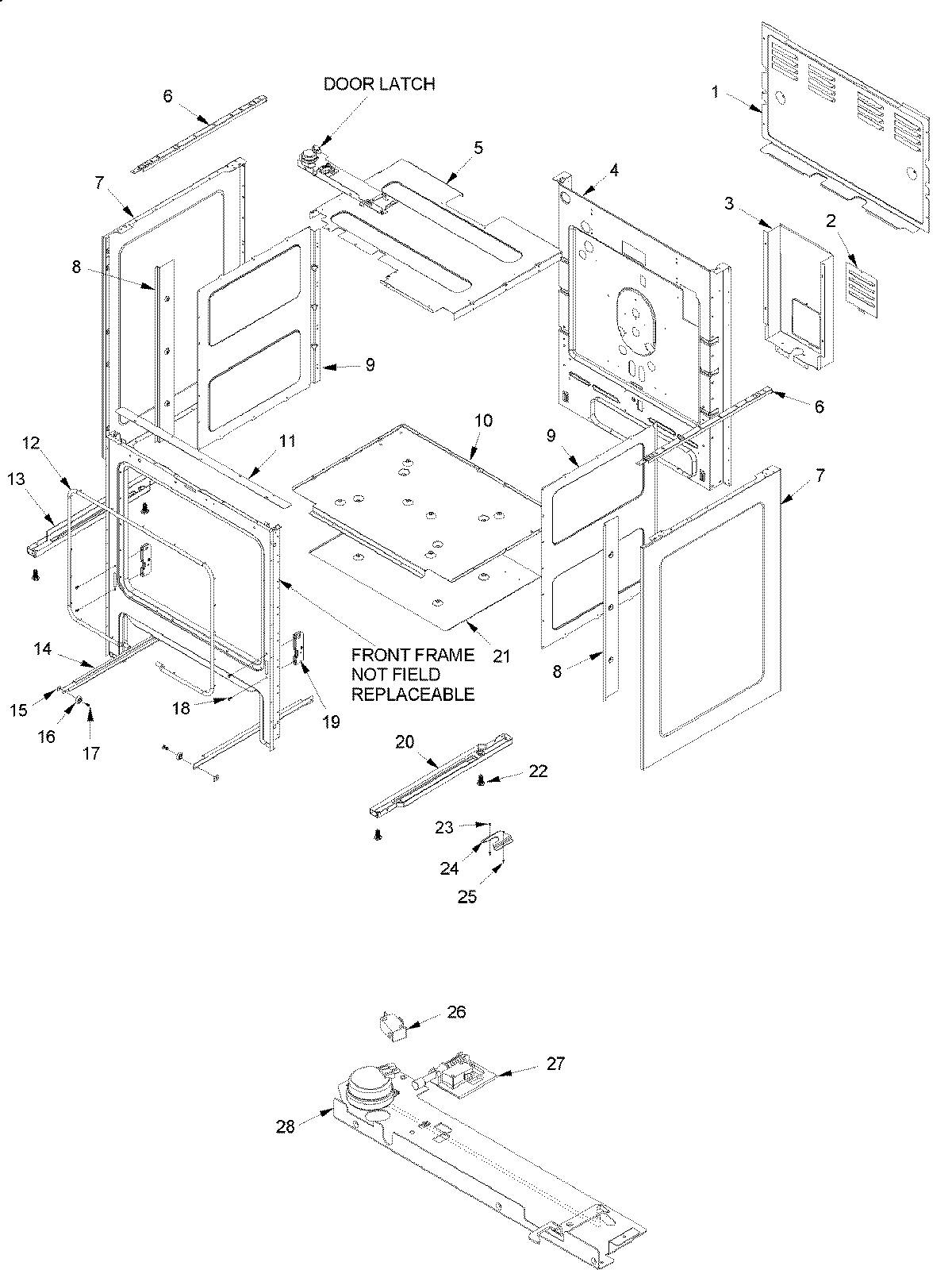

01 - CABINET
Common parts from model Whirlpool ACF7225AC ELECTRIC RANGE
1
SCREW, 10-32 X 2.00`` WPL 31750529 Contact Us For Availability
1
MAIN TOP/GLASS ASSY (BSQ) WPL 32038203C Contact Us For Availability
1
COVER, LOWER REAR WPL 77001052 Contact Us For Availability
2
BACKER, OVEN DOOR (XXL) WPL 31932204CG Contact Us For Availability
2
PIN, HINGE WPL Y0315931 Contact Us For Availability
2
PLATE, ACCESS WPL 31757201 Contact Us For Availability
3
GUSSET, OVEN SUPPORT-LT WPL 31937102 Contact Us For Availability
3
SCREW, 10-24X .500 TRHDWH(BLK) WPL 31750530 Contact Us For Availability
3
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
3
RACEWAY, LOWER WIRE WPL 31955101 Contact Us For Availability
4
ELEMENT, BROIL (3000 WATTS) WPL 31967302 Contact Us For Availability
4
REAR RETAINER (ELECTRIC) WPL 77001053 Contact Us For Availability
5
FRAME, WINDOW PACK (XXL) WPL 31942001 Contact Us For Availability
5
RETAINER INSULATION (TOP) WPL 31936704 Contact Us For Availability
6
SENSOR, TEMPERTURE WPL 31954301 Contact Us For Availability
6
WINDOW BRKT, DR HT SHIELD WPL 32050701 Contact Us For Availability
6
BRACE, TOP CHASSIS WPL 31943101 Contact Us For Availability
7
OVEN LIGHT ASSY WPL 31823701 Contact Us For Availability
7
WINDOW BRKT, DR HT SHIELD WPL 32050601 Contact Us For Availability
7
ELEMENT, RIBBON 6`` 240V/1200W WPL 31938901 Contact Us For Availability
7
PANEL, SIDE (BSQ) WPL 32041003C Contact Us For Availability
8
BRKT, SUPPORT-OVEN BTM WPL 31945401 Contact Us For Availability
8
GLASS, WINDOW (XXL) WPL 32028101 Contact Us For Availability
8
BRACKET, ELEMENT WPL 31720701 Contact Us For Availability
8
SHIELD, SIDE PANEL WPL 32034001 Contact Us For Availability
9
SCREW, OVEN BOTTOM WPL 31750723 Contact Us For Availability
9
HEAT SHIELD, BACKER (XXL) WPL 32052702 Contact Us For Availability
9
SCREW, No.8-32 X3/8 P TRS HD LP WPL 31750420 Contact Us For Availability
9
RETAINER INSULATION (SIDE) WPL 31932101 Contact Us For Availability
10
NUT, SPEED WPL 31750129 Contact Us For Availability
10
WASHER, FIBER (.188 ID/.500 OD WPL 31750016 Contact Us For Availability
10
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
10
RETAINER, BOTTOM WPL 77001055 Contact Us For Availability
11
BOTTOM, OVEN (CG) WPL 31940806CG Contact Us For Availability
11
ELEMENT, RIBBON (2500 WATTS) WPL 31939201 Contact Us For Availability
11
BRACKET, MAINTOP (BLK) WPL 32040801B Contact Us For Availability
12
ELEMENT, BAKE (240V-2800W) WPL 31967101 Contact Us For Availability
12
TRIM, TOP DOOR (BSQ) WPL 31946403C Contact Us For Availability
12
COVER, UPPER REAR WPL 31954402 Contact Us For Availability
12
GASKET, OVEN DOOR WPL 32057601 Contact Us For Availability
13
TRIM, SIDE DOOR LT (BSQ) WPL 31944506C Contact Us For Availability
13
ERC, ELEC CONV-GENESIS WPL 32088601 Contact Us For Availability
13
ASSY, BTM BRACE/LEVEL LEG-LT WPL 31968501 Contact Us For Availability
14
CUSHION, GLASS (3/8 X 3/8) WPL 32035001 Contact Us For Availability
14
TRACK, MOUNTING WPL 32075601 Contact Us For Availability
15
RACK, OVEN-24.080`` X 16.436`` WPL 32016003J Contact Us For Availability
15
BUSHING, DOOR HANDLE (BLK) WPL 31947901 Contact Us For Availability
15
NUT, LOCK (CENTER) No.10-32 (ZN) WPL 31750130 Contact Us For Availability
15
PANEL, MEMBRANE SWITCH (BSQ) WPL 32025905C Contact Us For Availability
16
GROUND STRAP WPL 31967801 Contact Us For Availability
16
HEAT SHIELD (BLK) WPL 32039502B Contact Us For Availability
16
BRKT, CLOCK (GENESIS) WPL 31937401 Contact Us For Availability
17
GLASS, OVEN DOOR (BSQ) WPL 31946702C Contact Us For Availability
17
BOLT, SHOULDER 10-32 WPL 31750717 Contact Us For Availability
17
SWITCH, INFINITE CSI (Y) WPL 31926701 Contact Us For Availability
18
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
18
SCREW, 8-32 X .312 TRHDWH(BLK) WPL 31750434 Contact Us For Availability
18
HANDLE, DOOR (BSQ) WPL 31935504C Contact Us For Availability
19
BULB, LIGHT WPL Y0042175 Contact Us For Availability
19
BRKT, MTG-BKGD PIVOT (LT) WPL 32044002 Contact Us For Availability
19
RECEIVER, HINGE WPL 31946801 Contact Us For Availability
20
INSULATION, BACK WPL 31966301 Contact Us For Availability
20
MTG BRACKET, BACKGUARD LT WPL 32030702 Contact Us For Availability
20
ASSY, BTM BRACE/LEVEL LEG-RT WPL 31968502 Contact Us For Availability
21
INSULATION, BOTTOM WPL 32074801 Contact Us For Availability
21
ANGLE, GLASS SUPPORT (BSQ) WPL 31944602C Contact Us For Availability
21
PANEL, CONTROL-SCREENED (BSQ) WPL 31964523C Contact Us For Availability
21
PANEL, CONTROL-SCREENED (BLK) WPL 77001015 Contact Us For Availability
21
HEAT SHIELD, DRAWER WPL 32032501 Contact Us For Availability
22
INSULATION, WRAPPER WPL 31966201 Contact Us For Availability
22
TRIM, SIDE DOOR RT (BSQ) WPL 31944502C Contact Us For Availability
22
SUPPORT, BACKGUARD (BSQ) LT WPL 31937603C Contact Us For Availability
22
LEG, PLASTIC LEVELING WPL 31949001B Contact Us For Availability
23
SMOKE ELIMINATOR WPL 31999301 Contact Us For Availability
23
HINGE, OVEN DOOR (XXL) WPL 31946302 Contact Us For Availability
23
KNOB, SWITCH (BSQ) WPL 31942605C Contact Us For Availability
23
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
24
PLATE, CONVECTION WPL 77001056 Contact Us For Availability
24
KNOB, CLOCK (BSQ) WPL 32031302C Contact Us For Availability
24
BRACKET, ANTI TIP WPL 31945201 Contact Us For Availability
25
ROLLER, DRAWER WPL 31733401 Contact Us For Availability
25
BLADE, FAN 4 3/4`` D 1/4`` HOLE WPL 77001033 Contact Us For Availability
25
SCREW, No.8-32 X 1/4 WPL 31750714 Contact Us For Availability
25
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
26
WASHER, CONVECTION FAN WPL 77001057 Contact Us For Availability
26
LENS, INDICATOR WPL Y0316265 Contact Us For Availability
26
LIMIT CONTROL WPL 77001054 Contact Us For Availability
27
HEX CAP NUT WPL 77001058 Contact Us For Availability
27
TRACK, STORAGE DRAWER WPL 31733301 Contact Us For Availability
27
SWITCH, PLUNGER-CLASS N WPL 32041401 Contact Us For Availability
28
MOTOR, CONVECTION WPL 77001059 Contact Us For Availability
28
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
28
MTG BRACKET, BACKGUARD RT WPL 32030701 Contact Us For Availability
28
AUTO LATCH (ELECTRIC) WPL 32040901 Contact Us For Availability
29
CHAMBER, BAKE (ELECTRIC) WPL 77001061 Contact Us For Availability
29
SCREW, No.8 X .375 WAFER HD(BLK) WPL 31750706 Contact Us For Availability
29
BRKT, MTG-BKGD PIVOT (RT) WPL 32044001 Contact Us For Availability
30
WIRE, INSULATION RETAINER 139`` WPL 77001085 Contact Us For Availability
30
DRAWER PANEL (BSQ) WPL 31937803C Contact Us For Availability
30
SUPPORT, BACKGUARD (BSQ) RT WPL 31937607C Contact Us For Availability
31
LINER, DRAWER PANEL (BLK) WPL 31942802B Contact Us For Availability
32
RIVET, POP WPL Y0097822 Contact Us For Availability
33
WRAPPER, STORAGE DOOR (WHT) WPL 31967401W Contact Us For Availability
33
SWITCH, ROCKER (BSQ) WPL 31986603C Contact Us For Availability
34
SWITCH, INFINITE CSI (B) WPL 31926702 Contact Us For Availability
35
SWITCH, INFINITE CSI (R) WPL 31926703 Contact Us For Availability
36
SHIELD, BACKGUARD WPL 77001062 Contact Us For Availability
37
INSULATION, BACKGUARD WPL 77001063 Contact Us For Availability
NI
INSULATION, DOOR (XXL) WINDOW WPL 31947603 Contact Us For Availability
NI
HARNESS, BKGD (GENESIS) WPL 32068901 Contact Us For Availability
NI
HARNESS, RADIANT LT WPL 77001050 Contact Us For Availability
NI
HARNESS, WPL 77001051 Contact Us For Availability
NI
WPL 77001060 WPL 77001060 Contact Us For Availability
NI
WPL 77001192 WPL 77001192 Contact Us For Availability
NI
SWITCH, MICRO-CLASS N WPL 32041201 Contact Us For Availability
NI
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
× ![]()
