Model Whirlpool ACF4255AW ELECTRIC RANGE – Common Parts & Diagrams

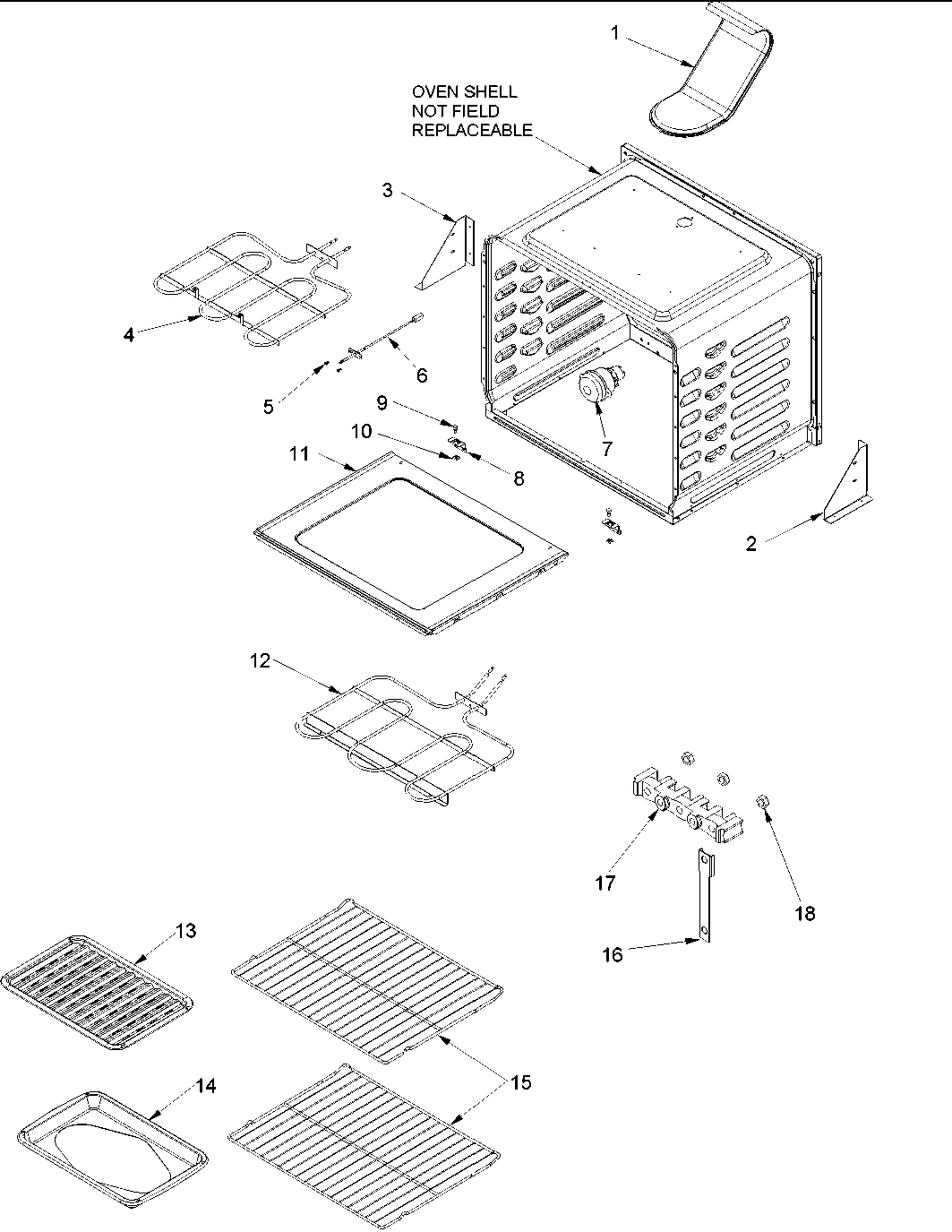

02 - CAVITY
04 - MISCELLAEOUS INFORMATION

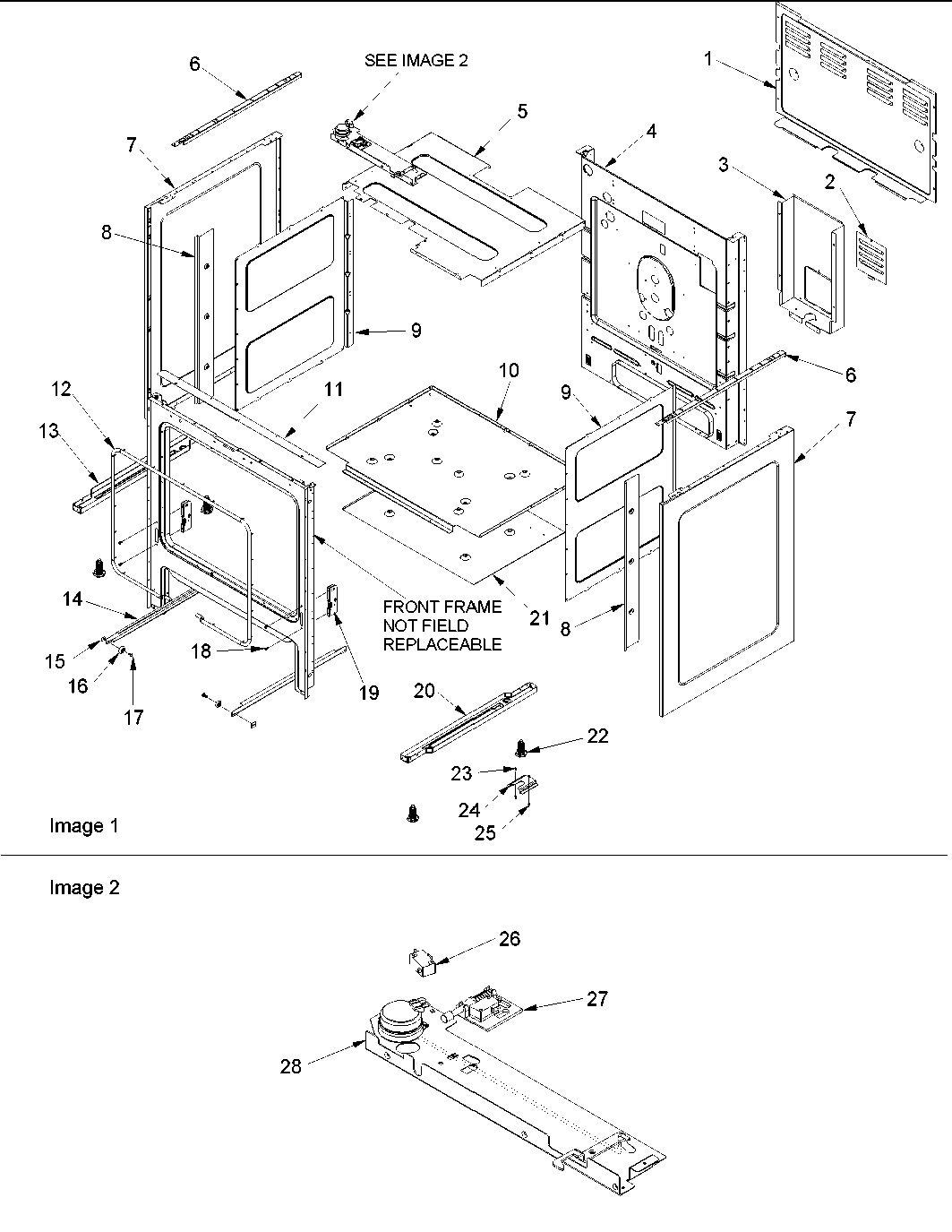

01 - CABINET

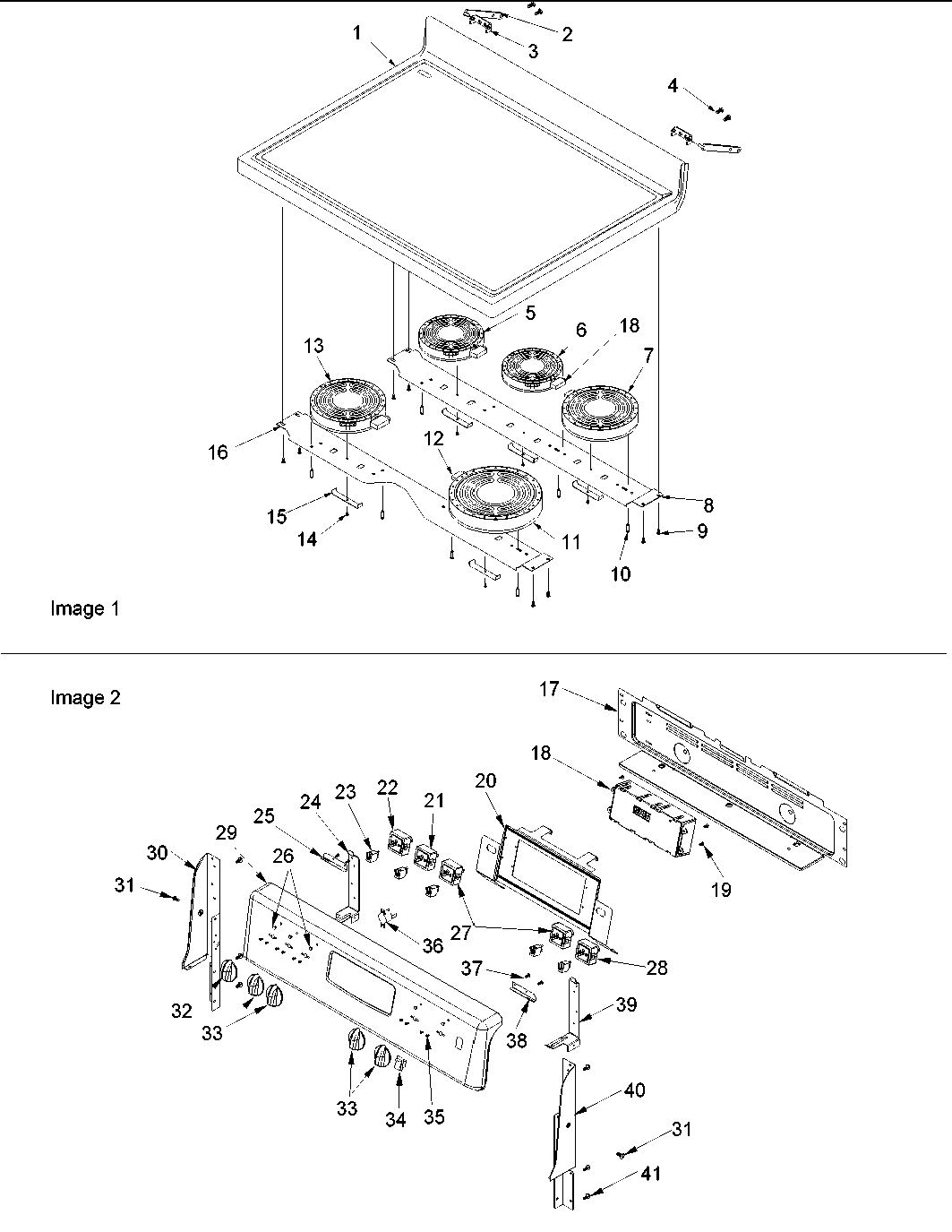

03 - MAIN TOP AND BACKGUARD

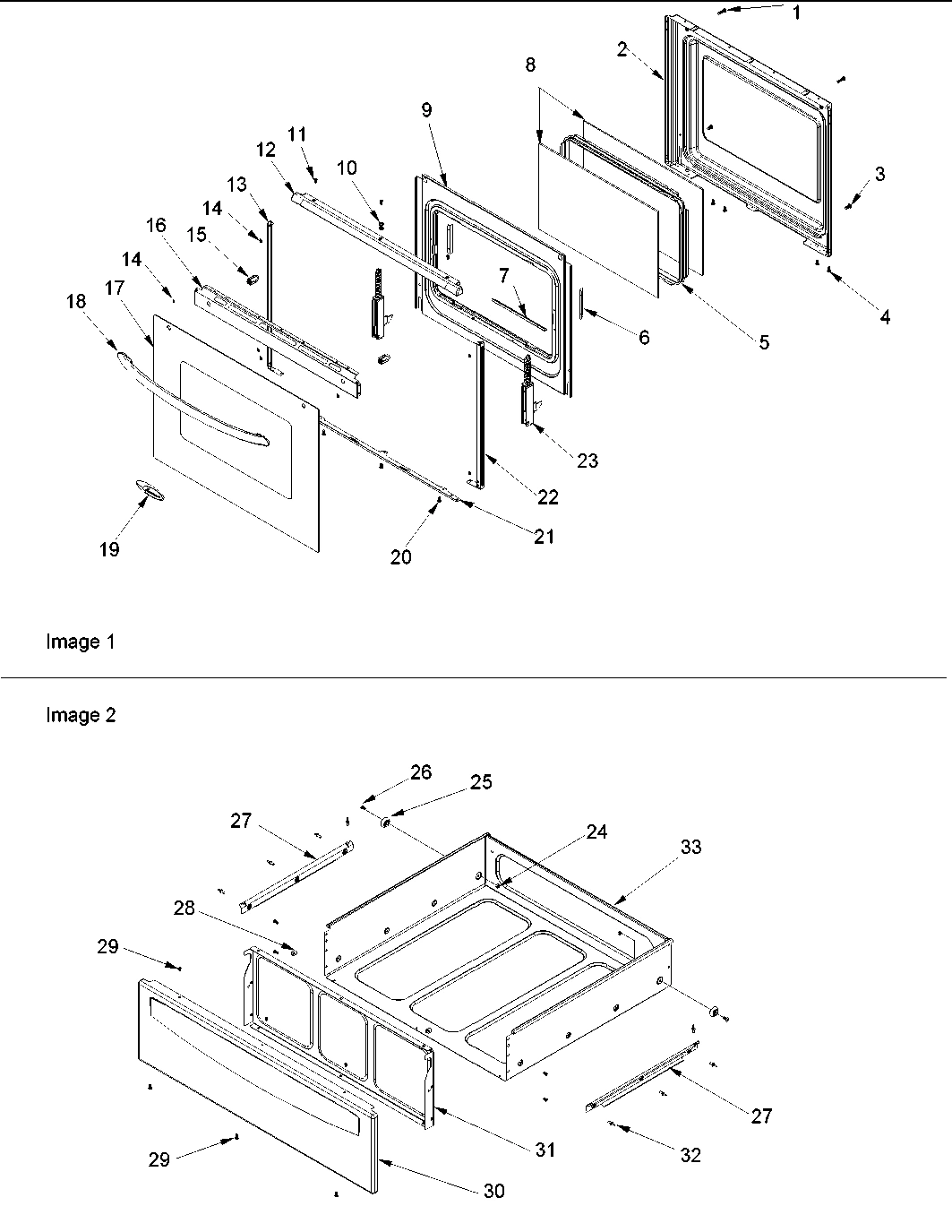

05 - OVEN DOOR AND STORAGE DRAWER
Common parts from model Whirlpool ACF4255AW ELECTRIC RANGE
0
ASSY, ANTI-TIP PACK WPL 31969301 Contact Us For Availability
0
SHEET,TECH DATA(ACF4255) xxNO WPL 31998501 Contact Us For Availability
0
MNL,PARTS(ELEC SMOOTHTOP RANGE WPL RP2320098 Contact Us For Availability
0
MANUAL, SERVICE WPL RS2320006 Contact Us For Availability
1
COVER, LOWER REAR WPL 32039801 Contact Us For Availability
1
ASSY, TOP/GLASS (WHITE) WPL 31921803WW Contact Us For Availability
1
SCREW, 10-32 X 2.00`` WPL 31750529 Contact Us For Availability
2
PLATE, ACCESS WPL 31757201 Contact Us For Availability
2
PIN, HINGE WPL Y0315931 Contact Us For Availability
2
BACKER, OVEN DOOR (XXL) WPL 31932204CG Contact Us For Availability
3
GUSSET, OVEN SUPPORT-LT WPL 31937102 Contact Us For Availability
3
RACEWAY, LOWER WIRE WPL 31955101 Contact Us For Availability
3
SCREW, 10-24X .500 TRHDWH(BLK) WPL 31750530 Contact Us For Availability
3
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
4
ELEMENT, BROIL (3000 WATTS) WPL 31967302 Contact Us For Availability
4
RETAINER, REAR INSULATION WPL 32035301 Contact Us For Availability
4
SCREW, 8-32 X .312 TRHDWH(BLK) WPL 31750434 Contact Us For Availability
5
RETAINER INSULATION (TOP) WPL 31936704 Contact Us For Availability
5
FRAME, WINDOW PACK (XXL) WPL 31942001 Contact Us For Availability
6
SENSOR, TEMPERTURE WPL 31954301 Contact Us For Availability
6
BRACE, TOP CHASSIS WPL 31943101 Contact Us For Availability
6
ELEMENT, WARMING ZONE WPL 32007001 Contact Us For Availability
6
BRACKET, DOOR WINDOW SIDE WPL 32025601 Contact Us For Availability
7
OVEN LIGHT ASSY WPL 31823701 Contact Us For Availability
7
PANEL, SIDE (WHT) WPL 32041004W Contact Us For Availability
7
ELEMENT, RIBBON 6`` 240V/1200W WPL 31938901 Contact Us For Availability
7
WINDOW BRKT, DR HT SHIELD WPL 32017801 Contact Us For Availability
8
BRKT, SUPPORT-OVEN BTM WPL 31945401 Contact Us For Availability
8
SHIELD, SIDE PANEL WPL 32034001 Contact Us For Availability
8
BRKT, ELEM (REAR W/Z) WPL 31921601 Contact Us For Availability
8
GLASS, WINDOW (XXL) WPL 32028101 Contact Us For Availability
9
SCREW, OVEN BOTTOM WPL 31750723 Contact Us For Availability
9
RETAINER INSULATION (SIDE) WPL 31932101 Contact Us For Availability
9
HEAT SHIELD, BACKER WPL 31941402 Contact Us For Availability
10
NUT, SPEED WPL 31750129 Contact Us For Availability
10
RETAINER INSULATION (BOTTOM) WPL 31931902 Contact Us For Availability
10
WASHER, FLAT 5/32 X 7/16 O.D. WPL 31750010 Contact Us For Availability
11
BOTTOM, OVEN (CG) WPL 31940806CG Contact Us For Availability
11
BRACKET, MAINTOP (BLK) WPL 32040801B Contact Us For Availability
11
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
12
ELEMENT, BAKE (240V-2800W) WPL 31967101 Contact Us For Availability
12
GASKET, OVEN DOOR WPL 31946501 Contact Us For Availability
12
LIMITER-DUAL WPL 0316689 Contact Us For Availability
12
TRIM, TOP DOOR (WHT) WPL 31946402W Contact Us For Availability
13
GRID, BROILER WPL 31959401CG Contact Us For Availability
13
ASSY, BTM BRACE/LEVEL LEG-LT WPL 31968501 Contact Us For Availability
13
TRIM, SIDE DOOR LT (WHT) WPL 31944505W Contact Us For Availability
14
PAN, BROILER WPL 31959301CG Contact Us For Availability
14
TRACK, MOUNTING WPL 31733201 Contact Us For Availability
15
RACK, OVEN-24.080`` X 17.750`` WPL 32016001J Contact Us For Availability
15
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
15
BUSHING, DOOR HANDLE (BLK) WPL 31947901 Contact Us For Availability
16
ROLLER, DRAWER WPL 31733401 Contact Us For Availability
16
GROUND STRAP WPL 31967801 Contact Us For Availability
16
BRKT, ELEM (FRONT) WPL 31921701 Contact Us For Availability
16
HEAT SHIELD (BLK) WPL 32039502B Contact Us For Availability
17
COVER, UPPER REAR WPL 31954402 Contact Us For Availability
17
GLASS, OVEN DOOR (WHT) XXL WPL 31946603W Contact Us For Availability
18
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
18
ERC-SIGMA/ELEC(WHITE) WPL 31924703W Contact Us For Availability
18
HANDLE, DOOR (WHT) WPL 31935503W Contact Us For Availability
19
RECEIVER, HINGE WPL 31946801 Contact Us For Availability
20
MANUAL, USE AND CARE WPL 31998201 Contact Us For Availability
20
ASSY, BTM BRACE/LEVEL LEG-RT WPL 31968502 Contact Us For Availability
20
BRACKET,CLOCK MTG(SIGMA) WPL 31937402 Contact Us For Availability
21
HEAT SHIELD, DRAWER WPL 32032501 Contact Us For Availability
21
SWITCH, INFINITE CSI (B) WPL 31926702 Contact Us For Availability
21
ANGLE, GLASS SUPPORT (WHT) WPL 31944601W Contact Us For Availability
22
LEG, PLASTIC LEVELING WPL 31949001B Contact Us For Availability
22
SWITCH,INF(120P-1241) WPL 31890802 Contact Us For Availability
22
TRIM, SIDE DOOR RT (WHT) WPL 31944501W Contact Us For Availability
23
HINGE, OVEN DOOR (XXL) WPL 31946302 Contact Us For Availability
24
NUT, LOCK (CENTER) No.10-32 (ZN) WPL 31750130 Contact Us For Availability
24
BRACKET, ANTI TIP WPL 31945201 Contact Us For Availability
24
BRKT/SHLD,WLD/ASSY PIVOT LT WPL 32050302 Contact Us For Availability
25
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
25
MTG BRACKET, BACKGUARD LT WPL 32030702 Contact Us For Availability
26
BOLT, SHOULDER 10-32 WPL 31750717 Contact Us For Availability
26
THERMOSTAT, HIGH LIMIT WPL Y0316699 Contact Us For Availability
26
LENS, INDICATOR WPL Y0316265 Contact Us For Availability
27
SWITCH, PLUNGER-CLASS N WPL 32041401 Contact Us For Availability
27
SWITCH, INFINITE CSI (Y) WPL 31926701 Contact Us For Availability
27
TRACK, STORAGE DRAWER WPL 31733301 Contact Us For Availability
28
AUTO LATCH (ELECTRIC) WPL 32040901 Contact Us For Availability
28
SWITCH, DUAL INFINITE WPL 32031002 Contact Us For Availability
28
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
29
PANEL, CONTROL-SCREENED (WHT) WPL 31964510W Contact Us For Availability
30
SUPPORT, BACKGUARD (WHT) LT WPL 31937604W Contact Us For Availability
30
DRAWER PANEL (WHT) WPL 31937804W Contact Us For Availability
31
LINER, DRAWER PANEL (BLK) WPL 31942802B Contact Us For Availability
32
KNOB, WARMING ZONE (WHT) WPL 31942503W Contact Us For Availability
32
RIVET, POP WPL Y0097822 Contact Us For Availability
33
KNOB, SWITCH (WHT) WPL 31942606W Contact Us For Availability
33
WRAPPER, STORAGE DOOR (WHT) WPL 31967401W Contact Us For Availability
34
SWITCH, ROCKER (WHT) WPL 31986602W Contact Us For Availability
35
SCREW, No.8-32 X 1/4 WPL 31750714 Contact Us For Availability
36
MTG BRACKET, BACKGUARD RT WPL 32030701 Contact Us For Availability
38
BRKT/SHLD,WLD/ASSY PIVOT RT WPL 32050301 Contact Us For Availability
39
SUPPORT, BACKGUARD (WHT) RT WPL 31937608W Contact Us For Availability
NI
INSULATION, WRAPPER WPL 31966201 Contact Us For Availability
NI
INSULATION, BACK WPL 31966301 Contact Us For Availability
NI
INSULATION, BOTTOM WPL 31966401 Contact Us For Availability
NI
BULB, LIGHT WPL Y0042175 Contact Us For Availability
NI
SWITCH, MICRO-CLASS N WPL 32041201 Contact Us For Availability
NI
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
NI
HARNESS, BKGD (SIGMA) WPL 32040401 Contact Us For Availability
NI
INSULATION, DOOR (XXL) WINDOW WPL 31947601 Contact Us For Availability
NI
INSULATION, DOOR (XXL) WINDOW WPL 31947602 Contact Us For Availability
× ![]()
