Model Whirlpool ACF4225AC ELECTRIC RANGE – Common Parts & Diagrams

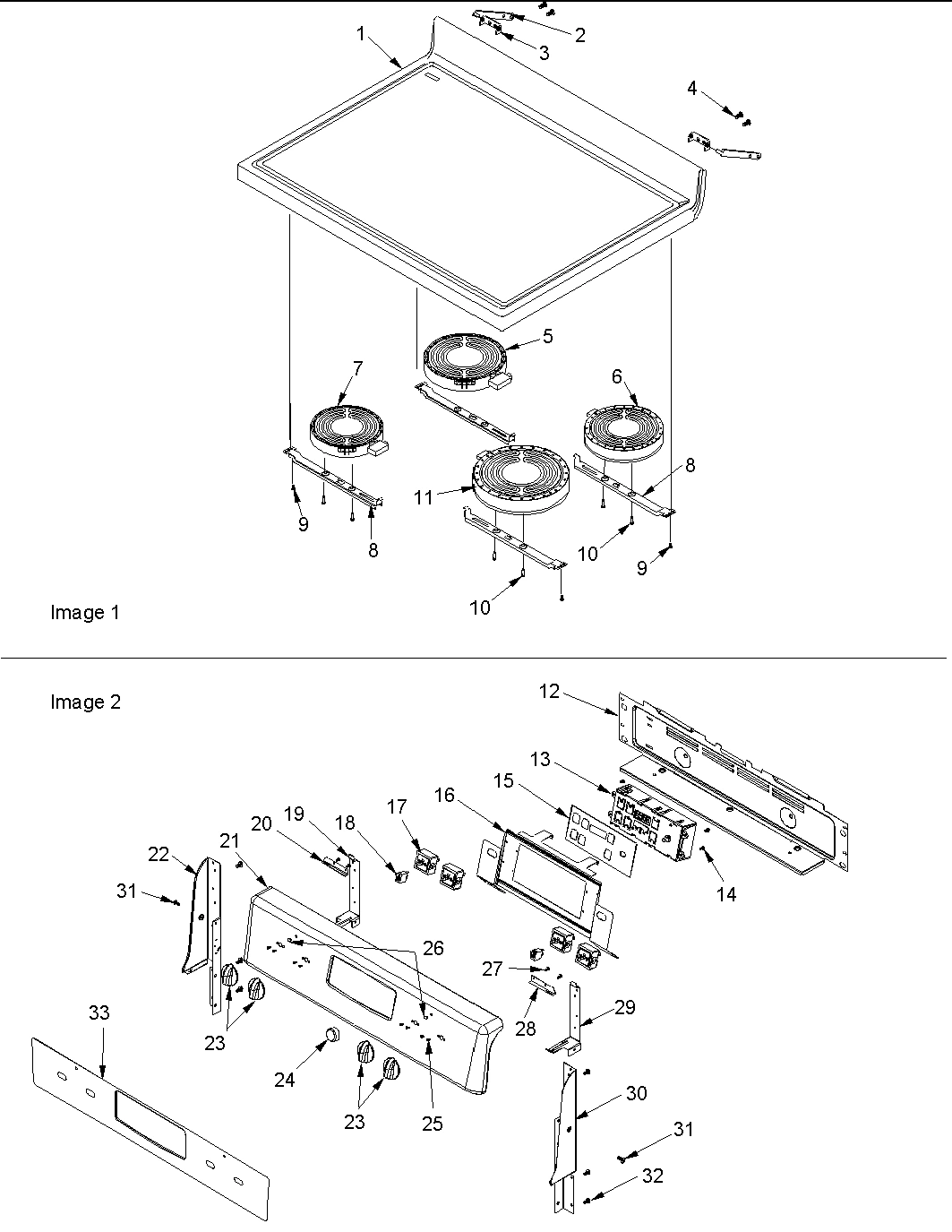

03 - MAIN TOP AND BACKGUARD

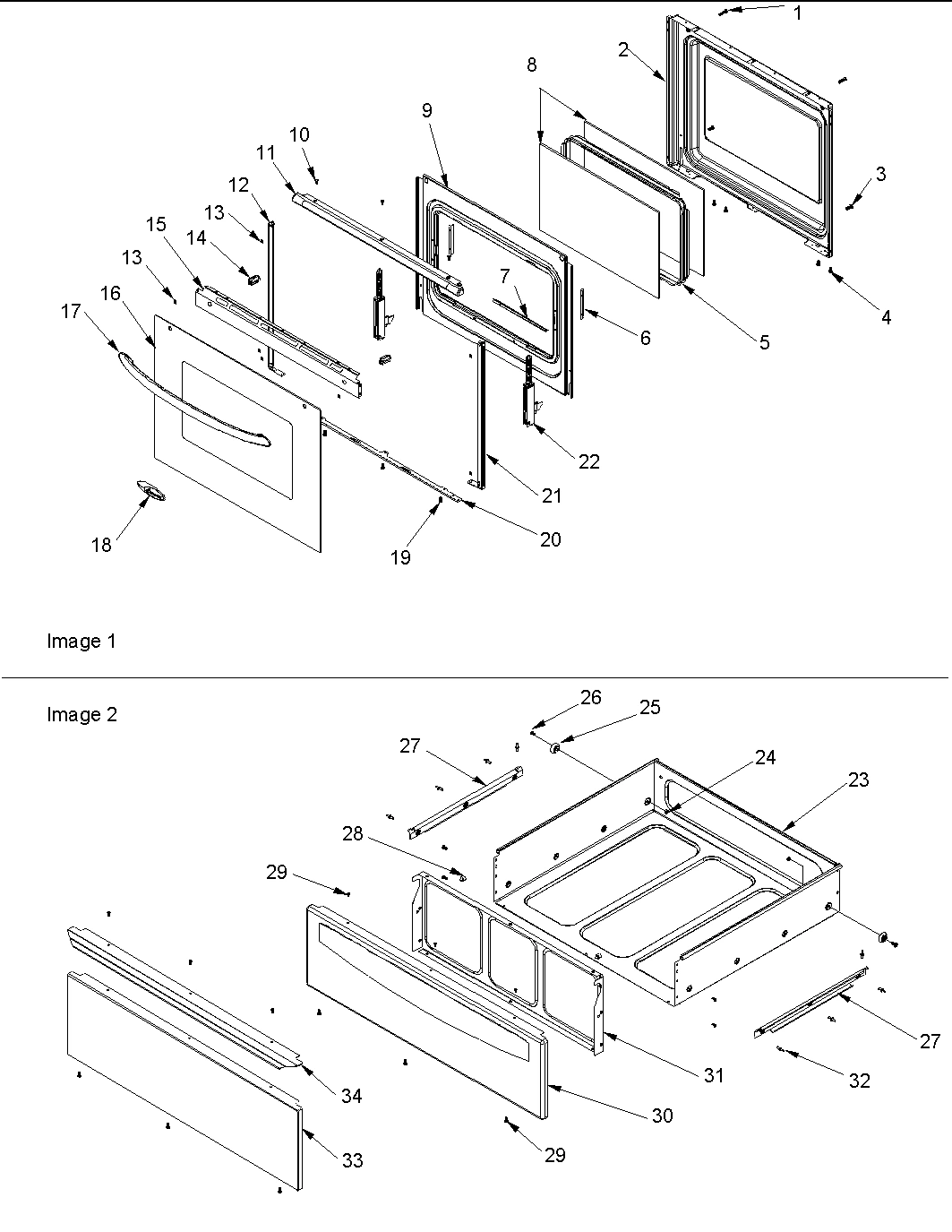

04 - OVEN DOOR AND STORAGE DRAWER

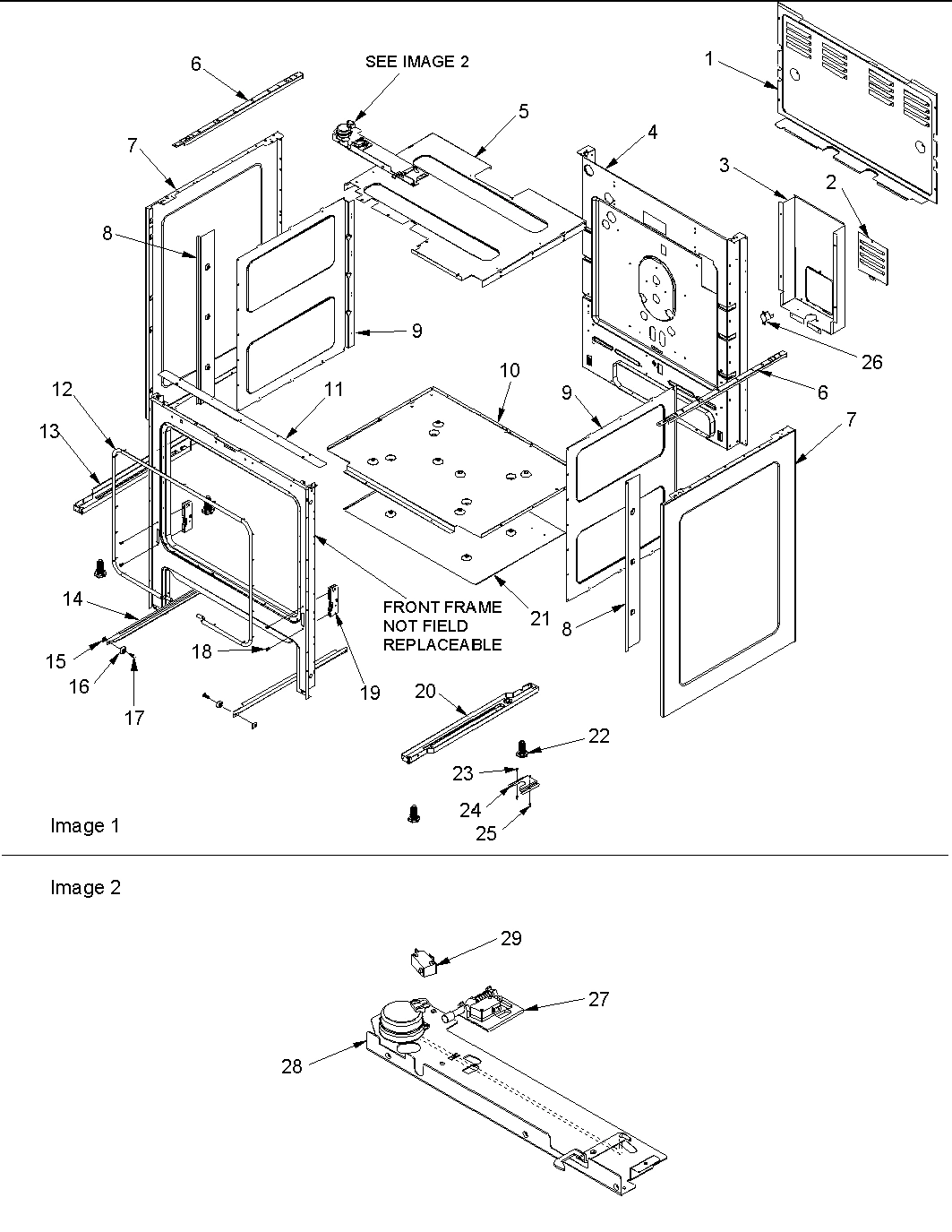

01 - CABINET

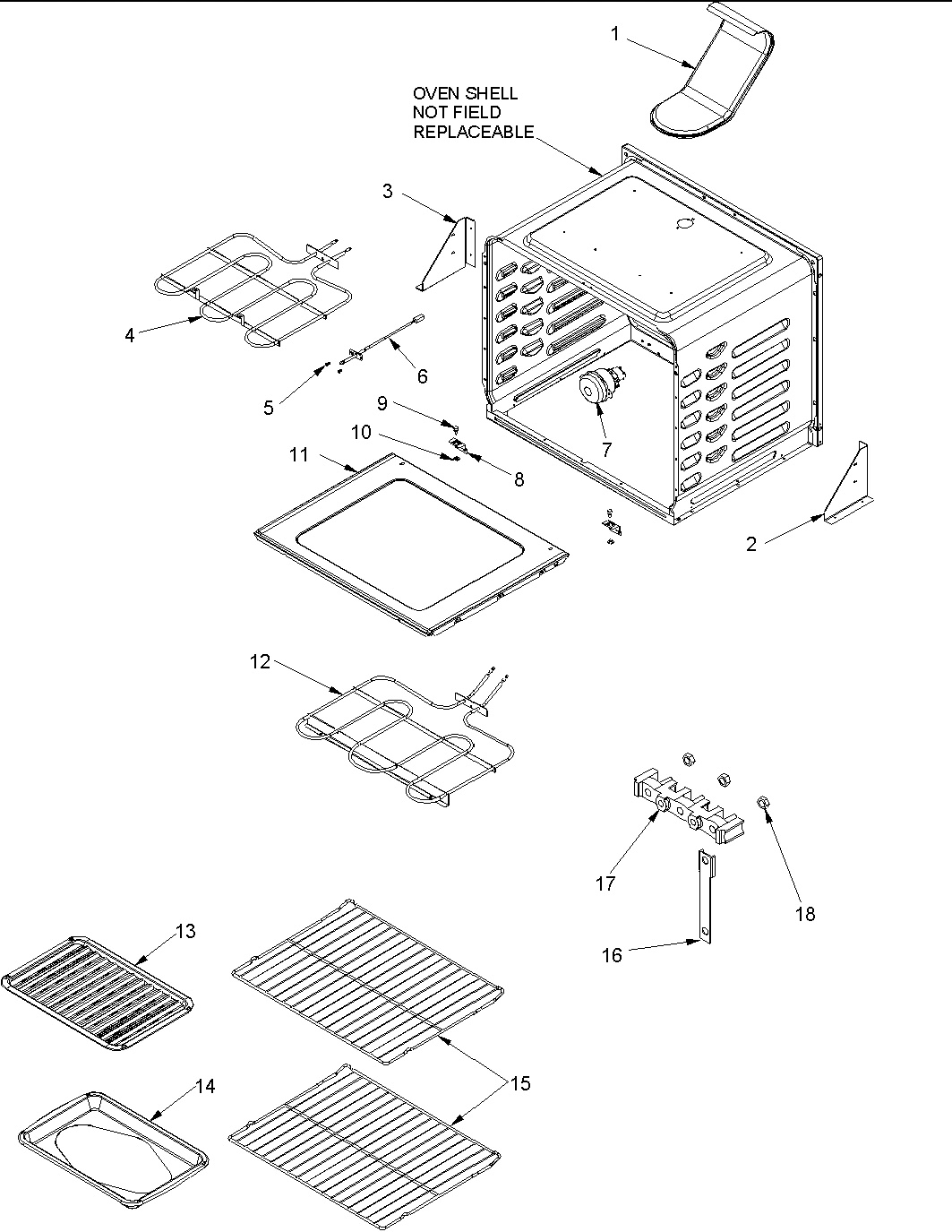

02 - CAVITY
Common parts from model Whirlpool ACF4225AC ELECTRIC RANGE
1
SCREW, 10-32 X 2.00`` WPL 31750529 Contact Us For Availability
1
COVER, LOWER REAR WPL 32039801 Contact Us For Availability
1
TUBE, VENT WPL 32037701 Contact Us For Availability
2
PIN, HINGE WPL Y0315931 Contact Us For Availability
2
BACKER, OVEN DOOR (XXL) WPL 31932204CG Contact Us For Availability
2
PLATE, ACCESS WPL 31757201 Contact Us For Availability
2
GUSSET, OVEN SUPPORT-RT WPL 31937101 Contact Us For Availability
3
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
3
RACEWAY, LOWER WIRE WPL 31955101 Contact Us For Availability
3
GUSSET, OVEN SUPPORT-LT WPL 31937102 Contact Us For Availability
4
SCREW, 8-32 X .312 TRHDWH(BLK) WPL 31750434 Contact Us For Availability
4
RETAINER, REAR INSULATION WPL 32035301 Contact Us For Availability
4
ELEMENT, BROIL (3000 WATTS) WPL 31967302 Contact Us For Availability
5
FRAME, WINDOW PACK (XXL) WPL 31942001 Contact Us For Availability
5
RETAINER INSULATION (TOP) WPL 31936704 Contact Us For Availability
6
WINDOW BRKT, DR HT SHIELD WPL 32050701 Contact Us For Availability
6
BRACE, TOP CHASSIS WPL 31943101 Contact Us For Availability
6
SENSOR, TEMPERTURE WPL 31954301 Contact Us For Availability
7
ELEMENT, RIBBON 6`` 240V/1200W WPL 31938901 Contact Us For Availability
7
WINDOW BRKT, DR HT SHIELD WPL 32050601 Contact Us For Availability
7
PANEL, SIDE (BSQ) WPL 32041003C Contact Us For Availability
7
OVEN LIGHT ASSY WPL 31823701 Contact Us For Availability
7
BULB, LIGHT WPL Y0042175 Contact Us For Availability
8
BRACKET, ELEMENT WPL 31720701 Contact Us For Availability
8
GLASS, WINDOW (XXL) WPL 32028101 Contact Us For Availability
8
SHIELD, SIDE PANEL WPL 32034001 Contact Us For Availability
8
BRKT, SUPPORT-OVEN BTM WPL 31945401 Contact Us For Availability
9
SCREW, No.8-32 X3/8 P TRS HD LP WPL 31750420 Contact Us For Availability
9
HEAT SHIELD, BACKER WPL 31941402 Contact Us For Availability
9
RETAINER INSULATION (SIDE) WPL 31932101 Contact Us For Availability
9
SCREW, OVEN BOTTOM WPL 31750723 Contact Us For Availability
10
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
10
RETAINER INSULATION (BOTTOM) WPL 31931902 Contact Us For Availability
10
NUT, SPEED WPL 31750129 Contact Us For Availability
11
ELEMENT, RIBBON (2500 WATTS) WPL 31939201 Contact Us For Availability
11
HARNESS, RADIANT-LT WPL 32055001 Contact Us For Availability
11
HARNESS, RADIANT-RT WPL 32055101 Contact Us For Availability
11
TRIM, TOP DOOR (BSQ) WPL 31946403C Contact Us For Availability
11
BRACKET, MAINTOP (BLK) WPL 32040801B Contact Us For Availability
11
BOTTOM, OVEN (CG) WPL 31940806CG Contact Us For Availability
12
COVER, UPPER REAR WPL 31954402 Contact Us For Availability
12
TRIM, SIDE DOOR LT (BSQ) WPL 31944506C Contact Us For Availability
12
GASKET, OVEN DOOR WPL 31946501 Contact Us For Availability
12
ELEMENT, BAKE (240V-2800W) WPL 31967101 Contact Us For Availability
13
ERC, GENESIS WPL 31992501 Contact Us For Availability
13
CUSHION, GLASS (3/8 X 3/8) WPL 32035001 Contact Us For Availability
13
ASSY, BTM BRACE/LEVEL LEG-LT WPL 31968501 Contact Us For Availability
14
BUSHING, DOOR HANDLE (BLK) WPL 31947901 Contact Us For Availability
14
TRACK, MOUNTING WPL 31733201 Contact Us For Availability
15
PANEL, MEMBRANE SWITCH (BSQ) WPL 32025902C Contact Us For Availability
15
HEAT SHIELD (BLK) WPL 32039502B Contact Us For Availability
15
NUT, LOCK (CENTER) No.10-32 (ZN) WPL 31750130 Contact Us For Availability
15
RACK, OVEN-24.080`` X 17.750`` WPL 32016001J Contact Us For Availability
16
ROLLER, DRAWER WPL 31733401 Contact Us For Availability
16
BRKT, CLOCK (GENESIS) WPL 31937401 Contact Us For Availability
16
GLASS, OVEN DOOR (BSQ) WPL 31946702C Contact Us For Availability
16
GROUND STRAP WPL 31967801 Contact Us For Availability
17
SWITCH, INFINITE CSI (Y) WPL 31926701 Contact Us For Availability
17
SWITCH, INFINITE CSI (B) WPL 31926702 Contact Us For Availability
17
SWITCH, INFINITE CSI (R) WPL 31926703 Contact Us For Availability
17
HANDLE, DOOR (BSQ) WPL 31935504C Contact Us For Availability
17
BOLT, SHOULDER 10-32 WPL 31750717 Contact Us For Availability
18
SCREW, 10-24X .500 TRHDWH(BLK) WPL 31750530 Contact Us For Availability
18
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
19
BRKT/SHLD,WLD/ASSY PIVOT LT WPL 32050302 Contact Us For Availability
19
RECEIVER, HINGE WPL 31946801 Contact Us For Availability
20
MTG BRACKET, BACKGUARD LT WPL 32030702 Contact Us For Availability
20
ANGLE, GLASS SUPPORT (BSQ) WPL 31944602C Contact Us For Availability
20
ASSY, BTM BRACE/LEVEL LEG-RT WPL 31968502 Contact Us For Availability
21
PANEL, CONTROL-SCREENED (BSQ) WPL 31964502C Contact Us For Availability
21
TRIM, SIDE DOOR RT (BSQ) WPL 31944502C Contact Us For Availability
21
HEAT SHIELD, DRAWER WPL 32032501 Contact Us For Availability
22
SUPPORT, BACKGUARD (BSQ) LT WPL 31937603C Contact Us For Availability
22
WASHER, FIBER (.188 ID/.500 OD WPL 31750016 Contact Us For Availability
22
HINGE, OVEN DOOR (XXL) WPL 31946302 Contact Us For Availability
22
INSULATION, DOOR (XXL) WINDOW WPL 31947601 Contact Us For Availability
22
INSULATION, DOOR (XXL) WINDOW WPL 31947602 Contact Us For Availability
22
LEG, PLASTIC LEVELING WPL 31949001B Contact Us For Availability
23
KNOB, SWITCH (BSQ) WPL 31942605C Contact Us For Availability
23
WRAPPER, STORAGE DOOR (WHT) WPL 31967401W Contact Us For Availability
23
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
24
KNOB, CLOCK (BSQ) WPL 32031302C Contact Us For Availability
24
BRACKET, ANTI TIP WPL 31945201 Contact Us For Availability
24
ASSY, ANTI-TIP PACK WPL 31969301 Contact Us For Availability
25
SCREW, No.8-32 X 1/4 WPL 31750714 Contact Us For Availability
25
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
26
LENS, INDICATOR WPL Y0316265 Contact Us For Availability
26
CONTROL, LIMIT-245 DEGREES WPL 32078201 Contact Us For Availability
27
TRACK, STORAGE DRAWER WPL 31733301 Contact Us For Availability
27
SWITCH, PLUNGER-CLASS N WPL 32041401 Contact Us For Availability
28
MTG BRACKET, BACKGUARD RT WPL 32030701 Contact Us For Availability
28
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
28
AUTO LATCH (ELECTRIC) WPL 32040901 Contact Us For Availability
29
BRKT/SHLD,WLD/ASSY PIVOT RT WPL 32050301 Contact Us For Availability
29
SWITCH, MICRO-CLASS N WPL 32041201 Contact Us For Availability
30
SUPPORT, BACKGUARD (BSQ) RT WPL 31937607C Contact Us For Availability
30
DRAWER PANEL (BSQ) WPL 31937803C Contact Us For Availability
31
LINER, DRAWER PANEL (BLK) WPL 31942802B Contact Us For Availability
32
HARNESS, BACKGUARD WPL 32044201 Contact Us For Availability
32
MANUAL, USE AND CARE WPL 32066501 Contact Us For Availability
32
MANUAL, SERVICE WPL RS2320006 Contact Us For Availability
32
RIVET, POP WPL Y0097822 Contact Us For Availability
NI
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
NI
INSULATION, WRAPPER WPL 31966201 Contact Us For Availability
NI
INSULATION, BACK WPL 31966301 Contact Us For Availability
NI
INSULATION, BOTTOM WPL 31966401 Contact Us For Availability
× ![]()
