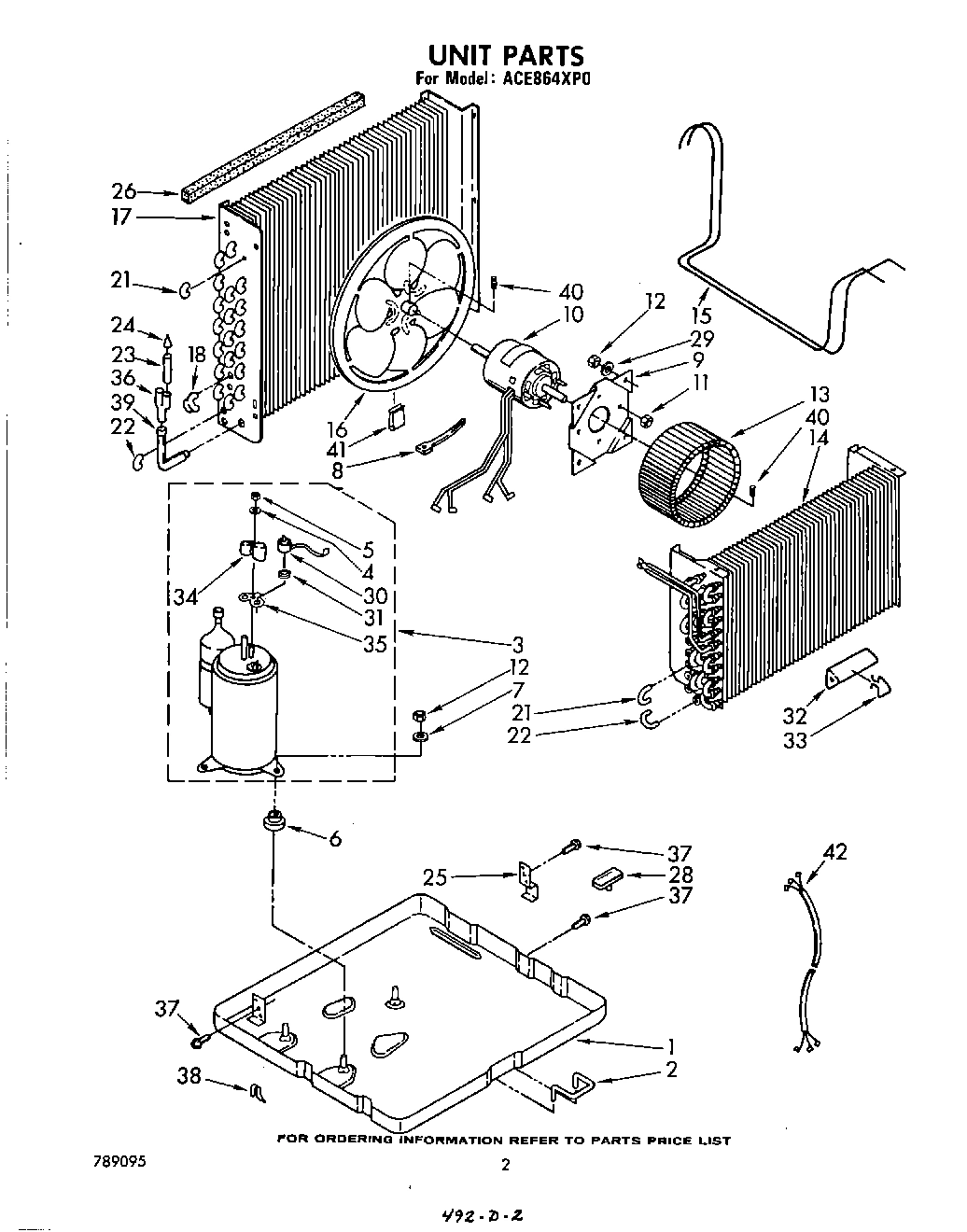

02 - UNIT
Common parts from model Whirlpool ACE864XP0 AIR CONDITIONER
1
cabinet (requires insulation no. 649939) WPL 853367 Contact Us For Availability
1
Kit, Condensate Cup WPL 978929 Contact Us For Availability
1
Base Assembly WPL 950066 Contact Us For Availability
2
Kit, Outside Support WPL 485679 Contact Us For Availability
2
Handle, Base WPL 647971 Contact Us For Availability
3
Kit, Wide Window WPL 485676 Contact Us For Availability
3
compressor WPL 876647 Contact Us For Availability
4
screw WPL 487371 Contact Us For Availability
4
Kit, Quick Mount WPL 485675 Contact Us For Availability
4
Gasket, Nut WPL 950037 Contact Us For Availability
5
Panel, Front WPL 853974 Contact Us For Availability
5
Kit, Standard Installation WPL 485674 Contact Us For Availability
7
seal, weather WPL 649972 Contact Us For Availability
7
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
8
Seal, Cabinet Bottom WPL 647854 Contact Us For Availability
9
Grommet, Appliance Cable WPL 647849 Contact Us For Availability
9
Plate, Fan Motor WPL 998024 Contact Us For Availability
10
Wire, Ground WPL 948285 Contact Us For Availability
10
cabinet assembly WPL A0W23W1 Contact Us For Availability
10
Support, Cup WPL 995075 Contact Us For Availability
10
Motor, Fan WPL 948206 Contact Us For Availability
11
Lockwasher WPL 486009 No Longer Available
12
Housing, Blower Wheel WPL 852875 Contact Us For Availability
12
Nut, 1/4-20 WPL 486035 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
13
Fastener, snap WPL 487808 Contact Us For Availability
13
Bracket, Cabinet Support WPL 644281 Contact Us For Availability
13
Wheel, Blower WPL 859495 Contact Us For Availability
14
Channel, Wiring WPL 852317 Contact Us For Availability
14
Support, Cabinet (2) WPL 644283 Contact Us For Availability
14
Evaporator WPL 950174 Contact Us For Availability
15
Clamp, Cable WPL 648791 Contact Us For Availability
15
Extension, Support (2) WPL 644284 Contact Us For Availability
15
Tube, Restrictor (40.0`` Length) WPL 951539 Contact Us For Availability
16
Clip, Speed WPL 649620 Contact Us For Availability
16
Retainer, Support (2) WPL 644285 Contact Us For Availability
16
Blade, Fan WPL 859496 Contact Us For Availability
17
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
17
Condenser WPL 951538 Contact Us For Availability
18
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
18
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
18
Bend, Return (3-Way) WPL 953169 Contact Us For Availability
19
Tube, Condensate WPL 465777 Contact Us For Availability
19
Board, Filler (2) WPL 647835 Contact Us For Availability
20
Shroud, Condenser WPL 853356 Contact Us For Availability
20
cabinet, front assembl WPL 951115 Contact Us For Availability
20
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
20
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
21
Pan, Condenser Condensate WPL 853391 Contact Us For Availability
21
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
21
bend, WPL 855199 Contact Us For Availability
22
Support, Unit WPL 852318 Contact Us For Availability
22
Strip, Seal WPL 477597 Contact Us For Availability
22
bend, (evaporator (4)) WPL 854624 Contact Us For Availability
23
Retainer, Shroud Cover WPL 647873 Contact Us For Availability
23
Channel, Bottom Mounting WPL 644387 Contact Us For Availability
23
Tube, Outlet (Includes Illus. 24) WPL 484230 Contact Us For Availability
24
Baffle, Dividing Wall WPL 853329 Contact Us For Availability
24
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
24
Strainer, Tube WPL 49599 Contact Us For Availability
25
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
25
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
26
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
26
Thumbscrew (2) WPL 475581 Contact Us For Availability
27
Deflector, Heat WPL 857224 Contact Us For Availability
27
Seal, Meeting Rail WPL 469877 Contact Us For Availability
28
Switch, Limit WPL 995674 Contact Us For Availability
28
Cup, Condensate WPL 647850 Contact Us For Availability
28
Washer (2) WPL 488520 Contact Us For Availability
29
Screw, Sheet Metal No.8 x 3/8A WPL 488624 Contact Us For Availability
29
Washer (Repair) WPL 470280 Contact Us For Availability
30
Heater, Air WPL 995675 Contact Us For Availability
30
Channel, Top Mounting WPL 644380 Contact Us For Availability
30
Overload WPL 950073 Contact Us For Availability
31
Seal WPL 855265 Contact Us For Availability
31
Spring, Overload WPL 950032 Contact Us For Availability
32
Bracket, Window Lock WPL 644228 Contact Us For Availability
32
Anticipator, Temperature WPL 484238 Contact Us For Availability
33
Cover, Wire Enclosure WPL 857203 Contact Us For Availability
33
Block, Spacer (4) WPL 995274 Contact Us For Availability
33
Clip, Anticipator WPL 642080 Contact Us For Availability
34
Cover, Evaporator WPL 856957 Contact Us For Availability
34
Wood Screw, No.8 x 3/4 (5) WPL 488255 Contact Us For Availability
35
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
35
Bracket, R.S. WPL 645562 Contact Us For Availability
35
Bracket, L.S. WPL 645563 Contact Us For Availability
36
box, control WPL 952372 Contact Us For Availability
36
Strip, Seal WPL 856979 Contact Us For Availability
36
Tube, Flow Divider WPL 947364 Contact Us For Availability
37
Cover, Shroud (Condenser) WPL 853390 Contact Us For Availability
37
Angle, Side Mounting (2) WPL 645564 Contact Us For Availability
38
Fuse, Air Heater WPL 876903 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
39
Control, Temperature WPL 994200 Contact Us For Availability
39
tube, 90o connect WPL 950814 Contact Us For Availability
40
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
40
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
41
Contactor WPL 858771 Contact Us For Availability
41
Clip, Balancing WPL 485334 Contact Us For Availability
42
valve, access ((5/8``) tube) WPL 978029 Contact Us For Availability
42
Tape, No Drip WPL 505168 Contact Us For Availability
42
Grommet, Wiring WPL 647865 Contact Us For Availability
42
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
42
epoxy, aluminum WPL 484310 Contact Us For Availability
42
valve, access ((1/2``) tube) WPL 978028 Contact Us For Availability
43
Ground, Wire WPL 857634 Contact Us For Availability
44
Cable, Appliance WPL 649125 Contact Us For Availability
45
Guard, Impeller WPL 997949 Contact Us For Availability
47
Switch, Rotary WPL 950525 Contact Us For Availability
48
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
48
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
48
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
48
Lacquer WPL 485426 Contact Us For Availability
48
WPL 947943 WPL 947943 Contact Us For Availability
48
WPL 997236 WPL 997236 Contact Us For Availability
A1
Retainer, Filter WPL 476707 Contact Us For Availability
A2
Filter WPL 648008 Contact Us For Availability
A3
Seal, Cabinet Front WPL 647914 Contact Us For Availability
A4
Spring, Detent (2) WPL 641484 Contact Us For Availability
A5
Link, Vertical Louver (2) WPL 647799 Contact Us For Availability
A6
Louver, Vertical WPL 647798 Contact Us For Availability
A7
Handle, Vertical Louver (2) WPL 644165 Contact Us For Availability
A8
Seal WPL 649198 Contact Us For Availability
A10
Front, Cabinet WPL 950539 Contact Us For Availability
A11
clip, front mounting (2) WPL 649966 Contact Us For Availability
A12
Wire, Ground WPL 857017 Contact Us For Availability
A13
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
A14
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
A16
Bag, Accessory WPL 951131 Contact Us For Availability
A17
Knob, Control WPL 947264 Contact Us For Availability
A18
Plate, Escutcheon WPL 952595 Contact Us For Availability
A19
Spacer, Escutcheon Plate WPL 470036 Contact Us For Availability
A20
(See Optional Parts) WPL ARI19965A3 Contact Us For Availability
× ![]()
