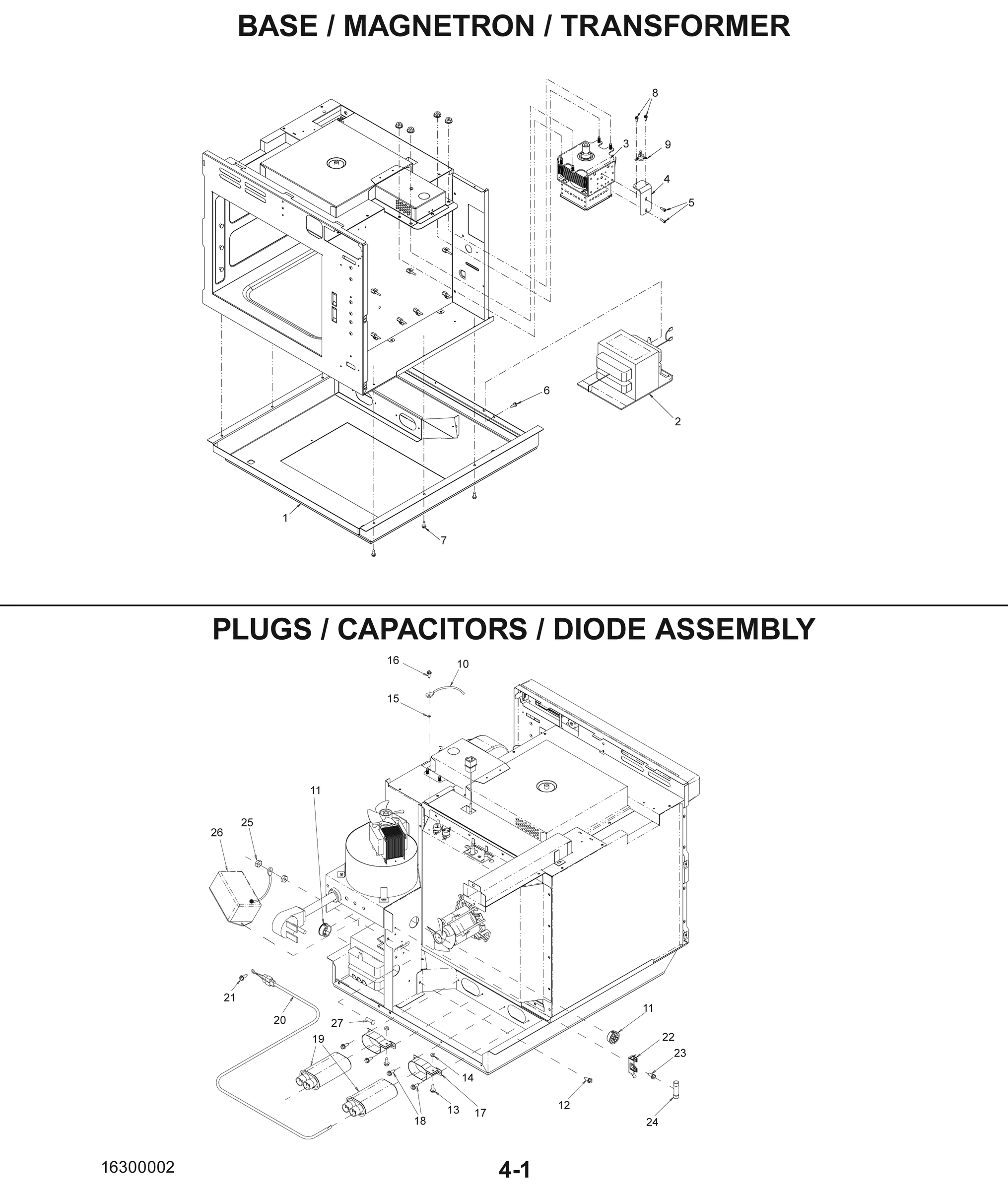

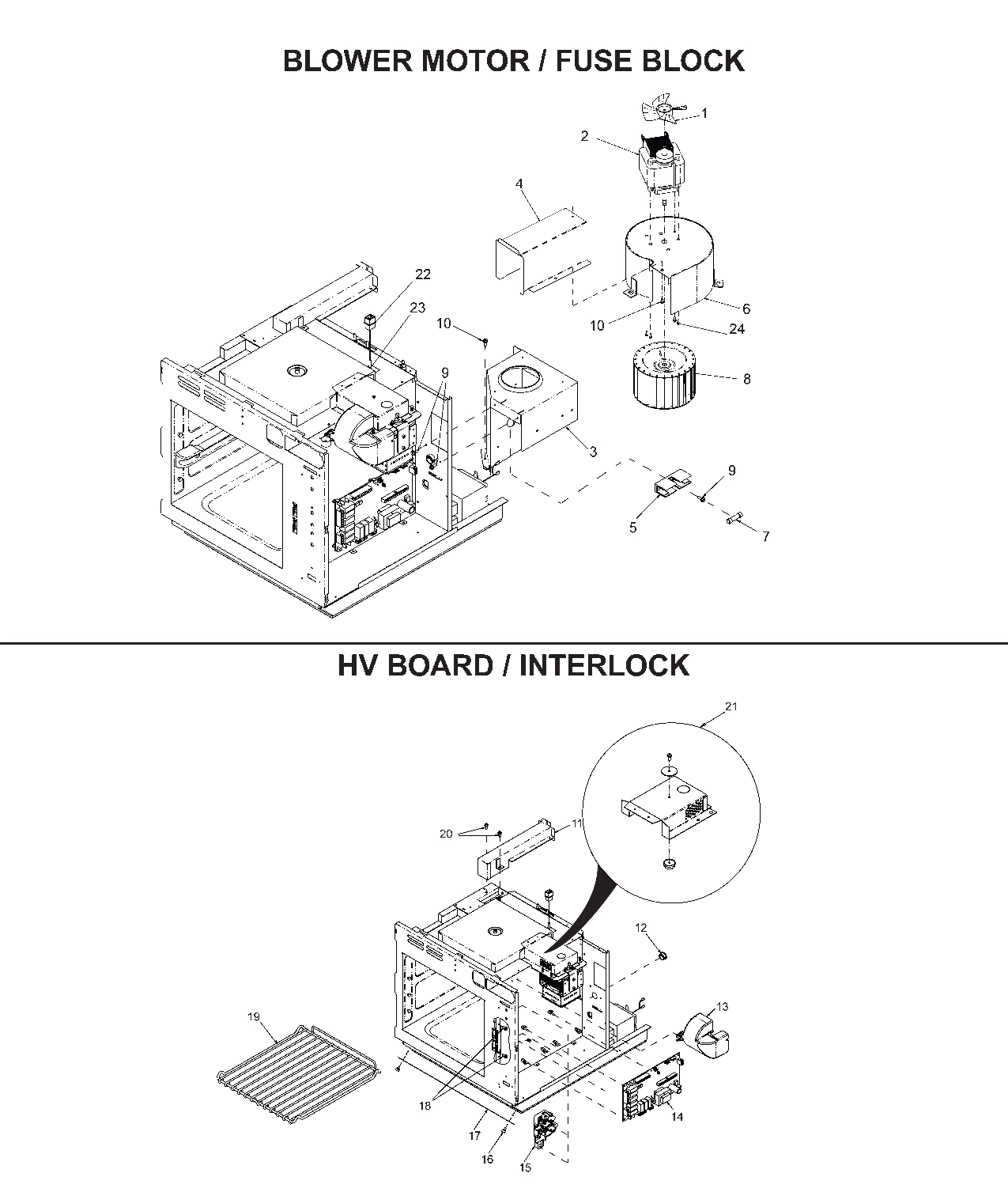

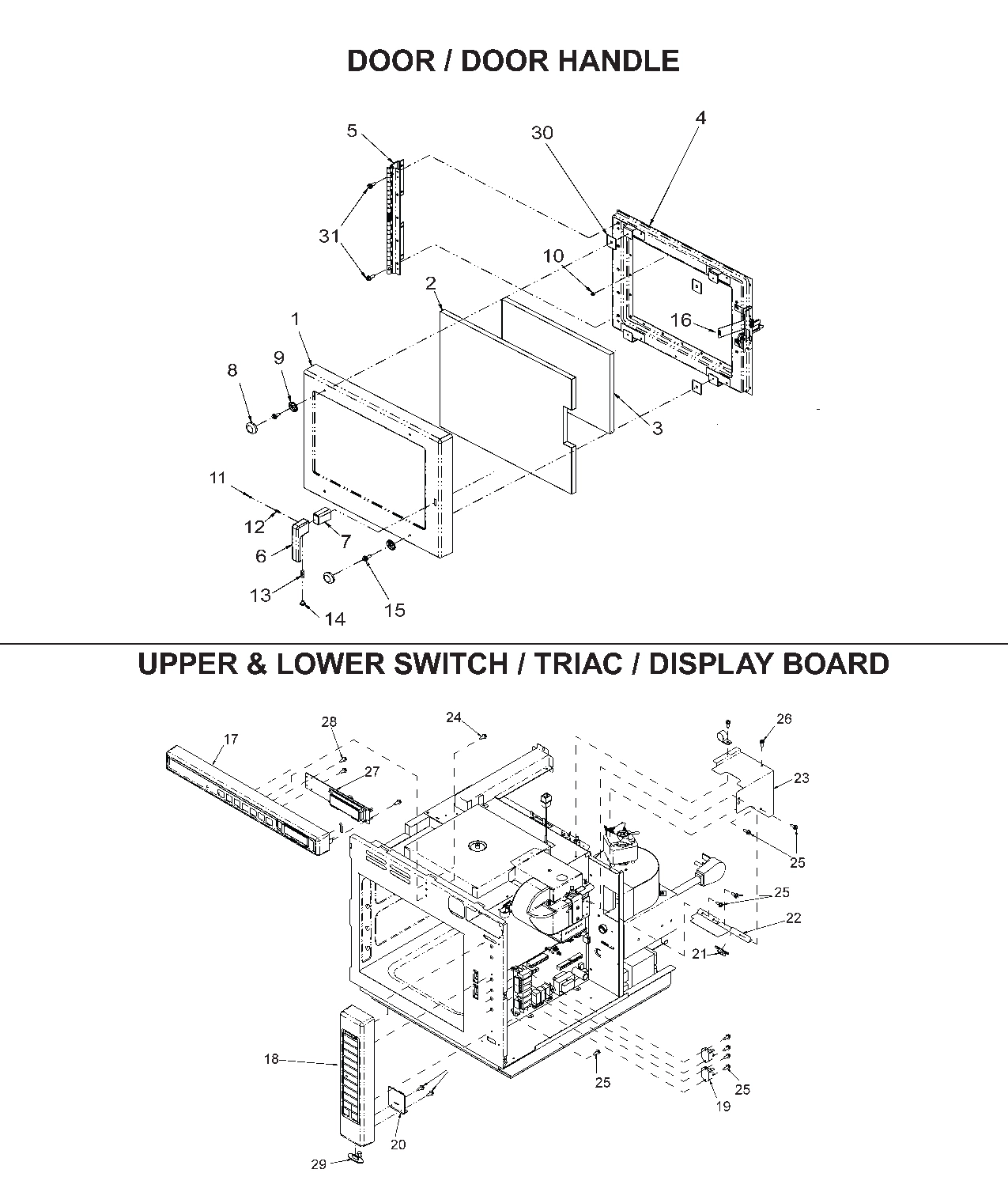

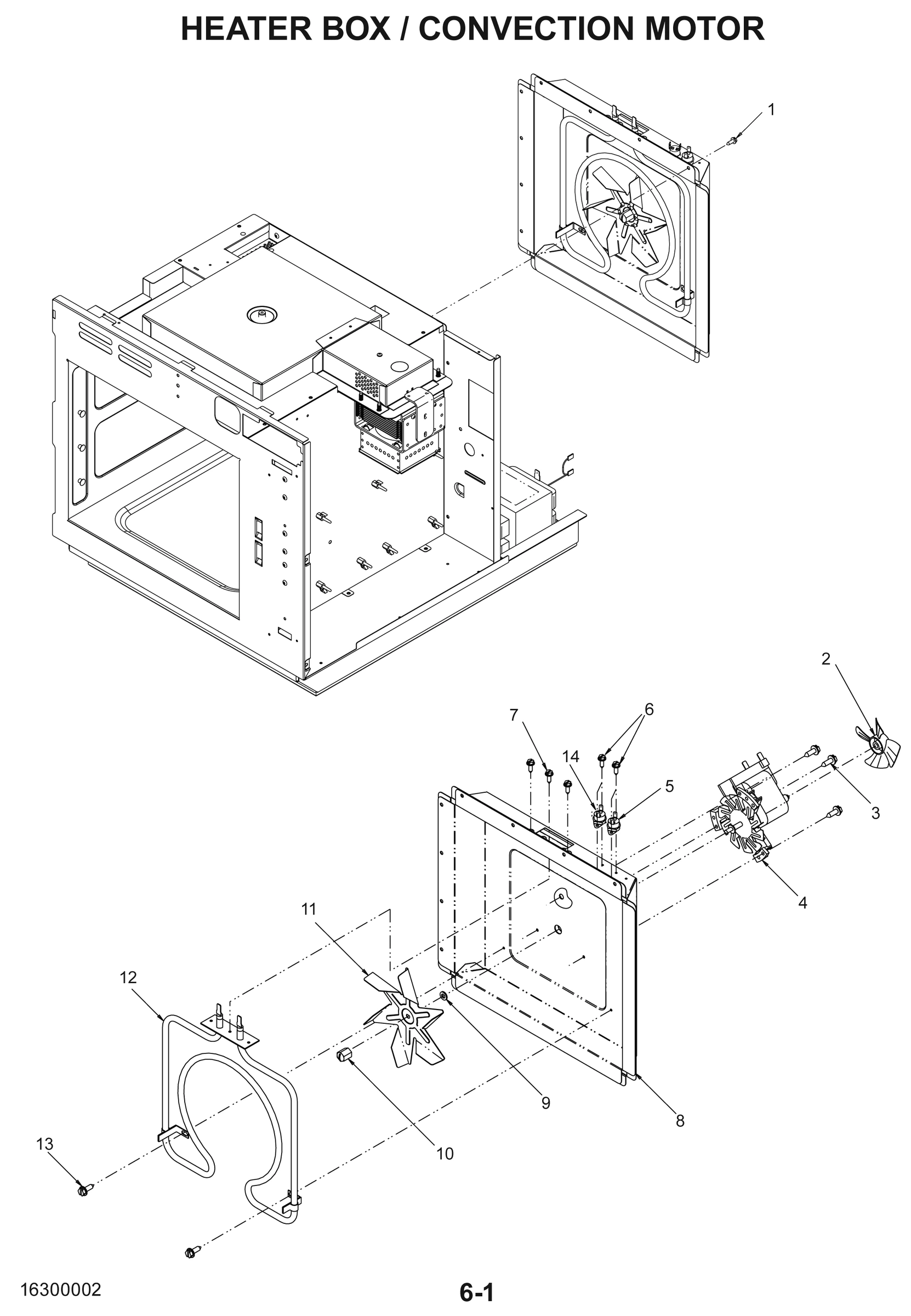

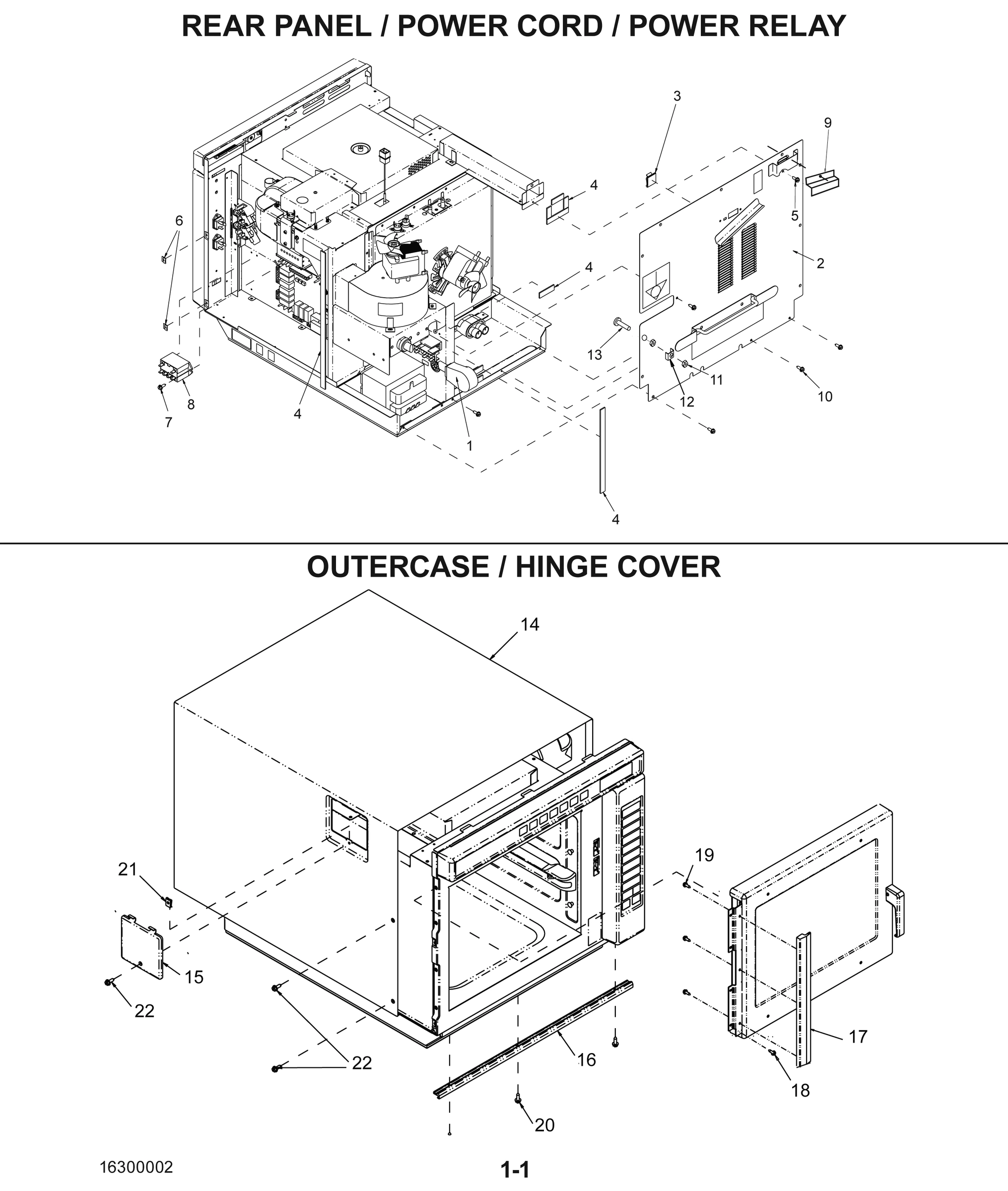

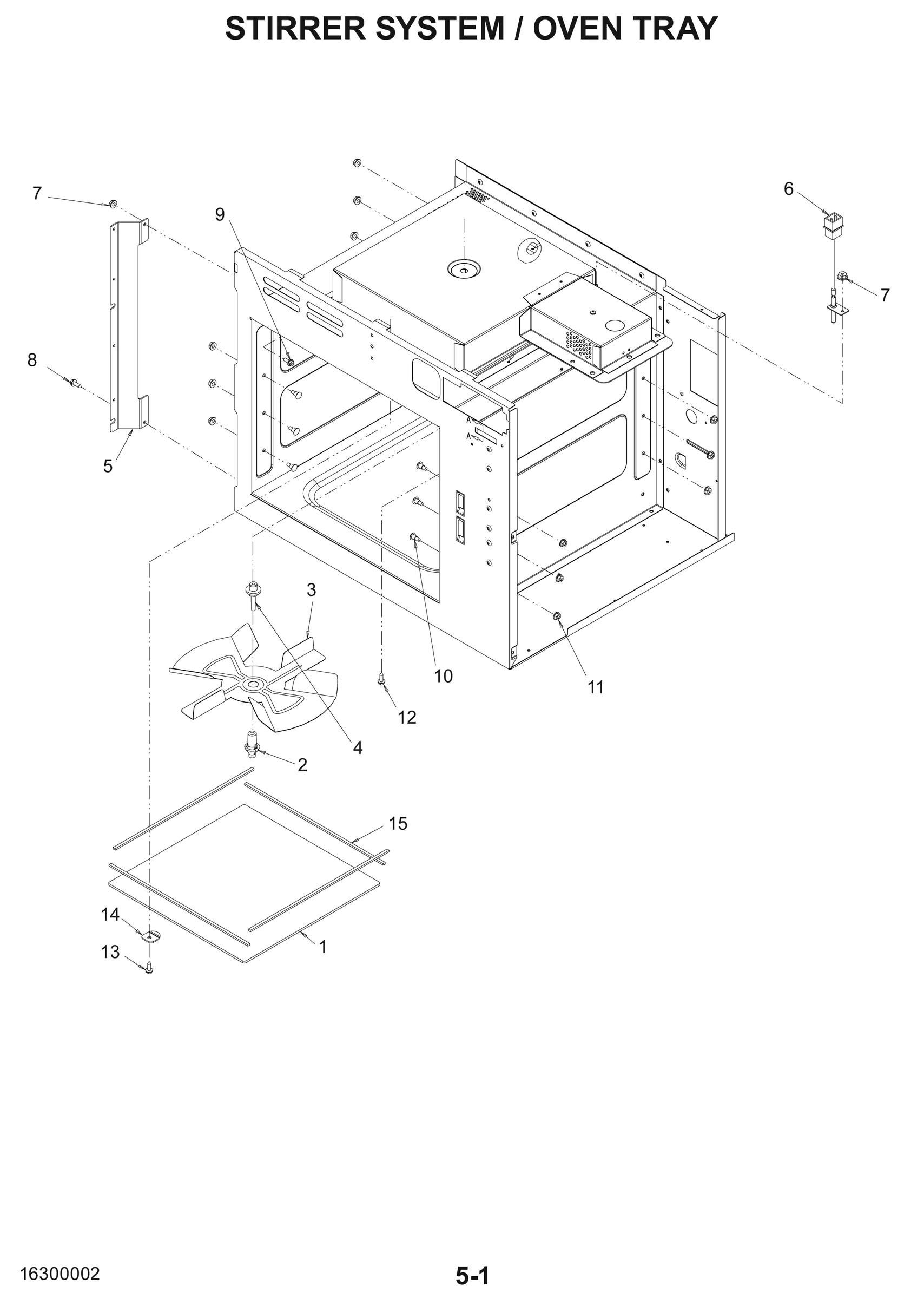

Model Accelerated Cooking Products ACE5140-P1333207M Amana Menumaster ACE5140 – Common Parts &amp; Diagrams

1

13098205 Amana Outer Door Backorder ACP 13098205 $161.28

1

B5706704 Amana Motor Fan Blade Backorder ACP B5706704 $6.65

1

R0150115 Amana Stirrer Cover Backorder ACP R0150115 $80.69

1

CORD POWER ACP 59002181 Contact Us For Availability

2

B5706707 Amana Fan Blade Backorder ACP B5706707 $8.37

2

ACCESS PAN WLD-E CT ACP 12002804 Contact Us For Availability

3

59002081 Amana Magnetron In Stock ACP 59002081 $1,196.62

3

CLIP-CORD ACP M0104106 Contact Us For Availability

3

SCREW-TF/HEX RoHS ACP 12992307 Contact Us For Availability

4

12002760 Amana Door Kit Assembly with Latch Backorder ACP 12002760 $332.64

4

14179137 Amana Blade, Insert & Shaft Kit Backorder ACP 14179137 $61.35

4

59004077 Amana Gasket per Foot Backorder ACP 59004077 $1.23

4

MOTOR,CONVECTION ACP 59134309 Contact Us For Availability

5

12189004 Amana Hinge Support Bracket Backorder ACP 12189004 $13.05

5

20241405 Amana Thermal Cutout Backorder ACP 20241405 $8.15

5

59001869 Amana Door Hinge Backorder ACP 59001869 $112.56

6

12490902 Amana Door Handle Backorder ACP 12490902 $32.54

6

M0287016 Amana Speed Nut Backorder ACP M0287016 $4.82

6

SCREW ACP 13041602 Contact Us For Availability

7

12990606 Amana Small Pan Screw Backorder ACP 12990606 $4.82

7

13045501 Amana Nut #6 KEPS Backorder ACP 13045501 $4.82

7

M0805203 Amana Fuse 20A Backorder ACP M0805203 $4.82

7

INSERT-HANDLE ACP 12576901 Contact Us For Availability

7

SCREW-SM/HEX RoHS ACP 12990524 Contact Us For Availability

8

59001981 Amana Relay Backorder ACP 59001981 $39.61

8

C3670809 Amana Blower Wheel Backorder ACP C3670809 $33.45

8

CAP - SCREW ACP M0295503 Contact Us For Availability

8

HEATER BOX ACP 59001513 Contact Us For Availability

9

12546101 Amana Washer Backorder ACP 12546101 $5.31

9

B5684121 Amana Thermal Cutout Backorder ACP B5684121 $5.44

9

WASHER-CAP SCREW ACP M0295502 Contact Us For Availability

9

COVER-VENT ACP 12470201 Contact Us For Availability

10

12538001 Amana Nut Cap Backorder ACP 12538001 $9.69

10

12990525 Amana Screw - Small Head Backorder ACP 12990525 $4.82

10

BOLT-SHOULDER ACP 12030101 Contact Us For Availability

11

12360703 Amana Button Plug Backorder ACP 12360703 $4.82

11

12537901 Amana Fan Blade Backorder ACP 12537901 $8.16

11

NUT -#8 KEPS ACP 13045502 Contact Us For Availability

12

59004076 Amana Heater Backorder ACP 59004076 $96.60

12

SCREW SET CONE RoHS ACP 13046902 Contact Us For Availability

13047001 Amana Dog Screw Set Backorder ACP 13047001 $5.39

14179138 Amana Kit - Studs and Hardware Backorder ACP 14179138 $23.17

SCREW-TC/PAN RoHS ACP 13041505 Contact Us For Availability

SCREW-SM ACP M0213802 Contact Us For Availability

10908909Q Amana Stainless Steel Wrapper Backorder ACP 10908909Q $309.96

B5684123 Amana Thermal Cutout Backorder ACP B5684123 $6.65

M0310305 Amana White Button Plug Backorder ACP M0310305 $4.82

RETAINER-TRAY ACP 12188901 Contact Us For Availability

15

SCREW-TC/HOLT RoHS ACP 13042701 Contact Us For Availability

15

GASKET ACP 20291504 Contact Us For Availability

16

59174560 Amana Trim Assembly & Screws Backorder ACP 59174560 $23.37

16

SPRING, LATCH ACP C8893505 Contact Us For Availability

17

59001230 Amana Gray Hinge Cover Backorder ACP 59001230 $10.40

17

59104132 Amana Top Touch Panel Assembly Backorder ACP 59104132 $168.00

17

59174548 Amana Grill Assembly, Air Inlet & Th Backorder ACP 59174548 $81.95

18

59104131 Amana Touch Panel Assembly - Side Backorder ACP 59104131 $159.60

18

SCREW-SM/HEX RoHS ACP 12990527 Contact Us For Availability

19

13004401 Amana Screw - TF/Flat RoHS Backorder ACP 13004401 $4.82

19

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $54.35

19

59174535 Amana Capacitor Kit and Diode - .74 In Stock ACP 59174535 $50.71

20

59002095 Amana Data Key Board Backorder ACP 59002095 $112.56

20

R9800022 Amana Diode Kit Backorder ACP R9800022 $73.90

21

59174559 Amana Light Cover Hardware Backorder ACP 59174559 $27.62

12000202 Amana TEMP Sensor Backorder ACP 12000202 $74.84

12136503 Amana 1-Pole Fuse Block Backorder ACP 12136503 $4.82

DUCT-BLOWER/MAG ACP 10978601 Contact Us For Availability

SCREW-TF/OVAL RoHS ACP 13042001 Contact Us For Availability

23

COVER - MAG INLET ACP 10978703 Contact Us For Availability

24

12992302 Amana RoHS Hex Head Screw Backorder ACP 12992302 $4.82

24

M0805102 Amana Ceramic Fuse In Stock ACP M0805102 $3.33

26

12990522 Amana Screw SM/HEX RoHS Backorder ACP 12990522 $4.82

27

59104126 Amana Display Board In Stock ACP 59104126 $213.21

28

13095201 Amana Screw, Oval Backorder ACP 13095201 $4.82

29

13080601 Amana Data Key Plug Backorder ACP 13080601 $4.82

30

SPACER - THERMAL ACP 12529302 Contact Us For Availability
