Model Whirlpool ACE254XH1 AIR CONDITIONER – Common Parts & Diagrams

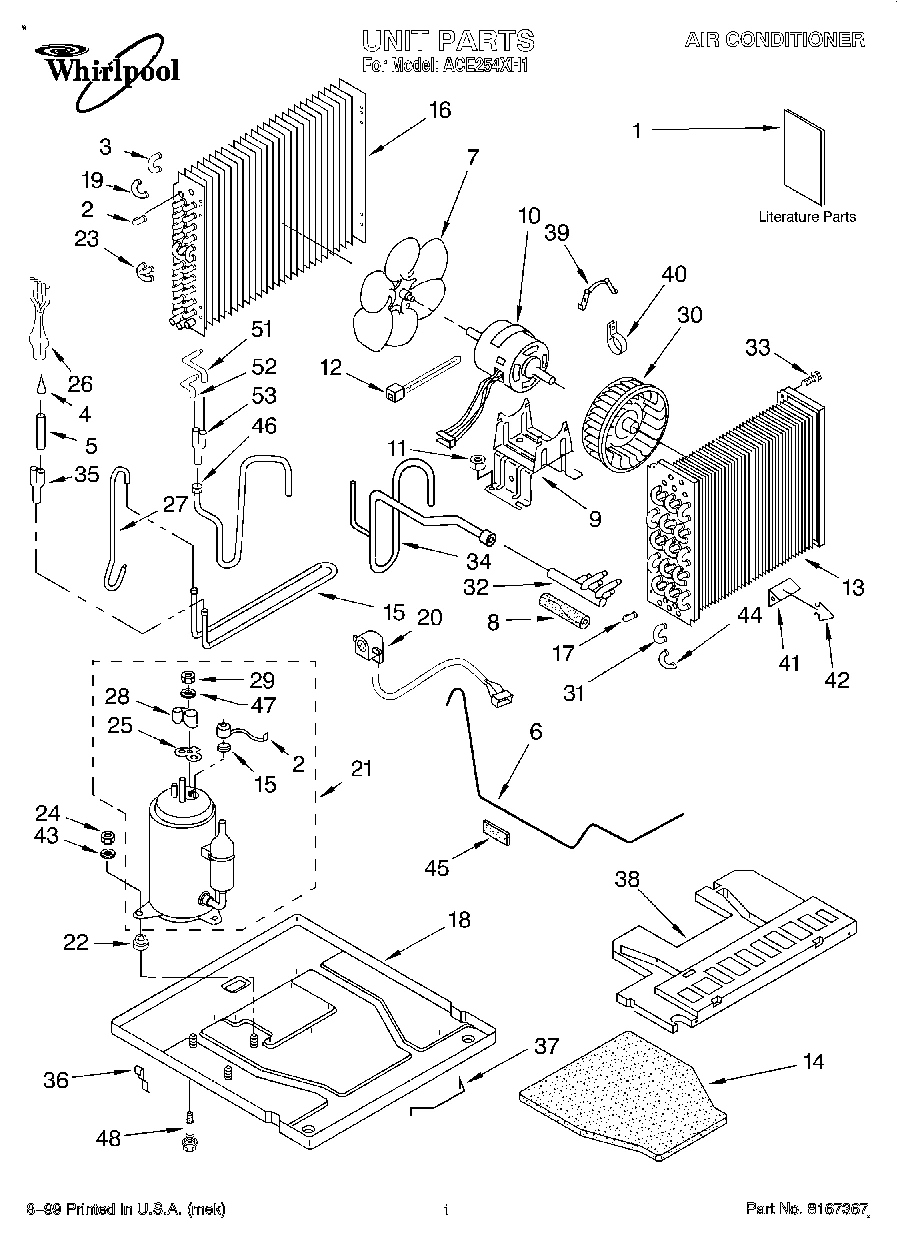

01 - UNIT, LITERATURE

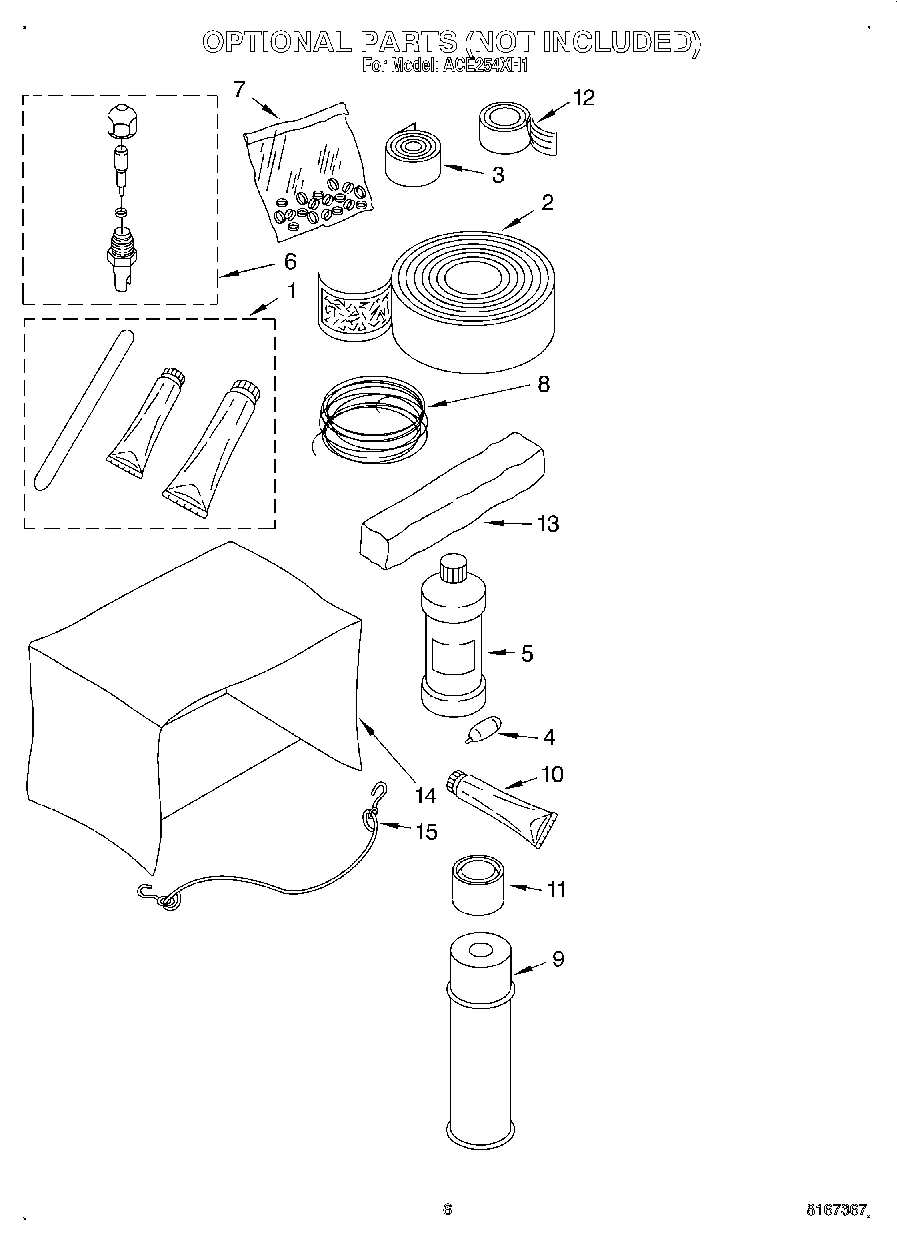

04 - OPTIONAL

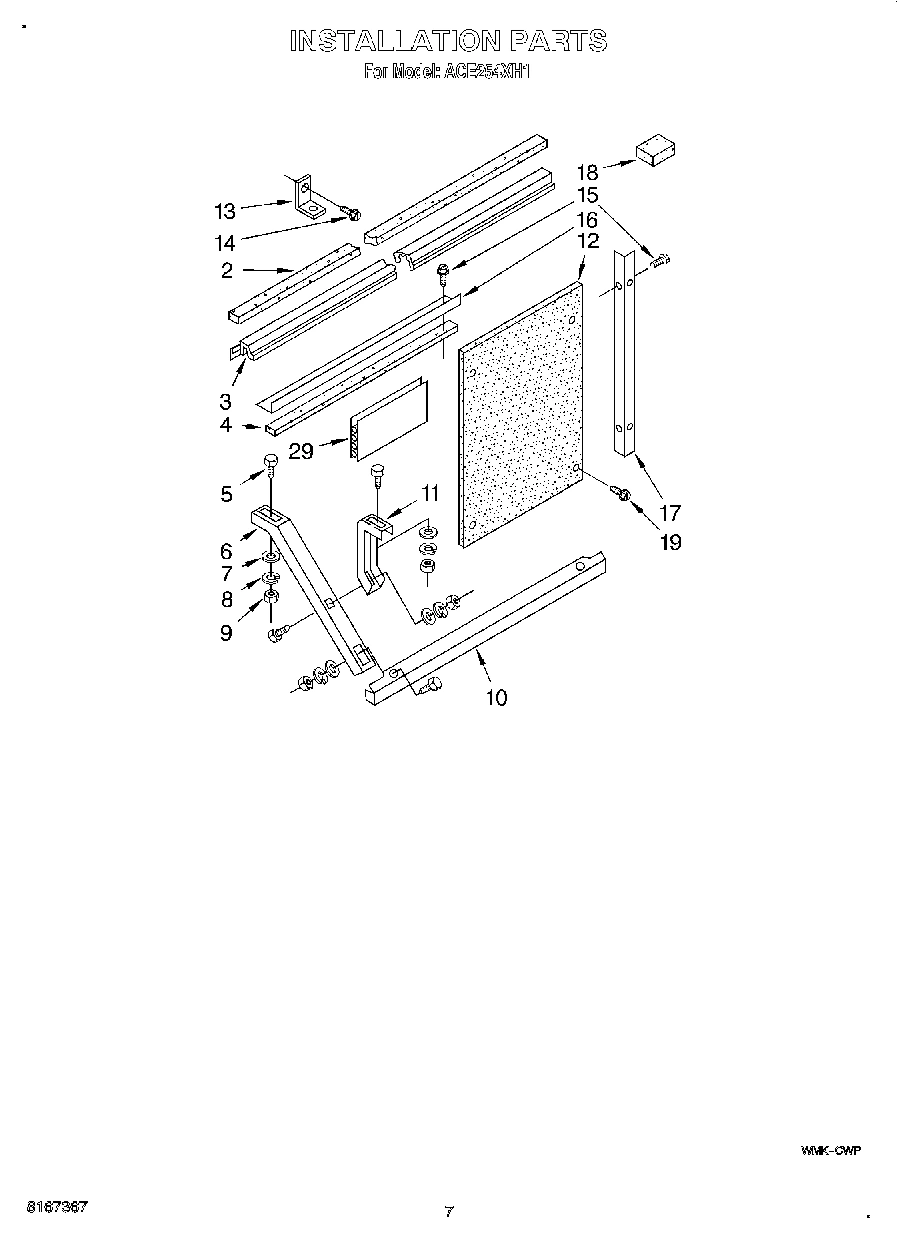

05 - INSTALLATION

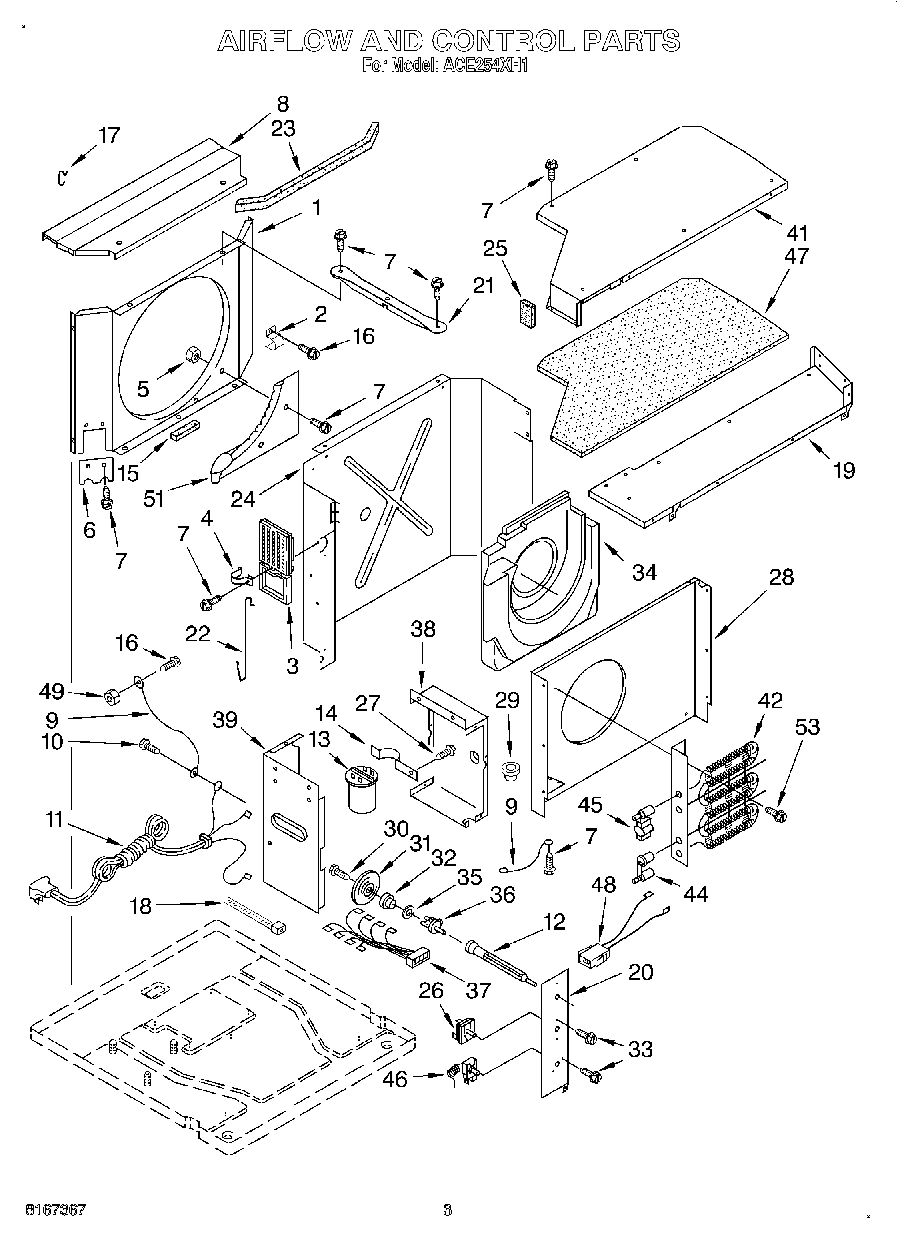

02 - AIR FLOW AND CONTROL

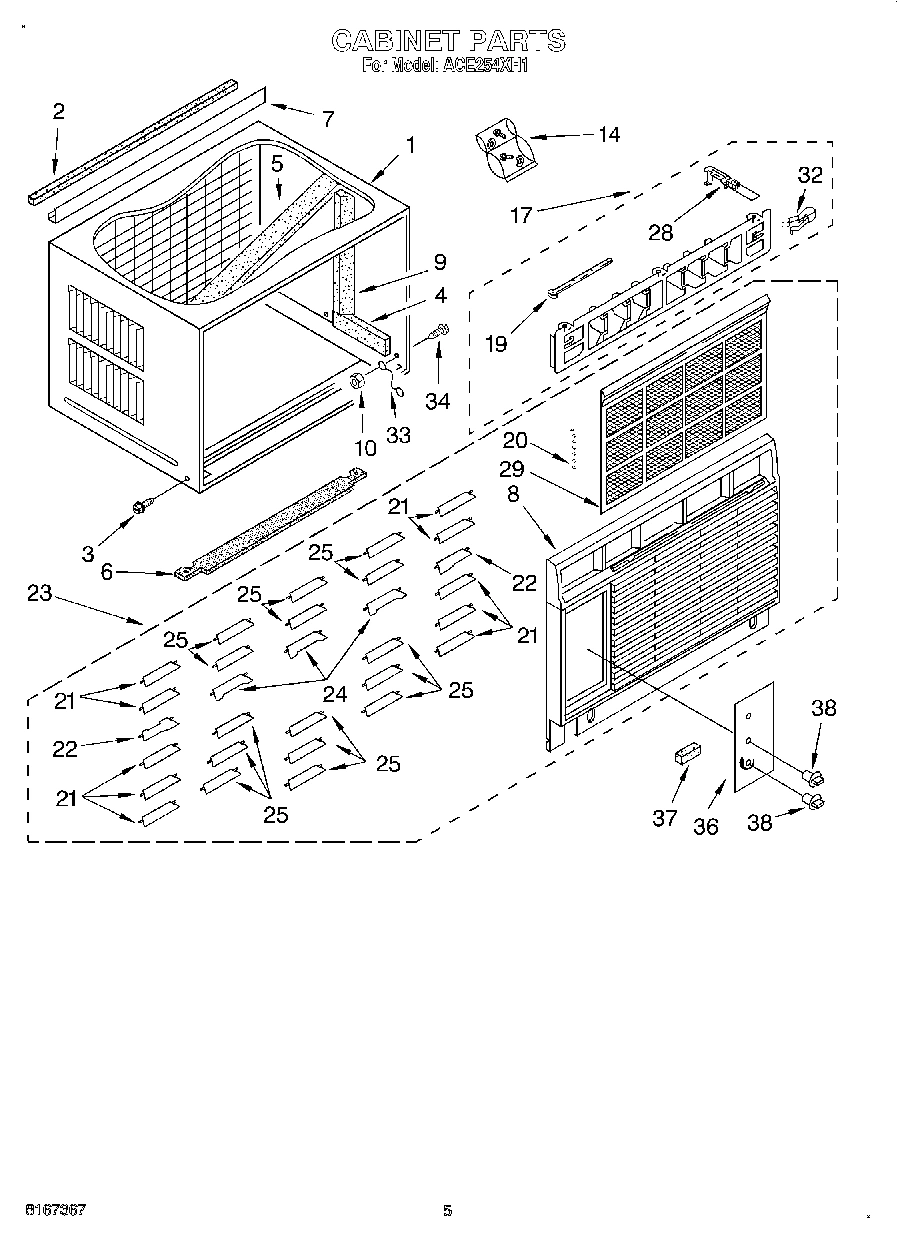

03 - CABINET
Common parts from model Whirlpool ACE254XH1 AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Shroud, Condenser WPL 1161244 Contact Us For Availability
1
Cabinet (Includes Insulation) WPL 1168479 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Clip, Wet Loop WPL 1161248 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Door, Air (2) WPL 1160652 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Spring, Door (2) WPL 1160653 Contact Us For Availability
4
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Insulation, Cabinet (Top) WPL 1167203 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Support, Cabinet (2) WPL 1168475 Contact Us For Availability
6
Clip, Nylon WPL 1161249 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Screw No.8-3/8 WPL 488624 Contact Us For Availability
7
Angle, Top Mounting WPL 1168490 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Front, Cabinet WPL 1168499 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1162099 Contact Us For Availability
10
Bracket, Support WPL 1168476 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
11
Cord, Appliance WPL 1167646 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
12
Control, Shaft WPL 1161504 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Capacitor WPL 1182753 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Seal, Condenstate Cup WPL 1163332 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
17
Vertical, Louver WPL 1182351 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Return Bend Condenser (1) WPL 1156329 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
19
Evap. Shroud Top WPL 1168484 Contact Us For Availability
19
Link, Verticle Louver (2) WPL 1182349 Contact Us For Availability
20
Harness, Wiring WPL 1182847 Contact Us For Availability
20
Panel, Control WPL 1165610 Contact Us For Availability
20
Link, Horizontal Louver (5) WPL 1168496 Contact Us For Availability
21
Compressor WPL 1182808 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
21
Louver, Horizontal (10) WPL 1168493 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
22
Wire, Control Exhaust WPL 1161333 Contact Us For Availability
22
Louver, Horizontal W/ Handle (2) WPL 1168492 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Front, Complete WPL 1182335 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Dividing Wall WPL 1161706 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1168494 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
25
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1168495 Contact Us For Availability
26
Distributor WPL 1163760 Contact Us For Availability
26
Switch Rotary WPL 1167099 Contact Us For Availability
27
Tube, Wet Loop Connect WPL 1161277 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1182636 Contact Us For Availability
28
Actuator, Louver WPL 1182348 Contact Us For Availability
29
Filter WPL 1182336 Contact Us For Availability
29
Cup, Condensate Drain WPL 997285 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1167094 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Return Bend Evaporator (7) WPL 855199 Contact Us For Availability
31
Cam, Exhaust WPL 647882 Contact Us For Availability
32
Manifold, Suction WPL 1164563 Contact Us For Availability
32
Bushing, Shaft WPL 647879 Contact Us For Availability
32
Spring, Detent WPL 1167095 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
34
Tube, Suction WPL 1182751 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Washer WPL 1161313 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Shaft, Control Exhaust WPL 854369 Contact Us For Availability
36
Plate, Escutcheon WPL 1168525 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Harness, Wiring (Control Box) WPL 1167527 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
38
Control Box (R.S.) WPL 1161714 Contact Us For Availability
38
Knobs (3) WPL 1168491 Contact Us For Availability
39
Control Box (L.S.) WPL 1164516 Contact Us For Availability
40
Clamp, Wiring WPL 1163775 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
41
Cover, Top WPL 1168477 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
42
Element, Heating WPL 1182738 Contact Us For Availability
44
Bend, Return Evaporator (10) WPL 855644 Contact Us For Availability
44
Link, Fuse WPL 4388360 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
45
Switch, Limit WPL 4388458 Contact Us For Availability
46
Tube, Discharge WPL 1182750 Contact Us For Availability
46
Control, Temperature WPL 1155801 Contact Us For Availability
47
Gasket, Nut WPL 1182120 Contact Us For Availability
47
Insulation, Top Cover WPL 1163758 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
48
Harness, Heater WPL 1162061 Contact Us For Availability
51
Tube, Feeder WPL 1160357 Contact Us For Availability
51
Cup, Condensate WPL 1160684 Contact Us For Availability
52
Tube, Feeder WPL 1160358 Contact Us For Availability
53
