Model Whirlpool ACE244XR3 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

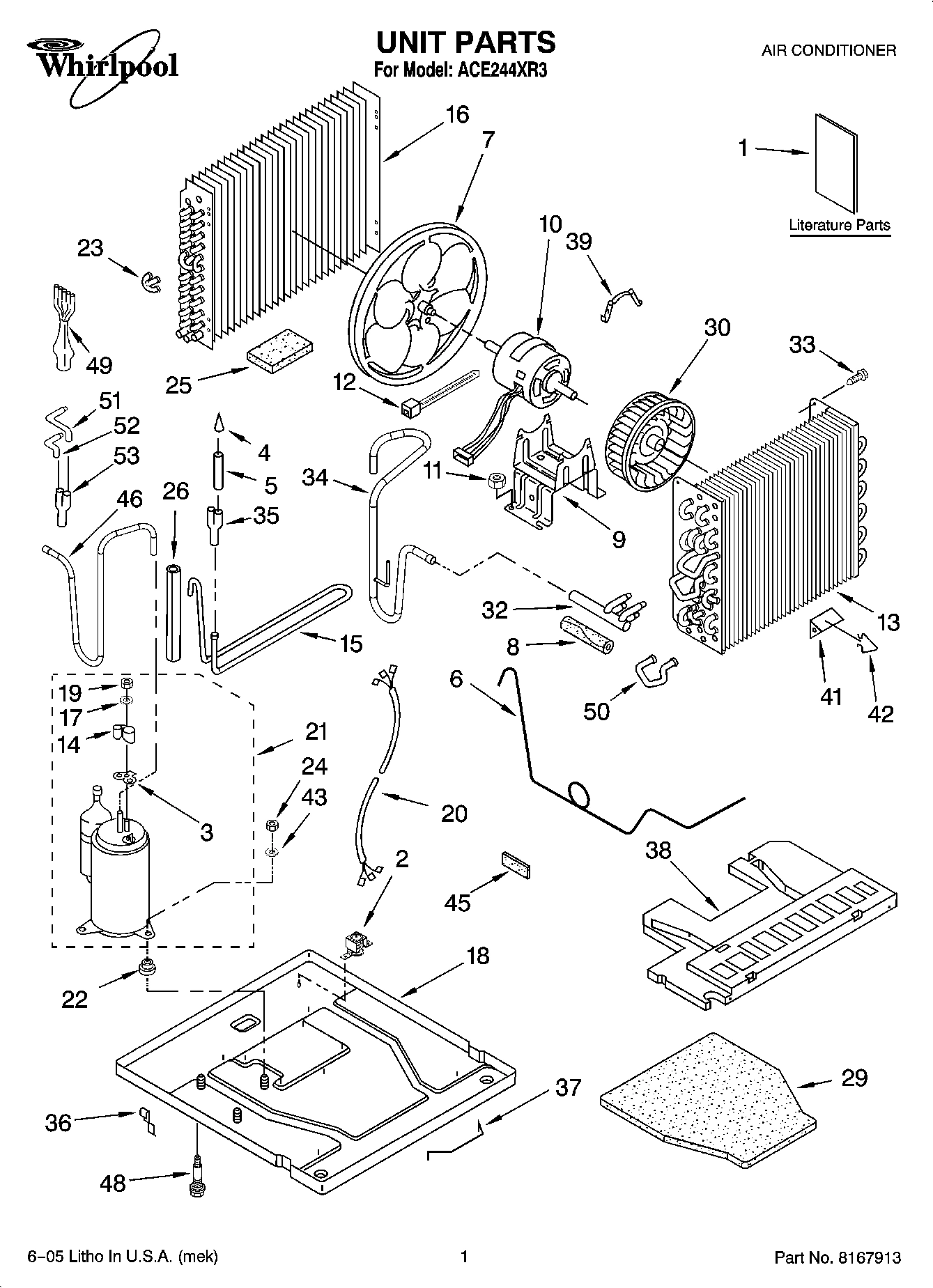

01 - UNIT PARTS

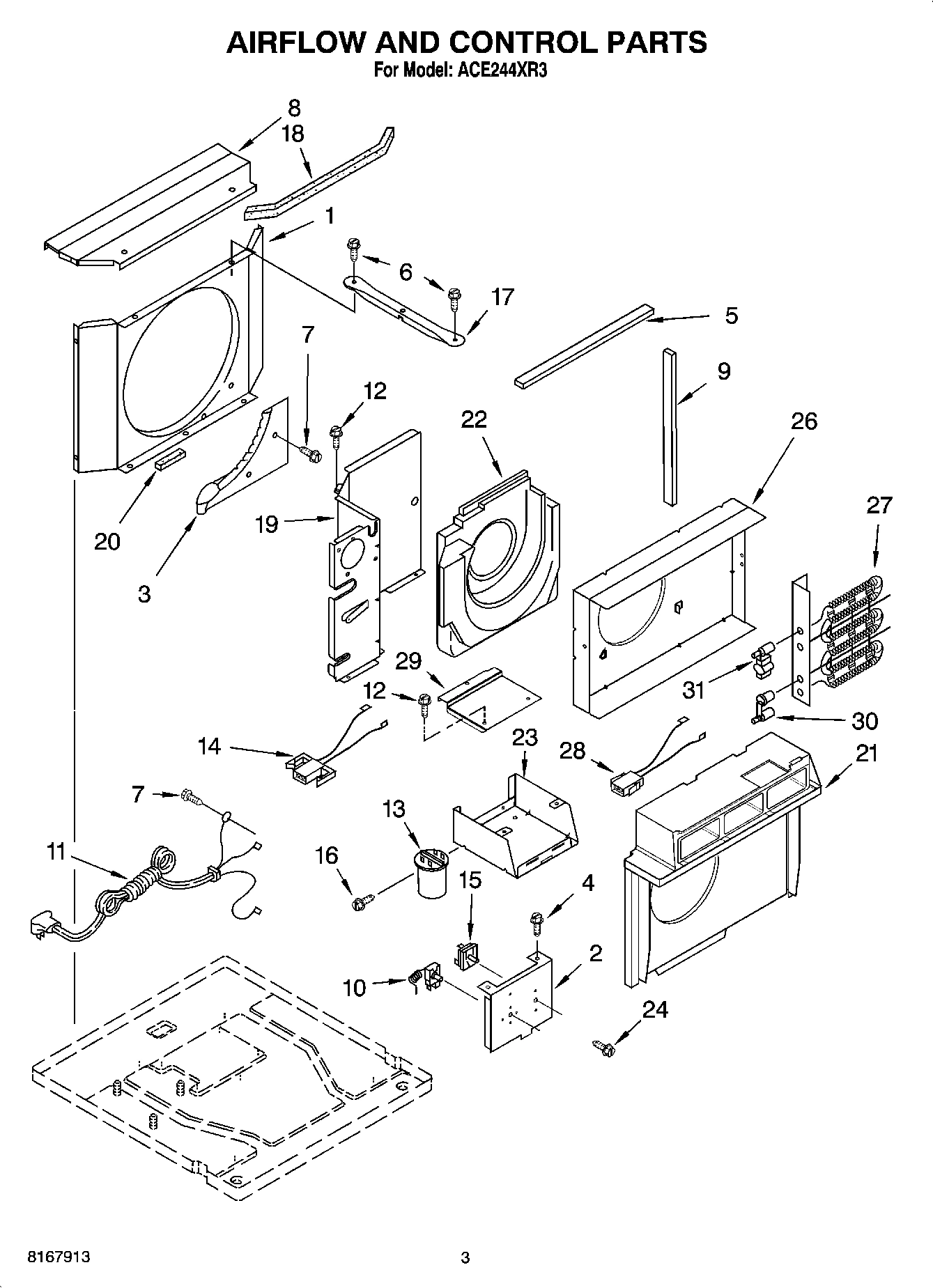

02 - AIRFLOW AND CONTROL PARTS

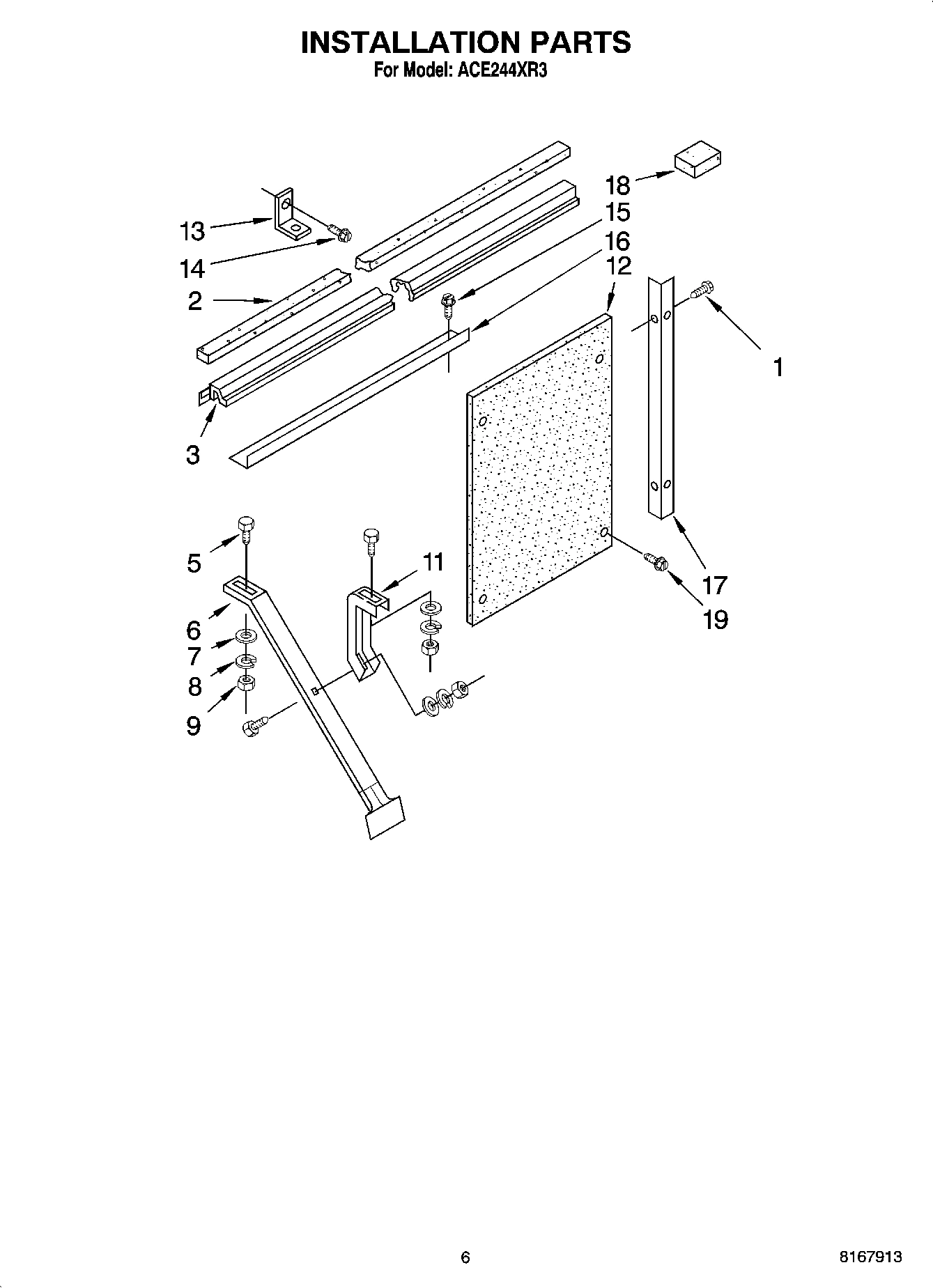

04 - INSTALLATION PARTS
Common parts from model Whirlpool ACE244XR3 AIR CONDITIONER
1
Use & Care Guide WPL 1188127 Contact Us For Availability
1
Energy Guide WPL 1188201 Contact Us For Availability
1
Wiring Diagram WPL 8011287 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Screw (4) WPL 1159222 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Valve, Drain Pan WPL 1187761 Contact Us For Availability
2
Panel, Control WPL 1185532 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Terminal Cover WPL 1188269 Contact Us For Availability
3
Cup, Condensate WPL 1160684 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
5
Seal (Top) WPL 1185513 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor (4) WPL 1186042 Contact Us For Availability
6
Support, Cabinet (2) WPL 1185549 Contact Us For Availability
7
BulK Seal, Ring Access Valve (20-Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Suction Tube WPL 1185481 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Seal (Side) WPL 1185911 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
10
Motor, Fan WPL 1188487 Contact Us For Availability
10
Thermostat WPL 1185753 Contact Us For Availability
11
Cord, Appliance WPL 1187850 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
12
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
Evaporator WPL 1186027 Contact Us For Availability
13
Capacitor WPL 1186507 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Cover, Terminal WPL 1188268 Contact Us For Availability
14
Harness, Heater WPL 1186586 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
15
Cartridge WPL 1185540 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Wet, Loop WPL 1185519 Contact Us For Availability
15
Switch, Rotary WPL 1186500 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
CONDENSER WPL 1185738 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
17
Washer WPL 1185794 Contact Us For Availability
17
Support, Unit (2) WPL 1166169 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
18
Filter WPL 1185523 Contact Us For Availability
18
Base WPL 1185852 Contact Us For Availability
18
Seal, Shroud WPL 1158732 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Dividing Wall WPL 1185505 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
20
Harness, Wiring Compressor WPL 1188312 Contact Us For Availability
20
Seal, Cup WPL 1163332 Contact Us For Availability
21
Compressor WPL 1188222 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1187338 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
22
Housing, Air WPL 1187340 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
23
Control Box WPL 1187820 Contact Us For Availability
24
Locknut (3) Connect WPL 858121 Contact Us For Availability
24
Screw, WPL 488734 Contact Us For Availability
25
Putty, Sound Dampener WPL 1182480 Contact Us For Availability
26
Dampener WPL 1162344 Contact Us For Availability
26
Evaporator, Shroud WPL 1185747 Contact Us For Availability
27
Element, Heating WPL 1182738 Contact Us For Availability
28
Plug, Heater Harness WPL 1186546 Contact Us For Availability
29
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
29
Cover, Control Box WPL 1186663 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1185544 Contact Us For Availability
30
Link, Fuse WPL 4388360 Contact Us For Availability
31
Switch, Limit WPL 4388458 Contact Us For Availability
32
Manifold, Suction WPL 1186028 Contact Us For Availability
34
Tube, Suction WPL 1188282 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Discharge WPL 1188283 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
49
Distributor WPL 1184612 Contact Us For Availability
50
Tube, Crossover WPL 1185265 Contact Us For Availability
51
Tube, Feeder WPL 1188278 Contact Us For Availability
52
Tube, Feeder WPL 1188279 Contact Us For Availability
53
Tube, Flow Divider WPL 1159832 Contact Us For Availability
53
REFRIGERANT CHARGE 46.75 oz. WPL ARI144047A Contact Us For Availability
× ![]()
