Model Maytag ACE230SBC COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - CABINET
02 - DOOR
03 - ELECTRICAL COMPONENTS
04 - STIRRER, DUCTS,

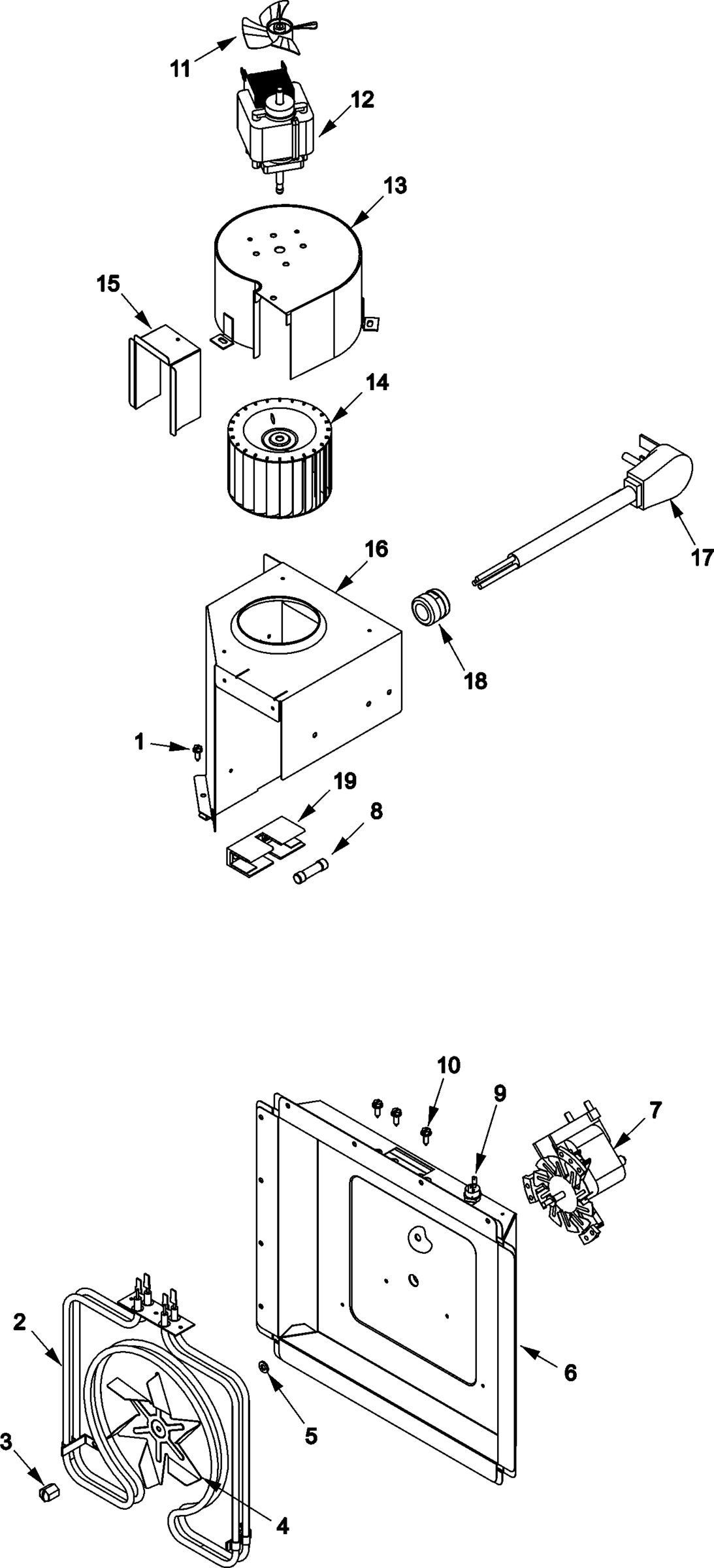

05 - FUSES, BLOWER, HEATER BOX,
06 - SUPPLEMENTAL INFORMATION
07 - WIRING INFORMATION

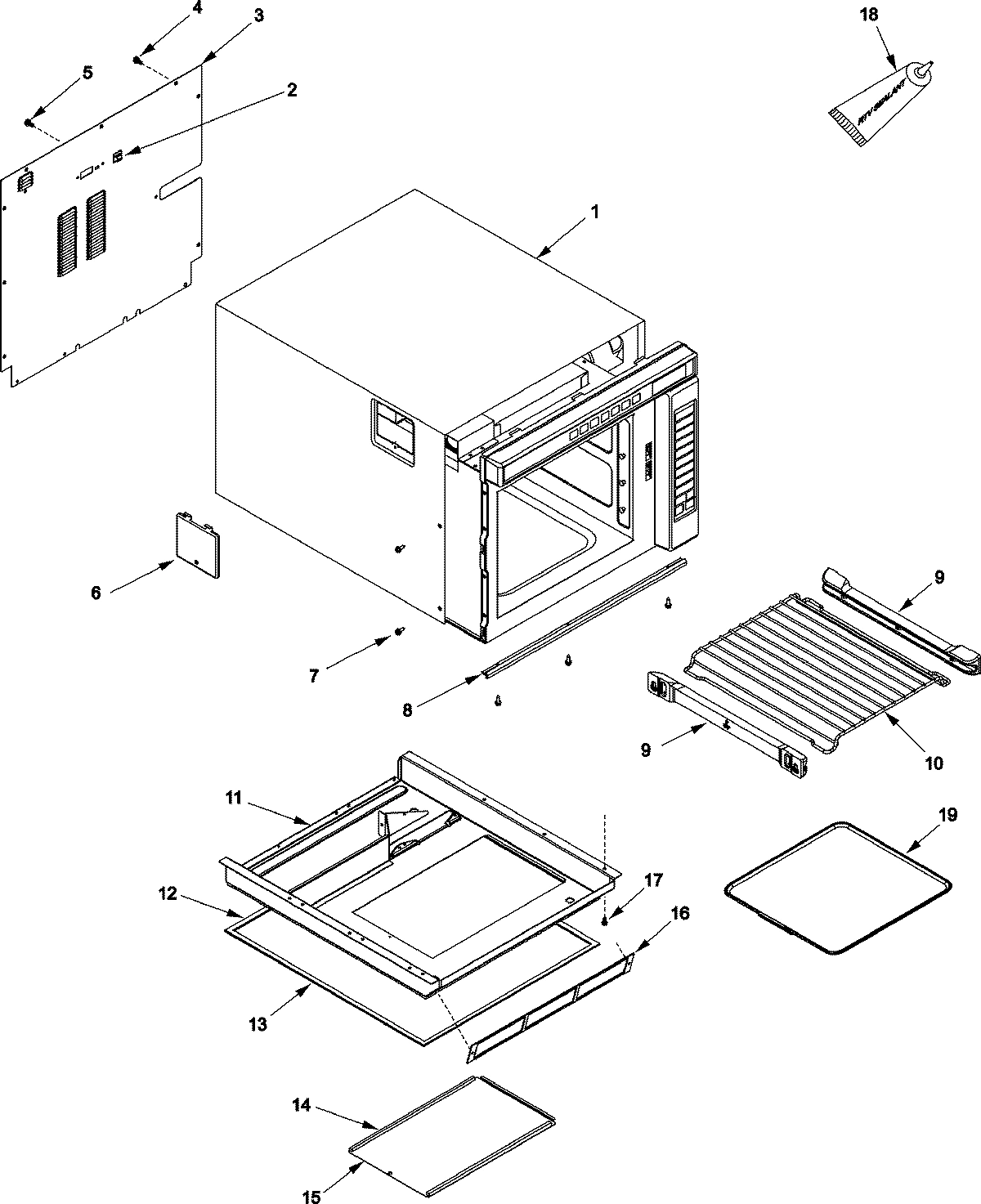

01 - CABINET

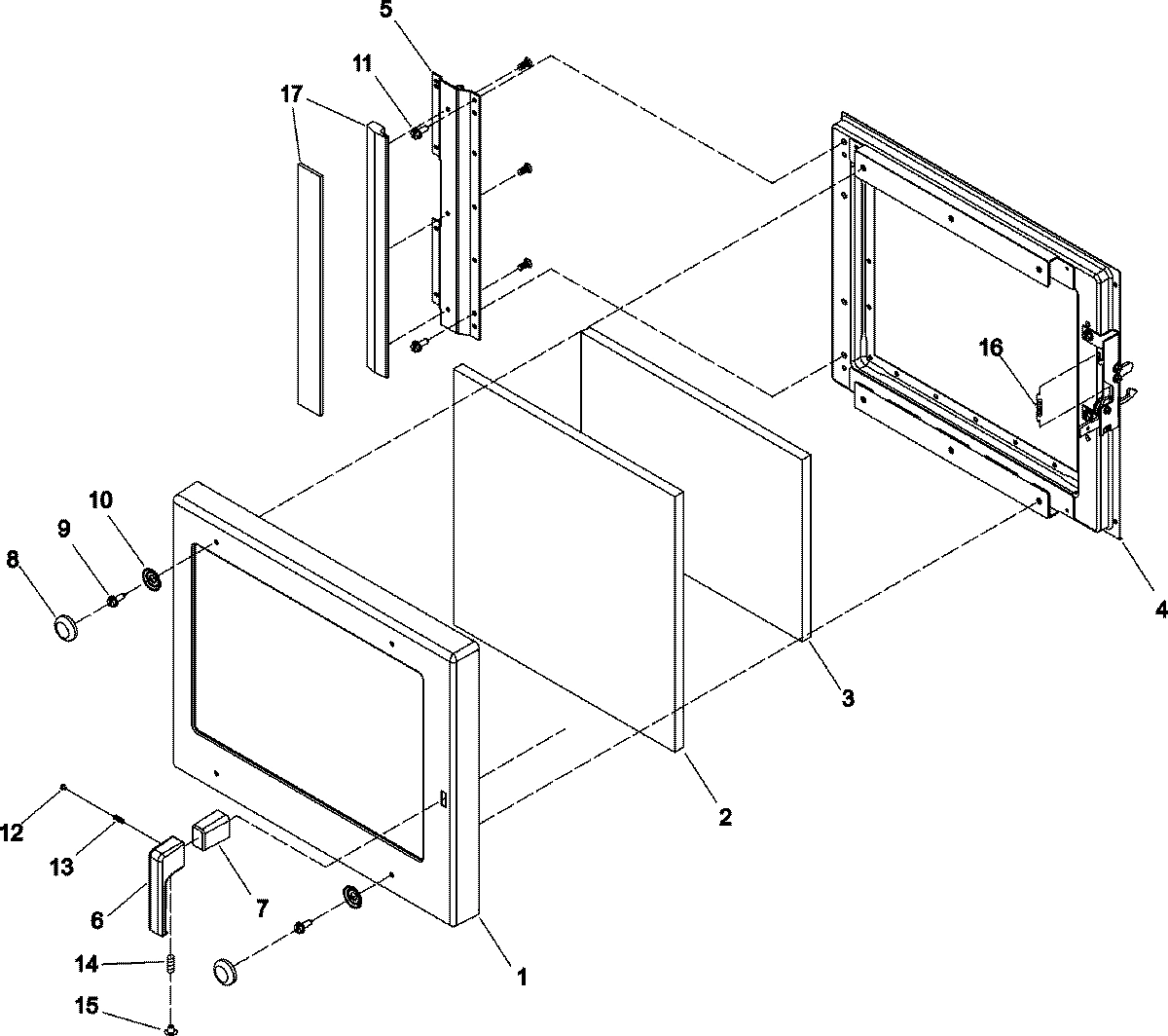

02 - DOOR

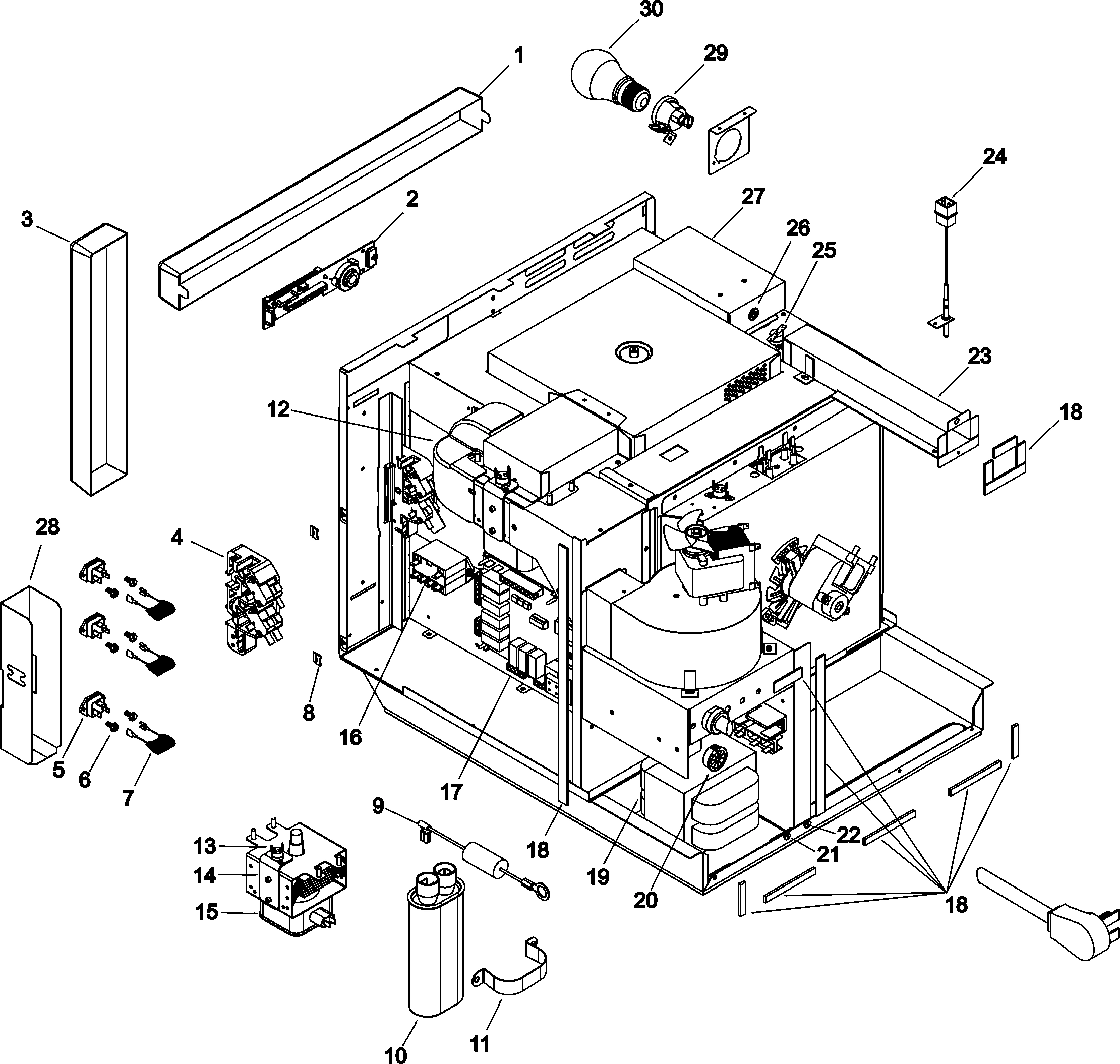

03 - ELECTRICAL COMPONENTS

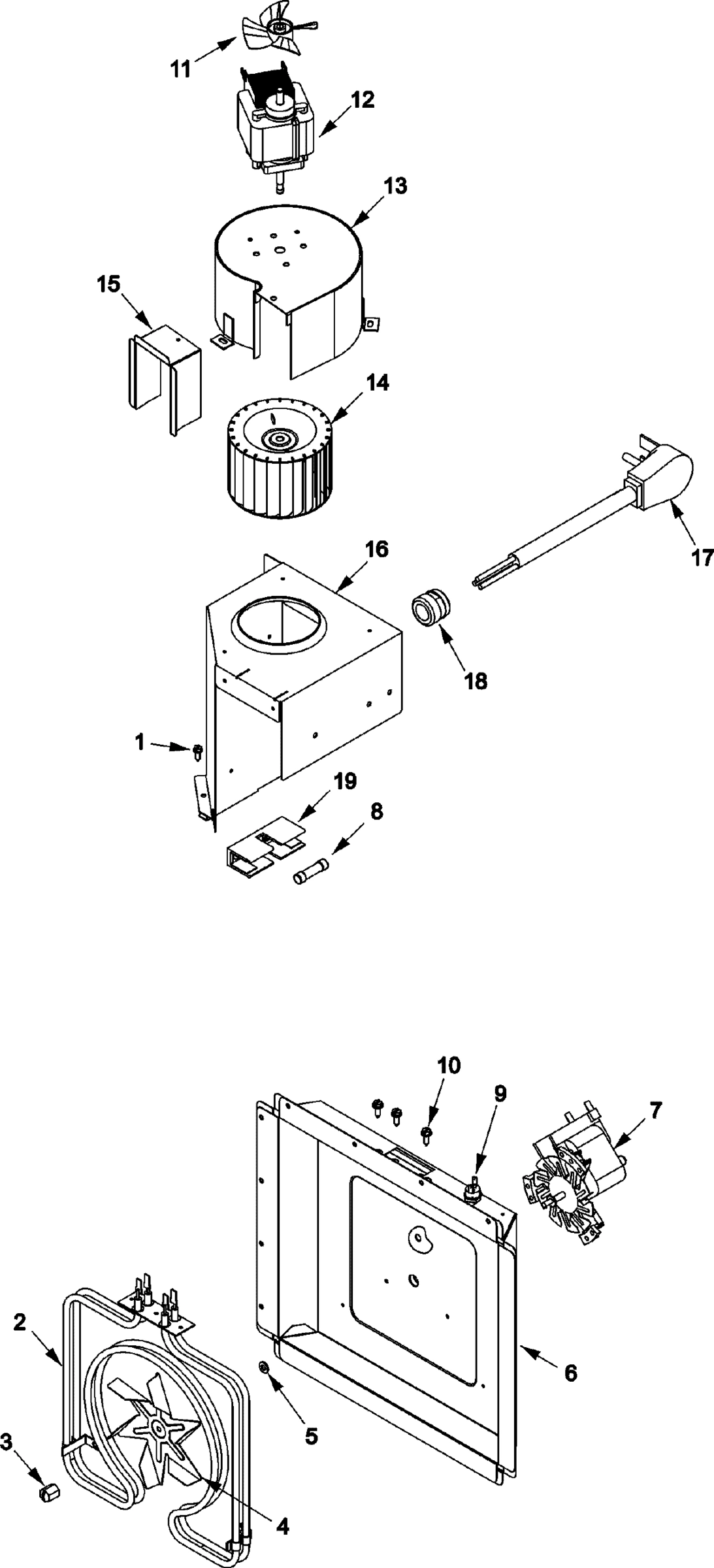

04 - FUSES, BLOWER, HEATER BOX,

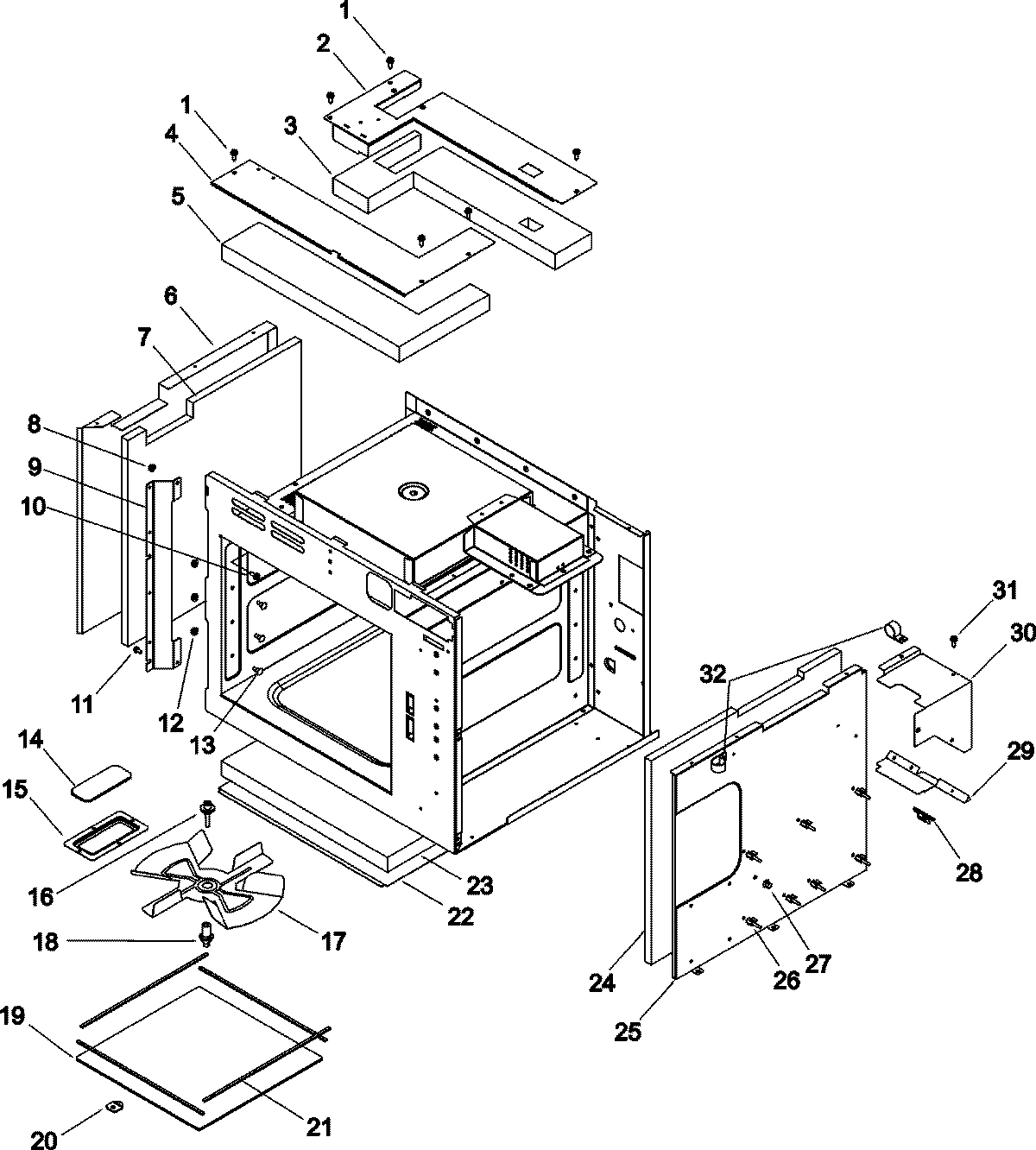

05 - STIRRER, DUCTS,
06 - SUPPLEMENTAL INFORMATION

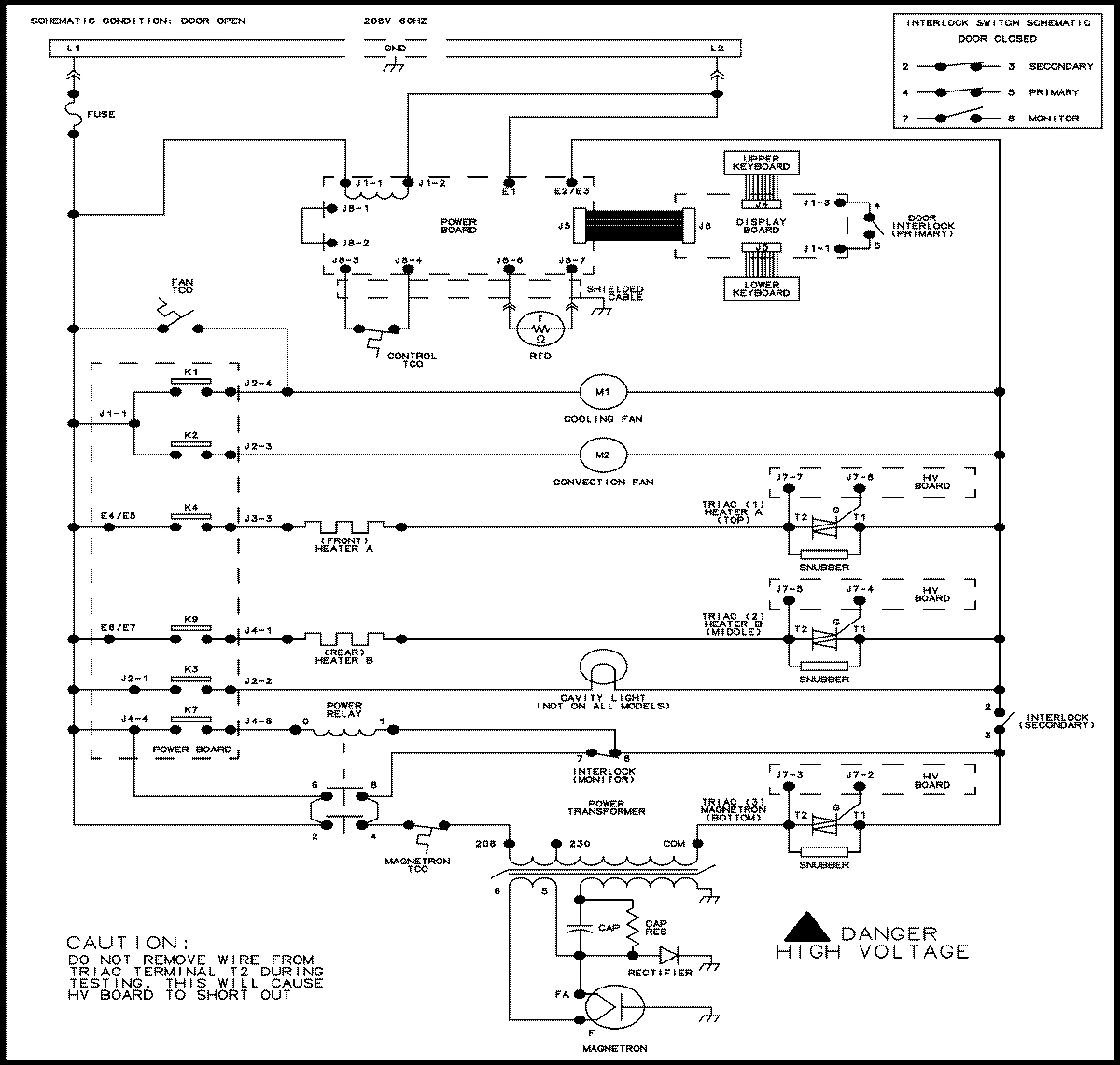

07 - WIRING INFORMATION
Common parts from model Maytag ACE230SBC COMMERCIAL MICROWAVE
1
MAY 59001950 MAY 59001950 Contact Us For Availability
1
MAY 59001511 MAY 59001511 Contact Us For Availability
1
ASSY, TOUCH PANEL-TOP MAY R0000280 Contact Us For Availability
001
MAY 15003080 MAY 15003080 Contact Us For Availability
1
WRAPPER-OC (SS) MAY 10908901Q Contact Us For Availability
2
MAY 12474902 MAY 12474902 Contact Us For Availability
2
BOARD,DISPLAY xxx MAY 12502401 Contact Us For Availability
2
SCREW MAY M0234114 Contact Us For Availability
2
RETAINER-TOP BACK INSUL MAY 10977401 Contact Us For Availability
002
ASSY, HEATER MAY 12000105 Contact Us For Availability
2
MAY 12000106 MAY 12000106 Contact Us For Availability
2
MNL,SVC-COMM`L COMB MICRO xNO MAY RS2220002 Contact Us For Availability
3
MAY 12474901 MAY 12474901 Contact Us For Availability
3
ASSY, TOUCH PANEL-SIDE MAY R0000279 Contact Us For Availability
3
INSUL- TOP BACK RETAINER MAY 12000701 Contact Us For Availability
3
MAY 12538001 MAY 12538001 Contact Us For Availability
3
MAY 16021751 MAY 16021751 Contact Us For Availability
3
ACCESS PAN WELD (BLK) MAY 12002804 Contact Us For Availability
4
MAY M0216517 MAY M0216517 Contact Us For Availability
4
RETAINER-TOP FRONT INSUL MAY 10978002 Contact Us For Availability
4
MAY 59001509 MAY 59001509 Contact Us For Availability
5
MAY 59001869 MAY 59001869 Contact Us For Availability
5
MAY D7681501 MAY D7681501 Contact Us For Availability
5
INSUL- TOP FRONT RETAINER MAY 12000702 Contact Us For Availability
5
MAY 12546101 MAY 12546101 Contact Us For Availability
5
MAY 59001510 MAY 59001510 Contact Us For Availability
6
DOOR HANDLE MAY 12490902 Contact Us For Availability
6
RETAINER-SIDE INSUL LT MAY 10977301 Contact Us For Availability
6
MAY 59001513 MAY 59001513 Contact Us For Availability
6
MAY M0238616 MAY M0238616 Contact Us For Availability
6
MAY 59001507 MAY 59001507 Contact Us For Availability
6
COVER LIGHT (SS) MAY 10785608 Contact Us For Availability
6
MAY M0215116 MAY M0215116 Contact Us For Availability
6
MAY M0288213 MAY M0288213 Contact Us For Availability
7
MAY 12576901 MAY 12576901 Contact Us For Availability
7
MAY 10172901Q MAY 10172901Q Contact Us For Availability
7
INSUL- SIDE RETAINER LT MAY 12000501 Contact Us For Availability
007
MOTOR, CONVECTION MAY 12537801 Contact Us For Availability
7
MAY 12537802 MAY 12537802 Contact Us For Availability
7
MAY M0229616 MAY M0229616 Contact Us For Availability
7
HARNESS-TRIACS & RTD WIRES MAY 12537701 Contact Us For Availability
7
MAY M0249619 MAY M0249619 Contact Us For Availability
8
MAY 59001660 MAY 59001660 Contact Us For Availability
8
MAY M0287001 MAY M0287001 Contact Us For Availability
8
NUT K MAY M0282005 Contact Us For Availability
8
MAY M0805205 MAY M0805205 Contact Us For Availability
8
MAY 59001635 MAY 59001635 Contact Us For Availability
8
MAY 10909001 MAY 10909001 Contact Us For Availability
8
SCREW, T F MAY M0232002 Contact Us For Availability
9
ASSY, RACK GUIDE MAY 12523201Q Contact Us For Availability
9
No.8 AB X 1/2`` CROW FOOT HD SCR MAY 5145-E Contact Us For Availability
9
MAY B8383102 MAY B8383102 Contact Us For Availability
9
MAY M0232012 MAY M0232012 Contact Us For Availability
9
MAY 12189004 MAY 12189004 Contact Us For Availability
9
M4D69 PROTECTOR MAY 31866P01 Contact Us For Availability
9
MAY 12543401 MAY 12543401 Contact Us For Availability
10
MAY 12487402 MAY 12487402 Contact Us For Availability
10
MAY M0295502 MAY M0295502 Contact Us For Availability
10
MAY 59001167 MAY 59001167 Contact Us For Availability
10
SCREW MAY M0223328 Contact Us For Availability
10
HARNESS-HV BOARD TO DISPLAY BD MAY 12543201 Contact Us For Availability
11
MAY R0150116 MAY R0150116 Contact Us For Availability
11
MAY M0229716 MAY M0229716 Contact Us For Availability
11
MAY 59001208 MAY 59001208 Contact Us For Availability
11
MAY A4055406 MAY A4055406 Contact Us For Availability
11
MAY B5706704 MAY B5706704 Contact Us For Availability
11
MAY D7718009 MAY D7718009 Contact Us For Availability
12
MAY 59001646 MAY 59001646 Contact Us For Availability
12
MAY 12018101 MAY 12018101 Contact Us For Availability
12
MAY M0282007 MAY M0282007 Contact Us For Availability
012
MAY 10773306 MAY 10773306 Contact Us For Availability
12
MAY 10773307 MAY 10773307 Contact Us For Availability
12
MAY M0253916 MAY M0253916 Contact Us For Availability
12
MAY 12026901 MAY 12026901 Contact Us For Availability
13
MAY 59001647 MAY 59001647 Contact Us For Availability
13
SET SCREW MAY M0208943 Contact Us For Availability
13
CUTOUT-THERMAL MAY B5684119 Contact Us For Availability
13
MAY 12030101 MAY 12030101 Contact Us For Availability
13
SCROLL WELD MAY 10797203 Contact Us For Availability
13
MAY D7726534 MAY D7726534 Contact Us For Availability
14
SET SCREW MAY M0206943 Contact Us For Availability
14
BIT FOR CROW FOOT DRIVE SCREWS MAY 92113P01 Contact Us For Availability
14
MAY 10999501 MAY 10999501 Contact Us For Availability
14
MAY M0229916 MAY M0229916 Contact Us For Availability
14
MAY 12047501 MAY 12047501 Contact Us For Availability
14
MAY C3670809 MAY C3670809 Contact Us For Availability
15
MAY 10782402 MAY 10782402 Contact Us For Availability
15
MAY M0310305 MAY M0310305 Contact Us For Availability
15
MAY 10489402 MAY 10489402 Contact Us For Availability
15
RETAINER, OVEN LIGHT GLASS MAY 10978201 Contact Us For Availability
15
MAY 10977801 MAY 10977801 Contact Us For Availability
15
MAY 59001516 MAY 59001516 Contact Us For Availability
16
MAY M0209701 MAY M0209701 Contact Us For Availability
16
MAY M0274066 MAY M0274066 Contact Us For Availability
16
MAY 59001721 MAY 59001721 Contact Us For Availability
16
MAY 12004401 MAY 12004401 Contact Us For Availability
16
WELD,BLOWER BRKT MAY 12000810 Contact Us For Availability
016
RACK & GUIDE KIT MAY NLA Contact Us For Availability
16
MAY 59001517 MAY 59001517 Contact Us For Availability
17
MAY 59001230 MAY 59001230 Contact Us For Availability
17
MAY 59001322 MAY 59001322 Contact Us For Availability
17
MAY 59001943 MAY 59001943 Contact Us For Availability
17
MAY 10825904Q MAY 10825904Q Contact Us For Availability
17
MAY R0131016 MAY R0131016 Contact Us For Availability
17
MAY 59001518 MAY 59001518 Contact Us For Availability
18
MAY A3030301 MAY A3030301 Contact Us For Availability
18
MAY R0130737 MAY R0130737 Contact Us For Availability
18
STRAIN RELIEF MAY M0370003 Contact Us For Availability
18
MAY 59001519 MAY 59001519 Contact Us For Availability
19
MAY 59001942 MAY 59001942 Contact Us For Availability
19
MAY 59001626 MAY 59001626 Contact Us For Availability
19
ASSY, STIRRER COVER MAY R0150115 Contact Us For Availability
19
FUSE HOLDER MAY 10091101 Contact Us For Availability
19
MAY 59001520 MAY 59001520 Contact Us For Availability
20
SNAP BUSHING MAY M0571001 Contact Us For Availability
20
SCREW MAY M0213802 Contact Us For Availability
20
RETAINER-TRAY MAY 12188901 Contact Us For Availability
21
MAY 12019002 MAY 12019002 Contact Us For Availability
22
RETAINER-BOTTOM INSUL MAY 10977501 Contact Us For Availability
23
FLUE DUCT WELD MAY 12002901 Contact Us For Availability
23
INSUL-BOTTOM RETAINER MAY 12000703 Contact Us For Availability
24
MAY 12000201 MAY 12000201 Contact Us For Availability
24
INSUL- SIDE RETAINER RT MAY 12000401 Contact Us For Availability
25
THERMAL PROTECTOR MAY B5684102 Contact Us For Availability
25
RETAINER-SIDE INSUL RT MAY 10977102 Contact Us For Availability
26
BUSHING MAY A3293501 Contact Us For Availability
26
No.6 F X 1/4`` SCREW (25) MAY 5043-W Contact Us For Availability
26
SUPPORT P-C BD A MAY M0590602 Contact Us For Availability
27
COVER,LAMP MAY 12630501 Contact Us For Availability
27
MAY M0585507 MAY M0585507 Contact Us For Availability
28
MAY 12210101 MAY 12210101 Contact Us For Availability
29
MAY M0216716 MAY M0216716 Contact Us For Availability
29
MAY 59001686 MAY 59001686 Contact Us For Availability
29
MAY 10978601 MAY 10978601 Contact Us For Availability
30
MAY 10978702 MAY 10978702 Contact Us For Availability
32
MAY M0216529 MAY M0216529 Contact Us For Availability
32
MAY M0102305 MAY M0102305 Contact Us For Availability
NI
MAY 15003079 MAY 15003079 Contact Us For Availability
× ![]()
