Model Maytag ACE208 COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - BASE & HEATER BOX
02 - BLOWER

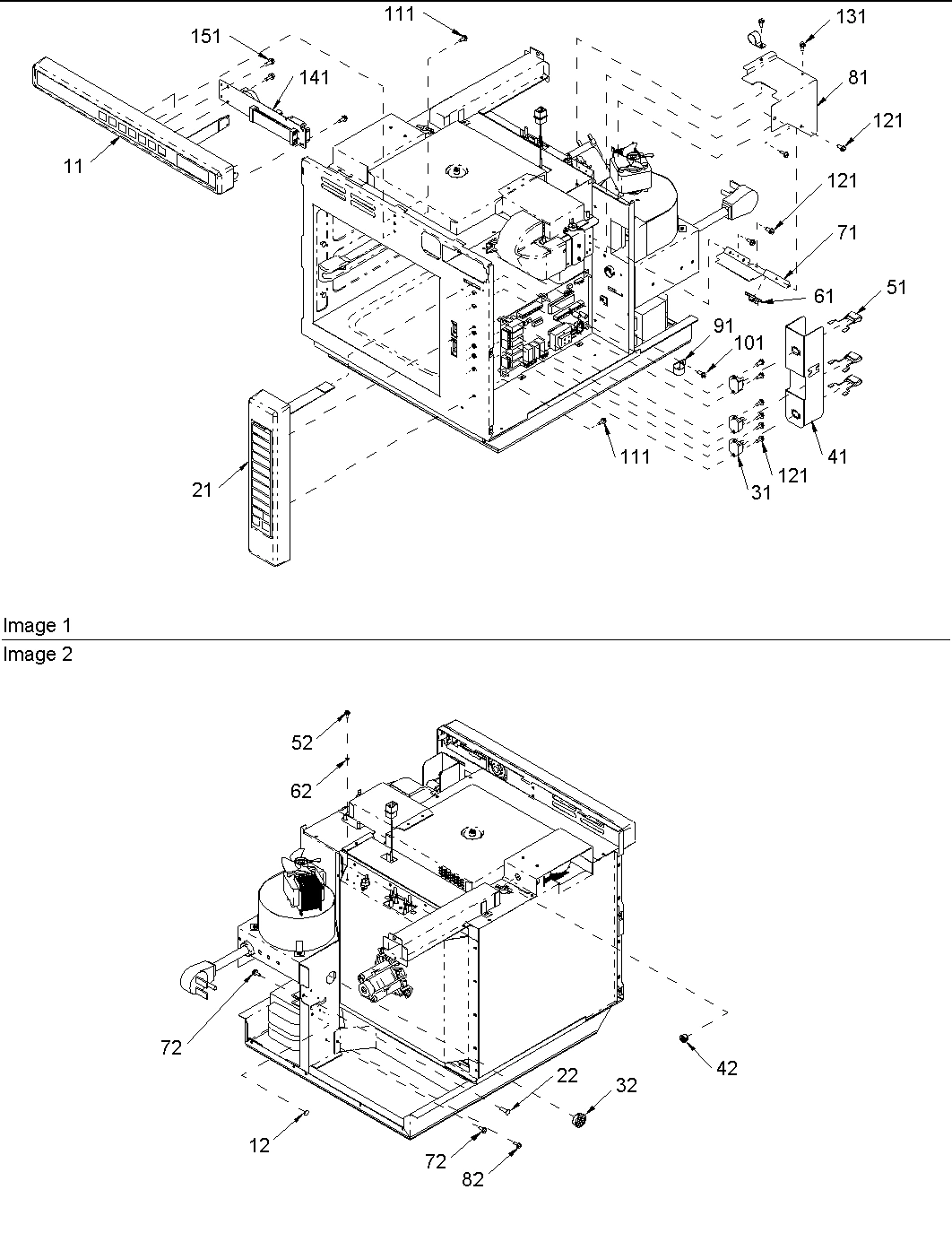

03 - CONTROL

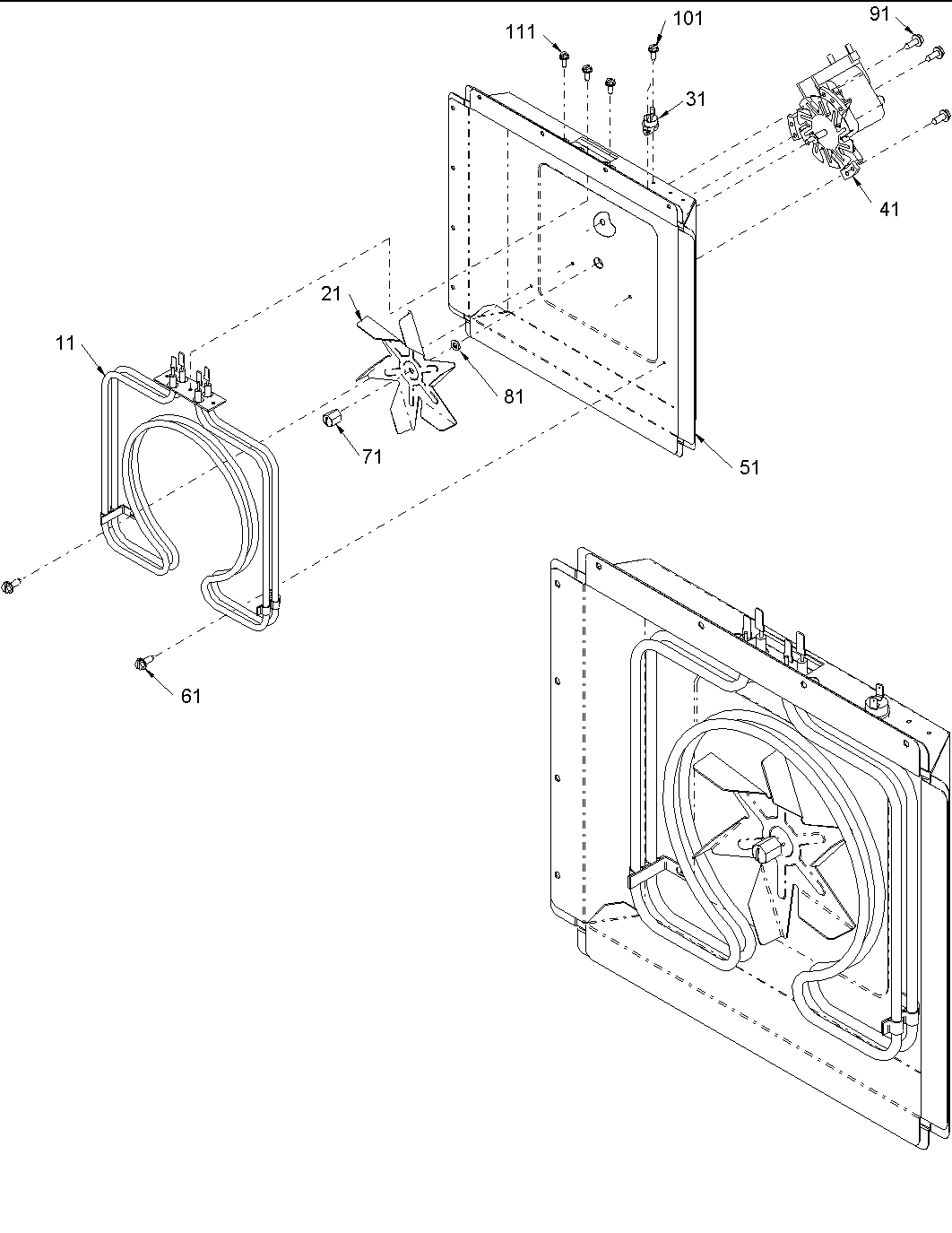

04 - HEAT BOX
05 - MISCELLAEOUS INFORMATION

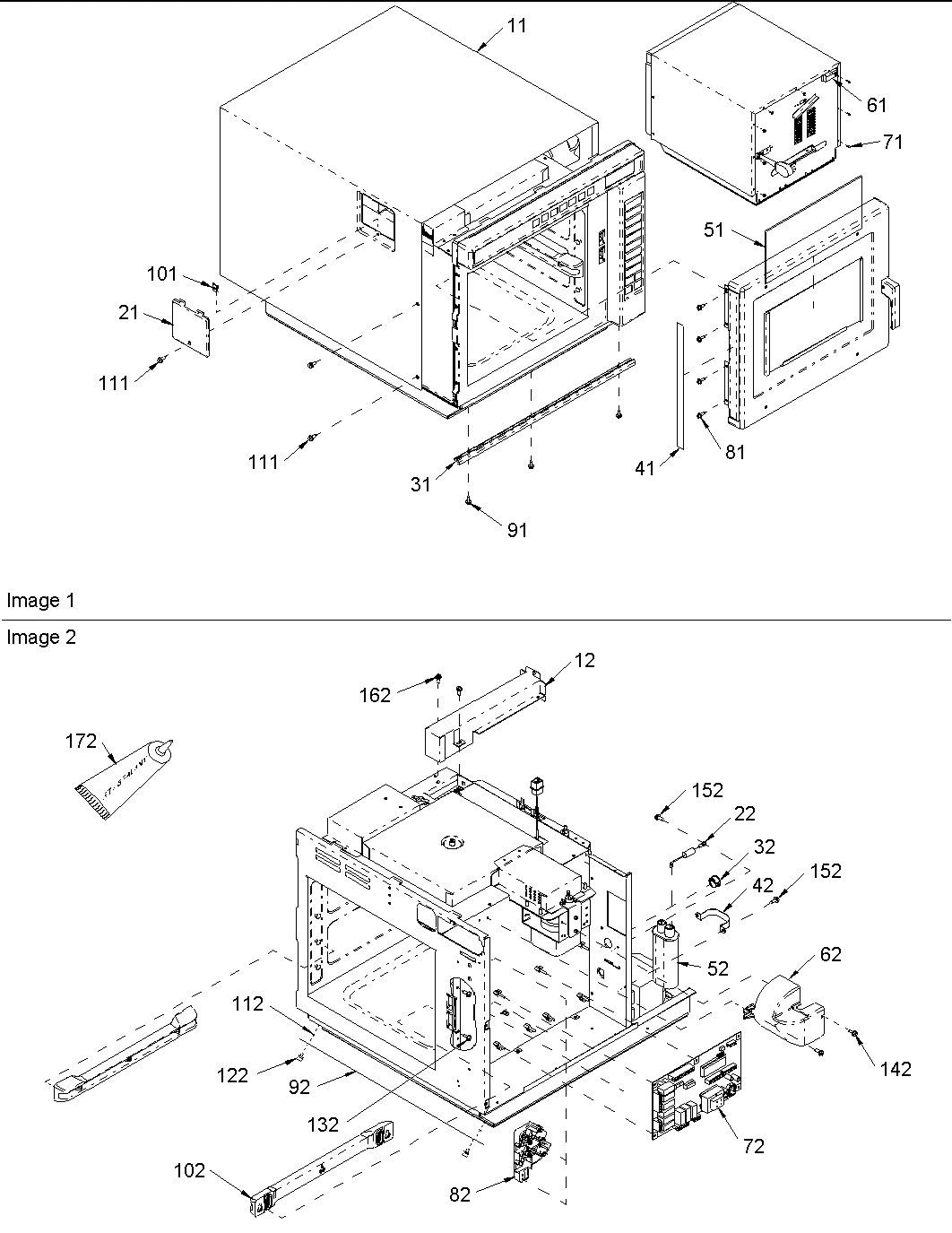

06 - OUTERCASE & ELECTRICAL

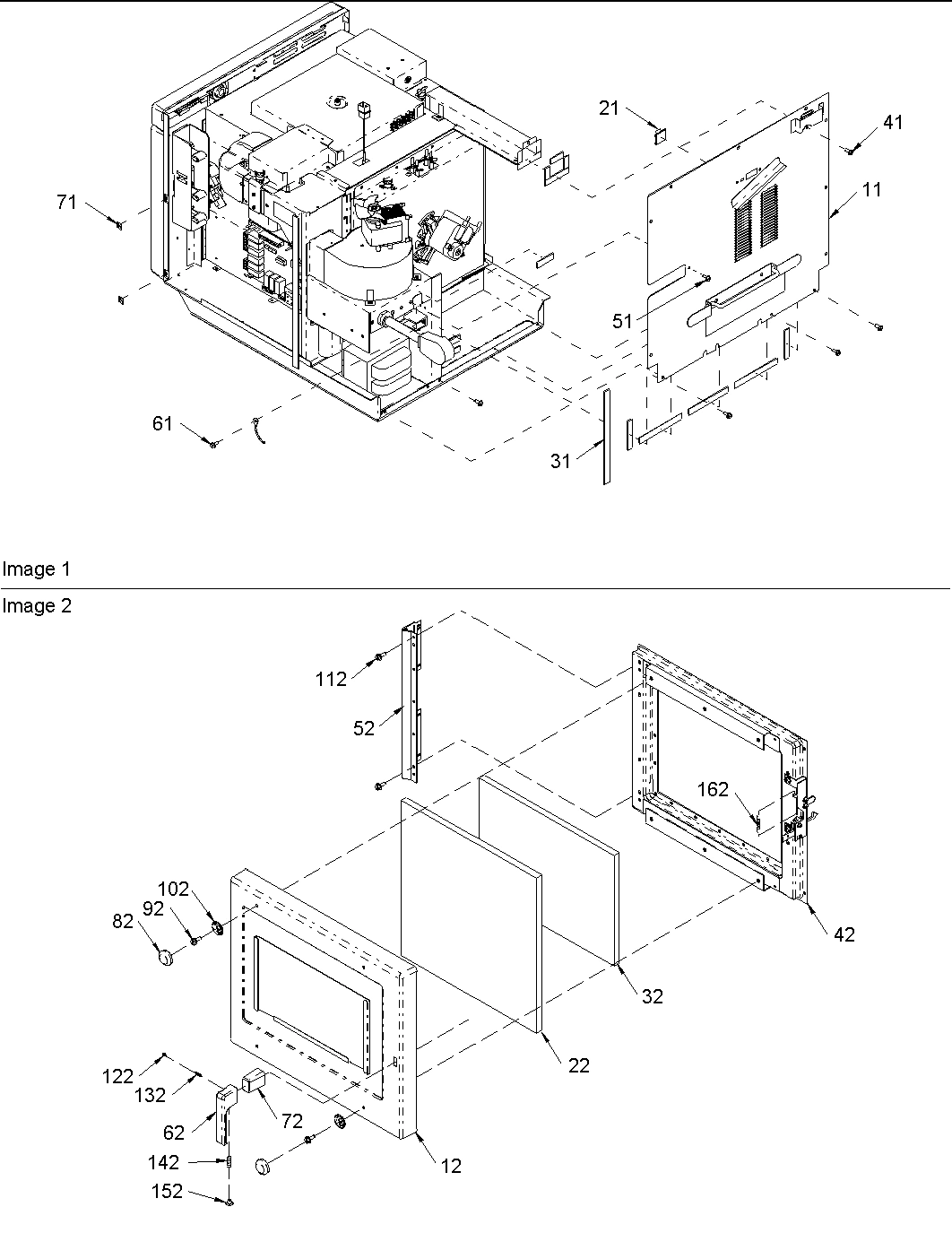

07 - REAR PANEL & DOOR

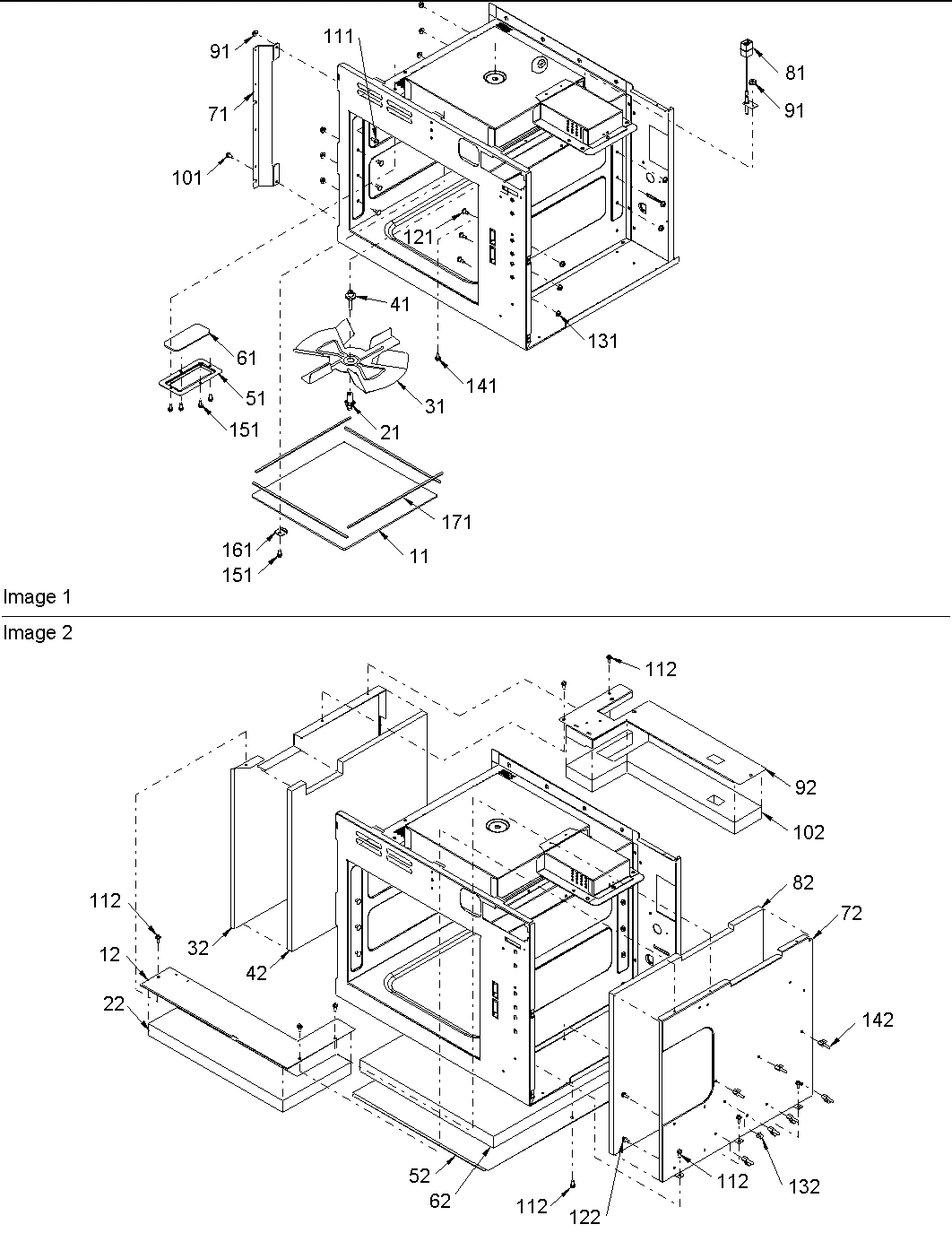

08 - STIRRER SYSTEM & OUTER CAVITY
Common parts from model Maytag ACE208 COMMERCIAL MICROWAVE
1
MNL,OWNERS(COMM`L MICRO) MAY 12392746 Contact Us For Availability
1
BIT FOR CROW FOOT DRIVE SCREWS MAY 92113P01 Contact Us For Availability
1
MNL,PARTS(COMM`L COMBO MICRO) MAY RP2220005 Contact Us For Availability
1
MNL,SVC-COMM`L COMB MICRO xNO MAY RS2220002 Contact Us For Availability
1
TECH SHEET,COMM`L MICRO xNO MAY RT2220001 Contact Us For Availability
11
MAY 10098907 MAY 10098907 Contact Us For Availability
11
ASSY, TOUCH PANEL-TOP MAY R0000280 Contact Us For Availability
11
ASSY, HEATER MAY 12000105 Contact Us For Availability
11
WRAPPER-OC (SS) MAY 10908901Q Contact Us For Availability
11
ACCESS PAN WELD (BLK) MAY 12002804 Contact Us For Availability
11
ASSY, STIRRER COVER MAY R0150115 Contact Us For Availability
12
MAY B5706704 MAY B5706704 Contact Us For Availability
12
MAY M0310015 MAY M0310015 Contact Us For Availability
12
FLUE DUCT WELD MAY 12002901 Contact Us For Availability
12
MAY 12162510 MAY 12162510 Contact Us For Availability
12
DOOR,OUTER MAY 12162511 Contact Us For Availability
12
RETAINER-TOP FRONT INSUL MAY 10978002 Contact Us For Availability
21
TRANSFORMER-HV MAY 10788602 Contact Us For Availability
21
STRAIN RELIEF MAY M0370003 Contact Us For Availability
21
ASSY, TOUCH PANEL-SIDE MAY R0000279 Contact Us For Availability
21
COVER LIGHT (SS) MAY 10785608 Contact Us For Availability
21
MAY R0150114 MAY R0150114 Contact Us For Availability
22
MAY 12027401 MAY 12027401 Contact Us For Availability
22
MAY 10773302 MAY 10773302 Contact Us For Availability
22
MAY M0310016 MAY M0310016 Contact Us For Availability
22
MAY B8383102 MAY B8383102 Contact Us For Availability
22
MAY 12474902 MAY 12474902 Contact Us For Availability
22
INSUL- TOP FRONT RETAINER MAY 12000702 Contact Us For Availability
31
MAY 10489402 MAY 10489402 Contact Us For Availability
31
WELD,BLOWER BRKT MAY 12000810 Contact Us For Availability
31
MAY D7681501 MAY D7681501 Contact Us For Availability
31
M4D69 PROTECTOR MAY 31866P01 Contact Us For Availability
31
MAY 10909001 MAY 10909001 Contact Us For Availability
31
MAY 10825904Q MAY 10825904Q Contact Us For Availability
32
COVER,LAMP MAY 12630501 Contact Us For Availability
32
MAY 10977801 MAY 10977801 Contact Us For Availability
32
MAY M0571003 MAY M0571003 Contact Us For Availability
32
SNAP BUSHING MAY M0571001 Contact Us For Availability
32
MAY 12474901 MAY 12474901 Contact Us For Availability
32
RETAINER-SIDE INSUL LT MAY 10977301 Contact Us For Availability
41
MAY 10999501 MAY 10999501 Contact Us For Availability
41
FUSE HOLDER MAY 10091101 Contact Us For Availability
41
MAY 12210101 MAY 12210101 Contact Us For Availability
41
MOTOR, CONVECTION MAY 12537801 Contact Us For Availability
41
HINGE SHIELD W\ADHESIVE MAY 12089001 Contact Us For Availability
41
MAY 12004401 MAY 12004401 Contact Us For Availability
42
THERMAL PROTECTOR MAY B5684102 Contact Us For Availability
42
SCROLL WELD MAY 10797203 Contact Us For Availability
42
BUSHING MAY A3293501 Contact Us For Availability
42
MAY A4055406 MAY A4055406 Contact Us For Availability
42
INSUL- SIDE RETAINER LT MAY 12000501 Contact Us For Availability
51
MAY M0805205 MAY M0805205 Contact Us For Availability
51
MAY 10172901Q MAY 10172901Q Contact Us For Availability
51
HEATER BOX WELD MAY 12020002 Contact Us For Availability
51
RETAINER, OVEN LIGHT GLASS MAY 10978201 Contact Us For Availability
52
CUTOUT-THERMAL MAY B5684119 Contact Us For Availability
52
MAY C3670809 MAY C3670809 Contact Us For Availability
52
CAPACITOR MAY D8547936 Contact Us For Availability
52
MAY 59001512 MAY 59001512 Contact Us For Availability
52
RETAINER-BOTTOM INSUL MAY 10977501 Contact Us For Availability
61
MAY M0216529 MAY M0216529 Contact Us For Availability
61
MAY 12470201 MAY 12470201 Contact Us For Availability
61
MAY 12047501 MAY 12047501 Contact Us For Availability
62
WASHER MAY M0272503 Contact Us For Availability
62
MAY 12018101 MAY 12018101 Contact Us For Availability
62
DOOR HANDLE MAY 12490902 Contact Us For Availability
62
INSUL-BOTTOM RETAINER MAY 12000703 Contact Us For Availability
71
MAY 10978601 MAY 10978601 Contact Us For Availability
71
MAY 12538001 MAY 12538001 Contact Us For Availability
71
MAY M0287001 MAY M0287001 Contact Us For Availability
71
MAY 12189004 MAY 12189004 Contact Us For Availability
72
MAY M0238616 MAY M0238616 Contact Us For Availability
72
MAY M0253916 MAY M0253916 Contact Us For Availability
72
BOARD,HV AMANA PROGRAM MAY 12559101Q Contact Us For Availability
72
MAY 12576901 MAY 12576901 Contact Us For Availability
72
RETAINER-SIDE INSUL RT MAY 10977102 Contact Us For Availability
81
MAY 10978702 MAY 10978702 Contact Us For Availability
81
MAY 12546101 MAY 12546101 Contact Us For Availability
81
MAY 12000201 MAY 12000201 Contact Us For Availability
82
MAY 12360506 MAY 12360506 Contact Us For Availability
82
MAY M0295501 MAY M0295501 Contact Us For Availability
82
INSUL- SIDE RETAINER RT MAY 12000401 Contact Us For Availability
91
MAY M0102305 MAY M0102305 Contact Us For Availability
91
MAY M0229616 MAY M0229616 Contact Us For Availability
91
NUT K MAY M0282005 Contact Us For Availability
92
No.8 AB X 1/2`` CROW FOOT HD SCR MAY 5145-E Contact Us For Availability
92
RETAINER-TOP BACK INSUL MAY 10977401 Contact Us For Availability
101
MAY M0229916 MAY M0229916 Contact Us For Availability
101
MAY M0232012 MAY M0232012 Contact Us For Availability
101
MAY M0231717 MAY M0231717 Contact Us For Availability
101
MAY M0288213 MAY M0288213 Contact Us For Availability
102
MAY 12487402 MAY 12487402 Contact Us For Availability
102
ASSY, RACK GUIDE MAY 12523201Q Contact Us For Availability
102
MAY M0295502 MAY M0295502 Contact Us For Availability
102
INSUL- TOP BACK RETAINER MAY 12000701 Contact Us For Availability
111
SCREW MAY M0223328 Contact Us For Availability
111
MAY M0249619 MAY M0249619 Contact Us For Availability
111
MAY M0202557 MAY M0202557 Contact Us For Availability
112
MAY M0216716 MAY M0216716 Contact Us For Availability
112
MAY M0274066 MAY M0274066 Contact Us For Availability
121
MAY 12030101 MAY 12030101 Contact Us For Availability
122
MAY M0209701 MAY M0209701 Contact Us For Availability
122
No.6 F X 1/4`` SCREW (25) MAY 5043-W Contact Us For Availability
131
MAY M0282007 MAY M0282007 Contact Us For Availability
132
MAY M0216517 MAY M0216517 Contact Us For Availability
132
SET SCREW MAY M0208943 Contact Us For Availability
132
SUPPORT P-C BD A MAY M0590602 Contact Us For Availability
141
BOARD,DISPLAY xxx MAY 12502401 Contact Us For Availability
141
SCREW, T F MAY M0232002 Contact Us For Availability
142
SET SCREW MAY M0206943 Contact Us For Availability
142
MAY M0585507 MAY M0585507 Contact Us For Availability
151
SCREW MAY M0234114 Contact Us For Availability
151
SCREW MAY M0213802 Contact Us For Availability
152
MAY M0310305 MAY M0310305 Contact Us For Availability
161
RETAINER-TRAY MAY 12188901 Contact Us For Availability
162
MAY 59001721 MAY 59001721 Contact Us For Availability
171
MAY 12019002 MAY 12019002 Contact Us For Availability
172
SEALER, RTV 10.3 OZ-RED-OV CAV MAY M0275408 Contact Us For Availability
NI
HARNESS-TRIACS & RTD WIRES MAY 12537701 Contact Us For Availability
NI
HARNESS-HV BOARD TO DISPLAY BD MAY 12543201 Contact Us For Availability
NI
HARNESS, WIRING MAY 12537601 Contact Us For Availability
× ![]()
