Model Whirlpool ACE184XT1 AIR CONDITIONER – Common Parts & Diagrams

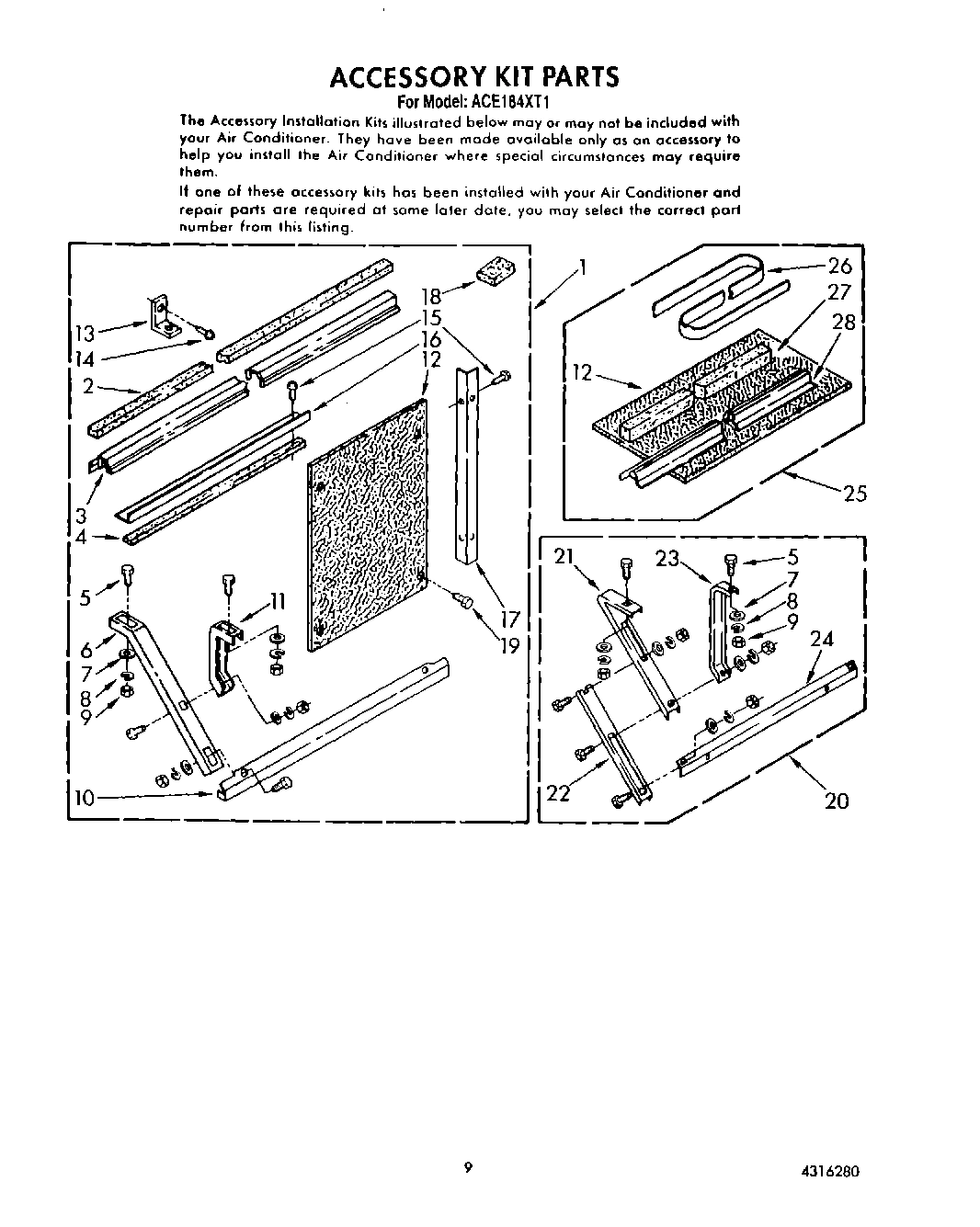

06 - ACCESSORY

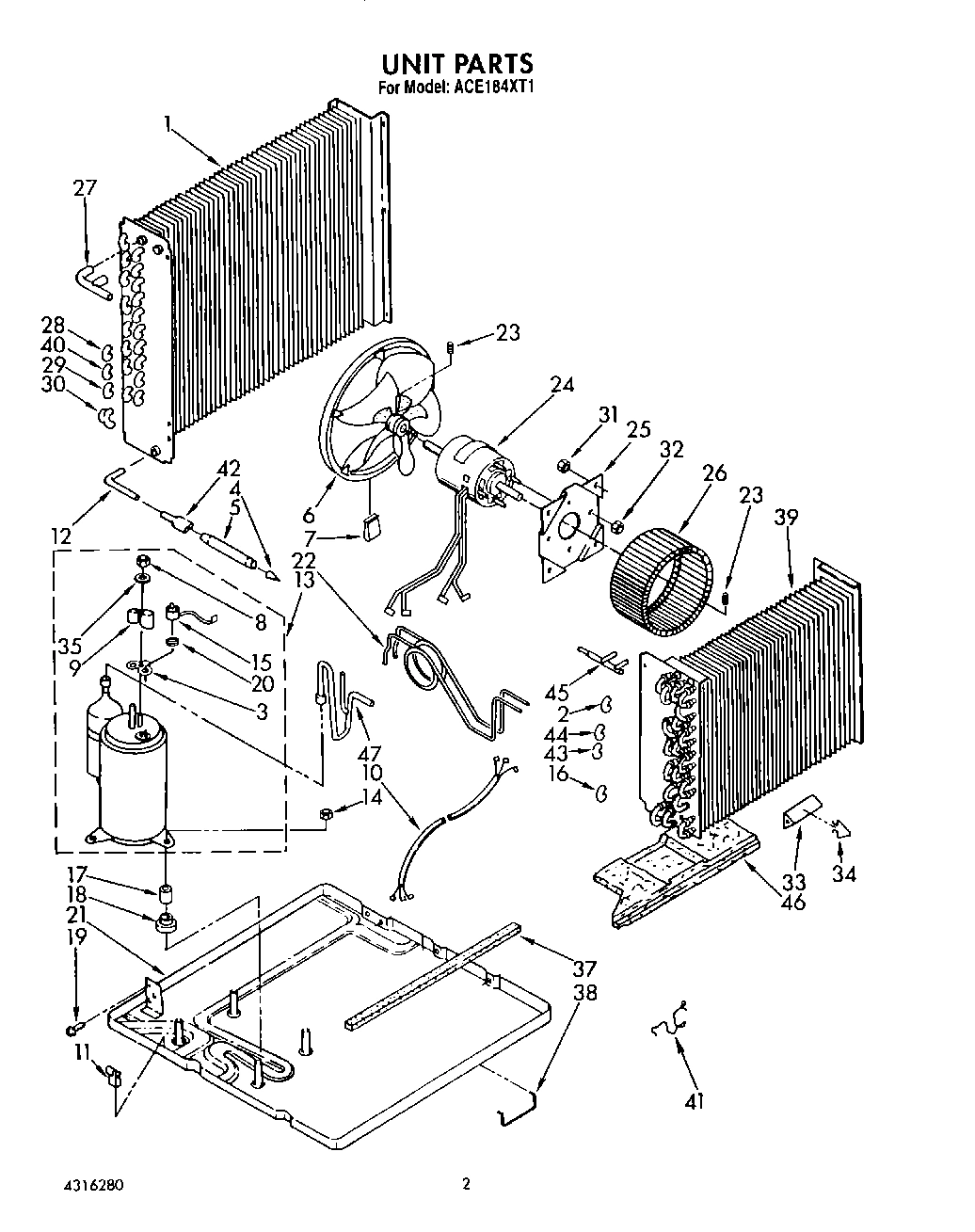

02 - UNIT, LIT/OPTIONAL

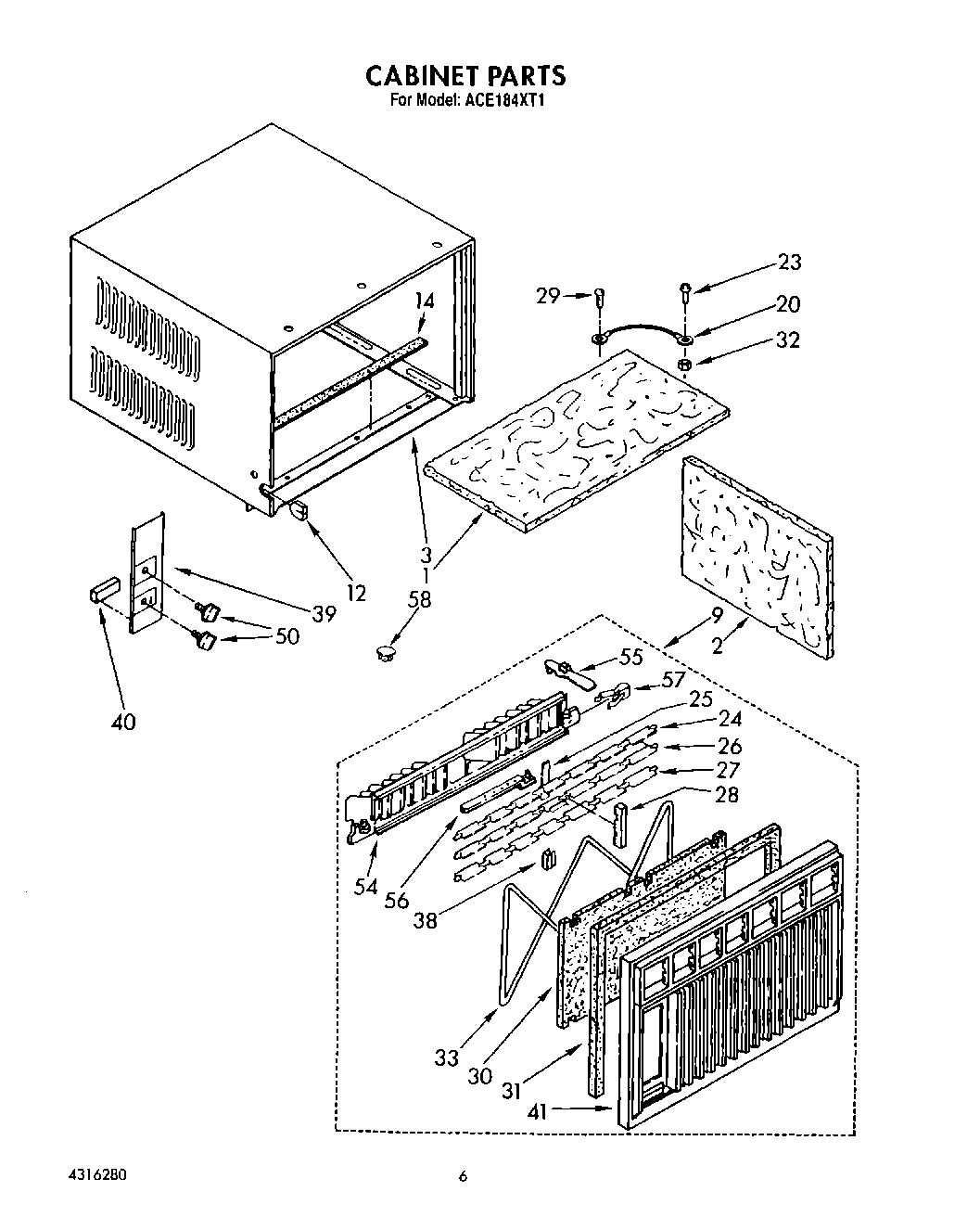

04 - CABINET

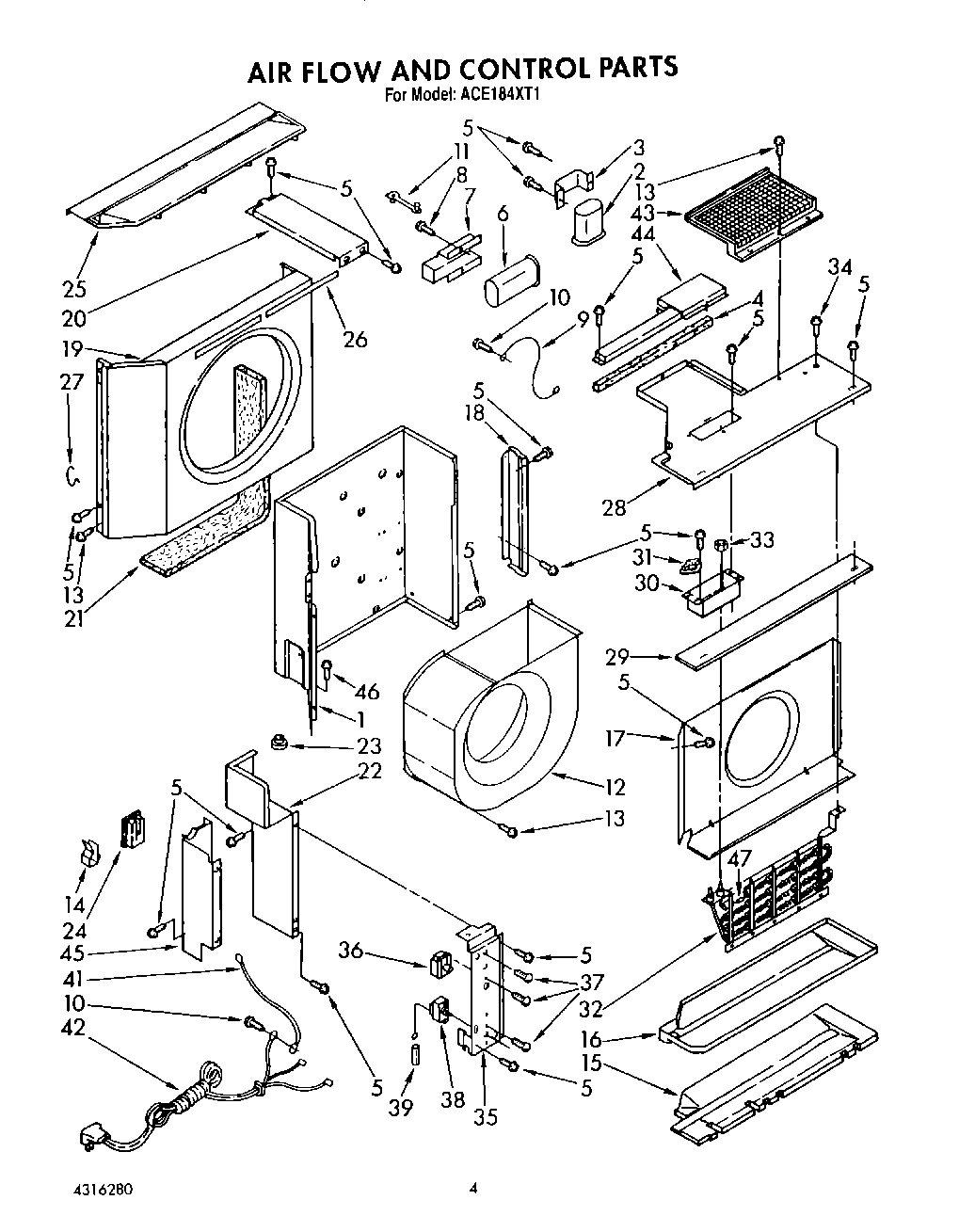

03 - AIR FLOW AND CONTROL

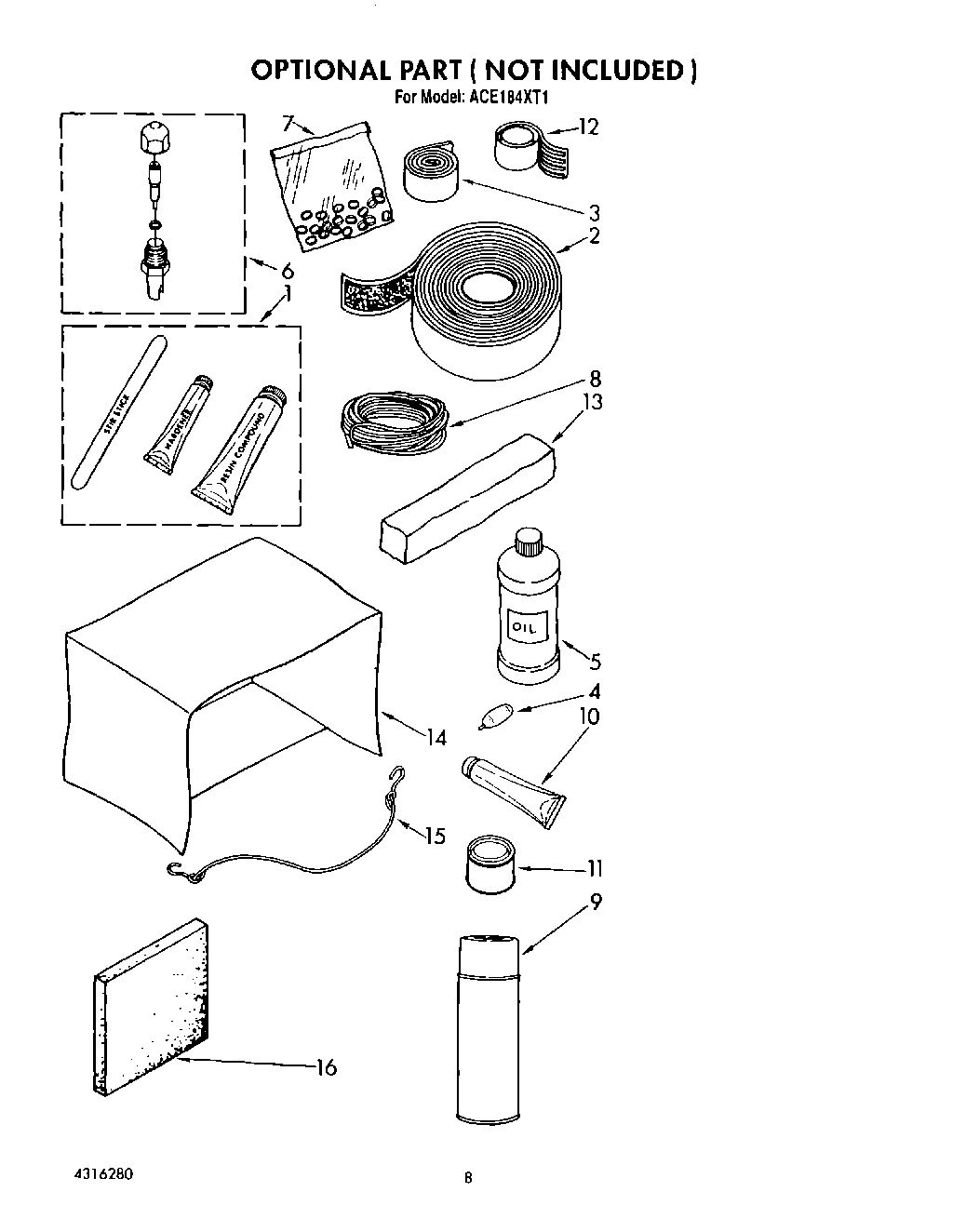

05 - OPTIONAL
Common parts from model Whirlpool ACE184XT1 AIR CONDITIONER
Sheet, Tech And Wiring Diagram WPL LIT1158843 Contact Us For Availability
List, Repair Parts WPL LIT4316280 Contact Us For Availability
Guide, Use And Care WPL LIT950357 Contact Us For Availability
1
Condenser WPL 1156327 Contact Us For Availability
1
Insulation Cabinet WPL 1157053 Contact Us For Availability
1
Wall, Dividing WPL 953031 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return (8) WPL 855199 Contact Us For Availability
2
Cabinet Insulation (Right Side) WPL 1157054 Contact Us For Availability
2
Cabinet Insulation (Left Side) WPL 1157055 Contact Us For Availability
2
Capacitor, Run WPL 952382 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Cabinet WPL 1157805 Contact Us For Availability
3
Bracket, Run Capacitor (Shield) WPL 852992 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Seal, Strip WPL 855265 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 1155598 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Blade, Fan WPL 997226 Contact Us For Availability
6
Capacitor, Fan Motor WPL 999786 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Clip, Balancing WPL 485334 Contact Us For Availability
7
Bracket, Fan Capacitor (Shield) WPL 1156411 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Front, Cabinet (Complete) WPL 951143 Contact Us For Availability
9
Wire, Ground (2) WPL 998177 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Harness, Wiring WPL 484136 Contact Us For Availability
11
Clamp, Tube (2) WPL 642684 Contact Us For Availability
11
Clamp, Cable WPL 648791 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Tube, 90~ WPL 1155580 Contact Us For Availability
12
Grommet, Wiring WPL 647849 Contact Us For Availability
12
Housing, Blower Wheel WPL 998604 Contact Us For Availability
13
Compressor WPL 1155501 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Locknut (4) WPL 858121 Contact Us For Availability
14
Seal, Bottom WPL 852220 Contact Us For Availability
14
Clamp, Wiring (2) WPL 947072 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Insulation, Pan WPL 997237 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Pan, Condensate WPL 997238 Contact Us For Availability
16
Insulation, Cabinet (Right Side) WPL 647847 Contact Us For Availability
16
Insulation, Cabinet (Left Side) WPL 647848 Contact Us For Availability
16
Insulation, Cabinet (Top) WPL 950157 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Sleeve (3) WPL 950020 Contact Us For Availability
17
Deflector, Heater WPL 998200 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Plate, Adapter WPL 997397 Contact Us For Availability
19
Shroud, Condenser WPL 953028 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Spring, Overload WPL 950032 Contact Us For Availability
20
Ground Wire (Base To Cabinet) WPL 857152 Contact Us For Availability
20
Support, Unit WPL 1156536 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Base WPL 950364 Contact Us For Availability
21
Seal, Condenser Fin WPL 948600 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Tube Restrictor (3) (Length 46.0``) WPL 1156440 Contact Us For Availability
22
Extension, Dividing Wall WPL 1156284 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Screw, Set 5/16 x 1/4 WPL 595085 Contact Us For Availability
23
Screw, 8-32 x 3/8 WPL 488853 Contact Us For Availability
23
Bushing WPL 853931 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Motor, Fan WPL 952072 Contact Us For Availability
24
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
24
Seal, Tube WPL 1155479 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
25
Plate, Mounting WPL 998024 Contact Us For Availability
25
Retainer (4) WPL 855998 Contact Us For Availability
25
Cover, Condenser Shroud WPL 997264 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Wheel, Blower WPL 642691 Contact Us For Availability
26
Louver, Horizontal (Handle) WPL 947267 Contact Us For Availability
26
seal, strip (shroud) (side) WPL 997266 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Tube, Manifold WPL 1156330 Contact Us For Availability
27
Louver, Horizontal (Relieved) WPL 947268 Contact Us For Availability
27
Clip, Shroud (2) WPL 994686 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Bend, Return (12) WPL 708532 Contact Us For Availability
28
Rack, Louver (2) WPL 853772 Contact Us For Availability
28
Cover, Evaporator WPL 997396 Contact Us For Availability
29
Bend, Return (7) WPL 708531 Contact Us For Availability
29
Screw, 8-32 x 3/8 WPL 488854 Contact Us For Availability
29
Insulation, Cover WPL 948239 Contact Us For Availability
30
Bend, 3-Way WPL 1156107 Contact Us For Availability
30
Filter, Air WPL 649958 Contact Us For Availability
30
Bracket, Heater WPL 854990 Contact Us For Availability
31
Locknut (4) WPL 858122 Contact Us For Availability
31
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
31
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
31
Switch, Limit WPL 951462 Contact Us For Availability
32
Heater, Air WPL 1158770 Contact Us For Availability
33
Anticipator WPL 472046 Contact Us For Availability
33
Retainer, Filter WPL 476707 Contact Us For Availability
34
Clip (2) WPL 472047 Contact Us For Availability
35
Washer WPL 950037 Contact Us For Availability
35
Panel, Control WPL 852219 Contact Us For Availability
36
Switch, Rotary WPL 1158088 Contact Us For Availability
37
Seal WPL 853170 Contact Us For Availability
37
Screw, Mach. 6-32 x 3/8 WPL 488734 Contact Us For Availability
38
Handle, Base WPL 647971 Contact Us For Availability
38
Clip, Retainer (4) WPL 855999 Contact Us For Availability
38
Control, Temperature WPL 1155800 Contact Us For Availability
39
Evaporator WPL 1156493 Contact Us For Availability
39
Plate, Escutcheon WPL 952551 Contact Us For Availability
39
Sleeve, Insulator WPL 476835 Contact Us For Availability
40
Bend Return (2) WPL 1156329 Contact Us For Availability
40
Spacer, Escutcheon Plate (2) WPL 469175 Contact Us For Availability
41
Clip, Mtg. (3) WPL 852272 Contact Us For Availability
41
Frame, Front WPL 950550 Contact Us For Availability
41
Wire, Ground WPL 947301 Contact Us For Availability
42
Tube, Flow Divider WPL 947364 Contact Us For Availability
42
Cable, Appliance WPL 853063 Contact Us For Availability
43
Bend, Return WPL 1156529 Contact Us For Availability
43
Guard, Impeller WPL 856506 Contact Us For Availability
44
Bend, Return WPL 1156531 Contact Us For Availability
44
Cover, Heater WPL 998601 Contact Us For Availability
45
Tube, Maniflod WPL 1155510 Contact Us For Availability
45
Cover, Controls WPL 952208 Contact Us For Availability
46
Insulation, Base WPL 997236 Contact Us For Availability
46
Screw, S.M. No.8 x 3/8 (2) WPL 488624 Contact Us For Availability
47
Tube, Suction WPL 1155593 Contact Us For Availability
47
Fuse, Heater WPL 484450 Contact Us For Availability
50
Knob, Control (2) WPL 947264 Contact Us For Availability
54
Louver, Vertical WPL 649957 Contact Us For Availability
55
Handle, Vertical Louver (2) WPL 852010 Contact Us For Availability
56
Link, Vertical Louver (2) WPL 852209 Contact Us For Availability
57
Spring, Detent (2) WPL 641484 Contact Us For Availability
58
Cover, Hole WPL 1157126 Contact Us For Availability
× ![]()
