Model Whirlpool ACE184XP0 AIR CONDITIONER – Common Parts & Diagrams
04 - OPTIONAL PARTS (NOT INCLUDED)
02 - AIRFLOW AND CONTROL PARTS

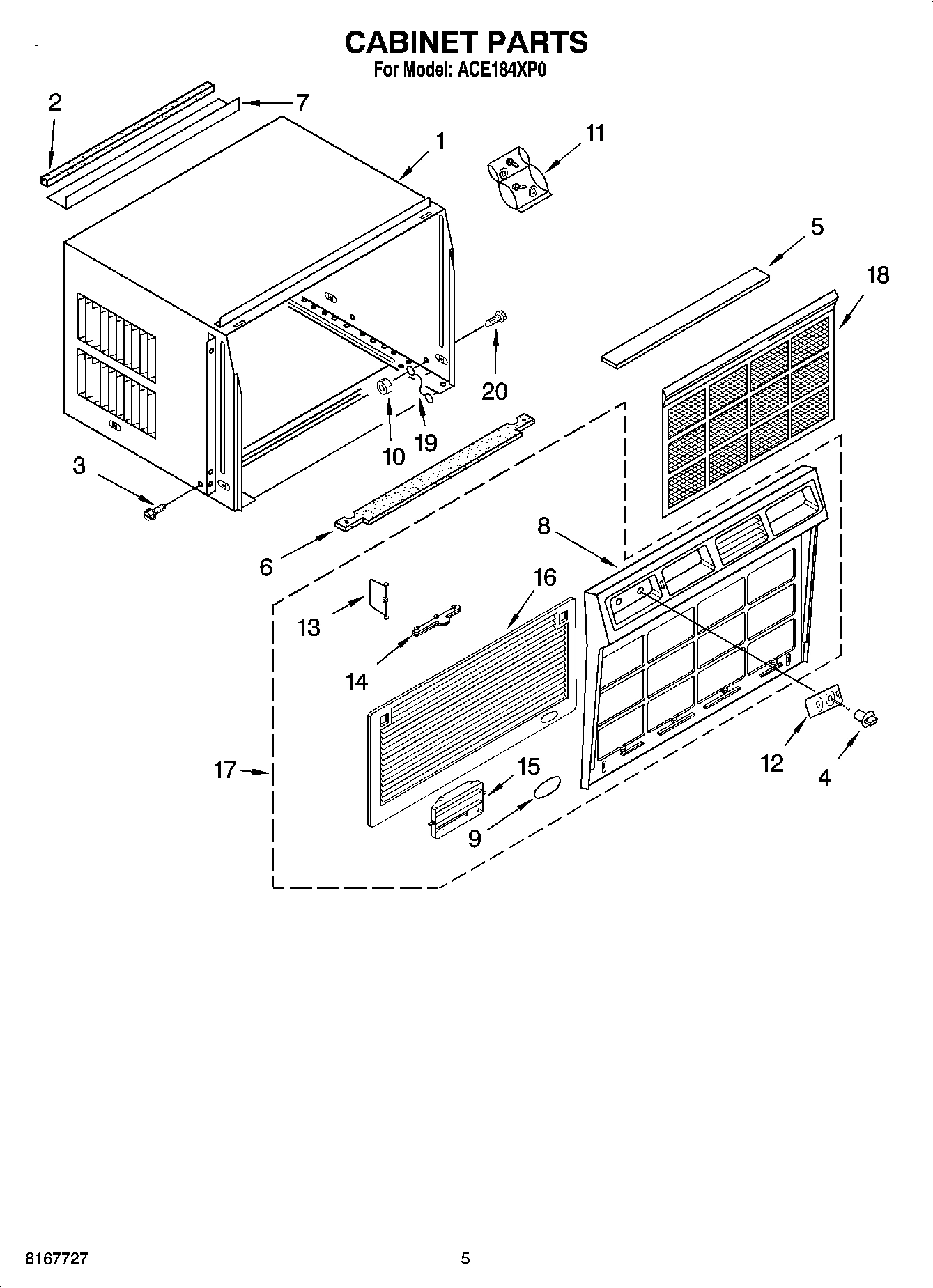

03 - CABINET PARTS

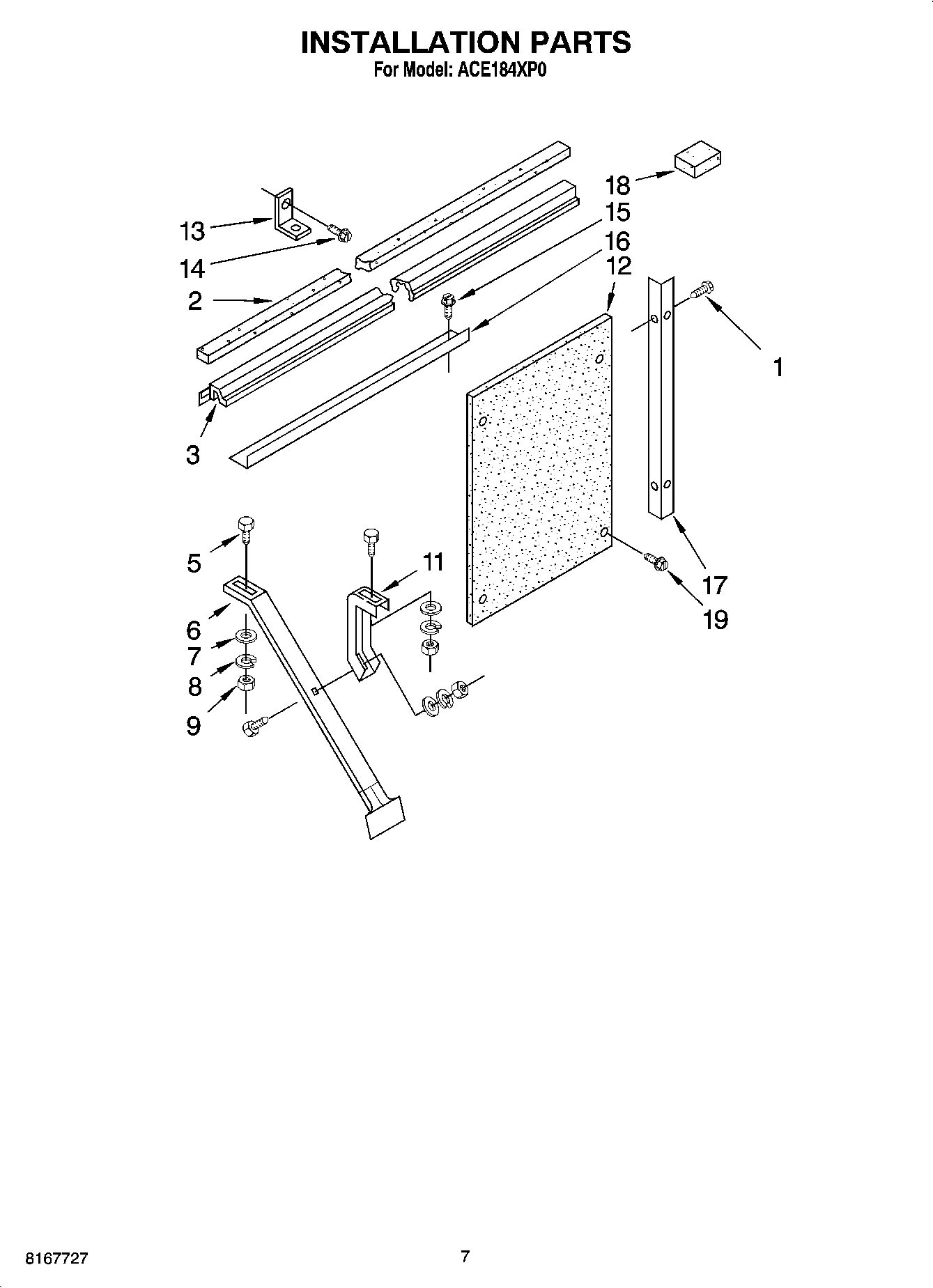

05 - INSTALLATION PARTS

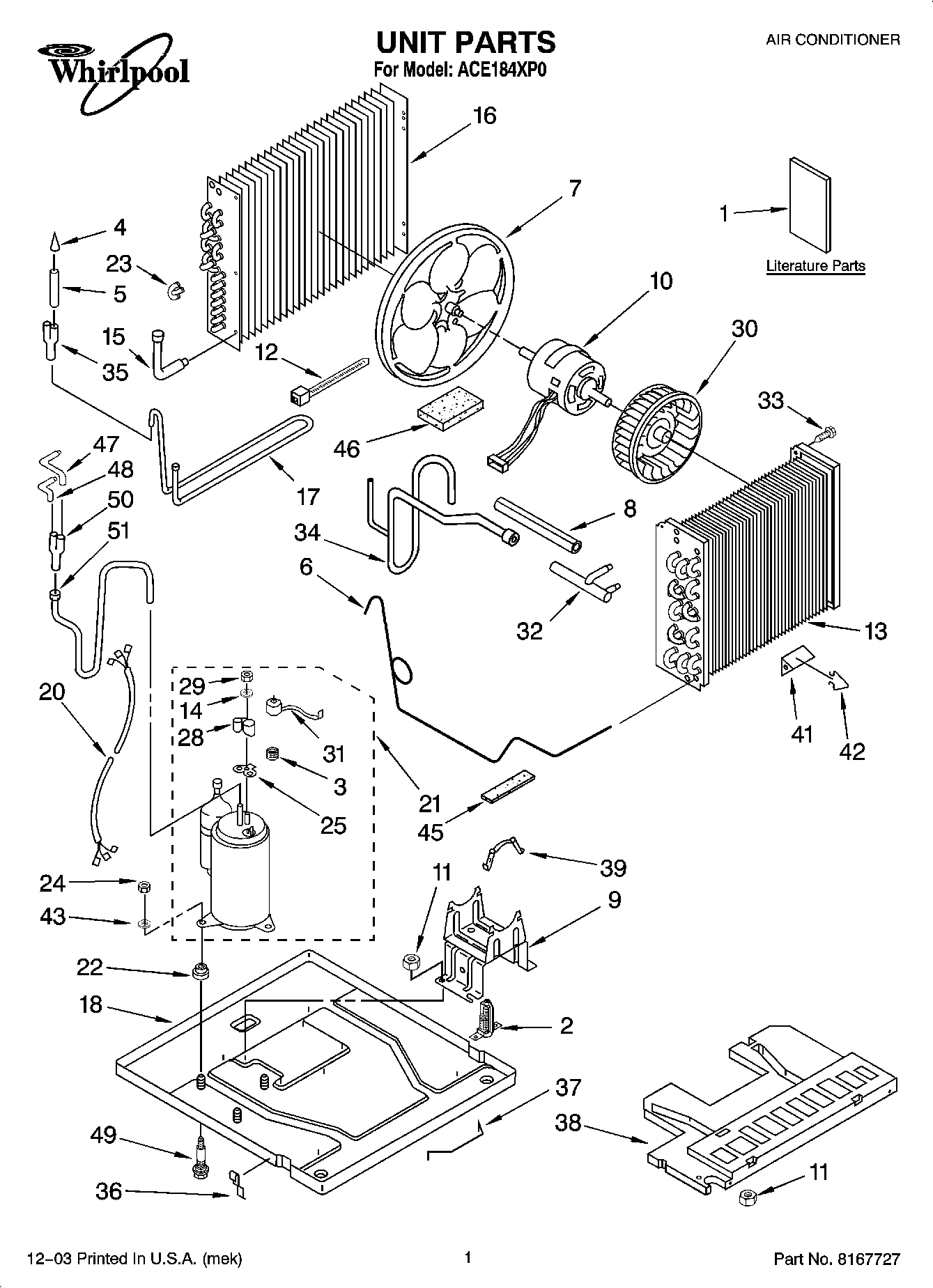

01 - UNIT PARTS
Common parts from model Whirlpool ACE184XP0 AIR CONDITIONER
1
Screw (4) WPL 1159222 Contact Us For Availability
1
Cabinet WPL 1185518 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT1186898 Contact Us For Availability
1
Energy Guide WPL LIT1187250 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8011287 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Valve, Drain Pan WPL 1185405 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Spring, Overload WPL 1185795 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Seal (Top) WPL 1185513 Contact Us For Availability
5
Seal Hood, Front WPL 1181735 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Tube, Outlet (Includes Item 4) WPL 1182595 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Support, Cabinet (2) WPL 1185549 Contact Us For Availability
6
Tube, Restrictor (2) WPL 1185687 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Frame, Front WPL 1186037 Contact Us For Availability
8
Seal, Suction Tube WPL 1185481 Contact Us For Availability
9
Seal (Side) WPL 1185911 Contact Us For Availability
9
Nameplate WPL 1187171 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
10
Thermostat WPL 1185753 Contact Us For Availability
10
Motor, Fan WPL 1186602 Contact Us For Availability
11
Cord, Appliance WPL 1186588 Contact Us For Availability
11
Bag, Accessory WPL 1186155 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
12
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
12
ESCUTCHEON WPL 1185780 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
Capacitor WPL 1186515 Contact Us For Availability
13
Louver, Verticle WPL 1185541 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Evaporator WPL 1186214 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Harness, Heater WPL 1186586 Contact Us For Availability
14
Link, Verticle Louver (2) WPL 8011106 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Gasket, Nut WPL 1185794 Contact Us For Availability
15
Cartridge WPL 1185540 Contact Us For Availability
15
Switch, Rotary WPL 1186500 Contact Us For Availability
15
Tube, Wet Loop Connect WPL 1155596 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
Door, Filter WPL 1187336 Contact Us For Availability
16
Condenser WPL 1185512 Contact Us For Availability
17
Support, Unit (2) WPL 1166169 Contact Us For Availability
17
Front, Complete WPL 1187343 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Wet, Loop WPL 1185519 Contact Us For Availability
18
Filter WPL 1185523 Contact Us For Availability
18
Seal, Shroud WPL 1158732 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base WPL 1185852 Contact Us For Availability
19
Dividing Wall WPL 1185524 Contact Us For Availability
19
Wire, Ground WPL 1186627 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
20
Evaporator Shroud WPL 1185748 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1186605 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1187337 Contact Us For Availability
21
COMPRESSOR WPL 1186222 Contact Us For Availability
22
Housing, Air WPL 1187341 Contact Us For Availability
23
Control Box WPL 1185529 Contact Us For Availability
23
Return Bend 3-Way WPL 1156107 Contact Us For Availability
24
Screw, WPL 488734 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Element, Heating WPL 1186162 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
26
Plug, Heater Harness WPL 1186546 Contact Us For Availability
27
Cover, Control Box WPL 1186663 Contact Us For Availability
28
Seal WPL 1187359 Contact Us For Availability
28
Cover, Terminal WPL 1185792 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1163783 Contact Us For Availability
31
Overload WPL 1186682 Contact Us For Availability
32
Manifold, Suction WPL 1186213 Contact Us For Availability
34
Tube, Suction WPL 1186182 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Putty, Sound Dampener WPL 1182480 Contact Us For Availability
47
Tube, Feeder WPL 1186002 Contact Us For Availability
48
Tube, Feeder WPL 1186003 Contact Us For Availability
49
Bolt, Compressor WPL 1165674 Contact Us For Availability
50
Tube, Flow Divider WPL 1159832 Contact Us For Availability
51
Tube, Discharge WPL 1186245 Contact Us For Availability
51
REFRIGERANT CHARGE 30.00 oz. WPL ARI144037A Contact Us For Availability
× ![]()
