Model Whirlpool ACE184XM0 AIR CONDITIONER – Common Parts & Diagrams

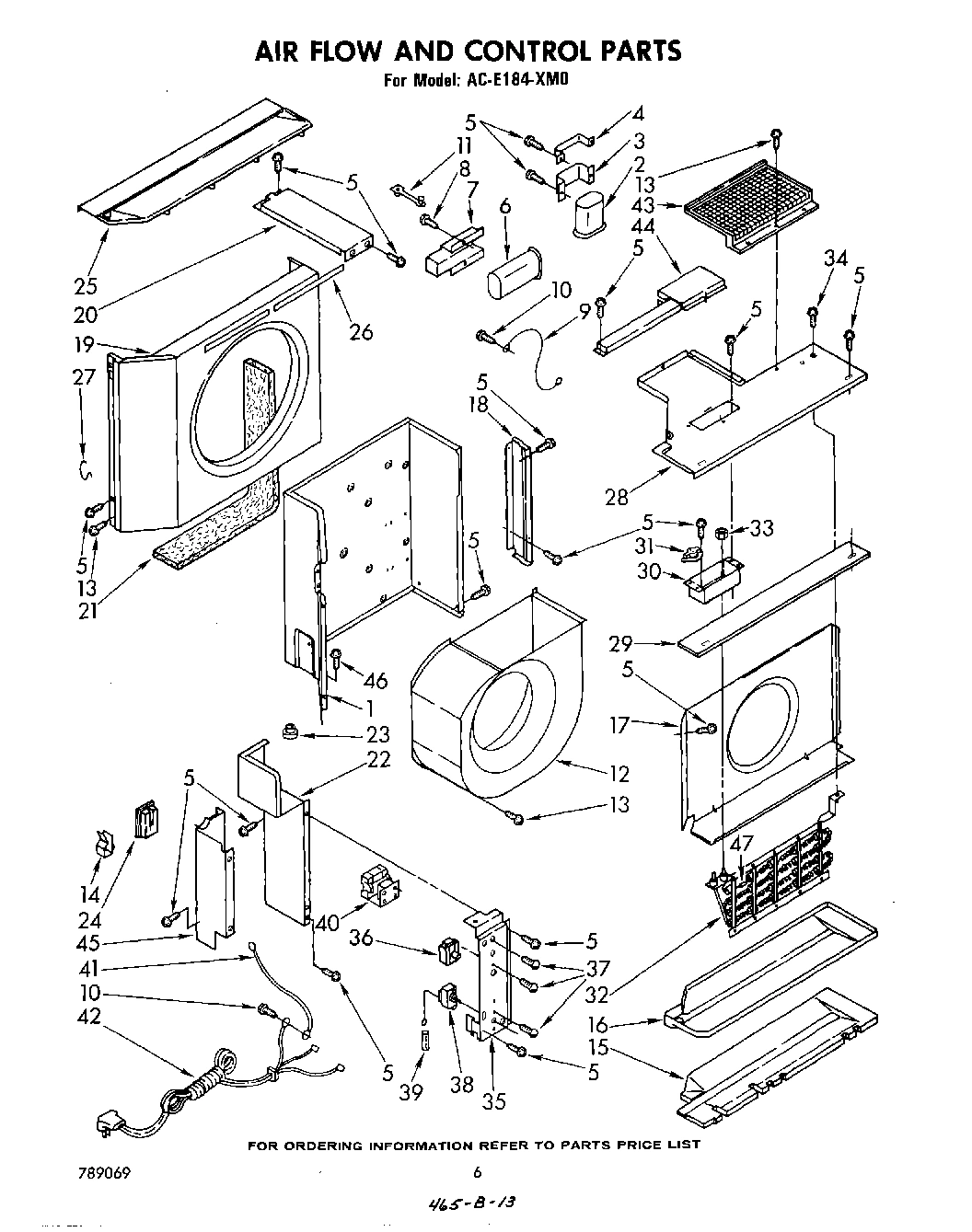

04 - AIRFLOW AND CONTROL PARTS

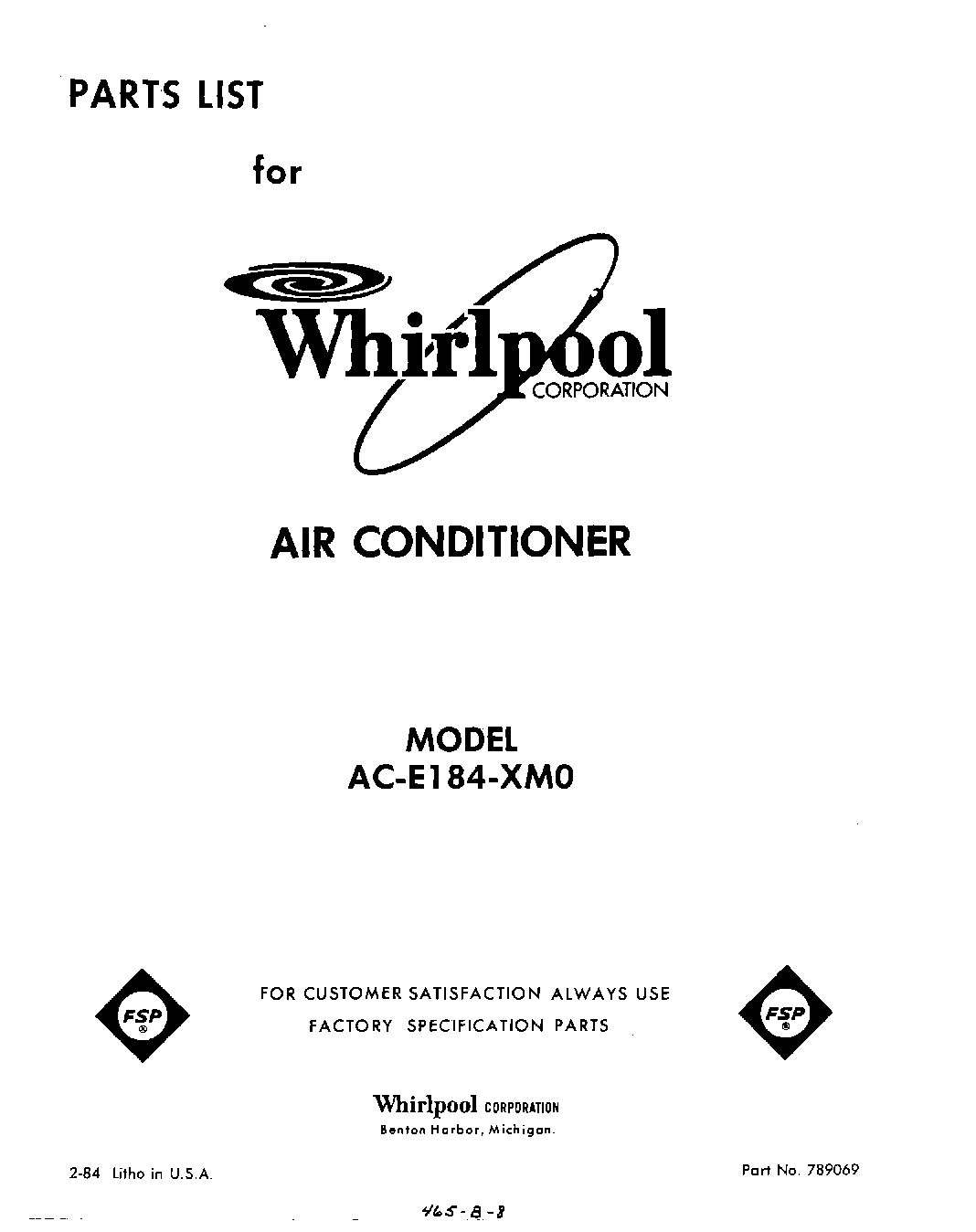

01 - COVER

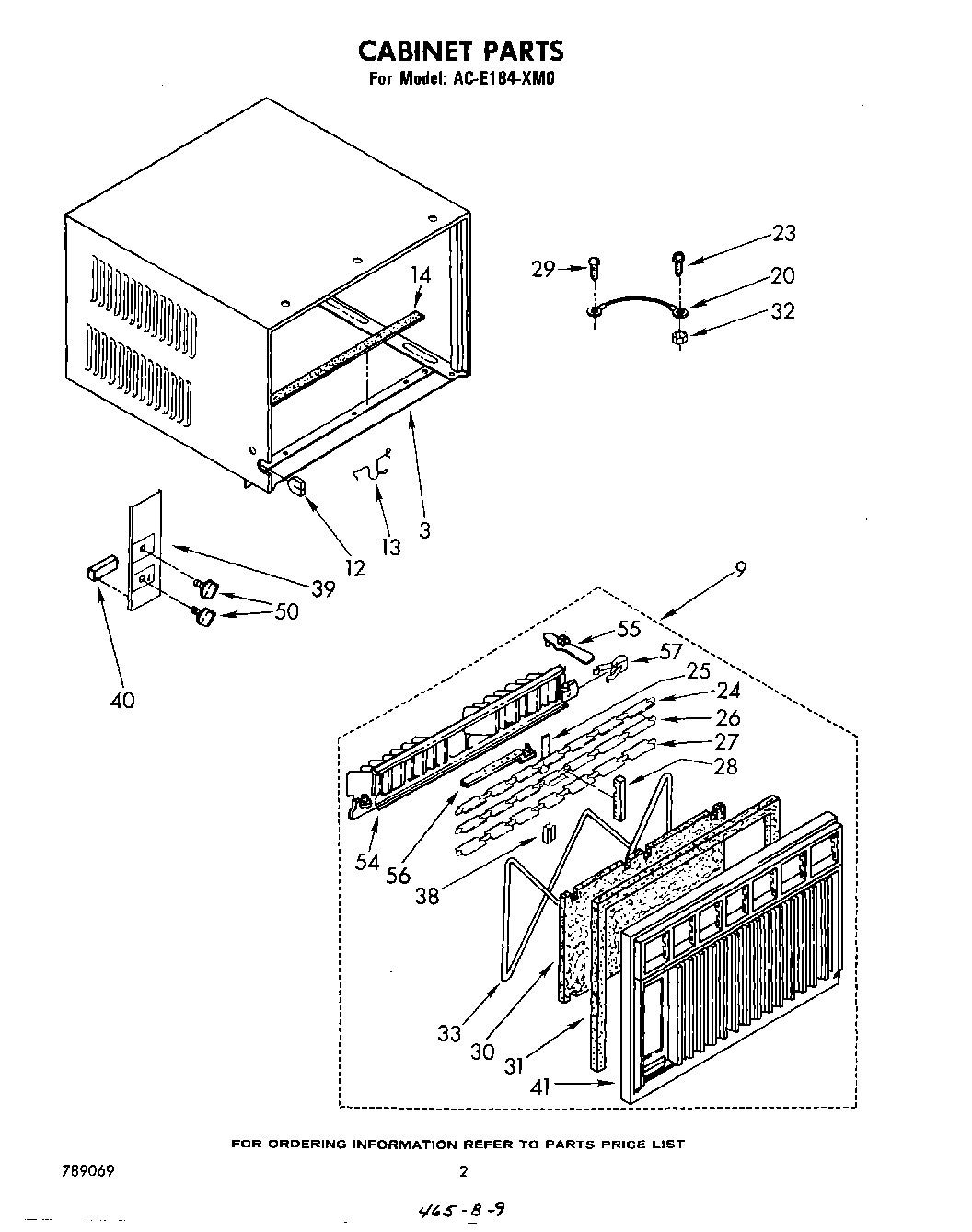

02 - CABINET PARTS

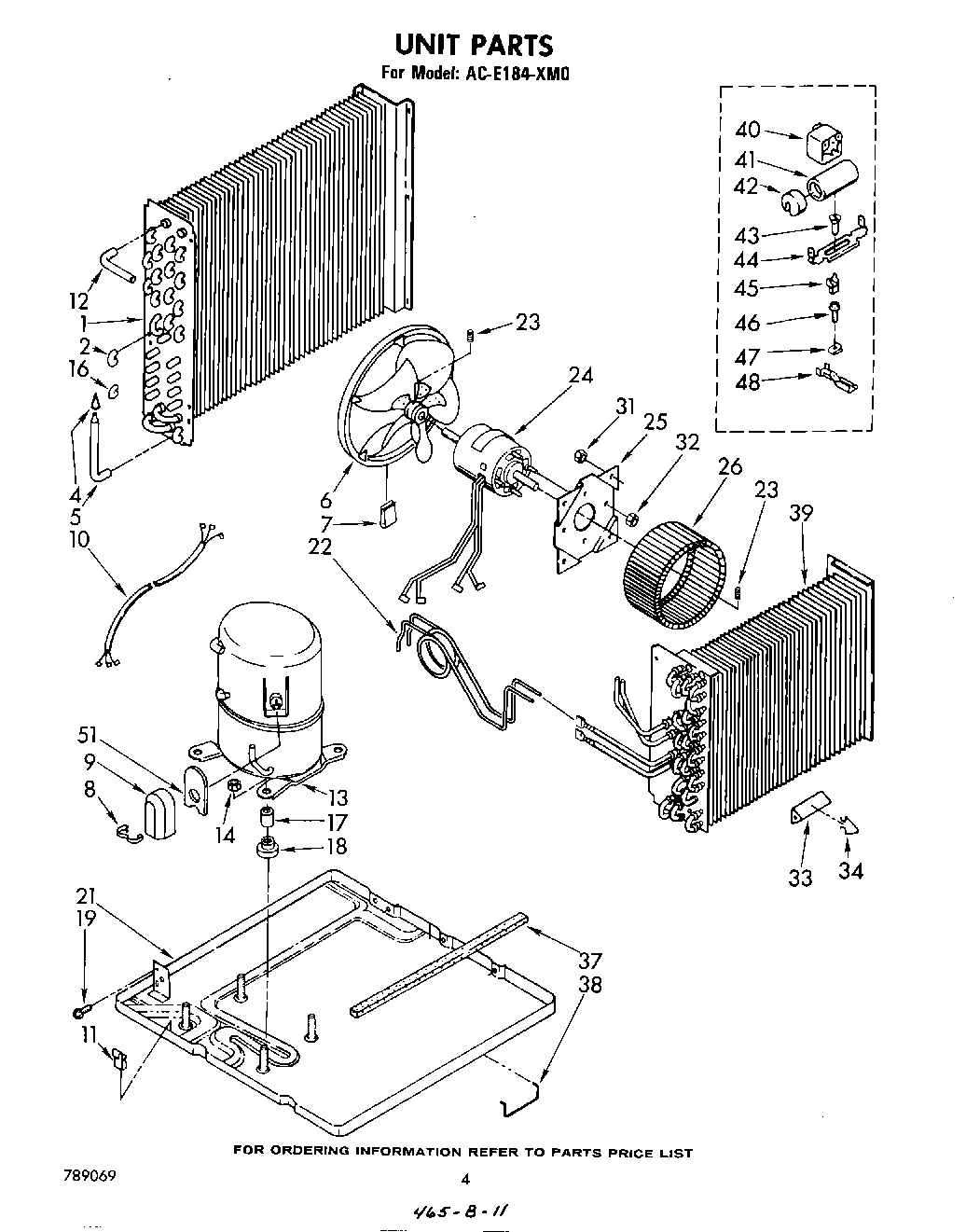

03 - UNIT PARTS
Common parts from model Whirlpool ACE184XM0 AIR CONDITIONER
1
Condenser WPL 948537 Contact Us For Availability
2
Bend, Return Condenser (22) WPL 855199 Contact Us For Availability
3
Cabinet WPL 997280 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
6
Blade, Fan WPL 997226 Contact Us For Availability
7
Clip, Balancing WPL 485334 Contact Us For Availability
8
Retainer, Cover WPL 475062 Contact Us For Availability
9
Wire, Ground (2) WPL 998177 Contact Us For Availability
9
Cabinet Front Assembly WPL 951143 Contact Us For Availability
9
Cover, Terminal WPL 855948 Contact Us For Availability
10
Harness, Wiring WPL 484136 Contact Us For Availability
11
Clamp, Cable WPL 648791 Contact Us For Availability
11
Clamp, Tube (2) WPL 471088 Contact Us For Availability
12
Housing, Blower Wheel WPL 998604 Contact Us For Availability
12
Grommet, Wiring WPL 647849 Contact Us For Availability
12
Tube, 90~ WPL 649808 Contact Us For Availability
13
Clip, Cabinet Front (3) WPL 852272 Contact Us For Availability
13
Compressor WPL 484348 Contact Us For Availability
14
Clamp, Wiring (2) WPL 947072 Contact Us For Availability
14
Seal, Bottom WPL 852220 Contact Us For Availability
14
Locknut (4) WPL 858121 Contact Us For Availability
15
Insulation, Pan WPL 997237 Contact Us For Availability
16
Pan, Condensate WPL 997238 Contact Us For Availability
17
Deflector, Heater WPL 998200 Contact Us For Availability
17
Sleeve (4) WPL 858116 Contact Us For Availability
18
Plate, Adapter WPL 997397 Contact Us For Availability
18
Grommet (4) WPL 475041 Contact Us For Availability
19
Shroud, Condenser WPL 997224 Contact Us For Availability
20
Support, Unit WPL 997262 Contact Us For Availability
20
Ground Wire (Base To Cabinet) WPL 857152 Contact Us For Availability
21
Seal, Condenser Fin WPL 948600 Contact Us For Availability
21
Base WPL 997202 Contact Us For Availability
22
Extension, Dividing Wall WPL 997394 Contact Us For Availability
22
Tube Restrictor (2) (Length 41.0``) WPL 997379 Contact Us For Availability
23
Bushing WPL 853931 Contact Us For Availability
23
Screw, 8-32 x 3/8 WPL 488853 Contact Us For Availability
23
Screw, Set 5/16 x 1/4 WPL 595085 Contact Us For Availability
24
Seal, Tube WPL 948519 Contact Us For Availability
24
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
24
Motor, Fan WPL 947215 Contact Us For Availability
25
Cover, Condenser Shroud WPL 997264 Contact Us For Availability
25
Retainer (4) WPL 855998 Contact Us For Availability
25
Plate, Mounting WPL 998024 Contact Us For Availability
26
seal, strip (shroud) (side) WPL 997266 Contact Us For Availability
26
Louver, Horizontal (Handle) WPL 947267 Contact Us For Availability
26
Wheel, Blower WPL 642691 Contact Us For Availability
27
Clip, Shroud (2) WPL 477442 Contact Us For Availability
27
Louver, Horizontal (Relieved) WPL 947268 Contact Us For Availability
28
Cover, Evaporator WPL 997396 Contact Us For Availability
28
Rack, Louver (2) WPL 853772 Contact Us For Availability
29
Insulation, Cover WPL 948239 Contact Us For Availability
29
Screw, 8-32 x 3/8 WPL 488854 Contact Us For Availability
30
Bracket, Heater WPL 854990 Contact Us For Availability
30
Filter, Air WPL 649958 Contact Us For Availability
31
Switch, Limit WPL 947297 Contact Us For Availability
31
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
31
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
31
Locknut (4) WPL 858122 Contact Us For Availability
32
Heater, Air WPL 947298 Contact Us For Availability
33
Retainer, Filter WPL 476707 Contact Us For Availability
33
Anticipator WPL 472046 Contact Us For Availability
34
Clip (2) WPL 472047 Contact Us For Availability
35
Panel, Control WPL 857477 Contact Us For Availability
36
Switch, Rotary WPL 950526 Contact Us For Availability
37
Screw, Mach. 6-32 x 3/8 WPL 488734 Contact Us For Availability
37
Seal WPL 853170 Contact Us For Availability
38
Control, Temperature WPL 996640 Contact Us For Availability
38
Clip, Retainer (4) WPL 855999 Contact Us For Availability
38
Handle, Base WPL 647971 Contact Us For Availability
39
Sleeve, Insulator WPL 476835 Contact Us For Availability
39
Plate, Escutcheon WPL 950552 Contact Us For Availability
39
Evaporator WPL 947382 Contact Us For Availability
40
Contactor WPL 643742 Contact Us For Availability
40
Spacer, Escutcheon Plate (2) WPL 469175 Contact Us For Availability
40
Relay WPL 484177 Contact Us For Availability
41
Wire, Ground WPL 947301 Contact Us For Availability
41
Frame, Front WPL 950550 Contact Us For Availability
41
xCapacitor WPL 47406 Contact Us For Availability
42
Cable, Appliance WPL 853063 Contact Us For Availability
42
xCap, Capacitor WPL 791868 Contact Us For Availability
43
Guard, Impeller WPL 856506 Contact Us For Availability
43
xScrew, SM No.10 x 5/8 (2) WPL 487880 Contact Us For Availability
44
Cover, Heater WPL 998601 Contact Us For Availability
44
xBracket, Capacitor WPL 41629 Contact Us For Availability
45
Cover, Controls WPL 997278 Contact Us For Availability
45
Multiplier, Terminal WPL 90654 Contact Us For Availability
46
Screw, S.M. No.8 x 3/8 (2) WPL 488624 Contact Us For Availability
47
WPL 484069 WPL 484069 Contact Us For Availability
47
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
47
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
47
Wire, W WPL 47263 Contact Us For Availability
47
WPL 484277 WPL 484277 Contact Us For Availability
47
WPL 485426 WPL 485426 Contact Us For Availability
47
WPL 789069 WPL 789069 Contact Us For Availability
47
WPL 799351 WPL 799351 Contact Us For Availability
47
WPL 854937 WPL 854937 Contact Us For Availability
47
WPL 854938 WPL 854938 Contact Us For Availability
47
WPL 855438 WPL 855438 Contact Us For Availability
47
WPL 950357 WPL 950357 Contact Us For Availability
47
WPL 950808 WPL 950808 Contact Us For Availability
47
WPL 951011 WPL 951011 Contact Us For Availability
47
WPL 951160 WPL 951160 Contact Us For Availability
47
WPL 997236 WPL 997236 Contact Us For Availability
48
xClip, Terminal (8) WPL 45571 Contact Us For Availability
50
Knob, Control (2) WPL 947264 Contact Us For Availability
51
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
51
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
51
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
51
Start Assist Kit WPL 484220 Contact Us For Availability
51
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
51
Start Kit, Compressor WPL 485883 Contact Us For Availability
51
Gasket, Terminal Cover WPL 949083 Contact Us For Availability
51
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
54
Louver, Vertical WPL 649957 Contact Us For Availability
55
Handle, Vertical Louver (2) WPL 852010 Contact Us For Availability
56
Link, Vertical Louver (2) WPL 852209 Contact Us For Availability
57
Spring, Detent (2) WPL 641484 Contact Us For Availability
× ![]()
