Model Whirlpool ACE184XK0 AIR CONDITIONER – Common Parts & Diagrams
05 - INSTALLATION
02 - AIR FLOW AND CONTROL

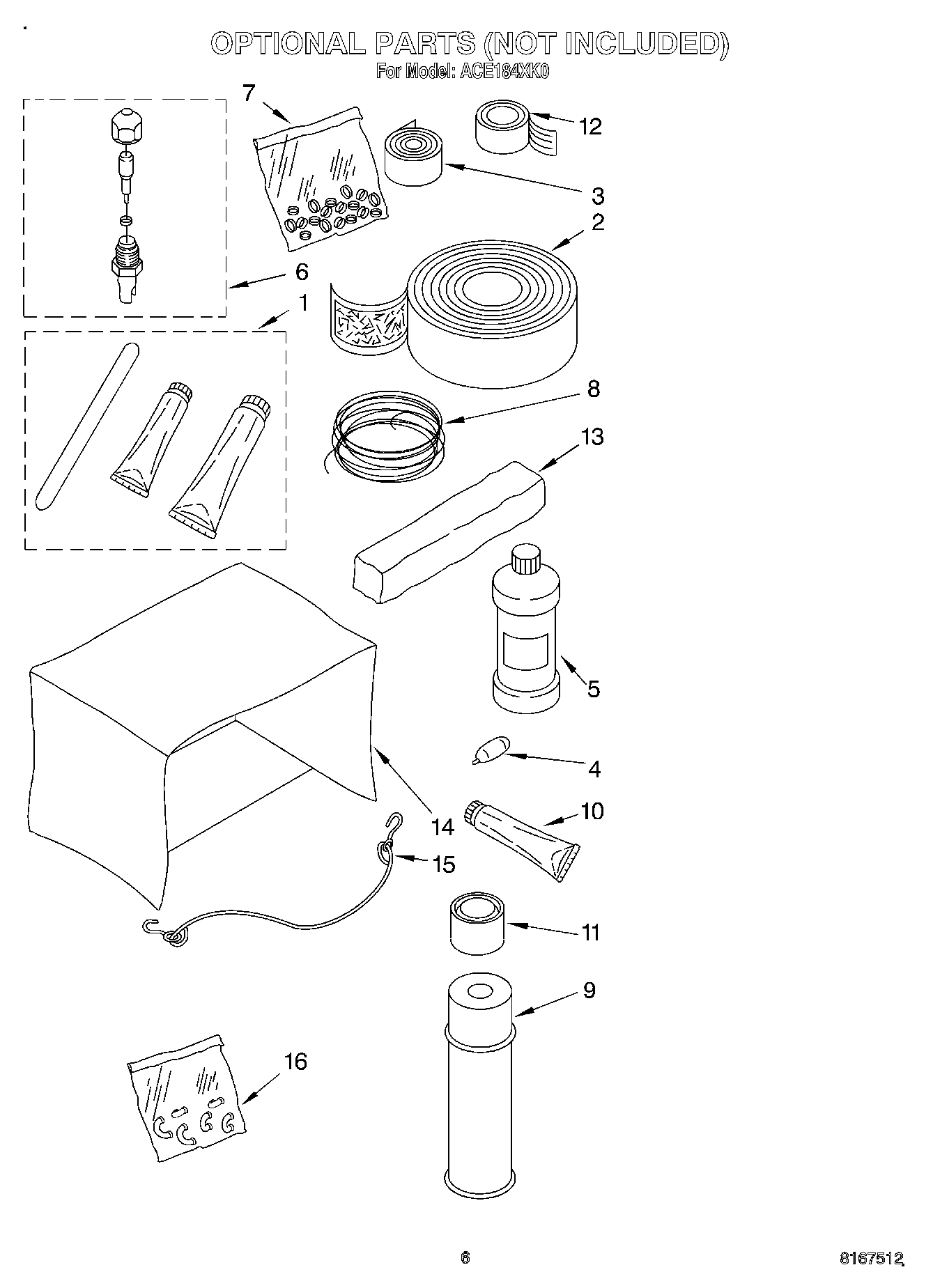

04 - OPTIONAL

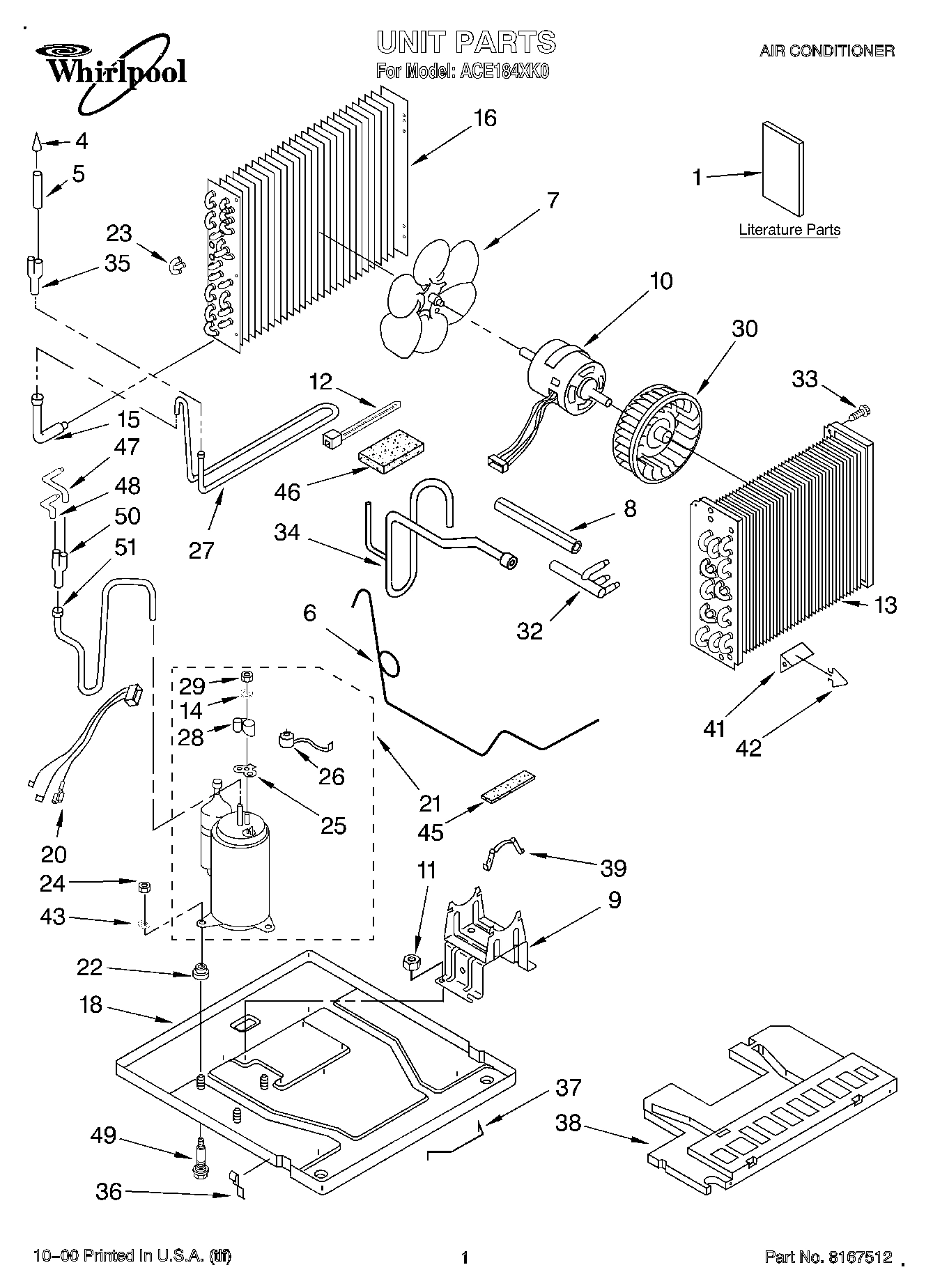

01 - UNIT, LITERATURE

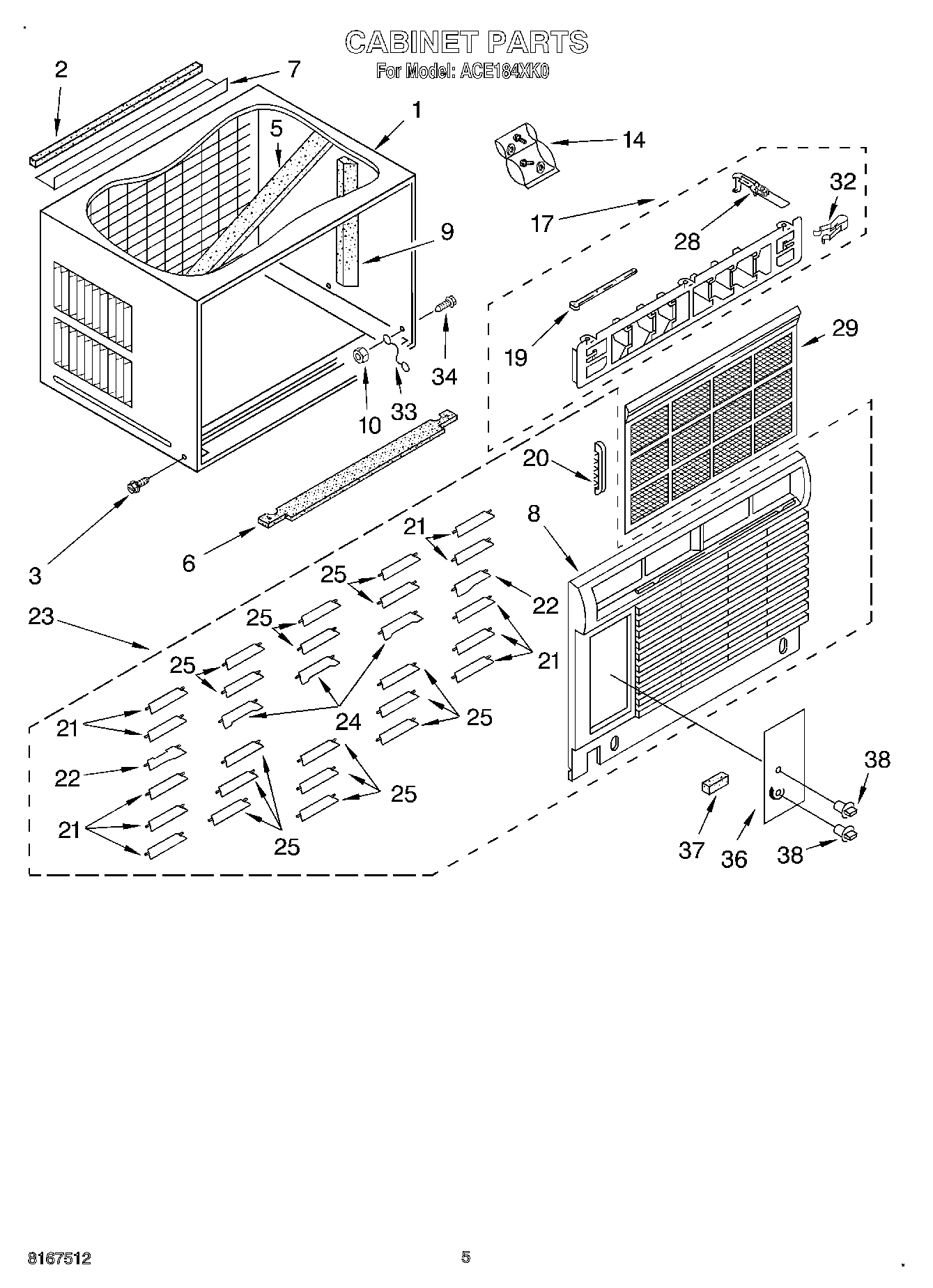

03 - CABINET
Common parts from model Whirlpool ACE184XK0 AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Wiring Diagram WPL LIT1165720 Contact Us For Availability
1
Use & Care Guide WPL LIT1184632 Contact Us For Availability
1
Energy Guide WPL LIT1184802 Contact Us For Availability
1
Cabinet (Includes Insulation) WPL 1168478 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Clip, Nylon WPL 1161249 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1155598 Contact Us For Availability
5
Insulation, Top (Cabinet) WPL 1183415 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor (3) WPL 1184680 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1169509 Contact Us For Availability
7
Angle, Top Mounting WPL 1168490 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Suction Tube WPL 1160870 Contact Us For Availability
8
Frame, Front WPL 1168499 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1183414 Contact Us For Availability
10
Cup, Condensate WPL 1160684 Contact Us For Availability
10
Motor, Fan WPL 1184756 Contact Us For Availability
11
Cord, Appliance WPL 1167646 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Seal, Cup WPL 1163332 Contact Us For Availability
13
Capacitor WPL 1184649 Contact Us For Availability
13
Evaporator WPL 1184407 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket, Nut WPL 1182120 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
15
Harness, Heater (From Heater) WPL 1162061 Contact Us For Availability
15
Harness, Heater (From Switches) WPL 1183905 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, Wetloop Connect WPL 1183830 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
Condenser WPL 1161513 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
17
Vertical, Louver WPL 1182351 Contact Us For Availability
18
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
18
Base WPL 1168486 Contact Us For Availability
19
Top, Evaporator Shroud WPL 1183528 Contact Us For Availability
19
Link, Verticle Louver (2) WPL 1182349 Contact Us For Availability
20
Panel, Control WPL 1182954 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1183656 Contact Us For Availability
20
Link, Horizontal Louver WPL 1168496 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
21
Compressor WPL 1184601 Contact Us For Availability
21
Louver, Horizontal (10) WPL 1168493 Contact Us For Availability
22
Louver, Horizontal W/ Handle (2) WPL 1168492 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
23
Front, Complete WPL 1168498 Contact Us For Availability
24
Dividing Wall WPL 1165593 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1168494 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1168495 Contact Us For Availability
26
Switch Rotary WPL 1183512 Contact Us For Availability
26
Overload WPL 1184654 Contact Us For Availability
27
Wetloop WPL 1183416 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1182636 Contact Us For Availability
28
Cover, Terminal WPL 1184748 Contact Us For Availability
28
Actuator, Louver (2) WPL 1182348 Contact Us For Availability
29
Filter WPL 1182336 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1163783 Contact Us For Availability
32
Manifold, Suction WPL 1184404 Contact Us For Availability
32
Spring, Detent (2) WPL 1167095 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
34
Tube, Suction WPL 1182060 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Plate, Escutcheon WPL 1184681 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
38
Control Box (R.S.) WPL 1182937 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
41
Cover, Top WPL 1183529 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
43
Element, Heating WPL 1182568 Contact Us For Availability
44
Fuse, Link WPL 1167330 Contact Us For Availability
45
Switch, Limit WPL 1164407 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Control, Temperature WPL 1183511 Contact Us For Availability
46
Putty, Sound Dampener WPL 1182480 Contact Us For Availability
47
Tube, Feeder WPL 1160357 Contact Us For Availability
48
Tube, Feeder WPL 1160358 Contact Us For Availability
49
Bolt, Compressor WPL 1165674 Contact Us For Availability
50
Tube, Flow Divider WPL 1159832 Contact Us For Availability
51
Tube, Discharge WPL 1166239 Contact Us For Availability
× ![]()
