Model Whirlpool ACE184XH0 AIR CONDITIONER – Common Parts & Diagrams

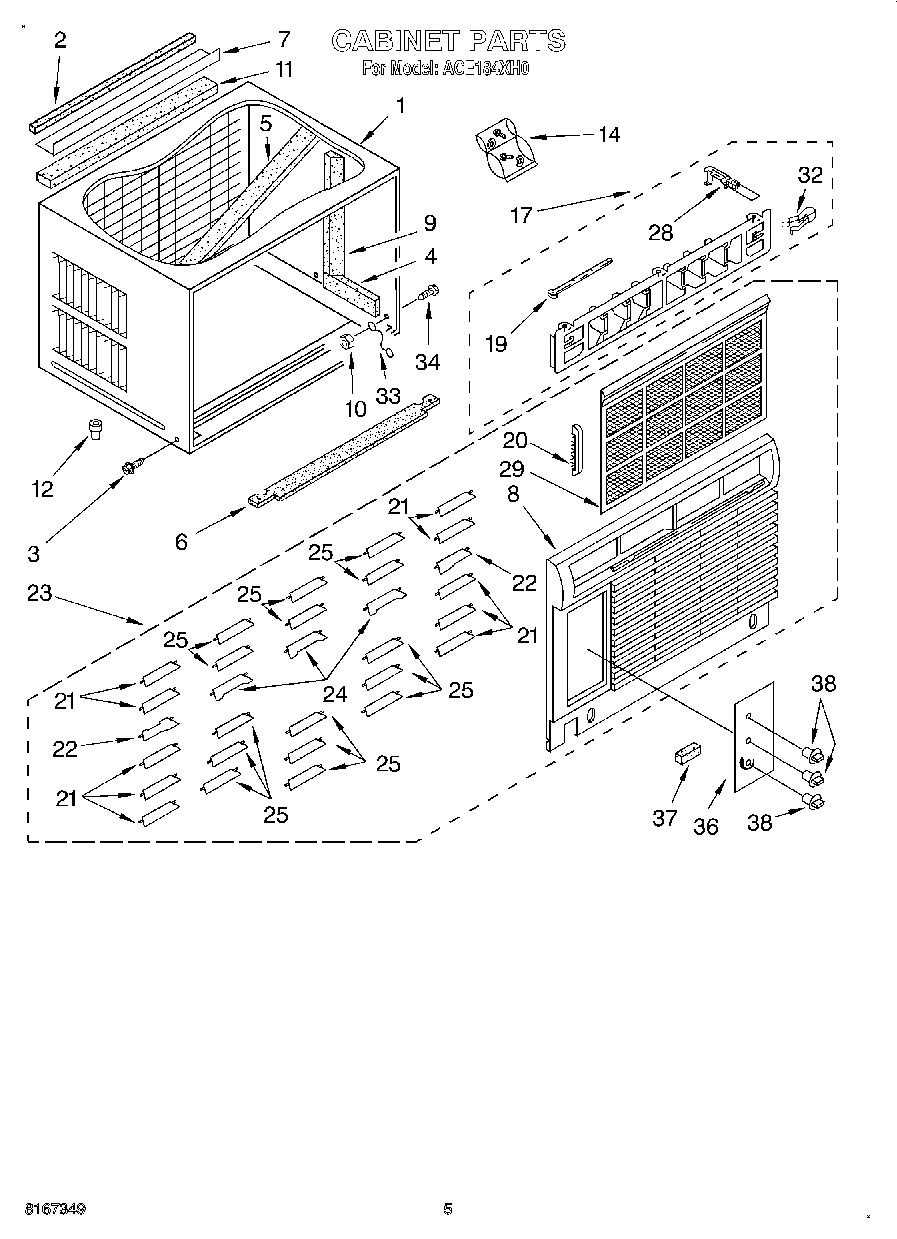

03 - CABINET

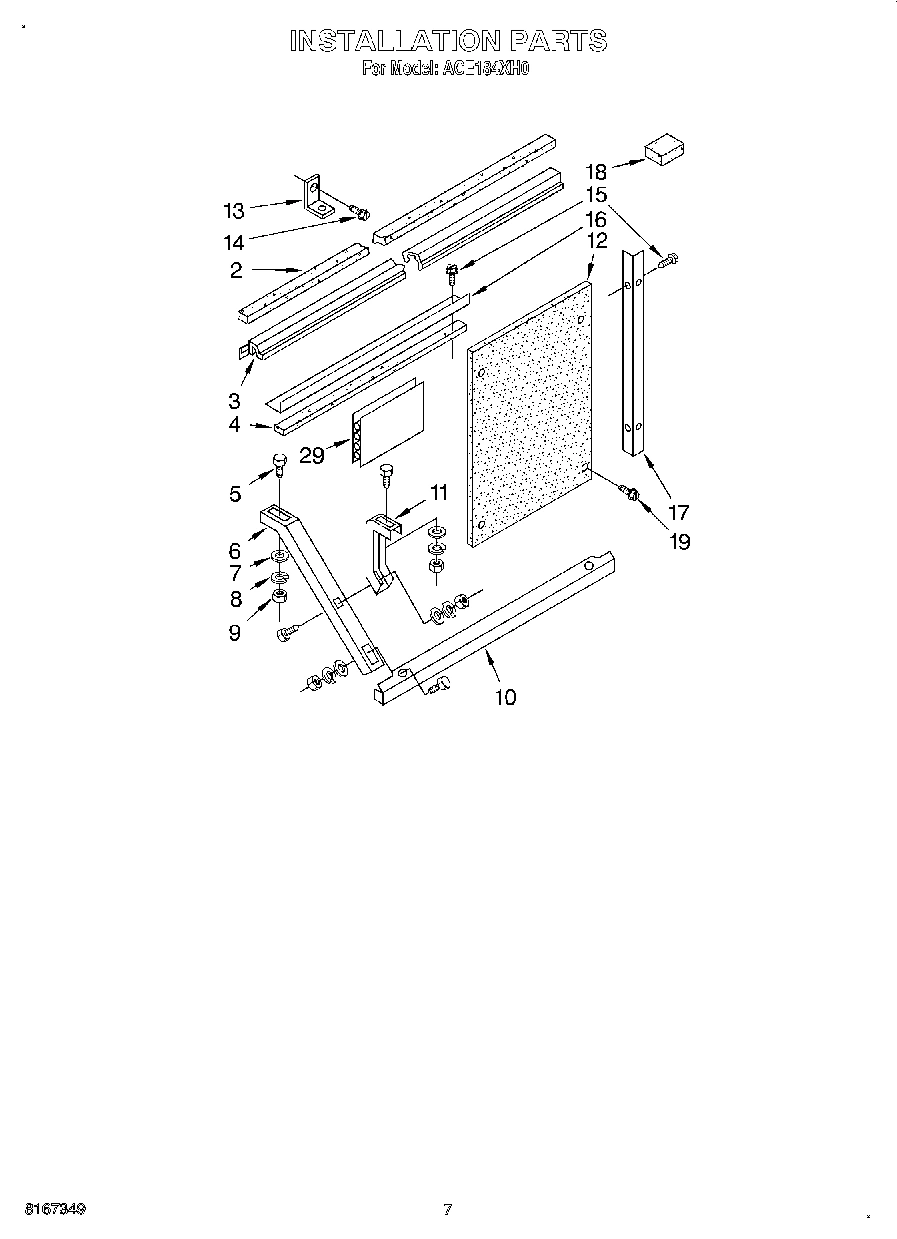

05 - INSTALLATION

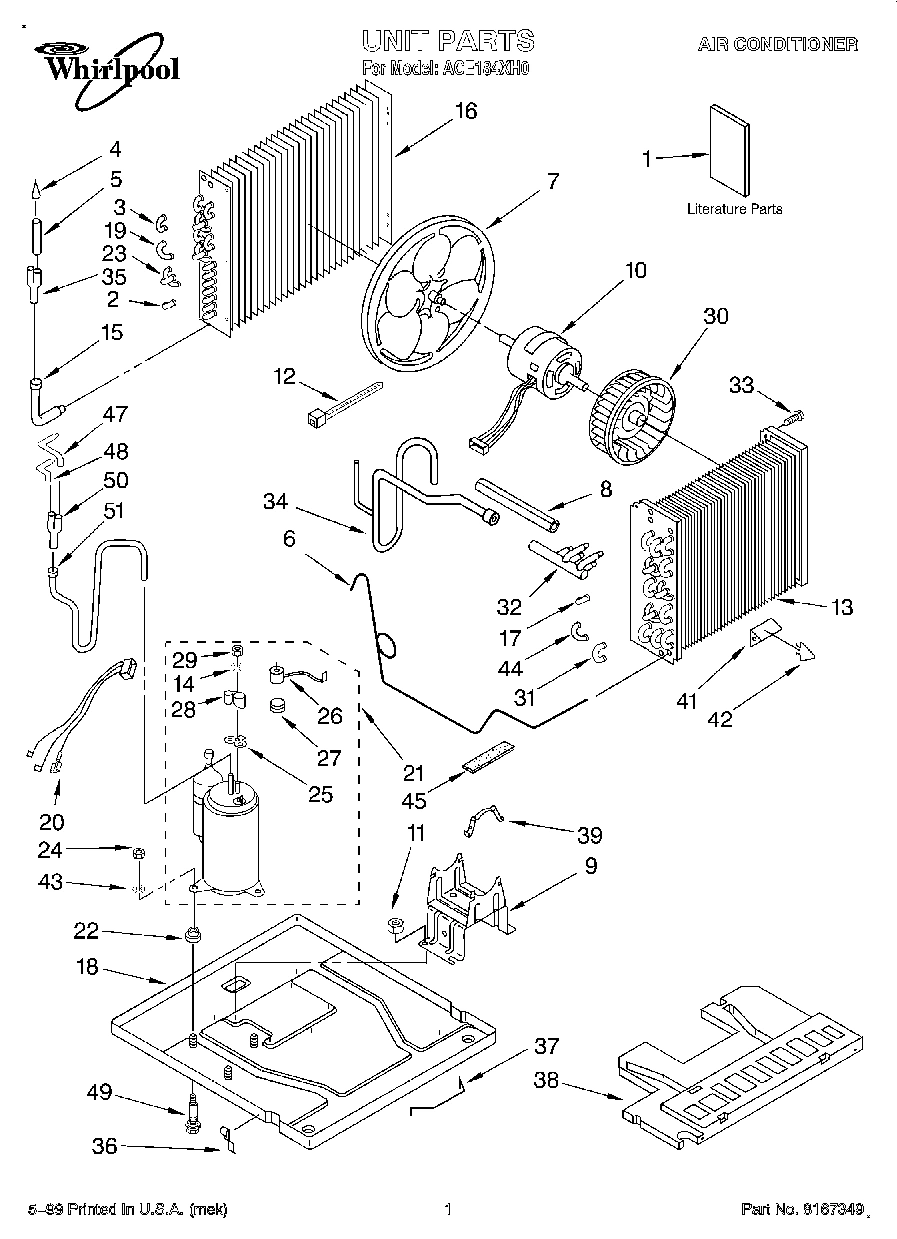

01 - UNIT, LITERATURE

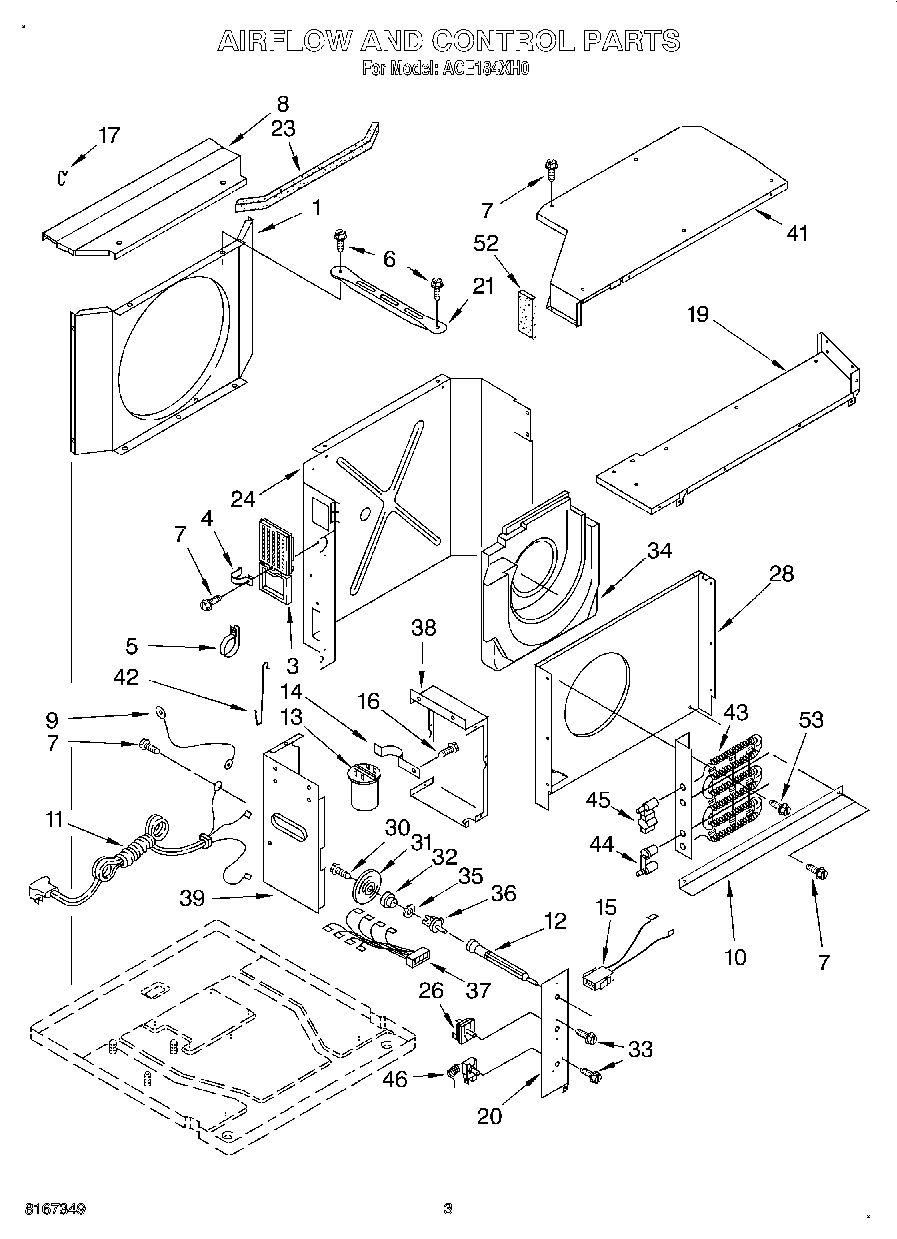

02 - AIR FLOW AND CONTROL

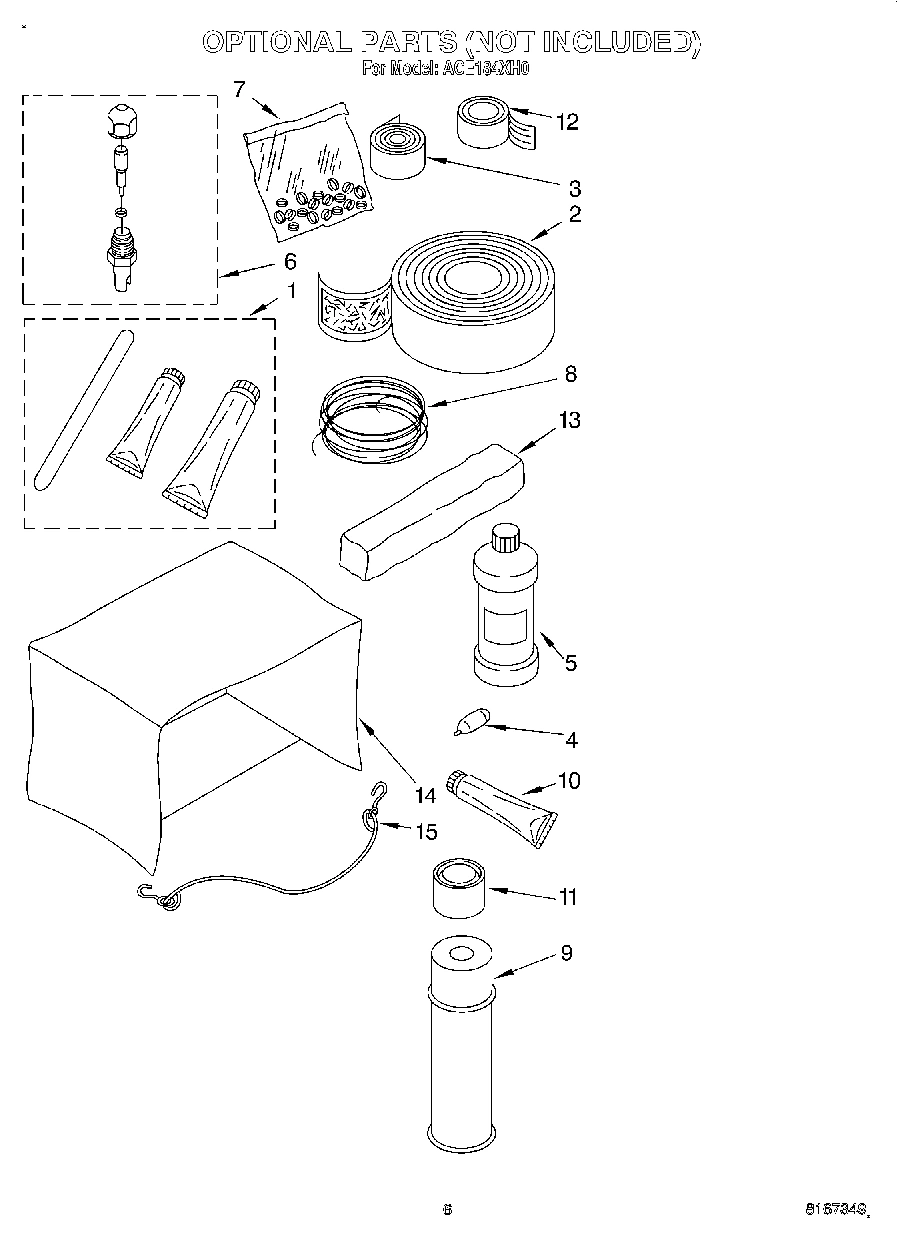

04 - OPTIONAL
Common parts from model Whirlpool ACE184XH0 AIR CONDITIONER
1
Tech Sheet WPL LIT1165715 Contact Us For Availability
1
Wiring Diagram WPL LIT1165720 Contact Us For Availability
1
Use & Care Guide WPL LIT1182470 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Bend, Return Condenser (10) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Bend, Return Condenser (4) WPL 708531 Contact Us For Availability
3
Door, Air WPL 1160652 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Spring, Door WPL 1160653 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1182070 Contact Us For Availability
5
Clamp, Wiring WPL 1163775 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Support, Cabinet (2) WPL 1168475 Contact Us For Availability
6
Tube, Restrictor (3) WPL 1166217 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Seal, Suction Tube WPL 1160870 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Bracket, Support WPL 1168476 Contact Us For Availability
10
Motor, Fan WPL 1172015 Contact Us For Availability
10
Sheild, Heat WPL 1165713 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
11
Cord, Appliance WPL 1167646 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
12
Control, Shaft WPL 1161504 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Evaporator WPL 1169384 Contact Us For Availability
13
Capacitor WPL 1167531 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Screw (Side & Top Angles to Cabinet) WPL 488624 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
15
Harness, Heater WPL 1162061 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
Condenser WPL 1161511 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Bend, Return (3) WPL 854624 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base WPL 1168486 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
19
Return Bend (1) WPL 1158407 Contact Us For Availability
19
Evap. Shroud Top WPL 1168484 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1161054 Contact Us For Availability
20
Panel, Control WPL 1165610 Contact Us For Availability
21
Compressor WPL 1172210 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
22
Louver, Horizontal W/ Handle (2) WPL 1168492 Contact Us For Availability
23
Front, Complete WPL 1182335 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1168494 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Dividing Wall WPL 1161706 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1168495 Contact Us For Availability
26
Switch Rotary WPL 1167099 Contact Us For Availability
27
Overload Spring, Service Only WPL 950032 Contact Us For Availability
28
Actuator, Louver (2) WPL 1182348 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1182636 Contact Us For Availability
29
Filter WPL 1182336 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1163783 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Return Bend (10) WPL 855199 Contact Us For Availability
31
Cam, Exhaust WPL 647882 Contact Us For Availability
32
Spring, Detent (2) WPL 1167095 Contact Us For Availability
32
Manifold, Suction WPL 1163753 Contact Us For Availability
32
Bushing, Shaft WPL 647879 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Tube, Suction WPL 1182060 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Washer WPL 1161313 Contact Us For Availability
36
Plate, Escutcheon WPL 1168525 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Shaft, Control Exhaust WPL 854369 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Harness, Wiring (Control Box) WPL 1167527 Contact Us For Availability
38
Knobs (3) WPL 1168491 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
38
Control Box (R.S.) WPL 1161714 Contact Us For Availability
39
Control Box (L.S.) WPL 1164516 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
41
Cover, Top WPL 1168477 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
42
Wire, Control Exhaust WPL 1161333 Contact Us For Availability
43
Element, Heating WPL 1182568 Contact Us For Availability
44
Bend, Return (3) WPL 855644 Contact Us For Availability
44
Fuse, Link WPL 1167330 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
45
Switch, Limit WPL 1164407 Contact Us For Availability
46
Control, Temperature WPL 1155801 Contact Us For Availability
47
Tube, Feeder WPL 1161071 Contact Us For Availability
48
Tube, Feeder WPL 1160358 Contact Us For Availability
49
Bolt, Compressor WPL 1165674 Contact Us For Availability
50
Tube, Flow Divider WPL 1159832 Contact Us For Availability
51
Tube, Discharge WPL 1166239 Contact Us For Availability
52
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
× ![]()
