Model Whirlpool ACE184XA0 AIR CONDITIONER – Common Parts & Diagrams

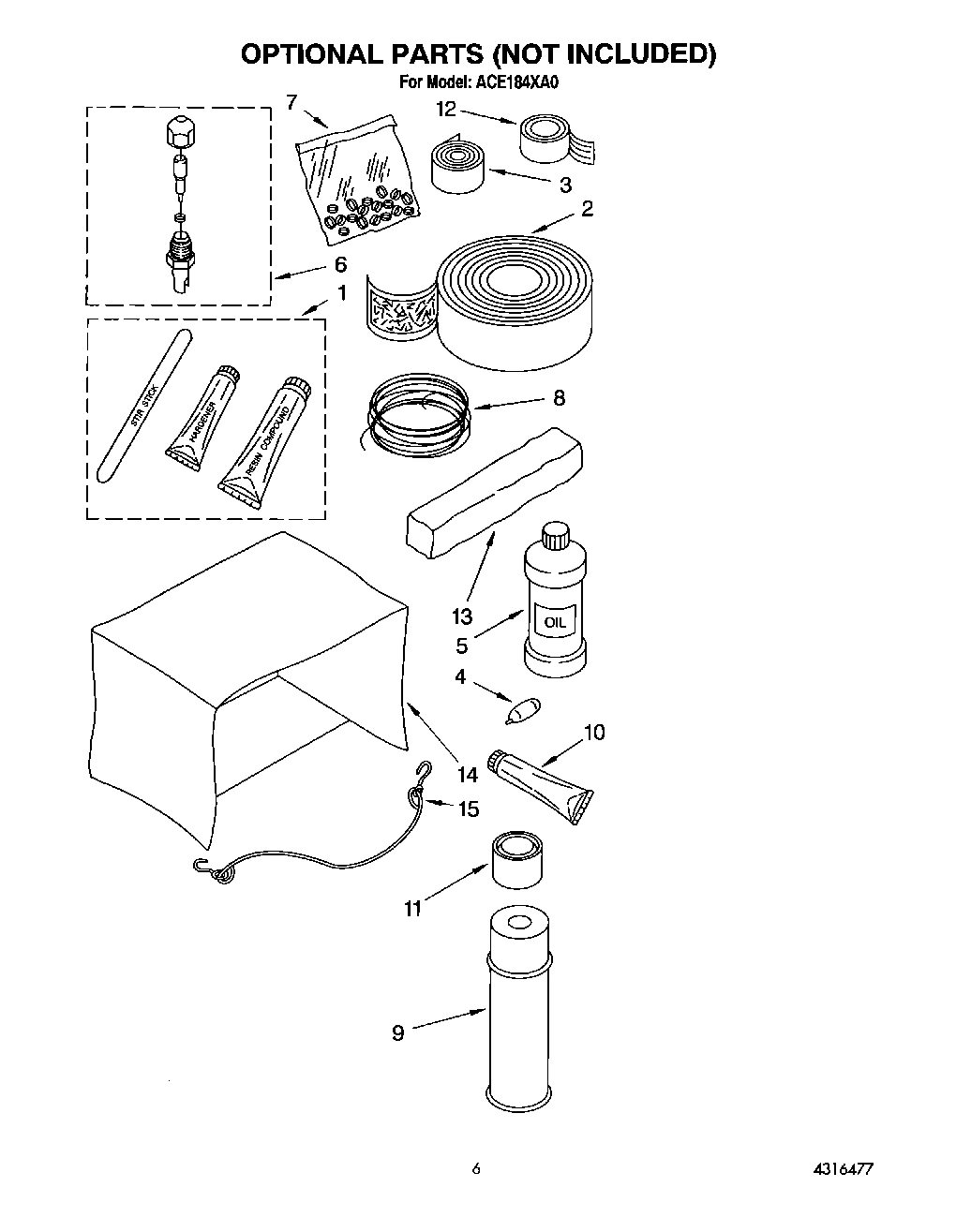

04 - OPTIONAL

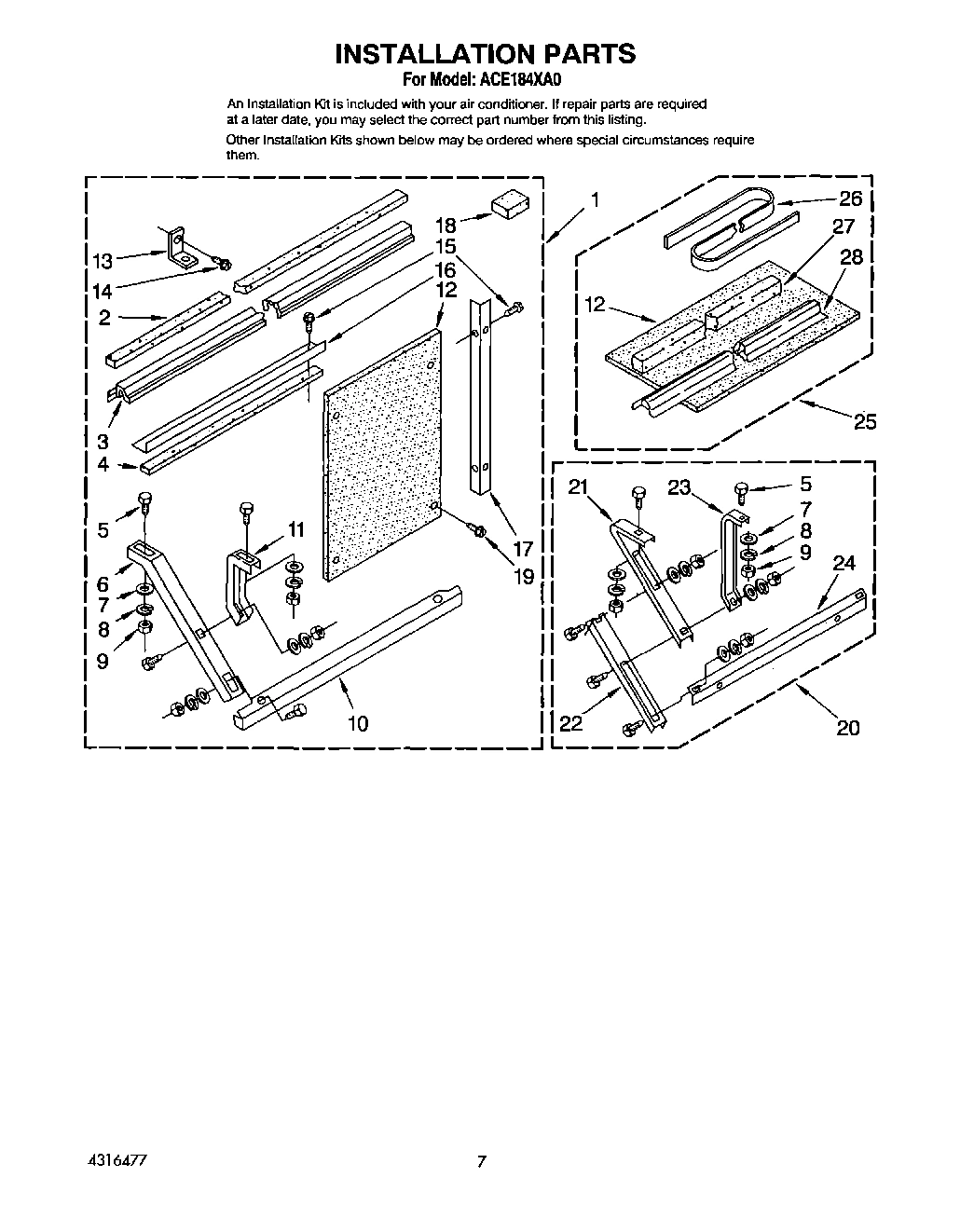

05 - INSTALLATION
02 - AIRFLOW AND CONTROL
01 - UNIT, LITERATURE
03 - CABINET
Common parts from model Whirlpool ACE184XA0 AIR CONDITIONER
Use And Care Guide WPL LIT1160023 Contact Us For Availability
Instructions, Installation WPL LIT1163505 Contact Us For Availability
Tech Sheet WPL LIT1164414 Contact Us For Availability
Wiring Diagram WPL LIT1164415 Contact Us For Availability
1
Kit, Standard Installation WPL 1160600 Contact Us For Availability
1
Shroud, Condenser WPL 1161244 Contact Us For Availability
1
Cabinet WPL 1162272 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal WPL 469877 Contact Us For Availability
2
Bend, Return Condenser (10) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Door, Exhaust WPL 997221 Contact Us For Availability
3
Bend, Return Condenser (4) WPL 708531 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Spring, Door WPL 859369 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1155598 Contact Us For Availability
5
Seal, Top WPL 1158731 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Scroll (Lower) WPL 1158653 Contact Us For Availability
6
Tube, Restrictor (3) WPL 1162118 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
7
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
7
Wire, Ground WPL 857022 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Seal, Suction Tube WPL 1160870 Contact Us For Availability
8
Cabinet Front WPL 1157463 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1160819 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
10
Motor, Fan WPL 1165213 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Cord, Appliance WPL 1161720 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
12
Seal WPL 1160762 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Capacitor, Running WPL 1157652 Contact Us For Availability
13
Evaporator WPL 1165217 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Bracket, Capacitor WPL 1156967 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
15
Tube, Wet Loop WPL 1161247 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Screw, 8-18 x 3/8 WPL 1161561 Contact Us For Availability
16
Condenser WPL 1161511 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
17
Bend, Return Condenser (1) WPL 1158407 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Scroll, Upper WPL 1158654 Contact Us For Availability
18
Base WPL 1165776 Contact Us For Availability
19
Raceway, Wiring WPL 1157418 Contact Us For Availability
19
Manifold, Discharge WPL 1162123 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Panel, Control WPL 1160037 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1158689 Contact Us For Availability
20
Cartridge, Complete WPL 1157464 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Support, Unit (2) WPL 1164561 Contact Us For Availability
21
Compressor WPL 1155501 Contact Us For Availability
21
Horzontal Louver WPL 1157466 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Wire, Control WPL 1157443 Contact Us For Availability
22
Ribs, Vertical WPL 1157467 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Tube, Discharge WPL 1162121 Contact Us For Availability
23
Front, Complete WPL 1161419 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Dividing Wall WPL 1161556 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Seal (Left Side) WPL 1160763 Contact Us For Availability
24
Seal (Right Side) WPL 1160764 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
25
Evap Shroud Seal WPL 1161210 Contact Us For Availability
25
Seal (Right Side) WPL 1160770 Contact Us For Availability
25
Seal (Left Side) WPL 1161864 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Switch, Fan WPL 1160038 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Switch, Rotary WPL 1164408 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Seal (2) WPL 1160769 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1161347 Contact Us For Availability
29
Element, Heating WPL 1161004 Contact Us For Availability
29
Filter WPL 1157468 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1163783 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
32
Manifold, Suction WPL 1163753 Contact Us For Availability
33
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
33
Cup, Condensate Drain WPL 997285 Contact Us For Availability
34
Suction Tube Assembly WPL 1163936 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Harness, Wiring Control Box WPL 1161150 Contact Us For Availability
37
Bend, Return (3-Way) WPL 1158685 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
38
Pan, Drain WPL 1158652 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Cover, Pan WPL 1161346 Contact Us For Availability
41
Fuse, Link WPL 1167330 Contact Us For Availability
41
Anticipator WPL 484238 Contact Us For Availability
42
Impeller Guard (2) WPL 1161555 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
43
Escutcheon WPL 1160075 Contact Us For Availability
44
Bolt, Compressor WPL 1158668 Contact Us For Availability
45
Knob, Controls (4) WPL 1158054 Contact Us For Availability
45
Valve, Condensate WPL 998612 Contact Us For Availability
46
Control, Temperature WPL 1161021 Contact Us For Availability
46
Bend, Return Evaporator (4) WPL 855644 Contact Us For Availability
47
Limit Switch WPL 1160509 Contact Us For Availability
47
Bend, Return Evaporator (4) WPL 854624 Contact Us For Availability
48
Clip, Nylon WPL 1161249 Contact Us For Availability
48
Bend, Return Evaporator (11) WPL 855199 Contact Us For Availability
49
Tube, Wet Loop Connect WPL 1165765 Contact Us For Availability
50
Clip, Wet Loop WPL 1161248 Contact Us For Availability
× ![]()
