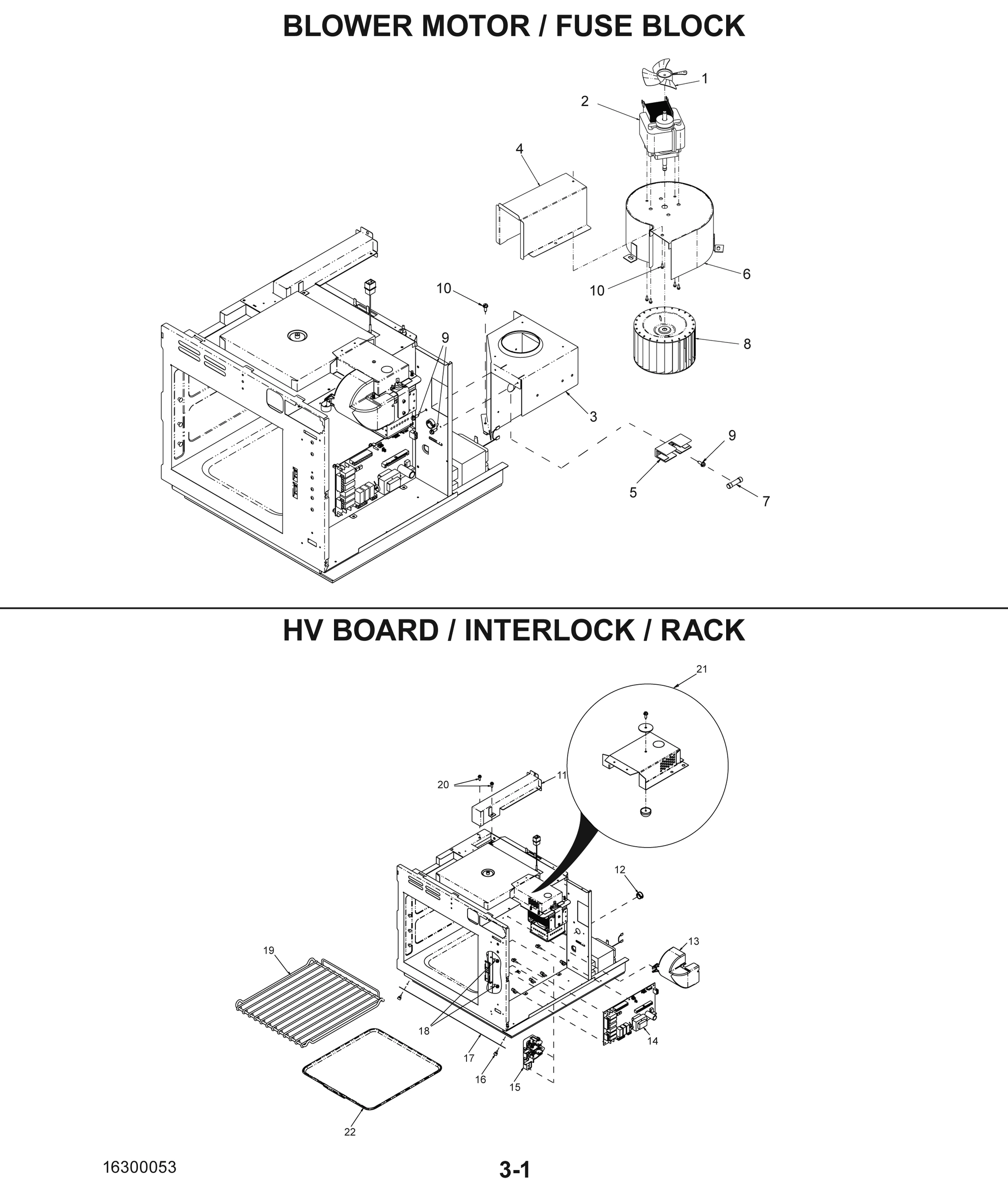

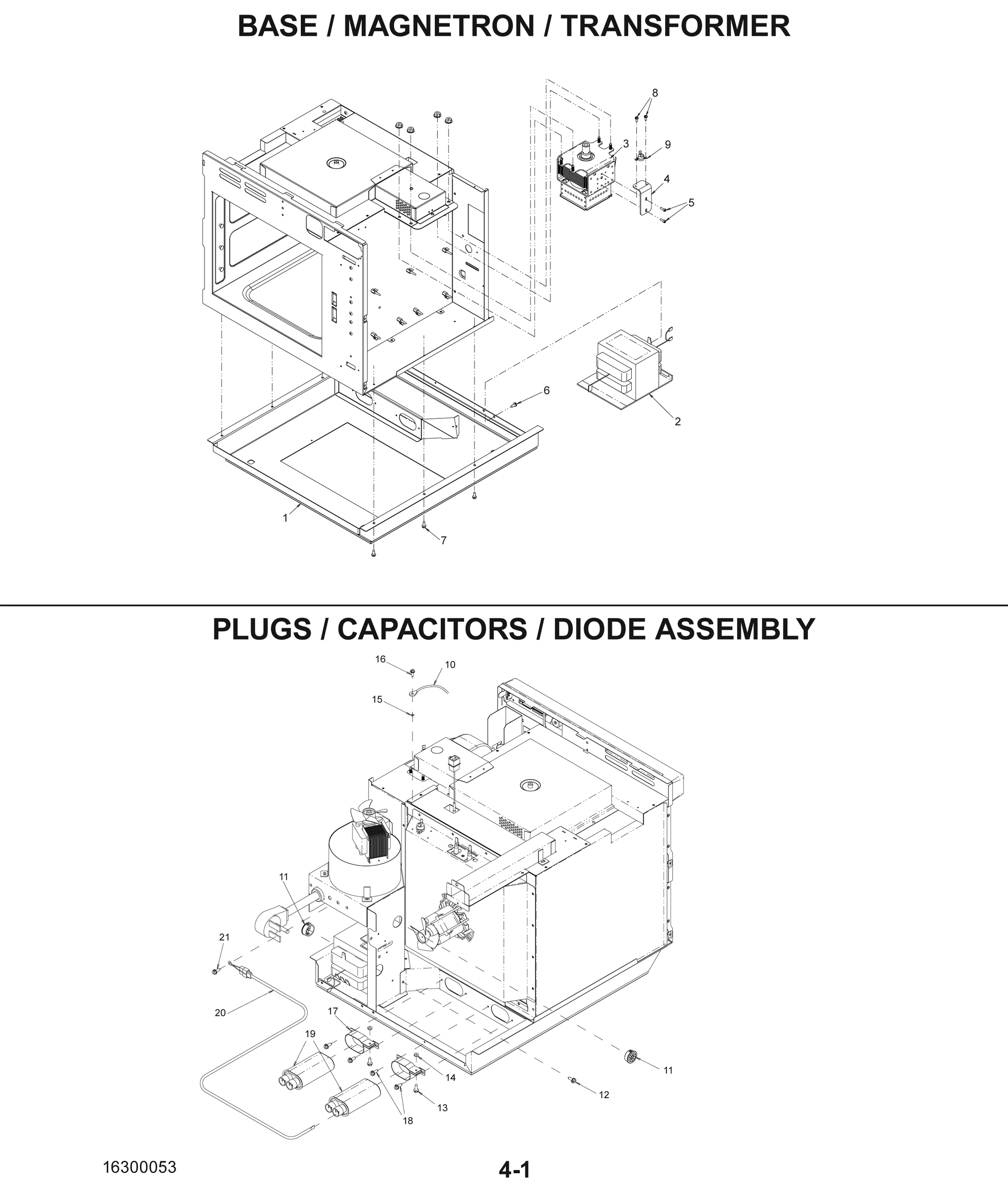

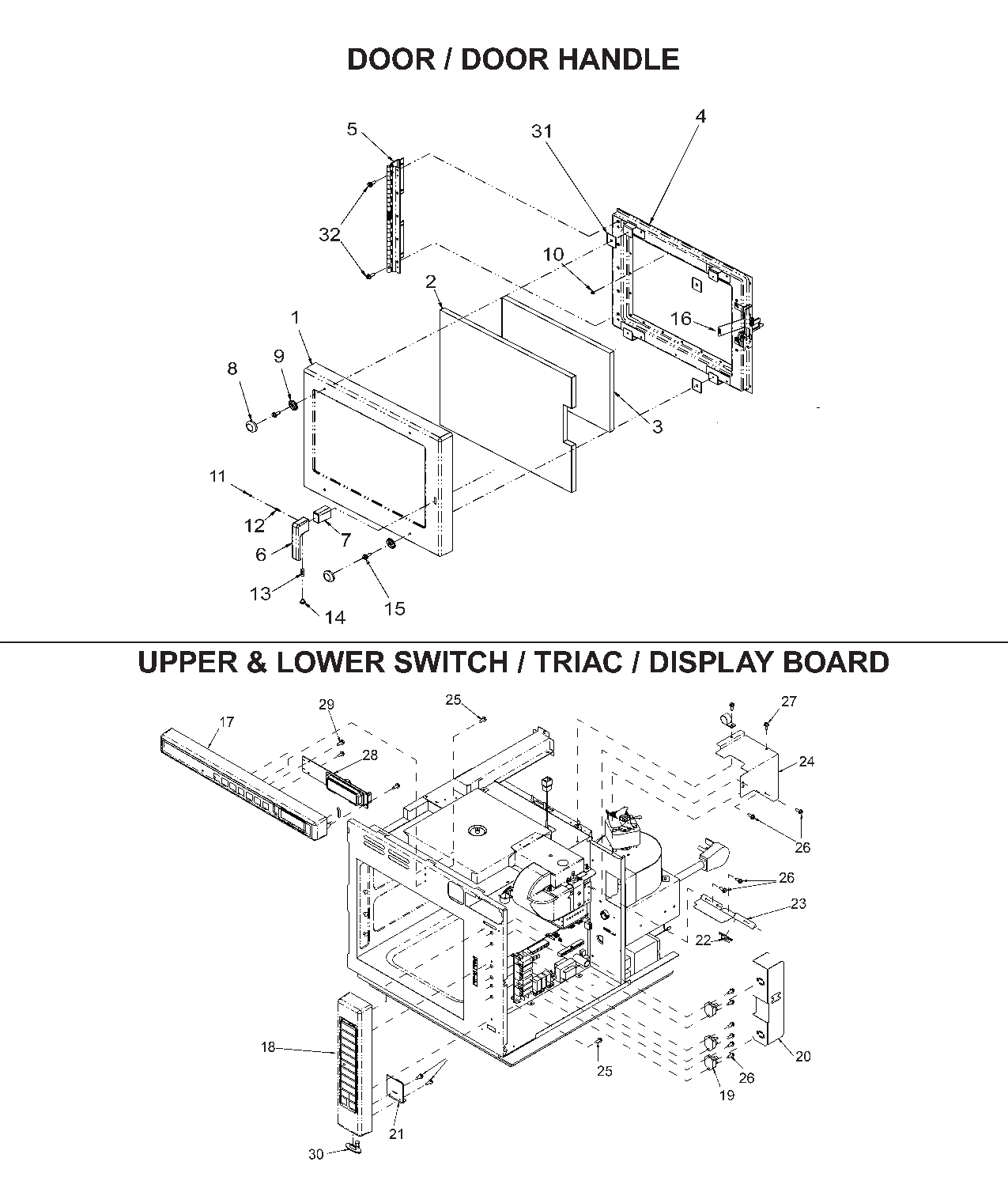

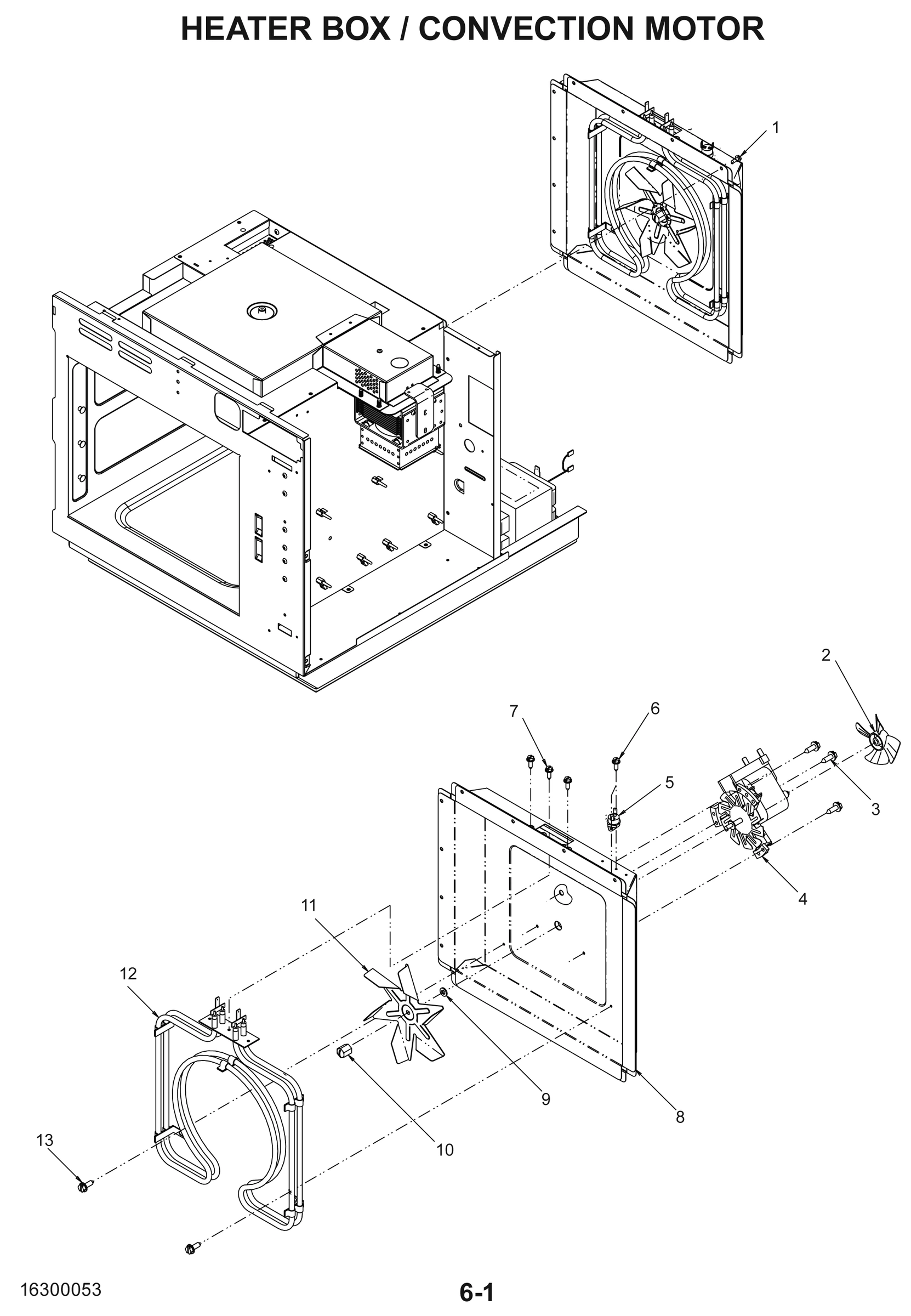

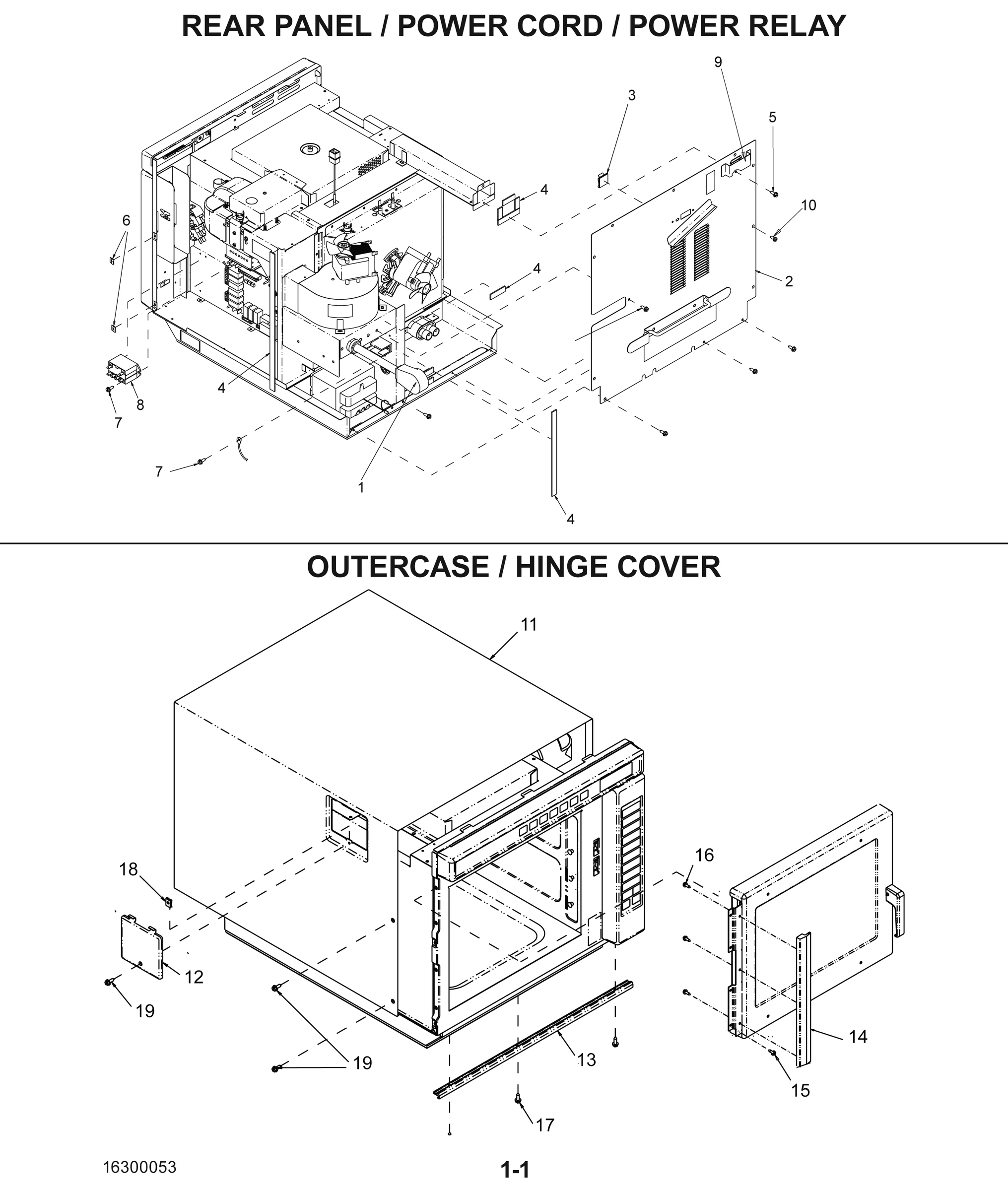

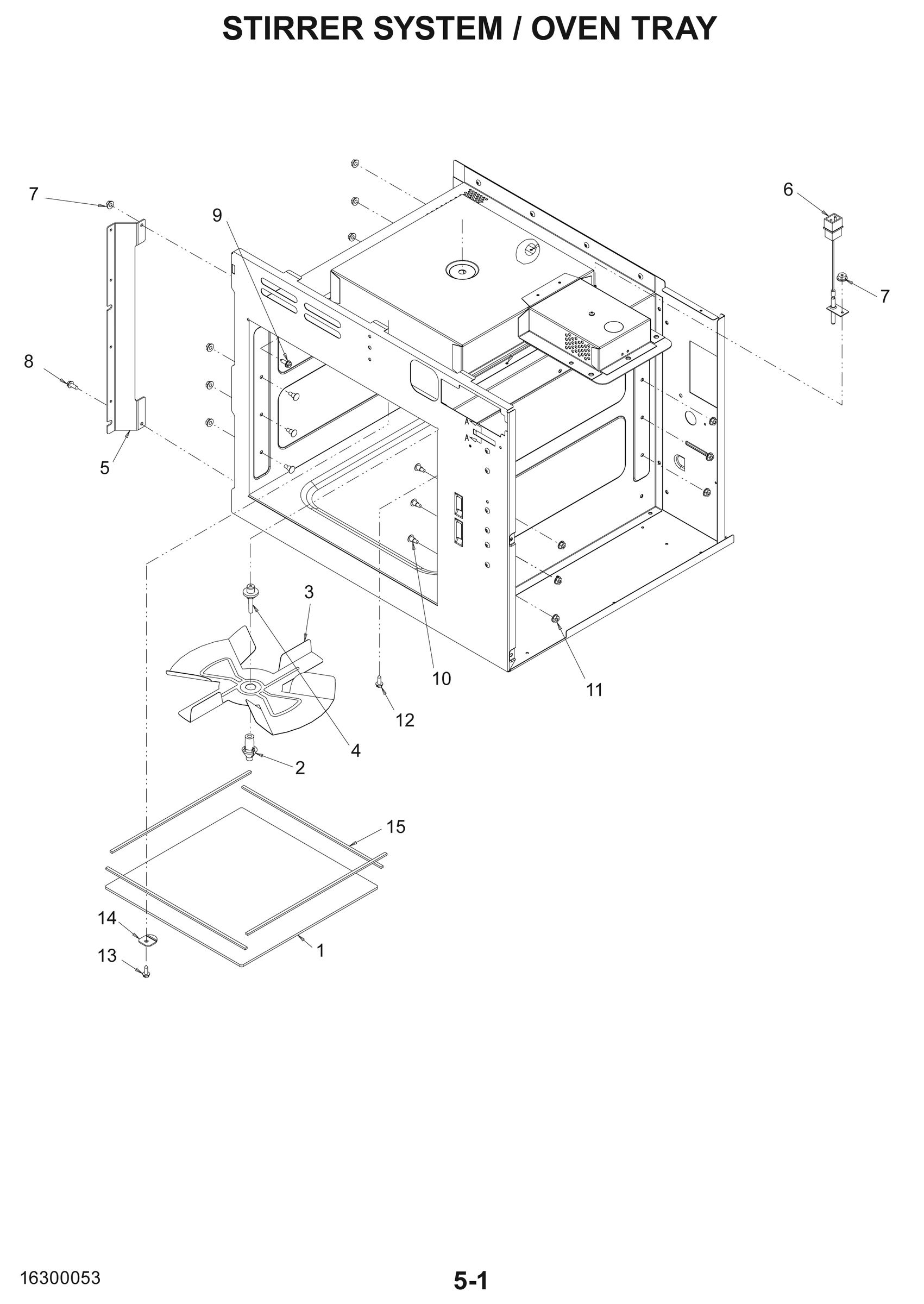

Model Accelerated Cooking Products ACE14SBC-P2000402M Amana Menumaster ACE14SBC – Common Parts &amp; Diagrams

1

13098205 Amana Outer Door Backorder ACP 13098205 $166.08

1

59002112 Amana Power Cord Backorder ACP 59002112 $35.19

1

B5706704 Amana Motor Fan Blade Backorder ACP B5706704 $7.09

1

R0150115 Amana Stirrer Cover Backorder ACP R0150115 $85.97

2

14189143 Amana Motor, Wheel, and Blade Kit Backorder ACP 14189143 $204.96

2

59002086 Amana HV Transformer Backorder ACP 59002086 $262.24

2

B5706707 Amana Fan Blade Backorder ACP B5706707 $8.91

2

ACCESS PAN WLD-E CT ACP 12002804 Contact Us For Availability

3

59002081 Amana Magnetron In Stock ACP 59002081 $1,196.62

3

CLIP-CORD ACP M0104106 Contact Us For Availability

3

SCREW-TF/HEX RoHS ACP 12992307 Contact Us For Availability

4

12002760 Amana Door Kit Assembly with Latch Backorder ACP 12002760 $347.26

4

14090018 Amana Convection Motor Kit - 60 Hz Backorder ACP 14090018 $332.16

4

14179137 Amana Blade, Insert & Shaft Kit Backorder ACP 14179137 $65.37

4

59004077 Amana Gasket per Foot Backorder ACP 59004077 $1.31

5

12189004 Amana Hinge Support Bracket Backorder ACP 12189004 $13.91

5

20241405 Amana Thermal Cutout Backorder ACP 20241405 $8.36

5

59001869 Amana Door Hinge Backorder ACP 59001869 $119.93

6

12000202 Amana TEMP Sensor Backorder ACP 12000202 $76.92

6

12490902 Amana Door Handle Backorder ACP 12490902 $34.67

6

M0287016 Amana Speed Nut Backorder ACP M0287016 $5.14

6

SCREW ACP 13041602 Contact Us For Availability

7

12990606 Amana Small Pan Screw Backorder ACP 12990606 $5.14

7

13045501 Amana Nut #6 KEPS Backorder ACP 13045501 $5.08

7

14179142 Amana Monitor Relay Board In Stock ACP 14179142 $86.22

7

SCREW-SM/HEX RoHS ACP 12990524 Contact Us For Availability

8

59001981 Amana Relay Backorder ACP 59001981 $41.13

8

C3670809 Amana Blower Wheel Backorder ACP C3670809 $35.64

8

HEATER BOX ACP 59001513 Contact Us For Availability

9

12546101 Amana Washer Backorder ACP 12546101 $5.66

9

B5684121 Amana Thermal Cutout Backorder ACP B5684121 $5.80

9

COVER-VENT ACP 12470201 Contact Us For Availability

10

12538001 Amana Nut Cap Backorder ACP 12538001 $10.33

10

12990525 Amana Screw - Small Head Backorder ACP 12990525 $5.14

10

59154436 Amana Rack Support Backorder ACP 59154436 $11.46

10908909Q Amana Stainless Steel Wrapper Backorder ACP 10908909Q $330.26

12360703 Amana Button Plug Backorder ACP 12360703 $5.14

12537901 Amana Fan Blade Backorder ACP 12537901 $8.61

NUT -#8 KEPS ACP 13045502 Contact Us For Availability

12

59004076 Amana Heater Backorder ACP 59004076 $102.93

13047001 Amana Dog Screw Set Backorder ACP 13047001 $5.59

59174560 Amana Trim Assembly & Screws Backorder ACP 59174560 $23.22

SCREW-TC/PAN RoHS ACP 13041505 Contact Us For Availability

SCREW-SM ACP M0213802 Contact Us For Availability

14

59001230 Amana Gray Hinge Cover Backorder ACP 59001230 $11.08

14

RETAINER-TRAY ACP 12188901 Contact Us For Availability

12002636 Amana Interlock Switch Kit In Stock ACP 12002636 $84.58

SCREW-TC/HOLT RoHS ACP 13042701 Contact Us For Availability

SCREW-SM/HEX RoHS ACP 12990527 Contact Us For Availability

GASKET ACP 20291504 Contact Us For Availability

16

13004401 Amana Screw - TF/Flat RoHS Backorder ACP 13004401 $5.14

16

SPRING, LATCH ACP C8893505 Contact Us For Availability

17

59104132 Amana Top Touch Panel Assembly Backorder ACP 59104132 $176.32

17

59174548 Amana Grill Assembly, Air Inlet & Th Backorder ACP 59174548 $87.32

18

59104131 Amana Touch Panel Assembly - Side Backorder ACP 59104131 $162.89

18

59174559 Amana Light Cover Hardware Backorder ACP 59174559 $29.43

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $57.41

59174533 Amana Capacitor and Diode Kit, 0.65 In Stock ACP 59174533 $43.51

RA14 Amana ACE Rack Accessory In Stock ACP RA14 $92.97

SCREW-TF/OVAL RoHS ACP 13042001 Contact Us For Availability

20

R9800022 Amana Diode Kit In Stock ACP R9800022 $70.63

20

SHIELD-TRIAC ACP 12210101 Contact Us For Availability

21

59002095 Amana Data Key Board Backorder ACP 59002095 $119.93

23

DUCT-BLOWER/MAG ACP 10978601 Contact Us For Availability

24

COVER - MAG INLET ACP 10978703 Contact Us For Availability

25

12992302 Amana RoHS Hex Head Screw Backorder ACP 12992302 $5.08

27

12990522 Amana Screw SM/HEX RoHS Backorder ACP 12990522 $5.14

28

59104126 Amana Display Board In Stock ACP 59104126 $247.92

29

13095201 Amana Screw, Oval Backorder ACP 13095201 $5.14

30

13080601 Amana Data Key Plug Backorder ACP 13080601 $5.14

31

SPACER - THERMAL ACP 12529302 Contact Us For Availability
