Model Whirlpool ACE124XD1 AIR CONDITIONER – Common Parts & Diagrams

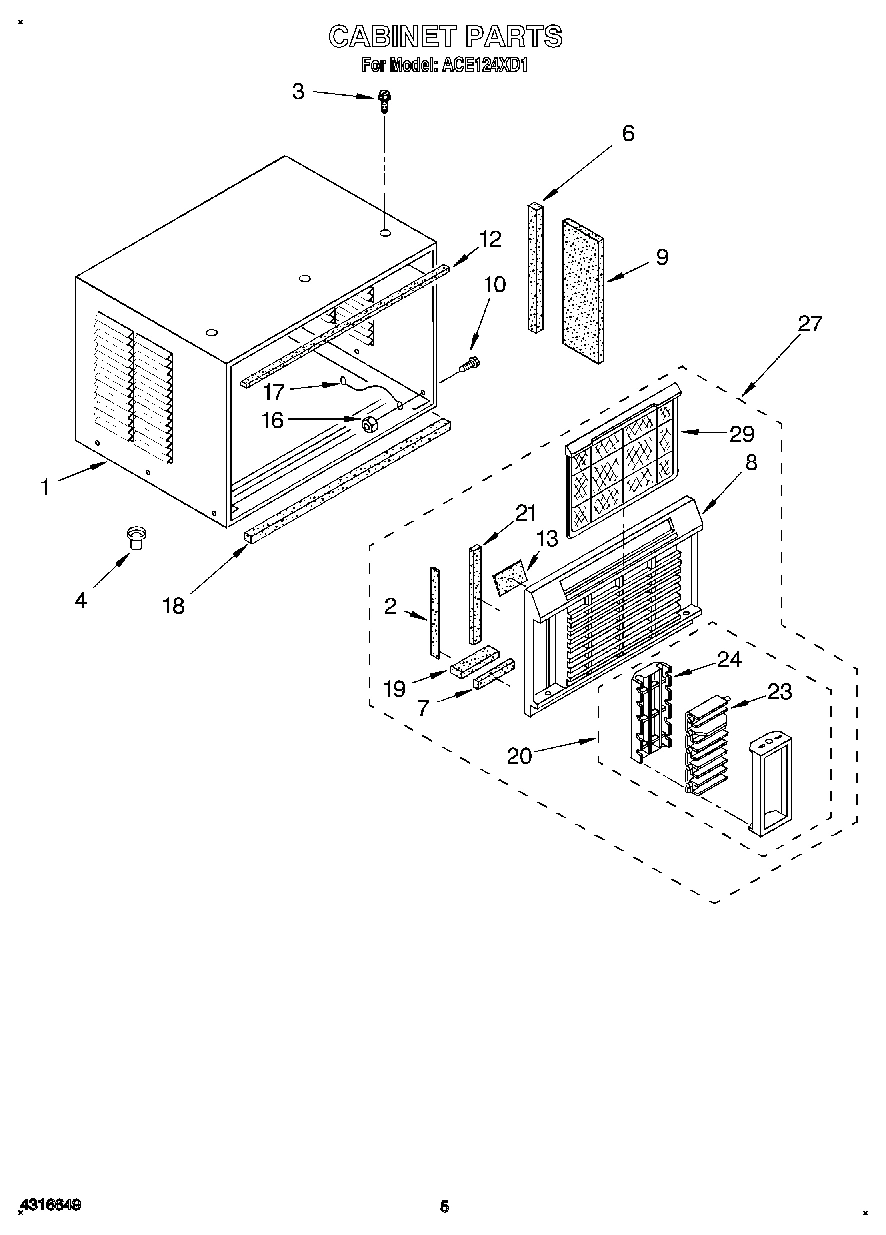

03 - CABINET

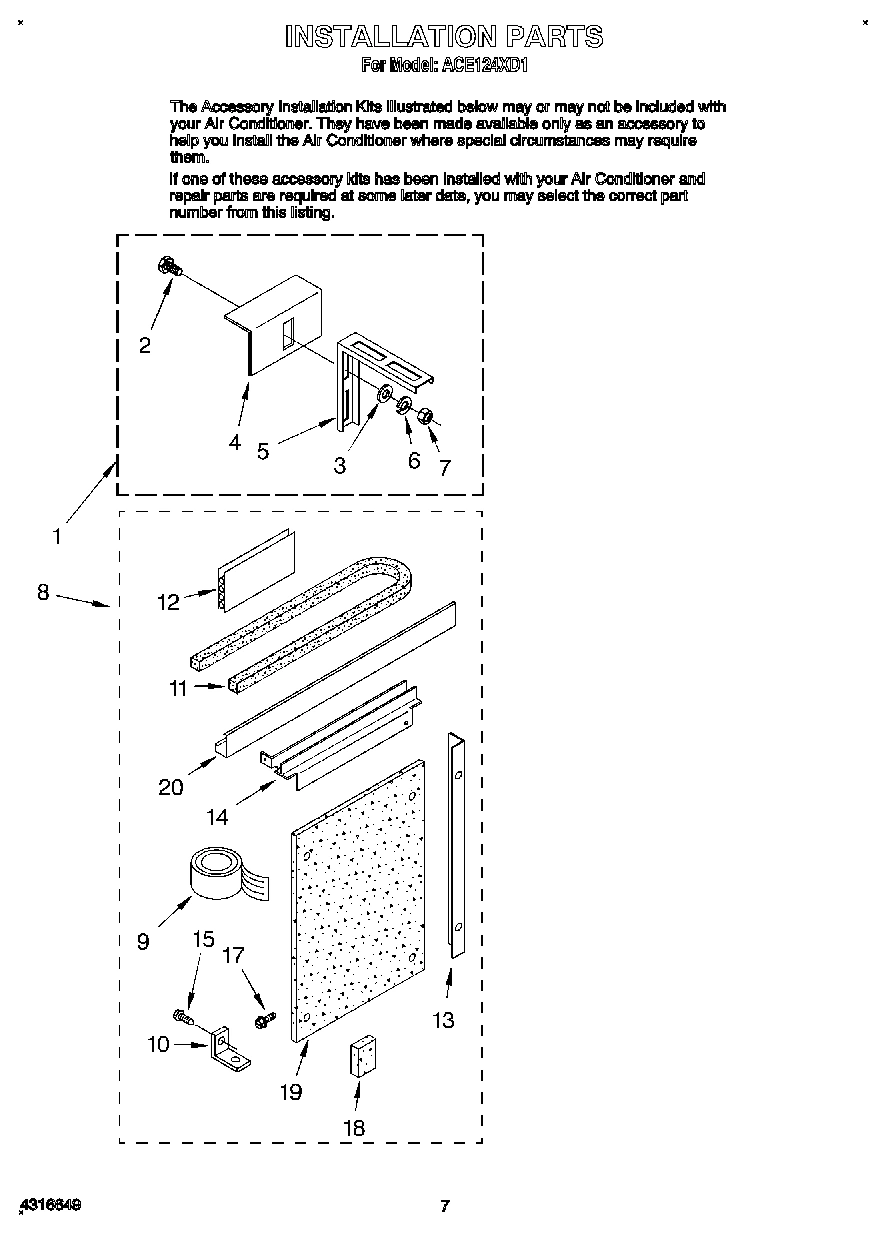

05 - INSTALLATION

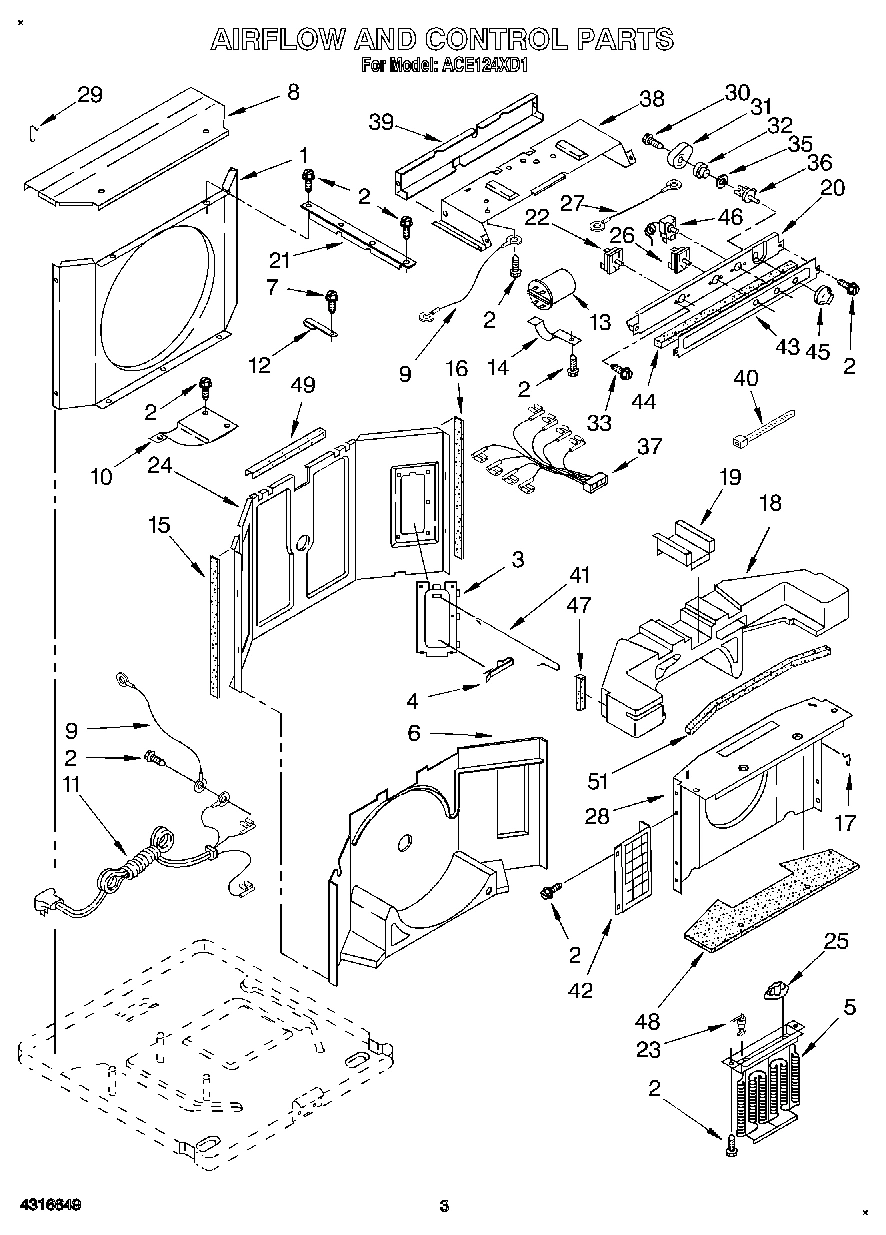

02 - AIRFLOW AND CONTROL

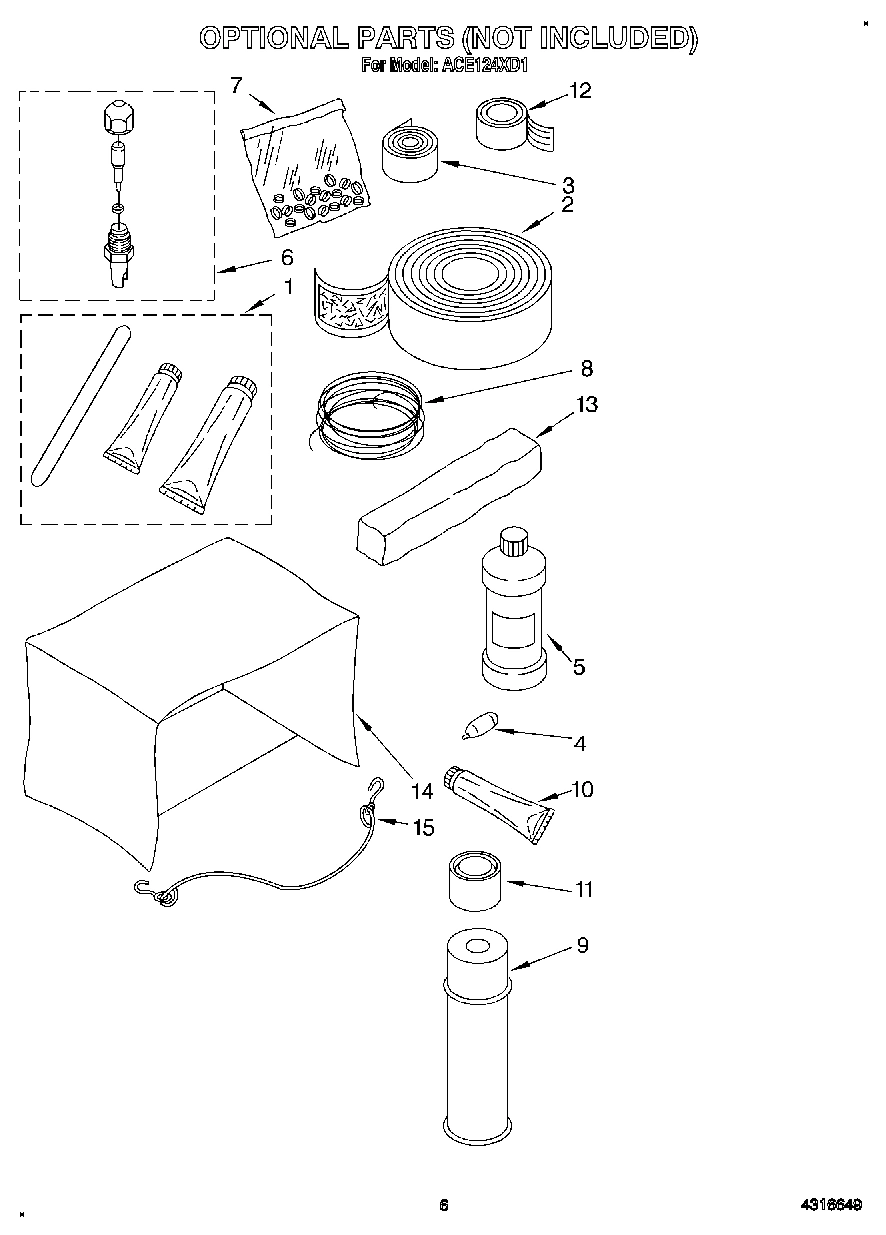

04 - OPTIONAL

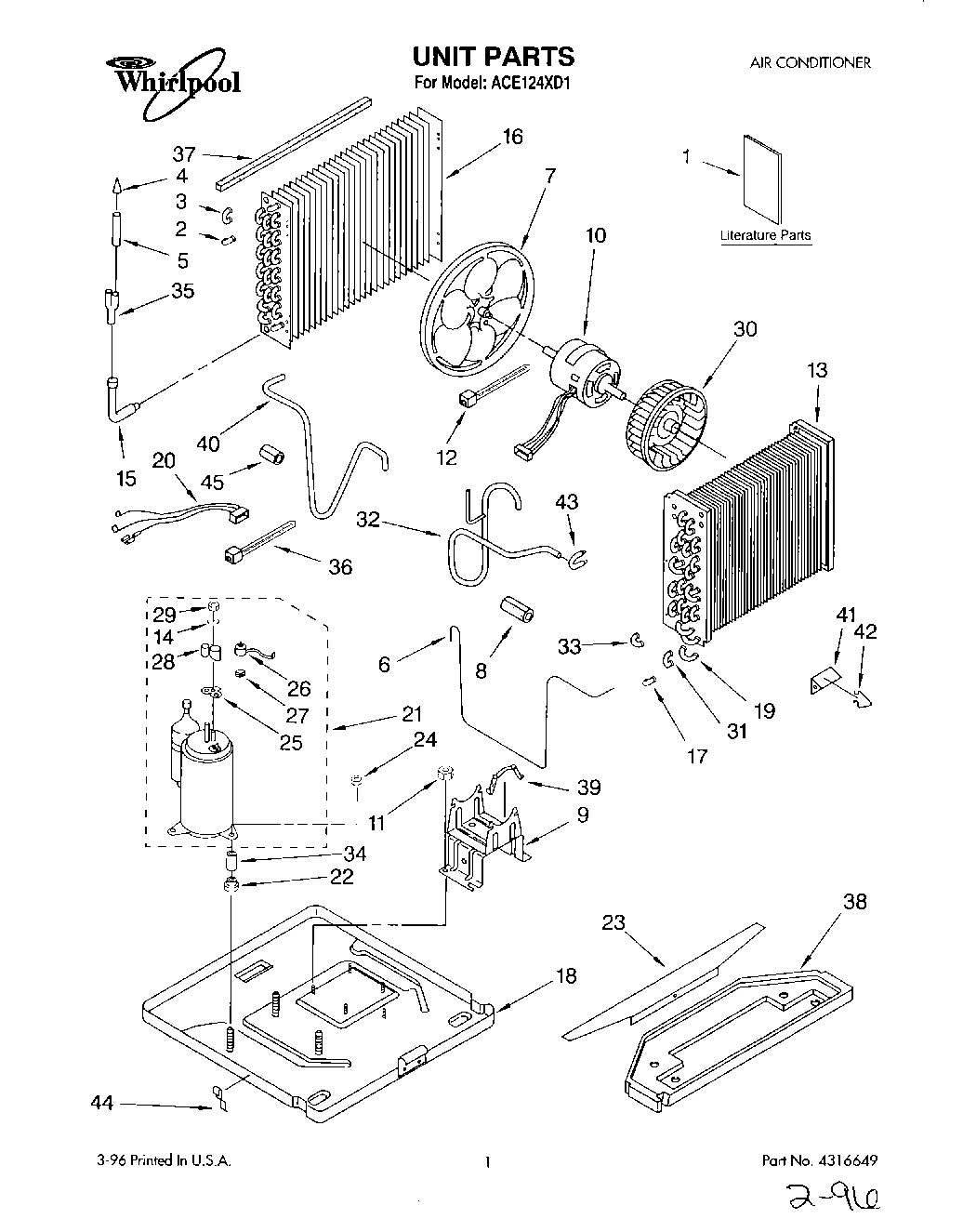

01 - UNIT, LITERATURE
Common parts from model Whirlpool ACE124XD1 AIR CONDITIONER
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Shroud, Condenser WPL 1159604 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Instructions, Installation WPL LIT1163225 Contact Us For Availability
1
Wiring Diagram WPL LIT1166450 Contact Us For Availability
1
Use & Care Guide WPL LIT1166505 Contact Us For Availability
1
Tech Sheet WPL LIT1166554 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Bend, Return Condenser (4) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Door, Exhaust WPL 1157193 Contact Us For Availability
3
Bend, Return Condenser (16) WPL 708531 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Spring, Door WPL 998178 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Element, Heating WPL 1159738 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet (Includes Item 4) WPL 950822 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Scroll (Lower) WPL 1158771 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 1158273 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 487541 Contact Us For Availability
7
Screw 3/8 WPL 1161561 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1159605 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
8
Top, Condenser WPL 1156963 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Insulation, Tube WPL 1165440 Contact Us For Availability
9
Seal, Strip WPL 855265 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Fan Motor WPL 1156961 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
10
Cup, Condensate WPL 1159580 Contact Us For Availability
10
Motor, Fan WPL 1163416 Contact Us For Availability
11
Seal, Meeting Rail WPL 855841 Contact Us For Availability
11
Cord, Appliance WPL 1167748 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Strap, Dividing Wall WPL 1159002 Contact Us For Availability
13
Angle, Side (2) WPL 646233 Contact Us For Availability
13
Capacitor, Running WPL 1162595 Contact Us For Availability
13
Evaporator WPL 1163642 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bracket, Top Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Top Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
15
Screw, Wood WPL 47435 Contact Us For Availability
15
Seal, Left Side WPL 1158514 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, 90~ Connect WPL 1163715 Contact Us For Availability
16
Seal, Right Side WPL 1158515 Contact Us For Availability
16
Condenser WPL 1162753 Contact Us For Availability
17
Clip, Shroud (2) WPL 994686 Contact Us For Availability
17
Return Bend (2) WPL 855644 Contact Us For Availability
18
Spacer, Block (2) WPL 995274 Contact Us For Availability
18
Scroll, Upper WPL 1158772 Contact Us For Availability
18
Base WPL 1162621 Contact Us For Availability
19
Board, Filler WPL 876826 Contact Us For Availability
19
Raceway, Wiring WPL 1156934 Contact Us For Availability
19
Return Bend (2) WPL 855457 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
20
Panel, Control WPL 1160037 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1157607 Contact Us For Availability
21
Support, Unit (2) WPL 1156939 Contact Us For Availability
21
Compressor WPL 1159698 Contact Us For Availability
22
Switch, Rotary WPL 1165673 Contact Us For Availability
23
Horizontal Louver WPL 1159333 Contact Us For Availability
23
Fuse, Link WPL 1160510 Contact Us For Availability
23
Cover, Pan WPL 1159664 Contact Us For Availability
24
Wall, Dividing WPL 1156926 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Switch, Limit WPL 1160509 Contact Us For Availability
26
Switch Rotary WPL 1159612 Contact Us For Availability
26
Overload WPL 1159722 Contact Us For Availability
27
Wire, Thermostat To Switch WPL 1156982 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1161022 Contact Us For Availability
29
Filter WPL 1166496 Contact Us For Availability
29
Clip, Shroud WPL 1164511 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
30
Blower, Wheel (Evaporator) WPL 1161550 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
31
Return Bend (14) WPL 855199 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
32
Tube, Suction (Includes Illus. No. 43) WPL 1163924 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Return Bend (2) WPL 854624 Contact Us For Availability
34
Sleeve (3) WPL 950020 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
37
Harness, Wiring (Control Box) WPL 1167526 Contact Us For Availability
37
Seal, Condenser Bottom WPL 1157622 Contact Us For Availability
38
Box, Control WPL 1167612 Contact Us For Availability
38
Pan, Drain WPL 1158519 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Tube, Discharge WPL 1163732 Contact Us For Availability
41
Wire, Exhaust Door WPL 1157181 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Impeller Guard (2) WPL 1158249 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
43
Escutcheon WPL 1166500 Contact Us For Availability
43
Return Bend 3-Way WPL 1161002 Contact Us For Availability
44
Clamp, Tube WPL 471088 Contact Us For Availability
45
Knob, Controls (4) WPL 1158054 Contact Us For Availability
45
Dampener-5/16 WPL 1162344 Contact Us For Availability
46
Control, Temperature (Includes anti- cipator WPL 1161021 Contact Us For Availability
47
Seal, Housing WPL 1158516 Contact Us For Availability
48
Insulation, Shroud WPL 1160057 Contact Us For Availability
49
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
51
Seal WPL 1160947 Contact Us For Availability
× ![]()
