Model Whirlpool ACE124PT1 AIR CONDITIONER – Common Parts & Diagrams

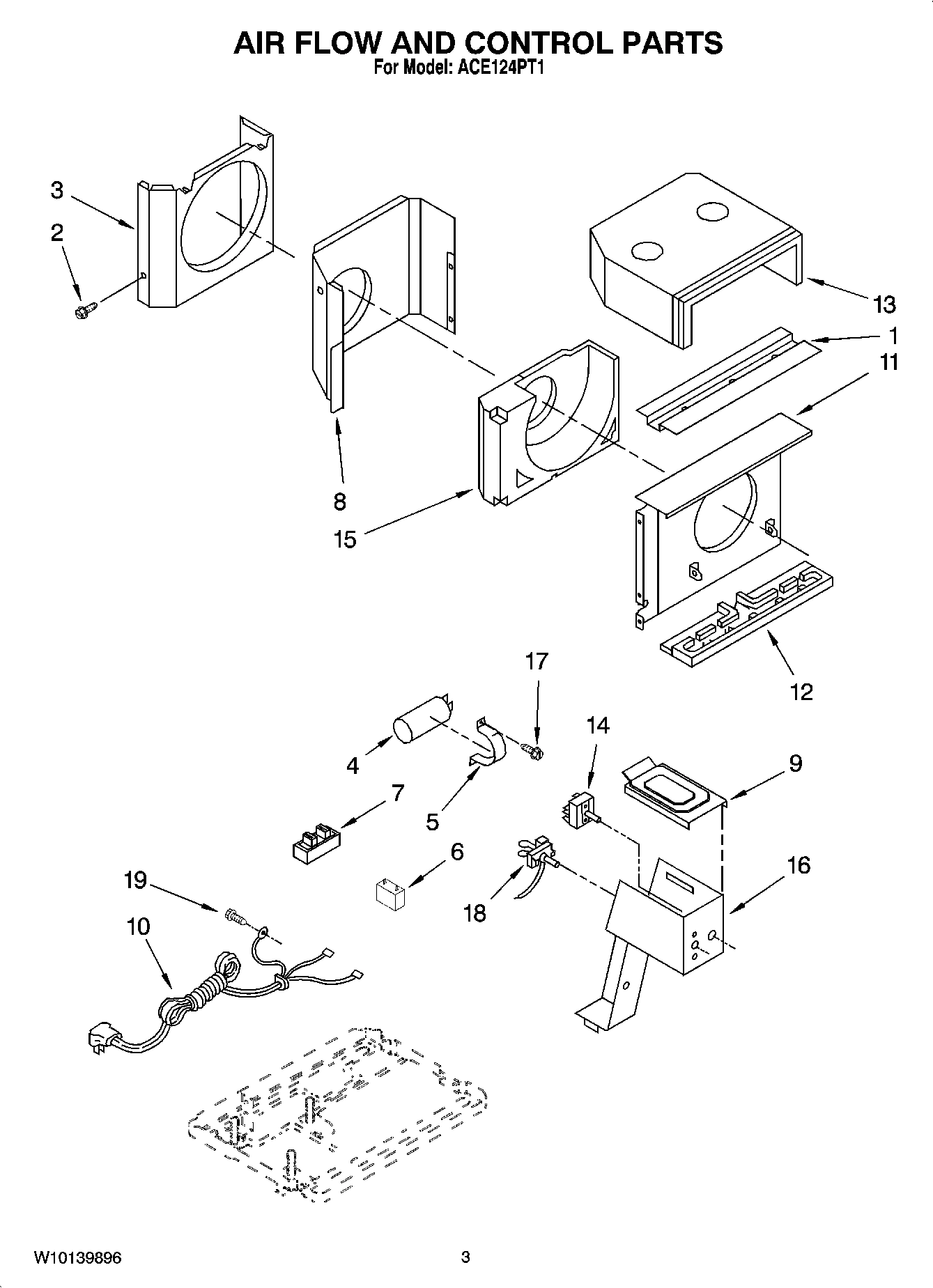

02 - AIR FLOW AND CONTROL PARTS

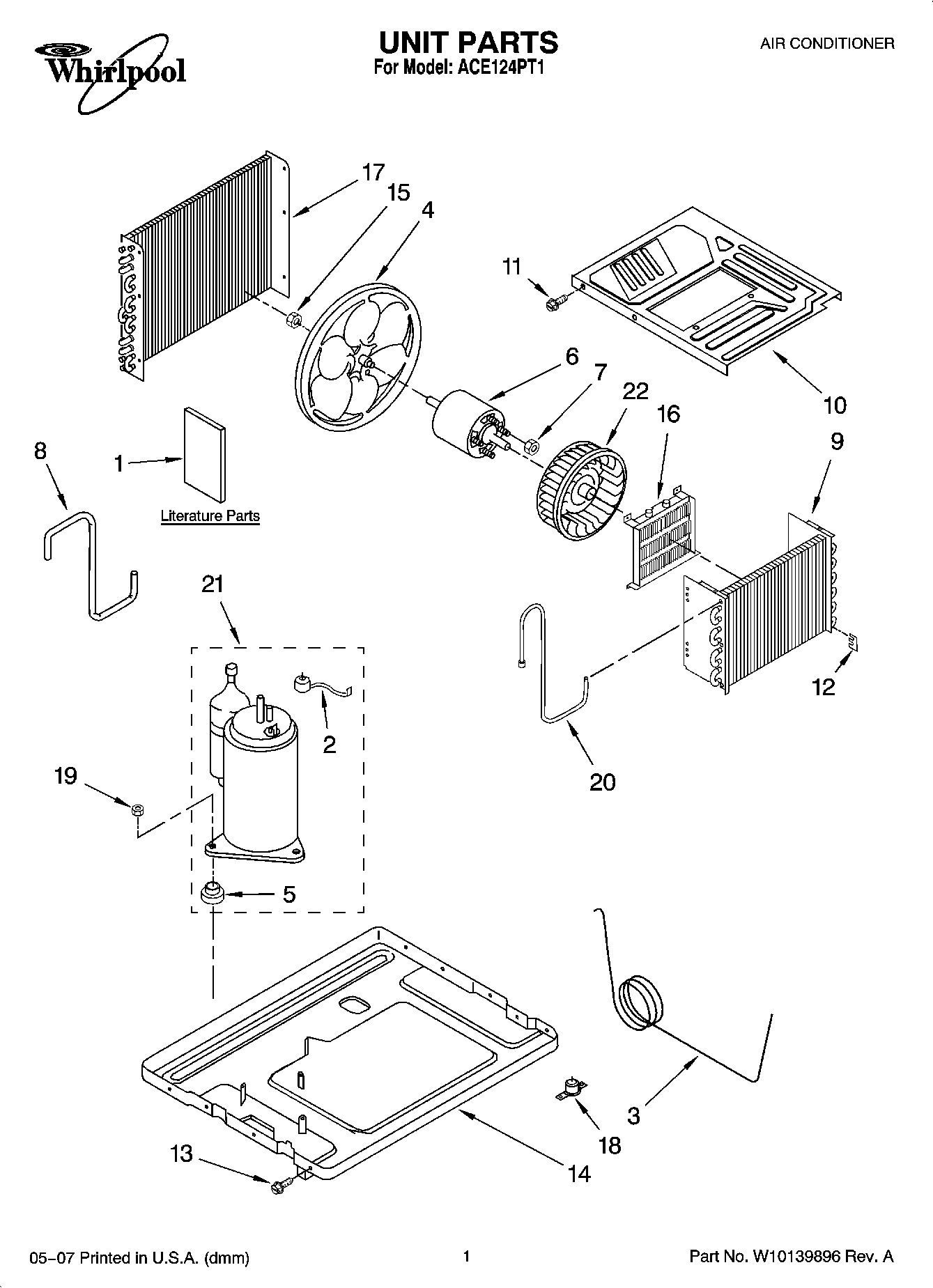

01 - UNIT PARTS

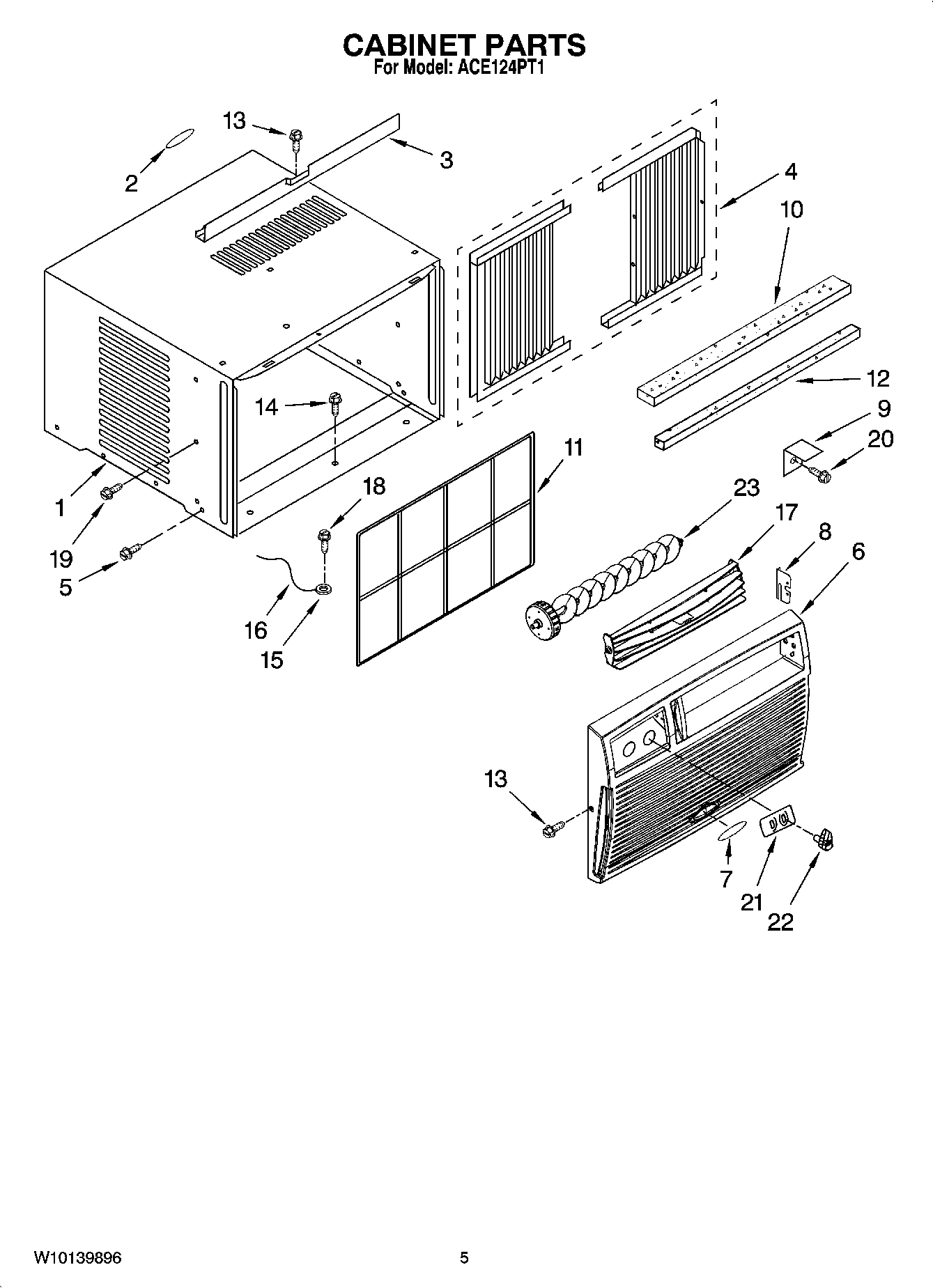

03 - CABINET PARTS
Common parts from model Whirlpool ACE124PT1 AIR CONDITIONER
1
Use & care Guide WPL 8215278 Contact Us For Availability
1
Wiring Diagram WPL W10121864 Contact Us For Availability
1
Energy Guide WPL W10122491 Contact Us For Availability
1
CABINET WPL 8215067 Contact Us For Availability
2
OVERLOAD WPL 8215370 Contact Us For Availability
2
Nameplate, Rear WPL 8209738 Contact Us For Availability
3
Shroud, Condenser WPL 8215064 Contact Us For Availability
3
Tube, Restrictor WPL 8215075 Contact Us For Availability
3
Channel, Top WPL 8215364 Contact Us For Availability
4
Capacitor, Running WPL 8215164 Contact Us For Availability
4
Blade, Fan WPL 8215360 Contact Us For Availability
4
Curtain Assembly Right & Left Side (Includes WPL 8215068 Contact Us For Availability
5
Clamp WPL 8215050 Contact Us For Availability
5
Grommet (3) WPL 8215077 Contact Us For Availability
5
Screw (2) WPL 8215362 Contact Us For Availability
6
Capacitor, Motor WPL 8215163 Contact Us For Availability
6
Motor, Fan WPL 8215374 Contact Us For Availability
6
Front Cabinet WPL 8215081 Contact Us For Availability
7
Board, Terminal WPL 8215089 Contact Us For Availability
7
Nut, Hex WPL 8209660 Contact Us For Availability
7
Nameplate WPL 8209798 Contact Us For Availability
8
Wall, Dividing WPL 8215061 Contact Us For Availability
8
Tube, Discharge WPL 8215373 Contact Us For Availability
8
Support, Louver WPL 8209940 Contact Us For Availability
9
Cover, Control Box WPL 8209947 Contact Us For Availability
9
EVAPORATOR WPL 8215367 Contact Us For Availability
9
Bracket, Window Lock WPL 8209930 Contact Us For Availability
10
Cord, Appliance WPL 8215369 Contact Us For Availability
10
Cover, Evaporator WPL 8215063 Contact Us For Availability
10
Seal-Strip, Wide WPL 8209931 Contact Us For Availability
11
Screw WPL 8209674 Contact Us For Availability
11
Shroud, Evaporator WPL 8215348 Contact Us For Availability
11
Filter WPL 8209938 Contact Us For Availability
12
Pan, Evaporator WPL 8215053 Contact Us For Availability
12
Support, Tube Sensor WPL 8209771 Contact Us For Availability
12
Seal-Strip, Narrow WPL 8209932 Contact Us For Availability
13
Hood, Air Housing WPL 8215055 Contact Us For Availability
14
Switch, Rotary WPL 8215336 Contact Us For Availability
14
BASE WPL 8215372 Contact Us For Availability
14
SCREW WPL 8215271 Contact Us For Availability
15
Nut W/Washer WPL 8215252 Contact Us For Availability
15
WASHER WPL 8215285 Contact Us For Availability
16
Box, Control WPL 8215351 Contact Us For Availability
16
HEATER WPL 8215368 Contact Us For Availability
16
Ground Wire WPL 8215361 Contact Us For Availability
17
CONDENSER WPL 8215375 Contact Us For Availability
17
Louver, Assembly WPL 8209939 Contact Us For Availability
18
Control, Temp. WPL 8215335 Contact Us For Availability
18
Drain Valve WPL 8215344 Contact Us For Availability
18
SCREW WPL 8215284 Contact Us For Availability
19
Screw WPL 8209690 Contact Us For Availability
19
Nut, Hex WPL 8215276 Contact Us For Availability
19
Screw (6) WPL 8215282 Contact Us For Availability
20
Tube, Suction WPL 8215074 Contact Us For Availability
20
Screw (6) WPL 8215272 Contact Us For Availability
21
Compressor Assembly WPL 8215371 Contact Us For Availability
21
Escutcheon WPL 8215350 Contact Us For Availability
22
Wheel, Blower WPL 8215354 Contact Us For Availability
22
REFRIGERANT CHARGE 21.51 oz. WPL ARI19959A7 Contact Us For Availability
22
Knob (Left) WPL 8215084 Contact Us For Availability
22
Knob (Right) WPL 8215349 Contact Us For Availability
23
Louver, Vertical WPL 8209941 Contact Us For Availability
× ![]()
