Model Whirlpool ACE114XM0 AIR CONDITIONER – Common Parts & Diagrams

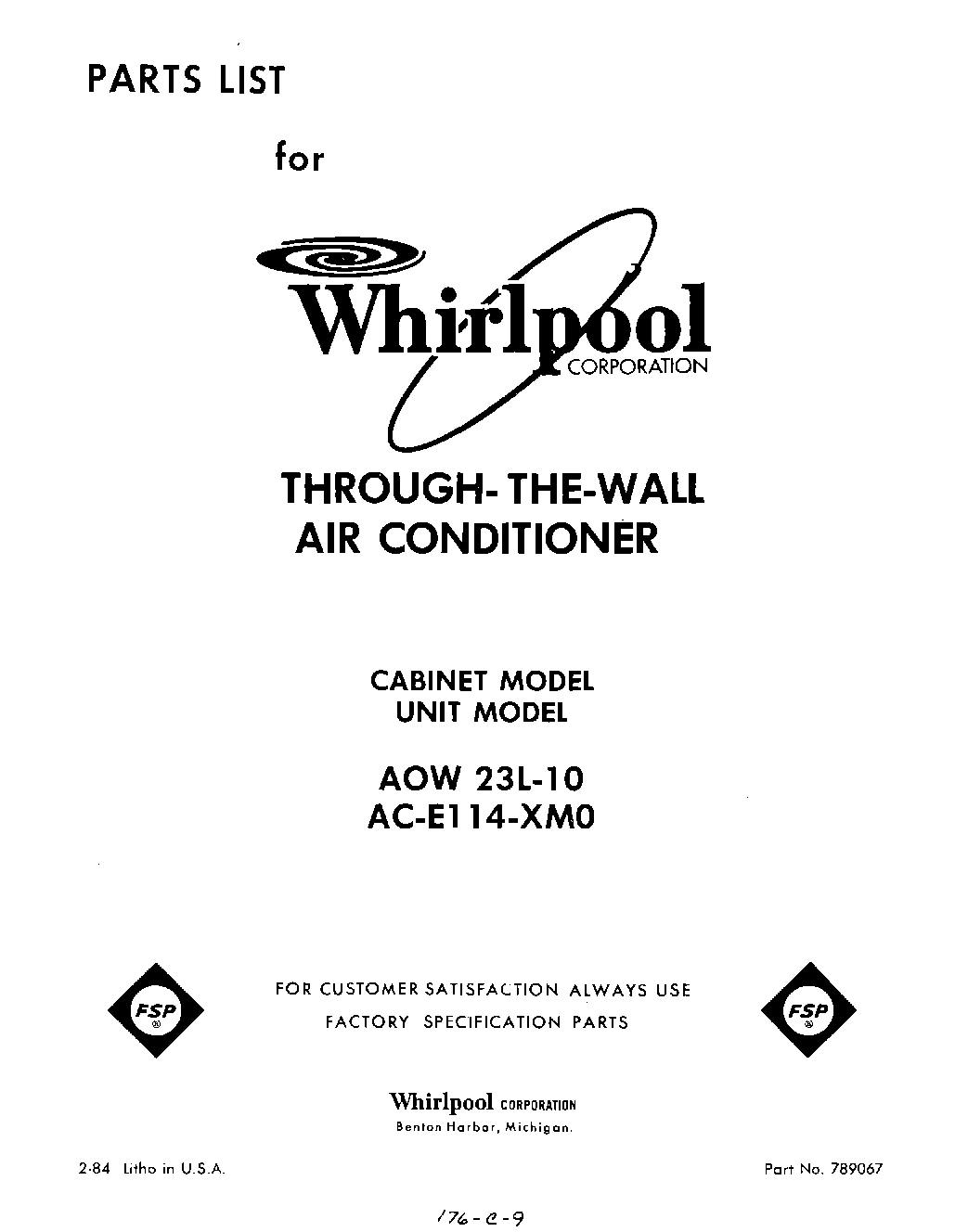

01 - COVER
02 - UNIT PARTS
04 - CABINET AND FRONT PARTS
03 - AIRFLOW PARTS
Common parts from model Whirlpool ACE114XM0 AIR CONDITIONER
1
Clip, Cabinet Front (2) WPL 649966 Contact Us For Availability
1
Wall, Dividing (Requires 649939 Insulation) WPL 998237 Contact Us For Availability
2
Wire, Ground WPL 857017 Contact Us For Availability
2
Capacitor, Running WPL 996105 Contact Us For Availability
3
Screw, St 8-32 x 3/8 WPL 488854 Contact Us For Availability
3
Bracket, Running Capacitor WPL 855992 Contact Us For Availability
4
Front, Cabinet (Complete Assembly) WPL 951115 Contact Us For Availability
4
Bracket, Running Capacitor WPL 475844 Contact Us For Availability
5
Front, Cabinet WPL 950539 Contact Us For Availability
6
Capacitor, Fan WPL 997996 Contact Us For Availability
7
Seal, Cabinet Front WPL 647914 Contact Us For Availability
7
Bracket, Fan Capacitor WPL 998009 Contact Us For Availability
8
Nut, Lock (3) WPL 858121 Contact Us For Availability
8
Seal WPL 649198 Contact Us For Availability
9
Plate, Fan Motor WPL 998024 Contact Us For Availability
9
Filter WPL 648008 Contact Us For Availability
9
Wire, Ground WPL 998010 Contact Us For Availability
10
Motor, Fan WPL 998445 Contact Us For Availability
10
Retainer, Filter WPL 476707 Contact Us For Availability
10
Wire, Ground WPL 948285 Contact Us For Availability
11
Louver, Vertical WPL 647798 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
12
Handle, Vertical Louver (2) WPL 644165 Contact Us For Availability
12
Housing, Blower Wheel WPL 852875 Contact Us For Availability
13
Wheel, Blower WPL 852067 Contact Us For Availability
13
Link, Vertical Louver (2) WPL 647799 Contact Us For Availability
13
Fastener, snap WPL 487808 Contact Us For Availability
14
Evaporator Assembly WPL 949606 Contact Us For Availability
14
Spring, Dent (2) WPL 641484 Contact Us For Availability
14
Channel, Wiring WPL 852317 Contact Us For Availability
15
Tube, Restrictor (2) (Length 36.0``) WPL 949393 Contact Us For Availability
15
Clamp, Cable WPL 648791 Contact Us For Availability
16
Blade, Fan WPL 949536 Contact Us For Availability
16
Knob, Control (2) WPL 947264 Contact Us For Availability
16
Clip, Speed WPL 649620 Contact Us For Availability
17
Condenser Assembly WPL 949394 Contact Us For Availability
17
Screw, Machine 8-32 x 3/8 WPL 488853 Contact Us For Availability
17
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
18
Bend, Return 3-Way WPL 49493 Contact Us For Availability
18
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
19
Bend, Return (3-Way) WPL 476078 Contact Us For Availability
19
Spacer, Escutcheon Plate (3) WPL 470036 Contact Us For Availability
19
Tube, Condensate WPL 49181 Contact Us For Availability
20
Bend, Return 1.608`` WPL 855644 Contact Us For Availability
20
Plate, Escutcheon WPL 950535 Contact Us For Availability
20
Shroud, Condenser WPL 647862 Contact Us For Availability
21
Bend, Return 1.00`` (20) WPL 855199 Contact Us For Availability
21
Cabinet (Requires Insulation 649939) WPL 857273 Contact Us For Availability
21
Pan, Condenser Condensate WPL 859238 Contact Us For Availability
22
Bend, Return .765`` (5) WPL 854624 Contact Us For Availability
22
xScrew, Wood No.10 x 3/4 (8) WPL 487371 Contact Us For Availability
22
Support, Unit WPL 852318 Contact Us For Availability
23
Tube & Strainer Assembly (Includes Illus. 24) WPL 484230 Contact Us For Availability
23
Panel, Front WPL 853974 Contact Us For Availability
23
Retainer, Shroud Cover WPL 647873 Contact Us For Availability
24
Strainer WPL 49599 Contact Us For Availability
24
Cover, Dividing Wall WPL 994399 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
25
Insulation, Cabinet R.S. WPL 647847 Contact Us For Availability
25
Seal, Cabinet Weather WPL 649972 Contact Us For Availability
25
Insulation, Cabinet (Top) WPL 649973 Contact Us For Availability
25
Insulation, Cabinet (L.S.) WPL 857271 Contact Us For Availability
26
Seal WPL 649609 Contact Us For Availability
26
Seal, Cabinet (Bottom) WPL 998961 Contact Us For Availability
26
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
27
Seal WPL 649610 Contact Us For Availability
27
xGrommet, Appliance Cable WPL 647849 Contact Us For Availability
27
Deflector, Heat Assembly WPL 857224 Contact Us For Availability
28
Cover, Tube Opening WPL 994400 Contact Us For Availability
28
Switch, Limit WPL 995674 Contact Us For Availability
29
Screw, Sheet Metal No.8 x 3/8A WPL 488624 Contact Us For Availability
30
Overload WPL 949398 Contact Us For Availability
30
Heater, Air (Replacement Fuse Part Number 484 WPL 995675 Contact Us For Availability
31
Spring, Overload WPL 994171 Contact Us For Availability
32
Anticipator, Temperature WPL 484238 Contact Us For Availability
33
Clip, Anticipator WPL 642080 Contact Us For Availability
33
Cover, Wire Enclosure WPL 857203 Contact Us For Availability
34
Cover, Terminal WPL 647152 Contact Us For Availability
34
Cover, Evaporator WPL 856957 Contact Us For Availability
35
Strap, Terminal Cover WPL 643299 Contact Us For Availability
35
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
36
Gasket, Terminal Cover WPL 647154 Contact Us For Availability
36
Box, Control Assembly WPL 951100 Contact Us For Availability
37
Switch, Rotary WPL 950525 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
38
Screw, 6-20 x .362 (2) WPL 488735 Contact Us For Availability
39
Cup, Condensate Pan WPL 647850 Contact Us For Availability
39
Control, Temperature WPL 994200 Contact Us For Availability
40
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
40
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
41
Clip, Balancing WPL 485334 Contact Us For Availability
41
Contactor WPL 858771 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
42
Grommet, Wiring WPL 647865 Contact Us For Availability
43
Washer, Repair (4) WPL 470280 Contact Us For Availability
43
Ground, Wire WPL 857634 Contact Us For Availability
44
Cable, Appliance WPL 649125 Contact Us For Availability
45
Guard, Impeller WPL 997949 Contact Us For Availability
47
Door, Exhaust WPL 649720 Contact Us For Availability
48
Spring, Door WPL 859369 Contact Us For Availability
49
Bushi WPL 647879 Contact Us For Availability
50
xRelay WPL 484275 Contact Us For Availability
50
WPL 852023 WPL 852023 Contact Us For Availability
51
xCapacitor WPL 484358 Contact Us For Availability
51
WPL 647881 WPL 647881 Contact Us For Availability
52
xCap, Capacitor WPL 791869 Contact Us For Availability
52
WPL 647882 WPL 647882 Contact Us For Availability
53
xScrew, 10 x 5/8 (2) WPL 487880 Contact Us For Availability
53
WPL 47261 WPL 47261 Contact Us For Availability
53
WPL 47262 WPL 47262 Contact Us For Availability
53
WPL 47263 WPL 47263 Contact Us For Availability
53
WPL 485426 WPL 485426 Contact Us For Availability
53
WPL 489092 WPL 489092 Contact Us For Availability
53
WPL 789067 WPL 789067 Contact Us For Availability
53
WPL 799351 WPL 799351 Contact Us For Availability
53
WPL 950356 WPL 950356 Contact Us For Availability
53
WPL 951191 WPL 951191 Contact Us For Availability
53
WPL 951193 WPL 951193 Contact Us For Availability
53
WPL 997236 WPL 997236 Contact Us For Availability
54
xBracket, capacitor WPL 35564 Contact Us For Availability
55
Multiplier, Terminal WPL 90654 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 505168 WPL 505168 Contact Us For Availability
58
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
58
xFlag, Terminal (8) WPL 45571 Contact Us For Availability
58
Start Assist Kit WPL 484220 Contact Us For Availability
58
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
58
St WPL 484397 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
