Model Whirlpool ACE114XH0 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET PARTS
01 - UNIT PARTS

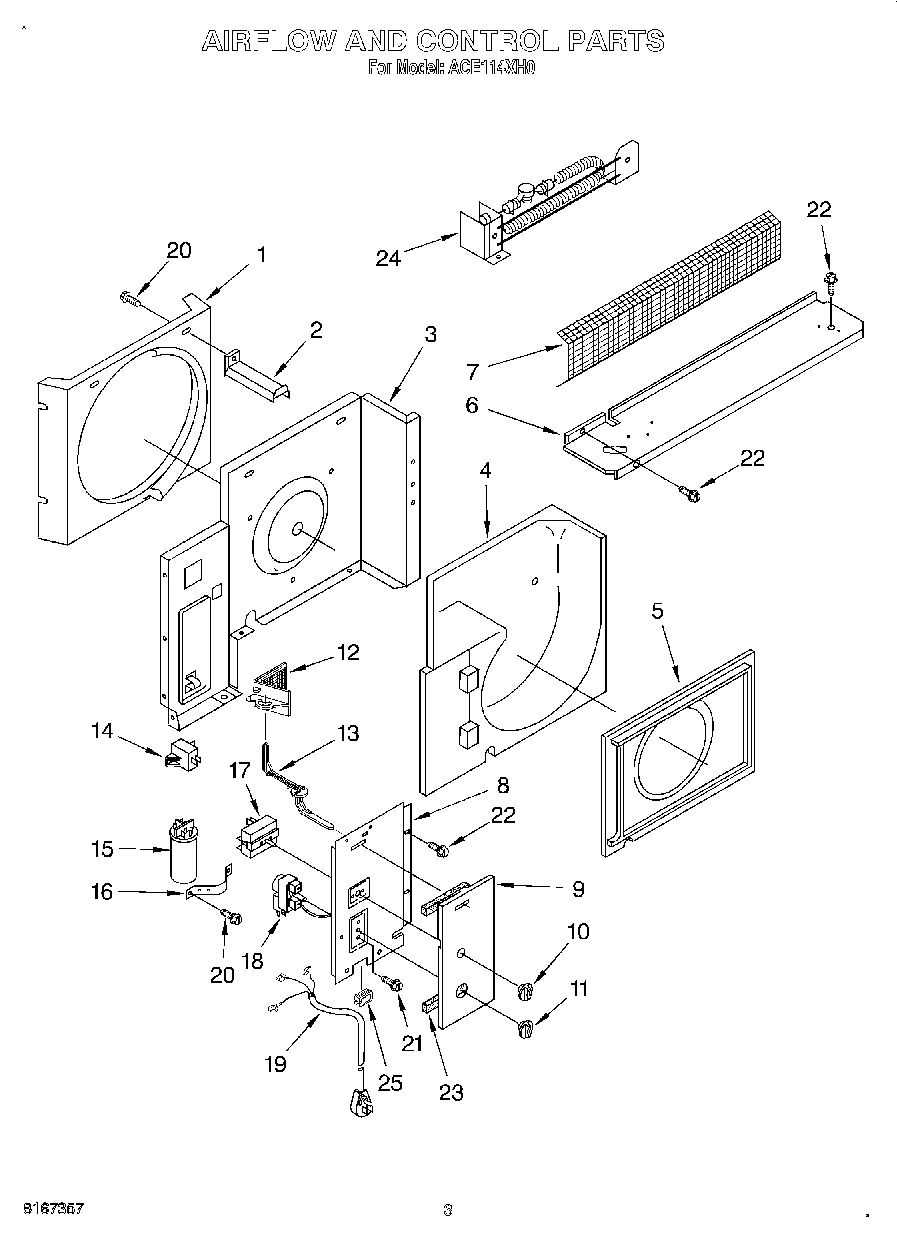

02 - AIRFLOW AND CONTROL PARTS
Common parts from model Whirlpool ACE114XH0 AIR CONDITIONER
1
Cabinet Assembly (Includes Insulation & Item WPL 789609 Contact Us For Availability
1
Use & Care Guide WPL LIT1182602 Contact Us For Availability
1
Shroud, Condenser WPL 789637 Contact Us For Availability
2
Front Assembly WPL 789607 Contact Us For Availability
2
Pan, Drain (Evaporator) WPL 789856 Contact Us For Availability
2
Support, Unit WPL 789638 Contact Us For Availability
3
Filter, Air WPL 789851 Contact Us For Availability
3
Cover, Drain Pan WPL 789858 Contact Us For Availability
3
Wall, Dividing WPL 789758 Contact Us For Availability
4
Louver Assembly (Not Serviced Separately) WPL ARI19953A9 Contact Us For Availability
4
Clip, Thermostat Bulb WPL 789628 Contact Us For Availability
4
Scroll, Blower WPL 789644 Contact Us For Availability
5
Base WPL 789764 Contact Us For Availability
5
Shroud, Evaporator WPL 789875 Contact Us For Availability
6
Seal, Front WPL 789736 Contact Us For Availability
6
Tube, Restrictor .049 I.D. x 41`` (2) WPL 789671 Contact Us For Availability
6
Cover, Evaporator WPL 789874 Contact Us For Availability
7
Seal, Front WPL 789737 Contact Us For Availability
7
Condenser WPL 789752 Contact Us For Availability
7
Screen, Air Discharge WPL 789645 Contact Us For Availability
8
Frame and Foam Assembly (Top) WPL 789611 Contact Us For Availability
8
Blade, Fan (Condenser) WPL 789636 Contact Us For Availability
8
Panel, Control WPL 789760 Contact Us For Availability
9
Frame and Foam Assembly (Bottom) WPL 789613 Contact Us For Availability
9
Motor, Fan WPL 789641 Contact Us For Availability
9
Escutcheon (Also Order No. 23) WPL 789866 Contact Us For Availability
10
Frame and Foam Assembly (Side) ((Left Side)) WPL 789610 Contact Us For Availability
10
Frame and Foam Assembly (Side) ((Right Side)) WPL 789612 Contact Us For Availability
10
Knob, Fan Switch WPL 789617 Contact Us For Availability
11
Plate, Motor Mounting WPL 789793 Contact Us For Availability
11
Knob, Thermostat WPL 789619 Contact Us For Availability
12
Wheel, Blower (Includes Clamp) WPL 789773 Contact Us For Availability
12
Door, Exhaust WPL 789798 Contact Us For Availability
13
Evaporator WPL 789872 Contact Us For Availability
13
Actuator, Door WPL 789634 Contact Us For Availability
14
Baffle, Condenser WPL 789615 Contact Us For Availability
14
Grommet WPL 789755 Contact Us For Availability
14
Assist, Start WPL 789801 Contact Us For Availability
15
Guard, Wire WPL 789614 Contact Us For Availability
15
Clip (2) WPL 789763 Contact Us For Availability
15
Capacitor WPL 789631 Contact Us For Availability
16
Strap, Capacitor WPL 789871 Contact Us For Availability
17
Screw WPL 4380603 Contact Us For Availability
17
Switch, Rotary WPL 789870 Contact Us For Availability
18
Insulation, Cabinet (Side) ((Right Side)) WPL 789738 Contact Us For Availability
18
Insulation, Cabinet (Side) ((Left Side)) WPL 789739 Contact Us For Availability
18
Thermostat WPL 789627 Contact Us For Availability
19
Seal, Strip (Top Rear) WPL 1181046 Contact Us For Availability
19
Sleeve, Cabinet WPL 4378882 Contact Us For Availability
19
Cable, Appliance WPL 789868 Contact Us For Availability
20
Compressor WPL 789826 Contact Us For Availability
20
Screw No.8 x 1/2 WPL 4363526 Contact Us For Availability
21
Sleeve (3) WPL 789783 Contact Us For Availability
22
Screw No.8 x 1/4 WPL 3148443 Contact Us For Availability
22
Grommet (3) WPL 789827 Contact Us For Availability
24
Nut WPL 789661 Contact Us For Availability
24
Heater Assembly WPL 789873 Contact Us For Availability
25
Relief, Strain WPL 789867 Contact Us For Availability
26
Overload WPL 789825 Contact Us For Availability
27
Spring, Overload WPL 789822 Contact Us For Availability
28
Cover, Terminal WPL 789823 Contact Us For Availability
29
Retainer, Terminal Cover WPL 789824 Contact Us For Availability
30
Strainer WPL 789673 Contact Us For Availability
30
Snubber, Two 1/4 Tubes WPL 789735 Contact Us For Availability
× ![]()
