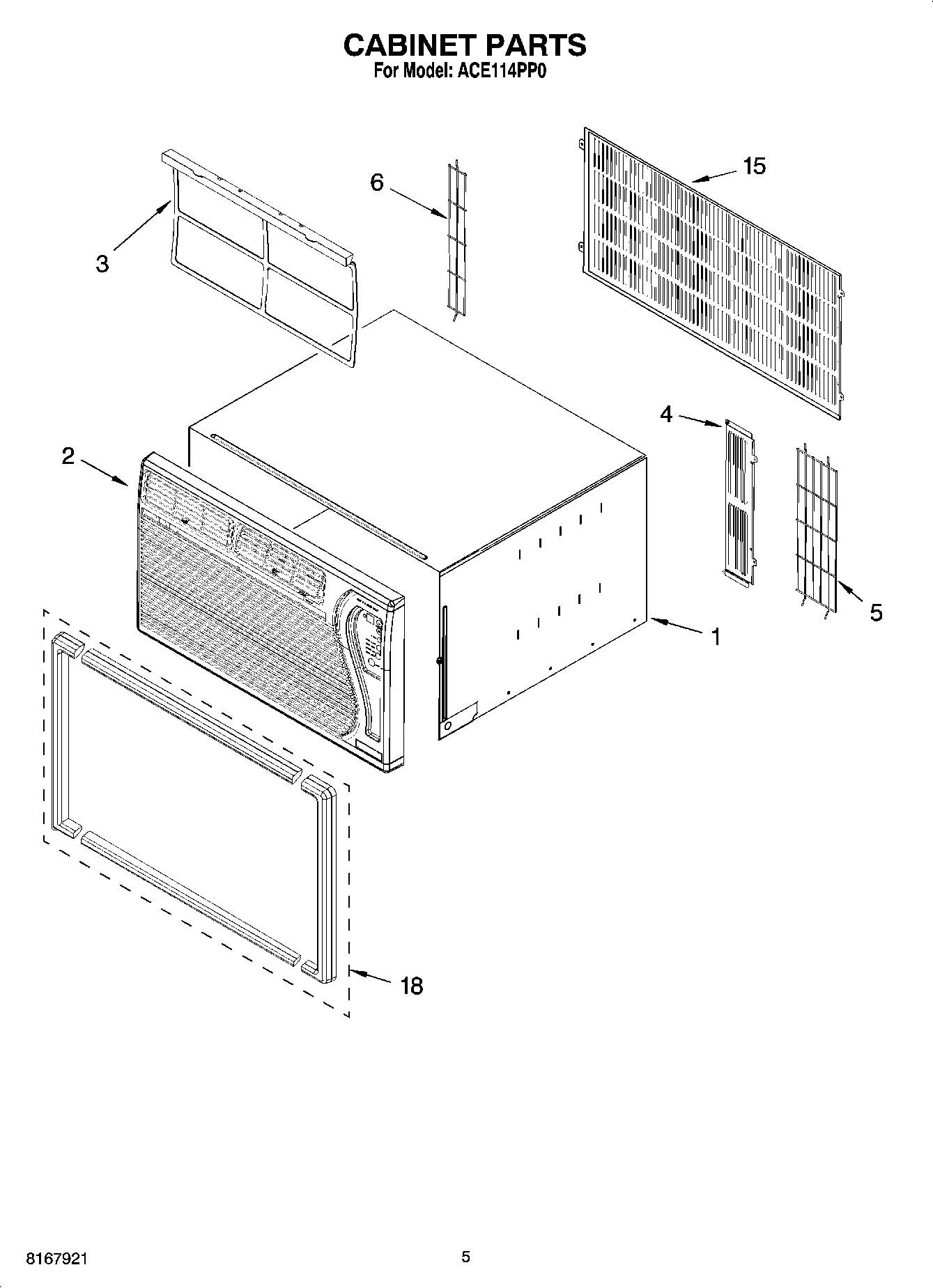

Model Whirlpool ACE114PP0 AIR CONDITIONER – Common Parts & Diagrams

1
Shroud, Condenser
Shroud, Condenser WPL 8199597 Contact Us For Availability
View on Model
1
Use And Care Guide
Use And Care Guide WPL 8199583 Contact Us For Availability
View on Model
1
Cabinet Assembly
Cabinet Assembly WPL 8199577 Contact Us For Availability
View on Model
2
Mount, Motor
Mount, Motor WPL 8199600 Contact Us For Availability
View on Model
2
Pan, Drain (Evaporator)
Pan, Drain (Evaporator) WPL 8199629 Contact Us For Availability
View on Model
2
Front Assembly (Includes Nameplate)
Front Assembly (Includes Nameplate) WPL 8199652 Contact Us For Availability
View on Model
3
Wall, Dividing
Wall, Dividing WPL 8199601 Contact Us For Availability
View on Model
3
Spring, Overload
Spring, Overload WPL 789830 Contact Us For Availability
View on Model
3
Filter, Air
Filter, Air WPL 8199657 Contact Us For Availability
View on Model
4
Housing, Blower
Housing, Blower WPL 8199602 Contact Us For Availability
View on Model
4
Clip, Thermistor
Clip, Thermistor WPL 8199539 Contact Us For Availability
View on Model
4
Deflector, Air
Deflector, Air WPL 8199581 Contact Us For Availability
View on Model
5
Shroud, Evaporator
Shroud, Evaporator WPL 8199606 Contact Us For Availability
View on Model
5
Base
Base WPL 8199661 Contact Us For Availability
View on Model
5
Grille, Rear-Wire Large
Grille, Rear-Wire Large WPL 8199579 Contact Us For Availability
View on Model
6
Insert, Shroud
Insert, Shroud WPL 8199608 Contact Us For Availability
View on Model
6
Tube, Restrictor
Tube, Restrictor WPL 789671 Contact Us For Availability
View on Model
6
Grille, Rear-Wire Small
Grille, Rear-Wire Small WPL 8199580 Contact Us For Availability
View on Model
7
Heater
Heater WPL 8199663 Contact Us For Availability
View on Model
7
Condenser
Condenser WPL 8199626 Contact Us For Availability
View on Model
9
Motor, Fan
Motor, Fan WPL 8199599 Contact Us For Availability
View on Model
10
Wheel, Blower
Wheel, Blower WPL 8199603 Contact Us For Availability
View on Model
11
Door, Exhaust
Door, Exhaust WPL 8199607 Contact Us For Availability
View on Model
12
Transformer
Transformer WPL 8199542 Contact Us For Availability
View on Model
13
Control Assembly
Control Assembly WPL 8199664 Contact Us For Availability
View on Model
13
Evaporator
Evaporator WPL 8199628 Contact Us For Availability
View on Model
14
Control, Remote
Control, Remote WPL 8199591 Contact Us For Availability
View on Model
14
Grommet
Grommet WPL 8199630 Contact Us For Availability
View on Model
15
Capacitor
Capacitor WPL 8199593 Contact Us For Availability
View on Model
15
Grille, Rear
Grille, Rear WPL 8199658 Contact Us For Availability
View on Model
18
Frame, Trim Assembly Kit (Includes Sides, Top
Frame, Trim Assembly Kit (Includes Sides, Top WPL 4396738 Contact Us For Availability
View on Model
18
Sleeve, Cabinet
Sleeve, Cabinet WPL 4396743 Contact Us For Availability
View on Model
18
Following Parts Not Illustrated (Optional Par
Following Parts Not Illustrated (Optional Par WPL ARI19952A2 Contact Us For Availability
View on Model
19
Cable, Appliance
Cable, Appliance WPL 8199650 Contact Us For Availability
View on Model
20
Clamp
Clamp WPL 8199610 Contact Us For Availability
View on Model
20
Compressor
Compressor WPL 8199659 Contact Us For Availability
View on Model
21
Sleeve (3)
Sleeve (3) WPL 789783 Contact Us For Availability
View on Model
22
Blade Fan, Condenser
Blade Fan, Condenser WPL 8199595 Contact Us For Availability
View on Model
22
Grommet (3)
Grommet (3) WPL 789827 Contact Us For Availability
View on Model
24
Nut
Nut WPL 789661 Contact Us For Availability
View on Model
25
Relief, Strain
Relief, Strain WPL 8199590 Contact Us For Availability
View on Model
26
Overload
Overload WPL 8199660 Contact Us For Availability
View on Model
27
Gasket, Terminal
Gasket, Terminal WPL 8199631 Contact Us For Availability
View on Model
28
Cover, Terminal
Cover, Terminal WPL 8199646 Contact Us For Availability
View on Model
29
Strainer
Strainer WPL 789673 Contact Us For Availability
View on Model
29
Snubber
Snubber WPL 789735 Contact Us For Availability
View on Model
29
Nut, Terminal Cover
Nut, Terminal Cover WPL 789912 Contact Us For Availability
View on Model
29
Filler, Panel
Filler, Panel WPL 789985 Contact Us For Availability
View on Model
29
Valve, Drain Pan
Valve, Drain Pan WPL 8199662 Contact Us For Availability
View on Model
29
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI19950A8 Contact Us For Availability
View on Model
29
REFRIGERANT CHARGE 22.00 oz.
REFRIGERANT CHARGE 22.00 oz. WPL ARI19951A7 Contact Us For Availability
View on Model
