Model Whirlpool ACE094XT0 AIR CONDITIONER – Common Parts & Diagrams
02 - UNIT, LITERATURE
04 - FRONT, CABINET

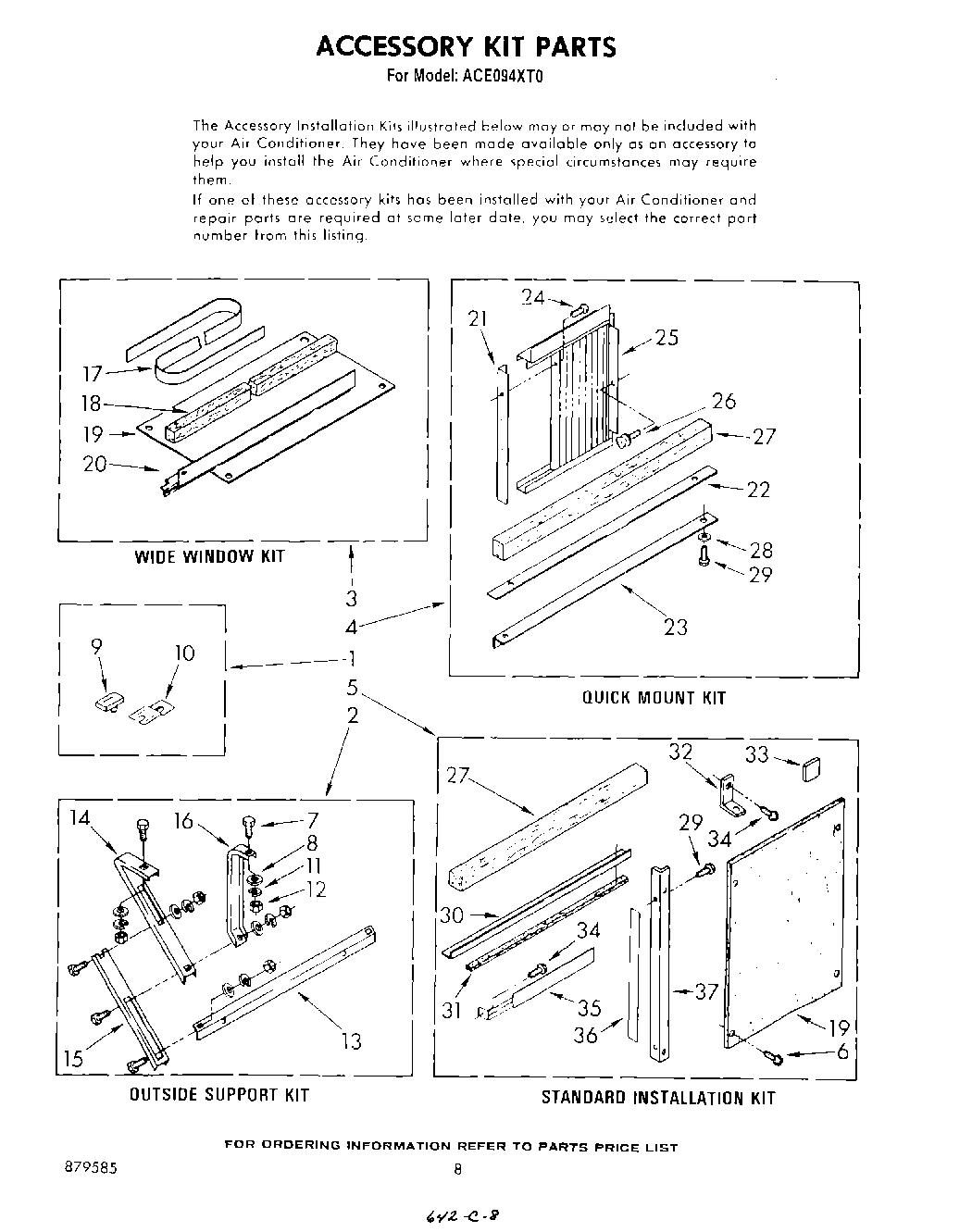

06 - ACCESSORY KIT, LITERATURE (CONTINUED)

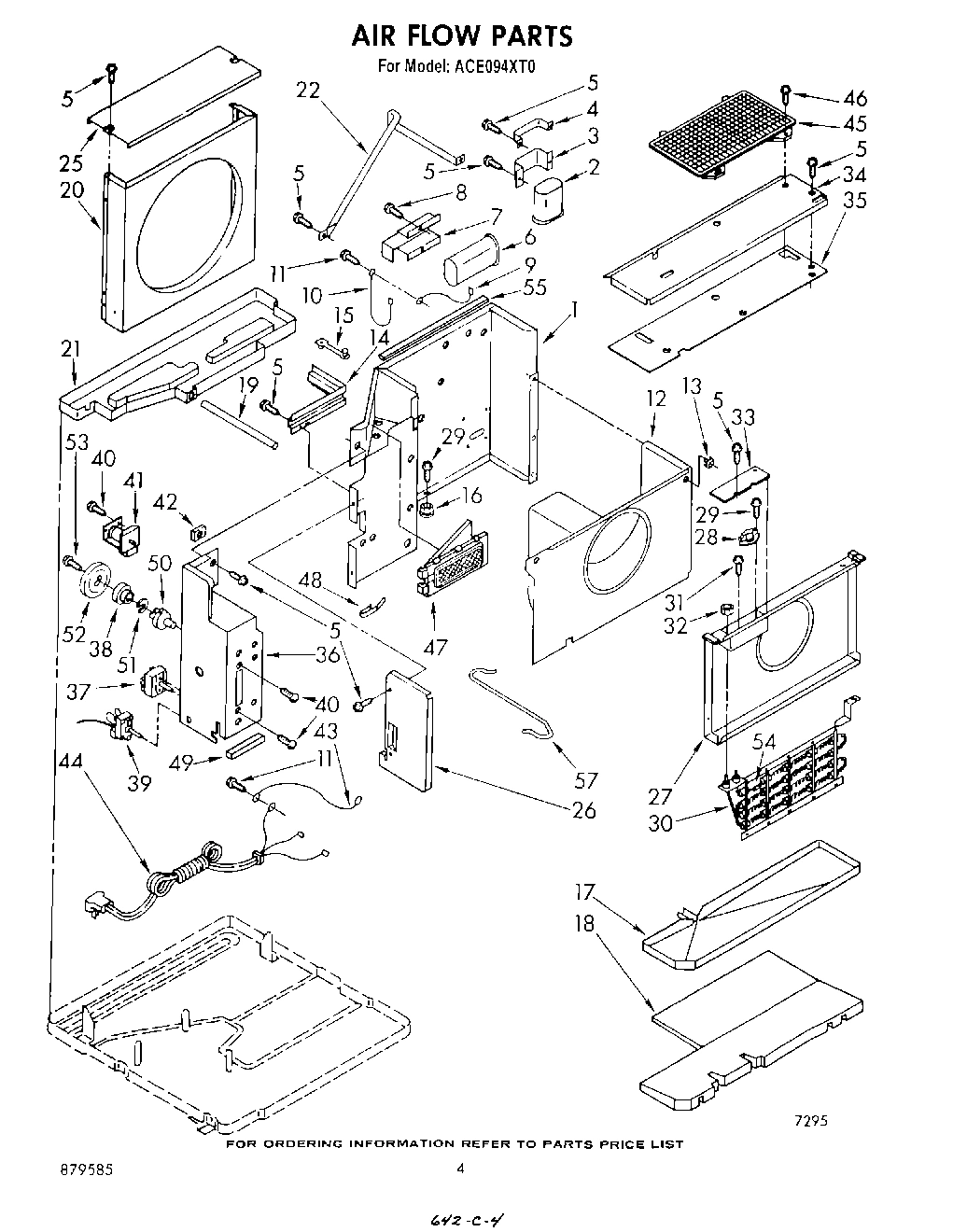

03 - AIR FLOW

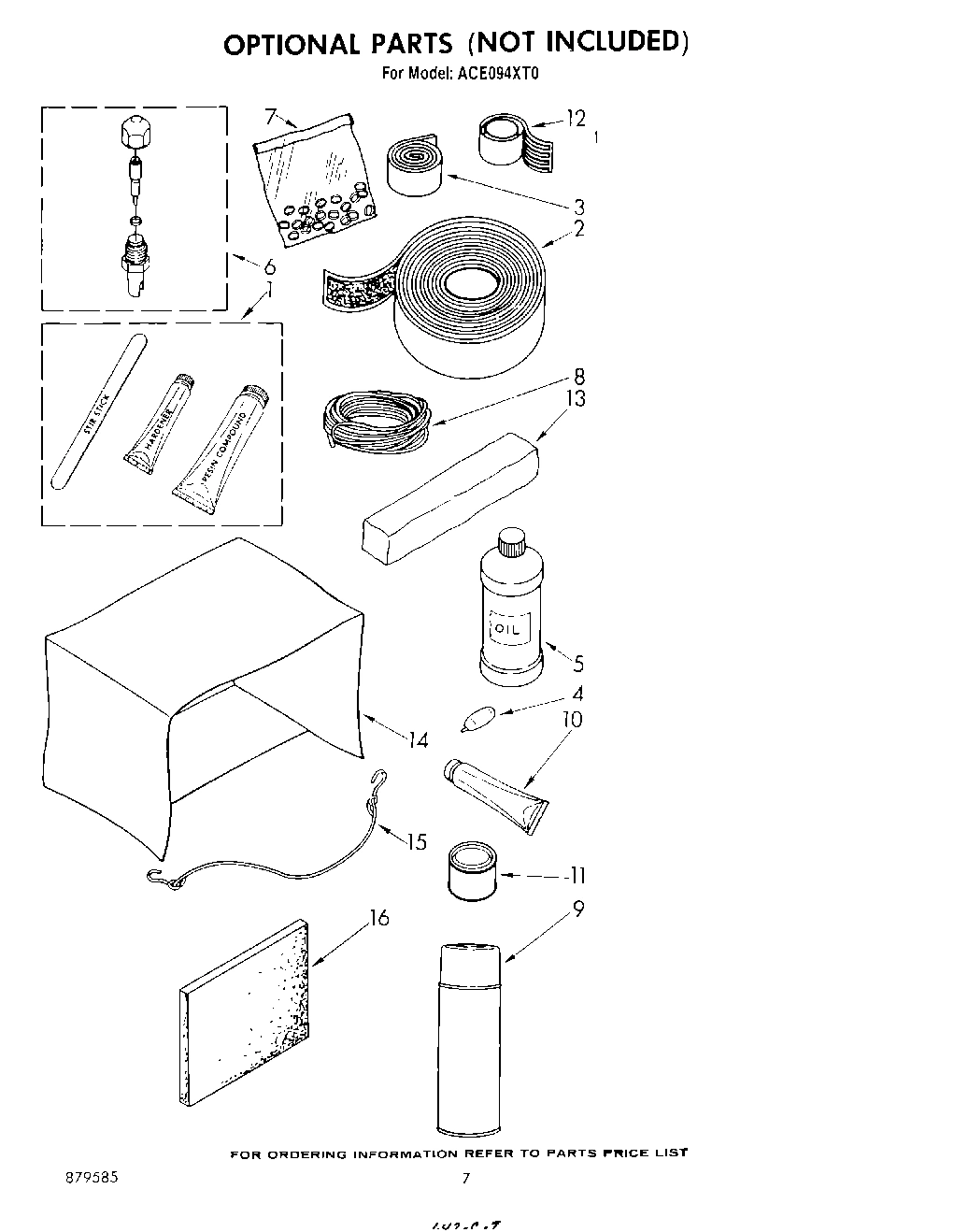

05 - LIT/OPTIONAL
Common parts from model Whirlpool ACE094XT0 AIR CONDITIONER
1
Front, Cabinet (Complete Assembly) WPL 951115 Contact Us For Availability
1
Kit, Condensate Cup WPL 978929 Contact Us For Availability
1
Wall, Dividing (Requires 649939 Insulation) WPL 998003 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Frame, Front WPL 950539 Contact Us For Availability
2
Kit, Outside Support WPL 485679 Contact Us For Availability
2
Capacitor, Running WPL 999785 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Seal, Front (Middle) WPL 647914 Contact Us For Availability
3
Kit, Wide Window WPL 485676 Contact Us For Availability
3
Bracket, Running Capacitor WPL 855992 Contact Us For Availability
4
Filter, Air WPL 468008 Contact Us For Availability
4
Kit, Quick Mount WPL 485675 Contact Us For Availability
4
Bracket, Running Capacitor WPL 475844 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Retainer, Filter WPL 476707 Contact Us For Availability
5
Kit, Standard Installation WPL 485674 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Louver, Vertical WPL 647798 Contact Us For Availability
6
Capacitor, Fan WPL 999757 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Handle, Louver WPL 644165 Contact Us For Availability
7
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
7
Bracket, Fan Capacitor WPL 998009 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Link, Louver (2) WPL 647799 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Cup, Condensate WPL 647850 Contact Us For Availability
9
Spring, Clip (2) WPL 641484 Contact Us For Availability
9
Wire, Ground WPL 998010 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Plate, Escutcheon WPL 952595 Contact Us For Availability
10
Support, Cup WPL 995075 Contact Us For Availability
10
Wire, Ground WPL 948285 Contact Us For Availability
11
Lockwasher WPL 486009 Contact Us For Availability
11
Spacer, Escutcheon (3) WPL 470036 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
12
Knob, Control (3) WPL 947264 Contact Us For Availability
12
Nut, 1/4-20 WPL 486035 Contact Us For Availability
12
Housing, Blower Wheel WPL 852875 Contact Us For Availability
13
Wheel, Blower WPL 859495 Contact Us For Availability
13
Bracket, Cabinet Support WPL 644281 Contact Us For Availability
13
Fastener, snap WPL 487808 Contact Us For Availability
14
Evaporator WPL 950174 Contact Us For Availability
14
Support, Cabinet (2) WPL 644283 Contact Us For Availability
14
Channel, Wiring WPL 852317 Contact Us For Availability
15
Tube, Restrictor (2) (33.0`` Length) WPL 951539 Contact Us For Availability
15
Extension, Support (2) WPL 644284 Contact Us For Availability
15
Clamp, Cable WPL 648791 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Blade, Fan WPL 859496 Contact Us For Availability
16
Retainer, Support (2) WPL 644285 Contact Us For Availability
16
Clip, Speed WPL 853831 Contact Us For Availability
16
Insulation, Cabinet (Right Side) WPL 647847 Contact Us For Availability
16
Insulation, Cabinet (Left Side) WPL 647848 Contact Us For Availability
16
Insulation, Cabinet (Top) WPL 950157 Contact Us For Availability
17
Condenser WPL 951538 Contact Us For Availability
17
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
18
Tube, 90~ WPL 950814 Contact Us For Availability
18
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
18
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
19
Tube, Flow Divider WPL 947364 Contact Us For Availability
19
Board, Filler (2) WPL 647835 Contact Us For Availability
19
Tube, Condensate WPL 465777 Contact Us For Availability
20
Bend, Return (3-Way) WPL 476078 Contact Us For Availability
20
Cabinet WPL 857274 Contact Us For Availability
20
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
20
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
20
Shroud, Condenser WPL 853356 Contact Us For Availability
21
Bend, Return Condenser (22) Evaporator (15) WPL 855199 Contact Us For Availability
21
Insulation, Cabinet WPL 855438 Contact Us For Availability
21
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
21
Pan, Condenser Condensate WPL 859238 Contact Us For Availability
22
Bend, Return Condenser (4) Evaporator (4) WPL 854624 Contact Us For Availability
22
Screw No.10 x 3/4 (8) WPL 487371 Contact Us For Availability
22
Strip, Seal WPL 477597 Contact Us For Availability
22
Support, Unit WPL 852318 Contact Us For Availability
23
Tube, Outlet (Includes No.24) WPL 484230 Contact Us For Availability
23
Panel, Front WPL 853974 Contact Us For Availability
23
Channel, Bottom Mounting WPL 644387 Contact Us For Availability
24
Strainer, Tube WPL 49599 Contact Us For Availability
24
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
25
Seal, Cabinet Bottom WPL 647854 Contact Us For Availability
25
Seal, Cabinet Weather WPL 649972 Contact Us For Availability
25
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
25
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
25
Cover, Shroud (Condenser) WPL 853390 Contact Us For Availability
26
Bend, Return (3-Way) WPL 953169 Contact Us For Availability
26
Grommet, Cable WPL 647849 Contact Us For Availability
26
Thumbscrew (2) WPL 475581 Contact Us For Availability
26
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
27
Seal, Meeting Rail WPL 469877 Contact Us For Availability
27
Deflector, Heat Assembly WPL 857224 Contact Us For Availability
28
Washer (2) WPL 488520 Contact Us For Availability
28
Switch, Limit WPL 995674 Contact Us For Availability
29
Spring, Overload WPL 950032 Contact Us For Availability
29
Screw, Sheet Metal No.8 x 3/8A WPL 488624 Contact Us For Availability
30
Channel, Top Mounting WPL 644380 Contact Us For Availability
30
Heater, Air WPL 995675 Contact Us For Availability
31
Tube, Outlet WPL 993755 Contact Us For Availability
31
Seal WPL 855265 Contact Us For Availability
32
Anticipator, Temperature WPL 484238 Contact Us For Availability
32
Bracket, Window Lock WPL 644228 Contact Us For Availability
33
Clip, Anticipator WPL 642080 Contact Us For Availability
33
Block, Spacer (4) WPL 995274 Contact Us For Availability
33
Cover, Wire Enclosure WPL 857203 Contact Us For Availability
34
Wood Screw, No.8 x 3/4 (5) WPL 488255 Contact Us For Availability
34
Cover, Evaporator WPL 856957 Contact Us For Availability
35
Bracket, R.S. WPL 645562 Contact Us For Availability
35
Bracket, L.S. WPL 645563 Contact Us For Availability
35
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
36
Tube, Outlet WPL 993756 Contact Us For Availability
36
Strip, Seal WPL 856979 Contact Us For Availability
36
box, control WPL 952380 Contact Us For Availability
37
Instructions, Installation (Kit, Quick Mount) WPL 485687 Contact Us For Availability
37
Instructions, Installation (Kit, Wide Window) WPL 485688 Contact Us For Availability
37
Instructions, Installation (Kit, Outside Supp WPL 485707 Contact Us For Availability
37
Angle, Side Mounting (2) WPL 645564 Contact Us For Availability
37
Instructions, Installation (Kit, Condensate C WPL 978930 Contact Us For Availability
37
Instructions, Installation (Kit, Standard Ins WPL 993380 Contact Us For Availability
37
Switch, Rotary WPL 950525 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
38
Bushing, Shaft WPL 647879 Contact Us For Availability
39
Control, Temperature WPL 1155806 Contact Us For Availability
40
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
40
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
41
Clip, Balancing WPL 876034 Contact Us For Availability
41
Contactor WPL 858771 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
42
Grommet, Wiring WPL 647865 Contact Us For Availability
43
Clip, Cabinet Front (2) WPL 949634 Contact Us For Availability
43
Ground, Wire WPL 857634 Contact Us For Availability
44
Cable, Appliance WPL 649125 Contact Us For Availability
45
Guard, Impeller WPL 997949 Contact Us For Availability
47
Door, Exhaust WPL 649720 Contact Us For Availability
48
Spring, Door WPL 859369 Contact Us For Availability
49
Seal, panel WPL 853170 Contact Us For Availability
50
Shaft, Control WPL 852023 Contact Us For Availability
51
Spring, Washer WPL 647881 Contact Us For Availability
52
Cam, Control WPL 647882 Contact Us For Availability
54
Fuse, Heater WPL 876903 Contact Us For Availability
57
Wire, Cont WPL 859370 Contact Us For Availability
× ![]()
