Model Whirlpool ACE082XP2 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET PARTS
01 - UNIT PARTS

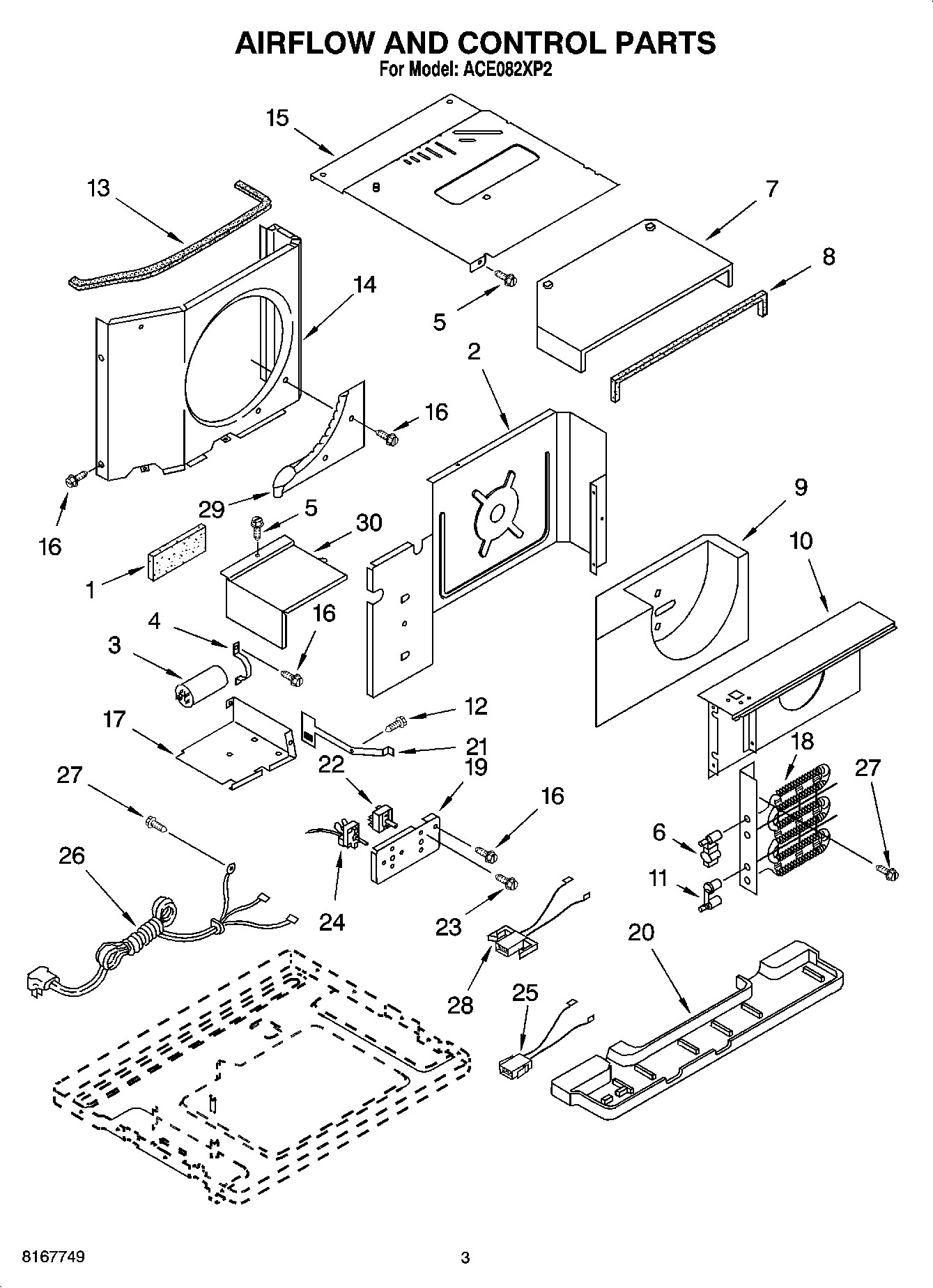

02 - AIR FLOW AND CONTROL PARTS

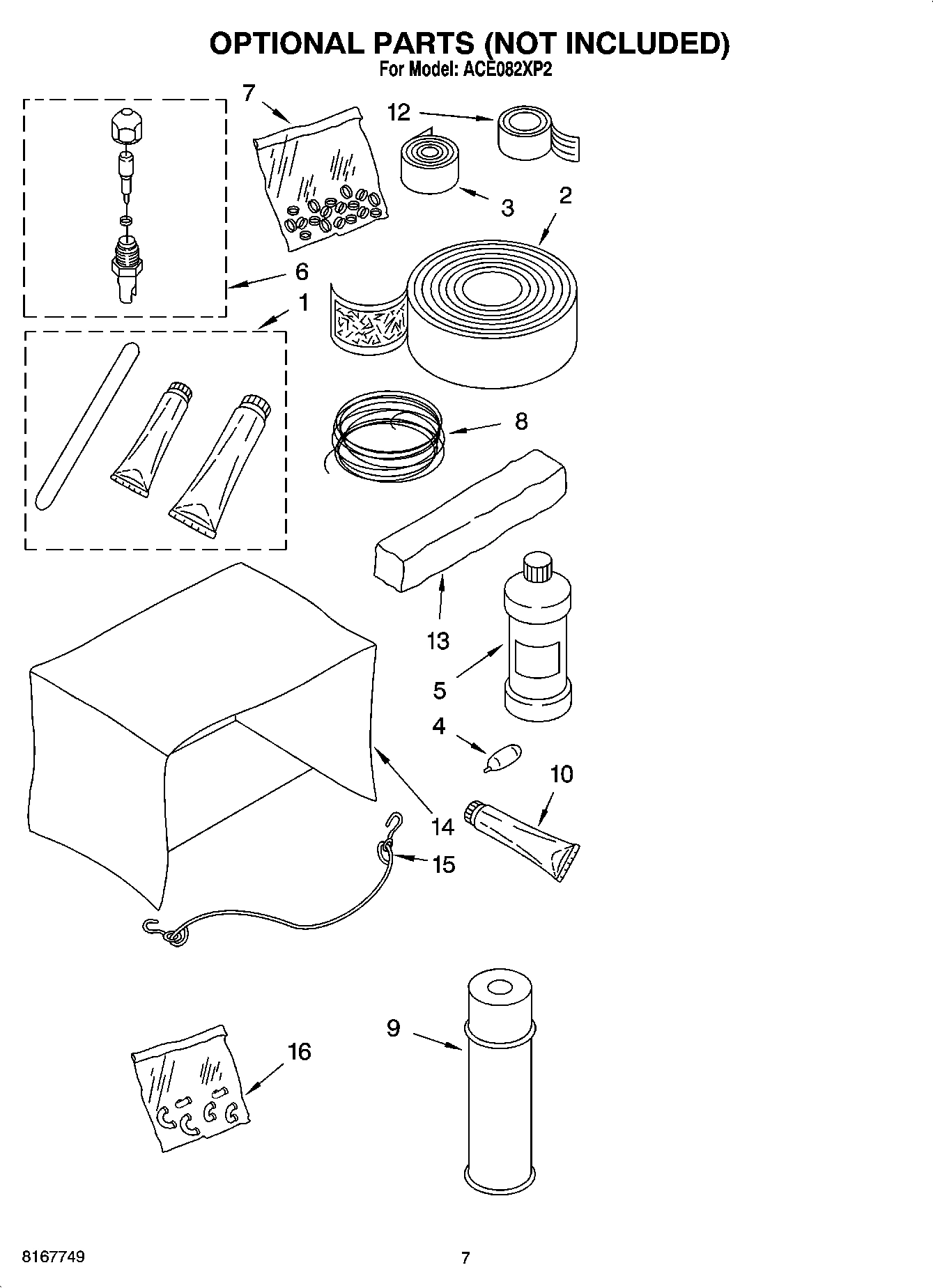

04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool ACE082XP2 AIR CONDITIONER
1
Energy Guide WPL LIT1187331 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8011287 Contact Us For Availability
1
Seal, Anti-Rub WPL 1187084 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
COMPRESSOR WPL 1187376 Contact Us For Availability
2
Wall, Dividing WPL 8031104 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
OVERLOAD WPL 1187489 Contact Us For Availability
3
Capacitor, Running WPL 1187482 Contact Us For Availability
4
Handle, Base WPL 8031320 Contact Us For Availability
4
Bracket, Running Capacitor WPL 1167611 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Washer, Nylon WPL 8011418 Contact Us For Availability
5
Screw WPL 1161561 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Limit Switch WPL 4388379 Contact Us For Availability
6
Washer WPL 1185794 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
7
Hood, Air Housing WPL 8031570 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Spring, Overload WPL 1185795 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Filter WPL 8031292 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
9
Housing, Air WPL 8031586 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
10
Shroud, Evaporator WPL 8031405 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Cover, Terminal WPL 1185792 Contact Us For Availability
11
Fuse Link WPL 4388360 Contact Us For Availability
12
Screw, 8-18 x .437 WPL 8031309 Contact Us For Availability
13
Motor, Fan WPL 1187583 Contact Us For Availability
13
Seal, Condenser Shroud WPL 8031312 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Shroud, Condenser WPL 8031110 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Wiring Harness, Compressor WPL 1186625 Contact Us For Availability
15
Cover, Unit WPL 1186766 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Wheel, Blower WPL 8031415 Contact Us For Availability
16
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
17
Blade, Fan WPL 8031414 Contact Us For Availability
17
Box, Control WPL 8031200 Contact Us For Availability
18
Evaporator WPL 1184778 Contact Us For Availability
18
Element, Heating WPL 8031406 Contact Us For Availability
19
Tube, Restrictor WPL 1184679 Contact Us For Availability
19
Panel, Control WPL 8031311 Contact Us For Availability
20
Condenser WPL 8031226 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
21
Putty, Sound Dampener WPL 1182480 Contact Us For Availability
21
Door, Exhaust WPL 8011139 Contact Us For Availability
22
Switch, Rotary WPL 1186500 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
24
Thermostat WPL 1185753 Contact Us For Availability
24
Tube, Wet Loop WPL 8031238 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 951437 Contact Us For Availability
25
Harness, Heater Plug WPL 1186617 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Cable, Appliance WPL 1186580 Contact Us For Availability
27
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
28
Anticipator, Temperature WPL 1166782 Contact Us For Availability
28
Heater, Harness Receptacle WPL 1186618 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 642080 Contact Us For Availability
29
Cup, Condensate WPL 1184776 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
30
Cover, Control Box WPL 1186665 Contact Us For Availability
32
Seal WPL 1181735 Contact Us For Availability
33
Tube, Suction WPL 1187751 Contact Us For Availability
34
Seal, Suction Tube WPL 1185481 Contact Us For Availability
39
Tube, Discharge WPL 1187750 Contact Us For Availability
40
Base WPL 8031392 Contact Us For Availability
41
Tube, Flow Divider WPL 1159832 Contact Us For Availability
42
Tube, Outlet (Bottom) WPL 8031290 Contact Us For Availability
43
Tube, Outlet (Top) WPL 8031289 Contact Us For Availability
43
REFRIGERANT CHARGE 19.00 oz. WPL ARI144027A Contact Us For Availability
× ![]()
