Model Whirlpool ACE082XM0 AIR CONDITIONER – Common Parts & Diagrams
03 - SECTION
01 - SECTION
04 - SECTION
02 - SECTION

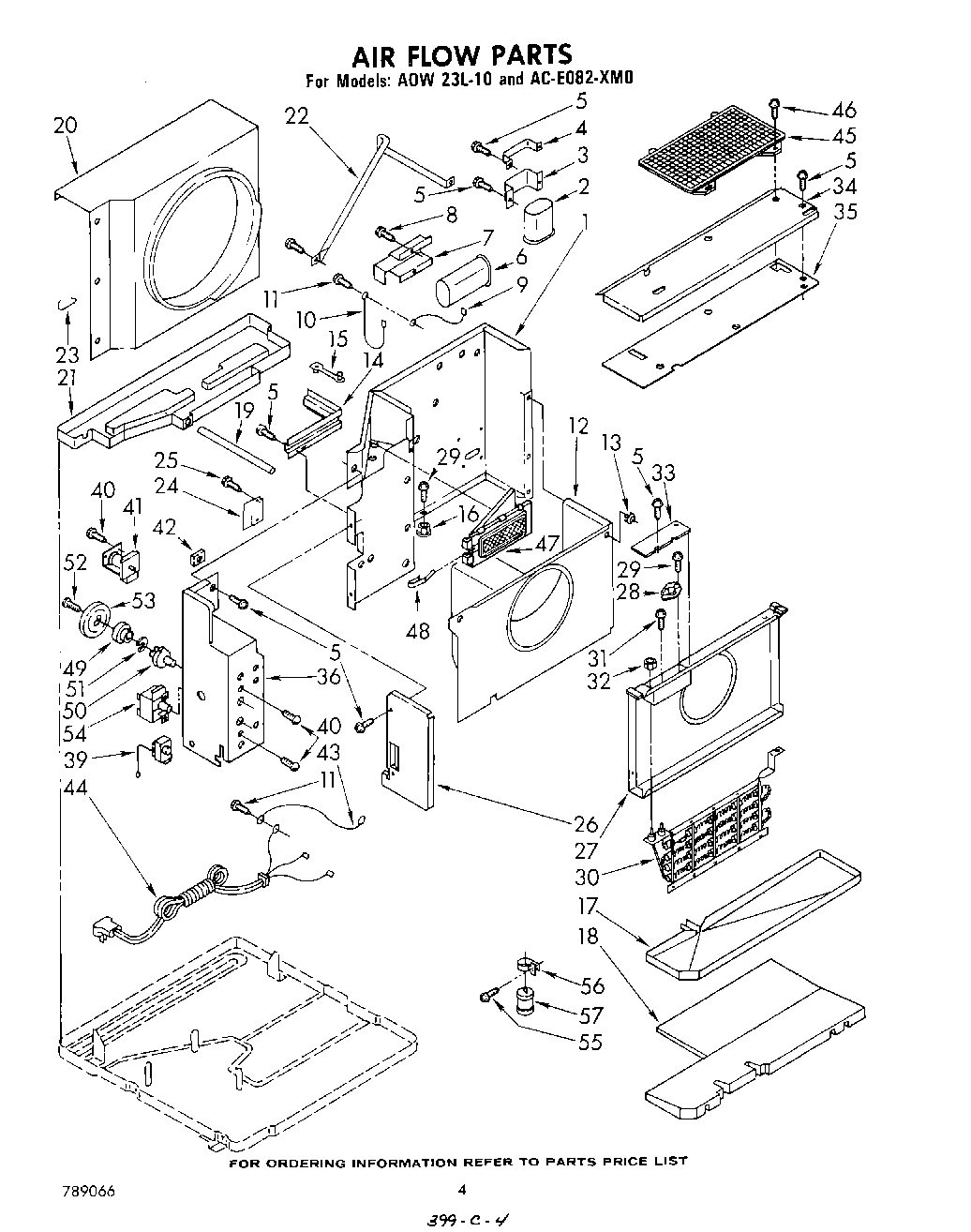

Common parts from model Whirlpool ACE082XM0 AIR CONDITIONER
1
Cabinet WPL 858828 Contact Us For Availability
1
Base Assembly WPL 858803 Contact Us For Availability
2
Seal, Cabinet Bottom WPL 647854 Contact Us For Availability
2
Handle, Base WPL 647971 Contact Us For Availability
3
Grommet, Cable WPL 647849 Contact Us For Availability
3
Compressor, Assembly WPL 484285 Contact Us For Availability
4
Wire, Ground WPL 857017 Contact Us For Availability
4
Tube, 90~ Connect WPL 647949 Contact Us For Availability
5
Screw, 8-32 x 3/8 WPL 488853 Contact Us For Availability
5
Washer, Shim (4) WPL 470280 Contact Us For Availability
6
Grommet (3) WPL 469581 Contact Us For Availability
7
Plate, Escutcheon WPL 950535 Contact Us For Availability
7
Sleeve (3) WPL 858148 Contact Us For Availability
8
Spacer, Plate (3) WPL 470036 Contact Us For Availability
8
Nut, Lock (3) WPL 858121 Contact Us For Availability
9
Knob, Control (3) WPL 947264 Contact Us For Availability
9
Plate, Fan Motor WPL 998024 Contact Us For Availability
10
Wire, Ground WPL 948285 Contact Us For Availability
10
Front, Cabinet Assembly (Complete) WPL 951140 Contact Us For Availability
10
Motor, Fan WPL 998368 Contact Us For Availability
11
Front, Cabinet WPL 950538 Contact Us For Availability
12
Housing, Blower Wheel WPL 852875 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
13
Fastener, snap WPL 487808 Contact Us For Availability
13
Wheel, Blower WPL 852065 Contact Us For Availability
14
Channel, Wiring WPL 852317 Contact Us For Availability
14
Evaporator Assembly WPL 997408 Contact Us For Availability
15
Clamp, Cable WPL 648791 Contact Us For Availability
15
Tube, Restrictor (2) (Length 25.50``) WPL 997410 Contact Us For Availability
16
Clip, Speed WPL 649620 Contact Us For Availability
16
Filter WPL 648008 Contact Us For Availability
16
Blade, Fan WPL 947370 Contact Us For Availability
17
Retainer, Filter WPL 467707 Contact Us For Availability
17
Condenser Assembly WPL 997407 Contact Us For Availability
18
Insulation, Condensate Pan WPL 853268 Contact Us For Availability
19
Tube, Condensate WPL 49181 Contact Us For Availability
19
Louver, Vertical WPL 647798 Contact Us For Availability
19
Tube, 90~ Connect WPL 475635 Contact Us For Availability
20
Shroud, Condenser WPL 647862 Contact Us For Availability
20
Handle, Louver (2) WPL 644165 Contact Us For Availability
21
Pan, Condenser Condensate WPL 859238 Contact Us For Availability
21
Link, Louver (2) WPL 647799 Contact Us For Availability
21
Bend, Return Condenser (18) Evaporator (5) WPL 855199 Contact Us For Availability
22
Support, Unit WPL 852318 Contact Us For Availability
22
Spring, Detent (2) WPL 641484 Contact Us For Availability
22
Bend, Return Condenser (4) Evaporator (10) WPL 854624 Contact Us For Availability
23
Retainer, Shroud Cover WPL 647873 Contact Us For Availability
23
Channel, Top WPL 644380 Contact Us For Availability
23
Tube & Strainer Assembly (Includes Illus. 24) WPL 484230 Contact Us For Availability
24
Cover, Dividing Wall WPL 994399 Contact Us For Availability
24
Bracket, R.S. WPL 645562 Contact Us For Availability
24
Strainer WPL 49599 Contact Us For Availability
25
Angle, Side (2) WPL 645564 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
26
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
26
Bracket, Window Lock WPL 644228 Contact Us For Availability
26
Seal WPL 649609 Contact Us For Availability
27
Deflector, Heat Assembly WPL 857224 Contact Us For Availability
27
Board, Filler WPL 647835 Contact Us For Availability
27
Seal WPL 649610 Contact Us For Availability
28
Switch, Limit WPL 997418 Contact Us For Availability
28
Block, Spacer (2) WPL 995274 Contact Us For Availability
29
Screw, Sheet Metal No.8 x 3/8A WPL 488624 Contact Us For Availability
29
Bag, Accessory WPL 993823 Contact Us For Availability
30
Heater, Air (Replacement Fuse Part Number 977 WPL 997417 Contact Us For Availability
30
Overload WPL 646781 Contact Us For Availability
31
Screw Wood No.8x3/4 WPL 488255 Contact Us For Availability
31
Spring, Overload WPL 644362 Contact Us For Availability
32
Anticipator, Temperature WPL 484238 Contact Us For Availability
33
Cover, Wire Enclosure WPL 857203 Contact Us For Availability
33
Seal, Meeting Rail WPL 469877 Contact Us For Availability
33
Clip, Anticipator WPL 642080 Contact Us For Availability
34
Cover, Evaporator WPL 856957 Contact Us For Availability
34
Seal, Strip WPL 855265 Contact Us For Availability
34
Cover, Terminal WPL 855762 Contact Us For Availability
35
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
35
Strap, Terminal Cover WPL 475062 Contact Us For Availability
36
Box, Control WPL 951100 Contact Us For Availability
36
Screw, St 8-32 x 3/8 WPL 488854 Contact Us For Availability
36
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
37
Clip, Cabinet Front (2) WPL 949634 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
39
Control, Temperature WPL 997421 Contact Us For Availability
39
Cup, Condensate WPL 647850 Contact Us For Availability
40
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
40
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
41
Contactor WPL 997422 Contact Us For Availability
41
Clip, Balancing WPL 485334 Contact Us For Availability
42
Grommet, Wiring WPL 647865 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
43
Ground, Wire WPL 857634 Contact Us For Availability
44
Cable, Appliance WPL 859444 Contact Us For Availability
45
Guard, Impeller WPL 997949 Contact Us For Availability
47
Door, Exhaust WPL 649720 Contact Us For Availability
48
Spring, Door WPL 859369 Contact Us For Availability
49
Bushing WPL 647879 Contact Us For Availability
50
Shaft, Control WPL 852023 Contact Us For Availability
50
Relay WPL 484177 Contact Us For Availability
51
Spring, Washer WPL 647881 Contact Us For Availability
51
Capacitor WPL 48616 Contact Us For Availability
52
Screw, 7-18 x WPL 489092 Contact Us For Availability
52
xCap, Capacitor WPL 465280 Contact Us For Availability
53
WPL 647882 WPL 647882 Contact Us For Availability
53
xScrew WPL 487880 Contact Us For Availability
54
WPL 950525 WPL 950525 Contact Us For Availability
54
xBracket, capacitor WPL 35564 Contact Us For Availability
55
WPL 949177 WPL 949177 Contact Us For Availability
55
Multiplier, Terminal WPL 90654 Contact Us For Availability
56
WPL 949176 WPL 949176 Contact Us For Availability
57
WPL 47261 WPL 47261 Contact Us For Availability
57
WPL 47262 WPL 47262 Contact Us For Availability
57
WPL 47263 WPL 47263 Contact Us For Availability
57
WPL 485426 WPL 485426 Contact Us For Availability
57
WPL 789066 WPL 789066 Contact Us For Availability
57
WPL 799351 WPL 799351 Contact Us For Availability
57
WPL 950357 WPL 950357 Contact Us For Availability
57
WPL 950805 WPL 950805 Contact Us For Availability
57
WPL 951103 WPL 951103 Contact Us For Availability
57
WPL 951106 WPL 951106 Contact Us For Availability
57
WPL 997236 WPL 997236 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
58
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
58
xFlag, Terminal (8) WPL 45571 Contact Us For Availability
58
Start Assist Kit WPL 484220 Contact Us For Availability
58
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
58
Hard Start Kit WPL 485608 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
