Model Whirlpool ACD052PR1 AIR CONDITIONER – Common Parts & Diagrams
01 - UNIT PARTS
03 - CABINET PARTS

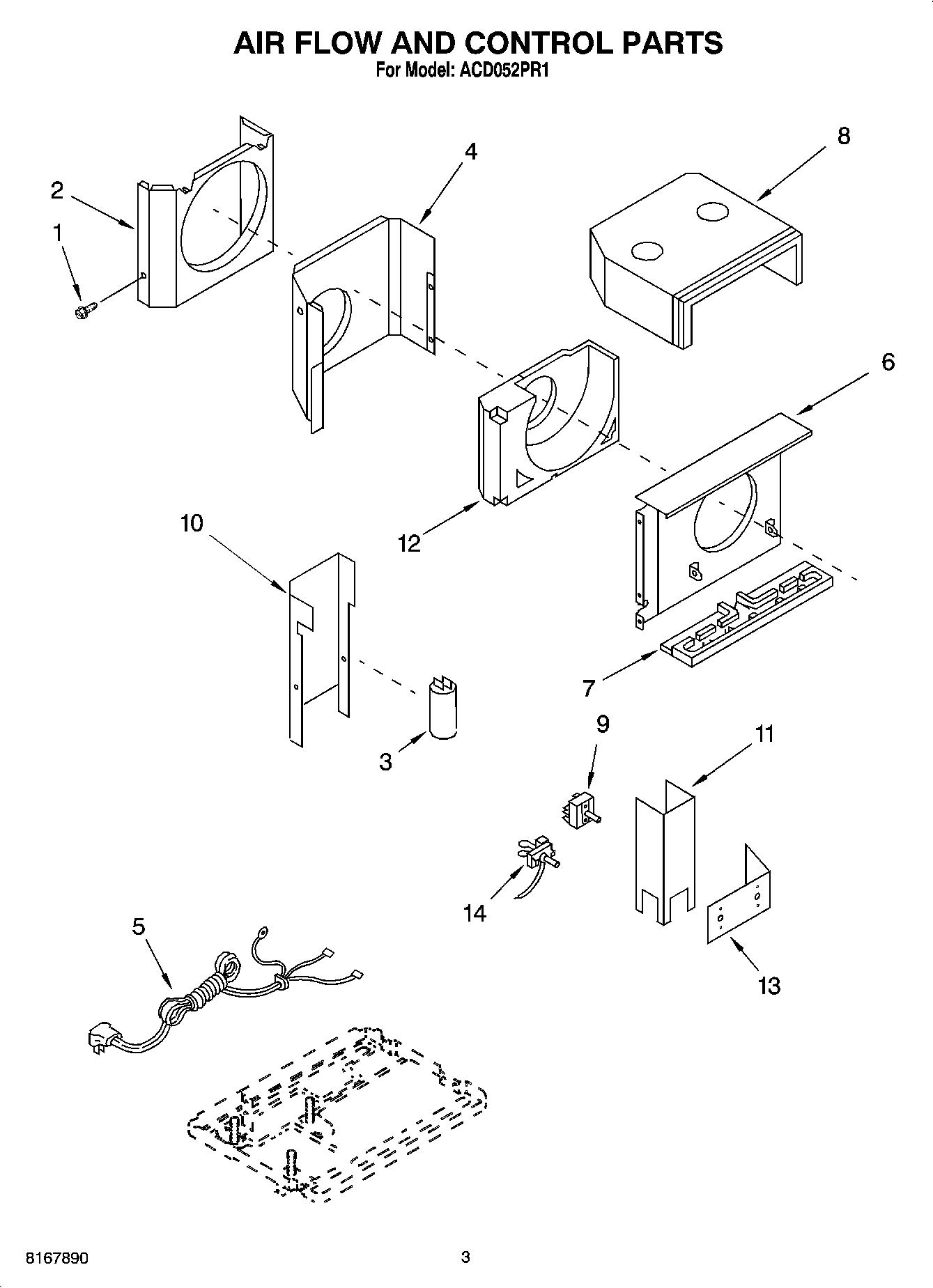

02 - AIR FLOW AND CONTROL PARTS
Common parts from model Whirlpool ACD052PR1 AIR CONDITIONER
1
Guide, Energy WPL 8209927 Contact Us For Availability
1
Wiring Diagram WPL 8209928 Contact Us For Availability
1
Cabinet WPL 8209909 Contact Us For Availability
2
Overload WPL 8209810 Contact Us For Availability
2
Nameplate, Rear WPL 8209738 Contact Us For Availability
2
Shroud, Condenser WPL 8209910 Contact Us For Availability
3
Tube, Restrictor WPL 8209919 Contact Us For Availability
3
Channel, Top WPL 8209933 Contact Us For Availability
3
Capacitor, Running WPL 8209719 Contact Us For Availability
4
Blade, Fan WPL 8209866 Contact Us For Availability
4
Curtain, Assembly Right & Left Side (Includes WPL 8209907 Contact Us For Availability
4
Wall, Dividing WPL 8209914 Contact Us For Availability
5
Grommet WPL 8209774 Contact Us For Availability
5
Screw WPL 8209777 Contact Us For Availability
5
Cord, Appliance WPL 8209937 Contact Us For Availability
6
Motor, Fan WPL 8209913 Contact Us For Availability
6
Front, Cabinet WPL 8209900 Contact Us For Availability
6
Shroud, Evaporator WPL 8209917 Contact Us For Availability
7
Nut, Hex WPL 8209660 Contact Us For Availability
7
Seal-Strip, Wide WPL 8209931 Contact Us For Availability
7
Pan, Evaporator WPL 8209906 Contact Us For Availability
8
Tube, Discharge WPL 8209912 Contact Us For Availability
8
Seal-Strip, Narrow WPL 8209932 Contact Us For Availability
8
Hood, Air Housing WPL 8209915 Contact Us For Availability
9
Switch, Rotary WPL 8209683 Contact Us For Availability
9
Evaporator WPL 8209904 Contact Us For Availability
9
Bracket, Window Lock WPL 8209930 Contact Us For Availability
10
Clip, Thermostat WPL 8209771 Contact Us For Availability
10
Filter WPL 8209898 Contact Us For Availability
10
Panel, Rear- Control Box WPL 8209921 Contact Us For Availability
11
Base WPL 8209936 Contact Us For Availability
11
Grille, Front WPL 8209899 Contact Us For Availability
11
Panel, Front Control Box WPL 8209922 Contact Us For Availability
12
Condenser WPL 8209911 Contact Us For Availability
12
Escutcheon WPL 8209924 Contact Us For Availability
12
Housing, Air WPL 8209916 Contact Us For Availability
13
Nut, Hex WPL 8209668 Contact Us For Availability
13
Knob WPL 8209925 Contact Us For Availability
13
Plate, Front- Control Box WPL 8209923 Contact Us For Availability
14
Tube, Suction WPL 8209920 Contact Us For Availability
14
Louver, W/Handle WPL 8209902 Contact Us For Availability
14
Control, Temp. WPL 8209689 Contact Us For Availability
15
Compressor Assembly WPL 8209775 Contact Us For Availability
15
Louver WPL 8209901 Contact Us For Availability
16
Wheel, Blower WPL 8209673 Contact Us For Availability
16
REFRIGERANT CHARGE 14.11 oz. WPL ARI19927A4 Contact Us For Availability
16
Connector, Louver WPL 8209903 Contact Us For Availability
× ![]()
