Model Whirlpool ACD052PP0 AIR CONDITIONER – Common Parts & Diagrams

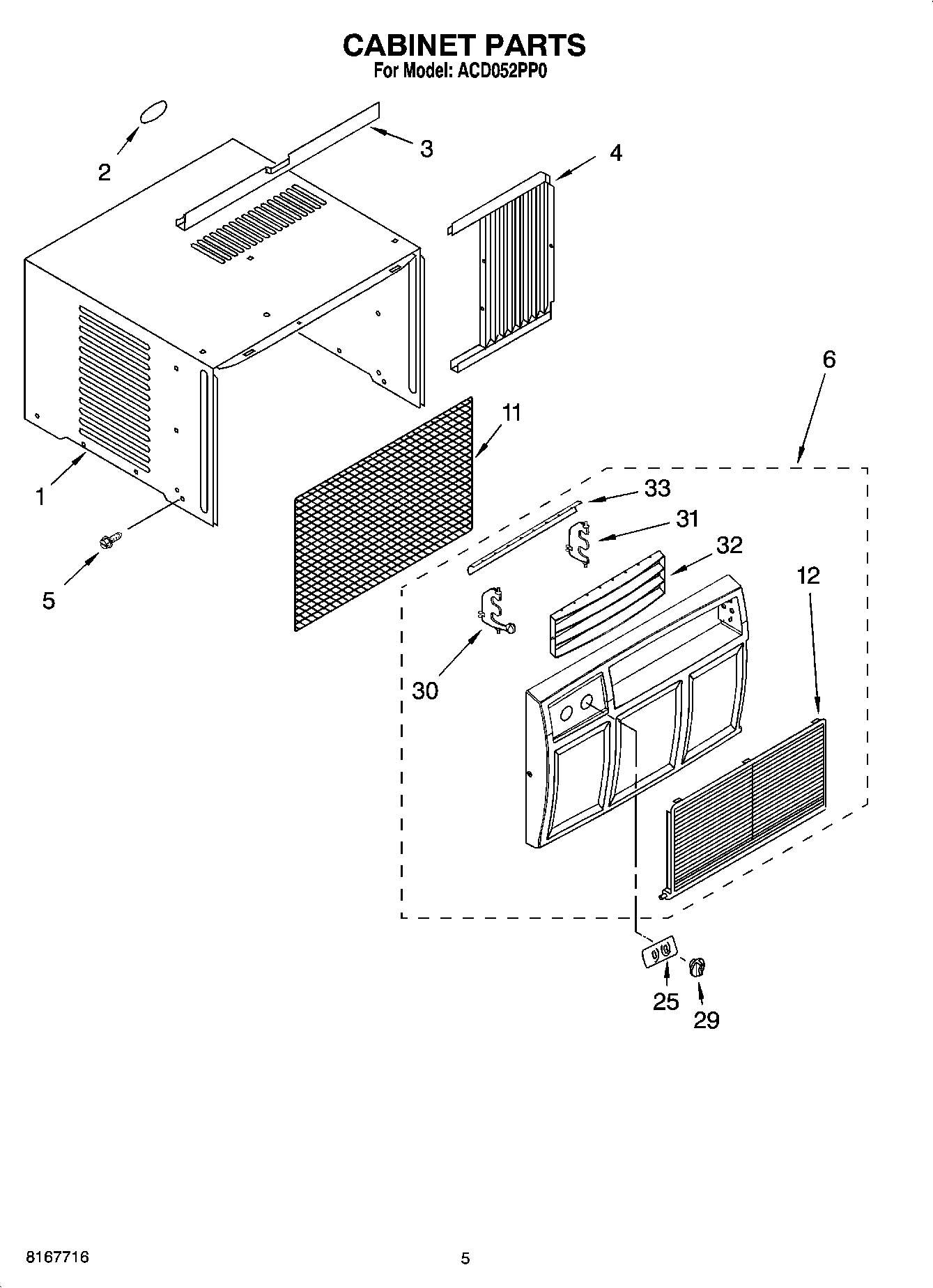

03 - CABINET PARTS

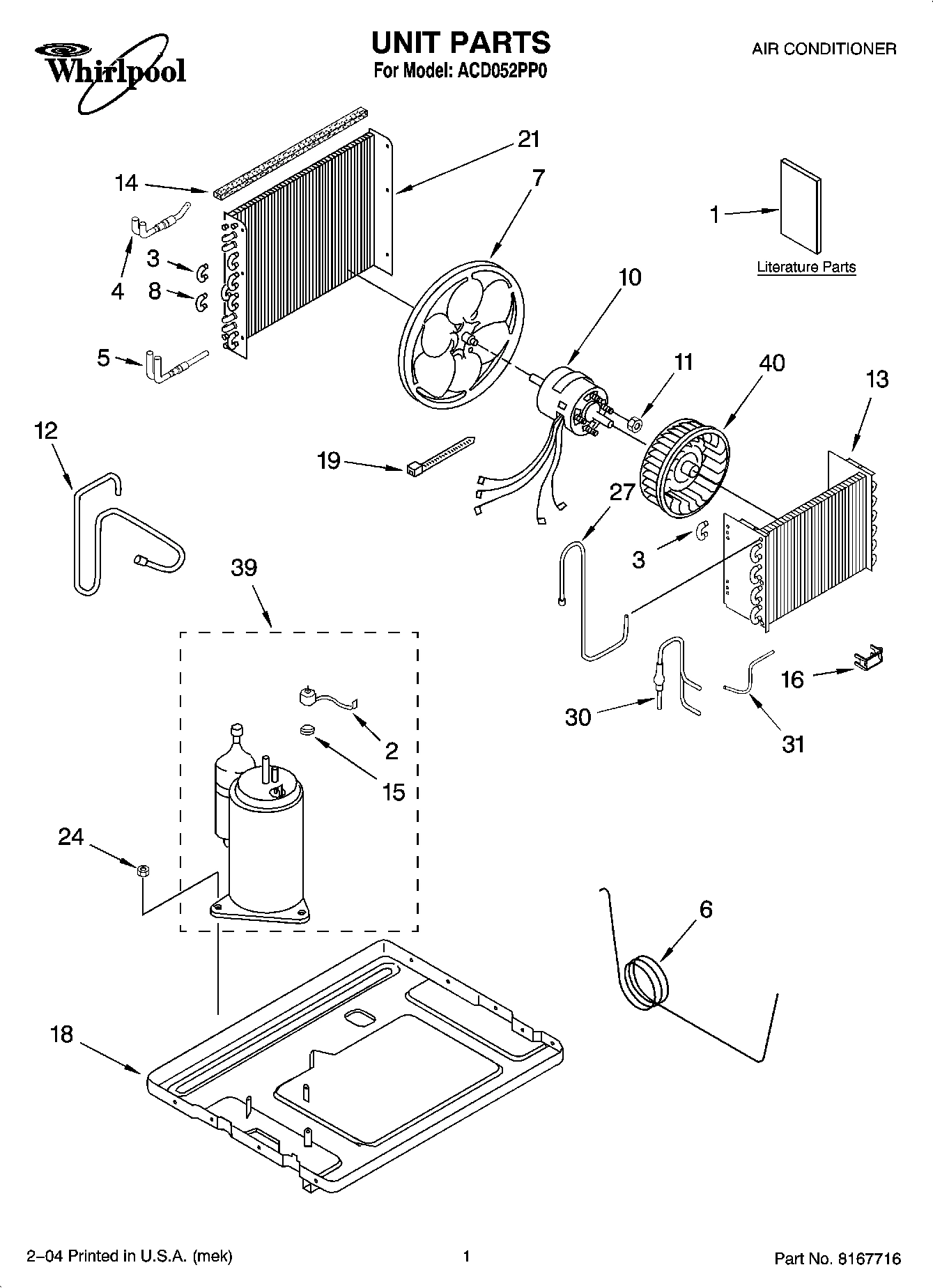

01 - UNIT PARTS
02 - AIR FLOW AND CONTROL PARTS
Common parts from model Whirlpool ACD052PP0 AIR CONDITIONER
1
LITERATURE PARTS (Wiring Diagram) WPL LIT8209651 Contact Us For Availability
1
LITERATURE PARTS (Use & care Guide) WPL LIT8209652 Contact Us For Availability
2
Nameplate, Rear WPL 8209738 Contact Us For Availability
2
Overload WPL 8209732 Contact Us For Availability
3
Channel, Top WPL 8209734 Contact Us For Availability
3
Bend, Return WPL 8209653 Contact Us For Availability
3
Screw WPL 8209674 Contact Us For Availability
4
Curtain (Right Side) WPL 8209735 Contact Us For Availability
4
Curtain (Left Side) WPL 8209736 Contact Us For Availability
4
Tube, Inlet WPL 8209654 Contact Us For Availability
4
Shroud, Condenser WPL 8209675 Contact Us For Availability
5
Screw WPL 8209692 Contact Us For Availability
5
Tube, Outlet WPL 8209655 Contact Us For Availability
6
Front, Cabinet Assembly WPL 8209693 Contact Us For Availability
6
Tube, Restrictor WPL 8209755 Contact Us For Availability
6
Capacitor, Running WPL 8209676 Contact Us For Availability
7
Blade, Fan WPL 8209657 Contact Us For Availability
7
Bracket, Capacitor WPL 8209677 Contact Us For Availability
8
Bend, Return WPL 8209658 Contact Us For Availability
10
Motor, Fan WPL 8209659 Contact Us For Availability
11
Filter WPL 8209694 Contact Us For Availability
11
Nut, Hex WPL 8209660 Contact Us For Availability
12
Grille, Front WPL 8209695 Contact Us For Availability
12
Tube, Discharge WPL 8209661 Contact Us For Availability
13
Evaporator WPL 8209740 Contact Us For Availability
13
Wall, Dividing WPL 8209678 Contact Us For Availability
14
Seal, Condenser WPL 8209663 Contact Us For Availability
15
Spring, Overload WPL 8209664 Contact Us For Availability
16
Clip, Thermostat WPL 8209741 Contact Us For Availability
16
Cord, Appliance WPL 8209733 Contact Us For Availability
18
Base WPL 8209747 Contact Us For Availability
19
Cable, Tie WPL 8209666 Contact Us For Availability
20
Shroud, Evaporator WPL 8209680 Contact Us For Availability
21
Condenser WPL 8209742 Contact Us For Availability
23
Pan, Evaporator WPL 8209681 Contact Us For Availability
24
Nut, Hex WPL 8209668 Contact Us For Availability
25
Escutcheon WPL 8209761 Contact Us For Availability
26
Hood, Air Housing WPL 8209760 Contact Us For Availability
27
Tube, Suction WPL 8209669 Contact Us For Availability
28
Switch, Rotary WPL 8209683 Contact Us For Availability
29
Knob WPL 8209698 Contact Us For Availability
29
Panel, Rear- Control Box WPL 8209684 Contact Us For Availability
30
Louver, W/Handle WPL 8209699 Contact Us For Availability
30
Manifold WPL 8209670 Contact Us For Availability
31
Louver WPL 8209700 Contact Us For Availability
31
Tube, Inlet WPL 8209671 Contact Us For Availability
32
Frame, Louver WPL 8209701 Contact Us For Availability
32
Seal, Side WPL 8209685 Contact Us For Availability
33
Connector, Louver WPL 8209702 Contact Us For Availability
33
Housing, Air WPL 8209686 Contact Us For Availability
34
Panel, Front- Control Box WPL 8209687 Contact Us For Availability
36
Control, Temp. WPL 8209689 Contact Us For Availability
39
Compressor Assembly WPL 8209672 Contact Us For Availability
40
Wheel, Blower WPL 8209673 Contact Us For Availability
40
REFRIGERANT CHARGE 14.11 oz. WPL ARI19926A2 Contact Us For Availability
40
Screw WPL 8209690 Contact Us For Availability
× ![]()
