Model Whirlpool ACC3660AW GAS COOK-TOP – Common Parts & Diagrams

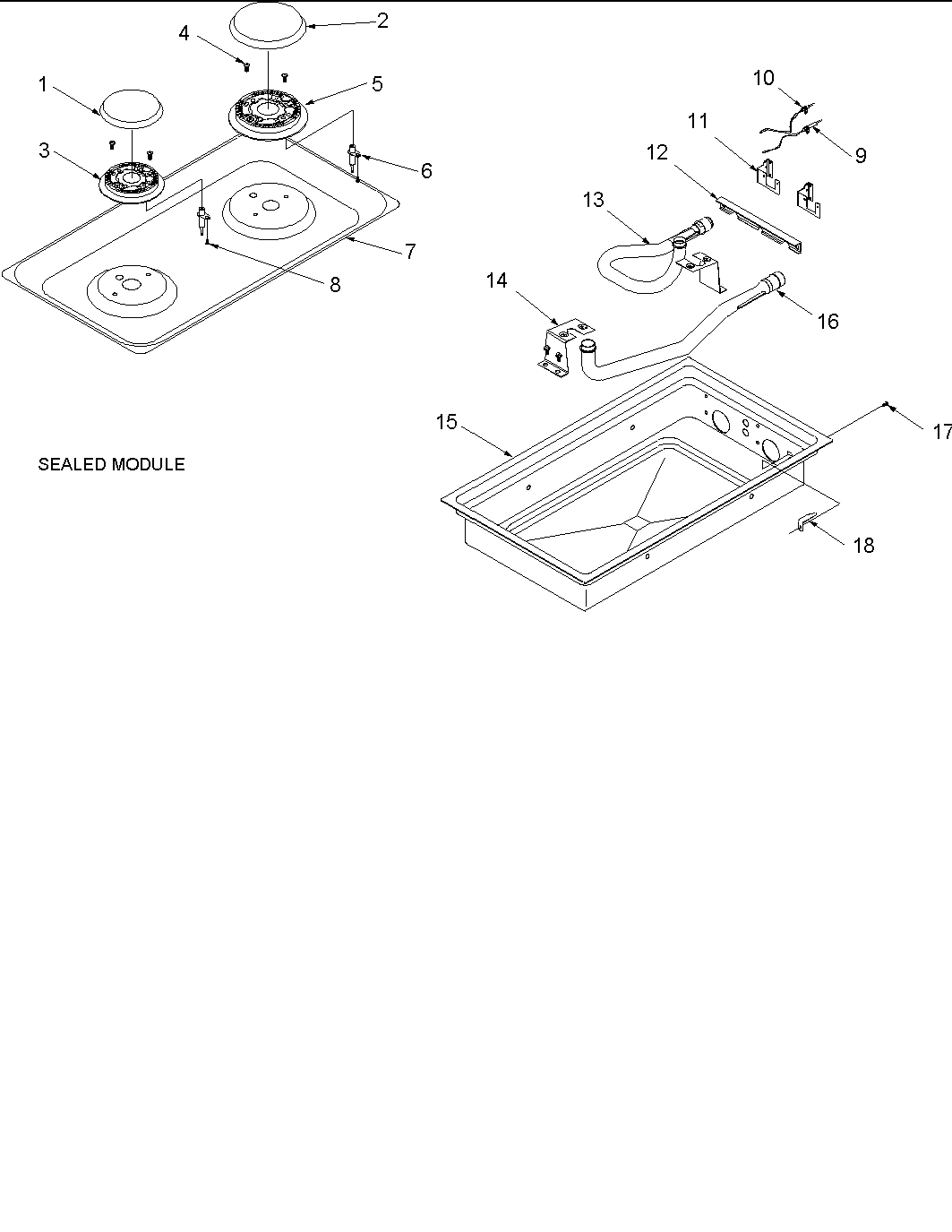

03 - Sealed Gas Module

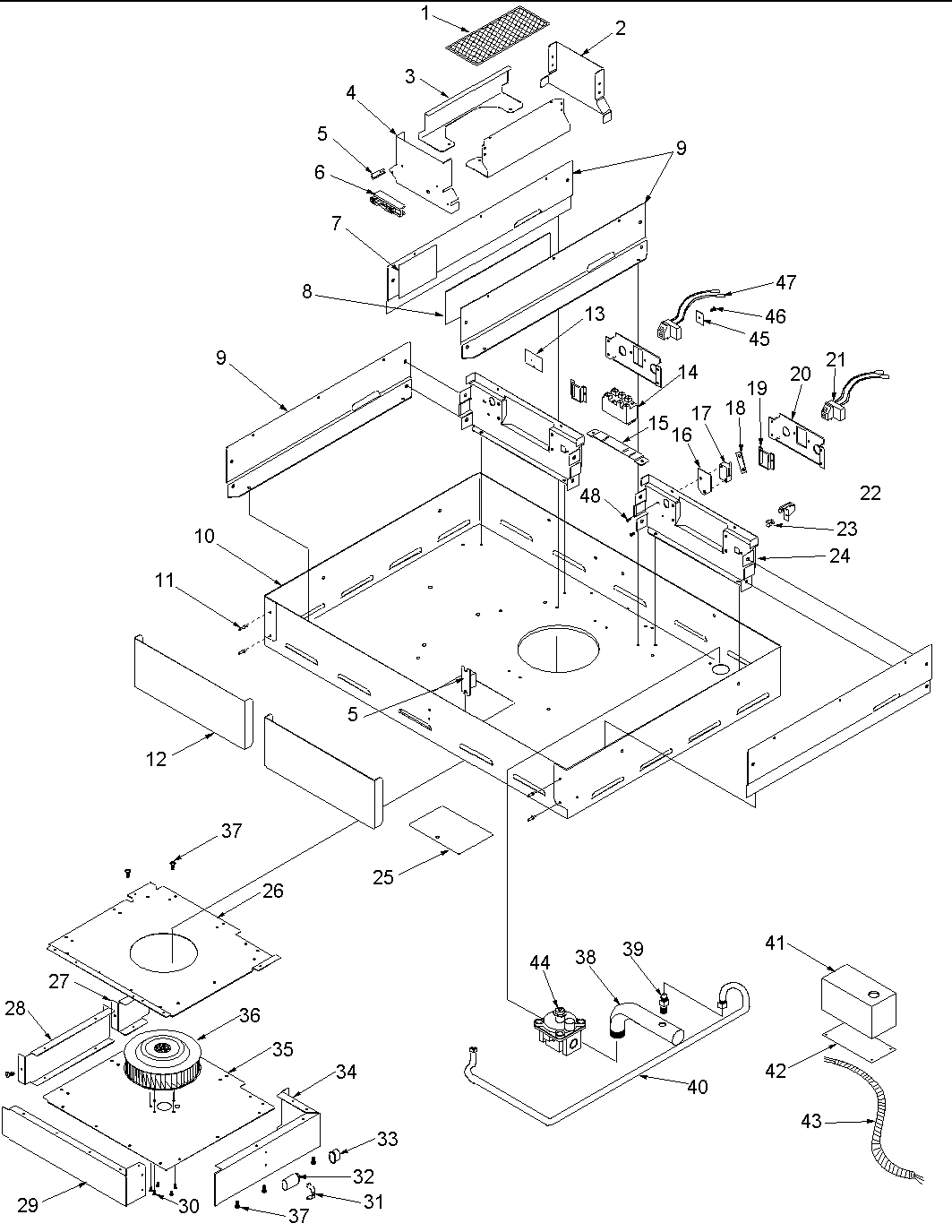

01 - Cavity

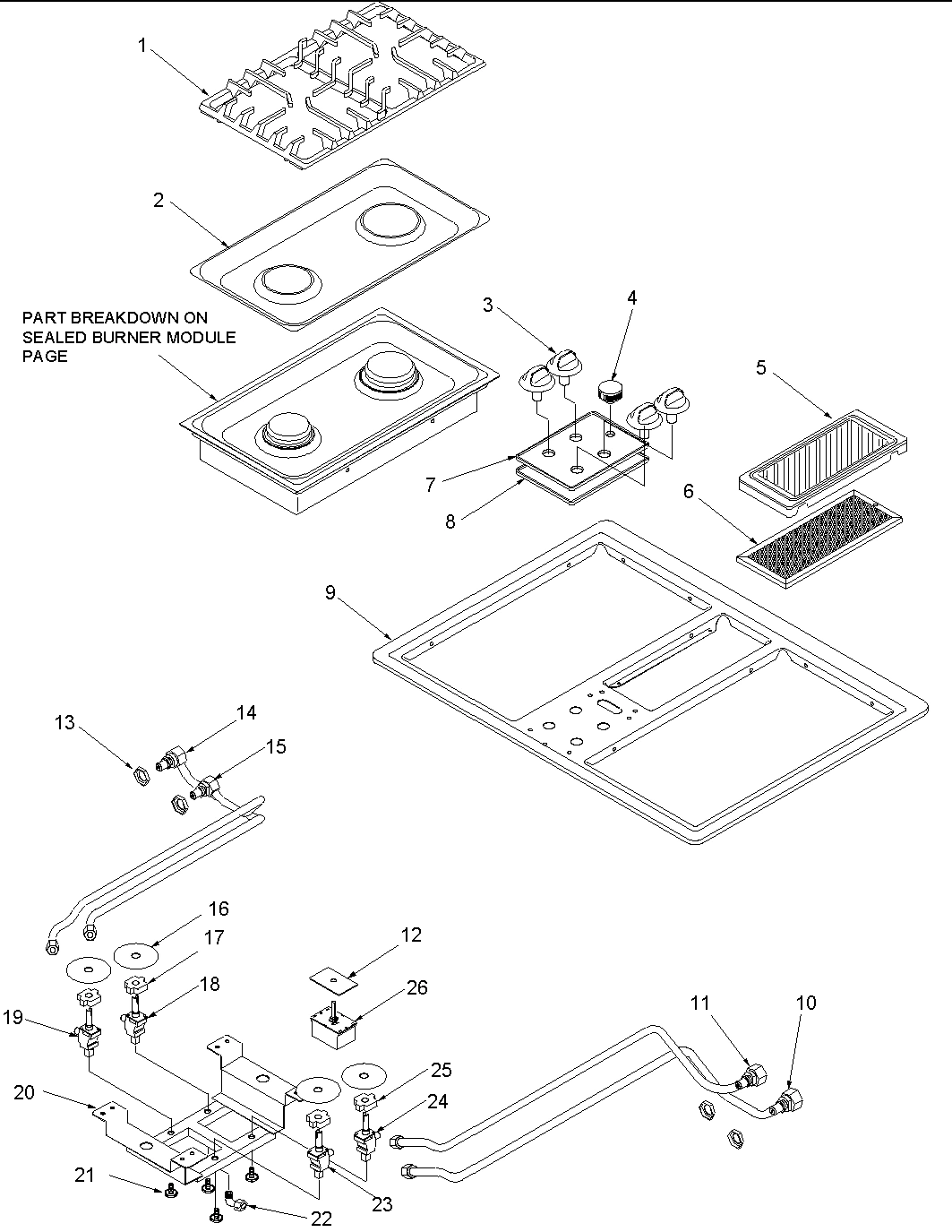

02 - Main Top
Common parts from model Whirlpool ACC3660AW GAS COOK-TOP
1
SHIELD, FAN (ENAMELED) WPL 31902901CG Contact Us For Availability
1
GRATE-DOUBLE CAST (DARK GRY)9K WPL 316175GY Contact Us For Availability
2
CAP, BURNER 12K (DARK GREY) WPL 31782703GY Contact Us For Availability
2
PLENUM, END WPL 31756001 Contact Us For Availability
2
BOWL,BURNER-DBLxxSUBS TO BLKx WPL 315600W Contact Us For Availability
3
PLENUM, SIDE WPL 32042201 Contact Us For Availability
3
KNOB, TOP BURNER (WHT) WPL 32021805W Contact Us For Availability
4
PLENUM, END WPL Y0315709 Contact Us For Availability
4
KNOB, FAN (WHT) WPL 32031313W Contact Us For Availability
5
TOP BURNER (LARGE 12/13K) WPL Y0315767 Contact Us For Availability
5
RELAY, BLOWER CUTOUT WPL Y0307599 Contact Us For Availability
5
COVER, CASTING VENT-GAS WPL 316648G Contact Us For Availability
6
TERM BLK EO&GO 1M-2.5M-5M-10M WPL Y0042191 Contact Us For Availability
6
FILTER, EXHAUST (BLK) WPL 315689B Contact Us For Availability
7
TOP, MODULE-SEALED BURNER(WHT) WPL 315754W Contact Us For Availability
7
INSULATION, CONTROL SHIELD 7`` WPL 31756702 Contact Us For Availability
7
GLASS, CONTROL PANEL (WHT) WPL 32056302W Contact Us For Availability
8
SCREW, ELECTRODE WPL Y0316775 Contact Us For Availability
8
INSULATION, CONTROL SHIELD 16`` WPL 31756701 Contact Us For Availability
8
FRAME-GLASS CONTROL PANEL(WHT) WPL 315725W Contact Us For Availability
9
ELECTRODE, BURNER IGN. 21``WIRE WPL Y0316389 Contact Us For Availability
9
SHIELD, CONTROL & PLENUM WPL 32042401 Contact Us For Availability
9
MAINTOP, 30`` D/D COOKTOP (WHT) WPL 32032803W Contact Us For Availability
10
ELECTRODE, BURNER IGN. 1O``WIRE WPL Y0315751 Contact Us For Availability
10
BOX,BURNER-GAS D/D,C/T WPL 32068001 Contact Us For Availability
10
ASSY, TUBE ORIFICE RIGHT FRONT WPL 31752601 Contact Us For Availability
11
BRKT, VENTURI WPL 31749501 Contact Us For Availability
11
RIVET, POP WPL Y0097822 Contact Us For Availability
11
ASSY, TUBE ORIFICE RIGHT REAR WPL 31752501 Contact Us For Availability
12
BRKT, VENTURI CLAMPING WPL 31813601 Contact Us For Availability
12
SHIELD, FRONT WPL 32032701 Contact Us For Availability
12
SHIELD, SWITCH-VARIABLE WPL 31726301 Contact Us For Availability
13
VENTURI, REAR BURNER-HW WPL 31909401 Contact Us For Availability
13
PLATE, BURNER BOX WPL 31743201 Contact Us For Availability
13
NUT, PAL 3/4-16 X 1.062 WPL 31750116 Contact Us For Availability
14
BRKT, BURNER MTG. WPL Y0315755 Contact Us For Availability
14
SPARK MODULE WPL 31962701 Contact Us For Availability
14
ASSY, TUBE ORIFICE LEFT REAR WPL 31752301 Contact Us For Availability
15
MODULE PAN,GAS SEALED BRNR(BLA WPL 31907201B Contact Us For Availability
15
BRKT, SPARK MODULE WPL Y0317026 Contact Us For Availability
15
ASSY, TUBE ORIFICE LEFT FRONT WPL 31752401 Contact Us For Availability
16
VENTURI, FRONT BURNER-HW WPL 31909301 Contact Us For Availability
16
INSULATION, ESM WPL Y0091523 Contact Us For Availability
16
SHIELD, SWITCH WPL Y0314316 Contact Us For Availability
17
SCREW, No.6-32 X .250 PAN HD PH WPL 31750303 Contact Us For Availability
17
SWITCH, HI-TEMP MICRO WPL 31751601 Contact Us For Availability
17
SWITCH, SPARK (270 DEG) WPL Y0315727 Contact Us For Availability
18
STRIKE, GRILLE PAN WPL 31892401 Contact Us For Availability
18
NUT, SPEED No.4-40 (BLK) WPL 31750107 Contact Us For Availability
18
VALVE, GAS LF 270DEG 12K 3100 WPL 31755702 Contact Us For Availability
19
BRKT, PLUG BLOCK MTG WPL Y0040983 Contact Us For Availability
19
VALVE, GAS 270DEG LR 9.7K 2800 WPL 31755602 Contact Us For Availability
20
PLATE, ORIFICE MTG WPL 31745201 Contact Us For Availability
20
MANIFOLD, GAS WPL Y0317060 Contact Us For Availability
21
PLUG BLOCK WPL Y0042215 Contact Us For Availability
21
SCREW, VALVE (BLK) WPL 31750703 Contact Us For Availability
22
BRKT, CONTACT WPL Y0316850 Contact Us For Availability
22
FITTING, 90 DEG ELBOW WPL Y0316881 Contact Us For Availability
23
ELEMENT, CONTACT-MODULE TOP WPL Y0042123 Contact Us For Availability
23
VALVE, GAS 270 DEG RF 9.7K3100 WPL 31755902 Contact Us For Availability
24
BRKT, ORIFICE MTG WPL 32042501 Contact Us For Availability
24
VALVE, GAS 270 DEG RR 7.6K 280 WPL 31755802 Contact Us For Availability
25
PANEL, ACCESS WPL 31743301 Contact Us For Availability
25
SWITCH, SPARK/FAN WPL Y0315728 Contact Us For Availability
26
PLENUM, TOP WPL 31904801 Contact Us For Availability
26
CONTROL, FAN SPEED VARIABLE WPL Y0316913 Contact Us For Availability
27
PLENUM, SIDE WPL 31754401 Contact Us For Availability
28
PLENUM, DUCT FILLER WPL 31754501 Contact Us For Availability
29
PLENUM, FRONT WPL 31754301 Contact Us For Availability
30
SCREW (PLAIN M4 METRIC .236) WPL 31750722 Contact Us For Availability
31
BRKT, CAPACITOR WPL 0317082 Contact Us For Availability
32
MOTOR CAPACITOR-FAN WPL 0316874 Contact Us For Availability
33
CAP, CAPACITOR WPL 31756201 Contact Us For Availability
34
PLENUM, REAR WPL 31754201 Contact Us For Availability
35
PLENUM, BOTTOM WPL 31754101 Contact Us For Availability
36
ASSY, FAN/MOTOR WPL Y0315697 Contact Us For Availability
38
TUBE, GAS INLET WPL 31752901 Contact Us For Availability
39
FITTING 1/4 NPT X 3/8 COMP WPL Y0303219 Contact Us For Availability
40
TUBE-GAS INLET WPL Y0316764 Contact Us For Availability
41
BOX, JUNCTION-MOTOR WPL 31755001 Contact Us For Availability
42
COVER, JUNCTION BOX WPL 31755101 Contact Us For Availability
43
CONDUIT, 3/8`` X 5 1/4`` WPL 31756402 Contact Us For Availability
44
PRESSURE REGULATOR WPL 0302495 Contact Us For Availability
45
ASSY, PLUG BLK-L.H. WPL 31908402 Contact Us For Availability
45
TERMINAL, INSULATOR WPL Y0041998 Contact Us For Availability
46
SCREW, No.8-32 X1/2 NYL HEX HD WPL 31750417 Contact Us For Availability
47
WIRE, IGNITION JUMPER WPL Y0317084 Contact Us For Availability
48
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
NI
SCREW, No.8-18 X 1/4 P TRS HD WPL 31750422 Contact Us For Availability
NI
BUSHING, ANTI-SHORT WPL 0317104 Contact Us For Availability
NI
BRACKET, CONDUIT WPL 31754601 Contact Us For Availability
NI
HARNESS, IGN-SW/IN WPL 31754801 Contact Us For Availability
NI
HARNESS, FA WPL 31754901 Contact Us For Availability
NI
WPL 31755301 WPL 31755301 Contact Us For Availability
NI
WPL 31756501 WPL 31756501 Contact Us For Availability
NI
WPL 31974801 WPL 31974801 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PAN HD WPL 31750309 Contact Us For Availability
× ![]()
