Model Whirlpool ACC108PS2 AIR CONDITIONER – Common Parts & Diagrams

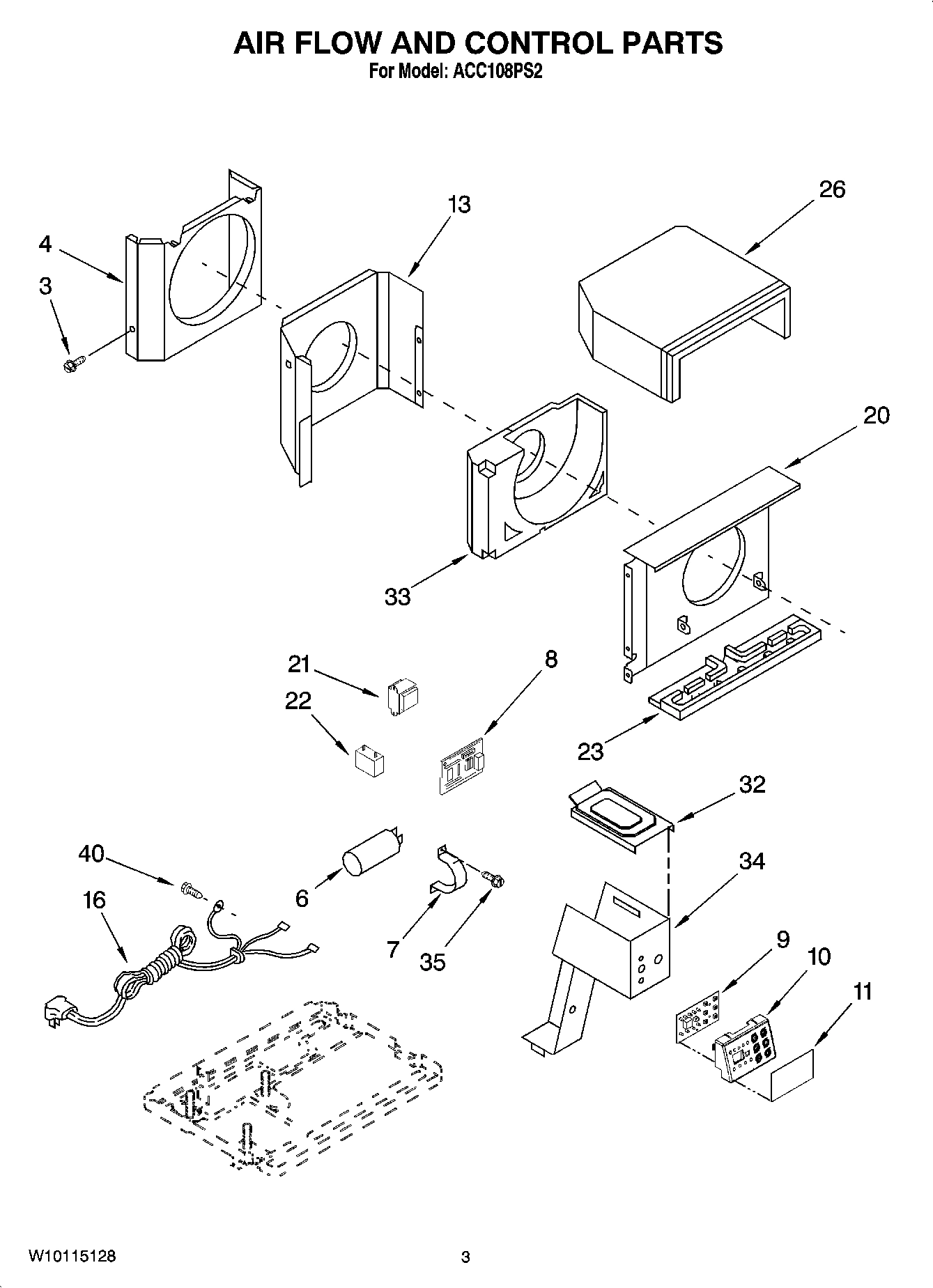

02 - AIR FLOW AND CONTROL PARTS

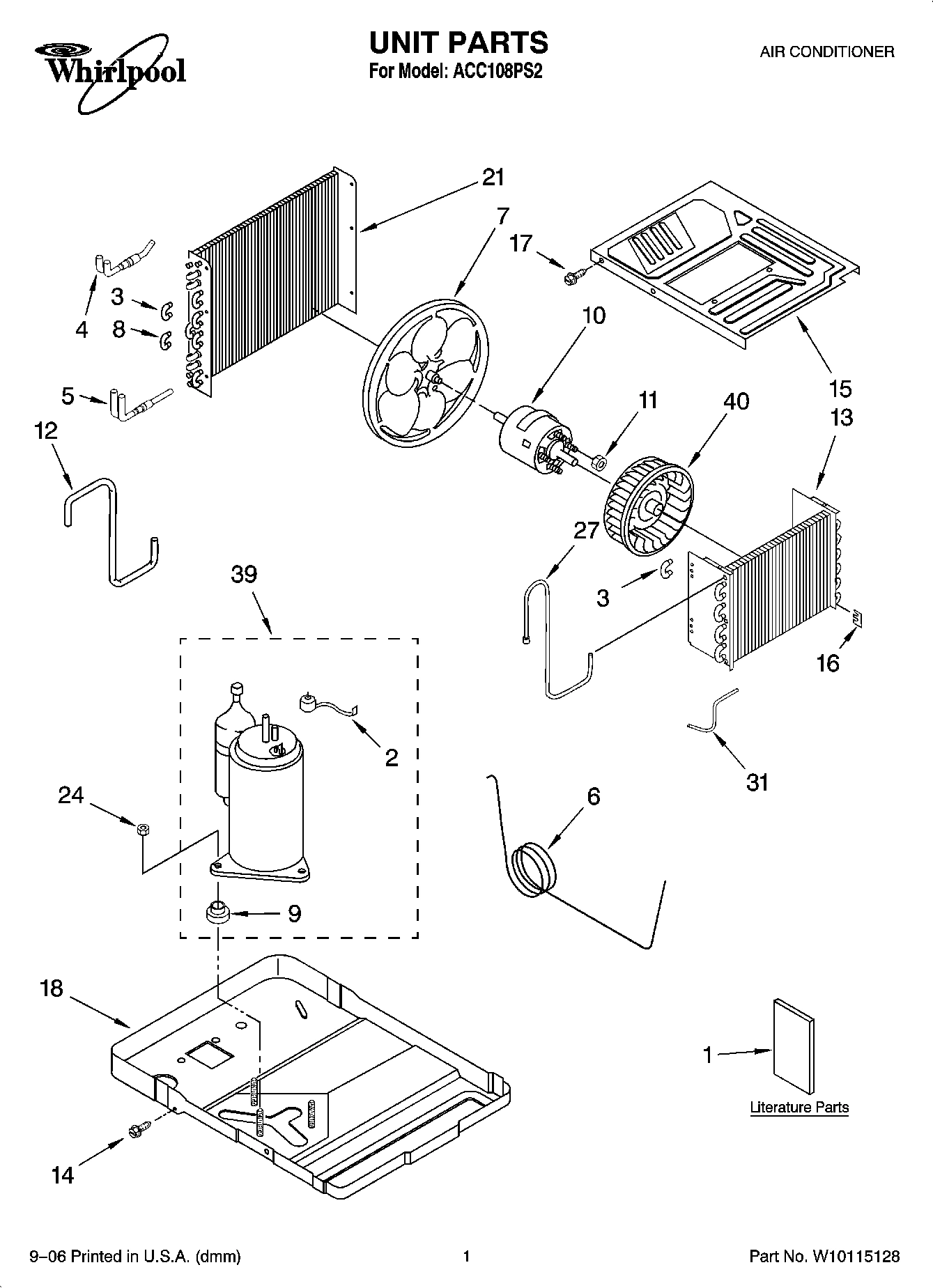

01 - UNIT PARTS

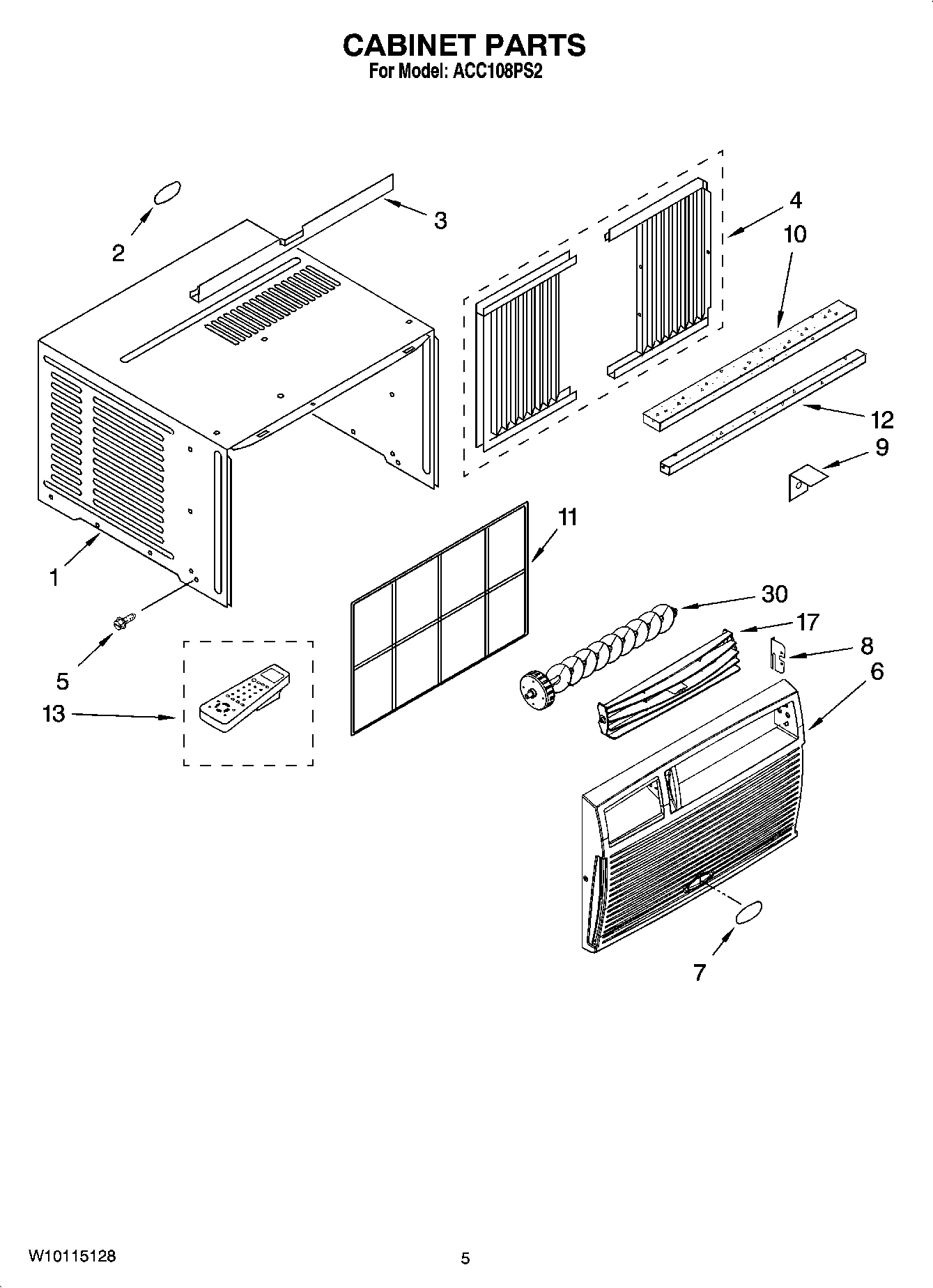

03 - CABINET PARTS
Common parts from model Whirlpool ACC108PS2 AIR CONDITIONER
1
Use & care Guide WPL 8215233 Contact Us For Availability
1
Energy Guide WPL 8215235 Contact Us For Availability
1
Wiring Diagram WPL 8215239 Contact Us For Availability
1
CABINET WPL 8215067 Contact Us For Availability
2
Overload WPL 8215058 Contact Us For Availability
2
Nameplate, Rear WPL 8209738 Contact Us For Availability
3
Bend, Return WPL 8209653 Contact Us For Availability
3
Channel, Top WPL 8215070 Contact Us For Availability
4
Shroud, Condenser WPL 8215064 Contact Us For Availability
4
Tube, Inlet WPL 8209654 Contact Us For Availability
4
Curtain Assembly Right & Left Side (Includes WPL 8215068 Contact Us For Availability
5
Tube, Outlet WPL 8209655 Contact Us For Availability
6
Capacitor, Running WPL 8209949 Contact Us For Availability
6
Tube, Restrictor WPL 8215075 Contact Us For Availability
6
Front Cabinet WPL 8209929 Contact Us For Availability
7
Blade, Fan WPL 8215065 Contact Us For Availability
7
Nameplate WPL 8209798 Contact Us For Availability
8
Main Board WPL 8209790 Contact Us For Availability
8
Bend, Return WPL 8209658 Contact Us For Availability
8
Support, Louver WPL 8209940 Contact Us For Availability
9
Interface Board WPL 8209792 Contact Us For Availability
9
Grommet (3) WPL 8215077 Contact Us For Availability
9
Bracket, Window Lock (2) WPL 8209930 Contact Us For Availability
10
Panel, Control WPL 8209945 Contact Us For Availability
10
Motor, Fan WPL 8215062 Contact Us For Availability
10
Seal-Strip, Wide WPL 8209931 Contact Us For Availability
11
Overlay WPL 8209944 Contact Us For Availability
11
Nut, Hex WPL 8209660 Contact Us For Availability
11
Filter WPL 8209938 Contact Us For Availability
12
Tube, Discharge WPL 8215079 Contact Us For Availability
12
Seal-Strip, Narrow WPL 8209932 Contact Us For Availability
13
Wall, Dividing WPL 8215061 Contact Us For Availability
13
EVAPORATOR WPL 8215072 Contact Us For Availability
13
Control, Remote WPL 8209730 Contact Us For Availability
15
Cover, Evaporator WPL 8215063 Contact Us For Availability
16
Cord, Appliance WPL 8215265 Contact Us For Availability
16
Support, Tube Sensor WPL 8209771 Contact Us For Availability
17
Screw WPL 8209674 Contact Us For Availability
17
Louver, Assembly WPL 8209939 Contact Us For Availability
18
BASE WPL 8215078 Contact Us For Availability
20
Shroud, Evaporator WPL 8209943 Contact Us For Availability
21
CONDENSER WPL 8215080 Contact Us For Availability
22
Capacitor, Motor WPL 8209948 Contact Us For Availability
23
Pan, Evaporator WPL 8215053 Contact Us For Availability
24
Nut, Hex WPL 8209668 Contact Us For Availability
26
Hood, Air Housing WPL 8215055 Contact Us For Availability
27
Tube, Suction WPL 8215074 Contact Us For Availability
30
Louver, Vertical WPL 8209941 Contact Us For Availability
31
Tube, Inlet WPL 8209671 Contact Us For Availability
32
Cover, Control Box WPL 8209947 Contact Us For Availability
33
Housing, Air WPL 8215054 Contact Us For Availability
34
Panel, Front- Control Box WPL 8209946 Contact Us For Availability
39
Compressor Assembly WPL 8215076 Contact Us For Availability
40
Screw WPL 8209690 Contact Us For Availability
40
Wheel, Blower WPL 8215052 Contact Us For Availability
40
REFRIGERANT CHARGE 26.44 oz. WPL ARI19923A4 Contact Us For Availability
× ![]()
