Model Whirlpool ACB6280AS ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

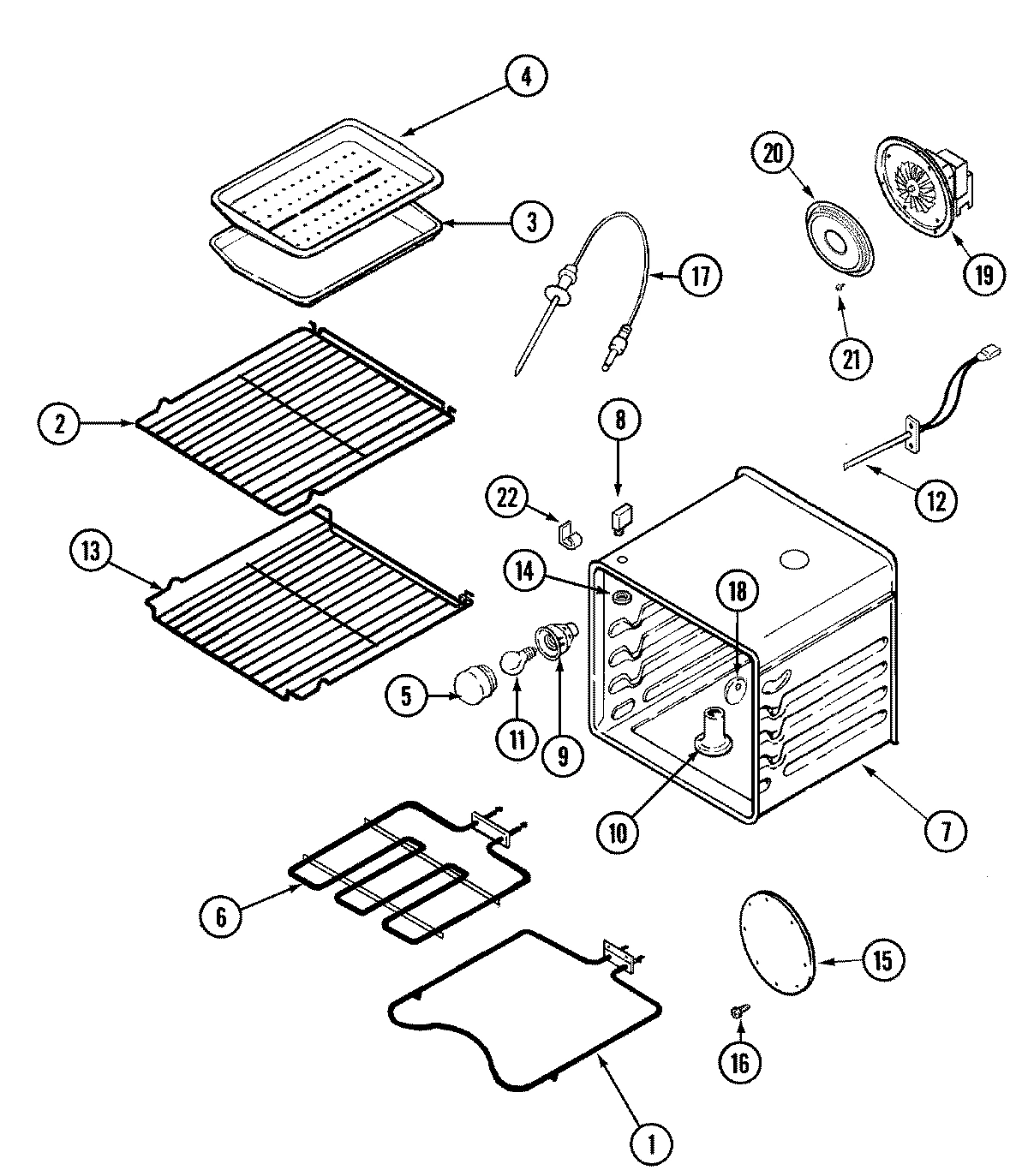

WPW10310258 Whirlpool Bake Element In Stock WPL WPW10310258 $75.36

1

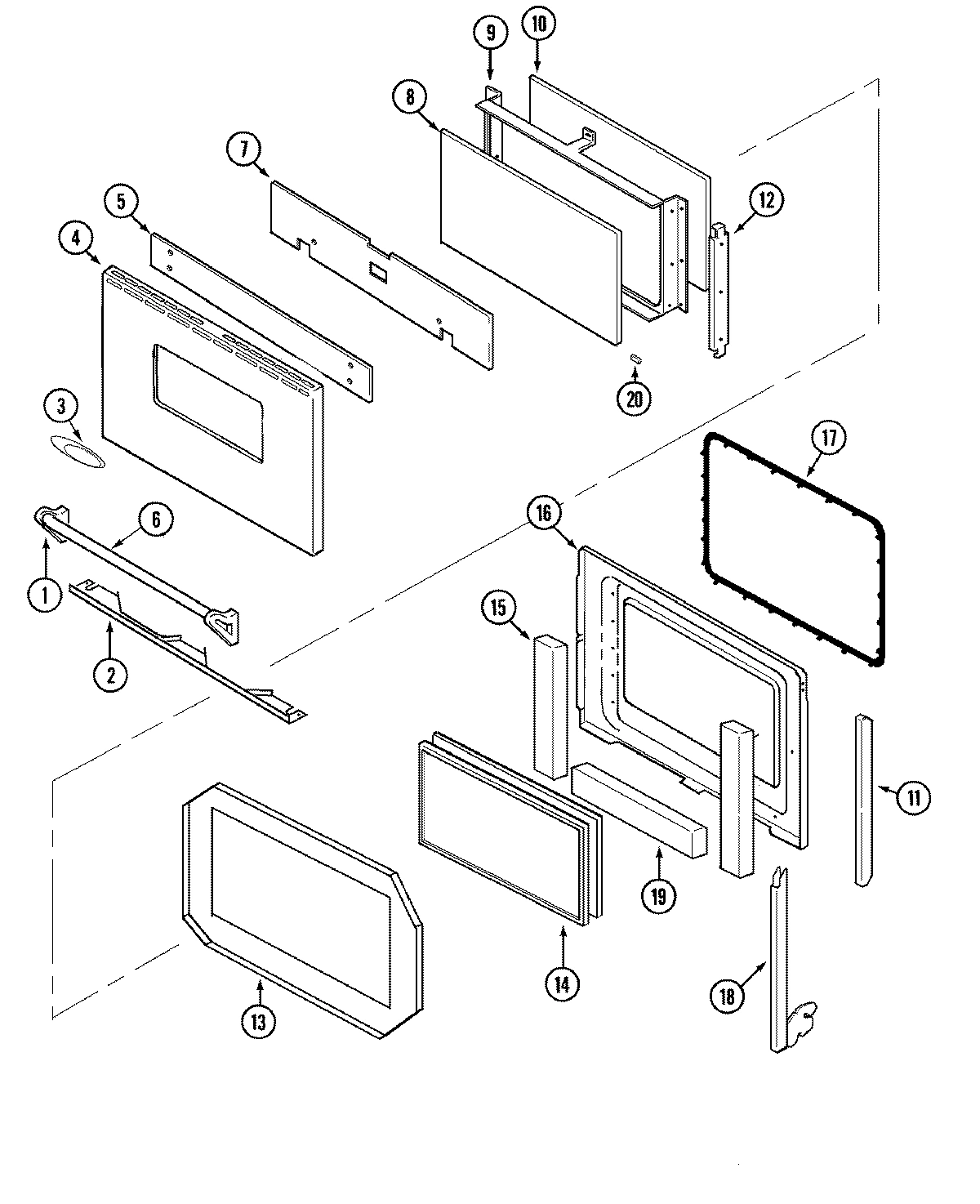

TRIM, HANDLE END CAP WPL 74006941 Contact Us For Availability

1

PANEL, TOP (OUTER) WPL Y74006818 Contact Us For Availability

1

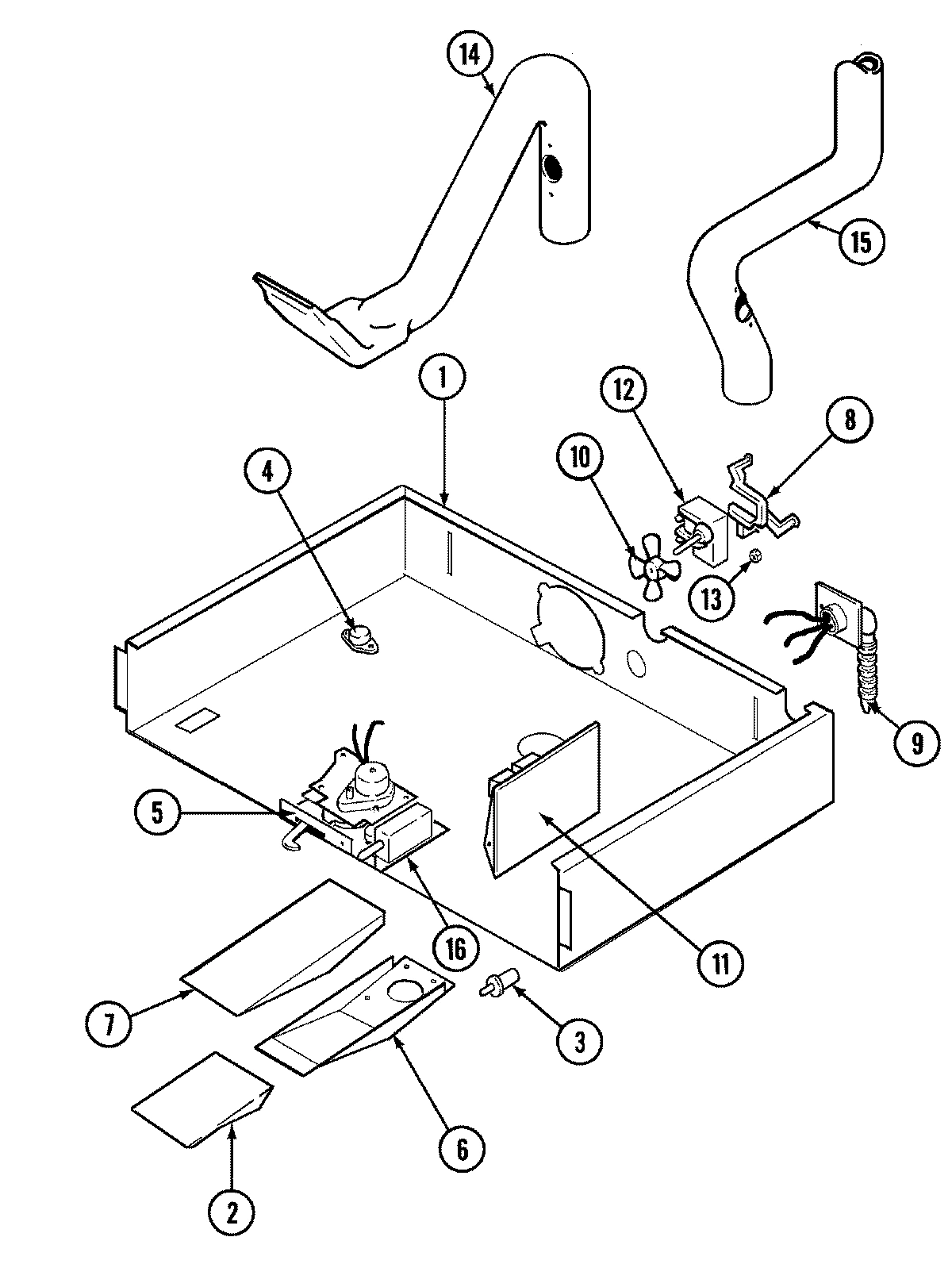

INSULATION, CONTROL WPL 71002920 Contact Us For Availability

1

PANEL, TOP (INR-CTR) WPL 71001885 Contact Us For Availability

1

PANEL, TOP (INR) WPL 74006821 Contact Us For Availability

2

WP71001872-includeCORE Whirlpool WP71001872 W Backorder WPL WP71001872-includeCORE $293.10

2

WPW10282527 Whirlpool Oven Rack Backorder WPL WPW10282527 $78.34

2

TRIM, DOOR (LWR) WPL 71003111 Contact Us For Availability

2

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

2

BACK, OUTER (UPR) WPL 71001878 Contact Us For Availability

2

BACK, OUTER (LWR) WPL 71001883 Contact Us For Availability

2

EXTENSION, VENT WPL 71001843 Contact Us For Availability

3

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.60

3

NAMEPLATE (AMANA) WPL 74006943 Contact Us For Availability

3

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

3

TRIM, SIDE (RT-BLK) WPL 71003109 Contact Us For Availability

3

TRIM, SIDE (LT-BLK) WPL 71003110 Contact Us For Availability

3

PANEL, CONTROL (STL) WPL 71002912 Contact Us For Availability

3

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

4

WP71001844 Whirlpool Thermostat Backorder WPL WP71001844 $89.06

4

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.60

4

SCREW, FLAT WPL 704745 Contact Us For Availability

4

PANEL, DOOR (STNLS) WPL 74006944 Contact Us For Availability

4

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

4

TRIM, LOWER (BLK) WPL 71002917 Contact Us For Availability

4

SWITCH MEMBRANE ASSY. WPL 74006936 Contact Us For Availability

4

THERMOSTAT, FIXED WPL 71001887 Contact Us For Availability

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $45.28

5

INSULATION, DOOR PANEL WPL 71002918 Contact Us For Availability

5

PANEL, OVEN (SIDE/BTM/SIDE) WPL 74005645 Contact Us For Availability

5

BRACKET, TOP SUPPORT WPL 71002872 Contact Us For Availability

5

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

6

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.21

6

HANDLE, DOOR WPL 74006942 Contact Us For Availability

6

FRAME, OVEN WPL 71003180 Contact Us For Availability

6

TRIM, CONTROL PANEL WPL 71001804 Contact Us For Availability

6

VENT (BTM) WPL 71001846 Contact Us For Availability

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $154.88

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

HEAT SINK WPL 74005614 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003005 Contact Us For Availability

7

VENT (TOP) WPL 71001847 Contact Us For Availability

8

GLASS, OUTER WPL 74006945 Contact Us For Availability

8

RECEPTACLE, PROBE WPL 71001863 Contact Us For Availability

8

SCREW WPL 702731 Contact Us For Availability

8

PANEL, BACK (INR) WPL 74004629 Contact Us For Availability

8

BRACKET, FAN WPL 71001853 Contact Us For Availability

9

SUPPORT, GLASS BRACKET WPL 71002992 Contact Us For Availability

9

BRACKET, GLASS WPL 71002993 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

9

PLATE, COVER (CENTER SUPPORT) WPL 71003411 Contact Us For Availability

9

SUPPORT (CTR) WPL Y04100669 Contact Us For Availability

9

WIRE CABLE ASSY. WPL 71001888 Contact Us For Availability

GLASS, INNER WPL 71002801 Contact Us For Availability

TUBE, VENT WPL 71002419 Contact Us For Availability

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

BLADE, FAN WPL 71001852 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.55

WP74011278 Whirlpool Light Backorder WPL WP74011278 $72.19

BRACKET, DOOR FILLER WPL 71002916 Contact Us For Availability

EXTRUSION (CTR) WPL 71001884 Contact Us For Availability

BOARD, RELAY (LWR) WPL 71001893 Contact Us For Availability

BOARD, RELAY WPL 74006613 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $25.37

CLAMP, GLASS WPL 71002796 Contact Us For Availability

CLAMP, GLASS WPL 74007833 Contact Us For Availability

INSULATION (WRAP) WPL 71001817 Contact Us For Availability

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.60

RETAINER, INSULATION WPL 74005648 Contact Us For Availability

INSULATION (BTM) WPL 71003614 Contact Us For Availability

WINDOW ASSEMBLY WPL 74005641 Contact Us For Availability

NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability

INSULATION (BACK-TOP) WPL 71002329 Contact Us For Availability

TUBE, VENT (UPR) WPL 71002417 Contact Us For Availability

15

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

15

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

15

TUBE, VENT (LWR) WPL 71002418 Contact Us For Availability

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

WPW10296816 Whirlpool Refrigerator Screw Backorder WPL WPW10296816 $2.60

LINER, OVEN DOOR WPL 74005642 Contact Us For Availability

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

17

WP71001841 Whirlpool Door Seal Backorder WPL WP71001841 $76.27

17

WP71001870 Whirlpool Temperature Probe Sensor Backorder WPL WP71001870 $102.55

18

WP74008014 Whirlpool Range Oven Door Hinge In Stock WPL WP74008014 $88.94

18

BUTTON, PLUG WPL 702929 Contact Us For Availability

19

INSULATION, DOOR (BTM) WPL 71001838 Contact Us For Availability

19

MOTOR ASSY, CONVECTION WPL 74005657 Contact Us For Availability

20

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.37

20

PLATE, CONVECTION (FRT) WPL 74005658 Contact Us For Availability

21

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.60

22

CLIP, OVEN WPL 71001170 Contact Us For Availability

W10759523 Whirlpool Screw Backorder WPL W10759523 $2.47

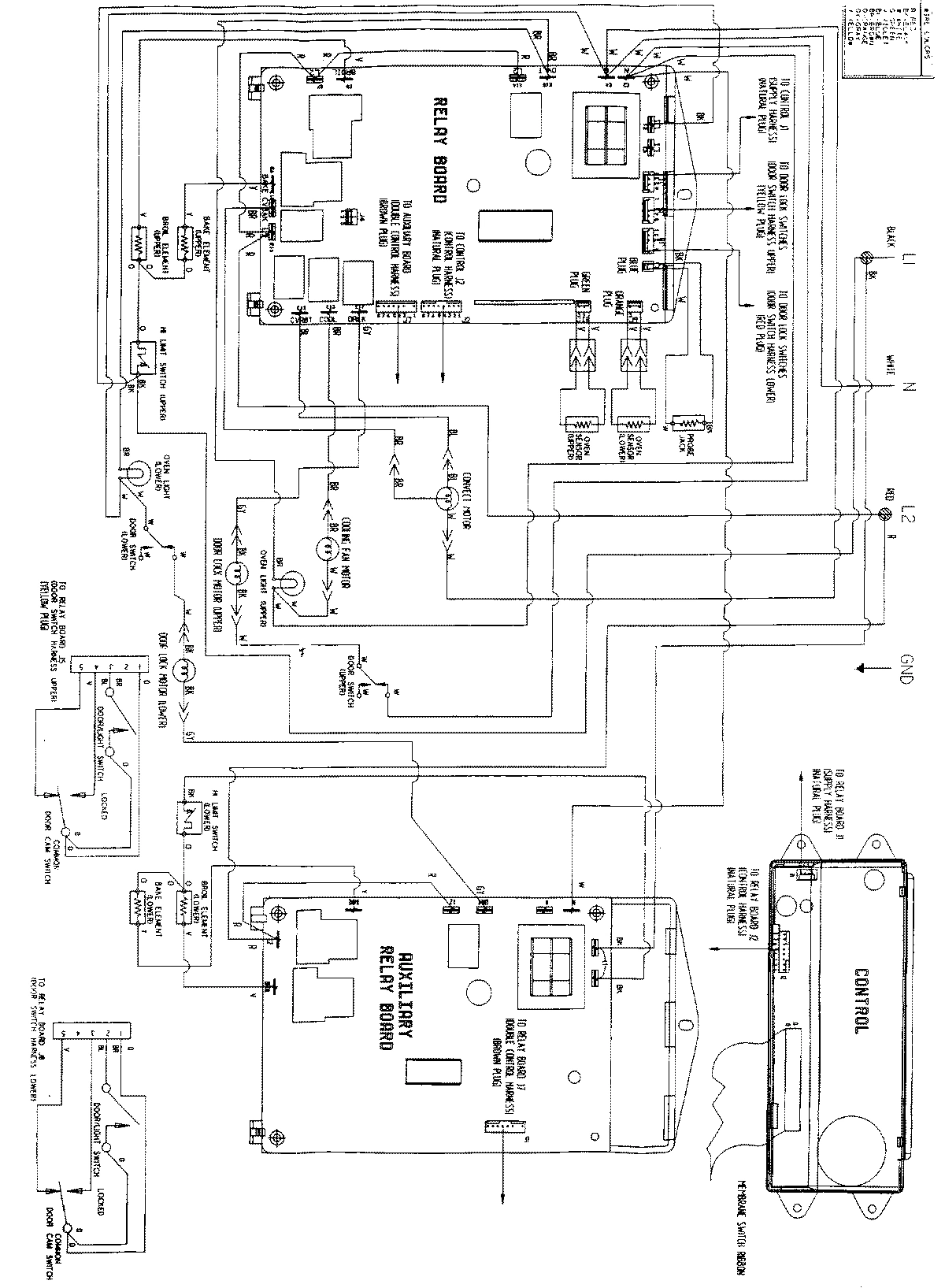

WIRING INFORMATION WPL 15001719 Contact Us For Availability

HARNESS, MEAT PROBE WPL 71001868 Contact Us For Availability

HARNESS, UPPER DOOR SW/MOTOR WPL 74006835 Contact Us For Availability

HARNESS, LOWER MAIN WPL 74006836 Contact Us For Availability

HARNESS, CONTROL WPL 74006937 Contact Us For Availability

HARNESS, MAIN (UPR) WPL 74006938 Contact Us For Availability

HARNESS, SENSOR & RELAY WPL 74006939 Contact Us For Availability

MANUAL, USE & CARE WPL 74006940 Contact Us For Availability
