LG ACAH033VDTB.AAAAAAU Air Conditioner

135312

AEB73706001 LG Front Grille Assembly Backorder LGE AEB73706001 $181.30

View on Model

135501

Cover Assembly Backorder LGE ACQ33787704 $30.89

View on Model

137210

AGL73679007 LG Front Panel Assembly Backorder LGE AGL73679007 $574.45

View on Model

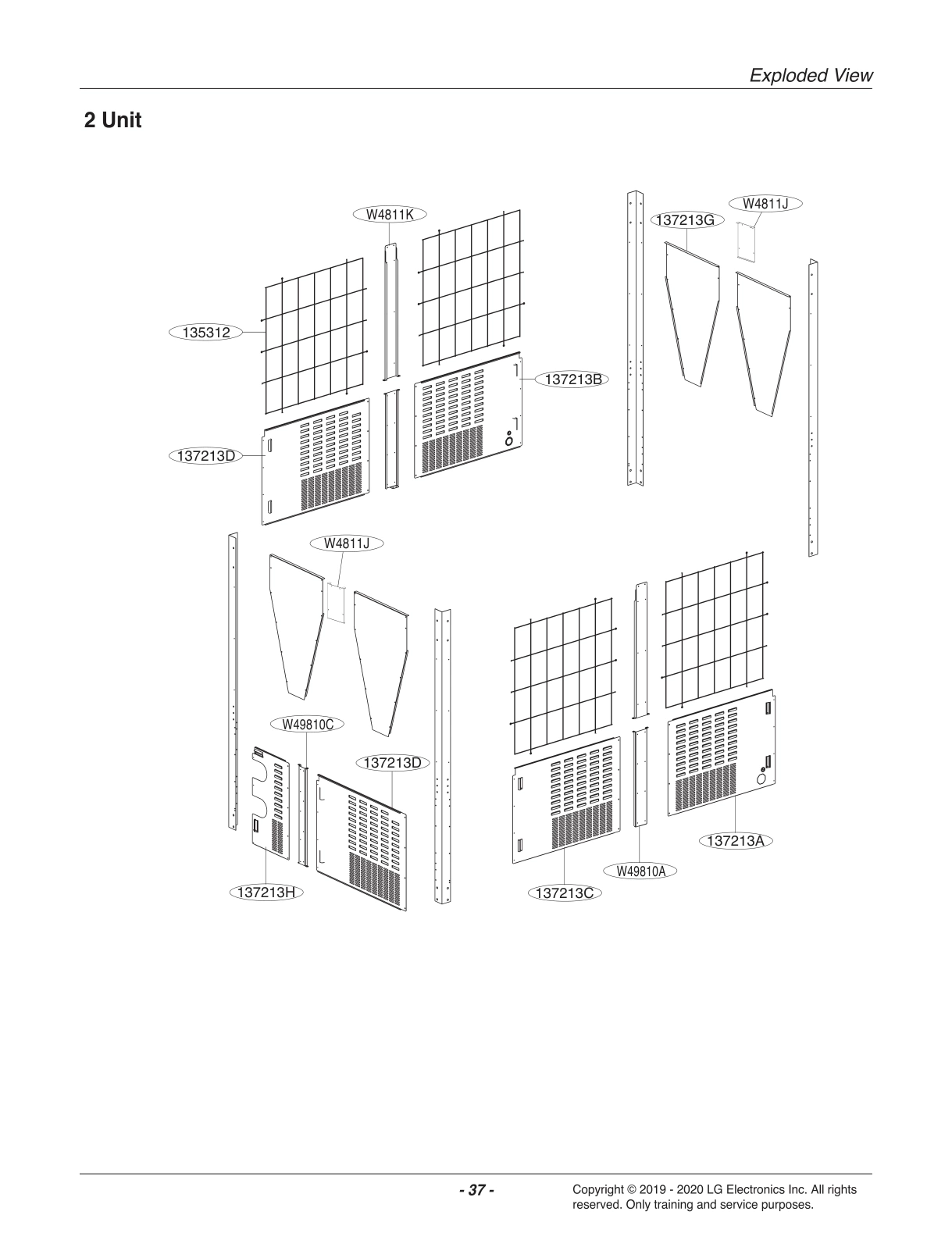

137213A

AGL76232501 LG Panel Assembly Side Backorder LGE AGL76232501 $325.85

View on Model

137213B

AGL76232502 LG Side Panel Assembly Backorder LGE AGL76232502 $325.85

View on Model

137213C

AGL76232503 LG Side Panel Assembly Backorder LGE AGL76232503 $325.85

View on Model

137213D

AGL76232504 LG Side Panel Assembly Backorder LGE AGL76232504 $325.85

View on Model

137213G

AGL73675304 LG Side Panel Assembly Backorder LGE AGL73675304 $231.49

View on Model

137213H

AGL76232512 LG Side Panel Assembly Backorder LGE AGL76232512 $231.49

View on Model

137215

AGL73975501 LG Control Panel Assembly Backorder LGE AGL73975501 $231.49

View on Model

165010A

EBD64401004 LG Pressure Sensor Assembly Backorder LGE EBD64401004 $256.68

View on Model

165010A

Sensor,Pressure LGE EBD60663844 Contact Us For Availability

View on Model

165010B

Sensor,Pressure Backorder LGE EBD60663843 $205.43

View on Model

165010B

Sensor Assembly,Pressure LGE EBD64401003 Contact Us For Availability

View on Model

165010C

Sensor,Pressure Backorder LGE EBD60663842 $231.49

View on Model

165010C

EBD64401002 LG Pressure Sensor Assembly Backorder LGE EBD64401002 $256.68

View on Model

165010D

SENSOR,PRESSURE Backorder LGE EBD60663841 $231.49

View on Model

165010D

EBD64401001 LG Pressure Sensor Assembly Backorder LGE EBD64401001 $256.68

View on Model

247810A

ACM75098802 LG Controller Assembly Backorder LGE ACM75098802 $703.40

View on Model

247810B

ACM74918902 LG Controller Assembly Backorder LGE ACM74918902 $1,001.95

View on Model

266010A

Switch Assembly,Pressure Backorder LGE EBF63614907 $132.09

View on Model

266010B

EBF60691604 LG Switch Assembly Backorder LGE EBF60691604 $695.11

View on Model

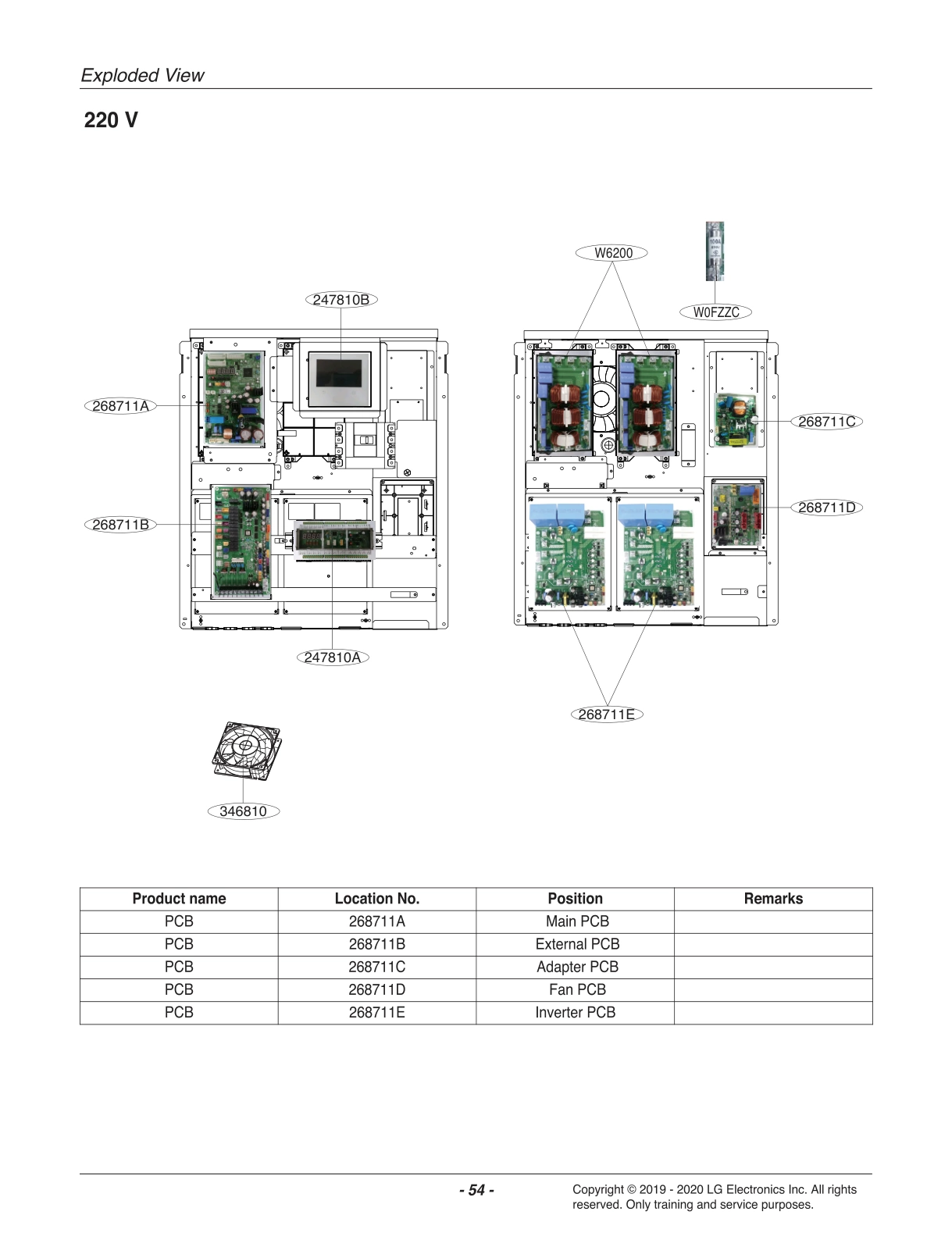

268711A

EBR85112905 LG Main PCB Assembly Backorder LGE EBR85112905 $398.24

View on Model

268711B

EBR81613002 LG Assembly PCB Backorder LGE EBR81613002 $325.85

View on Model

268711C

6871A20695C LG Power PCB Assembly Backorder LGE 6871A20695C $112.21

View on Model

268711D

EBR79669832 LG Fan PCB Assembly Backorder LGE EBR79669832 $438.08

View on Model

268711E

EBR82376304 LG Microwave Inverter Assembly Ci Backorder LGE EBR82376304 $719.35

View on Model

340090B

Exchanger Assembly LGE ADM74790619 Contact Us For Availability

View on Model

346810

EAU38500610 LG AC Motor Assembly COOLING Backorder LGE EAU38500610 $231.49

View on Model

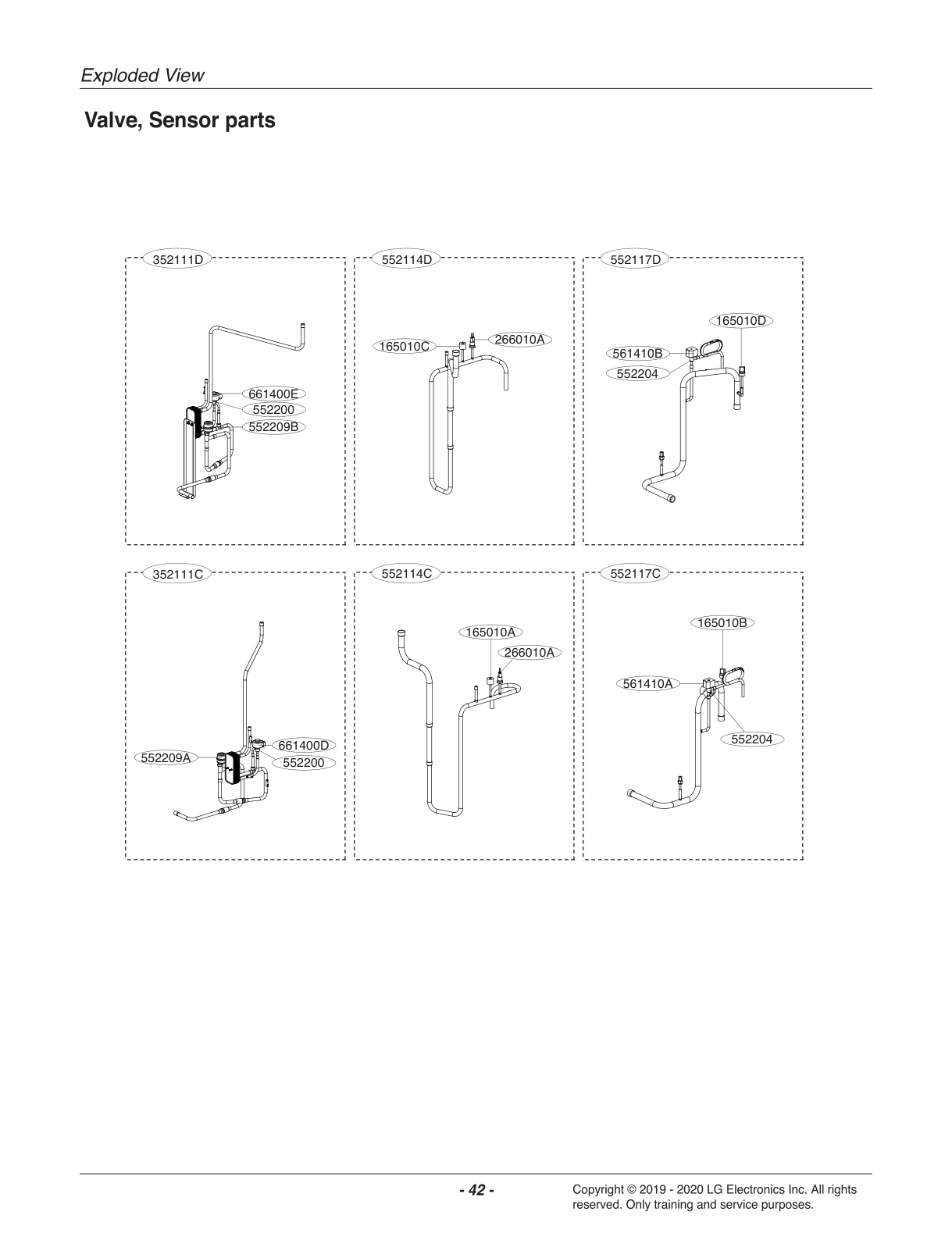

352111A

AJR76383705 LG Tube Connector Assembly Backorder LGE AJR76383705 $122.27

View on Model

352111B

AJR76383706 LG Tube Connector Assembly Backorder LGE AJR76383706 $112.21

View on Model

352111C

AJR76582501 LG Tube Connector Assembly Backorder LGE AJR76582501 $703.40

View on Model

352111D

AJR76582502 LG Tube Connector Assembly Backorder LGE AJR76582502 $703.40

View on Model

352114A

AJR73965602 LG Distributor Tube Assembly Backorder LGE AJR73965602 $350.52

View on Model

352114B

AJR73965601 LG Distributor Tube Assembly Backorder LGE AJR73965601 $350.52

View on Model

352119

3H02787A LG Air Conditioner Return Tube Bendi Backorder LGE 3H02787A $3.40

View on Model

435511A

ACQ89828811 LG Outdoor Control Cover Assembly Backorder LGE ACQ89828811 $282.55

View on Model

435511B

ACQ89828812 LG Outdoor Control Assembly Cover Backorder LGE ACQ89828812 $231.49

View on Model

435512

ACQ34885914 LG Outdoor Top Cover Assembly Backorder LGE ACQ34885914 $350.52

View on Model

546810

EAU43080043 LG Outdoor DC Motor Assembly Backorder LGE EAU43080043 $651.48

View on Model

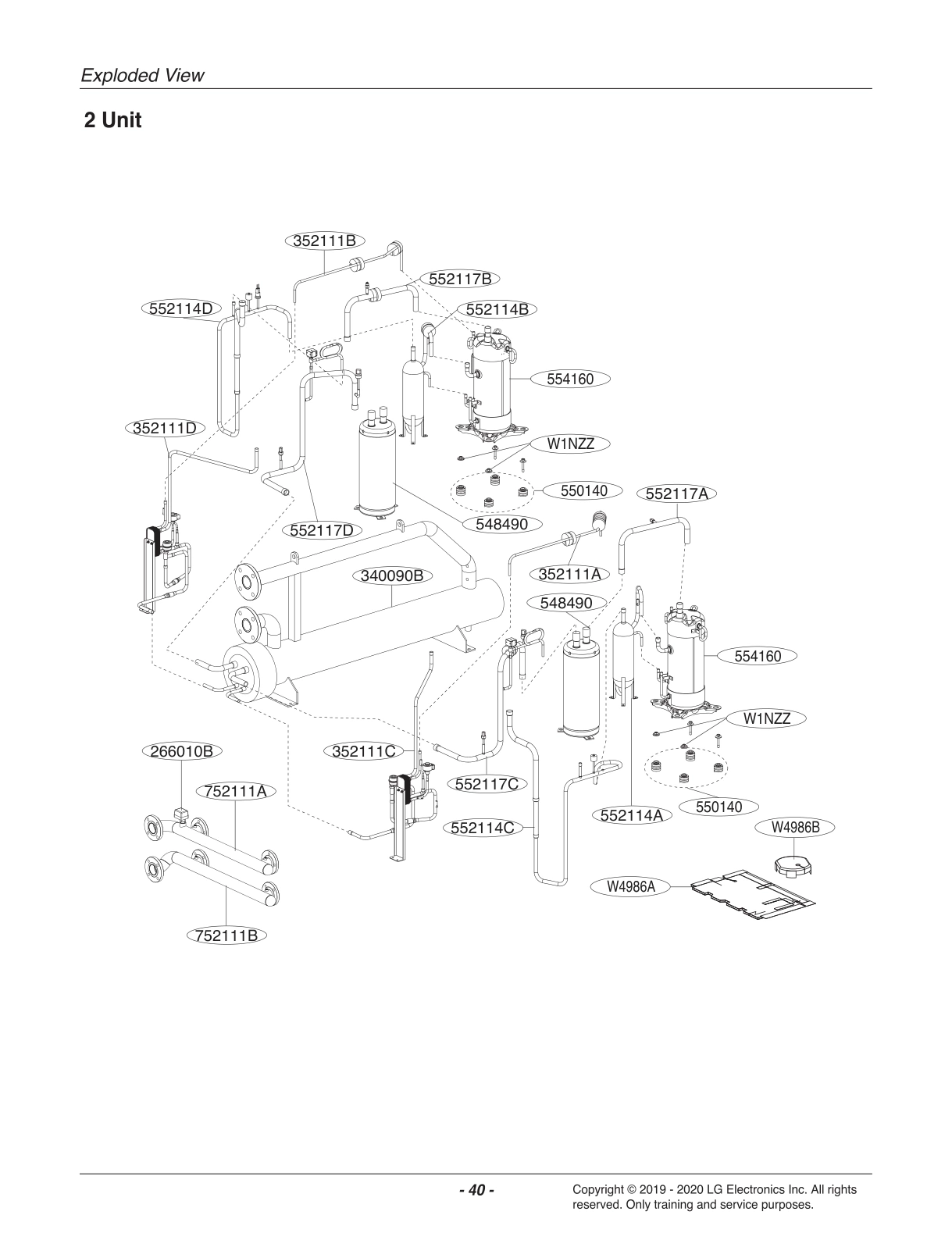

548490

Accumulator LGE 4848A20001N Contact Us For Availability

View on Model

550140

Damper,Compressor LGE MCQ62569601 Contact Us For Availability

View on Model

552114A

AJR76583301 LG Outdoor Discharge Tube Assembl Backorder LGE AJR76583301 $282.55

View on Model

552114B

AJR76325401 LG Discharge Tube Assembly (Outdo Backorder LGE AJR76325401 $256.68

View on Model

552114C

Tube Assembly,Discharge(Outdoor) LGE AJR76582403 Contact Us For Availability

View on Model

552114D

Tube Assembly,Discharge(Outdoor) LGE AJR76582404 Contact Us For Availability

View on Model

552115A

AJR73965501 LG Outdoor Manifold Assembly Tube Backorder LGE AJR73965501 $282.55

View on Model

552115B

AJR73965502 LG Outdoor Manifold Tube Assembly Backorder LGE AJR73965502 $282.55

View on Model

552117A

AJR76362905 LG Outdoor Suction Tube Assembly Backorder LGE AJR76362905 $137.65

View on Model

552117B

AJR76362906 LG Outdoor Suction Tube Assembly Backorder LGE AJR76362906 $160.72

View on Model

552117C

AJR76543301 LG Tube Assembly - Outdoor Suctio Backorder LGE AJR76543301 $574.45

View on Model

552117D

AJR76543302 LG Outdoor Suction Tube Assembly Backorder LGE AJR76543302 $574.45

View on Model

552200

Valve,Expansion Body Backorder LGE MJX63992003 $44.10

View on Model

552204

MJX61841301 LG Valve Solenoid Backorder LGE MJX61841301 $85.18

View on Model

552209A

AJU36719729 LG Valve Assembly Backorder LGE AJU36719729 $325.85

View on Model

552209B

AJU36719730 LG Valve Assembly Backorder LGE AJU36719730 $325.85

View on Model

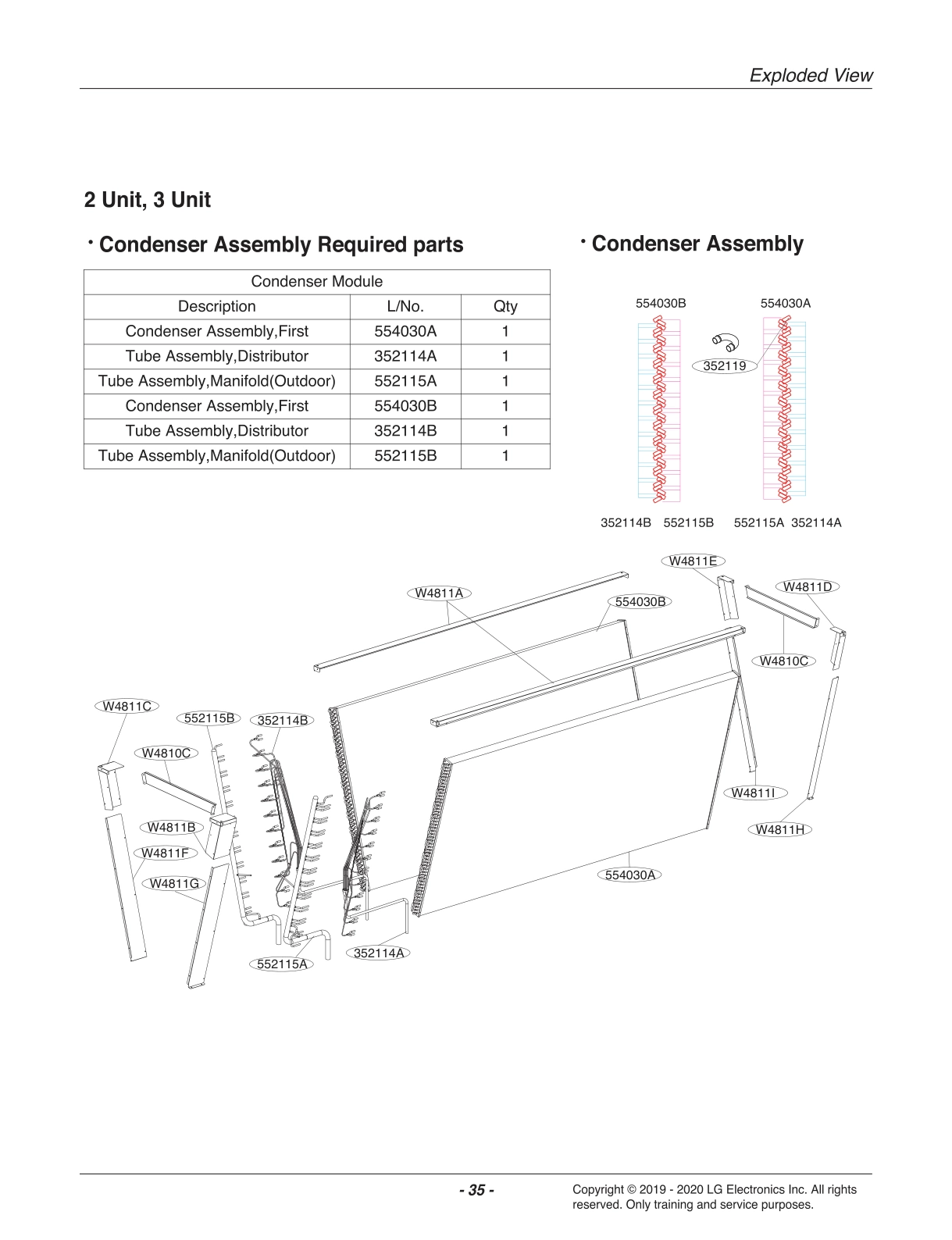

554030A

ACG73568143 LG Condenser Assembly First Backorder LGE ACG73568143 $1,951.36

View on Model

554030B

ACG73568144 LG First Assembly Condenser Backorder LGE ACG73568144 $1,951.36

View on Model

554160

Compressor Set,Korea Backorder LGE TBZ37416201 $2,073.23

View on Model

554160

Compressor Set,Korea LGE TBZ37957301 Contact Us For Availability

View on Model

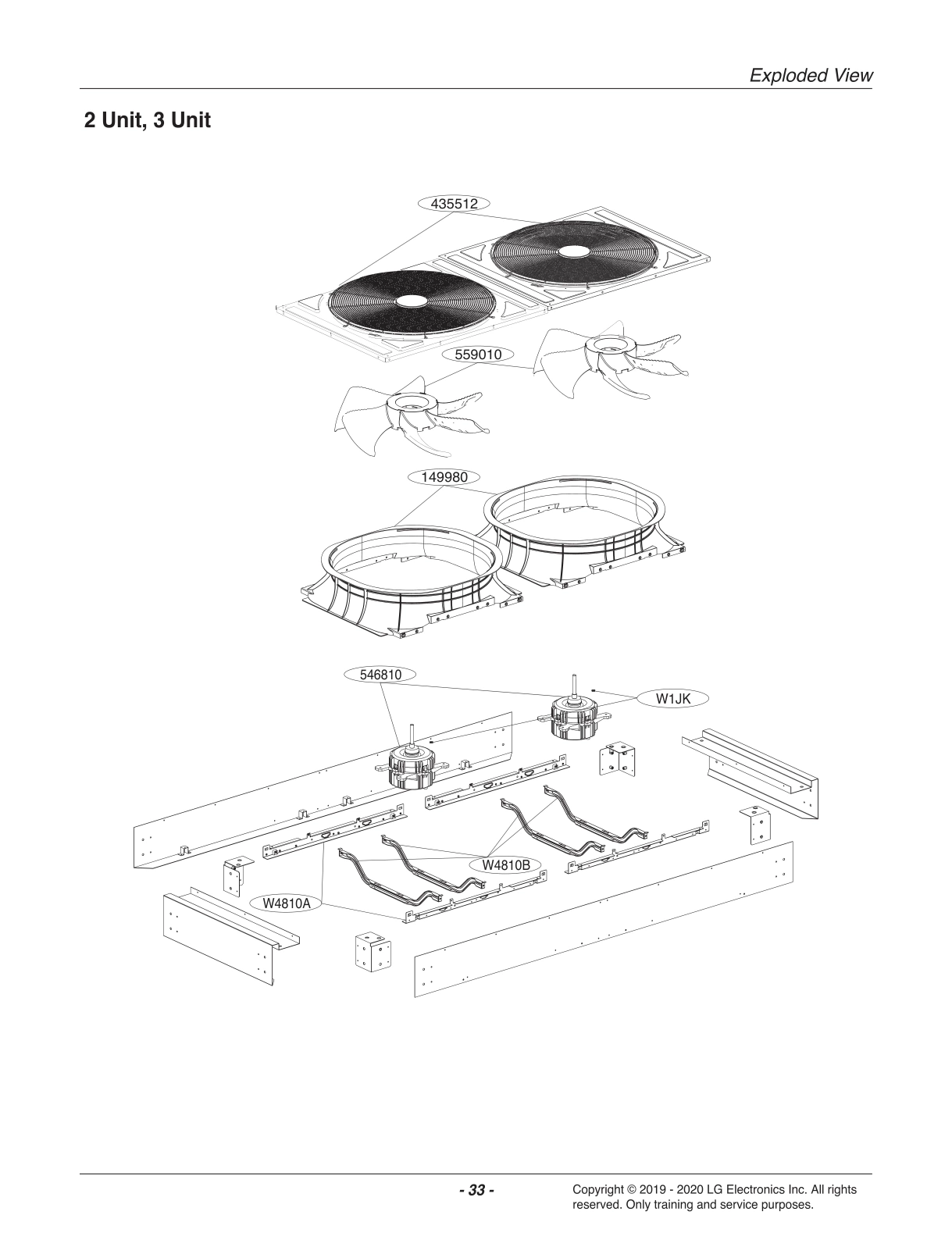

559010

ADP75313301 LG Propeller Fan Assembly Backorder LGE ADP75313301 $160.72

View on Model

561410A

EAP64286401 LG Coil Assembly,Solenoid Backorder LGE EAP64286401 $85.18

View on Model

561410B

EAP64286402 LG Solenoid Coil Assembly Backorder LGE EAP64286402 $85.18

View on Model

649950F

CASE ASSEMBLY,CONTROL(OUTDOOR) Backorder LGE ABQ30183515 $6,796.84

View on Model

649950G

Case Assembly,Control(Outdoor) Backorder LGE ABQ30183516 $5,969.08

View on Model

661400D

EAP64286601 LG Expansion Coil Assembly Backorder LGE EAP64286601 $122.27

View on Model

661400D

Coil Assembly,Expansion LGE EAP64286603 Contact Us For Availability

View on Model

661400E

EAP64286602 LG Expansion Coil Assembly Backorder LGE EAP64286602 $122.27

View on Model

661400E

Coil Assembly,Expansion Backorder LGE EAP64286604 $132.09

View on Model

752111A

AGR75994812 LG Pipe Assembly Backorder LGE AGR75994812 $2,073.23

View on Model

752111B

AGR75994816 LG Pipe Assembly Backorder LGE AGR75994816 $2,165.73

View on Model

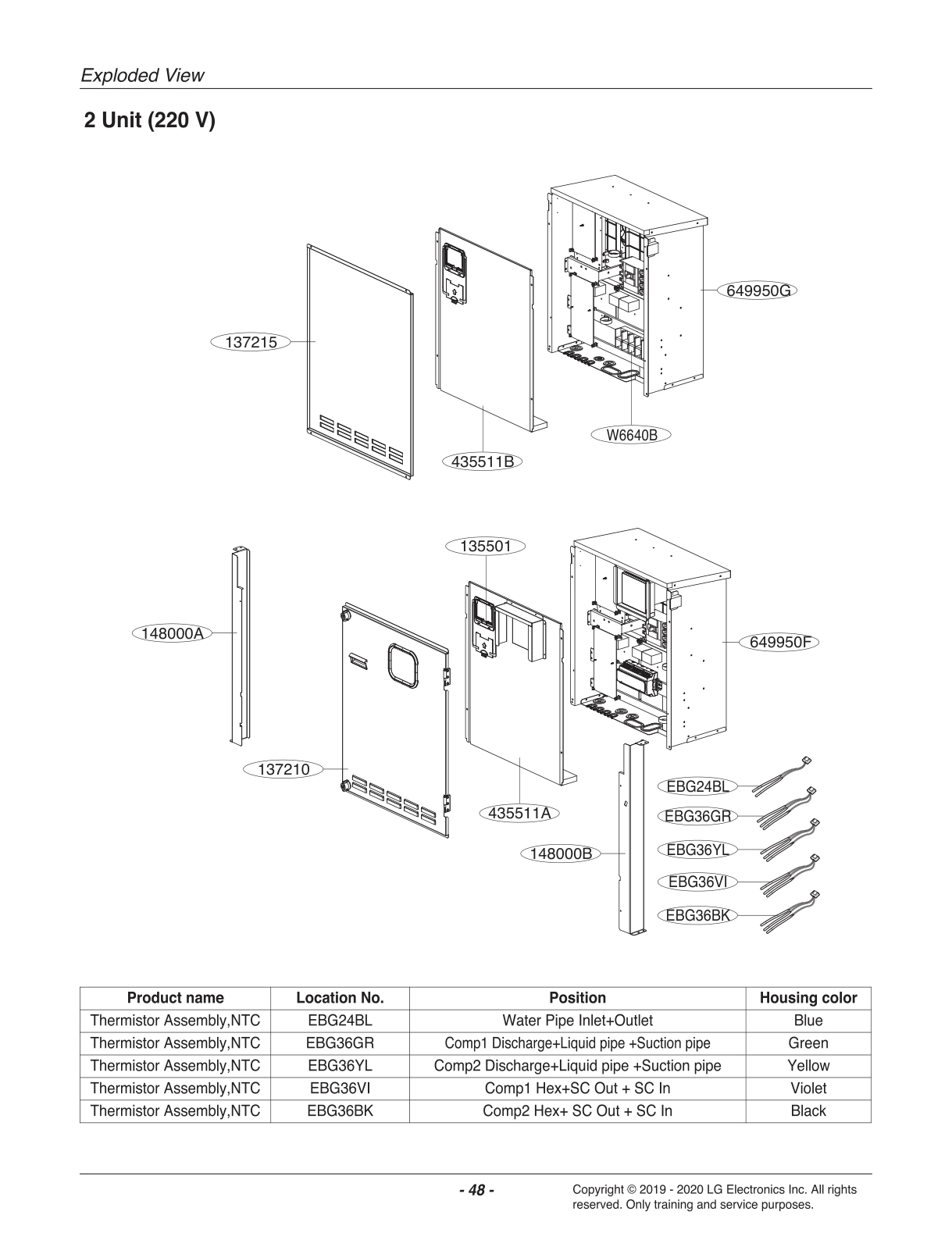

EBG24BL

EBG63285701 LG Thermistor Assembly - NTC Backorder LGE EBG63285701 $205.43

View on Model

EBG36BK

EBG63285705 LG Thermistor Assembly NTC Backorder LGE EBG63285705 $132.09

View on Model

EBG36GR

EBG63285702 LG NTC Thermistor Assembly Backorder LGE EBG63285702 $132.09

View on Model

EBG36VI

EBG63285704 LG NTC Thermistor Assembly Backorder LGE EBG63285704 $132.09

View on Model

EBG36YL

EBG63285703 LG NTC Thermistor Assembly Backorder LGE EBG63285703 $132.09

View on Model

W0FZZC

Fuse,Time Delay LGE EAF62630401 Contact Us For Availability

View on Model

W1JK

Screw,Set LGE 4H00026B Contact Us For Availability

View on Model

W1NZZ

FAD33370603 LG Nut Assembly Backorder LGE FAD33370603 $5.71

View on Model

W4810A

MAZ65143503 LG Bracket Backorder LGE MAZ65143503 $45.29

View on Model

W4810B

MAZ66006801 LG Bracket Backorder LGE MAZ66006801 $37.90

View on Model

W4810C

Bracket LGE MAZ63512903 Contact Us For Availability

View on Model

W4811A

ABA74068903 LG Bracket Assembly Backorder LGE ABA74068903 $205.43

View on Model

W4811B

ABA74249001 LG Bracket Assembly Backorder LGE ABA74249001 $58.41

View on Model

W4811C

ABA74249002 LG Bracket Assembly Backorder LGE ABA74249002 $58.41

View on Model

W4811D

ABA74249003 LG Bracket Assembly Backorder LGE ABA74249003 $58.41

View on Model

W4811E

ABA74249004 LG Bracket Assembly Backorder LGE ABA74249004 $58.41

View on Model

W4811F

ABA74088605 LG Bracket Assembly Backorder LGE ABA74088605 $95.08

View on Model

W4811G

ABA74088606 LG Bracket Assembly Backorder LGE ABA74088606 $95.08

View on Model

W4811H

ABA74088607 LG Bracket Assembly Backorder LGE ABA74088607 $75.86

View on Model

W4811I

ABA74088608 LG Bracket Assembly Backorder LGE ABA74088608 $75.86

View on Model

W4811J

ABA74349701 LG Bracket Assembly Backorder LGE ABA74349701 $66.50

View on Model

W4811K

ABA74231301 LG Bracket Assembly Backorder LGE ABA74231301 $137.65

View on Model

W4986A

Sound proof LGE MDS65550301 Contact Us For Availability

View on Model

W4986B

Gasket Backorder LGE MDS65550401 $122.27

View on Model

W6200

EAM63430904 LG AC Line Filter Backorder LGE EAM63430904 $438.08

View on Model

W6640B

6640A30004N LG Terminal Block Connector Backorder LGE 6640A30004N $23.97

View on Model

W49810A

AJJ73498808 LG Supporter Assembly Backorder LGE AJJ73498808 $160.72

View on Model

W49810C

AJJ73498807 LG Assembly Supporter Backorder LGE AJJ73498807 $112.21

View on Model
