Model Whirlpool AC2904XW2 AIR CONDITIONER – Common Parts & Diagrams

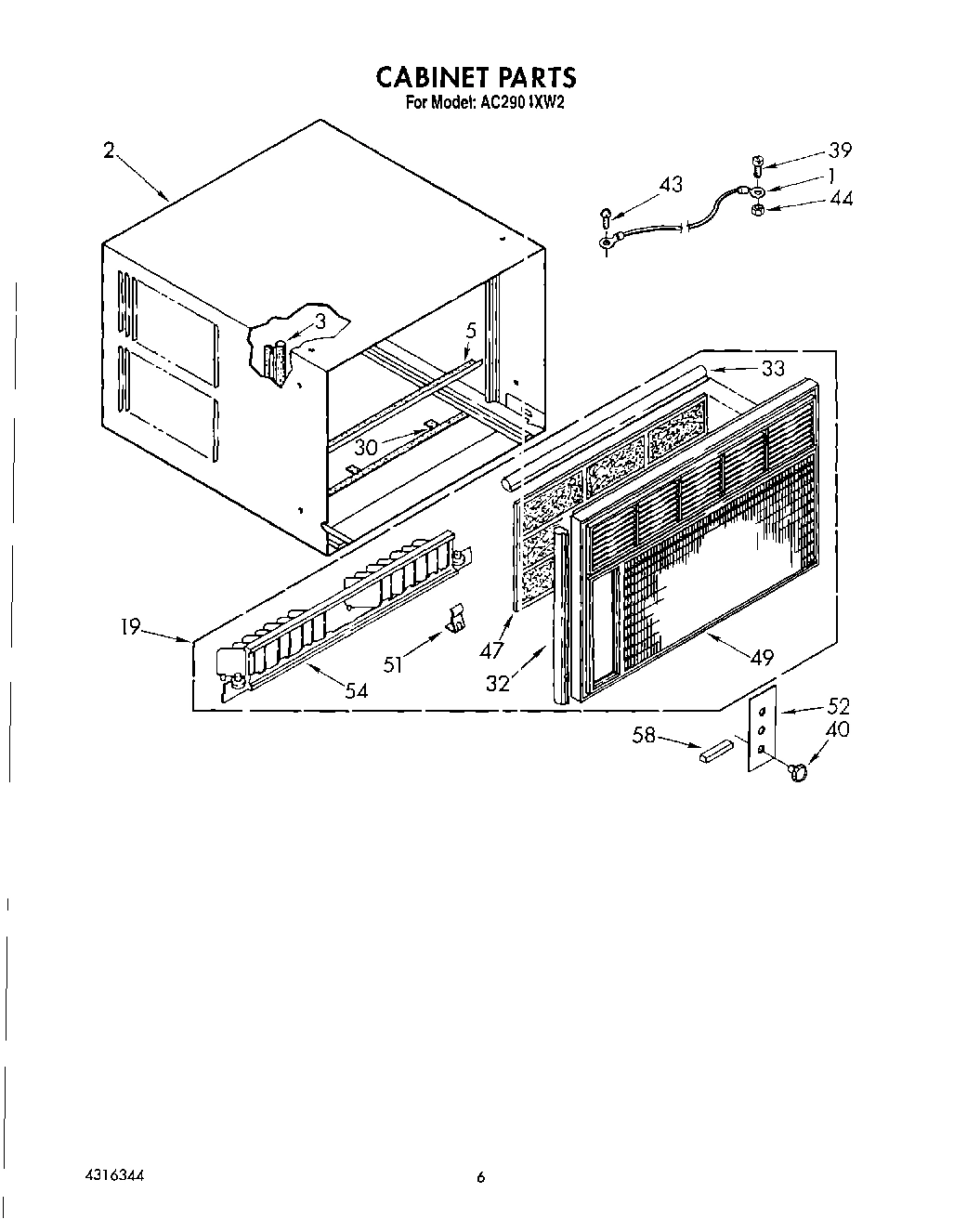

04 - CABINET, LIT\OPTIONAL

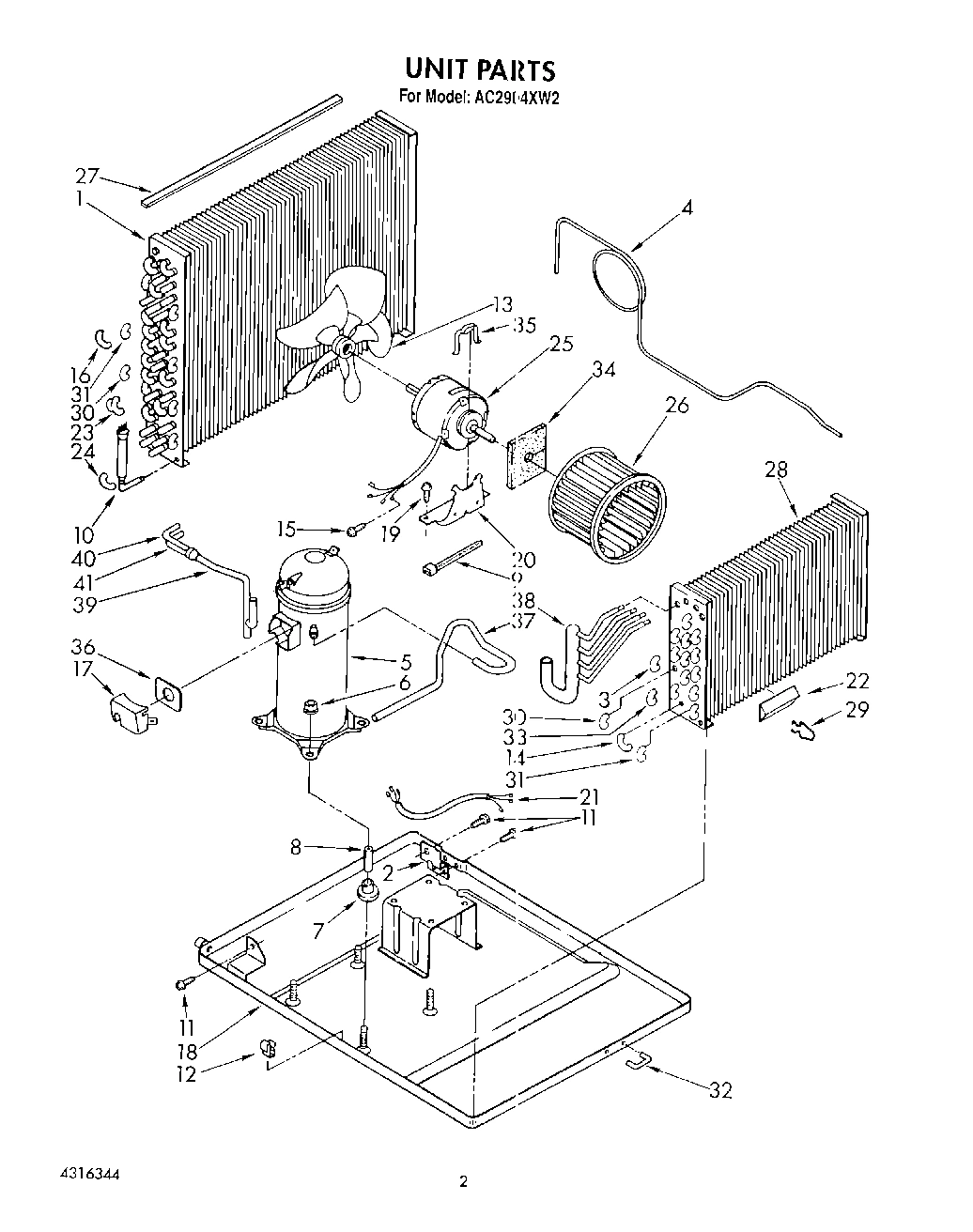

02 - UNIT
03 - AIRFLOW AND CONTROL
06 - OPTIONAL
05 - INSTALLATION
Common parts from model Whirlpool AC2904XW2 AIR CONDITIONER
1
Condenser WPL 1162236 Contact Us For Availability
1
Shroud, Condenser WPL 1162326 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Standard Installation Kit WPL 485451 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Support, Condenser (RS) WPL 856028 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return WPL 856665 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
4
Tube, Restrictor (4) WPL 1162232 Contact Us For Availability
4
Pan, Condensate WPL 952708 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Bracket, Window Lock WPL 644228 Contact Us For Availability
5
Compressor WPL 1162220 Contact Us For Availability
5
Guard, Evaporator Impeller WPL 1159324 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Screw Wood No.8x3/4 WPL 488255 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Locknut (4) WPL 858121 Contact Us For Availability
6
Screw, (2) WPL 1159503 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Bolt, No.10-32 X 3/8 (3) WPL 487336 Contact Us For Availability
7
Grommet (4) WPL 475041 Contact Us For Availability
7
Support, Unit WPL 475742 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Angle, Top Mounting WPL 645514 Contact Us For Availability
8
Sleeve (4) WPL 858116 Contact Us For Availability
8
Screen WPL 470986 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Strip, Seal WPL 855265 Contact Us For Availability
9
Wall, Dividing WPL 1156124 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Angle, Side Mounting (2) WPL 644272 Contact Us For Availability
10
Strainer, Tube WPL 1159504 Contact Us For Availability
10
Actuator, Fresh Air Door WPL 648138 Contact Us For Availability
10
Screw, S.M. No.10 X 3/8 (4) WPL 488481 Contact Us For Availability
11
Seal, Tube WPL 856916 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Washer Flat (3) WPL 486608 Contact Us For Availability
12
Clamp (2) WPL 471088 Contact Us For Availability
12
Tube, Left WPL 475710 Contact Us For Availability
12
Tube, Right WPL 477542 Contact Us For Availability
12
Nut, Hex No.10-32 (3) WPL 487642 Contact Us For Availability
13
Blade, Fan WPL 1162226 Contact Us For Availability
13
Cup, Condensate WPL 1158387 Contact Us For Availability
13
Block, Spacer (2) WPL 995274 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bend, Return Condenser (1) Evaporator (2) WPL 1162511 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Cable, Appliance WPL 647223 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Bend, Return WPL 854625 Contact Us For Availability
16
Bracket WPL 997218 Contact Us For Availability
16
Board, Filler (2) WPL 645513 Contact Us For Availability
17
Cover, Terminal WPL 1162342 Contact Us For Availability
17
Ground Wire WPL 998010 Contact Us For Availability
17
Wood Screw, 10 x 1 WPL 487488 Contact Us For Availability
18
Base, Unit WPL 856498 Contact Us For Availability
18
Capacitor, WPL 951518 Contact Us For Availability
18
Bolt, No.10 X 3/4 (10) WPL 488750 Contact Us For Availability
19
Screw, 1/4 x 5/8 (4) WPL 488311 Contact Us For Availability
19
Seal, Unit Support Running WPL 1162814 Contact Us For Availability
19
Nut, Hex WPL 486035 Contact Us For Availability
20
Washer, Lock (10) WPL 486009 Contact Us For Availability
20
Cradle, Motor (2) WPL 471719 Contact Us For Availability
20
Extension, Wall WPL 1155699 Contact Us For Availability
21
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
21
Plate, Back WPL 998324 Contact Us For Availability
22
Anticipator WPL 472046 Contact Us For Availability
22
Seal, WPL 1158774 Contact Us For Availability
22
Retainer, Cabinet Support WPL 645517 Contact Us For Availability
23
Bend, Return (3-Way) WPL 953168 Contact Us For Availability
23
Pin WPL 471108 Contact Us For Availability
23
Bracket, Sill (2) WPL 645515 Contact Us For Availability
24
Bend, Return WPL 855457 Contact Us For Availability
24
Spring WPL 471109 Contact Us For Availability
24
Bracket, Support WPL 645516 Contact Us For Availability
25
Motor, Fan WPL 1162324 Contact Us For Availability
25
Door, Exhaust WPL 473781 Contact Us For Availability
25
Support, Caninet (2) WPL 645518 Contact Us For Availability
26
Wheel, Blower WPL 855934 Contact Us For Availability
26
Switch, Rotary WPL 950520 Contact Us For Availability
26
Wide Window Installation kit WPL 485856 Contact Us For Availability
27
Control, Temperature WPL 649422 Contact Us For Availability
27
Strip, Seal WPL 856979 Contact Us For Availability
28
Evaporator WPL 1162224 Contact Us For Availability
28
Wire, Ground WPL 856509 Contact Us For Availability
28
Seal, Meeting Rail WPL 470800 Contact Us For Availability
29
Clip (2) WPL 472047 Contact Us For Availability
29
Spring, Fresh Air & Exhaust Door WPL 649428 Contact Us For Availability
29
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
29
Instructions, Installation (Standard Kit) WPL 993383 Contact Us For Availability
29
Instructions Installation (Wide Window Kit) WPL 998618 Contact Us For Availability
30
Bend, Return Condenser (32 Evaporator (12) WPL 855199 Contact Us For Availability
30
Door, Fresh Air WPL 648137 Contact Us For Availability
31
Bend, Return Condenser (5 Evaporator (18) WPL 854624 Contact Us For Availability
32
Handle, Base WPL 647971 Contact Us For Availability
32
Wire, Exhaust Control WPL 648321 Contact Us For Availability
32
Wire, Fresh Air Control WPL 648322 Contact Us For Availability
33
Bend, Return WPL 1162512 Contact Us For Availability
33
Insulation, Condenser Shroud WPL 855213 Contact Us For Availability
34
Seal, Shaft WPL 476719 Contact Us For Availability
34
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
35
Box, Control WPL 950551 Contact Us For Availability
36
Gasket, Terminal Cover WPL 1162343 Contact Us For Availability
36
Wiring Harness, Control Box 01 WPL 1159317 Contact Us For Availability
37
Tube, Suction WPL 1162233 Contact Us For Availability
38
Tube, Manifold (Evaporator) WPL 1162231 Contact Us For Availability
38
Cover, Air Duct WPL 475730 Contact Us For Availability
39
Tube, Discharge WPL 1162813 Contact Us For Availability
39
Cover, Evaporator WPL 648319 Contact Us For Availability
40
Tube Inlet Top WPL 1159292 Contact Us For Availability
40
Pan, Evaporator WPL 475708 Contact Us For Availability
41
Tube Inlet Bottom WPL 1159293 Contact Us For Availability
41
Seal WPL 1160792 Contact Us For Availability
42
Insulation WPL 856917 Contact Us For Availability
43
Screw, 8-32 x 3/8 WPL 488854 Contact Us For Availability
46
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
47
Filter, Air WPL 648475 Contact Us For Availability
49
Cabinet, Front WPL 947875 Contact Us For Availability
51
Clip, Mounting (4) WPL 644169 Contact Us For Availability
52
Plate, Escutcheon WPL 952553 Contact Us For Availability
52
Screw, 8-16 5/8 WPL 489092 Contact Us For Availability
54
Louver, Vertical WPL 644164 Contact Us For Availability
54
Sleeve WPL 475841 Contact Us For Availability
55
Bushing, Fresh Air & Exhaust WPL 647879 Contact Us For Availability
56
Cam, Fresh Air & Exhaust WPL 648131 Contact Us For Availability
57
Shaft, Fresh Air & Exhaust WPL 648130 Contact Us For Availability
58
Spacer, Esuctcheon WPL 469175 Contact Us For Availability
58
Washer, Spring WPL 647881 Contact Us For Availability
59
Seal, Pan WPL 476089 Contact Us For Availability
61
Strip, Seal (2) WPL 476099 Contact Us For Availability
62
Seal, Cabinet Top WPL 475733 Contact Us For Availability
× ![]()
