Model Whirlpool AC2904XW0 AIR CONDITIONER – Common Parts & Diagrams

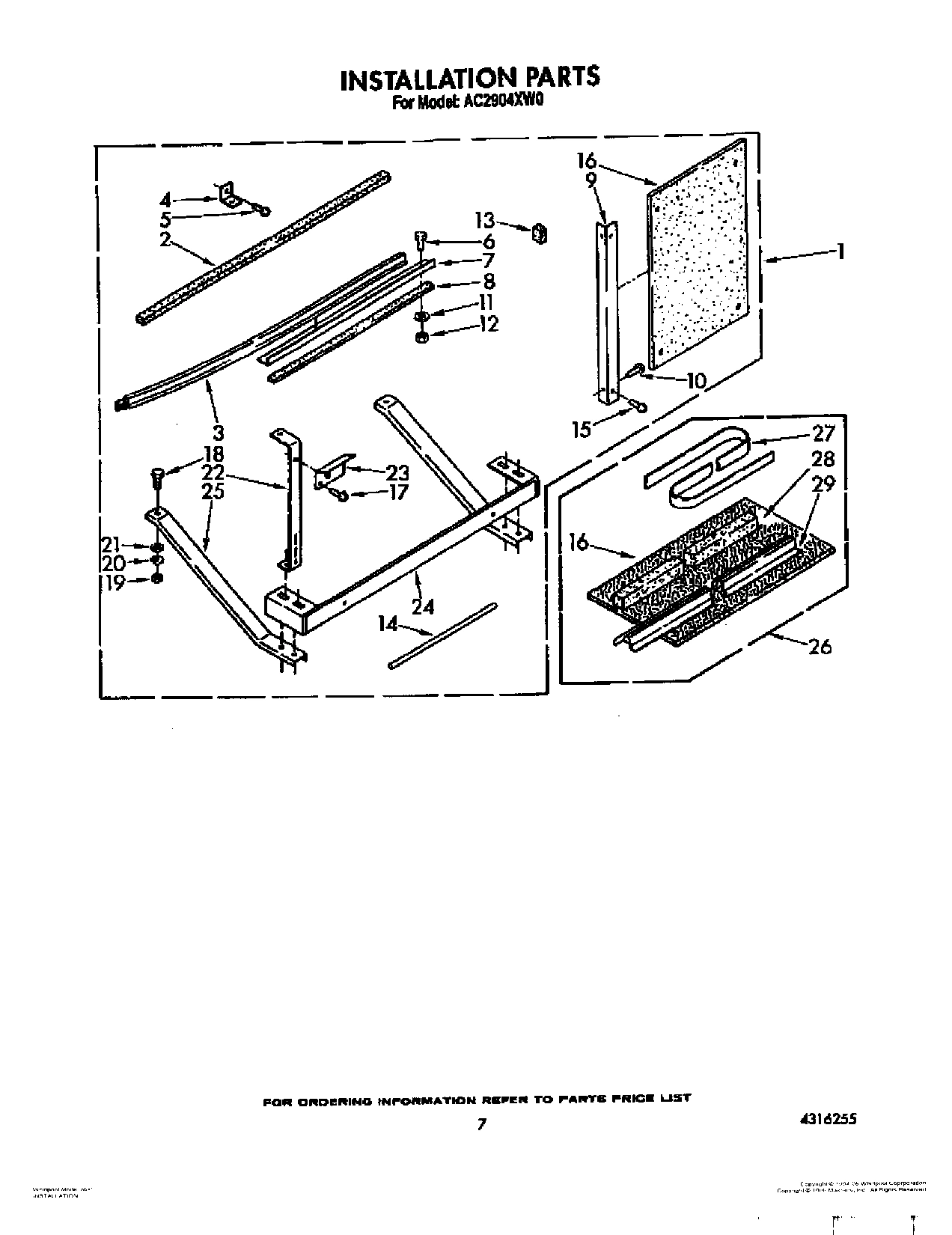

05 - INSTALLATION

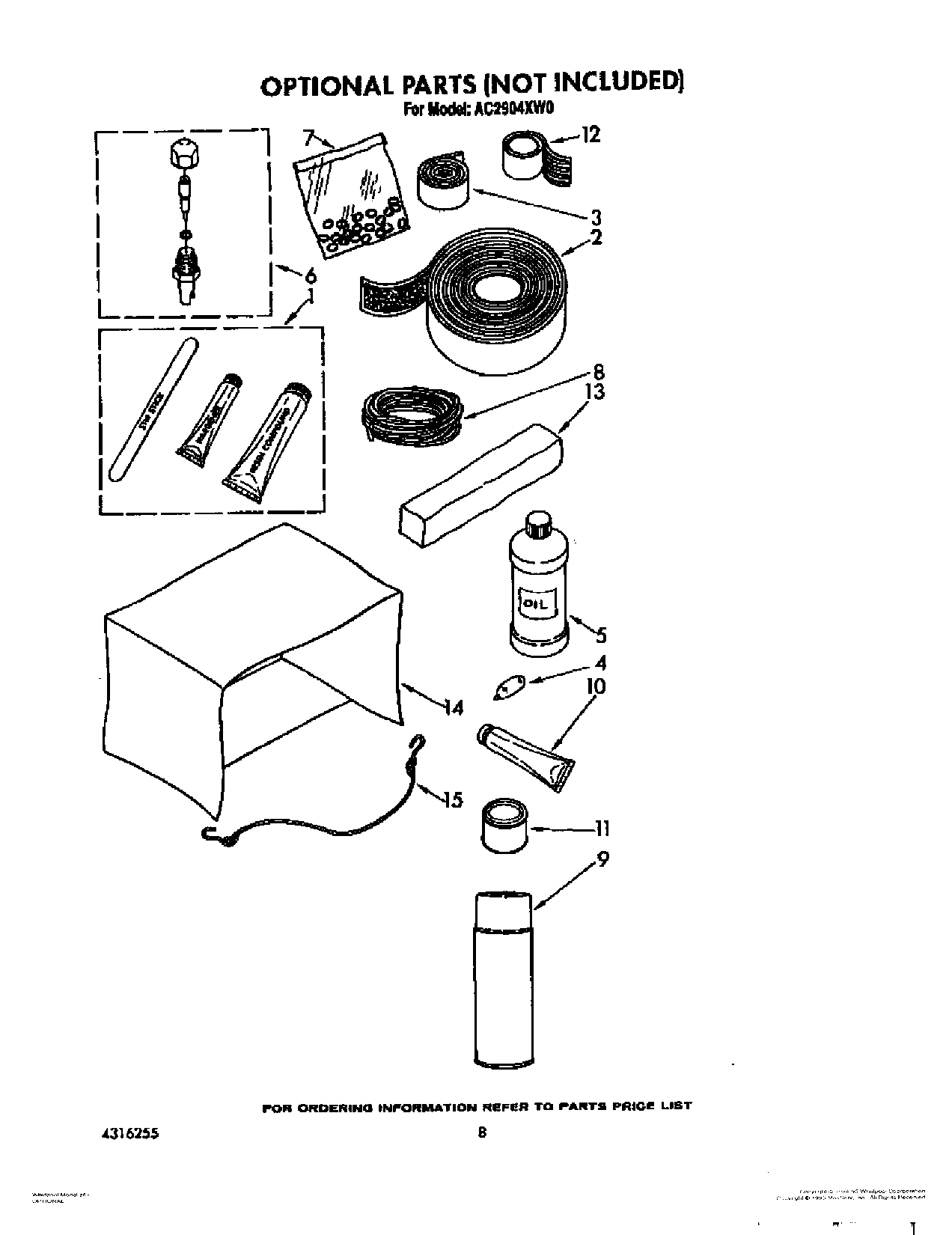

06 - OPTIONAL

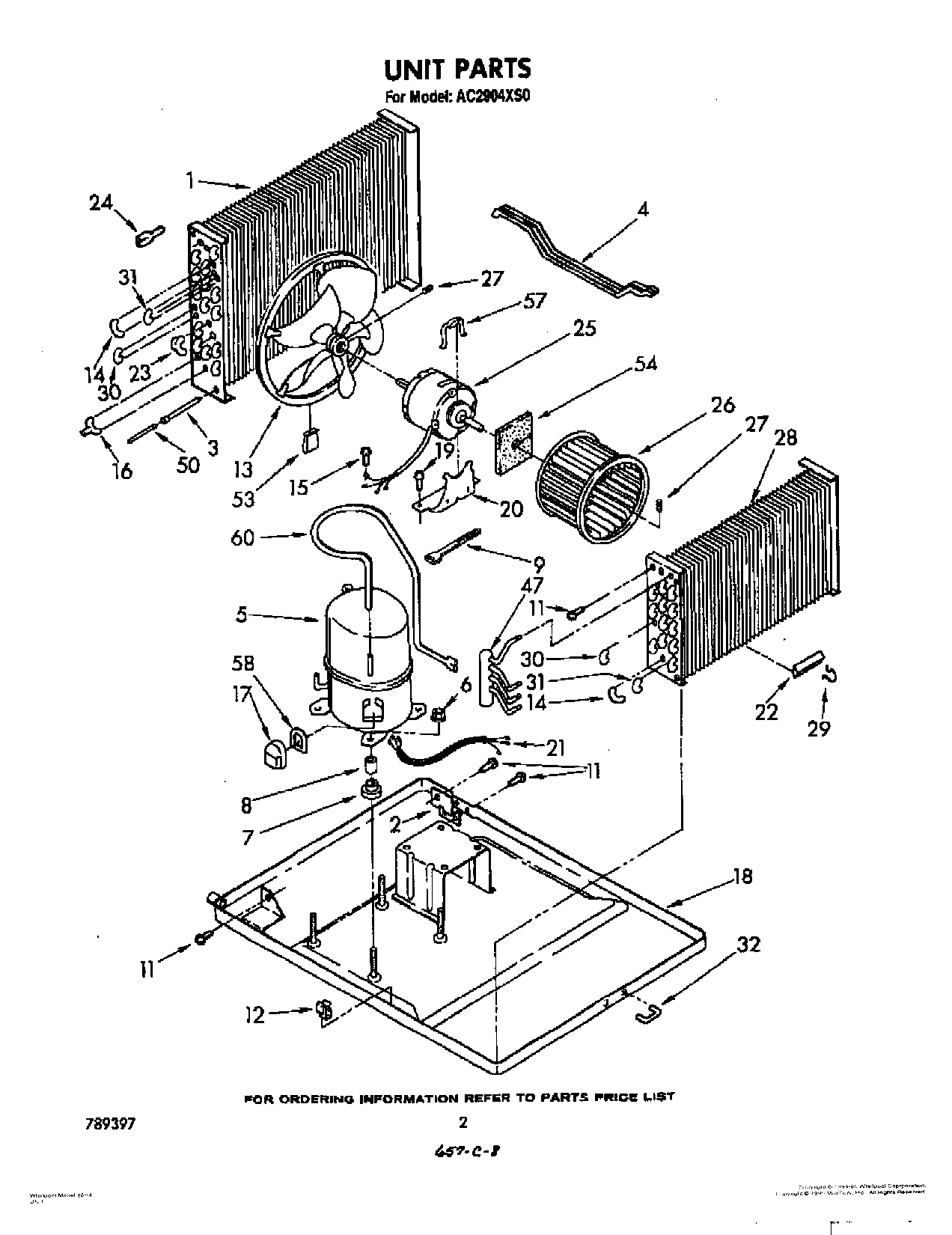

02 - UNIT

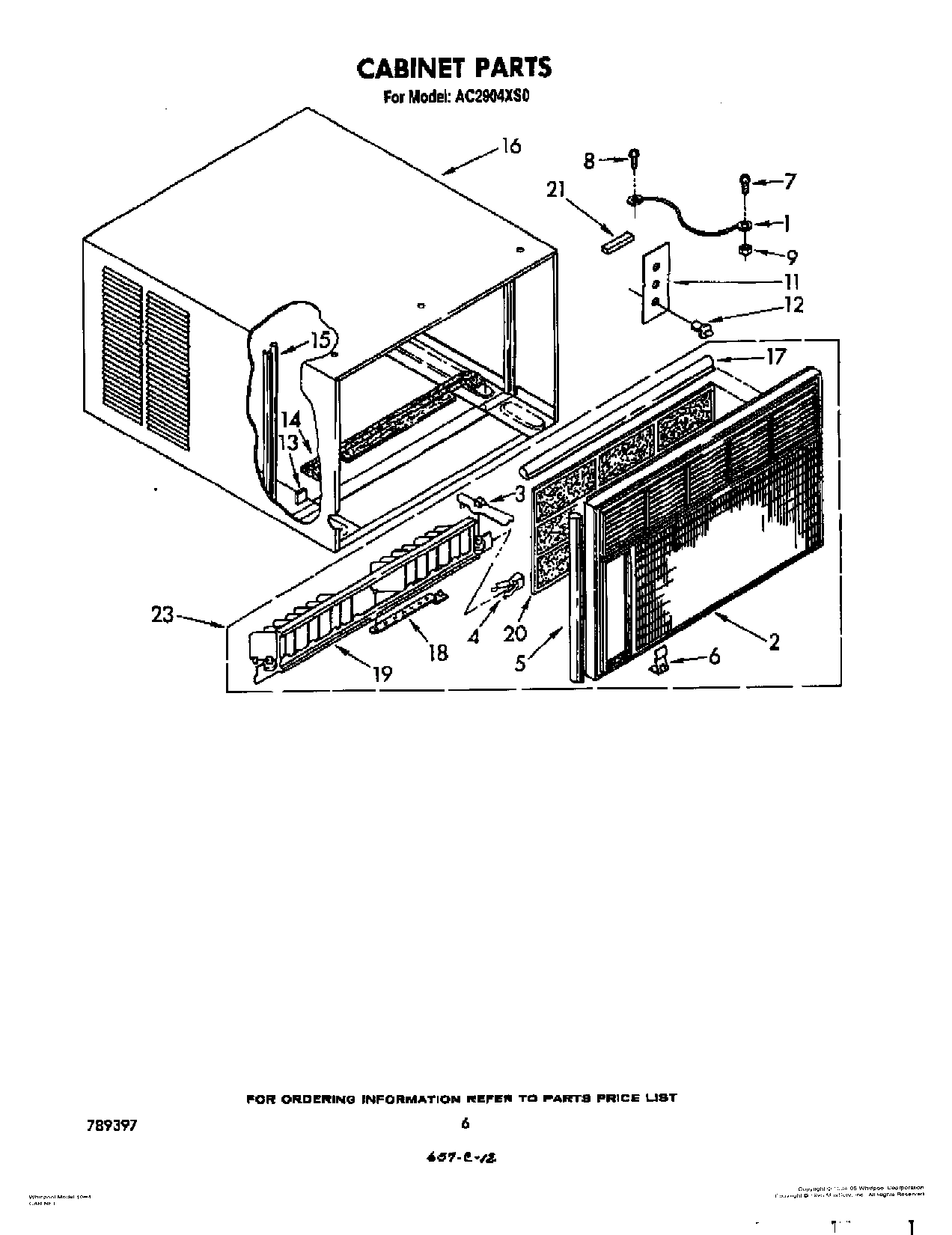

04 - CABINET, LIT/OPTIONAL

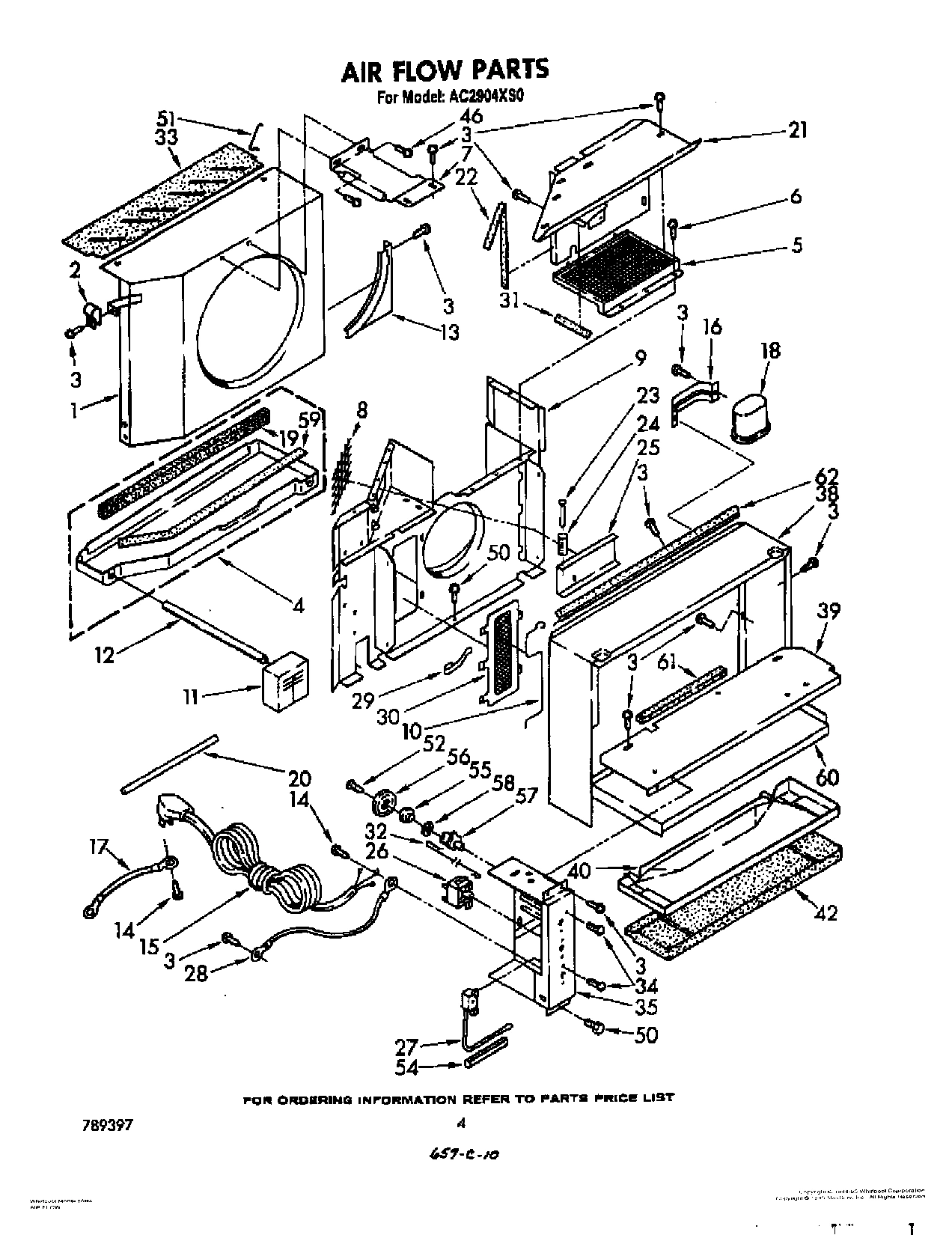

03 - AIRFLOW AND CONTROL
Common parts from model Whirlpool AC2904XW0 AIR CONDITIONER
Sheet, Tech WPL LIT1159265 Contact Us For Availability
List, Repair parts WPL LIT4316255 Contact Us For Availability
Instructions, Installation WPL LIT948990 Contact Us For Availability
Guide, Use And Care WPL LIT950355 Contact Us For Availability
Guide, Energy WPL LIT952017 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Condenser WPL 1159260 Contact Us For Availability
1
Wire, Ground WPL 857078 Contact Us For Availability
1
Shroud, Condenser WPL 1159319 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Support, Condenser (R01.) WPL 856028 Contact Us For Availability
2
Cabinet WPL 856602 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Seal, Sides WPL 476796 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Tube, Restrictor (4) WPL 1158318 Contact Us For Availability
4
Pan, Condensate WPL 952708 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Compressor WPL 1159644 Contact Us For Availability
5
Seal, Bottom WPL 857154 Contact Us For Availability
5
Guard, Evaporator Impeller WPL 1159324 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube 0.D.) WPL 978028 Contact Us For Availability
6
Locknut (4) WPL 858121 Contact Us For Availability
6
Screw, (2) WPL 1159503 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Grommet (4) WPL 475041 Contact Us For Availability
7
Support, Unit WPL 475742 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Sleeve (4) WPL 858116 Contact Us For Availability
8
Screen WPL 470986 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Wall, Dividing WPL 1156124 Contact Us For Availability
10
Strainer, Tube WPL 1159302 Contact Us For Availability
10
Actuator, Fresh Air Door WPL 648138 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Seal, Tube WPL 856916 Contact Us For Availability
12
Clamp (2) WPL 471088 Contact Us For Availability
12
Tube, Left WPL 475710 Contact Us For Availability
12
Tube, Right WPL 477542 Contact Us For Availability
13
Blade, Fan WPL 477616 Contact Us For Availability
13
Bag, Accessory WPL 951030 Contact Us For Availability
13
Deflector, Condensate WPL 952701 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bend, Return Condenser (1) Evaporator (2) WPL 855644 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Cable, Appliance WPL 647223 Contact Us For Availability
16
Bracket WPL 997218 Contact Us For Availability
17
Wood Screw, 10 x 1 WPL 487488 Contact Us For Availability
17
Cover, Terminal WPL 1159290 Contact Us For Availability
17
Ground Wire WPL 998010 Contact Us For Availability
18
Bolt, No.10 X 3/4 (10) WPL 488750 Contact Us For Availability
18
Base, Unit WPL 856498 Contact Us For Availability
18
Capacitor, Running WPL 951518 Contact Us For Availability
19
Nut, Hex WPL 486035 Contact Us For Availability
19
Screw, 1/4 x 5/8 (4) WPL 488311 Contact Us For Availability
19
Front, Cabinet (Complete Assembly) WPL 947874 Contact Us For Availability
20
Washer, Lock (10) WPL 486009 Contact Us For Availability
20
Cradle, Motor (2) WPL 471719 Contact Us For Availability
20
Extension, Wall WPL 1155699 Contact Us For Availability
21
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
21
Plate, Back WPL 998324 Contact Us For Availability
22
Retainer, Cabinet Support WPL 645517 Contact Us For Availability
22
Anticipator WPL 472046 Contact Us For Availability
22
Seal, WPL 1158774 Contact Us For Availability
23
Bracket, Sill (2) WPL 645515 Contact Us For Availability
23
Bend, Return (3-Way) WPL 953169 Contact Us For Availability
23
Pin WPL 471108 Contact Us For Availability
24
Bracket, Support WPL 645516 Contact Us For Availability
24
Spring WPL 471109 Contact Us For Availability
25
Support, Caninet (2) WPL 645518 Contact Us For Availability
25
Motor, Fan WPL 948544 Contact Us For Availability
25
Door, Exhaust WPL 473781 Contact Us For Availability
26
Wide Window Installation kit WPL 485856 Contact Us For Availability
26
Wheel, Blower WPL 855934 Contact Us For Availability
26
Switch, Rotary WPL 950520 Contact Us For Availability
27
Strip, Seal WPL 856979 Contact Us For Availability
27
Control, Temperature WPL 649422 Contact Us For Availability
28
Seal, Meeting Rail WPL 470800 Contact Us For Availability
28
Evaporator WPL 952685 Contact Us For Availability
28
Wire, Ground WPL 856509 Contact Us For Availability
29
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
29
Instructions, Installation (Standard Kit) WPL 993383 Contact Us For Availability
29
Instructions Installation (Wide Window Kit) WPL 998618 Contact Us For Availability
29
Clip (2) WPL 472047 Contact Us For Availability
29
Spring, Fresh Air & Exhaust Door WPL 649428 Contact Us For Availability
30
Bend, Return Condenser (32 Evaporator (12) WPL 855199 Contact Us For Availability
30
Door, Fresh Air WPL 648137 Contact Us For Availability
31
Bend, Return Condenser (5 Evaporator (18) WPL 854624 Contact Us For Availability
32
Handle, Base WPL 647971 Contact Us For Availability
32
Seal, Side (2) WPL 644168 Contact Us For Availability
32
Wire, Exhaust Control WPL 648321 Contact Us For Availability
32
Wire, Fresh Air Control WPL 648322 Contact Us For Availability
33
Seal, Top And Bottom WPL 644167 Contact Us For Availability
33
Insulation, Condenser Shroud WPL 855213 Contact Us For Availability
34
Seal, Shaft WPL 476719 Contact Us For Availability
34
Screw, 6-32 .175 WPL 488734 Contact Us For Availability
35
Box, Control WPL 950551 Contact Us For Availability
36
Gasket, Terminal Cover WPL 1159291 Contact Us For Availability
36
Wiring Harness, Control Box WPL 1159317 Contact Us For Availability
37
Tube, Suction WPL 1159326 Contact Us For Availability
38
Tube, Manifold (Evaporator) WPL 952691 Contact Us For Availability
38
Cover, Air Duct WPL 475730 Contact Us For Availability
39
Tube, Discharge WPL 1159264 Contact Us For Availability
39
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
39
Cover, Evaporator WPL 648319 Contact Us For Availability
40
Knob, Control WPL 947264 Contact Us For Availability
40
Pan, Evaporator WPL 475708 Contact Us For Availability
42
Insulation WPL 856917 Contact Us For Availability
43
Screw, 8-32 x 3/8 WPL 488854 Contact Us For Availability
46
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
47
Filter, Air WPL 648475 Contact Us For Availability
49
Cabinet, Front WPL 947875 Contact Us For Availability
51
Clip, Mounting (4) WPL 644169 Contact Us For Availability
52
Plate, Escutcheon WPL 952553 Contact Us For Availability
52
Screw, 8-16 5/8 WPL 489092 Contact Us For Availability
54
Louver, Vertical WPL 644164 Contact Us For Availability
54
Sleeve WPL 475841 Contact Us For Availability
55
Bushing, Fresh Air & Exhaust WPL 647879 Contact Us For Availability
56
Cam, Fresh Air & Exhaust WPL 648131 Contact Us For Availability
57
Shaft, Fresh Air & Exhaust WPL 648130 Contact Us For Availability
58
Spacer, Esuctcheon WPL 469175 Contact Us For Availability
58
Washer, Spring WPL 647881 Contact Us For Availability
59
Seal, Pan WPL 476089 Contact Us For Availability
60
Cover (Includes Illus. 61) WPL 475711 Contact Us For Availability
61
Strip, Seal WPL 476099 Contact Us For Availability
62
Seal, Cabinet Top WPL 475733 Contact Us For Availability
× ![]()
