Model Whirlpool AC2904XS0 AIR CONDITIONER – Common Parts & Diagrams
02 - UNIT
04 - CABINET

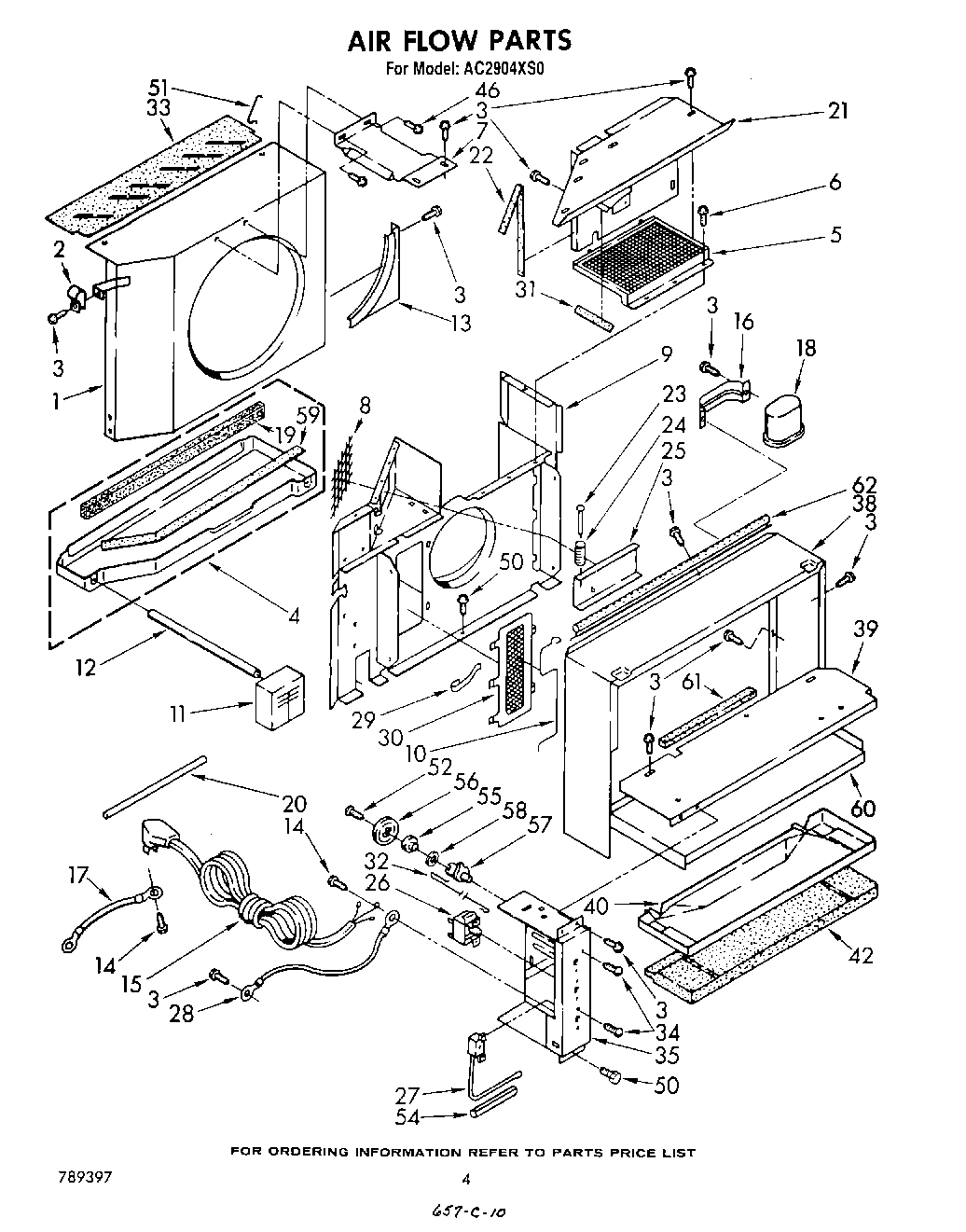

03 - AIR FLOW

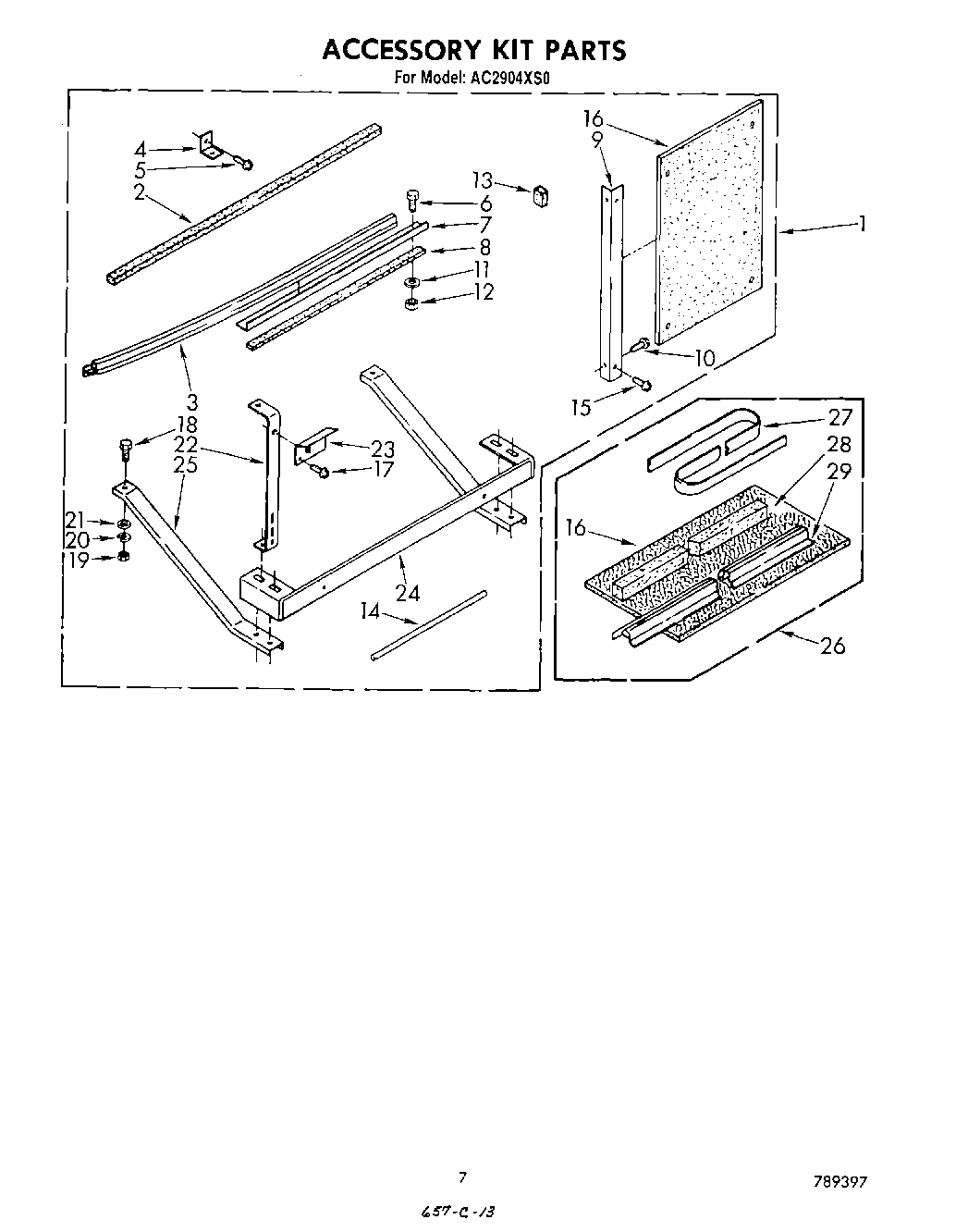

05 - ACCESSORY KIT
06 - LIT/OPTIONAL
Common parts from model Whirlpool AC2904XS0 AIR CONDITIONER
Sheet, Tech And Wiring Diagram WPL LIT1156066 Contact Us For Availability
GUIDE, ENERGY WPL LIT1156067 Contact Us For Availability
List, Repair Parts WPL LIT789397 Contact Us For Availability
Guide, Use And Care WPL LIT950355 Contact Us For Availability
1
Wire, Ground WPL 857078 Contact Us For Availability
1
Shroud, Condenser WPL 952699 Contact Us For Availability
1
Standard Installation Kit WPL 485451 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Cabinet, Front WPL 947875 Contact Us For Availability
2
Clamp WPL 43996 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Handle, Vertical Louver (2) WPL 644165 Contact Us For Availability
4
Spring, Detent (2) WPL 641484 Contact Us For Availability
4
Pan, Condenser WPL 475709 Contact Us For Availability
4
Bracket, Window Lock WPL 644288 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Seal, Side (2) WPL 644168 Contact Us For Availability
5
Gaurd, Impeller WPL 856507 Contact Us For Availability
5
Screw Wood No.8x3/4 WPL 488255 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Clip, Front (4) WPL 644169 Contact Us For Availability
6
Bolt, No.10-32 X 3/8 (3) WPL 487336 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Screw, 8-32 x 3/8 WPL 488853 Contact Us For Availability
7
Support, Unit WPL 475742 Contact Us For Availability
7
Angle, Top Mounting WPL 645514 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
8
Screen WPL 470986 Contact Us For Availability
8
Strip, Seal WPL 855265 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Wall, Dividing WPL 998313 Contact Us For Availability
9
Angle, Side Mounting (2) WPL 644272 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Actuator, Fresh Air Door WPL 648138 Contact Us For Availability
10
Screw, S.M. No.10 X 3/8 (4) WPL 488481 Contact Us For Availability
11
Plate, Escutcheon WPL 952553 Contact Us For Availability
11
Washer Flat (3) WPL 486608 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Knob, Control (3) WPL 947264 Contact Us For Availability
12
Tube, Left WPL 475710 Contact Us For Availability
12
Tube, Right WPL 477542 Contact Us For Availability
12
Nut, Hex No.10-32 (3) WPL 487642 Contact Us For Availability
13
Deflector, Condensate WPL 952701 Contact Us For Availability
13
Spacer, Block (2) WPL 995274 Contact Us For Availability
14
Cover, Winter WPL 484066 Contact Us For Availability
14
Bend, Return Condenser (1) Evaporator (2) WPL 855644 Contact Us For Availability
14
Seal, Bottom WPL 857154 Contact Us For Availability
15
Seal, Side (2) WPL 476796 Contact Us For Availability
15
Cable, Appliance WPL 647223 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Bend, 3-Way Return (2) WPL 476078 Contact Us For Availability
16
Cabinet WPL 856602 Contact Us For Availability
16
Bracket WPL 997218 Contact Us For Availability
16
Board, Filler (2) WPL 645513 Contact Us For Availability
16
Start Kit (Use W/1155128 Compressor) WPL 484339 Contact Us For Availability
17
Cover, Terminal WPL 948515 Contact Us For Availability
17
Seal, Top & Bottom (2) WPL 644167 Contact Us For Availability
17
Ground Wire WPL 998010 Contact Us For Availability
17
Wood Screw, 10 x 1 WPL 487488 Contact Us For Availability
17
Relay, Start WPL 484177 Contact Us For Availability
18
Base, Assembly WPL 856498 Contact Us For Availability
18
Link (2) WPL 644166 Contact Us For Availability
18
Capacitor, Running WPL 951519 Contact Us For Availability
18
Bolt, 1/4-20 x 3/4 (10) WPL 488750 Contact Us For Availability
18
Capacitor WPL 47406 Contact Us For Availability
19
Screw, 1/4-20 x 5/8 WPL 488311 Contact Us For Availability
19
Louver, Vertical WPL 644156 Contact Us For Availability
19
Nut, Hex WPL 486035 Contact Us For Availability
19
Cap, Capacitor WPL 798868 Contact Us For Availability
20
Washer, Lock (10) WPL 486009 No Longer Available
20
Cradle, Motor (2) WPL 471719 Contact Us For Availability
20
Filter, Air WPL 648475 Contact Us For Availability
20
Sealer, tube WPL 856916 Contact Us For Availability
20
Screw, S.M. No.10 x 5/8 (2) WPL 487880 Contact Us For Availability
21
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
21
Spacer, Escutcheon (2) WPL 469175 Contact Us For Availability
21
Plate, Back WPL 998324 Contact Us For Availability
21
Bracket, Capacitor WPL 35564 Contact Us For Availability
22
Anticipator WPL 472046 Contact Us For Availability
22
Seal, Lower (R.S.) WPL 475740 Contact Us For Availability
22
Seal, Top (L.S.) WPL 475741 Contact Us For Availability
22
Retainer, Cabinet Support WPL 645517 Contact Us For Availability
22
Multiplier, Terminal WPL 90654 Contact Us For Availability
23
Bend, Return (3-Way) WPL 953169 Contact Us For Availability
23
Front, Complete WPL 947874 Contact Us For Availability
23
Pin WPL 471108 Contact Us For Availability
23
Bracket, Sill (2) WPL 645515 Contact Us For Availability
24
Tube, Flow Divider WPL 466527 Contact Us For Availability
24
Spring WPL 471109 Contact Us For Availability
24
Bracket, Support WPL 645516 Contact Us For Availability
25
Motor, Fan WPL 948544 Contact Us For Availability
25
Door, Exhaust WPL 473781 Contact Us For Availability
25
Support, Caninet (2) WPL 645518 Contact Us For Availability
25
Clip, Terminal (8) WPL 45571 Contact Us For Availability
26
Wheel, Blower WPL 855934 Contact Us For Availability
26
Switch, Rotary WPL 950520 Contact Us For Availability
26
Wide Window Installation kit WPL 485856 Contact Us For Availability
26
Assit, Start Kit WPL 484220 Contact Us For Availability
27
Screw, 5/16 x 1/4 WPL 595085 Contact Us For Availability
27
Control, Temperature WPL 649422 Contact Us For Availability
27
Strip, Seal WPL 856979 Contact Us For Availability
28
Evaporator WPL 952685 Contact Us For Availability
28
Wire, Ground WPL 856509 Contact Us For Availability
28
Seal, Meeting Rail WPL 470800 Contact Us For Availability
29
Clip (2) WPL 472047 Contact Us For Availability
29
Spring, Fresh Air & Exhaust Door WPL 649428 Contact Us For Availability
29
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
29
Instructions, Installation (Standard Kit) WPL 993383 Contact Us For Availability
29
Instructions Installation (Wide Window Kit) WPL 998618 Contact Us For Availability
30
Bend, Return Condenser (32 Evaporator (12) WPL 855199 Contact Us For Availability
30
Door, Fresh Air WPL 648137 Contact Us For Availability
31
Bend, Return Condenser (5 Evaporator (18) WPL 854624 Contact Us For Availability
32
Handle, Base WPL 647971 Contact Us For Availability
32
Wire, Exhaust Control WPL 648321 Contact Us For Availability
32
Wire, Fresh Air Control WPL 648322 Contact Us For Availability
33
Insulation, Condenser Shroud WPL 855213 Contact Us For Availability
34
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
35
Box, Control WPL 950551 Contact Us For Availability
38
Cover, Air Duct WPL 475730 Contact Us For Availability
39
Cover, Evaporator WPL 648319 Contact Us For Availability
40
Pan, Evaporator WPL 475708 Contact Us For Availability
42
Insulation WPL 856917 Contact Us For Availability
46
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
47
Tube, Manifold (Evaporator) WPL 952691 Contact Us For Availability
50
Strainer, Tube WPL 49599 Contact Us For Availability
51
Clip, Shroud (2) WPL 477442 Contact Us For Availability
53
Clip, Balancing WPL 876034 Contact Us For Availability
54
Seal, Shaft WPL 476719 Contact Us For Availability
54
Sleeve WPL 475841 Contact Us For Availability
55
Bushing, Fresh Air & Exhaust WPL 647879 Contact Us For Availability
56
Cam, Fresh Air & Exhaust WPL 648131 Contact Us For Availability
57
Shaft, Fresh Air & Exhaust WPL 648130 Contact Us For Availability
58
Gasket, Terminal Cover WPL 947029 Contact Us For Availability
58
Washer, Spring WPL 647881 Contact Us For Availability
59
Seal, Pan WPL 476089 Contact Us For Availability
60
Tube, Suction WPL 952830 Contact Us For Availability
60
Cover (Includes Illus. 61) WPL 475711 Contact Us For Availability
61
Strip, Seal (2) WPL 476099 Contact Us For Availability
62
Seal, Cabinet Top WPL 475733 Contact Us For Availability
× ![]()
