Model Whirlpool AC2504XS0 AIR CONDITIONER – Common Parts & Diagrams

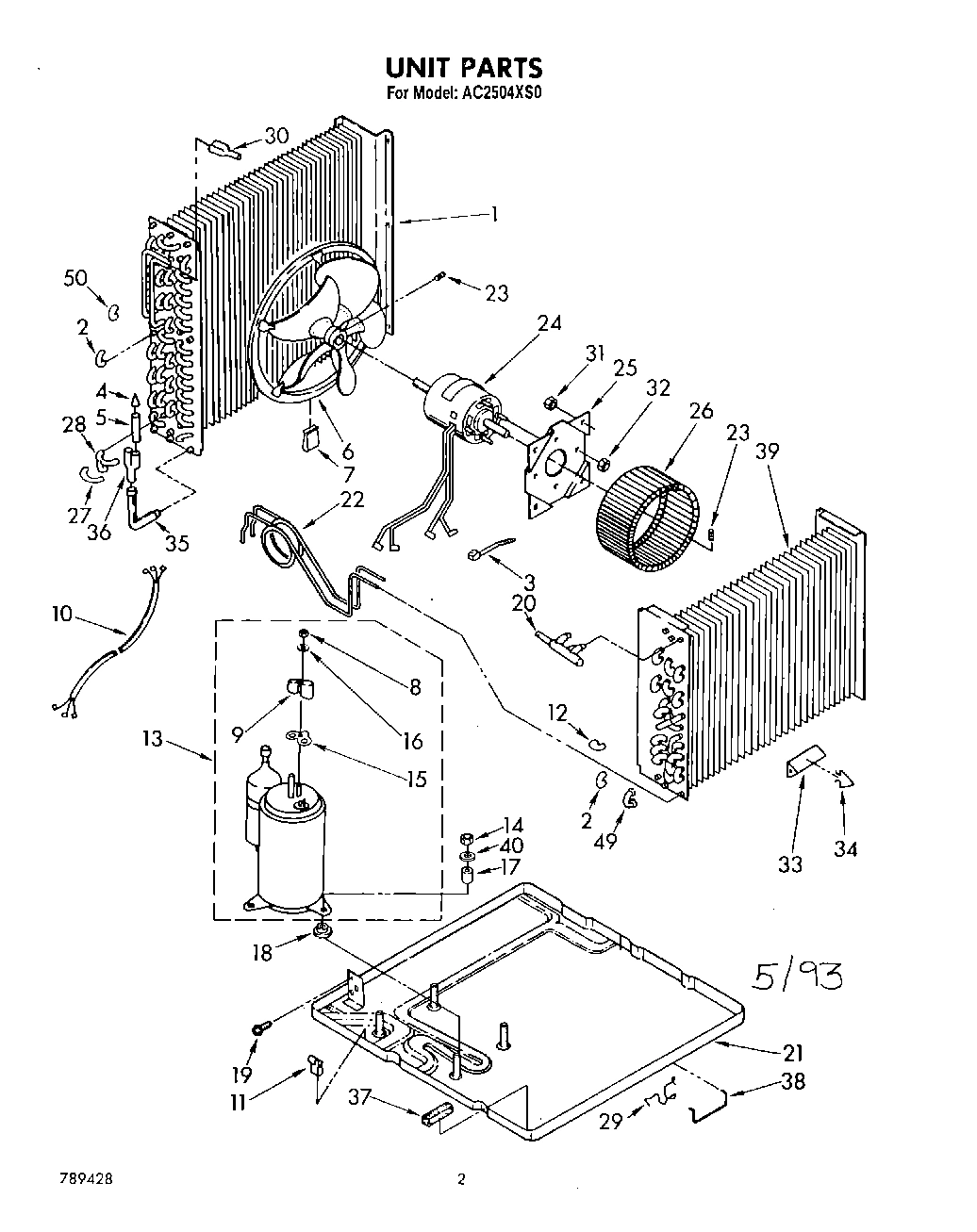

01 - UNIT

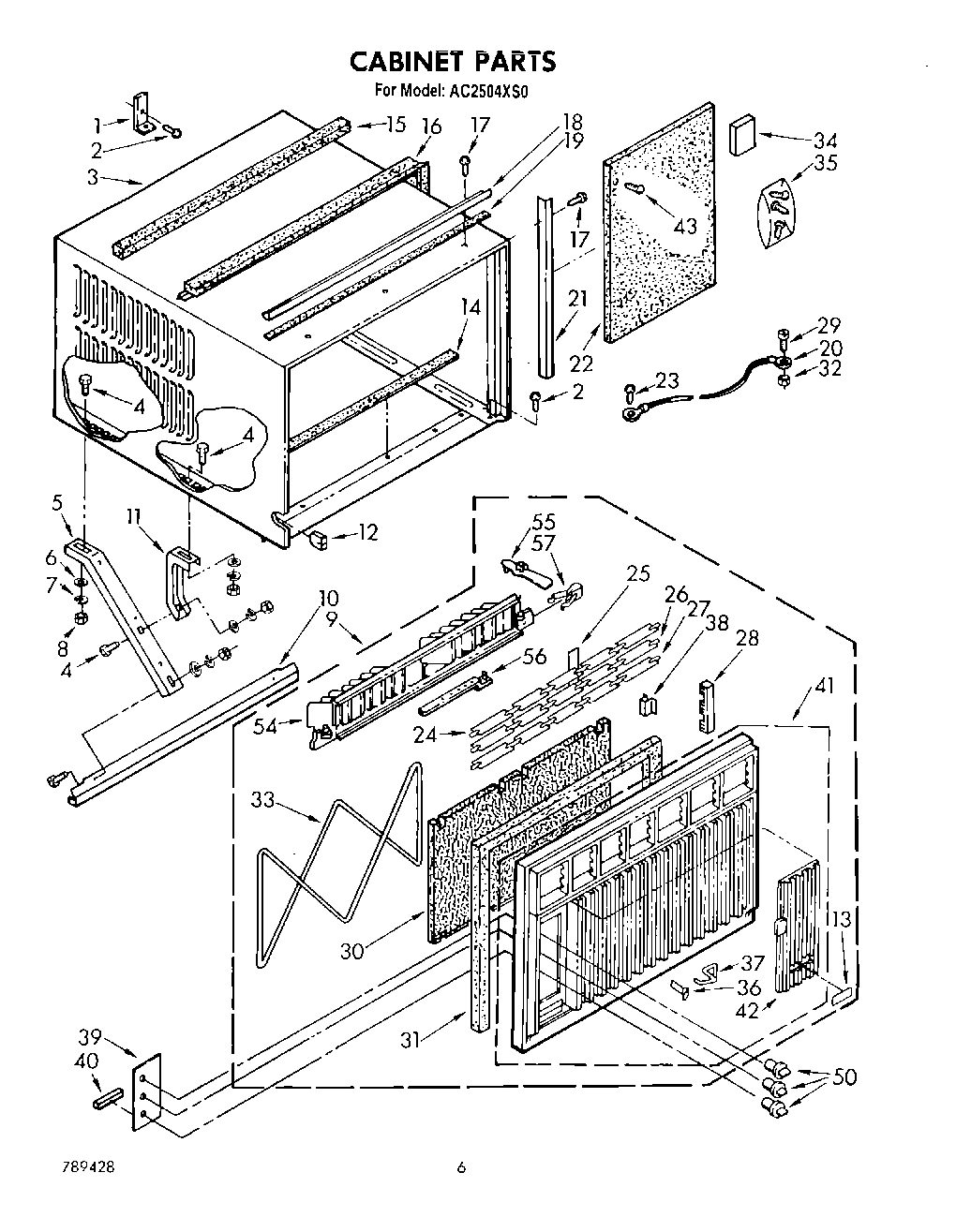

03 - CABINET
02 - AIRFLOW AND CONTROL

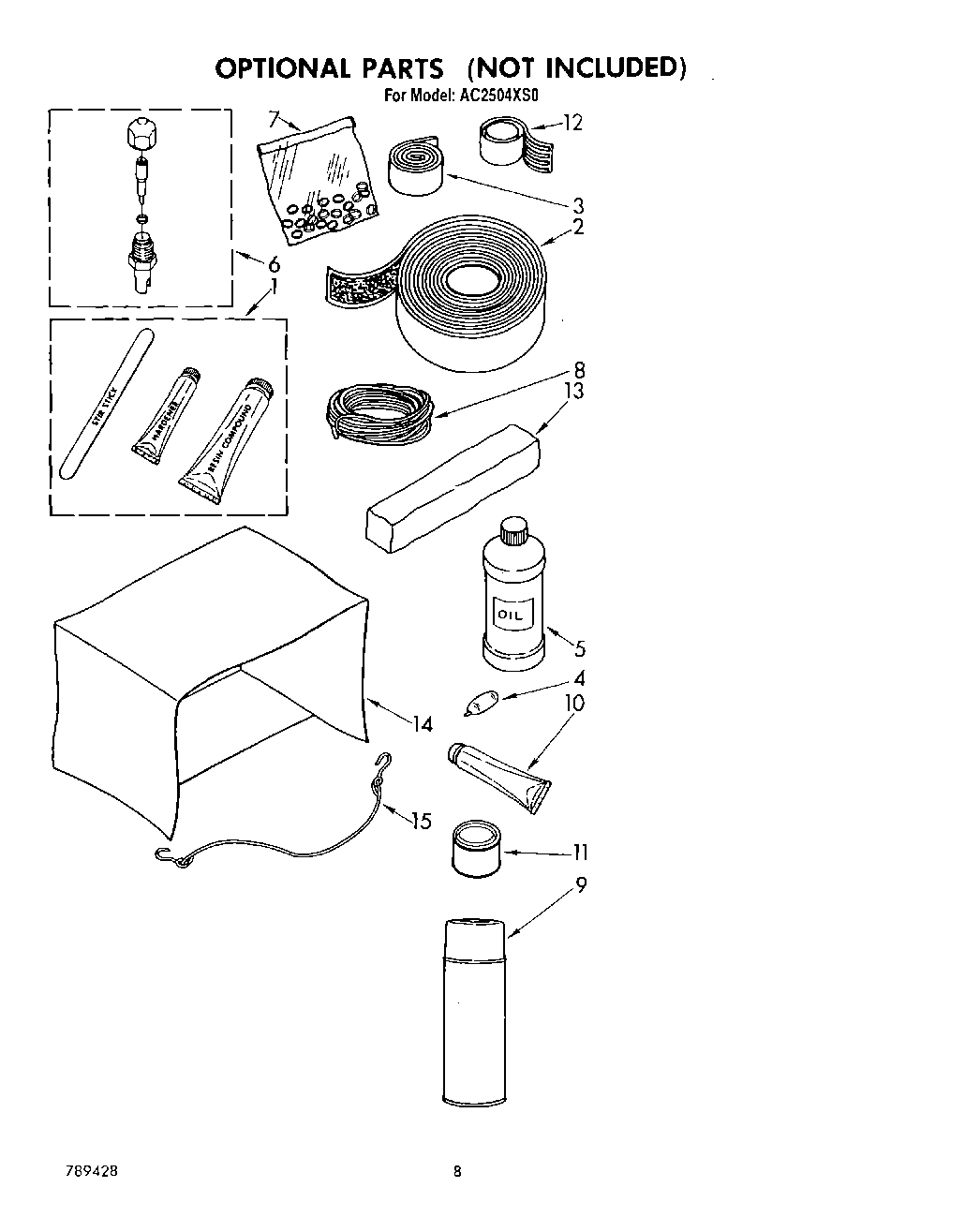

04 - OPTIONAL

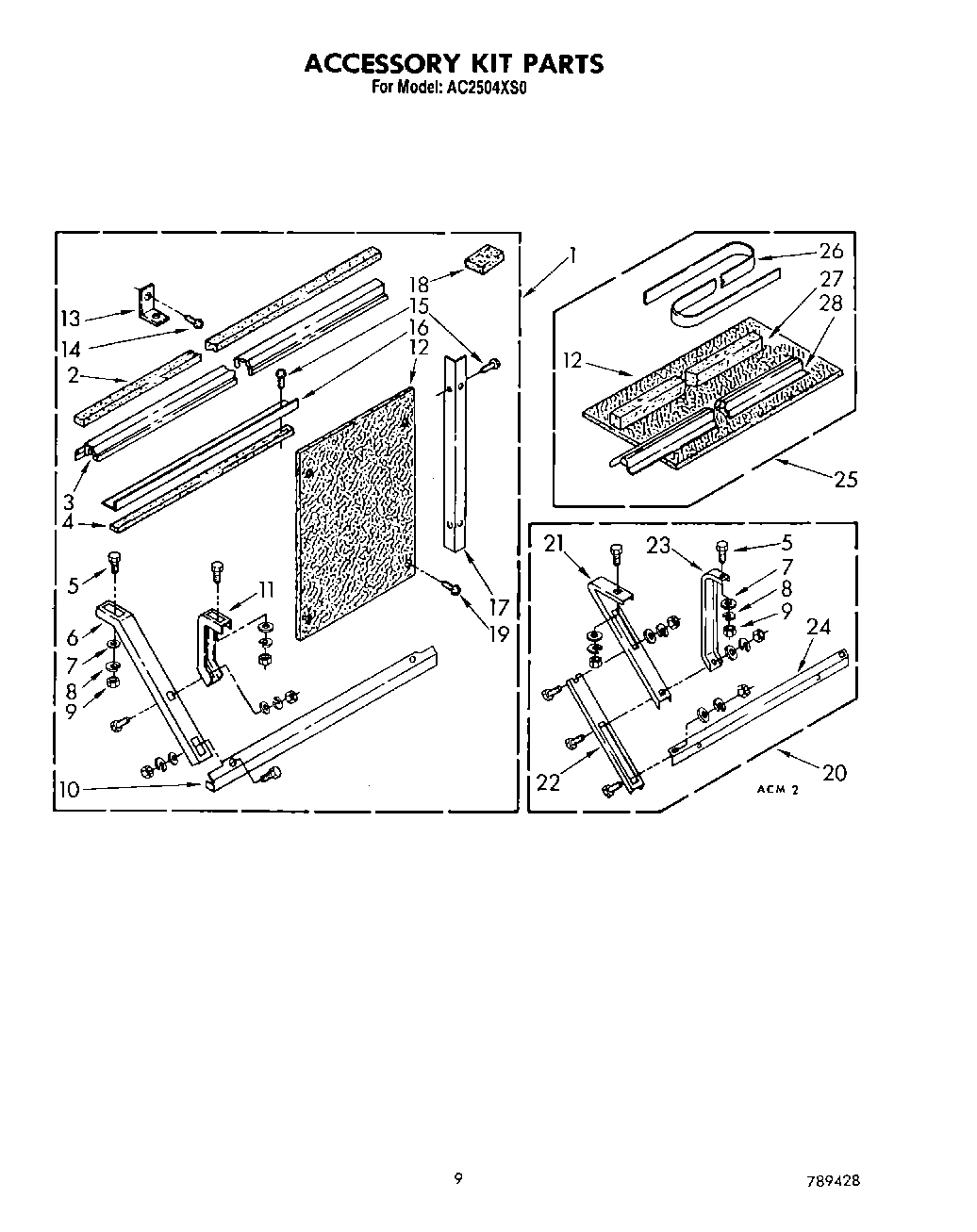

05 - ACCESSORY KIT, LIT/OPTIONAL
Common parts from model Whirlpool AC2504XS0 AIR CONDITIONER
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
1
Cover, Condenser Shroud WPL 997264 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Kit, Standard Installation WPL 485854 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal WPL 469877 Contact Us For Availability
2
Shroud, Condenser WPL 953028 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Cabinet WPL 997280 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Clip, Shroud (2) WPL 477442 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Switch, Sliding (Energy Saver) WPL 950529 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Capacitor, Run WPL 1156027 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Insulation, Base WPL 997236 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Front, Cabinet (Complete) WPL 950886 Contact Us For Availability
9
Cable, Appliance WPL 649125 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Harness, Wiring WPL 484136 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
11
Clamp, Tube (2) WPL 642684 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Wire, Ground WPL 998177 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Bend, Return WPL 998682 Contact Us For Availability
12
Grommet, Wiring WPL 647849 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
12
support, unit (2) WPL 858663 Contact Us For Availability
13
Compressor WPL 819231 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Nameplate WPL 950547 Contact Us For Availability
13
Housing, Blower Wheel WPL 997220 Contact Us For Availability
14
Cover, Winter WPL 484069 Contact Us For Availability
14
Locknut (4) WPL 858121 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Seal, Bottom WPL 852220 Contact Us For Availability
14
Guard, Evaporator Impeller WPL 856506 Contact Us For Availability
15
Bracket, Sheild WPL 997218 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Gasket, Nut WPL 950037 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Bushing, Shaft WPL 647879 Contact Us For Availability
16
Insulation, Cabinet (Left Side) WPL 1157053 Contact Us For Availability
16
Insulation, Cabinet (Rigth Side) WPL 854937 Contact Us For Availability
16
Insulation, Cabinet (Top) WPL 855438 Contact Us For Availability
17
Sleeve (3) WPL 950020 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Shaft, Air Control WPL 852669 Contact Us For Availability
18
Grommet (3) WPL 1156009 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Spring, Washer WPL 647881 Contact Us For Availability
20
Tube, Manifold WPL 1155510 Contact Us For Availability
20
Ground Wire (Base To Cabinet) WPL 857022 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
21
Base WPL 1155548 Contact Us For Availability
21
Cam WPL 647882 Contact Us For Availability
21
Support, Cabinet (2) WPL 644286 Contact Us For Availability
22
Tube, Restrictor (3) (53.0`` Length) WPL 1155990 Contact Us For Availability
22
Switch, Rotary (On - Off) WPL 950522 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
23
Screw, Set 5/16 x 1/4 WPL 595085 Contact Us For Availability
23
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
23
Switch, Thermostat WPL 951072 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
24
Motor, Fan WPL 998409 Contact Us For Availability
24
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
25
Plate, Mounting WPL 998024 Contact Us For Availability
25
Spring, Louver Retainer (4) WPL 855998 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
26
Wheel, Blower WPL 948217 Contact Us For Availability
26
Louver, Horizontal (Handle) WPL 947267 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
27
Bend, Return (3) WPL 855457 Contact Us For Availability
27
Louver, Horizontal (Relieved) WPL 947268 Contact Us For Availability
27
Door, Fresh Air WPL 997222 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
28
Bend, Return (3-Way) WPL 953168 Contact Us For Availability
28
Rack, Louver (2) WPL 649955 Contact Us For Availability
28
Panel, Control WPL 950545 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
29
Clip, Cabinet Front Mtg. (3) WPL 852272 Contact Us For Availability
29
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
29
Clip, Door WPL 998178 Contact Us For Availability
30
Tube, Flow Divider WPL 466527 Contact Us For Availability
30
Filter WPL 649958 Contact Us For Availability
30
Seal, Tube WPL 1155479 Contact Us For Availability
31
Locknut WPL 858122 Contact Us For Availability
31
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
31
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
31
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
32
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
33
Anticipator WPL 996773 Contact Us For Availability
33
Retainer, Filter WPL 476707 Contact Us For Availability
33
Wire, Ground (Control Box To Dividing Wall) WPL 997388 Contact Us For Availability
34
Clip WPL 475577 Contact Us For Availability
34
Wall, Dividing WPL 953040 Contact Us For Availability
35
Tube, 90~ Bend WPL 950814 Contact Us For Availability
35
Bag, Accessory WPL 993848 Contact Us For Availability
35
Door, Exhaust WPL 997221 Contact Us For Availability
36
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Catch, Door WPL 649949 Contact Us For Availability
36
Wire, Control (Fresh Air) WPL 859370 Contact Us For Availability
37
Seal WPL 853170 Contact Us For Availability
37
Pin. Door WPL 649943 Contact Us For Availability
37
Spring, Exhaust Door WPL 859369 Contact Us For Availability
38
Handle, Base WPL 647971 Contact Us For Availability
38
Clip, Retainer (4) WPL 855999 Contact Us For Availability
38
Clamp, Cable (2) WPL 947072 Contact Us For Availability
39
Evaporator WPL 1155435 Contact Us For Availability
39
Plate, Escutcheon WPL 952547 Contact Us For Availability
39
Wire, Control Exhaust WPL 647883 Contact Us For Availability
40
Washer, Flat (3) WPL 1156176 Contact Us For Availability
40
Spacer, Escutcheon Plate (3) WPL 469175 Contact Us For Availability
40
Actuator, Door WPL 997223 Contact Us For Availability
41
Frame, Front WPL 950548 Contact Us For Availability
41
Cover, Evaporator WPL 997269 Contact Us For Availability
42
Door, Front WPL 1155394 Contact Us For Availability
42
Insulation, Pan WPL 997237 Contact Us For Availability
43
Pan, Condensate WPL 997238 Contact Us For Availability
45
Seal, Strip (Top) WPL 997265 Contact Us For Availability
45
Seal, Strip (Side) WPL 997266 Contact Us For Availability
48
Insulation, Evaporator Cover WPL 948234 Contact Us For Availability
49
Adapter, Evaporator Header Plate WPL 997397 Contact Us For Availability
50
Bend, Return WPL 855644 Contact Us For Availability
50
Knob, Control (3) WPL 947264 Contact Us For Availability
50
Extension Divding Wall WPL 1155423 Contact Us For Availability
53
Clamp, Cable WPL 648791 Contact Us For Availability
54
Louver, Vertical WPL 649957 Contact Us For Availability
55
Handle, Vertical Louver (2) WPL 852010 Contact Us For Availability
56
Link, Vertical Louver (2) WPL 852209 Contact Us For Availability
57
Spring, Detent WPL 641484 Contact Us For Availability
× ![]()
