Model Maytag AC2224PEKB12 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

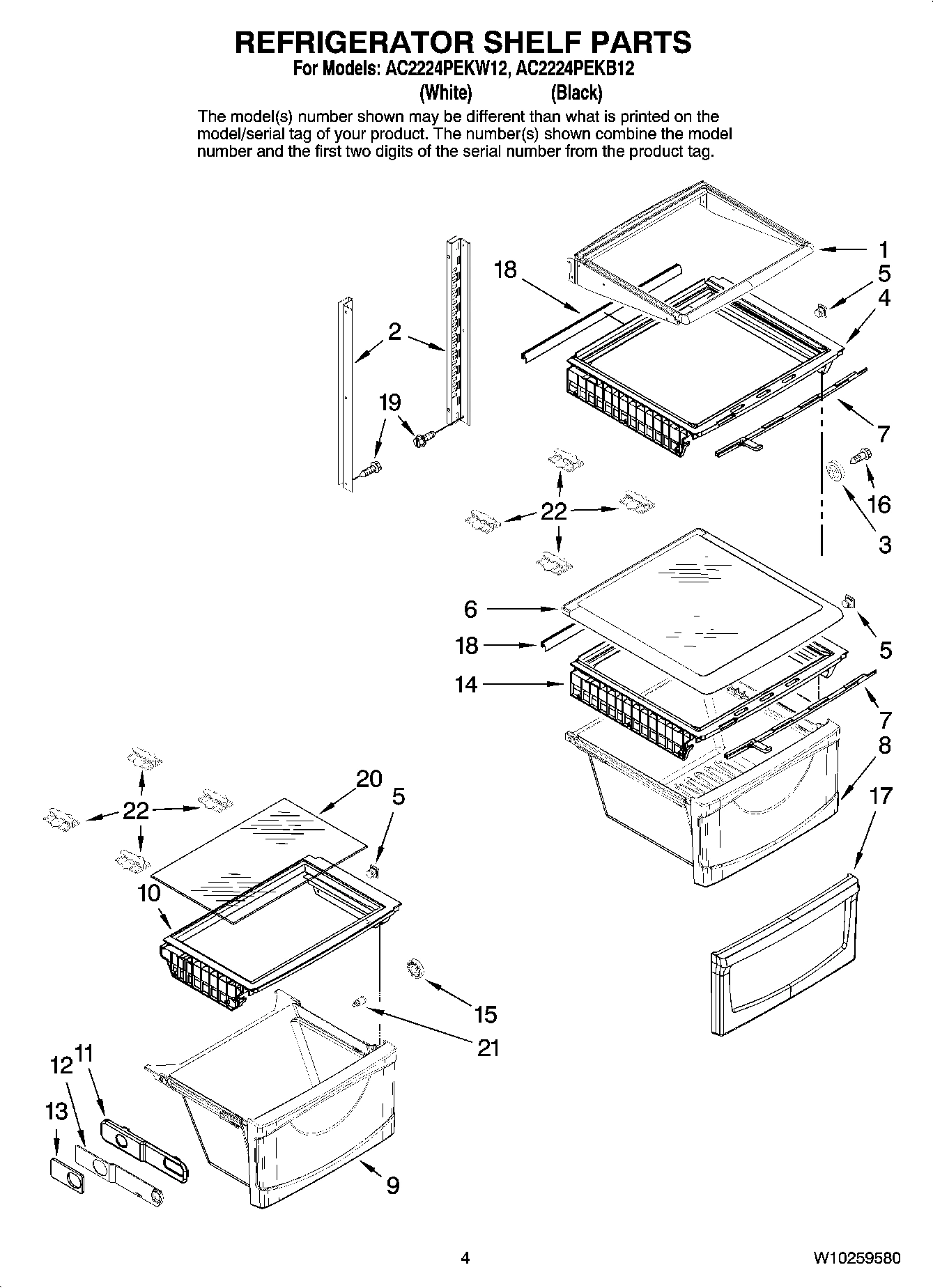

03 - REFRIGERATOR SHELF PARTS

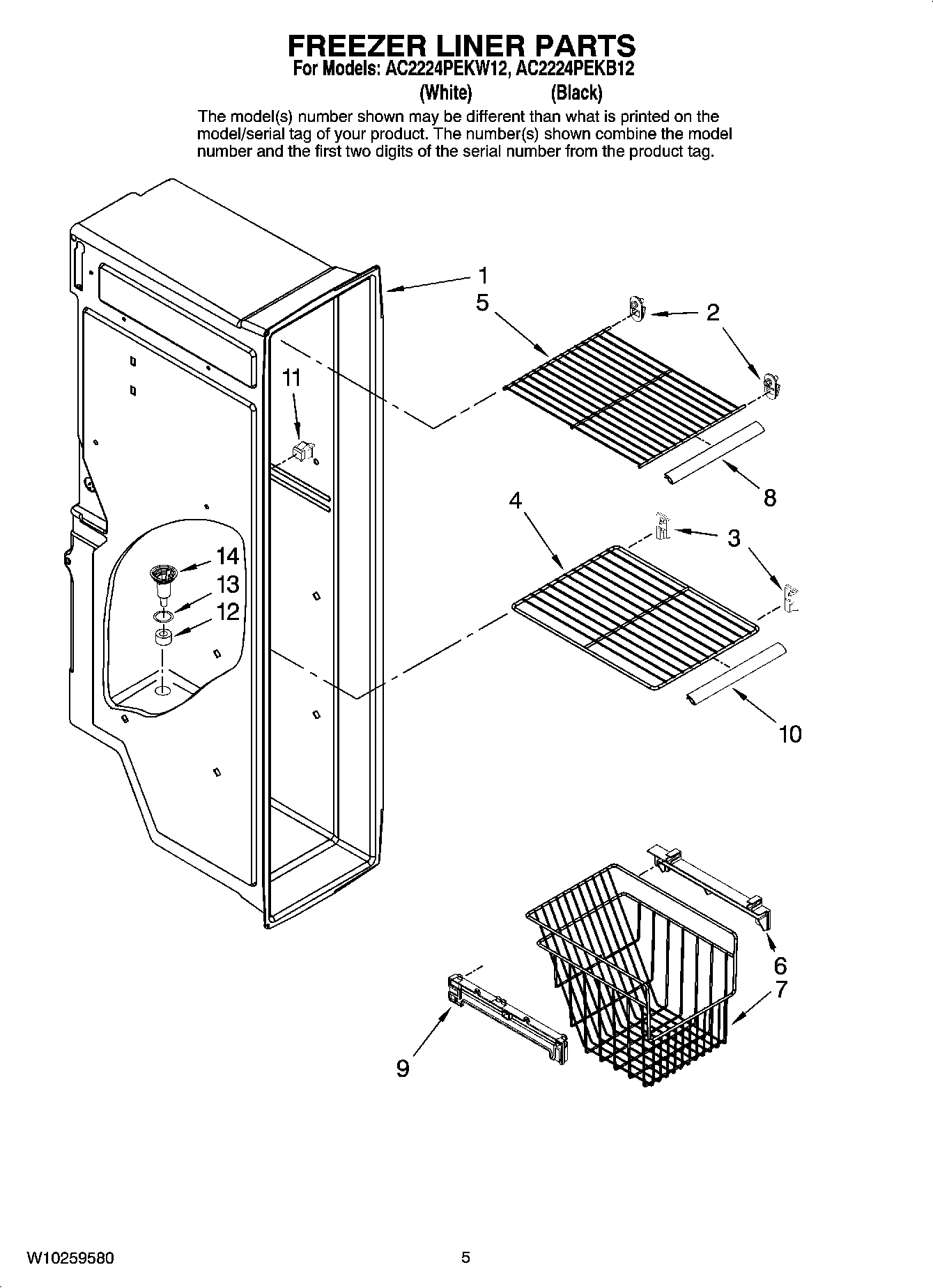

04 - FREEZER LINER PARTS

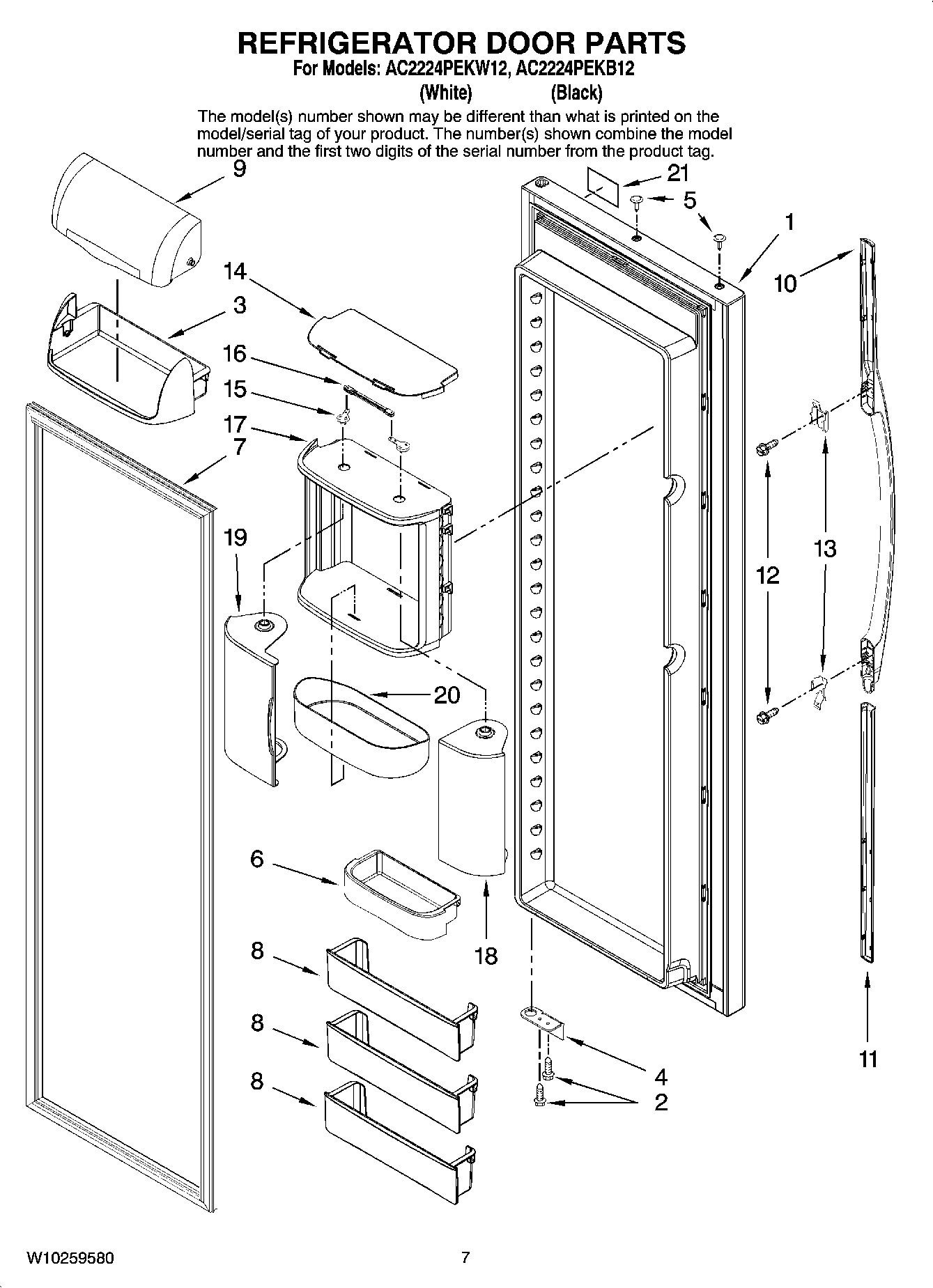

05 - REFRIGERATOR DOOR PARTS

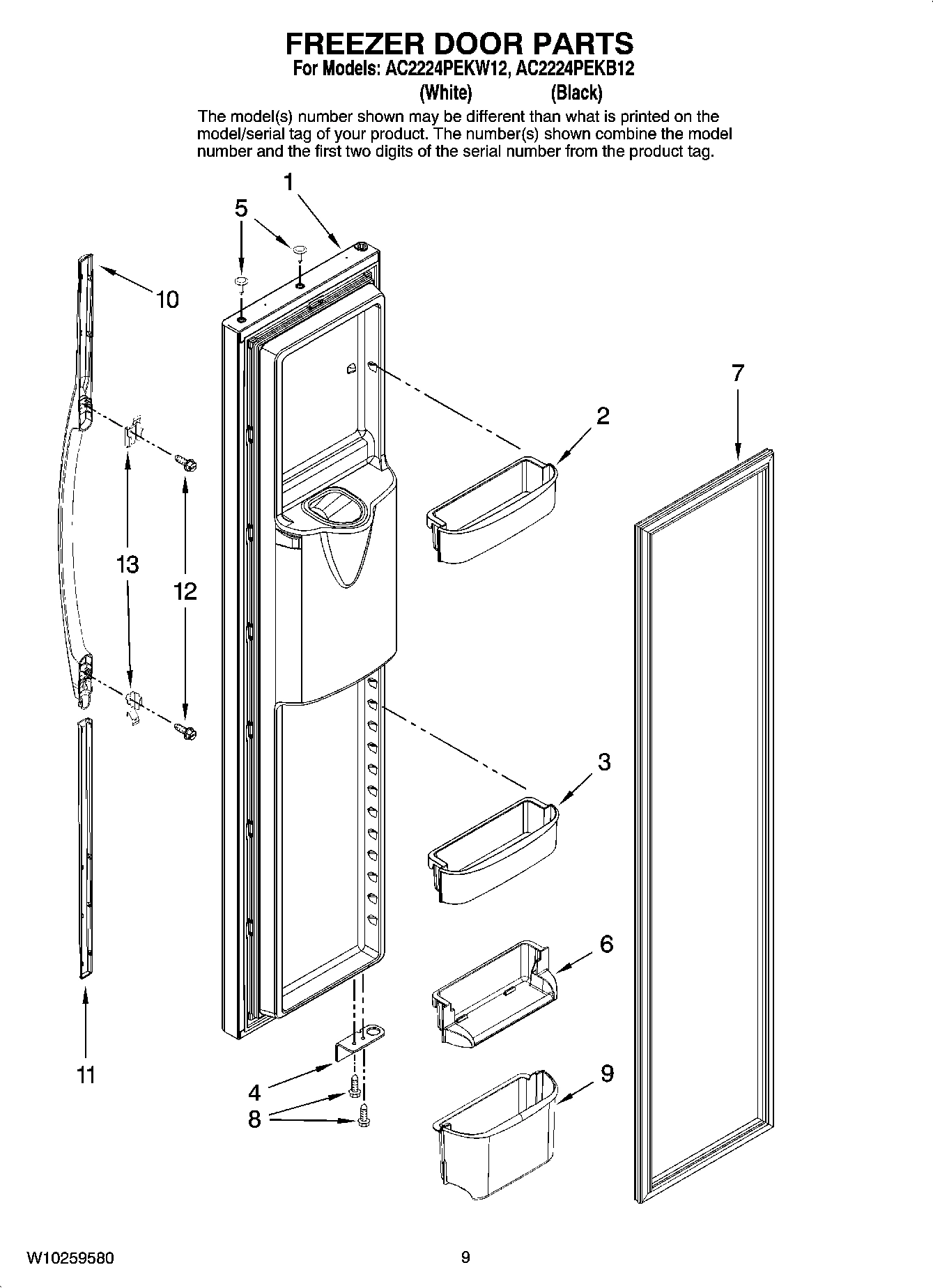

06 - FREEZER DOOR PARTS

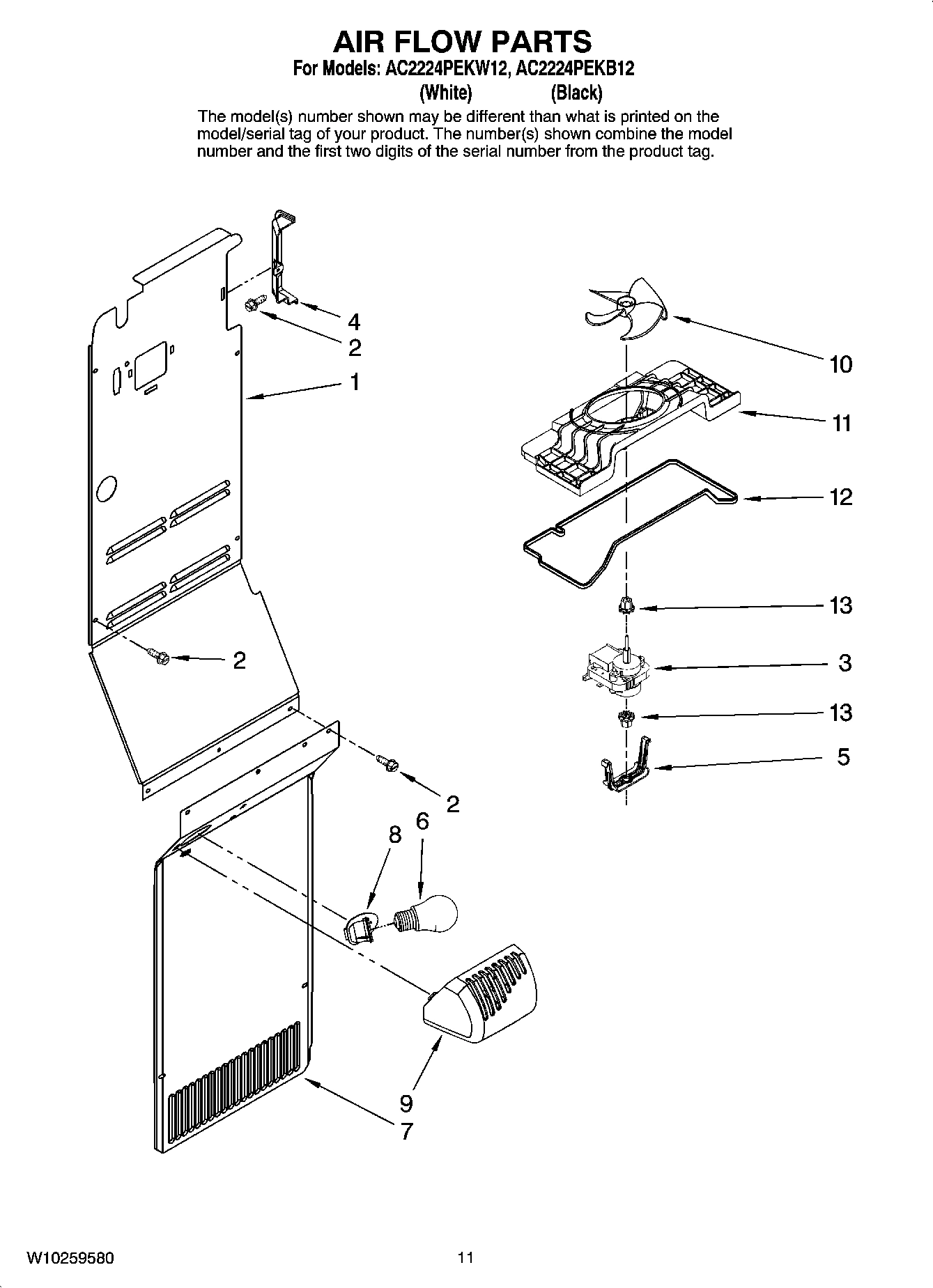

07 - AIR FLOW PARTS

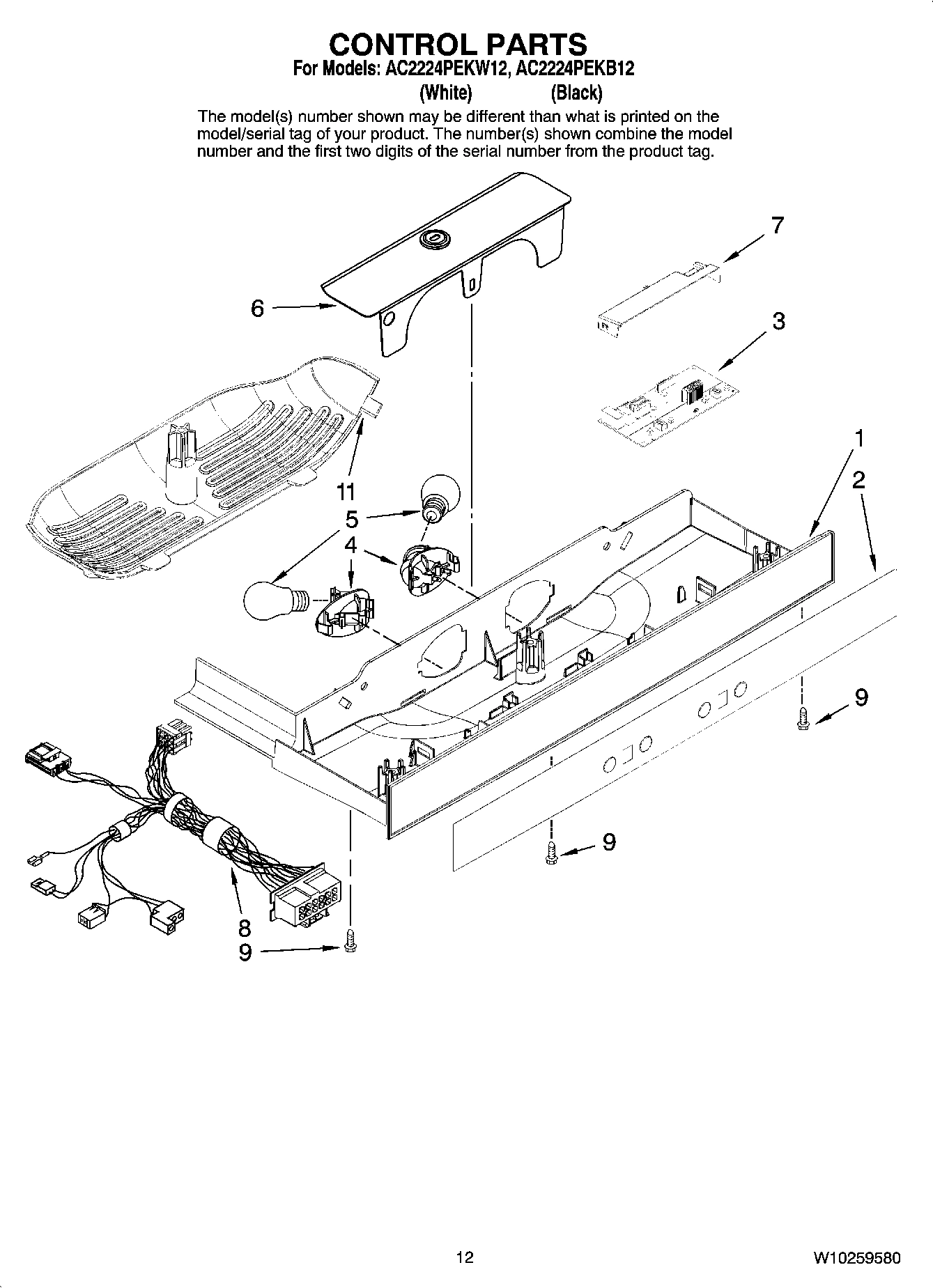

08 - CONTROL PARTS

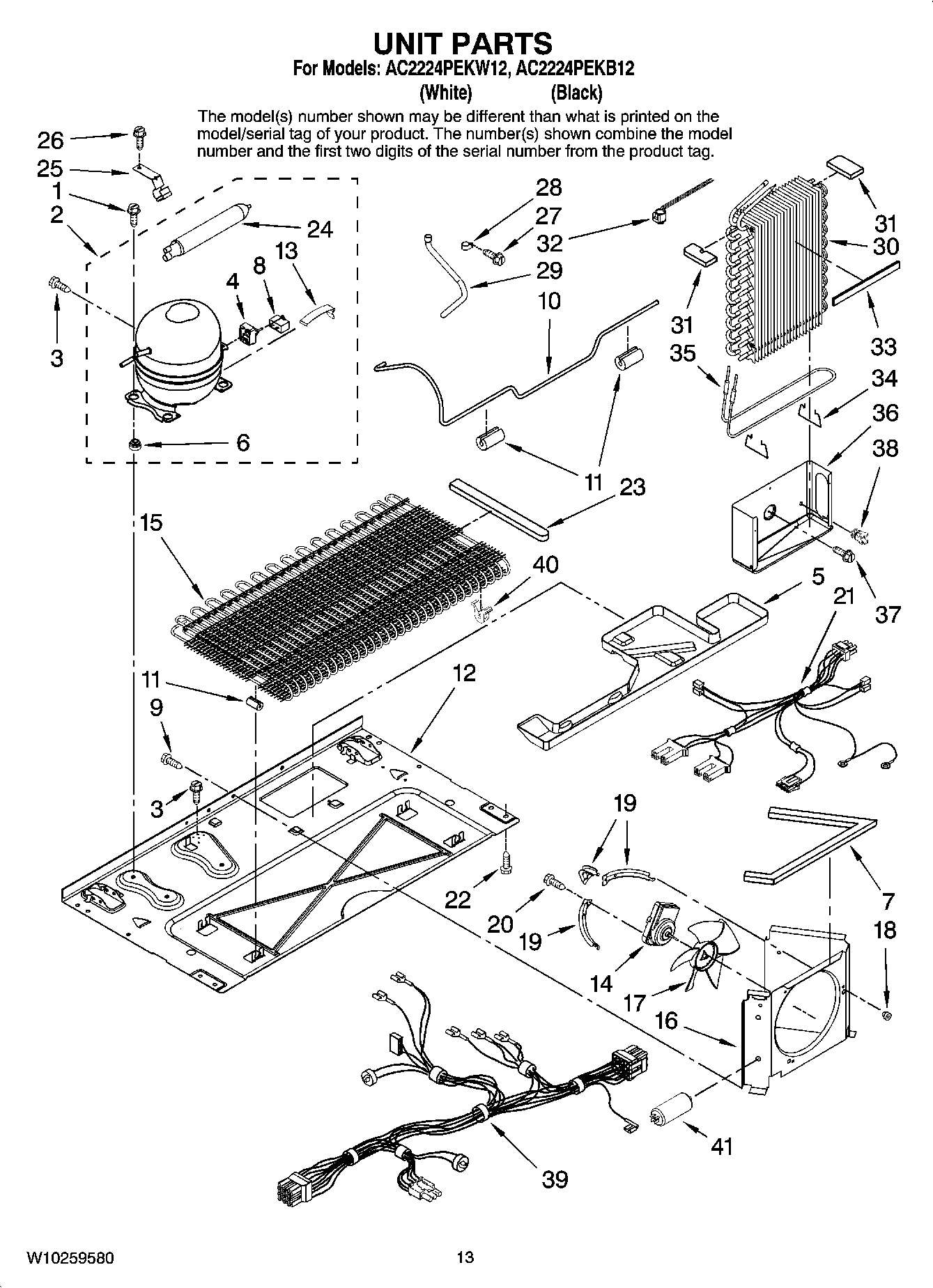

09 - UNIT PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AC2224PEKB12 REFRIGERATOR
1
Shelf, Stat. (2) MAY 67004072 Contact Us For Availability
1
MAY 12818235WQ MAY 12818235WQ Contact Us For Availability
1
MAY 12818236BQ MAY 12818236BQ Contact Us For Availability
1
MAY 12818467WQ MAY 12818467WQ Contact Us For Availability
1
MAY 12818470BQ MAY 12818470BQ Contact Us For Availability
1
MAY 12403329 MAY 12403329 Contact Us For Availability
1
Housing, Control MAY 67005206 Contact Us For Availability
1
Screw (2) MAY 12846902 Contact Us For Availability
2
Rail (2) MAY 67003840 Contact Us For Availability
2
MAY C8973801 MAY C8973801 Contact Us For Availability
2
Bucket, Upper MAY 12664901 Contact Us For Availability
2
Overlay MAY 67005207 Contact Us For Availability
2
Compressor (Includes Items 4, 6, 8 & 24) MAY 12049772 Contact Us For Availability
3
MAY M0580205 MAY M0580205 Contact Us For Availability
3
MAY 67004169 MAY 67004169 Contact Us For Availability
3
Shelf, Supports (Right) MAY 10941102 Contact Us For Availability
3
Shelf, Supports (Left) MAY 12015002 Contact Us For Availability
3
MAY 67002304 MAY 67002304 Contact Us For Availability
3
Bucket, Lower (1) MAY 12557501 Contact Us For Availability
3
MOTOR, EVAP FAN MAY 67005023 Contact Us For Availability
3
Board, Control (Jazz) MAY W10206638 Contact Us For Availability
3
Screw (3) MAY 67006433 Contact Us For Availability
4
MAY 67007017 MAY 67007017 Contact Us For Availability
4
MAY 67006688 MAY 67006688 Contact Us For Availability
4
MAY 67004973 MAY 67004973 Contact Us For Availability
4
Shelf, Lower (3) MAY 67004691 Contact Us For Availability
4
MAY 67006517 MAY 67006517 Contact Us For Availability
4
MAY 67006478 MAY 67006478 Contact Us For Availability
4
MAY 67007020 MAY 67007020 Contact Us For Availability
4
MAY 12583101 MAY 12583101 Contact Us For Availability
4
Socket, Light (2) MAY 67005886 Contact Us For Availability
4
Overload/Relay (Service) MAY 2303345 Contact Us For Availability
4
Overload/Relay With Capacitor (Production) MAY 67006660 Contact Us For Availability
5
MAY 67004447 MAY 67004447 Contact Us For Availability
5
Shelf, Upper (2) MAY 67003895 Contact Us For Availability
5
MAY M0311604 MAY M0311604 Contact Us For Availability
5
MAY 67005633 MAY 67005633 Contact Us For Availability
5
MAY 12619103 MAY 12619103 Contact Us For Availability
6
MAY 67006880 MAY 67006880 Contact Us For Availability
6
MAY 12790103 MAY 12790103 Contact Us For Availability
6
Bucket, Door (Gallon) MAY 67004339 Contact Us For Availability
6
MAY 67004291 MAY 67004291 Contact Us For Availability
6
MAY 67005038 MAY 67005038 Contact Us For Availability
7
MAY 12629801B MAY 12629801B Contact Us For Availability
7
MAY 12582801 MAY 12582801 Contact Us For Availability
7
MAY 67004884 MAY 67004884 Contact Us For Availability
7
MAY 67006235 MAY 67006235 Contact Us For Availability
7
MAY W10133482 MAY W10133482 Contact Us For Availability
7
MAY W10133828 MAY W10133828 Contact Us For Availability
7
MAY W10133491 MAY W10133491 Contact Us For Availability
7
MAY W10133835 MAY W10133835 Contact Us For Availability
7
MAY 12403405 MAY 12403405 Contact Us For Availability
7
MAY 67004755 MAY 67004755 Contact Us For Availability
8
Damper, Control MAY W10127430 Contact Us For Availability
8
Socket, Light MAY W10134763 Contact Us For Availability
8
Trim, Upr Shelf MAY 12314101 Contact Us For Availability
8
Screw MAY M0220432 Contact Us For Availability
8
Bucket, Door (3) MAY 67004285 Contact Us For Availability
8
MAY W10169660 MAY W10169660 Contact Us For Availability
8
Capacitor (Production) MAY 67007162 Contact Us For Availability
9
Screw (3) MAY 67006415 Contact Us For Availability
9
MAY W10130496 MAY W10130496 Contact Us For Availability
9
MAY 67005639 MAY 67005639 Contact Us For Availability
9
MAY 12790003 MAY 12790003 Contact Us For Availability
9
MAY 67002957 MAY 67002957 Contact Us For Availability
9
MAY 67004290 MAY 67004290 Contact Us For Availability
9
Screw (2) MAY 67006425 Contact Us For Availability
9
MAY 67004135 MAY 67004135 Contact Us For Availability
10
MAY 67004247 MAY 67004247 Contact Us For Availability
10
MAY 67006495 MAY 67006495 Contact Us For Availability
10
MAY 67004181 MAY 67004181 Contact Us For Availability
10
MAY W10119678 MAY W10119678 Contact Us For Availability
10
MAY W10119680 MAY W10119680 Contact Us For Availability
10
Blade, Evap. Fan MAY 2169142 Contact Us For Availability
10
MAY 12866903 MAY 12866903 Contact Us For Availability
11
MAY W10175691 MAY W10175691 Contact Us For Availability
11
MAY 12774102 MAY 12774102 Contact Us For Availability
11
SWITCH, LIGHT MAY 12466103 Contact Us For Availability
11
Trim, Handle MAY 67004297 Contact Us For Availability
11
Shroud, Evap Fan MAY 67004253 Contact Us For Availability
11
MAY 67004753 MAY 67004753 Contact Us For Availability
12
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
12
MAY 67001508 MAY 67001508 Contact Us For Availability
12
PAN, BASE MAY 67005889 Contact Us For Availability
13
MAY 67004177 MAY 67004177 Contact Us For Availability
13
SEAL, O RING MAY M0500703 Contact Us For Availability
13
Clip, Handle MAY W10132420 Contact Us For Availability
13
MAY 67007052 MAY 67007052 Contact Us For Availability
14
MAY 67001507 MAY 67001507 Contact Us For Availability
14
Frame, Crisper (Large) MAY 67004140 Contact Us For Availability
14
MAY 12456901 MAY 12456901 Contact Us For Availability
14
MAY 67002291 MAY 67002291 Contact Us For Availability
14
Motor, Condenser MAY W10211284 Contact Us For Availability
15
MAY 67004133 MAY 67004133 Contact Us For Availability
15
Linkage, Chiller (2) MAY 67002293 Contact Us For Availability
16
MAY W10137330 MAY W10137330 Contact Us For Availability
16
MAY M0238105 MAY M0238105 Contact Us For Availability
16
Linkage, Center Chiller MAY 67002292 Contact Us For Availability
16
Shroud, Condenser Fan MAY 67006661 Contact Us For Availability
17
Liner, Foil MAY 12691607 Contact Us For Availability
17
MAY 12771403 MAY 12771403 Contact Us For Availability
17
Frame, Chiller MAY 67002294 Contact Us For Availability
17
MAY W10162928 MAY W10162928 Contact Us For Availability
18
GROMMET, BRACKET MAY 61004743 Contact Us For Availability
18
MAY 12691609SP MAY 12691609SP Contact Us For Availability
18
MAY 67004249 MAY 67004249 Contact Us For Availability
18
Door, Chiller (Rt) MAY 67002297 Contact Us For Availability
19
Screw (6) MAY 67006400 Contact Us For Availability
19
MAY 67003136 MAY 67003136 Contact Us For Availability
19
Bracket, Motor (3) MAY 67004953 Contact Us For Availability
20
Screw, Roller (Rear) MAY 67006697 Contact Us For Availability
20
MAY 67004132 MAY 67004132 Contact Us For Availability
20
PLUG, BUTTON MAY 67002417 Contact Us For Availability
20
MAY 67002296 MAY 67002296 Contact Us For Availability
21
Nameplate, Amana MAY 12528501 Contact Us For Availability
21
MAY W10169658 MAY W10169658 Contact Us For Availability
22
MAY 12634802 MAY 12634802 Contact Us For Availability
22
Mount, Crisper MAY 67004883 Contact Us For Availability
22
Screw (4) MAY 67006573 Contact Us For Availability
23
MAY 67005933 MAY 67005933 Contact Us For Availability
23
MAY 67002235 MAY 67002235 Contact Us For Availability
24
Drier MAY W10143759 Contact Us For Availability
25
MAY 10547003 MAY 10547003 Contact Us For Availability
26
SCREW MAY 67006737 Contact Us For Availability
27
MAY 67005332 MAY 67005332 Contact Us For Availability
28
MAY 67006700 MAY 67006700 Contact Us For Availability
29
MAY 12580401 MAY 12580401 Contact Us For Availability
31
MAY 12590101 MAY 12590101 Contact Us For Availability
31
MAY 12590102 MAY 12590102 Contact Us For Availability
32
MAY 12639323SP MAY 12639323SP Contact Us For Availability
33
MAY 67002226 MAY 67002226 Contact Us For Availability
35
MAY 12889905 MAY 12889905 Contact Us For Availability
36
MAY 12558101WD MAY 12558101WD Contact Us For Availability
37
MAY 67006838 MAY 67006838 Contact Us For Availability
38
MAY 10623003 MAY 10623003 Contact Us For Availability
39
MAY 13044710 MAY 13044710 Contact Us For Availability
40
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
41
MAY 12689303 MAY 12689303 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (White) MAY 350930 Contact Us For Availability
NI
Customer Touch-Up Material (Black) MAY 350939 Contact Us For Availability
NI
Customer Touch-Up Material (Primer, White) MAY 350942 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
Customer Touch-Up Material (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
