Model Whirlpool AC2104XT1 AIR CONDITIONER – Common Parts & Diagrams

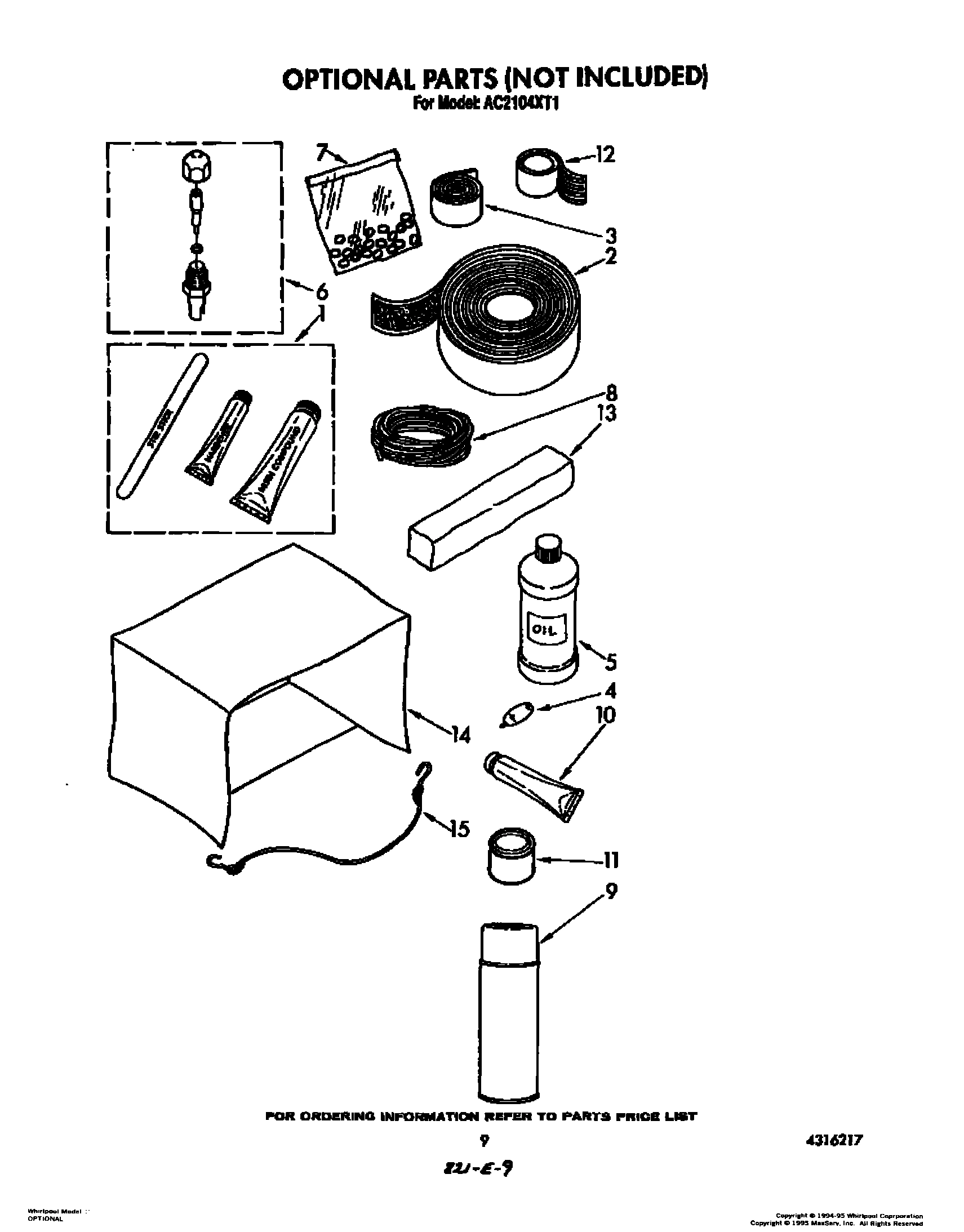

06 - OPTIONAL

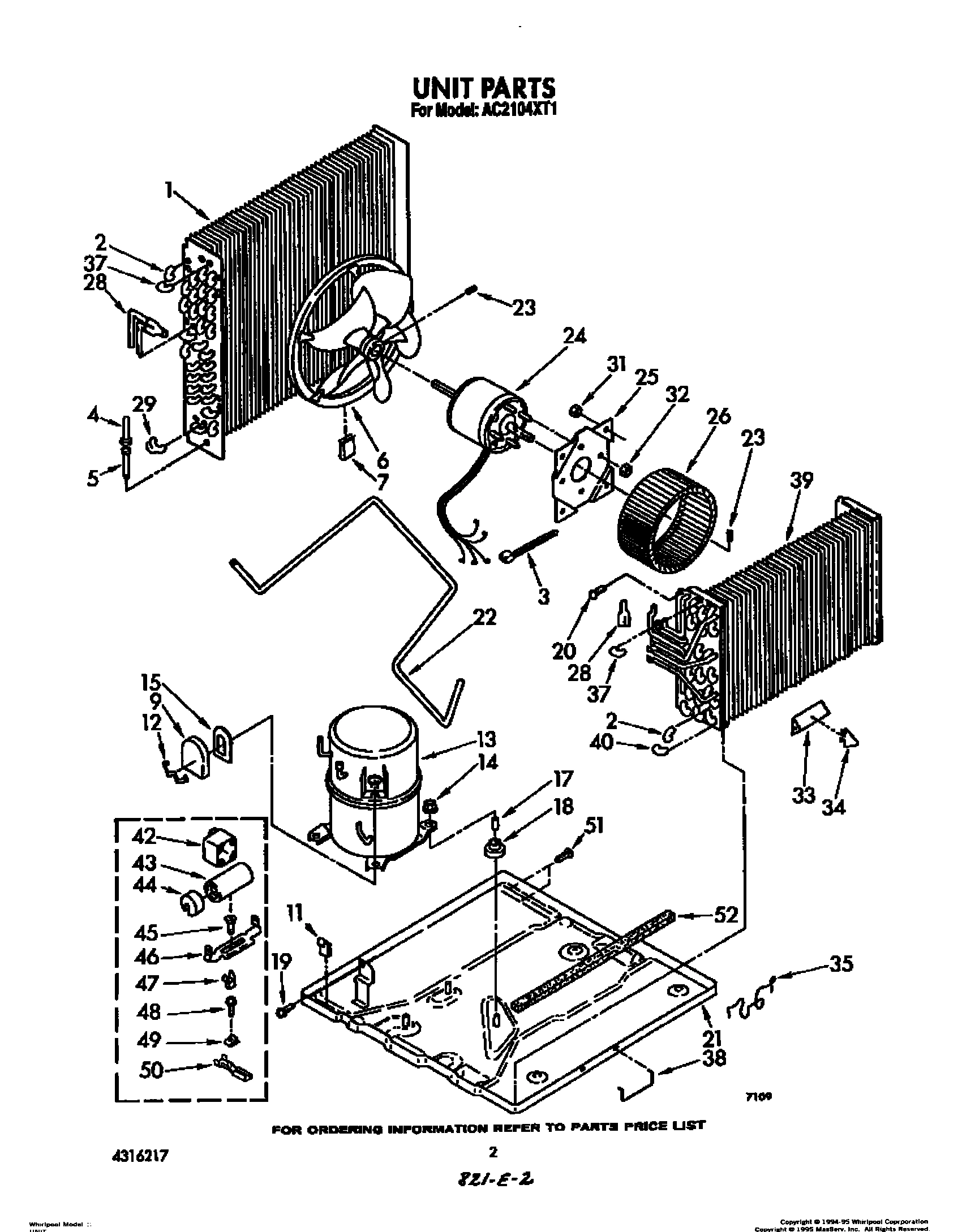

02 - UNIT, LIT/OPTIONAL

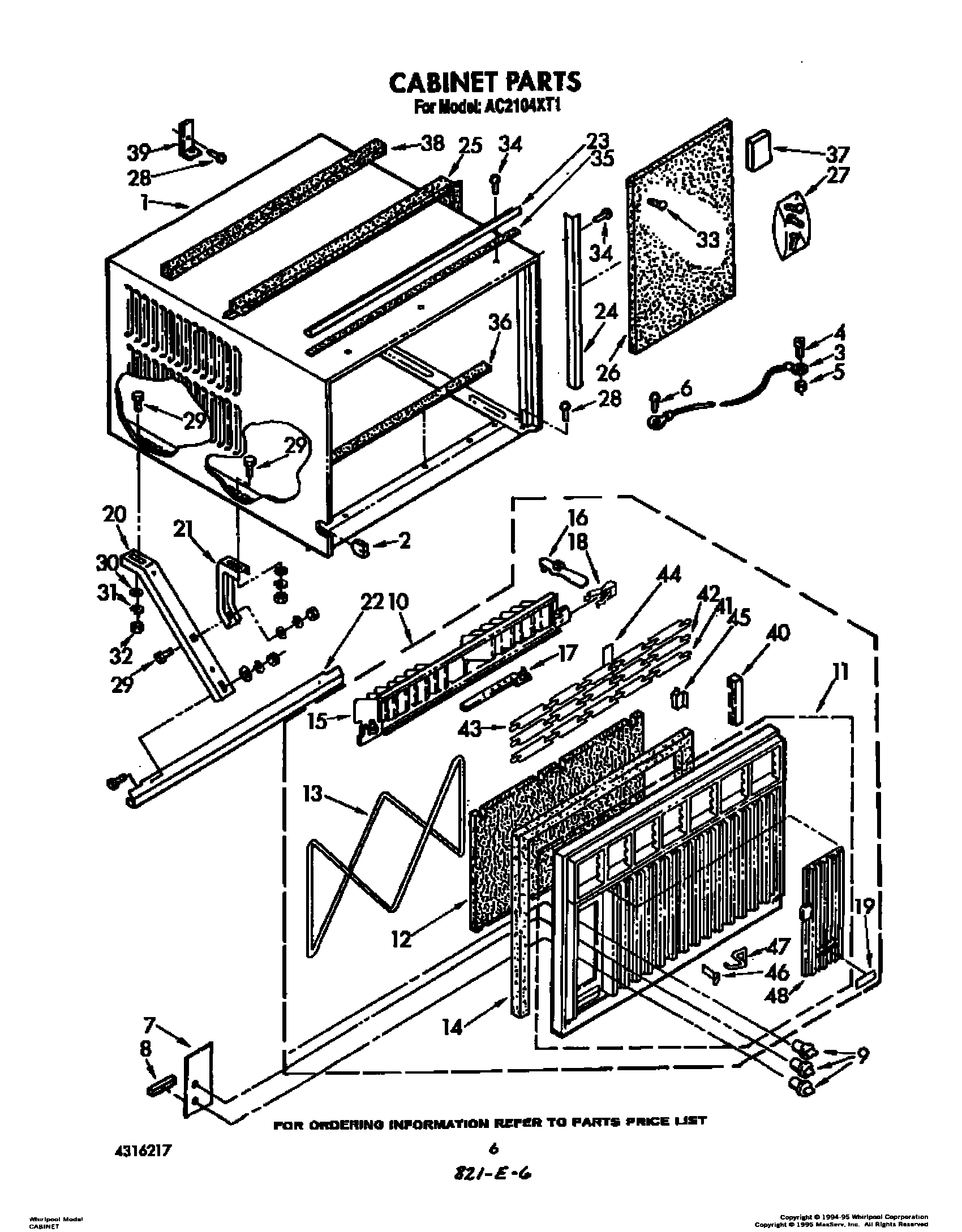

04 - CABINET

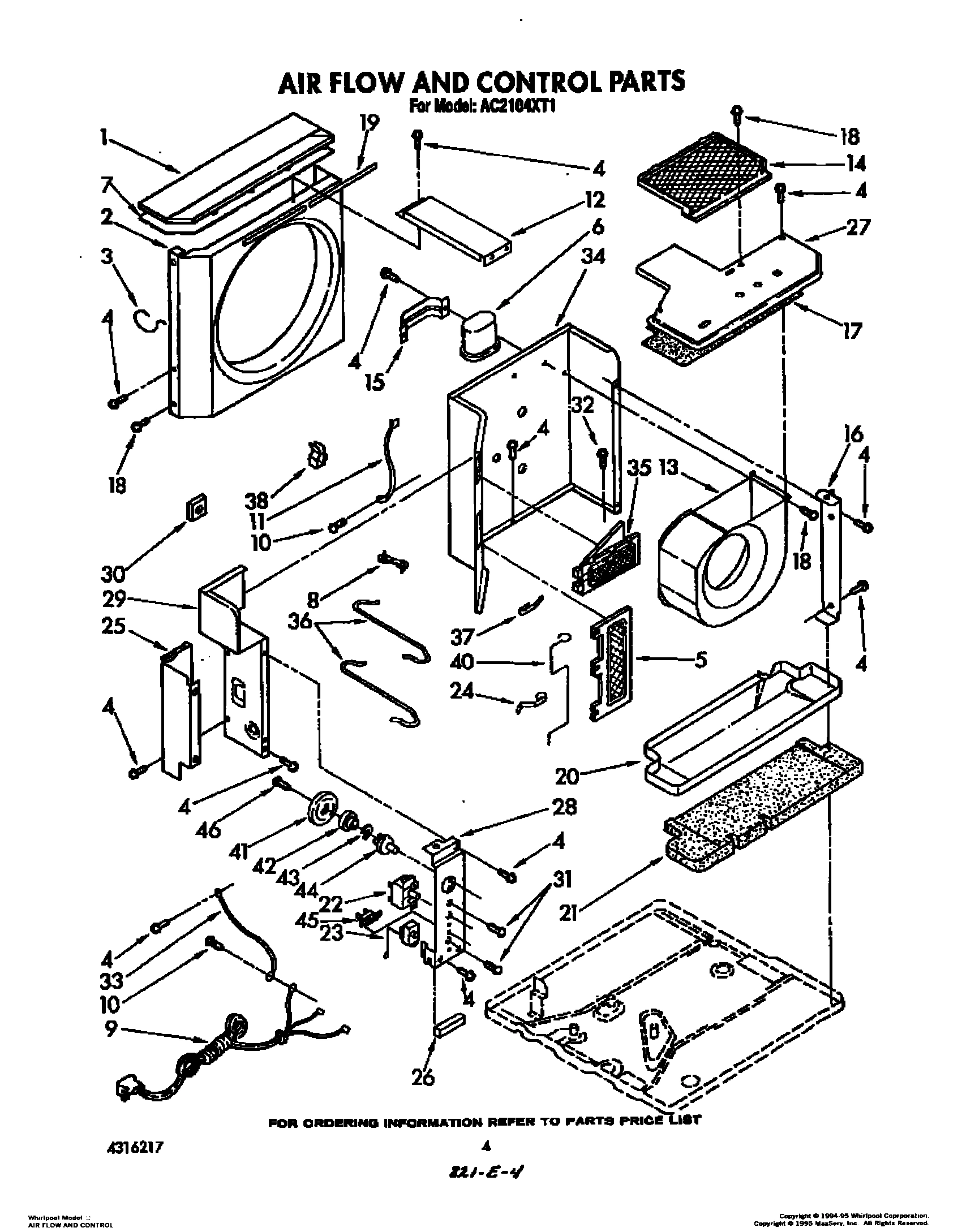

03 - AIR FLOW AND CONTROL

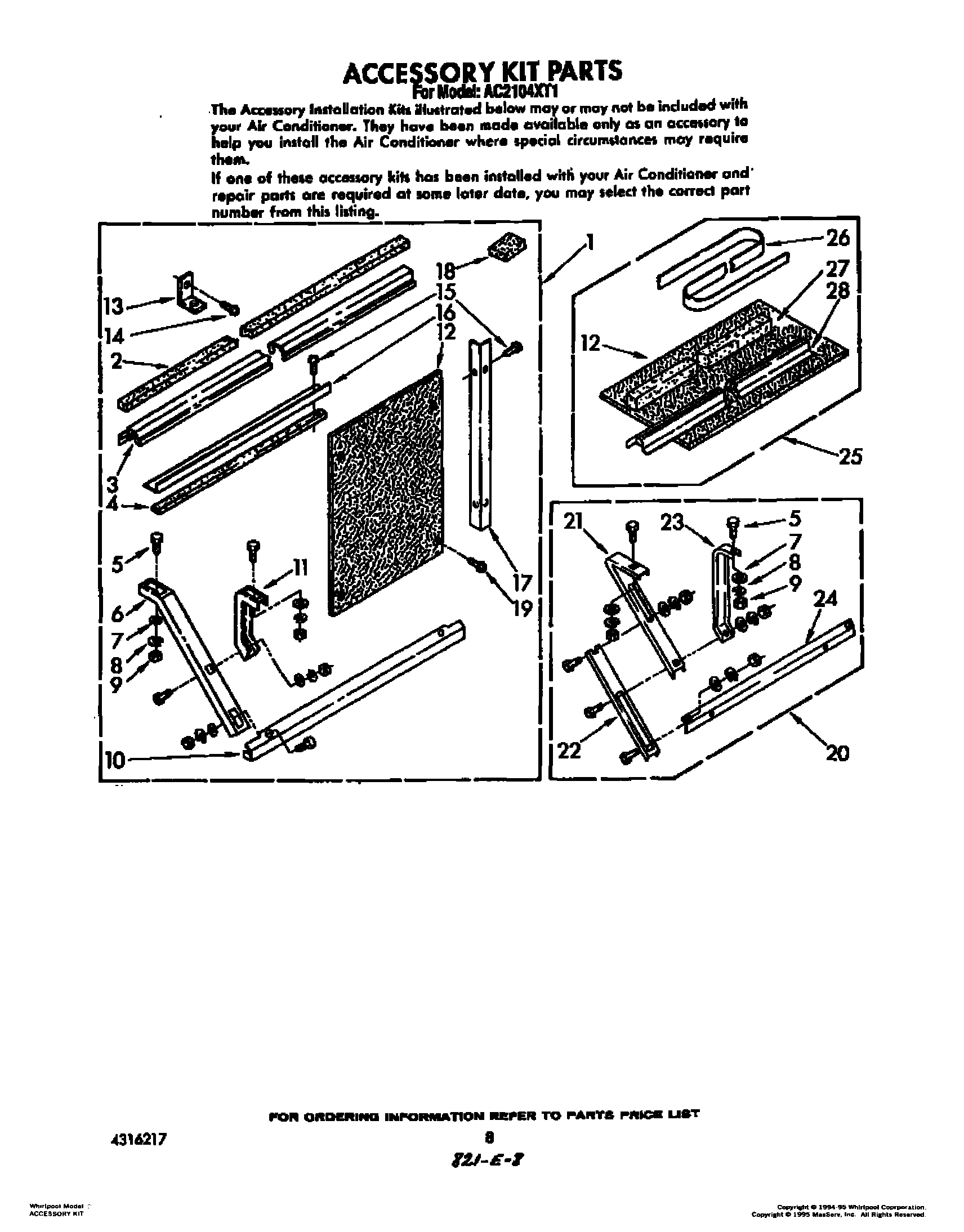

05 - ACCESSORY KIT
Common parts from model Whirlpool AC2104XT1 AIR CONDITIONER
Guide, Energy WPL LIT1156362 Contact Us For Availability
List, Repair Parts WPL LIT4316217 Contact Us For Availability
Guide, Use And Care WPL LIT950355 Contact Us For Availability
Wiring Diagram WPL LIT950898 Contact Us For Availability
Sheet, Tech WPL LIT950985 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
1
Condenser WPL 948874 Contact Us For Availability
1
Cabinet WPL 1157805 Contact Us For Availability
1
Cover, Condenser Shroud WPL 997264 Contact Us For Availability
1
Kit, Standard Installation WPL 485854 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Evaporator (7) WPL 855199 Contact Us For Availability
2
Grommet, Cable WPL 647849 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Shroud, Condenser WPL 953028 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Wire, Ground WPL 857022 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Clip, Shroud (2) WPL 477442 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Screw, 8-32 x 3/8 (Machine) WPL 488853 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 859205 Contact Us For Availability
5
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Door, Fresh Air WPL 997222 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Blade, Fan WPL 997226 Contact Us For Availability
6
Screw, 8-32 x 3/8 (Standard) WPL 488854 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Capacitor, Running WPL 952090 Contact Us For Availability
7
Clip, Balancing WPL 876034 Contact Us For Availability
7
Plate, Escutcheon WPL 952547 Contact Us For Availability
7
Seal, Condenser Fin WPL 948600 Contact Us For Availability
8
Washer, Lock (6) WPL 486009 Contact Us For Availability
8
Spacer, Plate (3) WPL 469175 Contact Us For Availability
8
Clamp, Cable WPL 648791 Contact Us For Availability
9
Cover, Terminal WPL 855948 Contact Us For Availability
9
Knob, Control (2) WPL 947264 Contact Us For Availability
9
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
9
Cable, Appliance WPL 649125 Contact Us For Availability
10
Front, Cabinet WPL 950886 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
11
Clamp, Tube (2) WPL 642684 Contact Us For Availability
11
Front, Cabinet WPL 950548 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Wire, Ground WPL 998177 Contact Us For Availability
12
Retainer, Terminal Cover WPL 475062 Contact Us For Availability
12
Filter, Air WPL 649958 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
12
Unit, Support WPL 1155100 Contact Us For Availability
13
Compressor WPL 484349 Contact Us For Availability
13
Retainer, Filter WPL 476707 Contact Us For Availability
13
Housing, Blower Wheel WPL 997220 Contact Us For Availability
13
Bracket, Window Lock WPL 644228 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Locknut (4) WPL 858121 Contact Us For Availability
14
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
14
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Guard, Evaporator Impeller WPL 856506 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Gasket, Cover WPL 949083 Contact Us For Availability
15
Louver, Vertical WPL 649957 Contact Us For Availability
15
Bracket, Capacitor WPL 852992 Contact Us For Availability
16
Handle, Louver WPL 852010 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Adapter, Evaporator Header Plate WPL 997397 Contact Us For Availability
17
Sleeve (4) WPL 858116 Contact Us For Availability
17
Link, Louver WPL 852209 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Insulation, Evaporator Cover WPL 948234 Contact Us For Availability
18
Grommet (4) WPL 475041 Contact Us For Availability
18
Spring, Louver WPL 641484 Contact Us For Availability
18
Spacer, Block WPL 995274 Contact Us For Availability
19
Nameplate WPL 950547 Contact Us For Availability
19
Seal, Side Condenser WPL 997266 Contact Us For Availability
20
Pan, Condensate WPL 997238 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
21
Base WPL 997202 Contact Us For Availability
21
Insulation, Pan WPL 997237 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
22
Tube, Restrictor WPL 998147 Contact Us For Availability
22
Switch, Rotary WPL 950522 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
23
Screw, Set 5/16 x 1/4 WPL 595085 Contact Us For Availability
23
Control, Temperature WPL 951072 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
24
Motor, Fan WPL 952072 Contact Us For Availability
24
Spring, Fresh Air WPL 998178 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
25
Plate, Mounting WPL 998024 Contact Us For Availability
25
Cover, Control Access WPL 952208 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
26
Wheel, Blower WPL 647618 Contact Us For Availability
26
Seal, panel WPL 853170 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
27
Bag, Accessory WPL 993848 Contact Us For Availability
27
Cover, Evaporator WPL 997269 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
28
Flow Divider, Condenser WPL 466527 Contact Us For Availability
28
Panel, Control WPL 950545 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
29
Bend, Return 3-Way WPL 953167 Contact Us For Availability
29
Extension, Dividing Wall WPL 997330 Contact Us For Availability
30
Seal, Tube WPL 948520 Contact Us For Availability
31
Locknut WPL 858122 Contact Us For Availability
31
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
32
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
33
Anticipator WPL 996773 Contact Us For Availability
33
Ground Wire WPL 997388 Contact Us For Availability
34
Clip WPL 949564 Contact Us For Availability
34
Wall, Dividing WPL 953040 Contact Us For Availability
35
Clip, Front Mtg (2) WPL 852272 Contact Us For Availability
35
Door, Exhaust WPL 997221 Contact Us For Availability
36
Seal, Cabinet Bottom WPL 852220 Contact Us For Availability
36
Wire, Control Fresh Air Exhaust WPL 859370 Contact Us For Availability
37
Bend, Return (3) WPL 998682 Contact Us For Availability
37
Spring, Door WPL 859369 Contact Us For Availability
38
Handle, Base WPL 647971 Contact Us For Availability
38
Clamp, Cable (2) WPL 947072 Contact Us For Availability
39
Evaporator WPL 948499 Contact Us For Availability
40
Bend, Return (4) WPL 998211 Contact Us For Availability
40
Rack, Louver (2) WPL 649955 Contact Us For Availability
40
Actuator, Door WPL 997223 Contact Us For Availability
41
Louver, Handle WPL 947267 Contact Us For Availability
41
Cam, Control WPL 647882 Contact Us For Availability
42
Relay WPL 484177 Contact Us For Availability
42
Louver, Notched WPL 947268 Contact Us For Availability
42
Bushing, Control WPL 647879 Contact Us For Availability
43
Capacitor WPL 47406 Contact Us For Availability
43
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
43
Washer WPL 647881 Contact Us For Availability
44
Cap Capacitor WPL 791868 Contact Us For Availability
44
Retainer, Louver (4) WPL 855998 Contact Us For Availability
44
Shaft, Control WPL 852669 Contact Us For Availability
45
Screw, 10 x 5/8 (2) WPL 487880 Contact Us For Availability
45
Clip, Louver (4) WPL 855999 Contact Us For Availability
45
Switch, Sliding WPL 950529 Contact Us For Availability
46
Bracket, Capacitor WPL 41629 Contact Us For Availability
46
Catch, Door WPL 649949 Contact Us For Availability
46
Screw, 8-16 x 5/8 WPL 489092 Contact Us For Availability
47
Multiplier, Terminal WPL 90654 Contact Us For Availability
47
Hinge, Door WPL 649943 Contact Us For Availability
48
Door, Control WPL 950546 Contact Us For Availability
50
Clip, Terminal (8) WPL 45571 Contact Us For Availability
52
Hard Start Kit WPL 485883 Contact Us For Availability
× ![]()
