Model Whirlpool AC1824XM0 AIR CONDITIONER – Common Parts & Diagrams

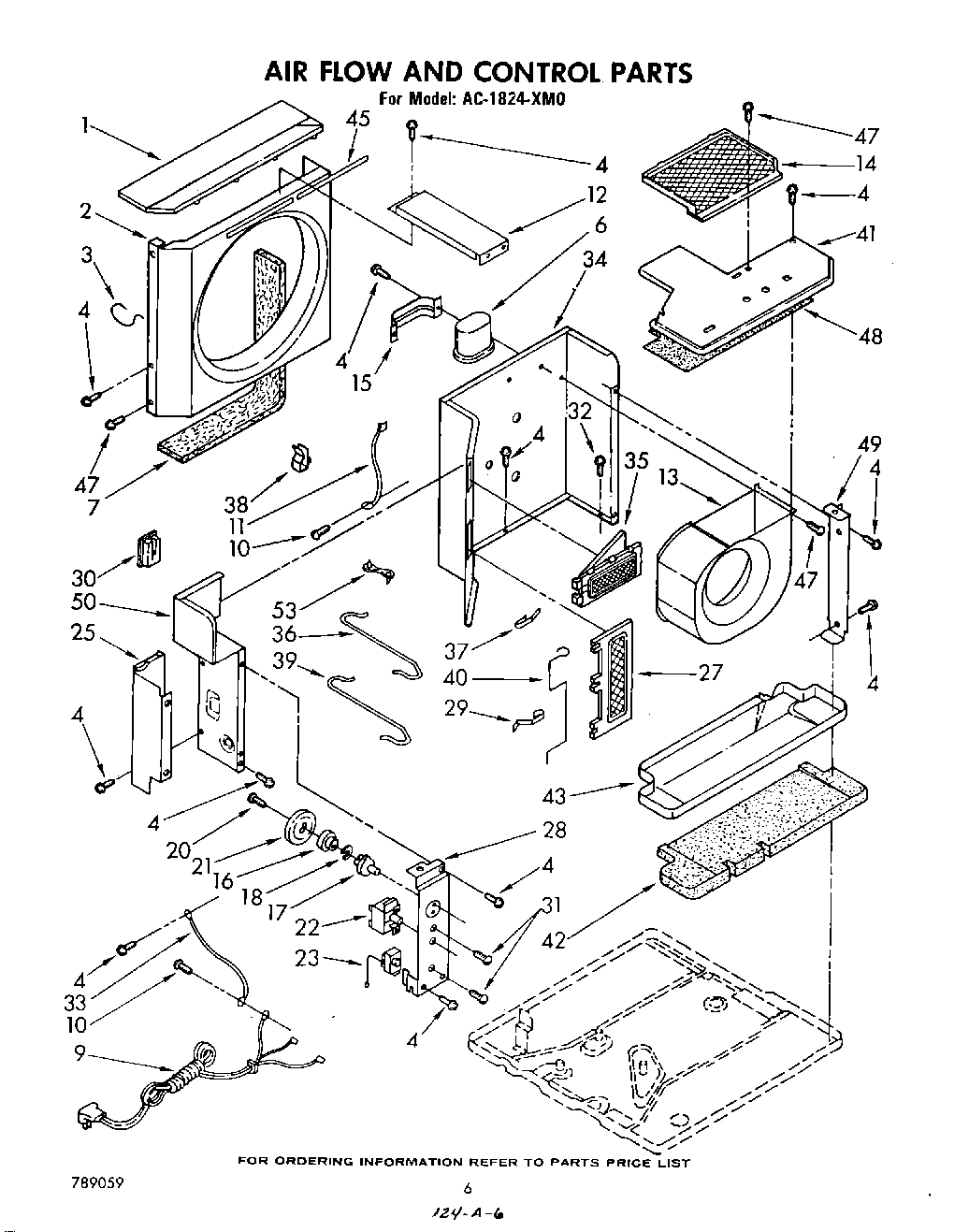

04 - AIR FLOW AND CONTROL, LIT/OPTIONAL

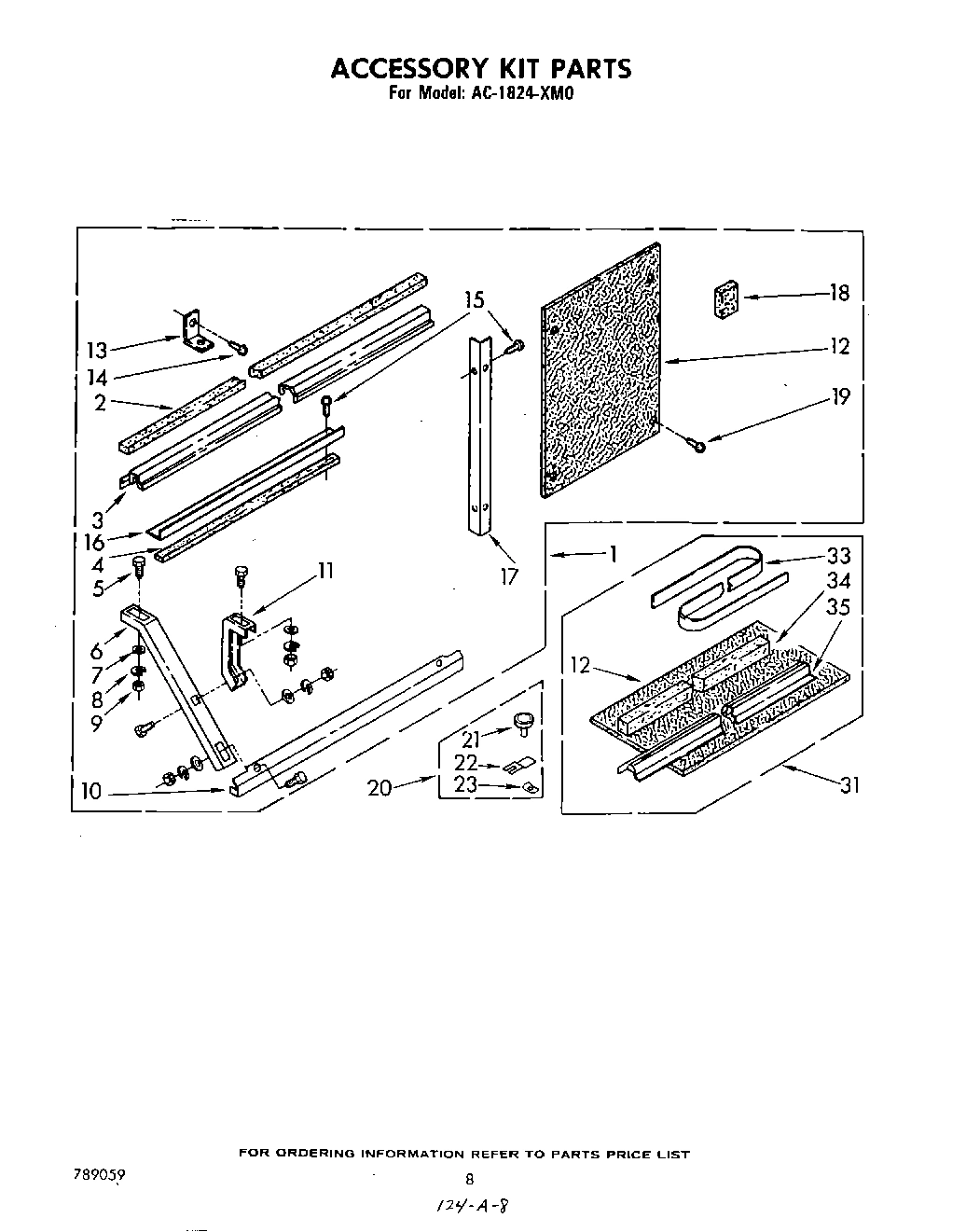

05 - ACCESSORY KIT
03 - UNIT
02 - CABINET
Common parts from model Whirlpool AC1824XM0 AIR CONDITIONER
1
Kit, Standard Installation WPL 485854 Contact Us For Availability
1
Condenser WPL 949956 Contact Us For Availability
1
Cabinet WPL 997280 Contact Us For Availability
2
Bend, Return Condenser (15) Evaporator (7) WPL 855199 Contact Us For Availability
2
Grommet, Cable WPL 647849 Contact Us For Availability
3
Wire, Ground WPL 857022 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Screw, 8-32 x 3/8 (Machine) WPL 488853 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
6
Blade, Fan WPL 997226 Contact Us For Availability
6
Screw, 8-32 x 3/8 (Standard) WPL 488854 Contact Us For Availability
7
Clip, Balancing WPL 485334 Contact Us For Availability
7
Plate, Escutcheon WPL 950542 Contact Us For Availability
8
Retainer, Cover WPL 475062 Contact Us For Availability
8
Spacer, Plate (3) WPL 469175 Contact Us For Availability
9
Cover, Terminal WPL 855948 Contact Us For Availability
9
Knob, Control (3) WPL 947264 Contact Us For Availability
10
Harness, Wiring WPL 484136 Contact Us For Availability
10
Front, Cabinet (Complete) WPL 950704 Contact Us For Availability
11
Clamp, Tube (2) WPL 471088 Contact Us For Availability
11
Front, Cabinet WPL 950550 Contact Us For Availability
12
Support, Unit WPL 997262 Contact Us For Availability
12
Bend, Return (1) WPL 998682 Contact Us For Availability
12
Filter, Air WPL 649958 Contact Us For Availability
13
Housing, Blower Wheel WPL 997220 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Compressor WPL 484440 Contact Us For Availability
13
Retainer, Filter WPL 476707 Contact Us For Availability
14
Guard, Evaporator Impeller WPL 856506 Contact Us For Availability
14
Locknut (4) WPL 858121 Contact Us For Availability
14
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
14
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
15
Bracket (Upper) WPL 852992 Contact Us For Availability
15
Tube, Connect WPL 475635 Contact Us For Availability
15
Louver, Vertical WPL 649957 Contact Us For Availability
16
Bushing WPL 647879 Contact Us For Availability
16
Handle, Louver WPL 852010 Contact Us For Availability
17
Shaft, Control WPL 852669 Contact Us For Availability
17
Sleeve (4) WPL 858116 Contact Us For Availability
17
Link, Louver WPL 852209 Contact Us For Availability
18
Spring, Washer WPL 647881 Contact Us For Availability
18
Grommet (4) WPL 475041 Contact Us For Availability
18
Spring, Louver WPL 641484 Contact Us For Availability
19
Clip, Front Mounting (3) WPL 852272 Contact Us For Availability
20
Screw, 8 x 1/2 WPL 489092 Contact Us For Availability
20
Support, Cabinet (2) WPL 649945 Contact Us For Availability
20
Kit, Condensate Cup WPL 876135 Contact Us For Availability
21
Cam WPL 647882 Contact Us For Availability
21
Retainer, Support (2) WPL 649946 Contact Us For Availability
21
Cup, Condensate WPL 997285 Contact Us For Availability
21
Base WPL 997202 Contact Us For Availability
22
Switch, Rotary WPL 950519 Contact Us For Availability
22
Bracket, Support WPL 649947 Contact Us For Availability
22
support, cup WPL 997284 Contact Us For Availability
22
Tube Restrictor (2) WPL 997379 Contact Us For Availability
23
Control, Temperature WPL 949297 Contact Us For Availability
23
Angle, Top WPL 644271 Contact Us For Availability
23
Speed Nut WPL 997286 Contact Us For Availability
23
Screw, Set 5/16 x 1/4 WPL 595085 Contact Us For Availability
24
Angle, Side (2) WPL 644272 Contact Us For Availability
24
Motor, Fan WPL 998347 Contact Us For Availability
25
Cover, Control Access WPL 997278 Contact Us For Availability
25
Plate, Mounting WPL 998024 Contact Us For Availability
26
Board, Filler WPL 644303 Contact Us For Availability
26
Wheel, Blower WPL 647618 Contact Us For Availability
27
Door Assembly, Fresh Air WPL 997222 Contact Us For Availability
27
Gasket, Terminal Cover WPL 949083 Contact Us For Availability
27
Bag, Accessory WPL 993848 Contact Us For Availability
28
Panel, Control WPL 852217 Contact Us For Availability
28
Screw, No.10 Wood x 3/4`` WPL 487371 Contact Us For Availability
28
Bend, Return (3) WPL 854624 Contact Us For Availability
29
Spring WPL 998178 Contact Us For Availability
29
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
30
Seal, Tube WPL 948519 Contact Us For Availability
31
Washer, Lock (6) WPL 486009 Contact Us For Availability
31
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
Kit, Wide Window WPL 485856 Contact Us For Availability
31
Locknut WPL 858122 Contact Us For Availability
32
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
32
Nut, Hex 1/4-20 (6) WPL 486035 Contact Us For Availability
33
Ground Wire WPL 997388 Contact Us For Availability
33
Strip, Seal WPL 856979 Contact Us For Availability
33
Anticipator WPL 472046 Contact Us For Availability
34
Wall, Dividing (Requires Insulation No. 46993 WPL 997208 Contact Us For Availability
34
Seal, Meeting Rail WPL 470800 Contact Us For Availability
34
Clip WPL 997677 Contact Us For Availability
35
Door, Exhaust WPL 997221 Contact Us For Availability
35
Seal, Strip WPL 855265 Contact Us For Availability
35
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
35
Instructions, Installation (Standard Installa WPL 998618 Contact Us For Availability
36
Wire, Control (Fresh Air) WPL 859370 Contact Us For Availability
36
Seal, Cabinet Bottom WPL 852220 Contact Us For Availability
37
Spring, Exhaust Door WPL 859369 Contact Us For Availability
37
Block, Spacer (4) WPL 995274 Contact Us For Availability
37
Seal WPL 853170 Contact Us For Availability
38
Clamp, Cable (2) WPL 947072 Contact Us For Availability
38
Seal, Meeting WPL 469877 Contact Us For Availability
38
Handle, Base WPL 647971 Contact Us For Availability
39
Wire, Control Exhaust WPL 647883 Contact Us For Availability
39
Bracket, Window Lock WPL 644288 Contact Us For Availability
39
Evaporator WPL 947330 Contact Us For Availability
40
Actuator, Door WPL 997223 Contact Us For Availability
40
Relay WPL 484177 Contact Us For Availability
40
Rack, Louver (2) WPL 853772 Contact Us For Availability
41
Cover, Evaporator WPL 997269 Contact Us For Availability
41
xCapacitor WPL 47406 Contact Us For Availability
41
Handle, Louver WPL 947267 Contact Us For Availability
42
Insulation, Pan WPL 997237 Contact Us For Availability
42
xCap, Capacitor WPL 791868 Contact Us For Availability
42
Louver, Horizontal (Notched) WPL 947268 Contact Us For Availability
43
Pan, Condensate WPL 997238 Contact Us For Availability
43
xScrew, SM No.10 x 5/8 (2) WPL 487880 Contact Us For Availability
43
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
44
xBracket, Capacitor WPL 41629 Contact Us For Availability
44
Retainer, Louver Clip (4) WPL 855998 Contact Us For Availability
45
Seal, Side Condenser WPL 997266 Contact Us For Availability
45
Multiplier, Terminal WPL 90654 Contact Us For Availability
45
Clip, Retainer (4) WPL 855999 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
48
Insulation, Evaporator Cover WPL 948234 Contact Us For Availability
48
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
48
xClip, Terminal (8) WPL 45571 Contact Us For Availability
48
Start Assist Kit WPL 484220 Contact Us For Availability
48
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
48
Start Kit, Compressor WPL 485883 Contact Us For Availability
48
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
49
Adapter, Evaporator Header Plate WPL 997239 Contact Us For Availability
50
Extension Assembly, Divider Wall WPL 997342 Contact Us For Availability
53
Cover, Winter WPL 484069 Contact Us For Availability
53
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
53
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
53
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
53
Lacquer, Starlight Gray ( WPL 485426 Contact Us For Availability
53
WPL 648791 WPL 648791 Contact Us For Availability
53
WPL 789059 WPL 789059 Contact Us For Availability
53
WPL 799351 WPL 799351 Contact Us For Availability
53
WPL 854937 WPL 854937 Contact Us For Availability
53
WPL 854938 WPL 854938 Contact Us For Availability
53
WPL 855438 WPL 855438 Contact Us For Availability
53
WPL 950355 WPL 950355 Contact Us For Availability
53
WPL 950701 WPL 950701 Contact Us For Availability
53
WPL 950705 WPL 950705 Contact Us For Availability
53
WPL 950706 WPL 950706 Contact Us For Availability
53
WPL 997236 WPL 997236 Contact Us For Availability
× ![]()
